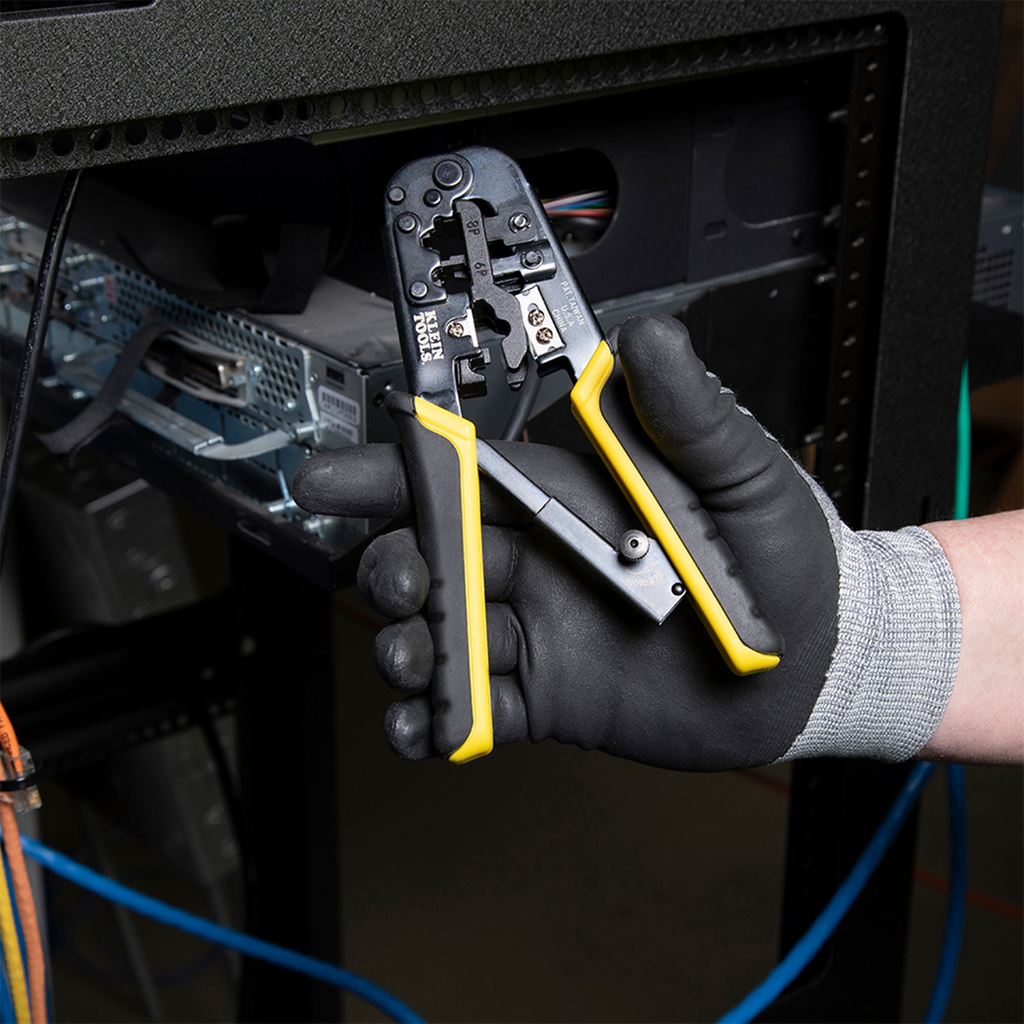

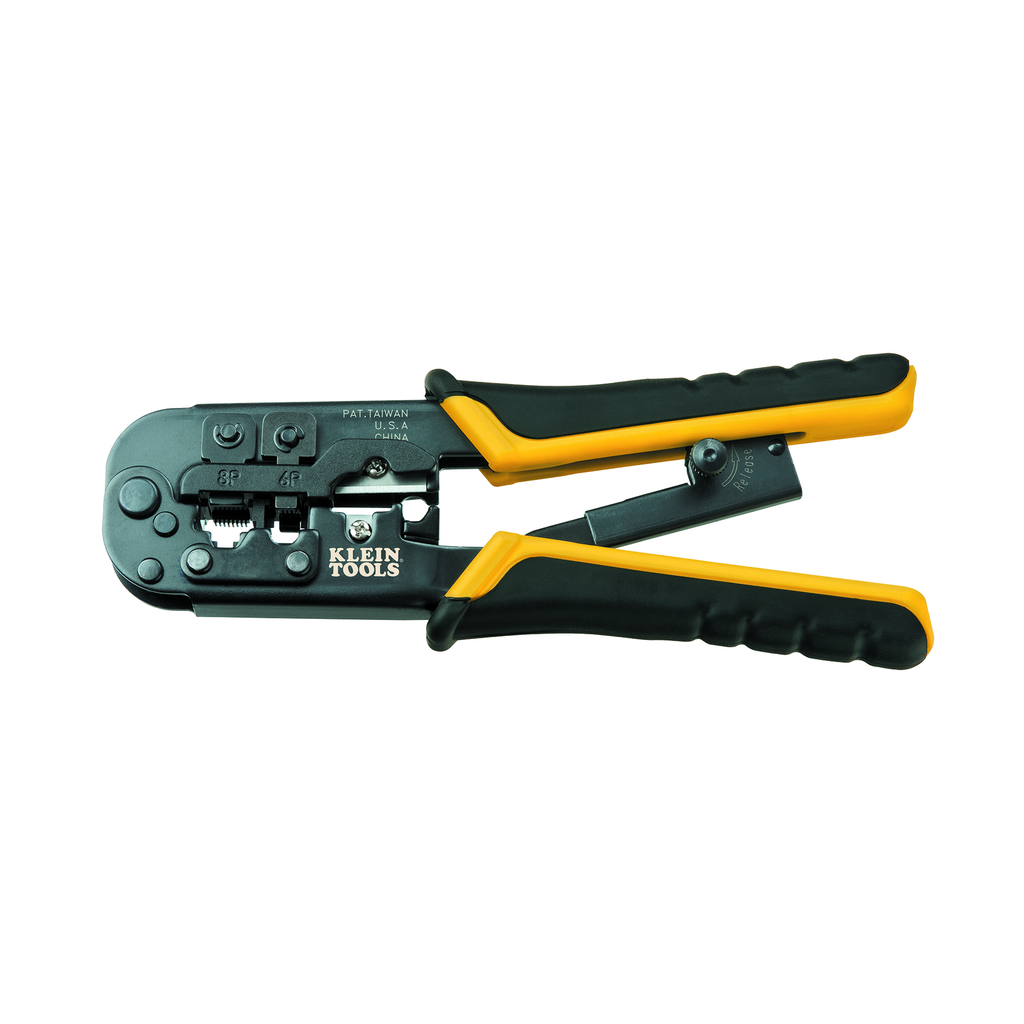

Ratcheting Modular Crimper/Stripper

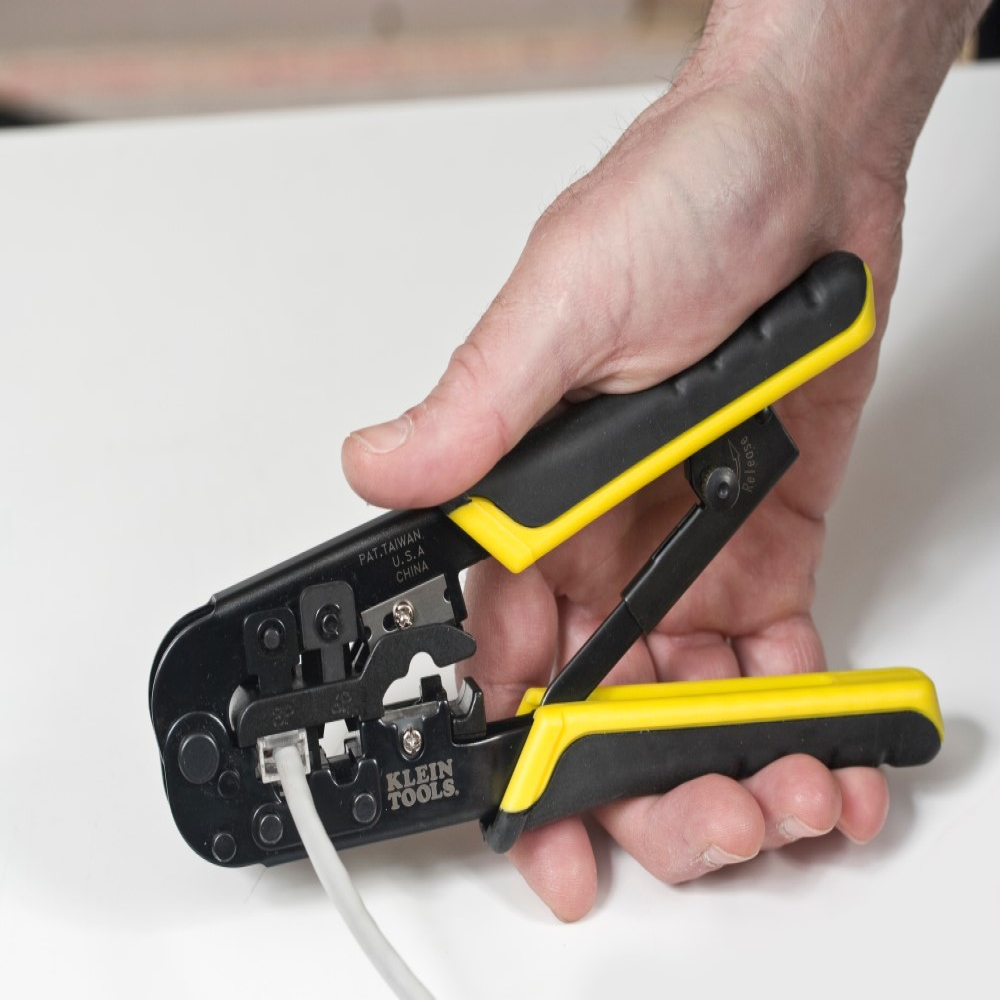

The all-in-one Ratcheting Modular Crimper/Stripper cuts, strips and crimps paired-conductor cables (round STP/UTP and flat-satin phone cables). Durably made from steel and finished in black oxide for high performance, it provides fast, reliable modular-crimp connector installation for voice- and data applications. Crimps 4, 6, and 8 position modular connectors (RJ22, RJ11/RJ12, and RJ45).

Features

• Full-cycle ratchet mechanism prevents the release of the connector prior to full compression
• Crimping dies are precision ground from high-carbon steel
• Fast, reliable modular-crimp connector installation for voice and data applications
• AMP® is a registered trademark of TYCO, Inc.

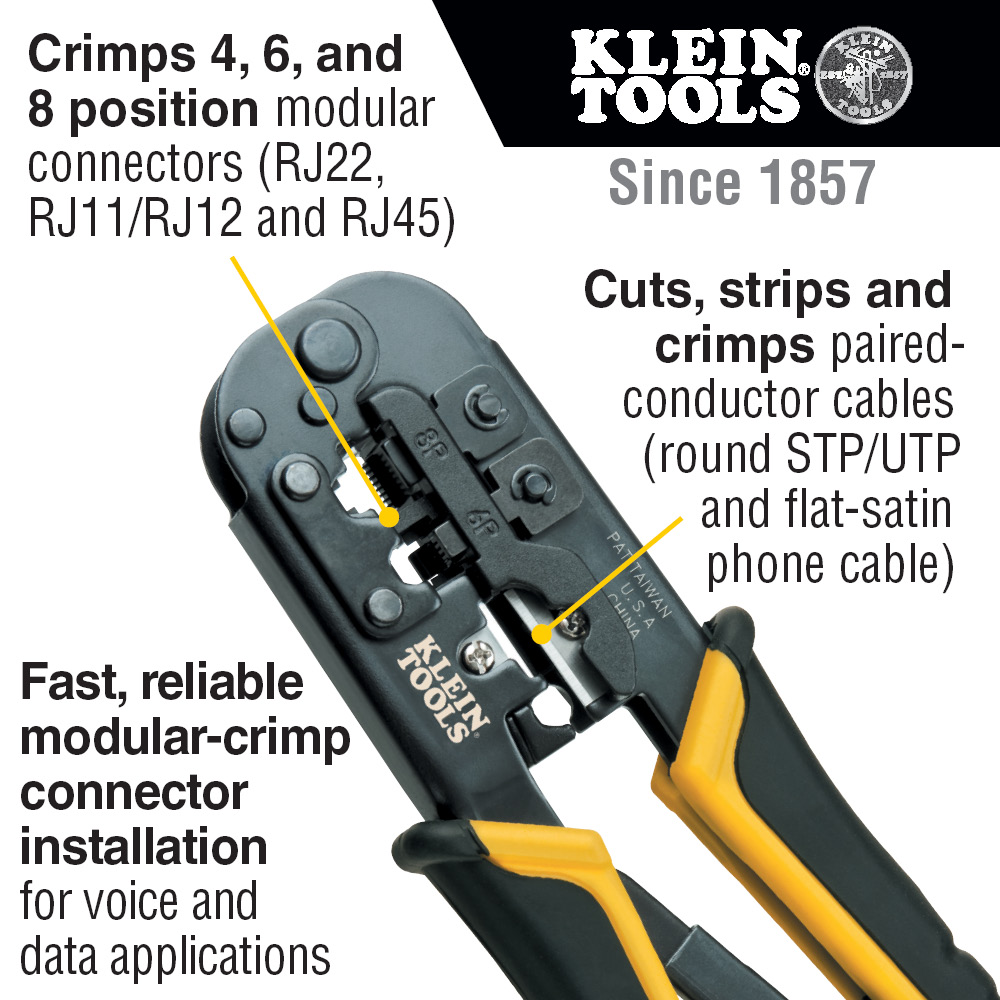

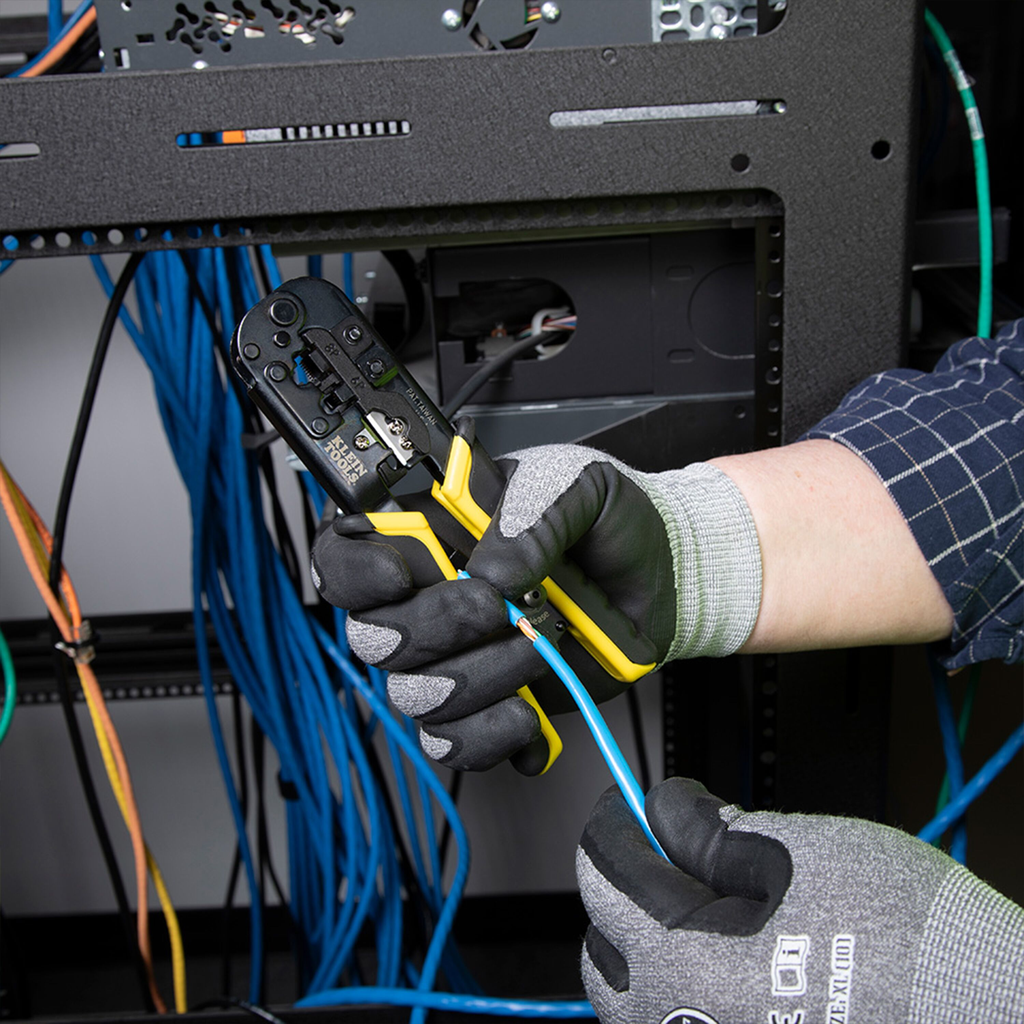

• All-In-One Tool, cuts, strips and crimps paired-conductor cables (round STP/UTP and flat-satin phone cable)
• Cable parameters: 28-22 AWG (.08 - .34 mm²) flat or round; solid or stranded telephone & data.
• Optimized for standard modular plugs and proper cable preparation and full insertion of conductors are required for best results
• Yellow and black grips enhance comfort, visibility, and allow quick identification
• Crimps 4, 6, and 8 position modular connectors (RJ22, RJ11/RJ12, and RJ45 Cat5e/Cat6)
• Ratchet safety-release and a blade-guard on cutting and stripping knives reduce risk of injury
• Designed for Western Electric (WE)/Stewart Stamping (SS)-type standard modular connectors (not compatible with pass-thru connectors or Cat7/Cat8 plugs)
• Replacement blade set available (Cat. No. VDV999-064)
• Three crimping dies (8-position, 6-position and 4-position).
• Not for use with AMP® connectors.

Warnings

• Never use on or near live electrical circuits.
• Always wear approved eye protection.
• Read carefully and understand instructions before using this tool.
• NOT insulated. Will NOT protect against electrical shock.

Specifications

• Depth: 7.5000 in
• Overall Length: 7.5 Inch (19.1 cm)
• Width: 4.0000 in
• Connector Type: RJ45, RJ11, RJ12 Standard
• Type: Crimper
• Handle Color: Yellow/Black
• Material: Steel with Black Oxide
• Height: 0.9000 in
• Weight: 0.1000 lbs
• Position/Pair/Conductors: 4-Position, 1-Pair/2-Conductor, 4-Position, 2-Pair/4-Conductor 6-Position, 2-Pair/4-Conductor, 6-Position, 3-Pair/6-Conductor, 8-Position, 4-Pair/8-Conductor
• Cable Type: CAT3, CAT5e, CAT6/6A
• Application: Round STP/UTP, Flat Satin Phone Cable 22 - 28 AWG (0.08 - 0.34 mm²)
