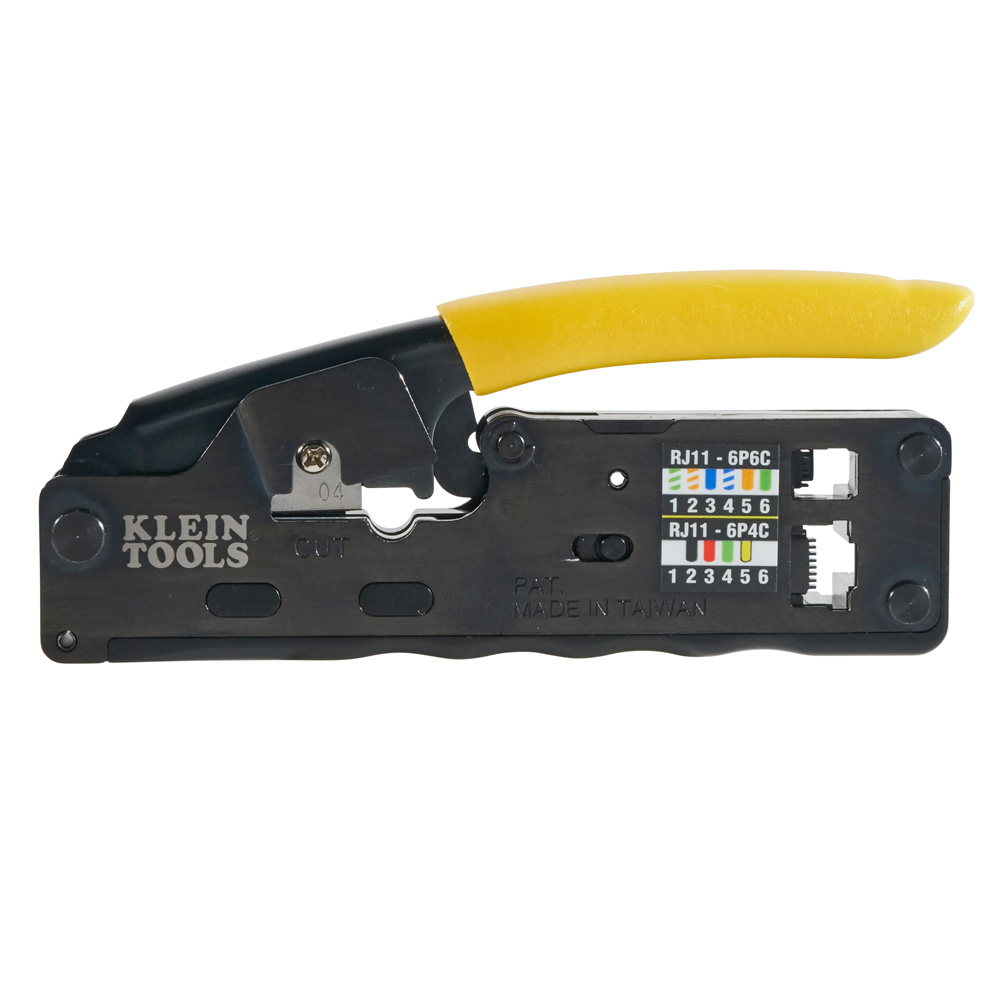

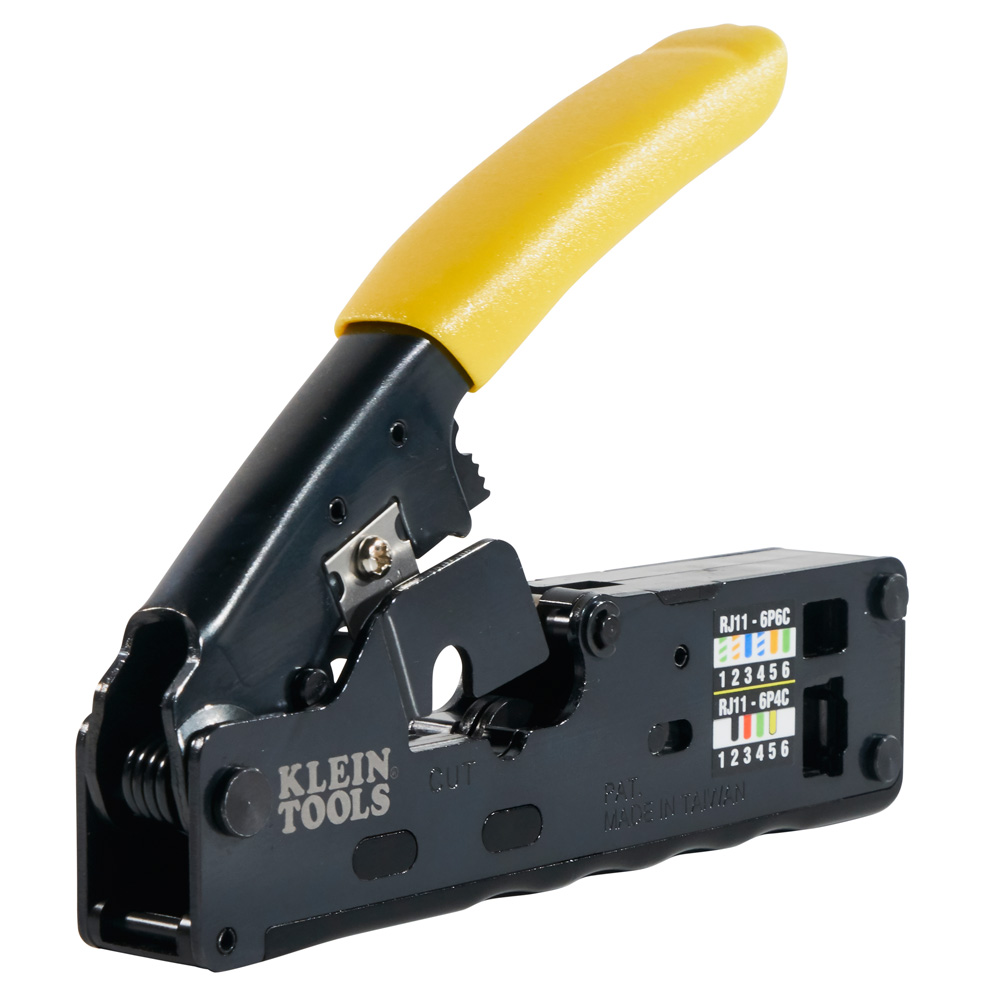

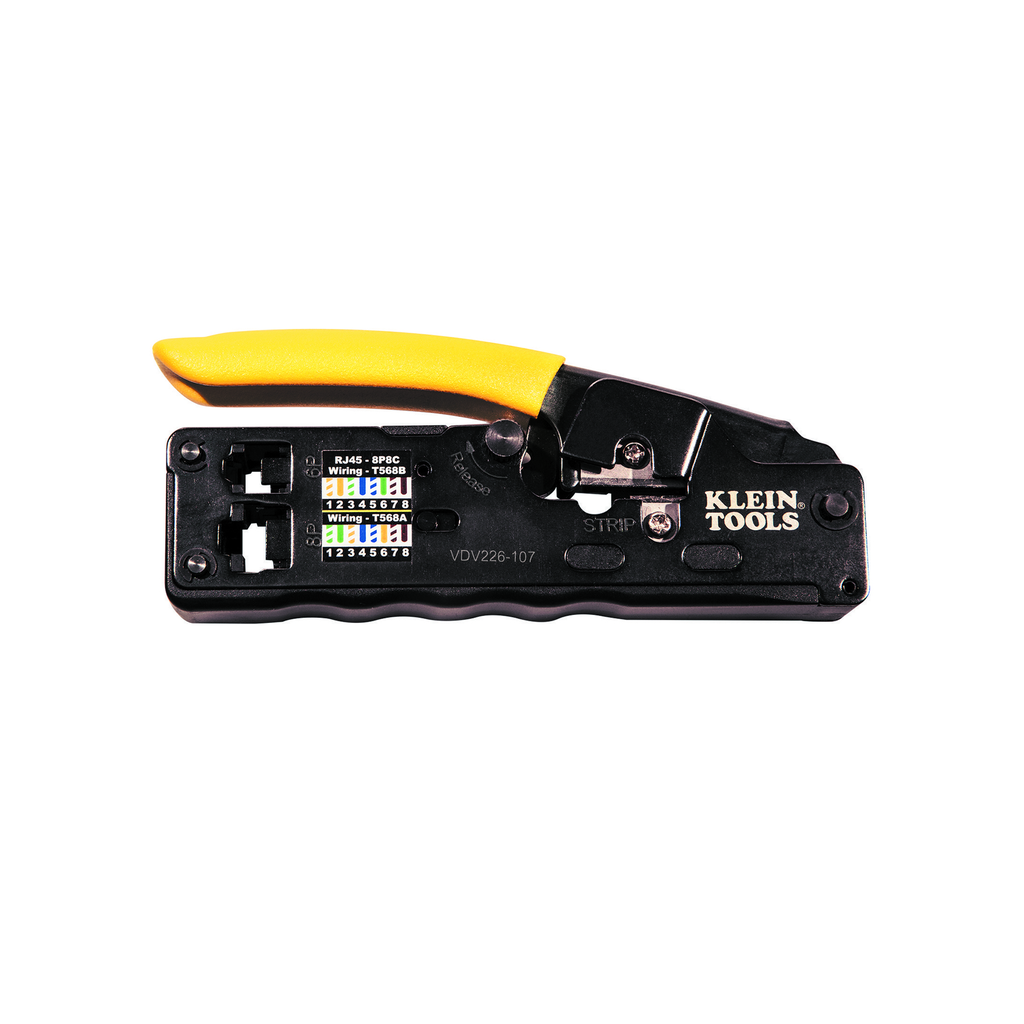

Ratcheting Data Cable Crimper / Stripper / Cutter, Compact

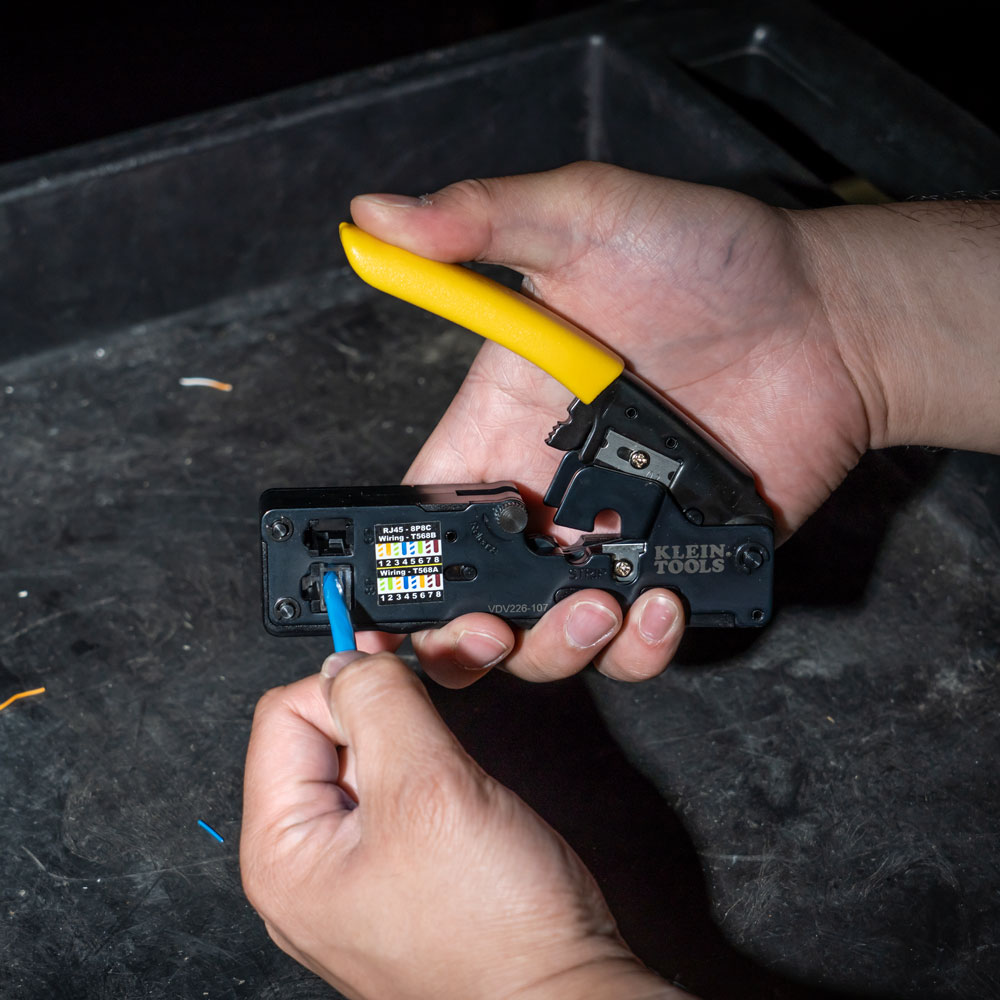

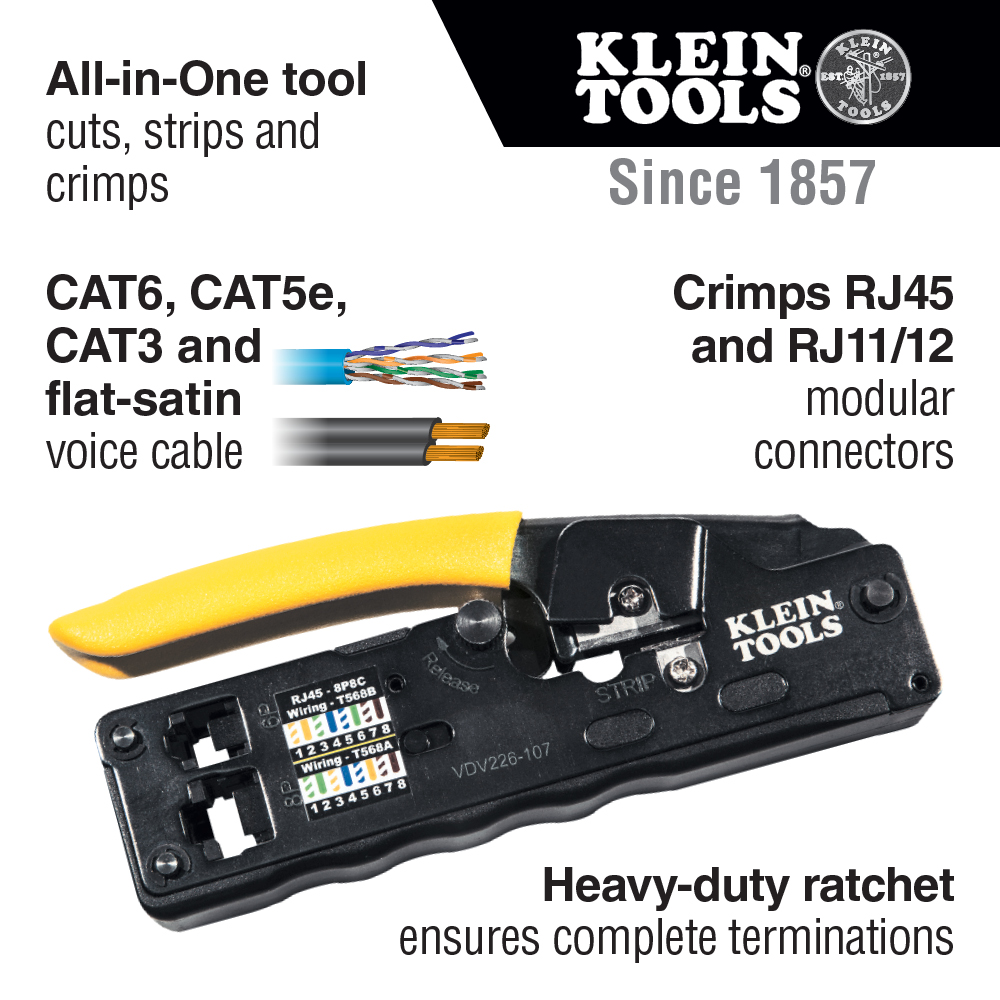

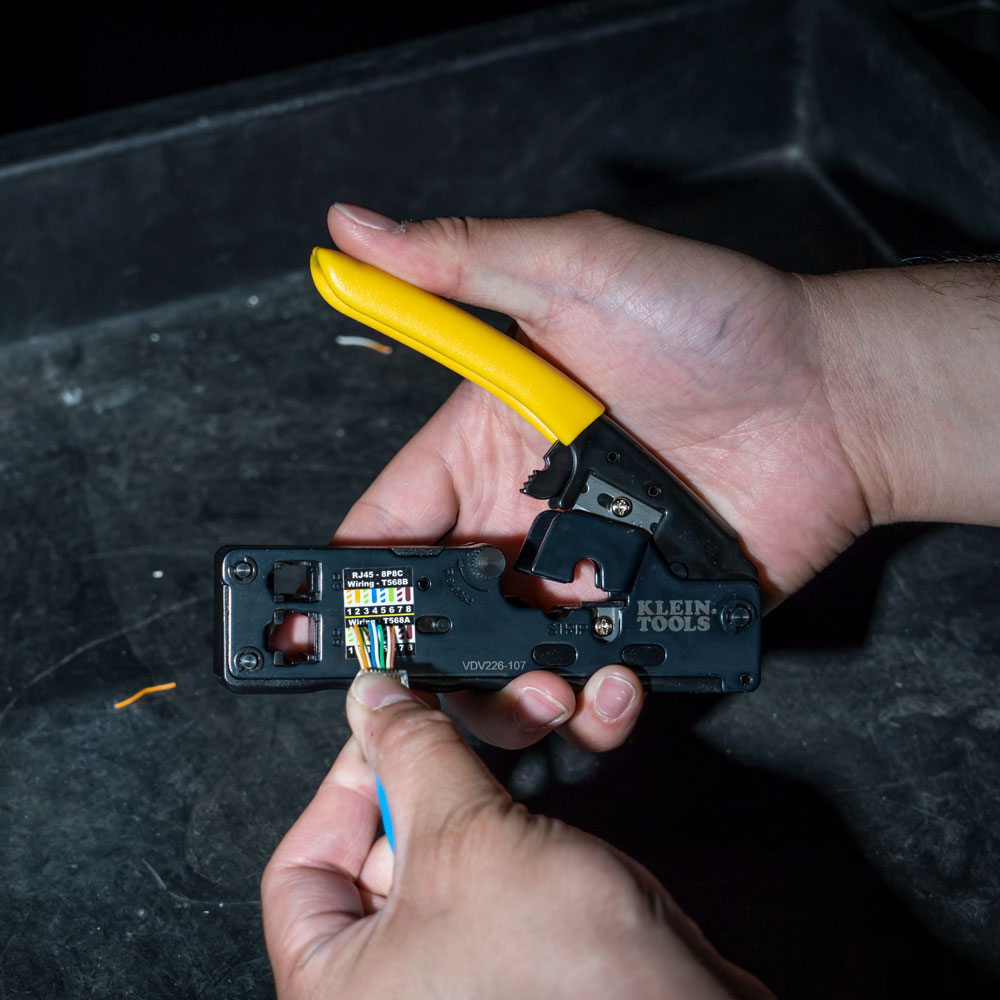

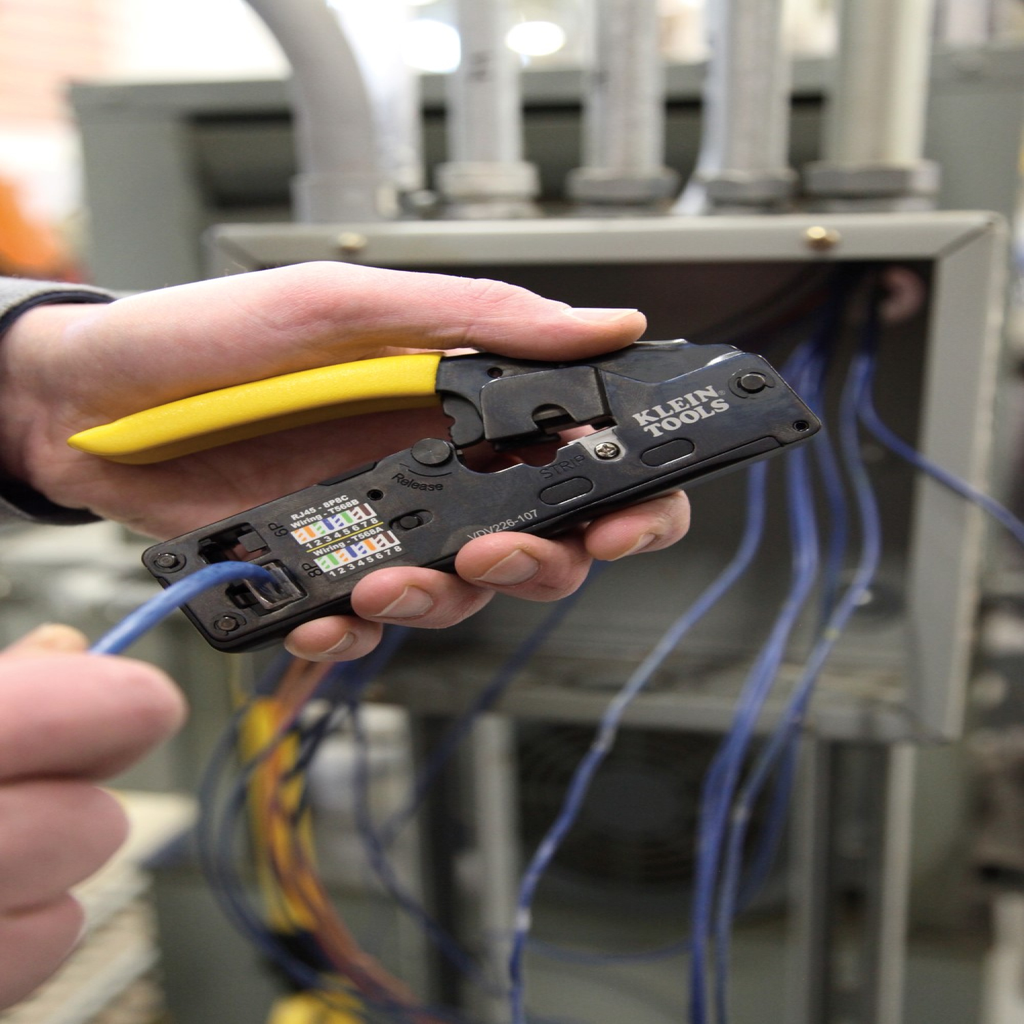

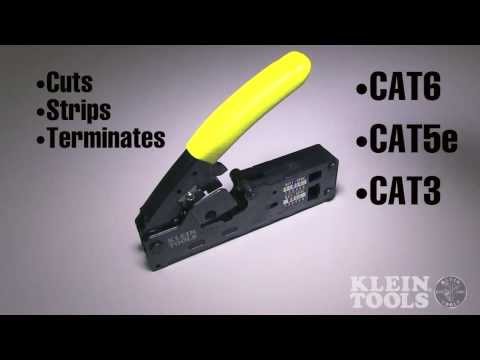

The Compact Ratcheting Modular Crimper/Stripper/Cutter provides fast, reliable connector termination for voice and data applications. This all-in-one tool, cuts, strips, and crimps CAT6, CAT5e, CAT3 and flat-satin voice cables. Its direct lateral crimp action provides more even, precise contact termination across all pins than ordinary indirect crimp tools. A compact, ergonomic design provides easy usage and storage.

Features

• Not for use with AMP® connectors

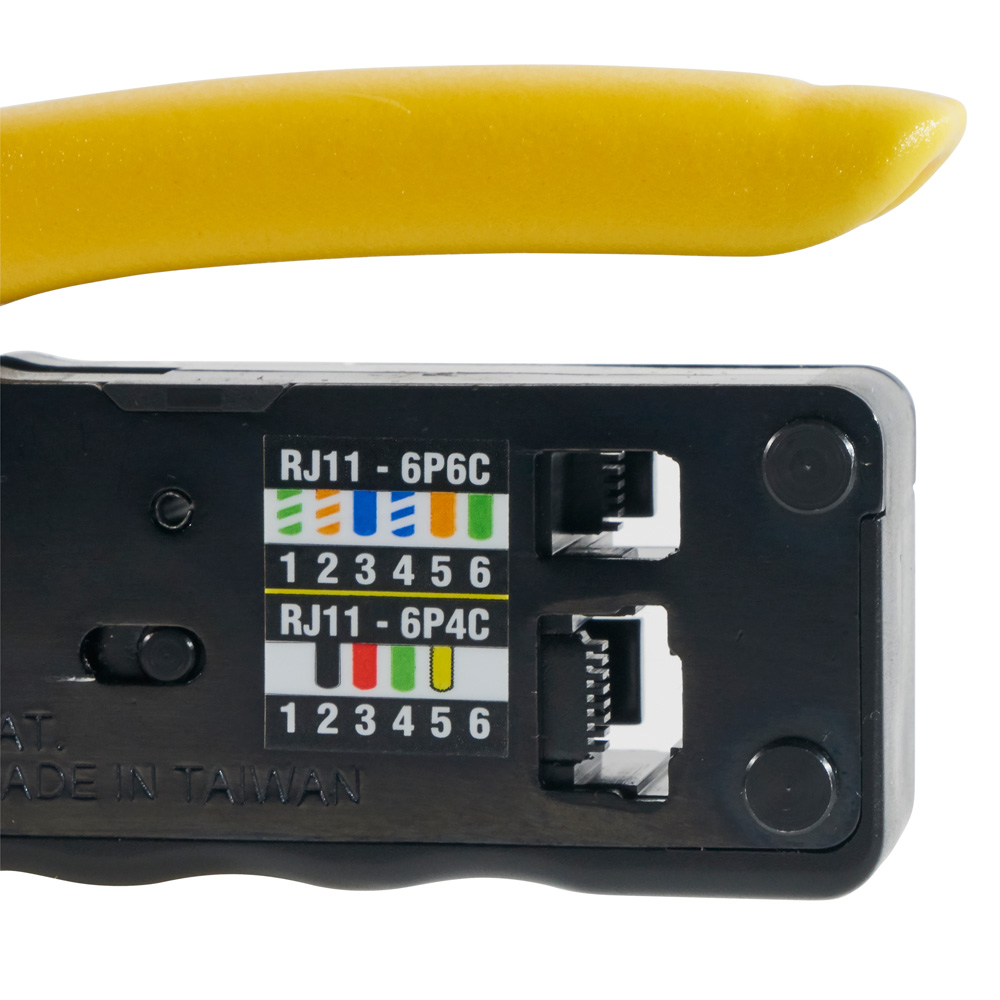

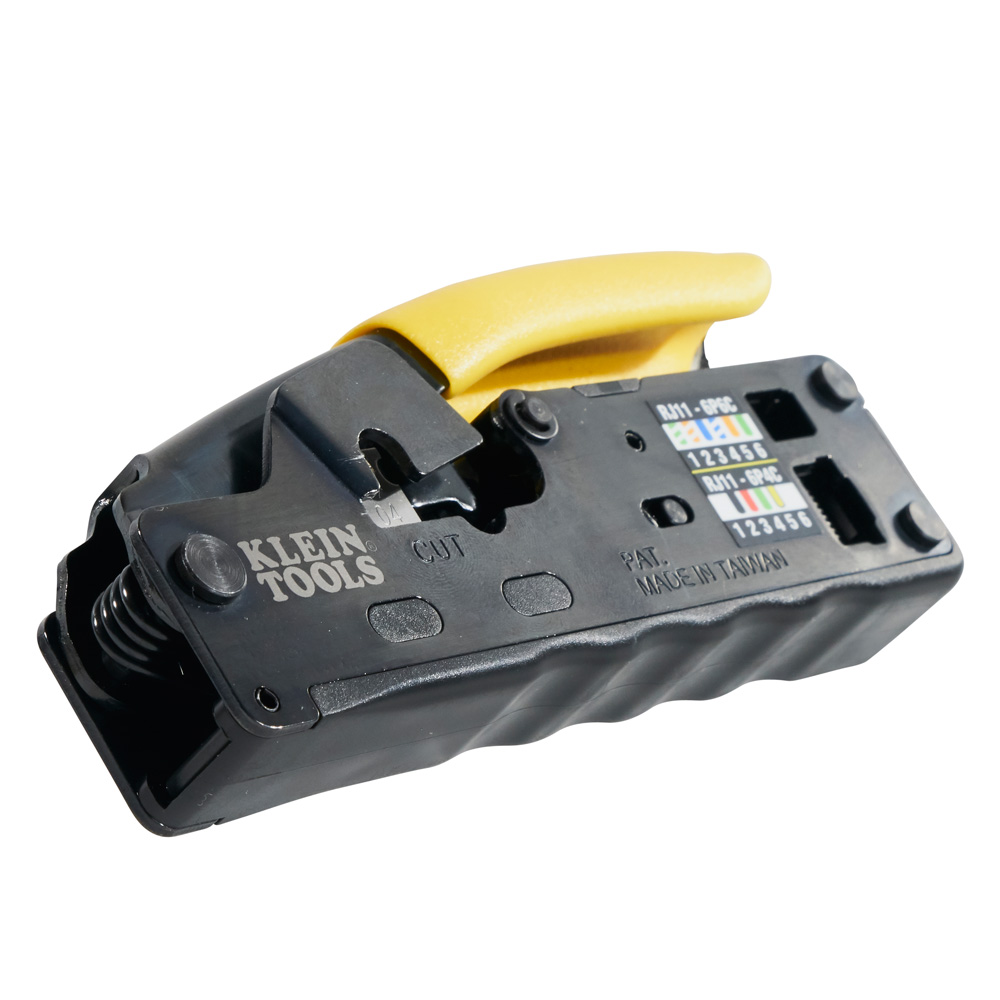

• Quick reference connector wiring diagrams provided on the tool
• Direct lateral crimp action provides more even, precise contact termination across all pins
• Wire Stripper, Wire Crimper, Wire Cutter for CAT3, CAT5e, CAT6 and flat-satin voice cable

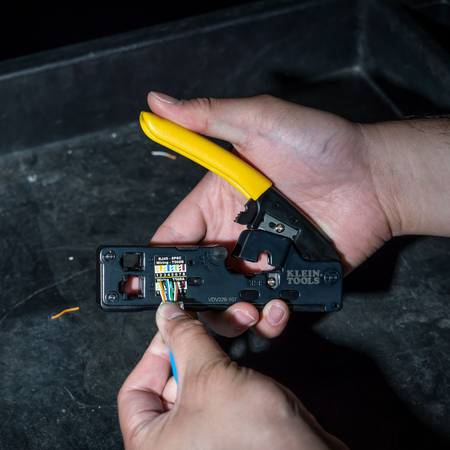

• Compact, ergonomic design for natural, single-hand operation
• Crimps RJ45 and RJ11/12 modular connectors
• AMP® is a registered trademark of TYCO, Inc.
• Full-cycle ratchet mechanism ensures complete connector termination

Warnings

• Never use on or near live electrical circuits.
• Read carefully and understand instructions before using this tool.
• Always wear approved eye protection.
• NOT insulated. Will NOT protect against electrical shock.

Specifications

• Type: Crimper
• Material: Steel with Black Oxide
• Overall Length (Inch): 5.25
• Connector Type: RJ11, RJ12 and RJ45 Standard
• Width: 4.7500 in
• Handle Color: Yellow/Black
• Weight (oz): 11.2
• Position/Pair/Conductors: 6-Position, 2 Pair/4-Conductor; 6-Position, 3-Pair/6-Conductor; 8-Position, 4-Pair/8-Conductor
• Height: 1.5000 in
• Depth: 5.2500 in
• Cuts & Strips: STP/UTP Paired-Conductor Data Cable; Flat-Satin Phone Cable
• Overall Length (cm): 13.3
• Cable Type: CAT3, CAT5e, CAT6
• Weight (g): 318
• Weight: 0.7000 lbs
• Application: Cable Connection

Downloads

Instructions
