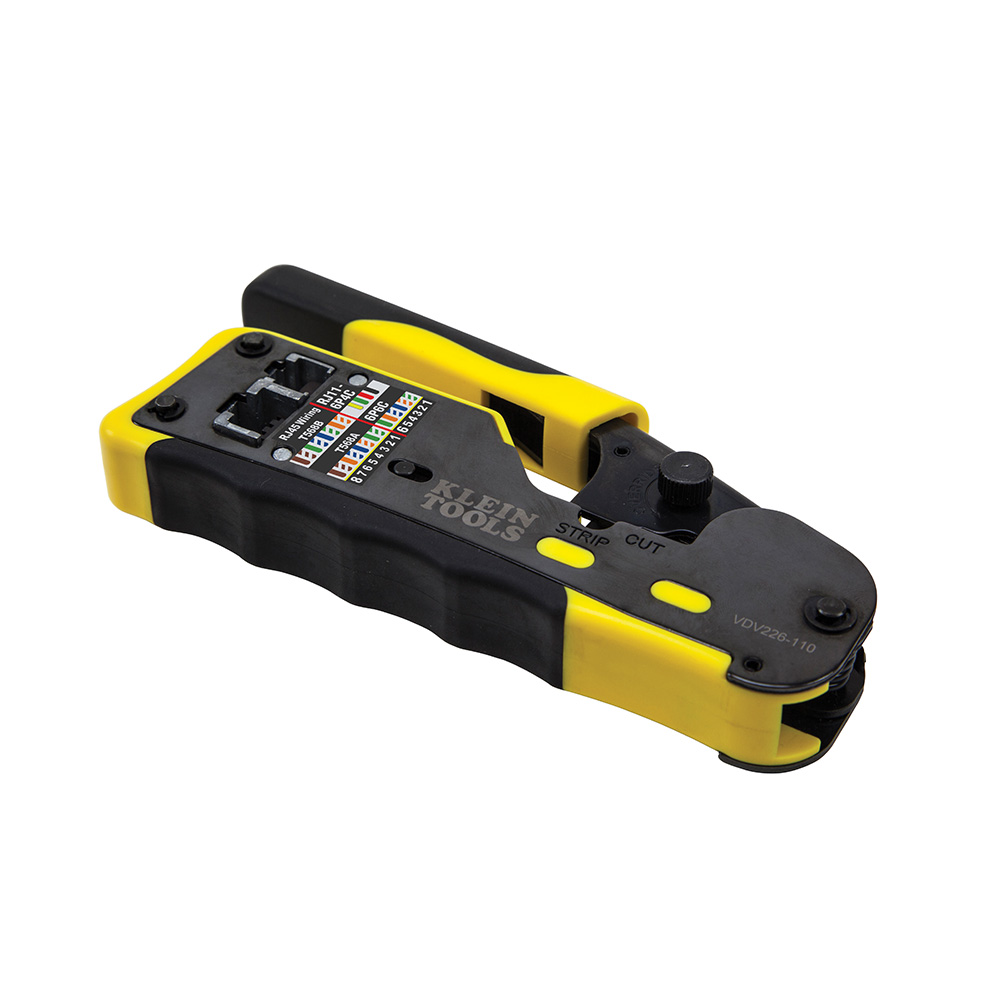

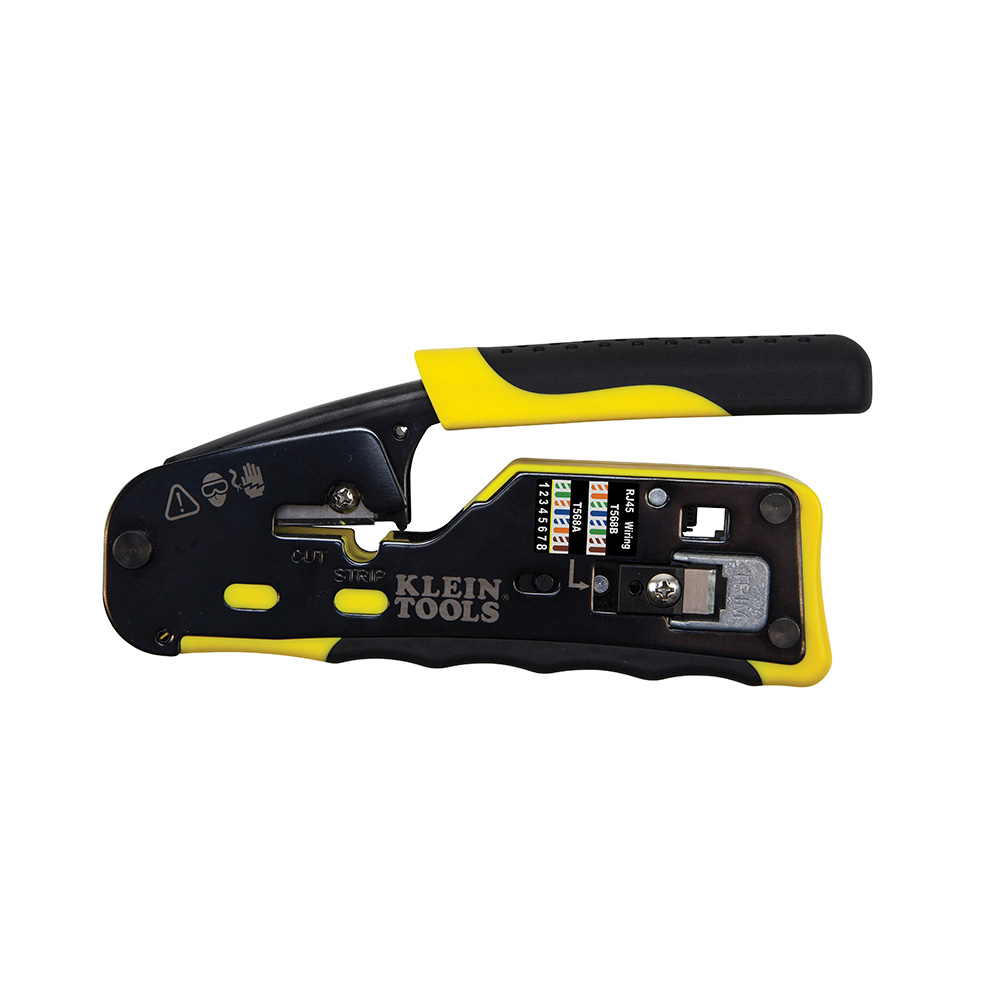

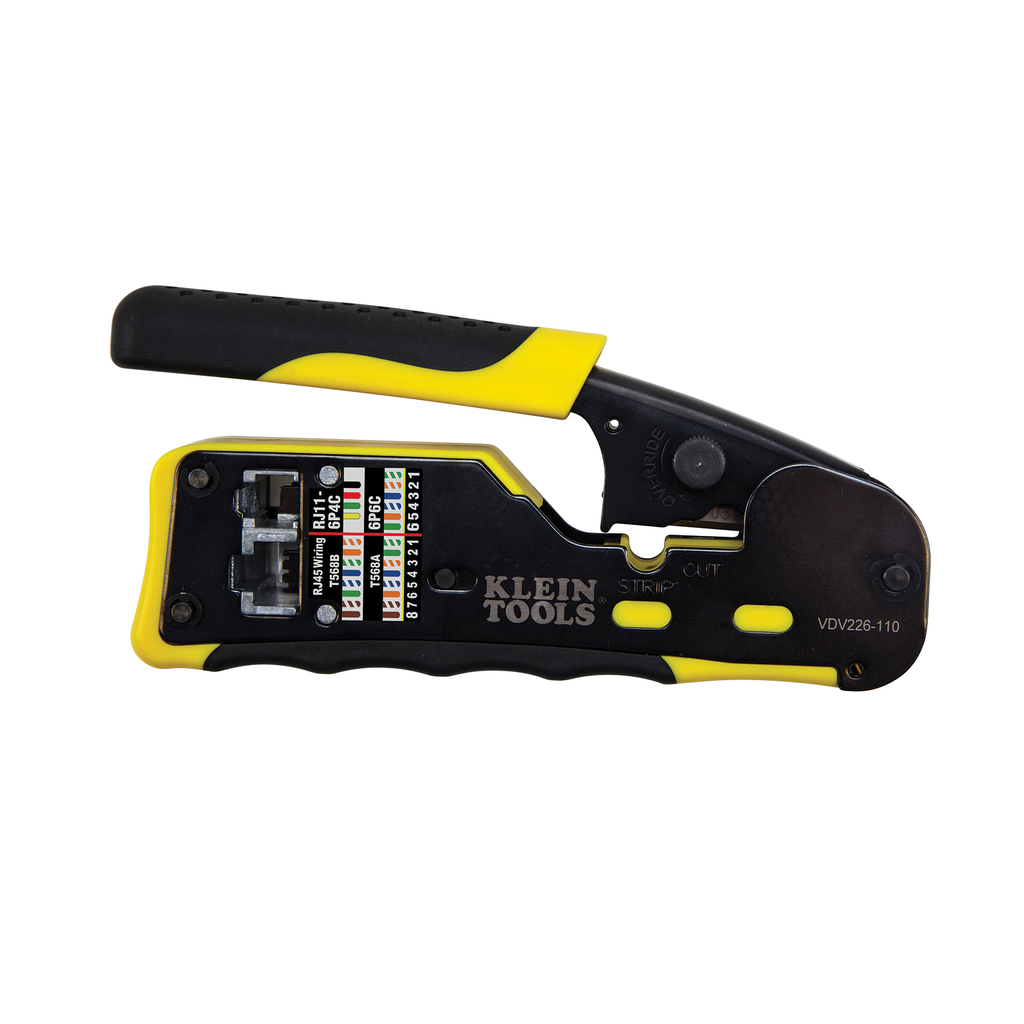

Ratcheting Ethernet Cable Crimper / Stripper / Cutter, for Pass-Thru™

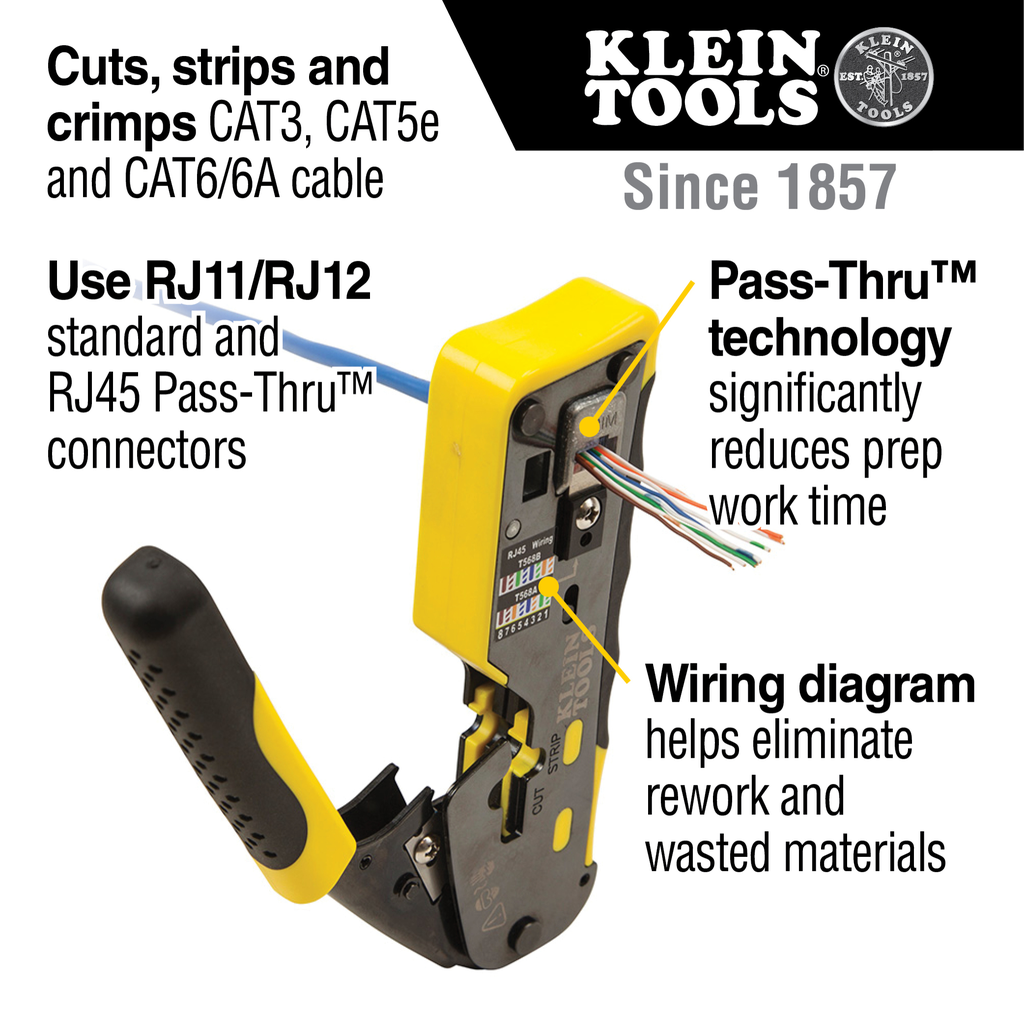

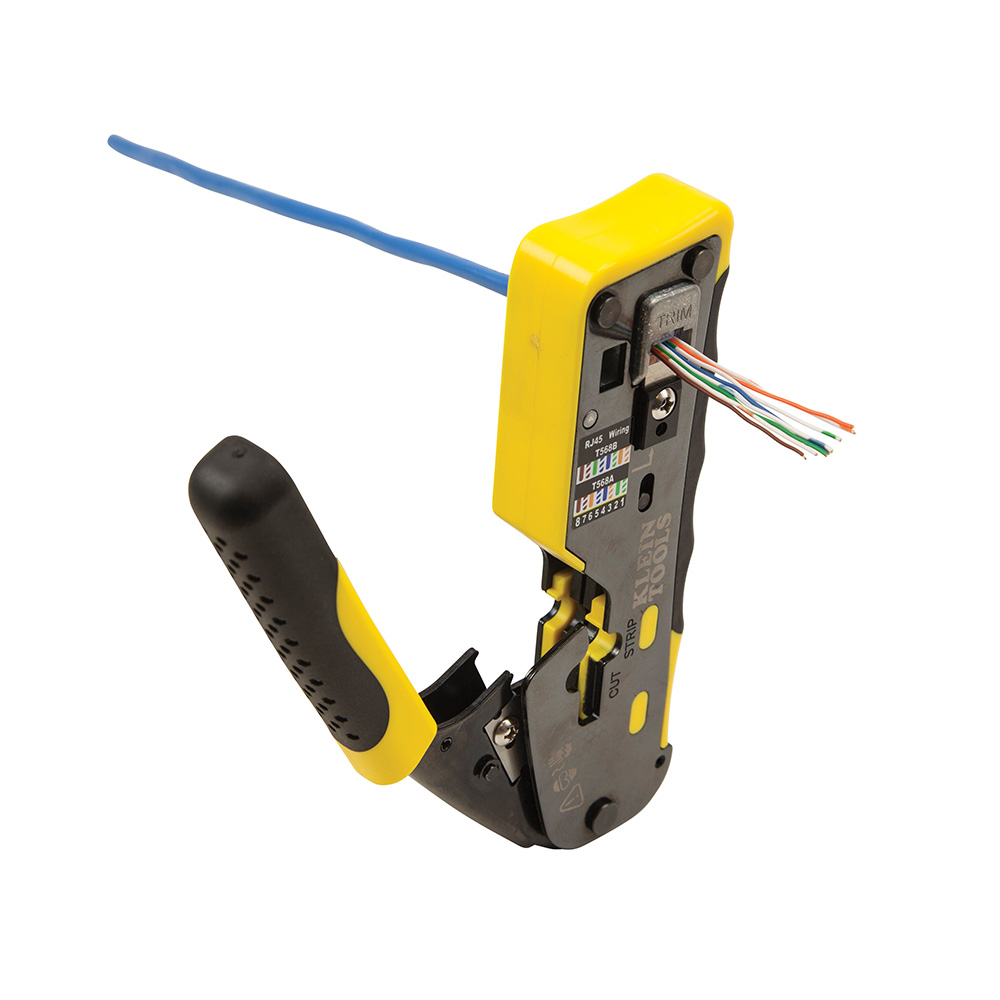

Klein Tools Coax Cable Crimper / Wire Stripper / Wire Cutter is a premium, long lasting tool for CAT3, CAT5e and CAT6/6A cable using RJ11/RJ12 standard and RJ45 Pass-Thru™ connectors. Pass-Thru™ technology significantly reduces prep work time; wiring diagram on the tool helps eliminate rework and wasted materials. Compact, non-slip comfort grip reduces hand strain and stores easily. For use with Klein Pass-Thru™ Connectors (in packs of 10, 50 or 200).

Features

• Trims flush to end face of connector eliminating unintended contact between conductors
• Replacement blade set available (VDV999-076)
• Ratcheting locking mechanism

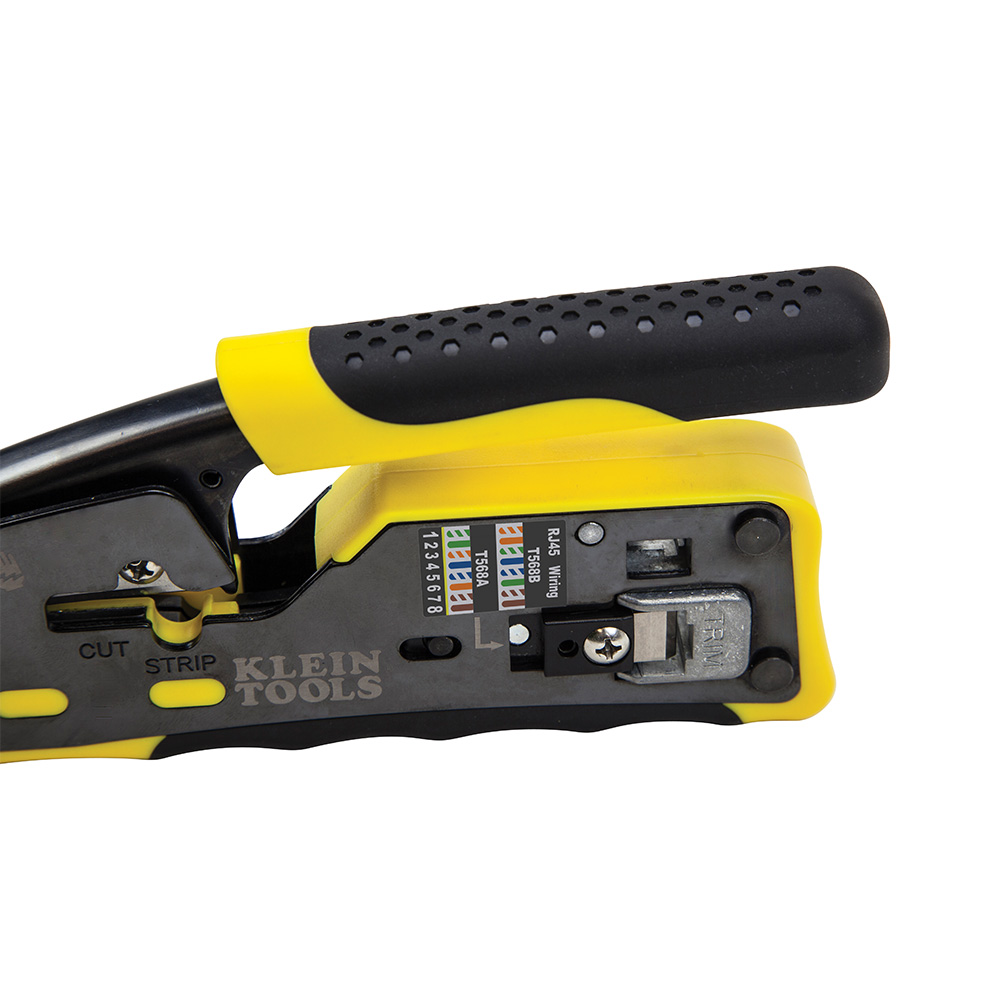

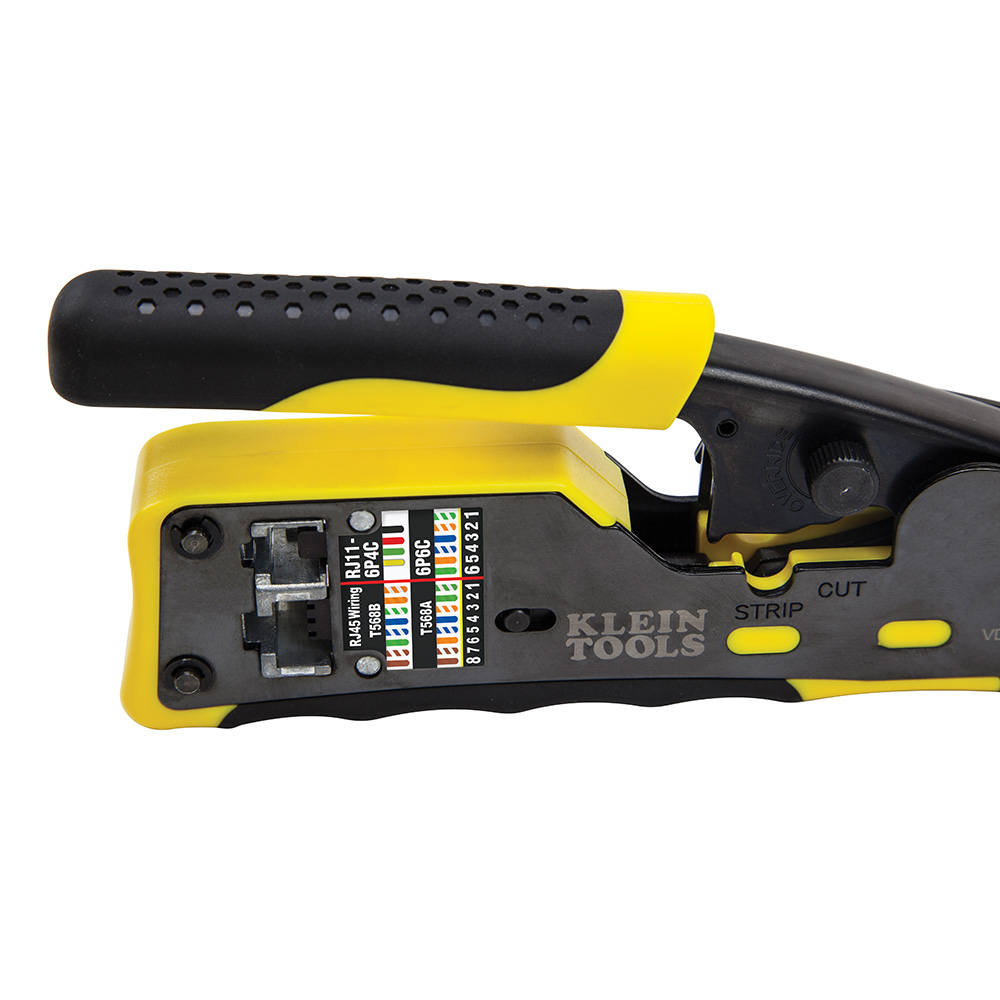

• On-tool wiring guide helps minimize wiring errors
• Not for use with standard (non Pass-Thru™) connectors
• Cable parameters: 28-22 AWG flat or round; solid or stranded telephone and data
• Crimps 4, 6 and 8 position modular connectors (RJ11/RJ12 standard and RJ45 Klein Tools Pass-Thru™)
• Use with Klein Tools Pass-Thru™ Connectors

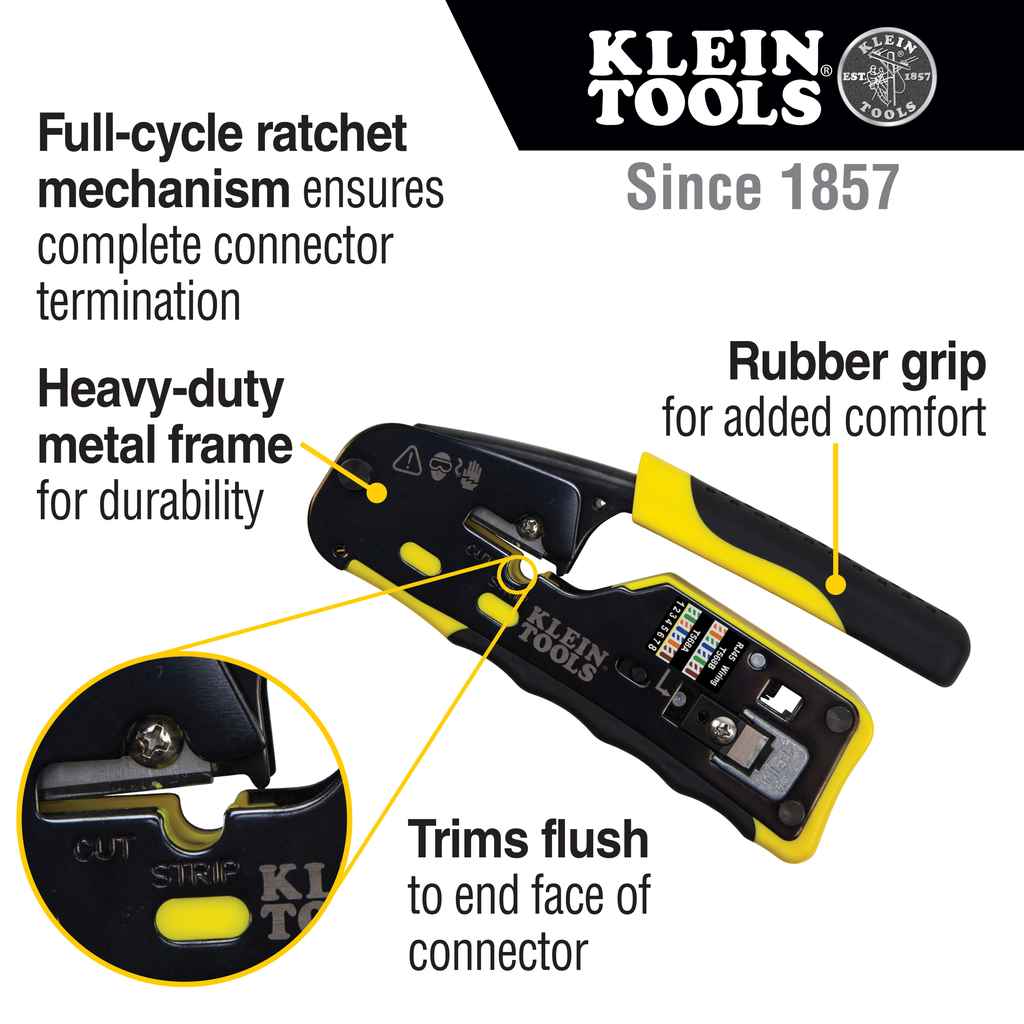

• Full-cycle ratchet mechanism ensures complete connector termination
• Modular crimp-connector installation tool for voice and data applications with Pass-Thru RJ45 connector plugs

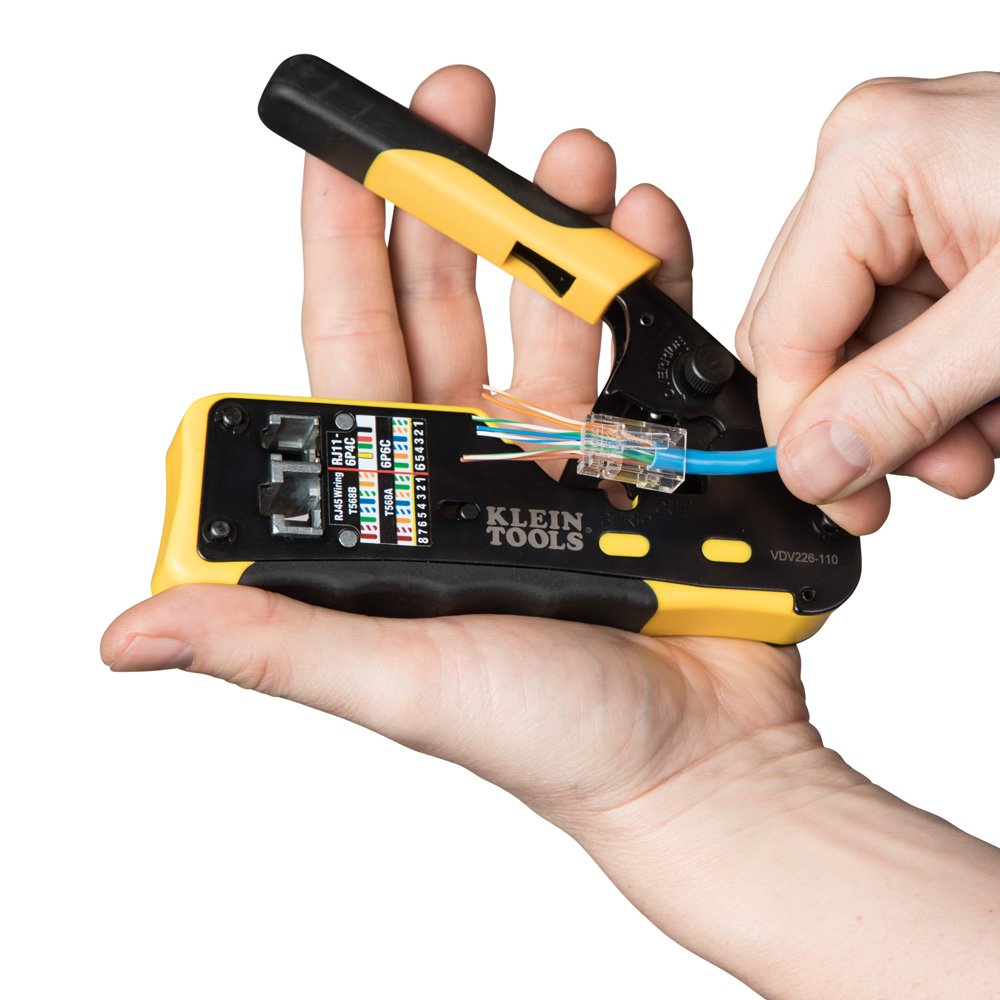

• Crimps and trims Klein Tools RJ45 Pass-Thru™ Connectors
• Rubber grip for added comfort

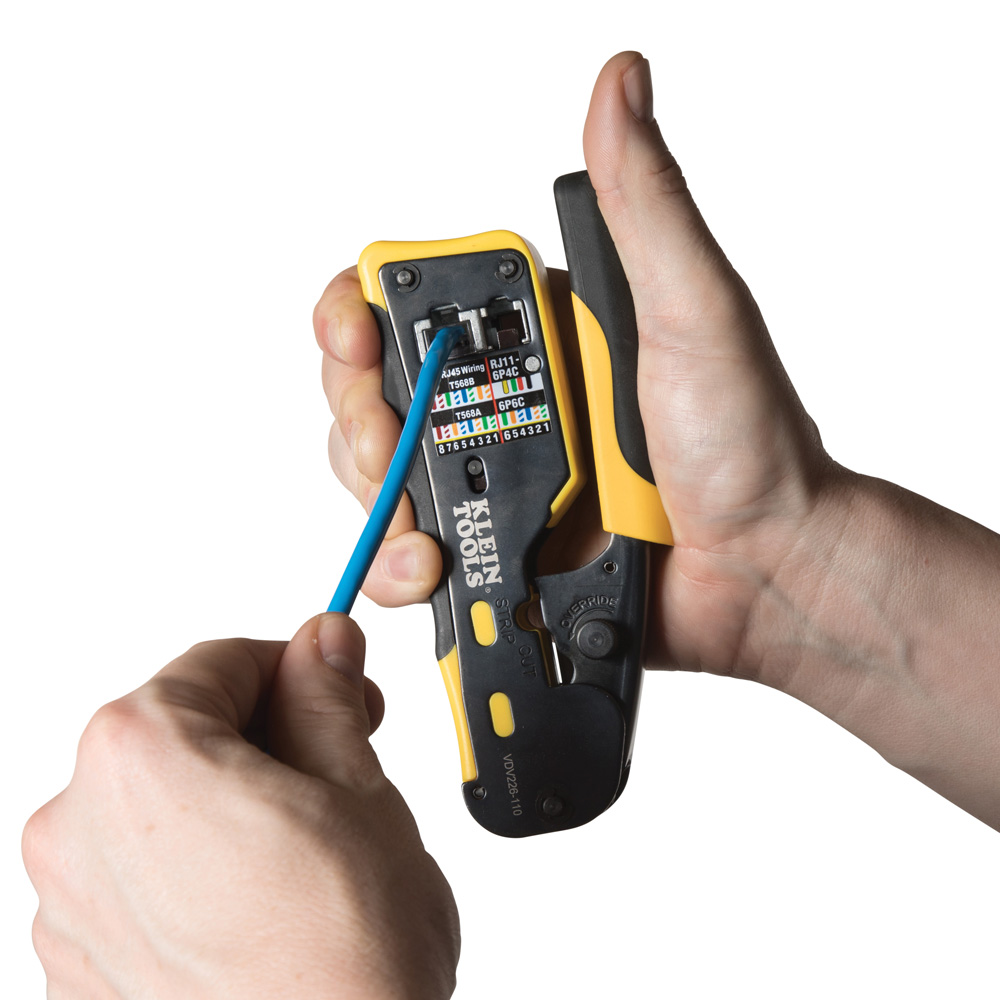

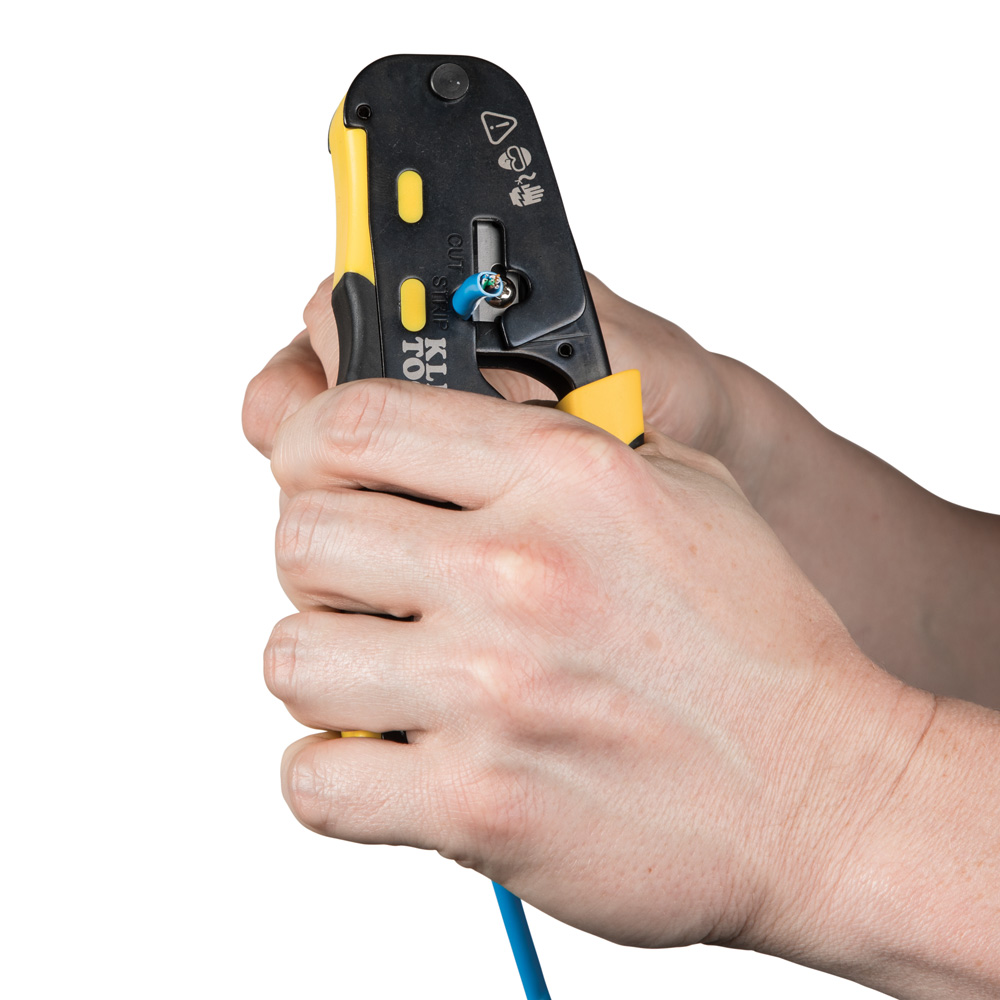

• Wire stripper, crimper, and cutter all-in-one tool for STP/UTP paired-conductor data cables

Warnings

• NOT insulated. Will NOT protect against electrical shock.
• Read carefully and understand instructions before using this tool.
• Do NOT use the tool to pull the outer jacket off of the cable. Doing so may damage the conductors and the tool.
• Always wear approved eye protection.
• Never use on or near live electrical circuits.

Specifications

• Width: 1.1100 in
• Height: 2.4000 in
• Cable Type: CAT3, CAT5e, CAT6/6A
• Material: Steel with Black Oxide
• Overall Length (cm): 15.5
• Connector Type: RJ45 Klein Tools Pass-Thru™, and RJ11, RJ12 Standard
• Depth: 6.1000 in
• Type: Crimper
• Weight (g): 408
• Position/Pair/Conductors: 4-Position, 1-Pair/2-Conductor, 4-Position, 2-Pair/4-Conductor 6-Position, 2-Pair/4-Conductor, 6-Position, 3-Pair/6-Conductor, 8-Position, 4-Pair/8-Conductor
• Handle Color: Yellow/Black
• Overall Length (Inch): 6.094
• Weight (oz): 14.4
• Weight: 0.9000 lbs
• Cuts & Strips: Paired Conductor Data Cable (Round STP/UTP); Flat-Satin Phone Cable
• Application: Cable Connection
