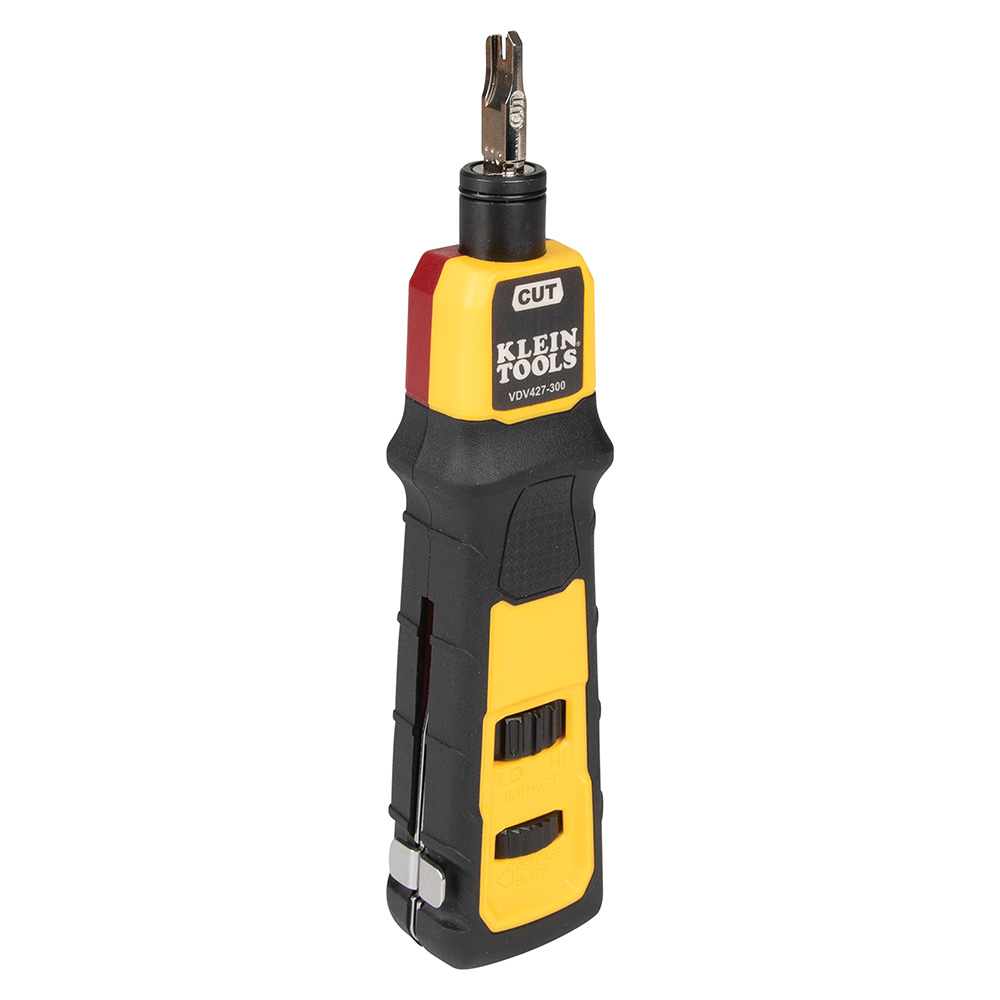

Impact Punchdown Tool, 66/110 Blade

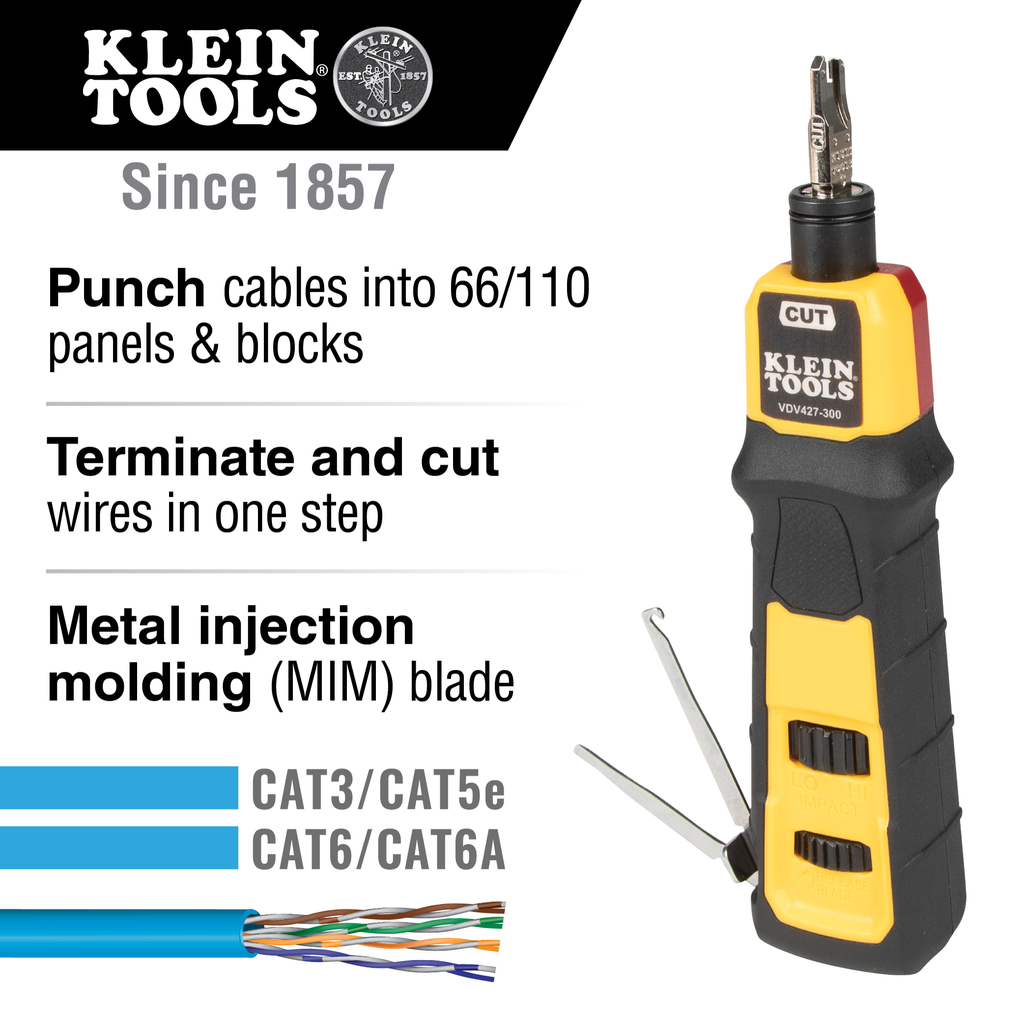

Premium performance, impact punchdown tool provides precise, reliable connections every time. Use to punch data cables into 66/110 panels and blocks. Terminate and cut wire in one step with the MIM (metal injection molding) precision ground combination 66/110 blade. The tool features the traditional punchdown-style form with a cushioned, non-slip handle.

Warnings

• NOT insulated. Will NOT protect against electrical shock.
• Never use on or near live electrical circuits.
• Always wear approved eye protection.
• Read carefully and understand instructions before using this tool.

Features

• Punchdown tool terminates and cuts wires in CAT3, CAT5e and CAT6/6A cable in one step

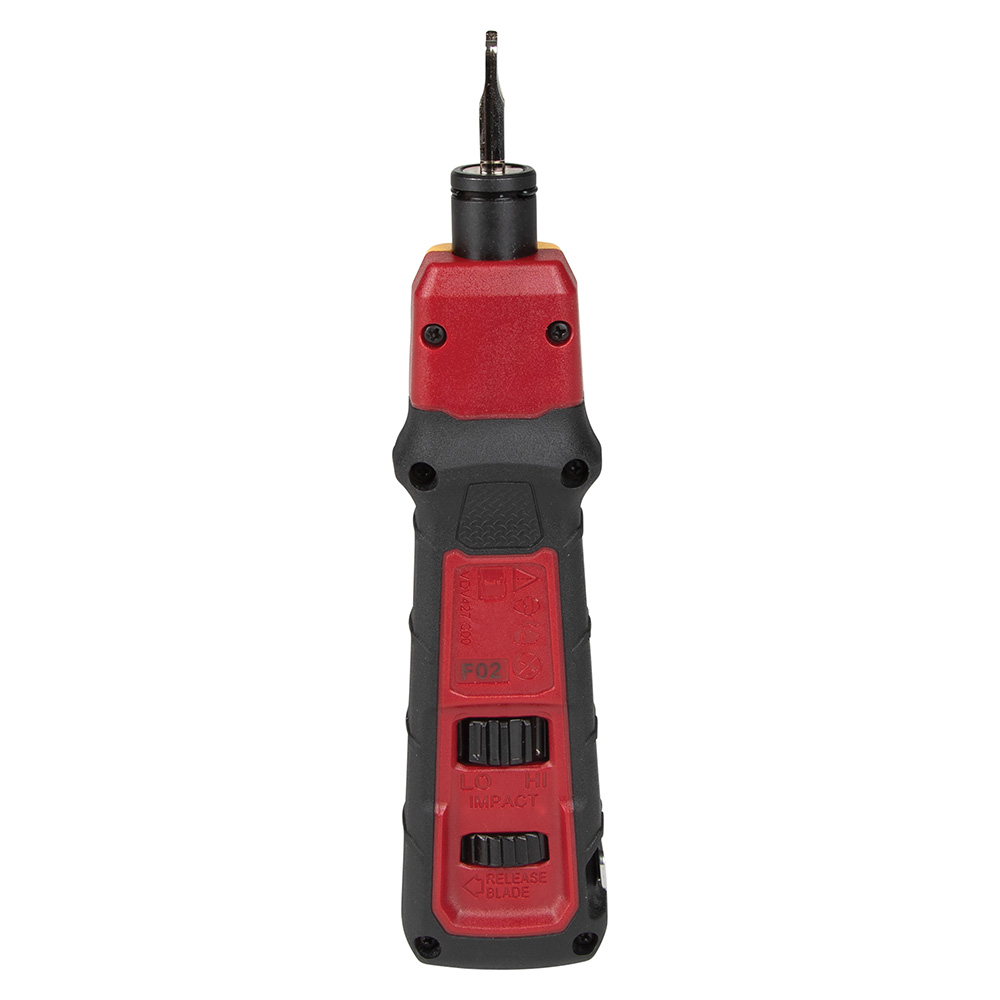

• Selectable (Hi/Low) impact-force setting lever
• Provides precise, reliable connections every time
• Spring loaded for fast, low effort seating and terminating
• Cushion for Comfort, Integrated Pick and Spudger, MIM Blade for Accuracy and Durability
• Metal injection molding (MIM) blade for durability (included)
• Includes a pick and spudger with wave washer to help keep desired position

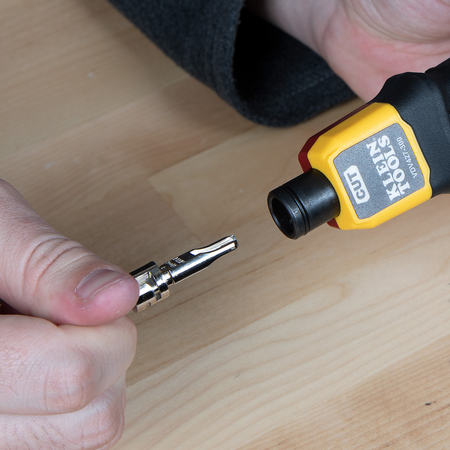

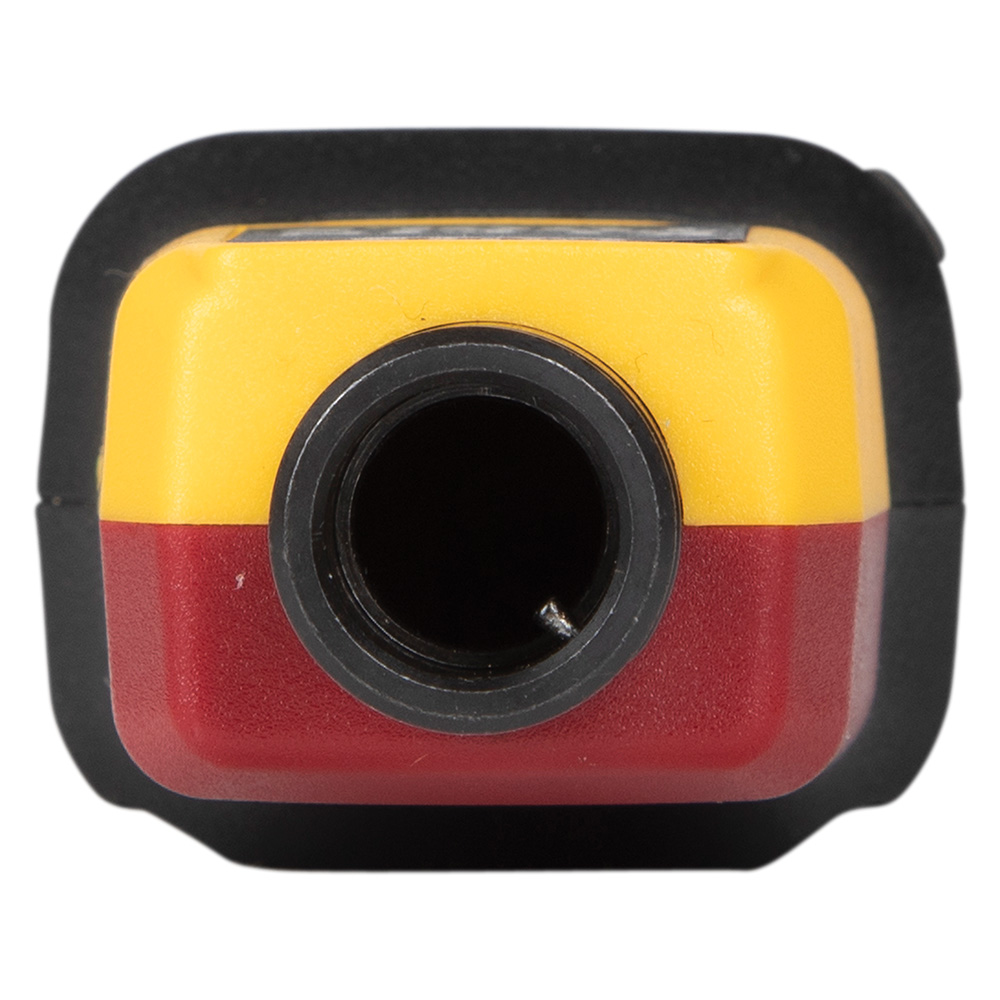

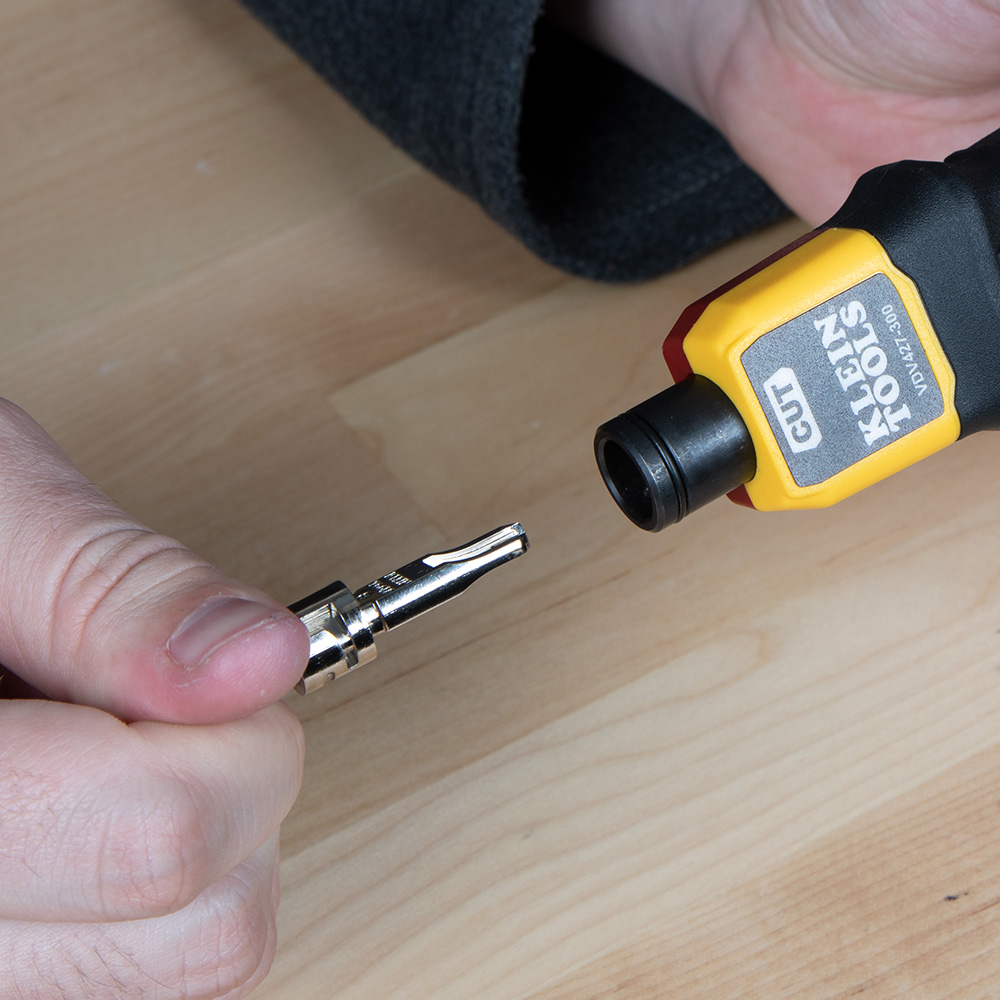

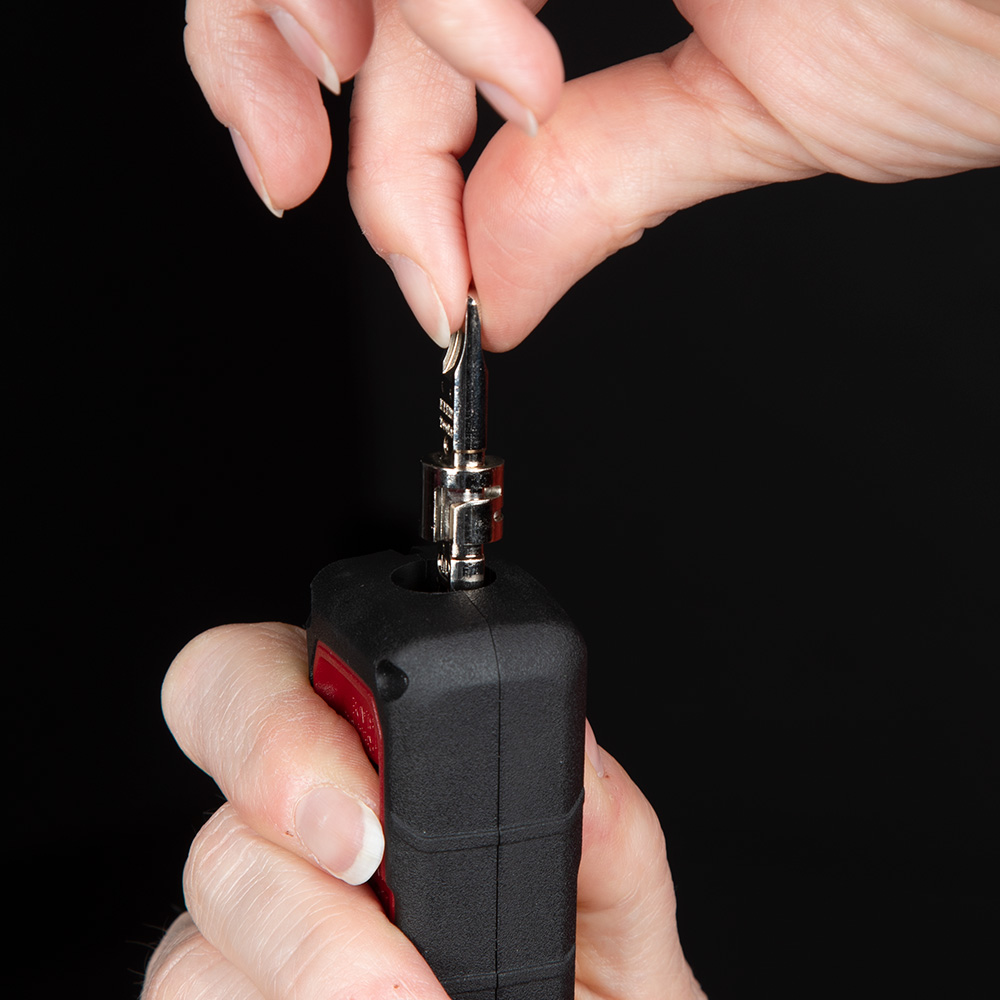

• Bayonet style (twist and lock) socket accepts most manufacturers' blades
• Extended reach blade (Cat. No. VDV427-110) for working on active panels with pre-existing connections (sold separately)

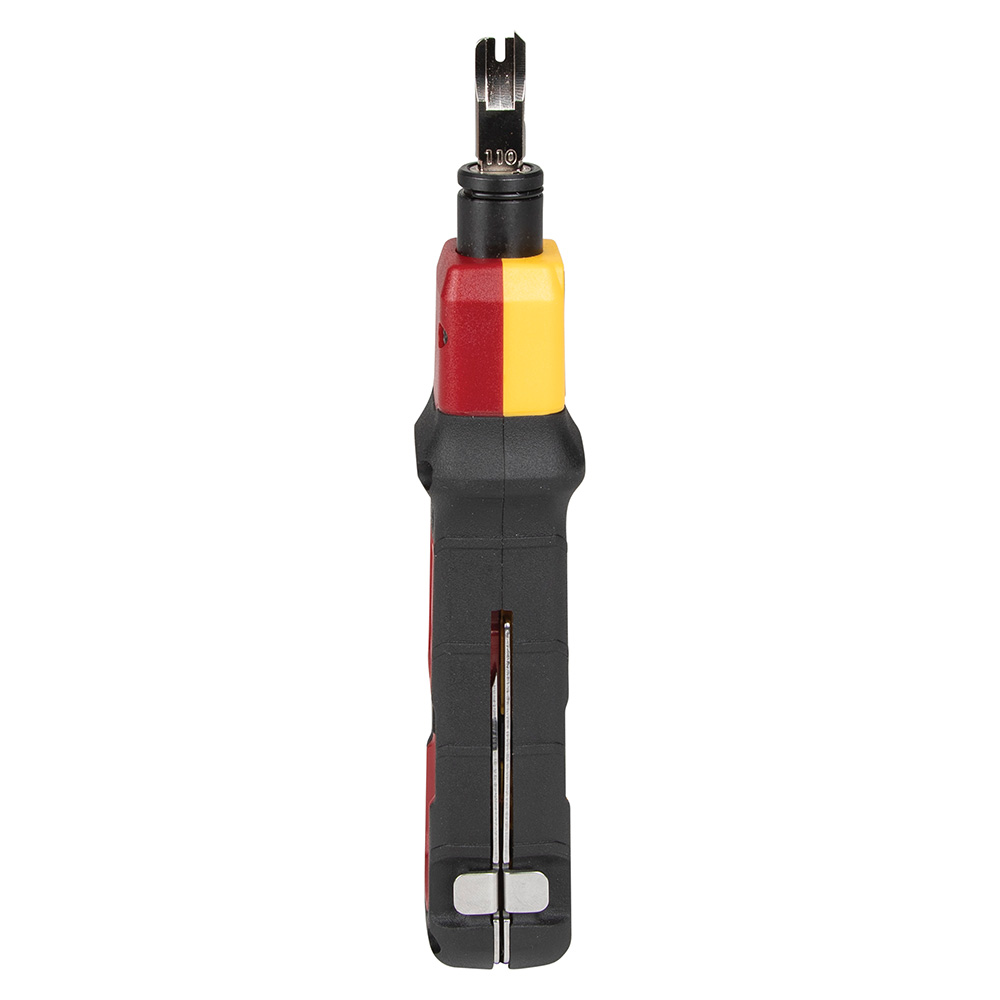

• Traditional punchdown style with cushioned handle for comfort with non-slip grip
• Replacement blades available (Cat. No. VDV427-104)

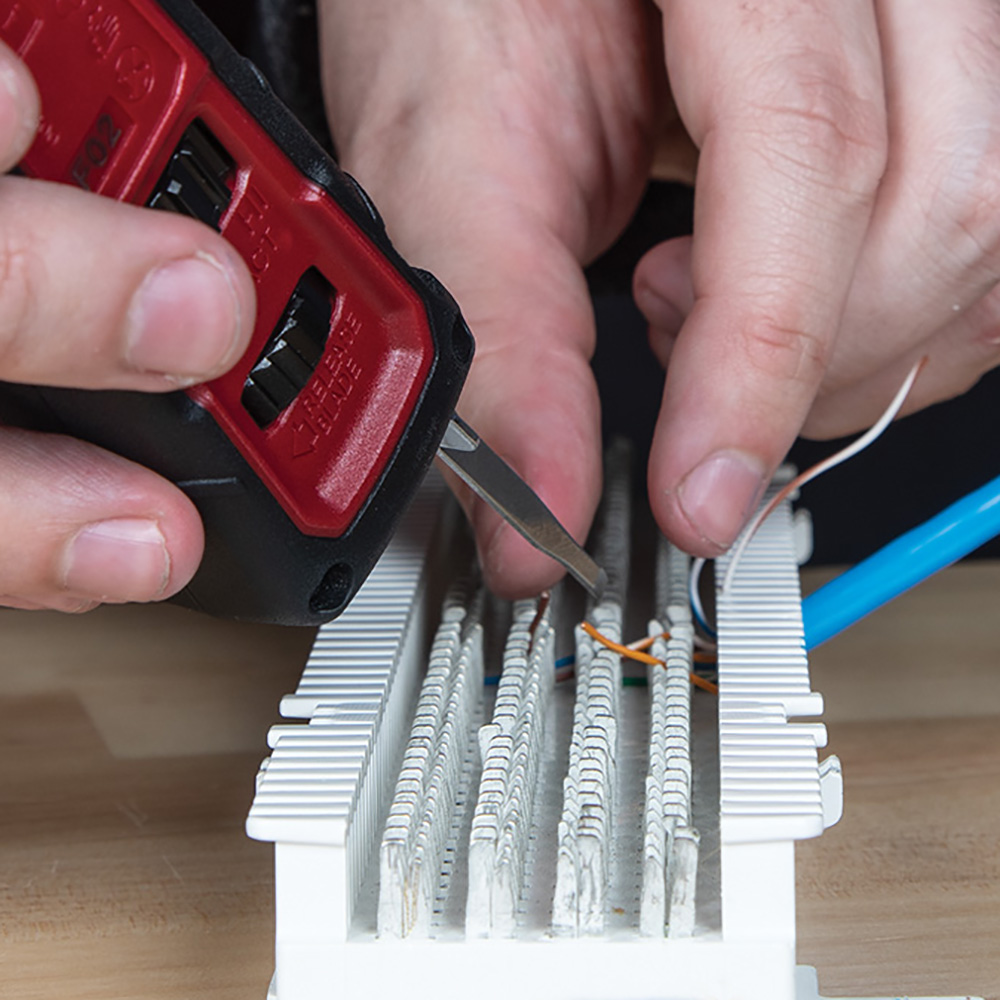

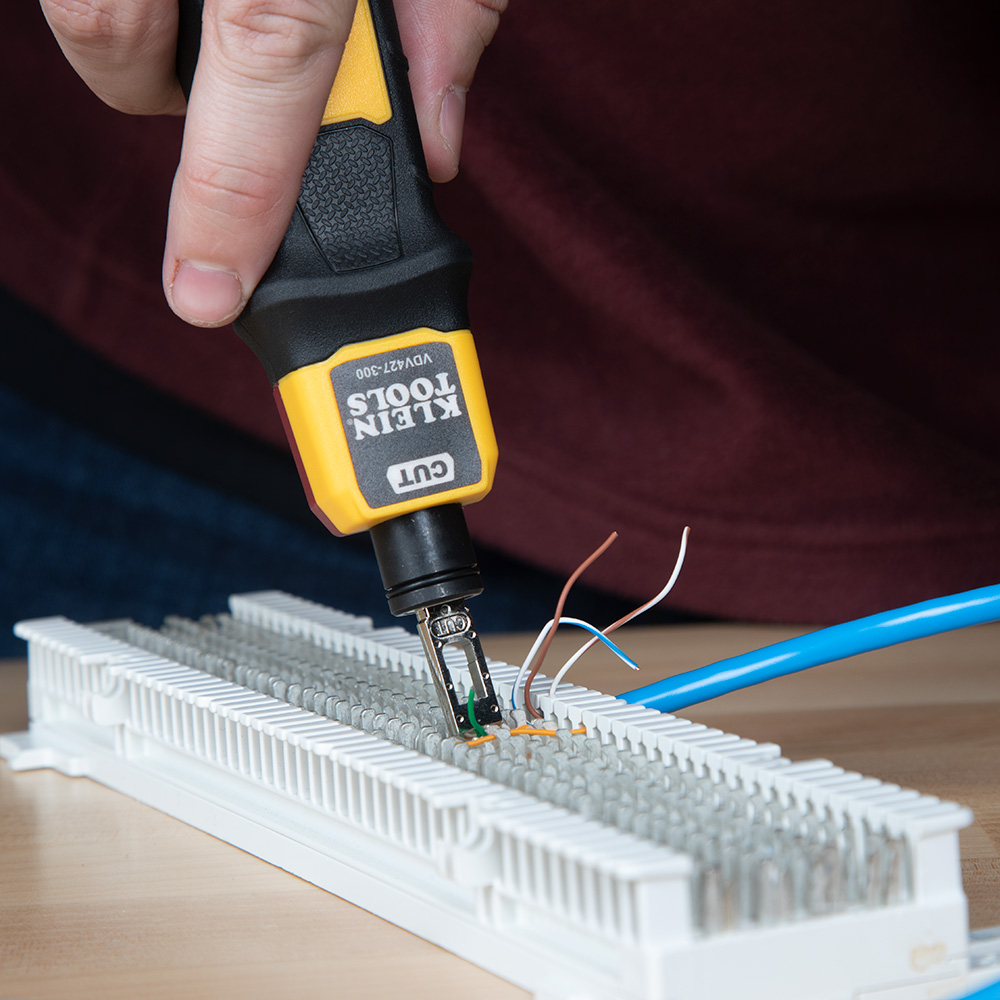

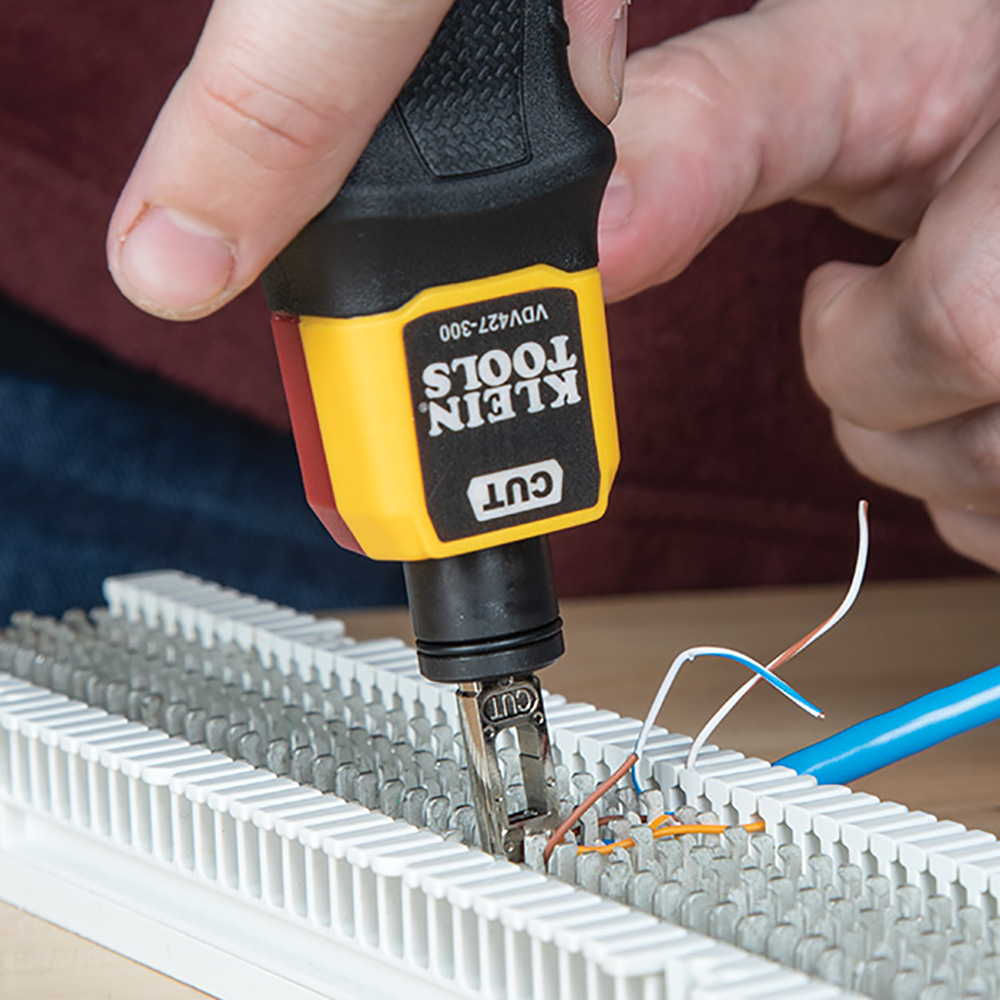

• Punch cables into 66/110 panels and blocks

Specifications

• Overall Length: 15.2 cm (6 Inch)
• Overall Height: 2.5 cm (1 Inch)
• Type: Punchdown Kit
• Material: Plastic, Metal
• Overall Width: 3.8 cm (1.5 Inch)
• Application: Cable Termination
• Height: 1.0000 in
• Weight: 0.4000 lbs

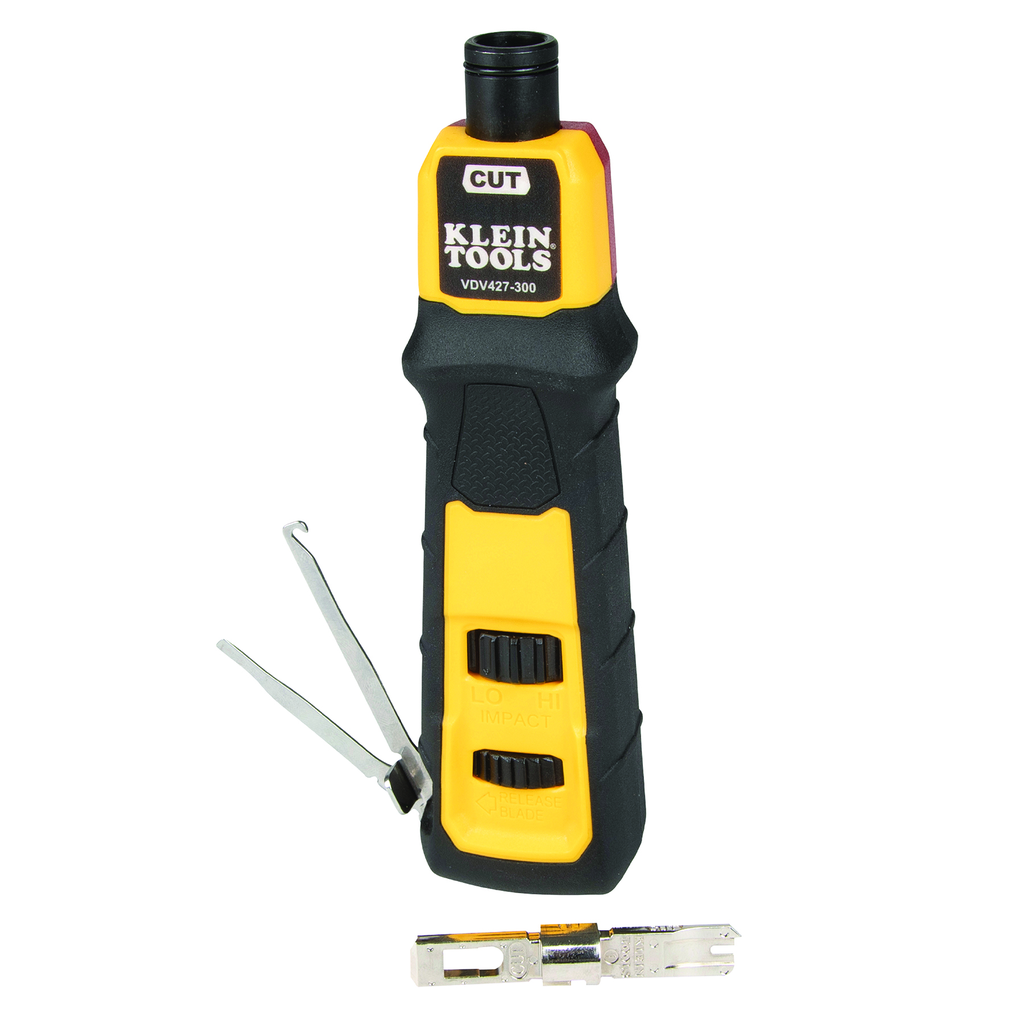

• Included: Punchdown Tool, Extended Reach Blade, Spudger, Wire Pick
• Width: 1.5000 in
• Color: Black, Yellow, Red
• Blade Configuration End 2: 66 Terminate and Cut
• Depth: 6.0000 in
• Blade Configuration End 1: 110 Terminate and Cut
