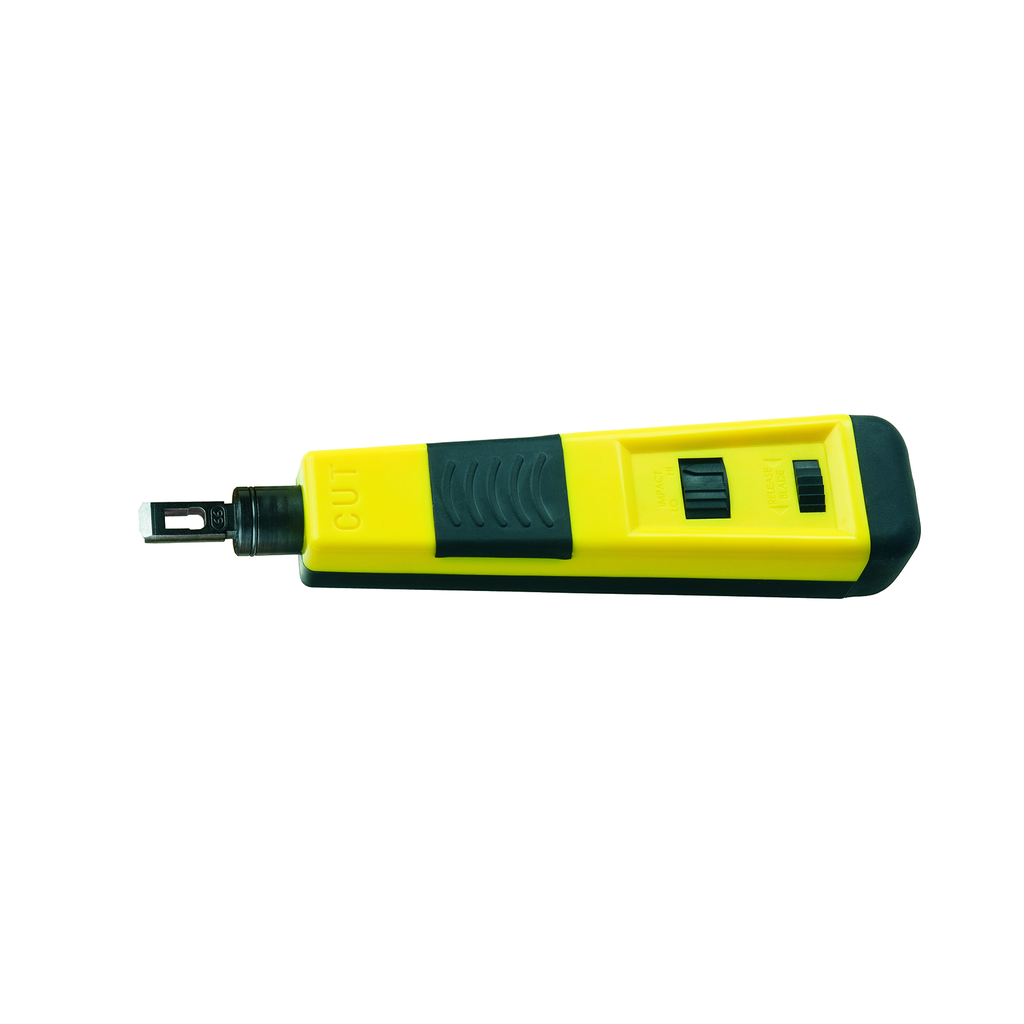

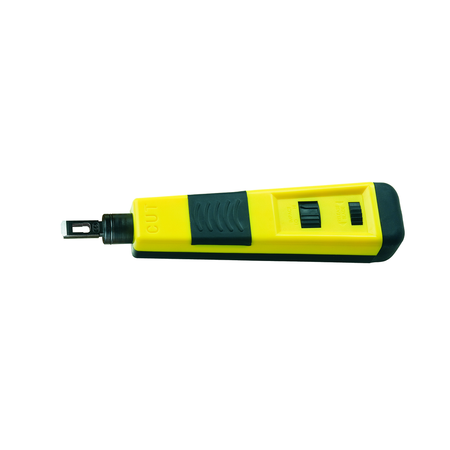

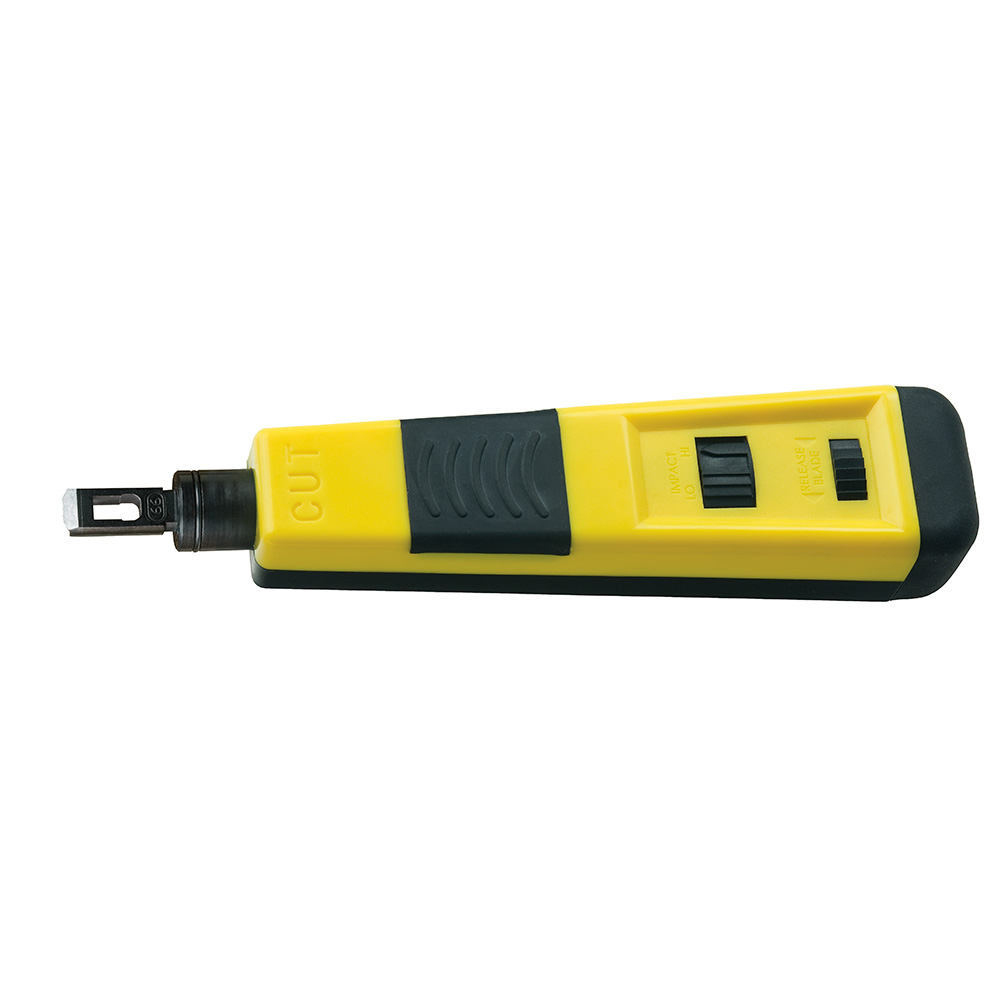

Impact Punchdown Tool, 66/110 Blade

The Impact Punchdown tool with combination 66 /110type blade lets you cut and terminate cable in a variety of cross-connect panels, blocks and keystone jacks.Spring-loaded for fast, low effort seating and terminating. With the selectable (Hi/Low) impact-force settings, this impact punchdown tool meets industry standard specification 8762D. The cut side is color coded yellow for identification.

Warnings

• NOT insulated. Will NOT protect against electrical shock.
• Never use on or near live electrical circuits.
• Read carefully and understand instructions before using this tool.
• Always wear approved eye protection.

Features

• Blade storage compartment with spring loaded locking mechanism
• Terminate cable in variety of cross-connect panels, blocks and keystone jacks
• Replacement blades available: 110-Blade (Cat. No. VDV427-015), 66-Blade (Cat. No.VDV427-016), 66/110 Combination Blade (Cat. No. VDV427-017), Reach Extension (Cat. No. VDV427-018)
• Bayonet style (twist and lock) socket accepts most manufacturers tools and blades
• Spring loaded for fast, low effort seating and terminating
• Rubber finger grips and boot provide greater control and enhanced comfort
• Induction hardened high-carbon steel for durability and long life
• Selectable (Hi/Low) impact-force settings meet industry standard specification 8762D

Specifications

• Width: 4.0700 in
• Application: Cable Termination
• Overall Length: 7" (17.8 cm)
• Height: 1.1700 in
• Style Name: Standard Punchdown w/ 110/66 Blade
• Depth: 6.2500 in
• Weight: 0.3500 lbs
