Toner-PRO Tone Generator

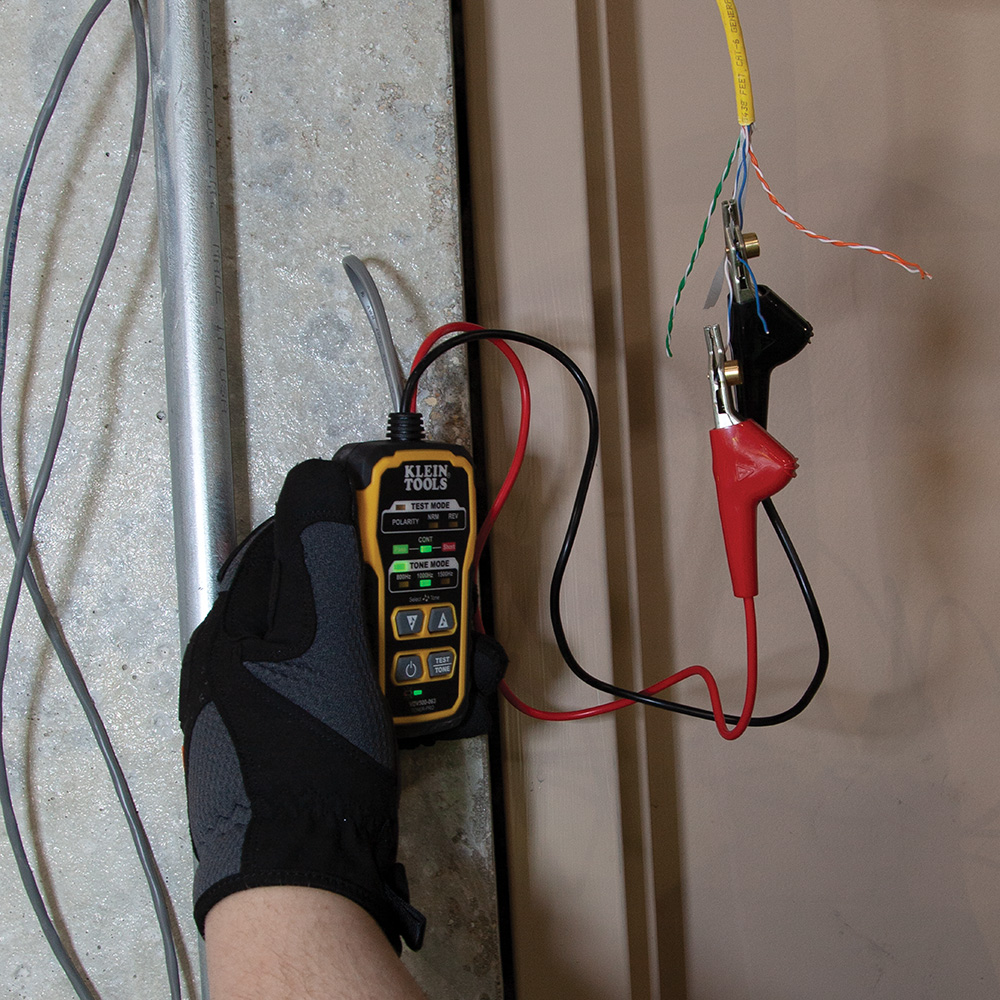

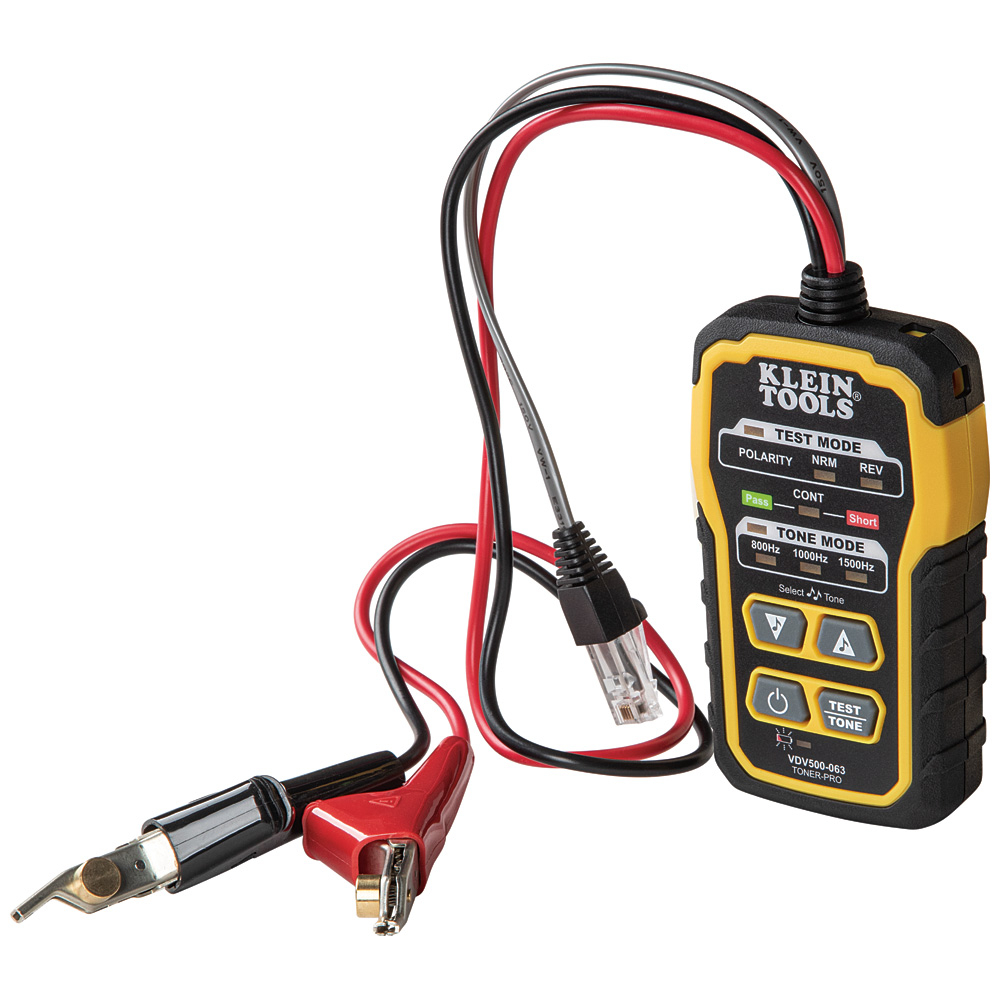

This tone generator helps with wire identification, wire tracing and wire pair identification. The tone generator provides five distinct tones for exact pair identification and features angled bed-of-nails (ABN) clips to securely attach to wires. An RJ11 plug easily connects to telephone or RJ45 data jacks to tone wire pair. Check for continuity and polarity with results indicated by clearly labeled, easy-to-read LEDs.

Features

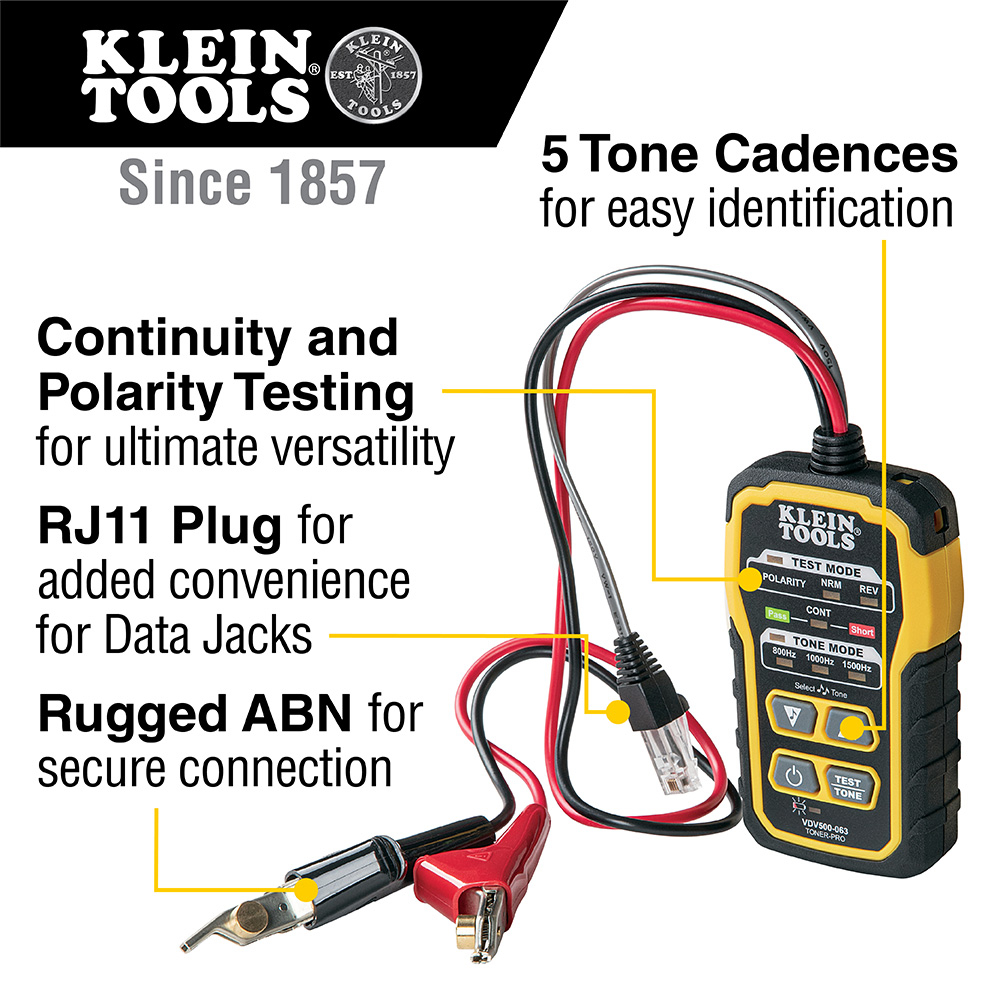

• RJ11 plug easily connects to telephone or RJ45 data jacks to tone individual conductors or wire pairs
• For use with Probe-Pro Tracing Probe (VDV500-123) required (sold separately)
• Five distinct tone cadences
• Professional grade tone generator for non-active wiring
• Loop for a lanyard

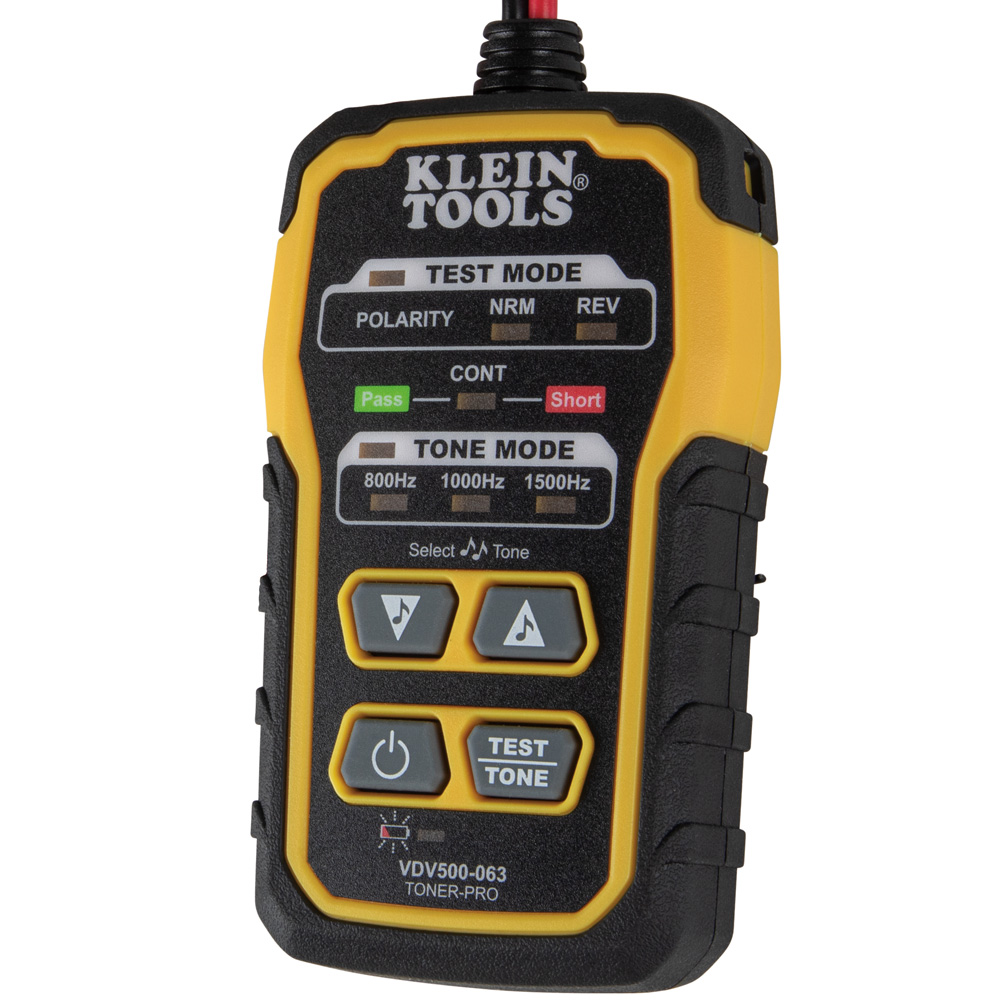

• Tests for continuity and polarity with response displayed on clearly labeled, easy-to-read LEDs
• (4) AAA Batteries included
• Professional grade analog tone generator for open-ended, non-active wiring
• Angled Bed of Nails (ABN) Teleco Clips; Lanyard Loop
• Rugged Angled Bed of Nails (ABN) clips securely attach to wires
• Auto Power-Off and Low Battery Indicator

Warnings

• Turn off instruments and disconnect all test leads before attempting to replace batteries.
• Carefully read all instructions.
• The battery door must be in place and secure before you operate.
• Do NOT use on energized circuits.
• Do not use instruments if they are damaged in any way.
• Do not use instruments if they are wet, as it could pose a shock hazard.
• Read all safety information before using.
• Do not open the case, other than the battery compartment

Specifications

• Country of Origin: China
• Power On LED Indicator: Yes
• Height: 4.2500 in
• Type: RJ45 and RJ11 Wire Tracer
• Style Name: Toner
• Overall Height: 4.25" (10.8 cm)
• Material: Plastic and Metal
• Continuity Testing: Yes
• Tones: 5
• Includes: 4 x AAA Batteries
• Batteries: 4 x AAA
• Low Battery Indicator: Yes
• Battery Life: 120 hr
• Overall Length: 2.5" (6.4 cm)
• Auto-Power Off: Yes
• Overall Width: 1" (2.5 cm)
• Included: Tone Generator; 4 x AAA Batteries
• Depth: 2.5000 in
• Weight: 0.4000 lbs
• Width: 1.0000 in
• Visual Notification: LED
• Application: Wire Toning

Downloads

Instructions
