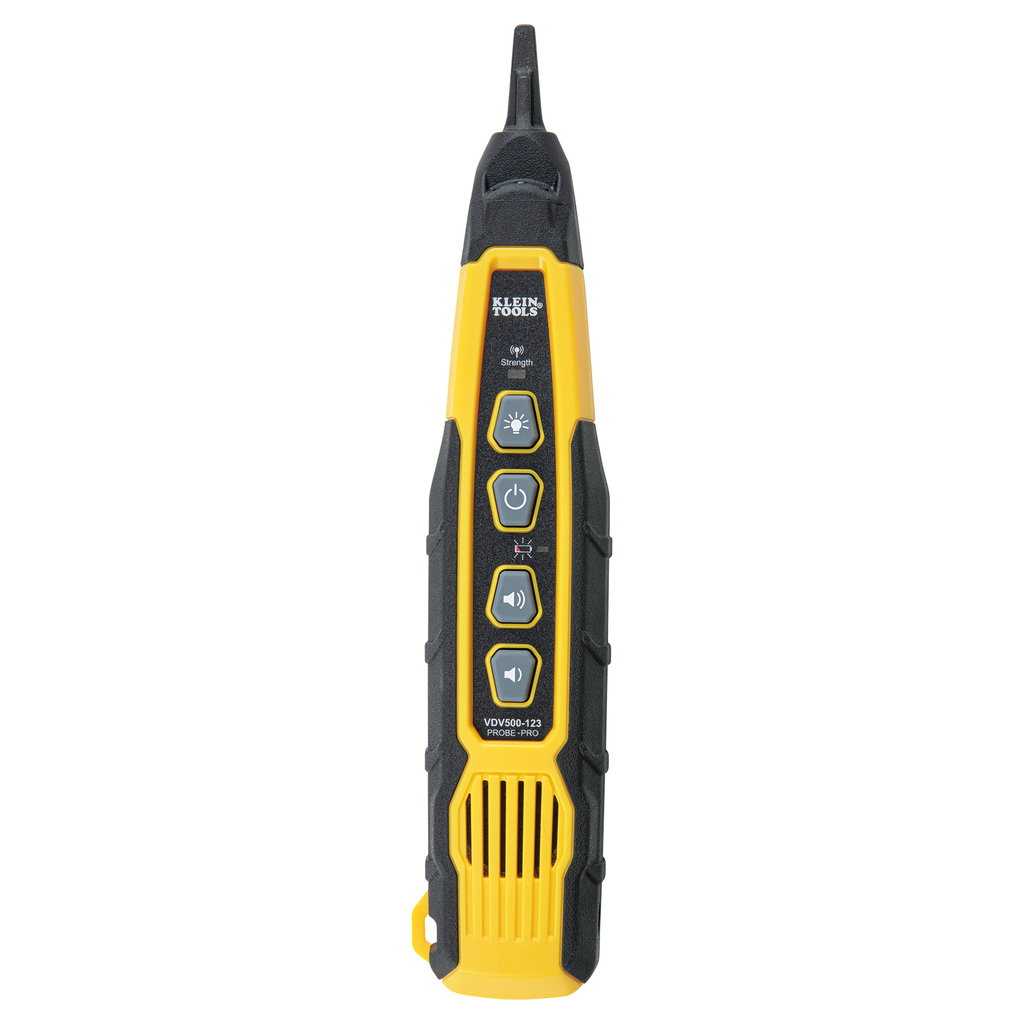

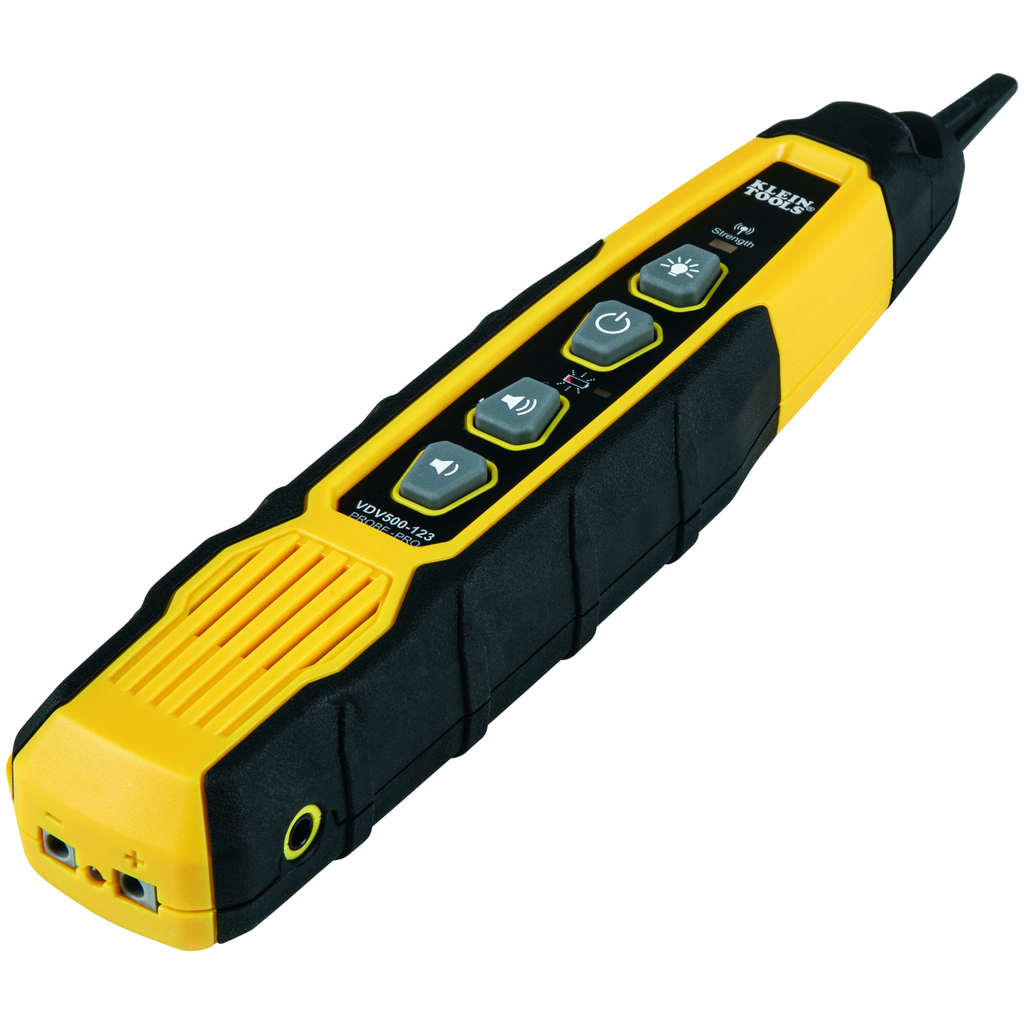

Probe-PRO Tracing Probe

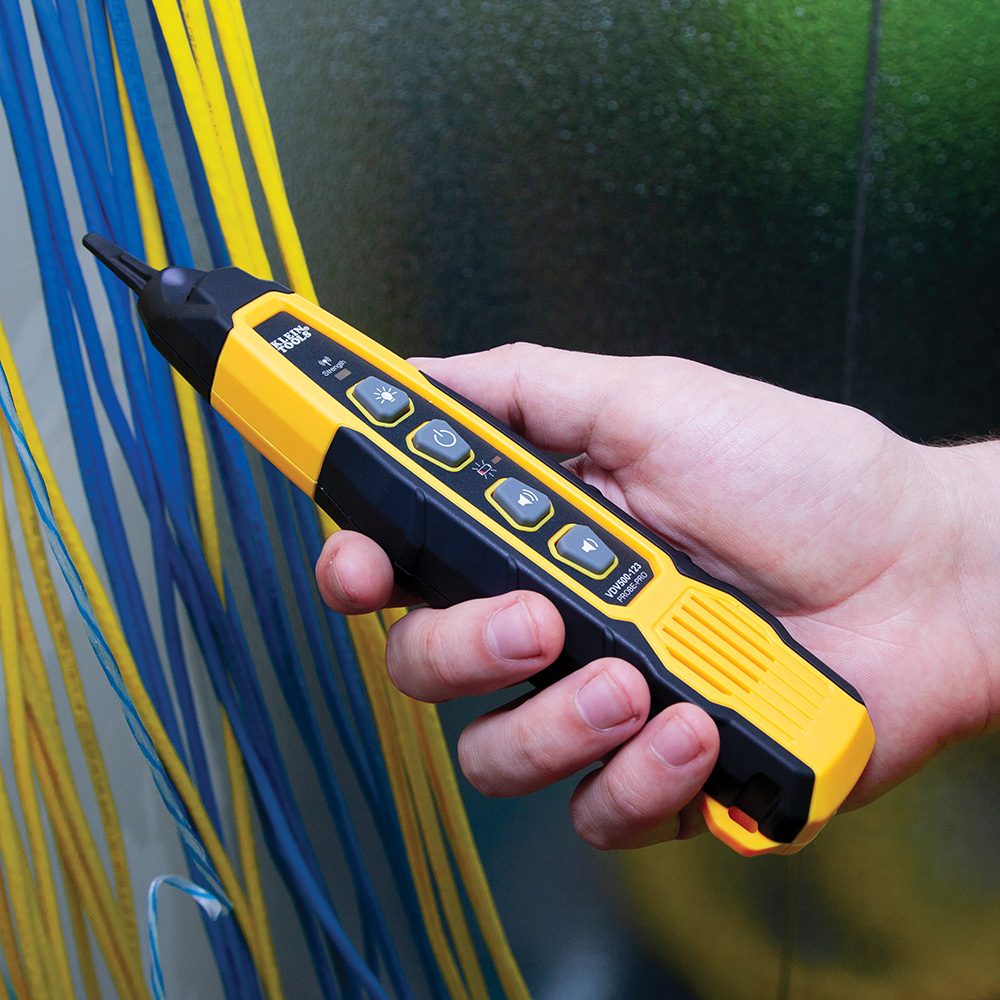

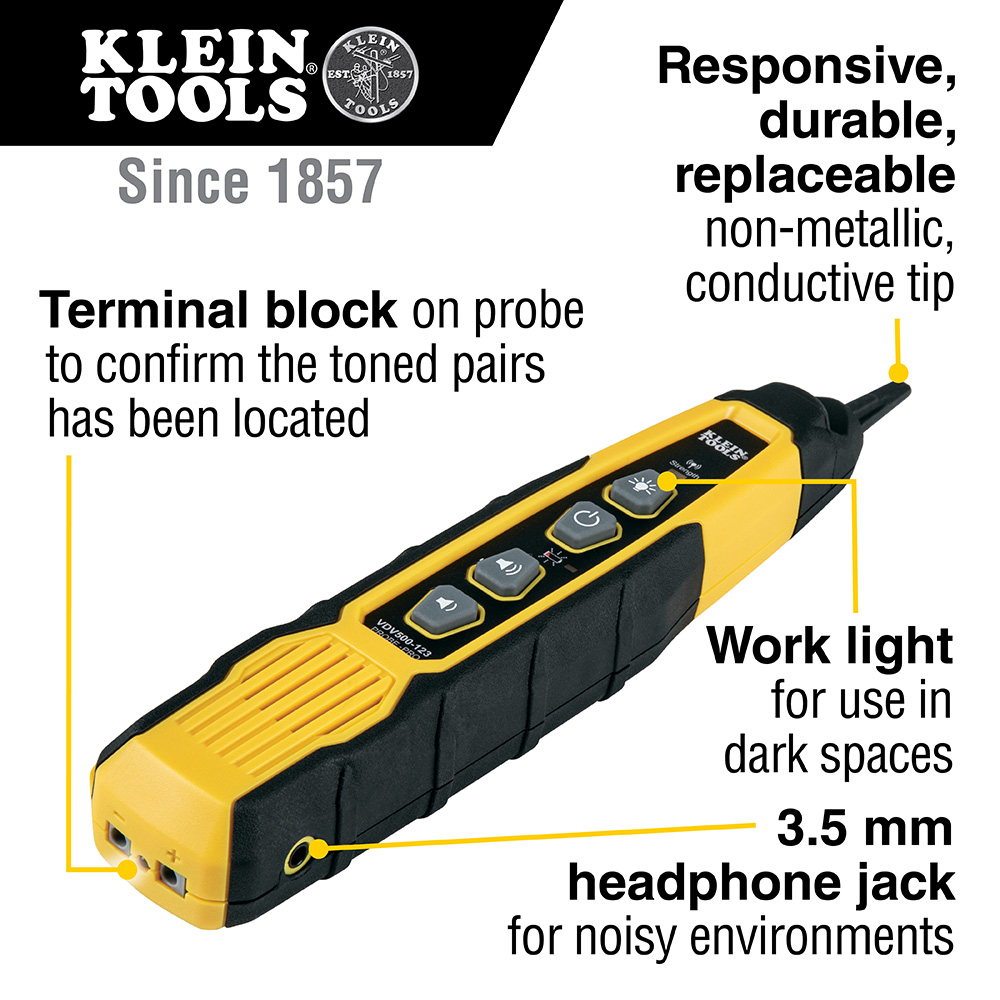

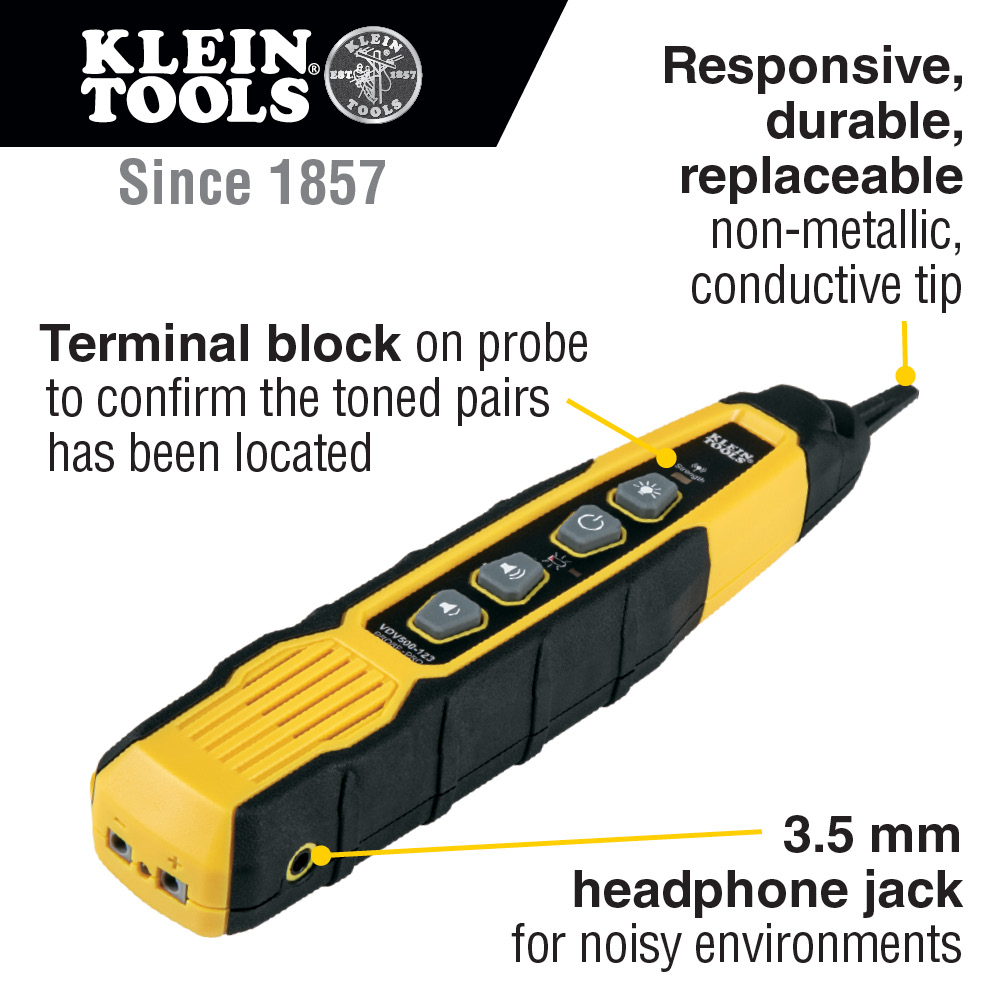

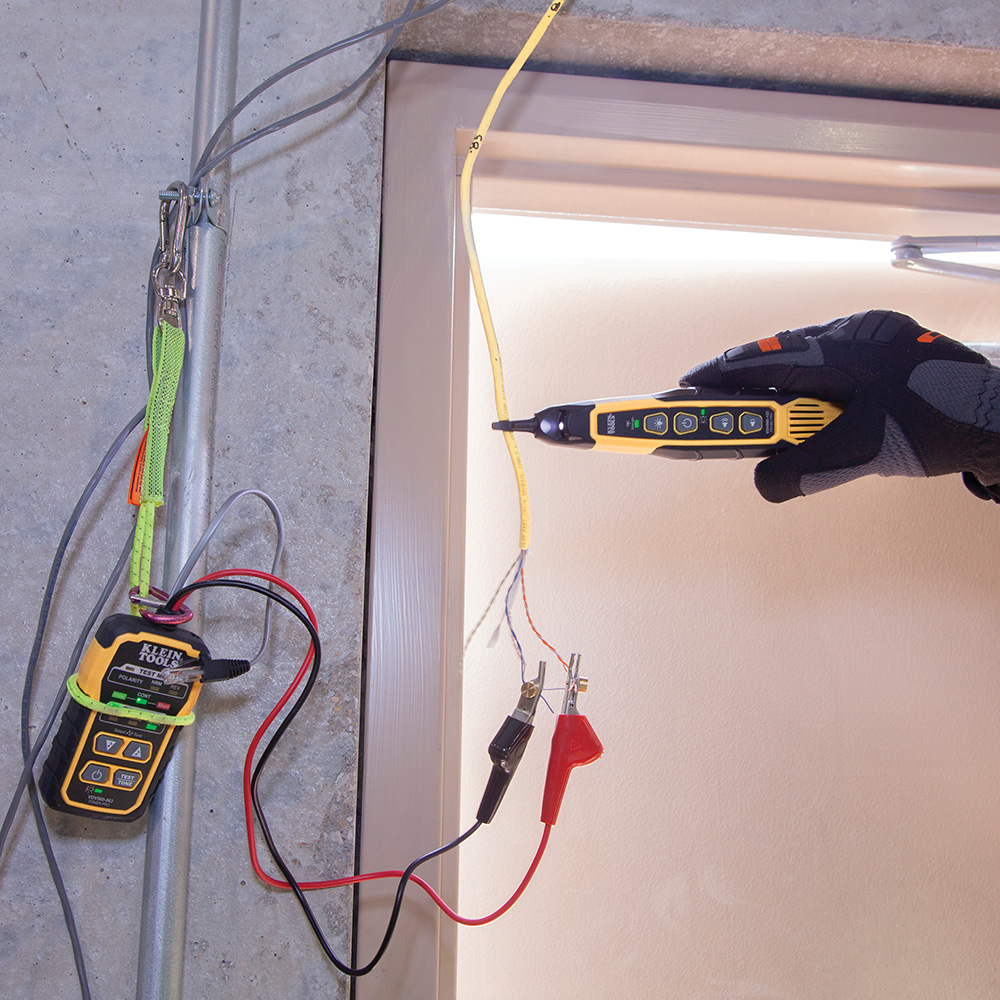

The professional series Probe-Pro Tone Tracer traces non-active wiring when used with Toner-Pro Tone Generator (VDV500-063, sold separately). It features a responsive, durable, replaceable non-metallic, conductive tip and a work light for use in dark spaces. A headphone jack allows for headphone (not included) use in extreme noise environments. The terminal block confirms the toned pair has been located.

Warnings

• Do not use instruments if it is wet, as it could pose a shock hazard.
• Read all safety information before using.
• Turn off instrument and disconnect all test leads before attempting to replace batteries.
• Battery door must be in place and secure before you operate.
• Do NOT use on energized circuits.
• Carefully read all instructions.
• Do not use instruments if it is damaged in any way.
• Do not open the case, other than the battery compartment.

Features

• Low battery indicator
• Works with Klein's Scout® Pro, Lan Scout®, Jr. and Commander™ series of testers
• Worklight, Stay on Power Button

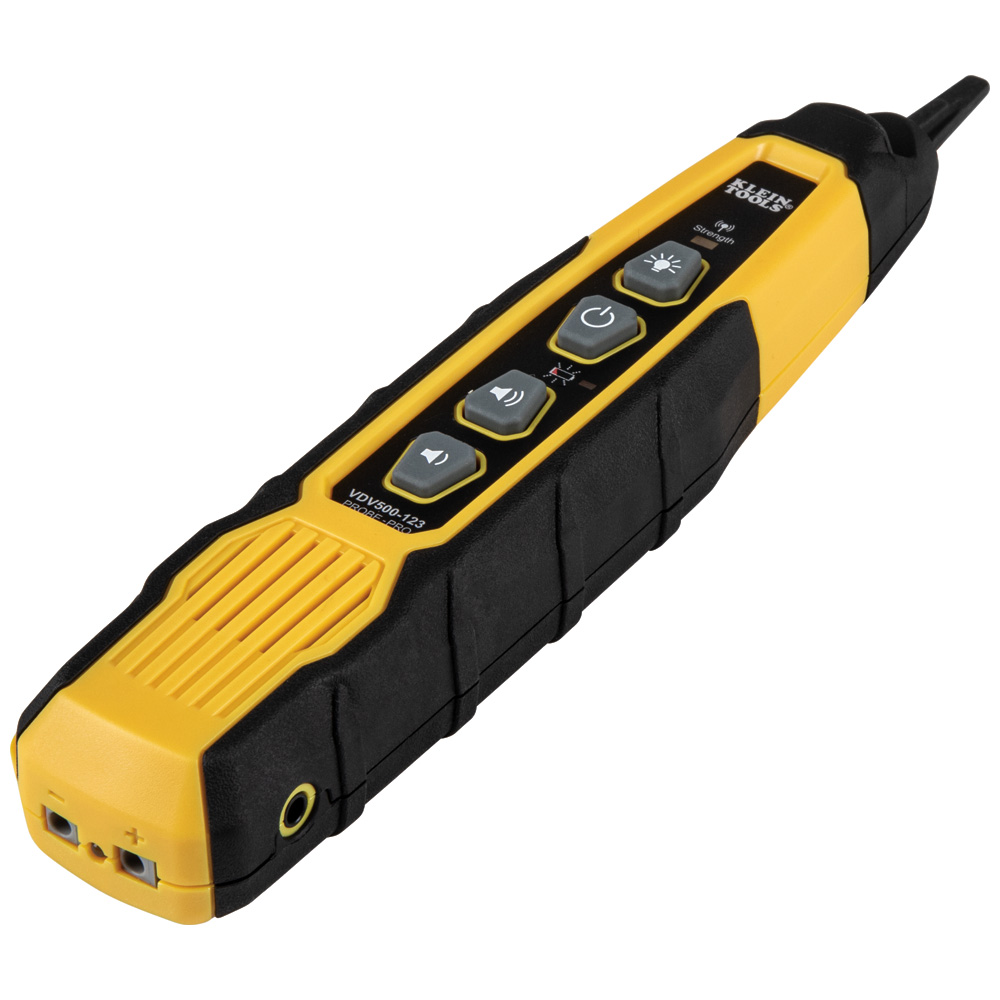

• Terminal block on probe to confirm the toned pair has been located
• Includes a loop for a lanyard
• Traces non-energized wiring when used with Toner-Pro Tone Generator (VDV500-063, sold separately)
• Auto power-off
• Tool-less, twist-and-lock replacement tip (Cat. No. VDV999-068) available

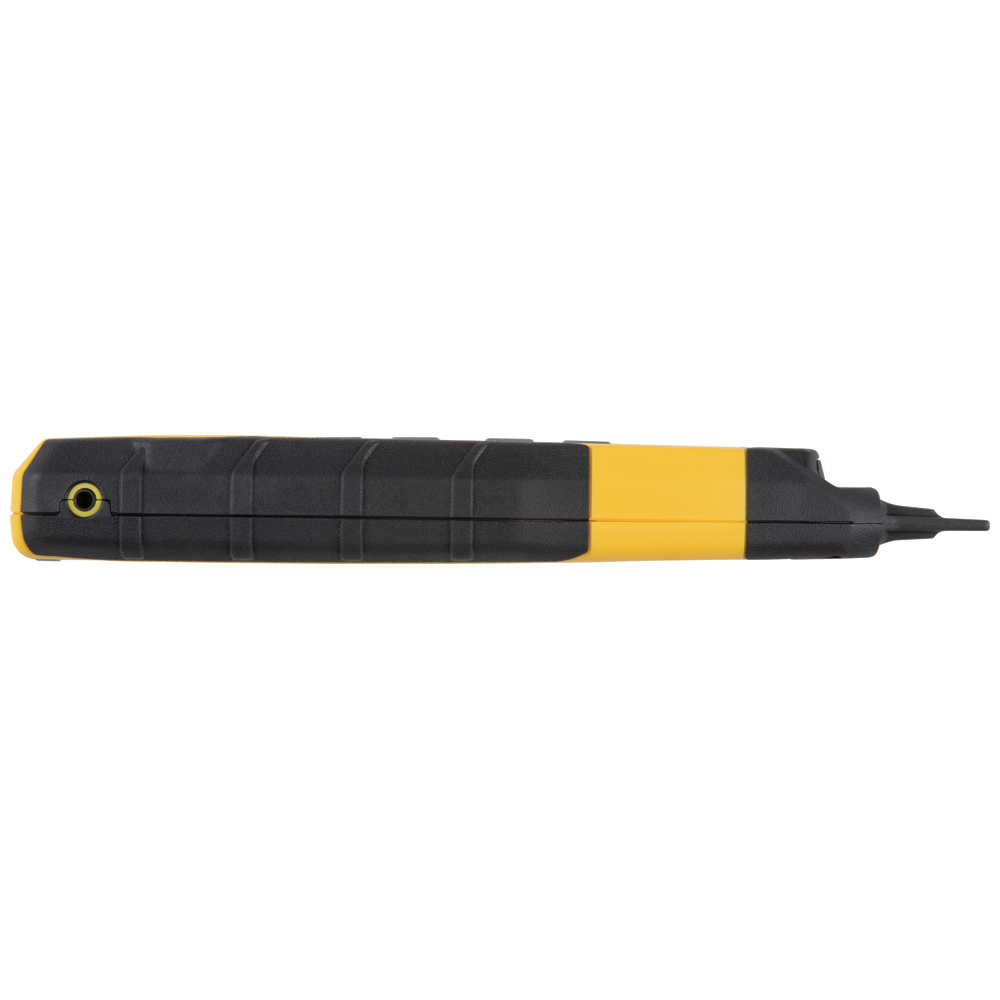

• 3.5 mm headphone jack for noisy environments (headphones not included)
• Traces open-ended, non-energized wiring when used with Toner-Pro Tone Generator (VDV500-063, sold separately)
• One push power button with power-on LED indicator with no need to hold button down
• 4 x AAA batteries included

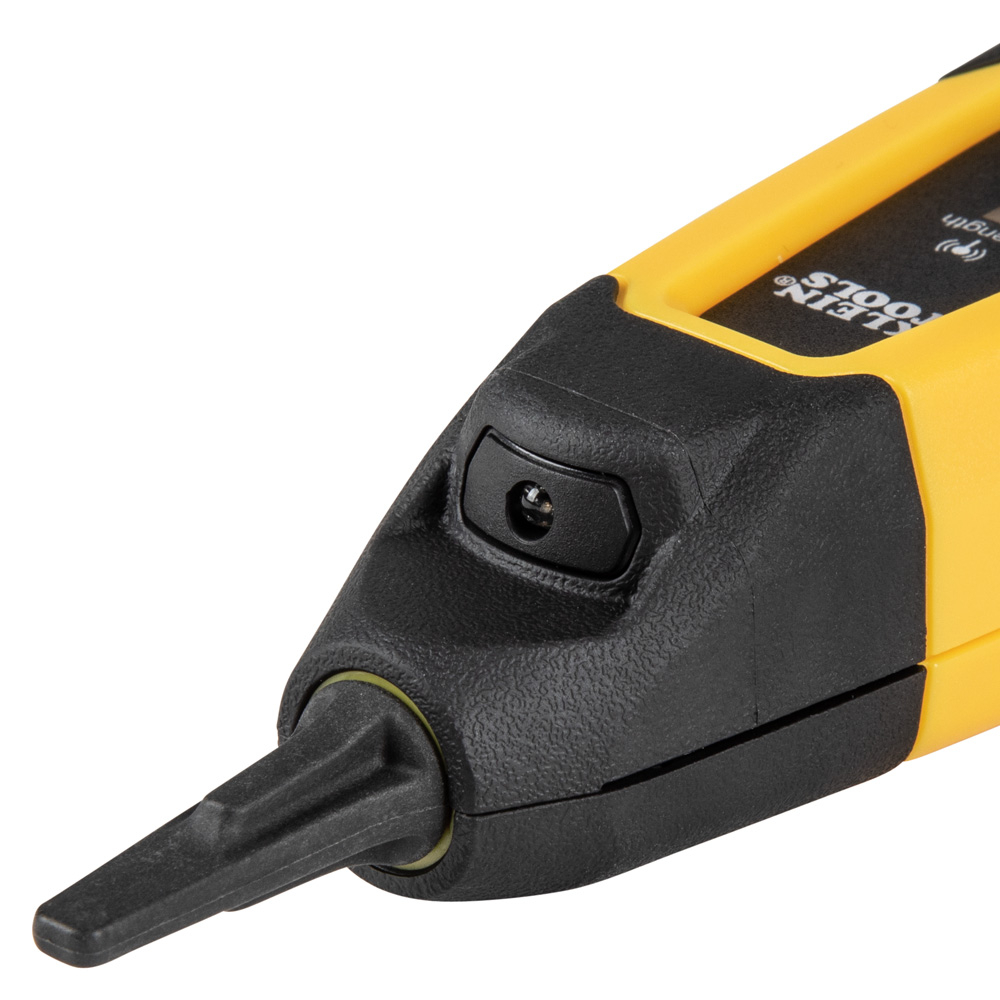

• Responsive, durable, replaceable non-metallic, conductive tip

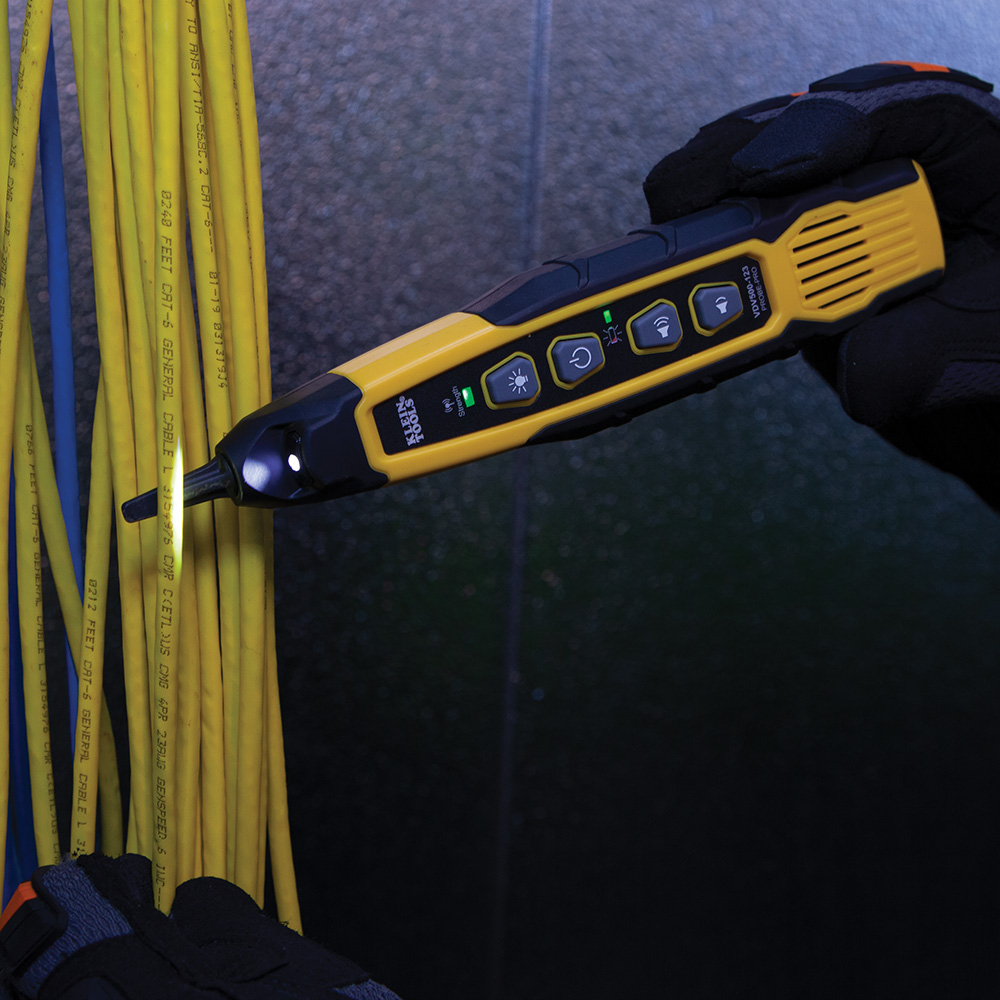

• Work light for use in dark spaces
• One push power button with power-on LED indicator - no need to hold button down
• Tool-less, twist-and-lock replacement tip (VDV999-068) available

Specifications

• Includes: 4 x AAA Batteries
• Weight: 0.3000 lbs
• Overall Height: 9" (22.7 cm)
• Overall Width: 1.2" (3.0 cm)
• Application: Wire Tracing
• Replaceable Tip: Yes
• Adjustable Volume: Yes
• Included: Tracing Probe; 4 x AAA Batteries
• Auto-Power Off: Yes
• Continuity Testing: No
• Country of Origin: China
• Width: 1.2000 in
• Overall Length: 1.4" (3.6 cm)
• Material: Plastic and Metal
• Height: 1.4000 in
• Batteries: 4 x AAA
• Type: Accessory Probe
• Visual Notification: LED
• Battery Life: 25 hr
• Style Name: Probe
• Low Battery Indicator: Yes
• Amplifier Overload Indication: No
• Depth: 9.0000 in
• Power On LED Indicator: Yes
