Digital Tone Generator

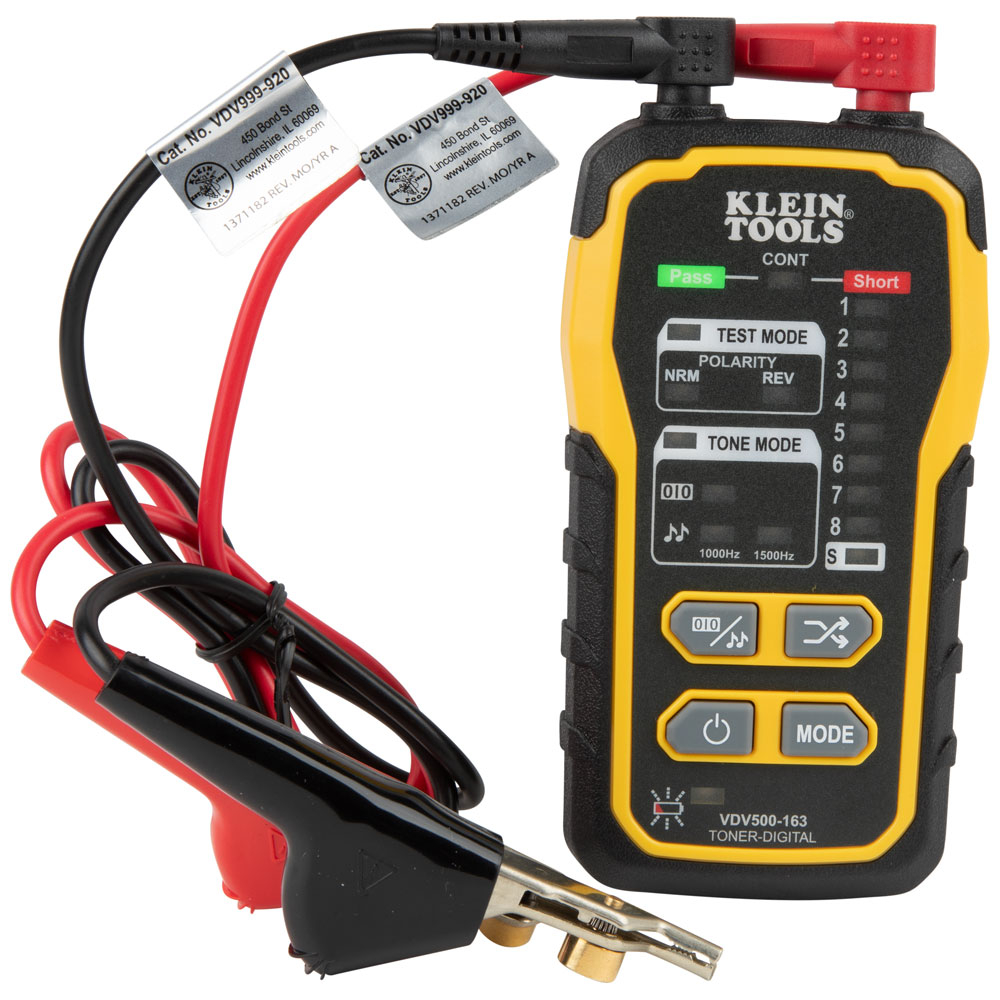

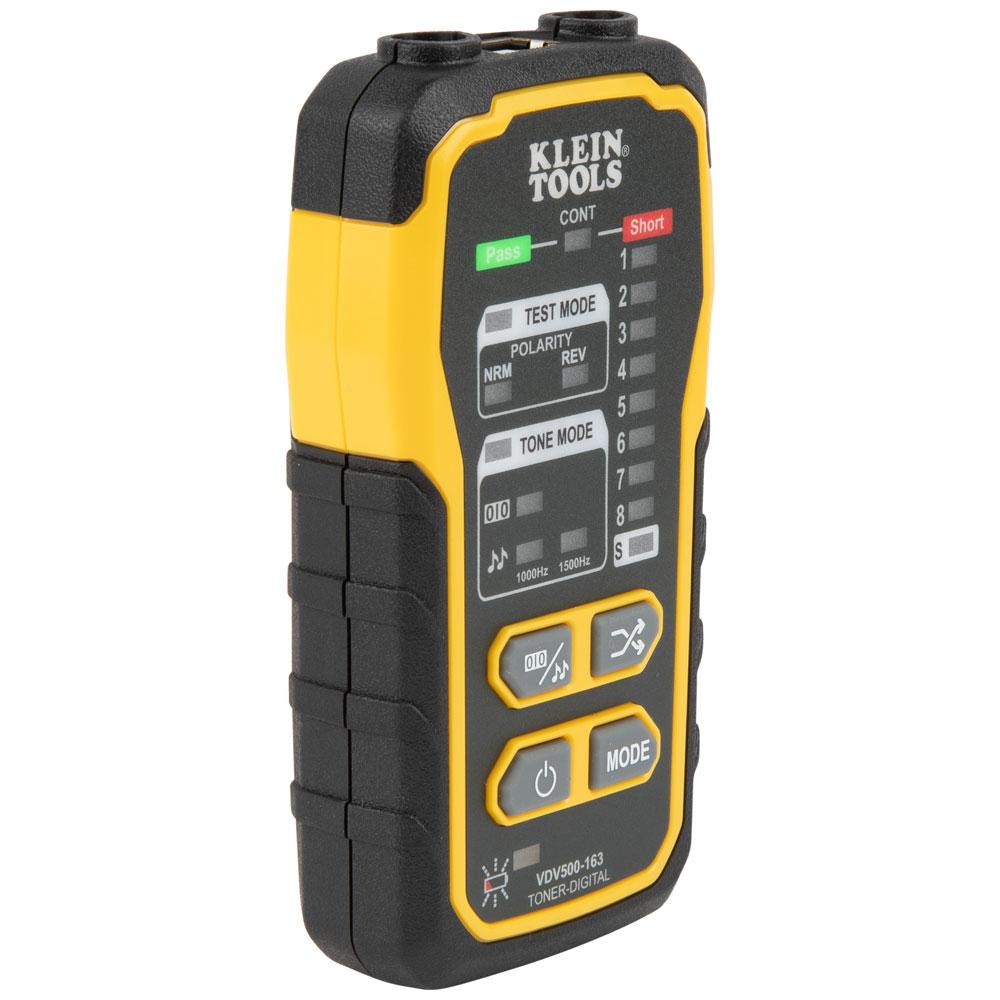

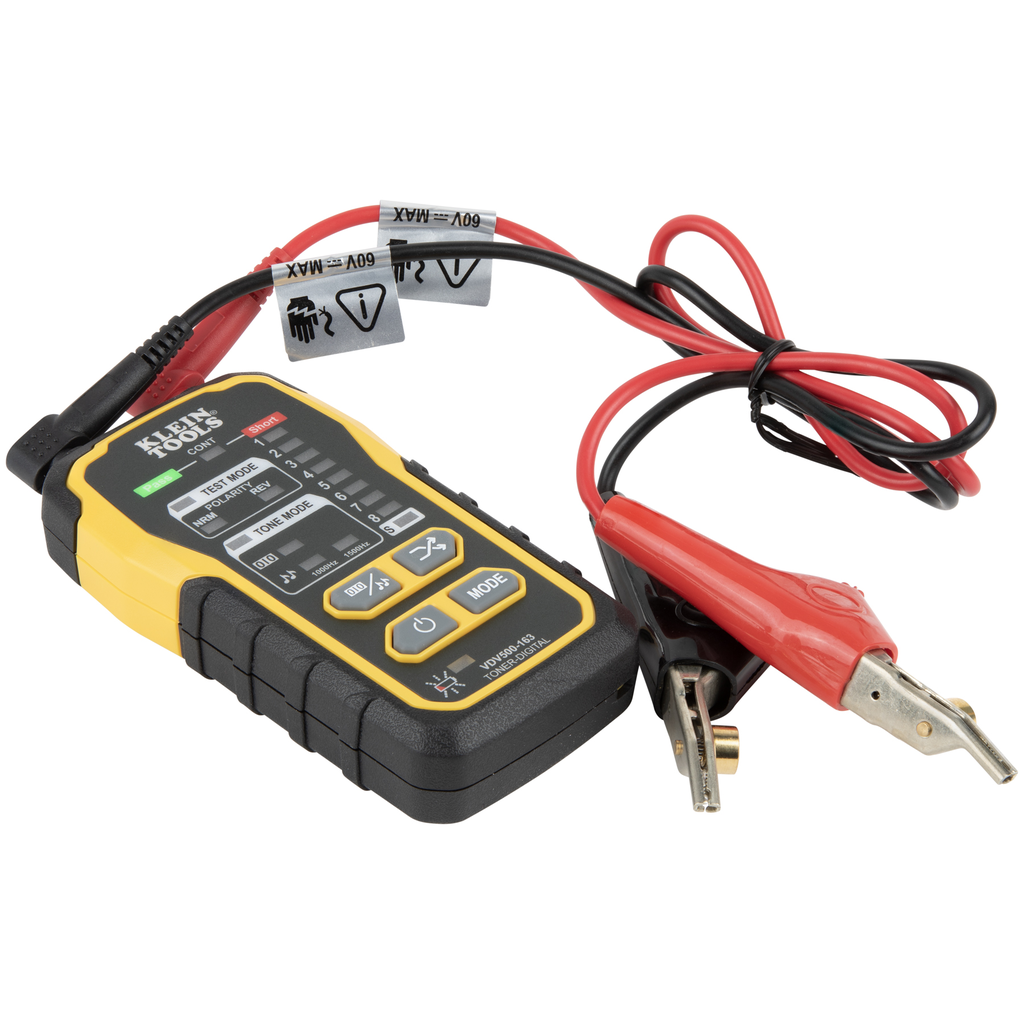

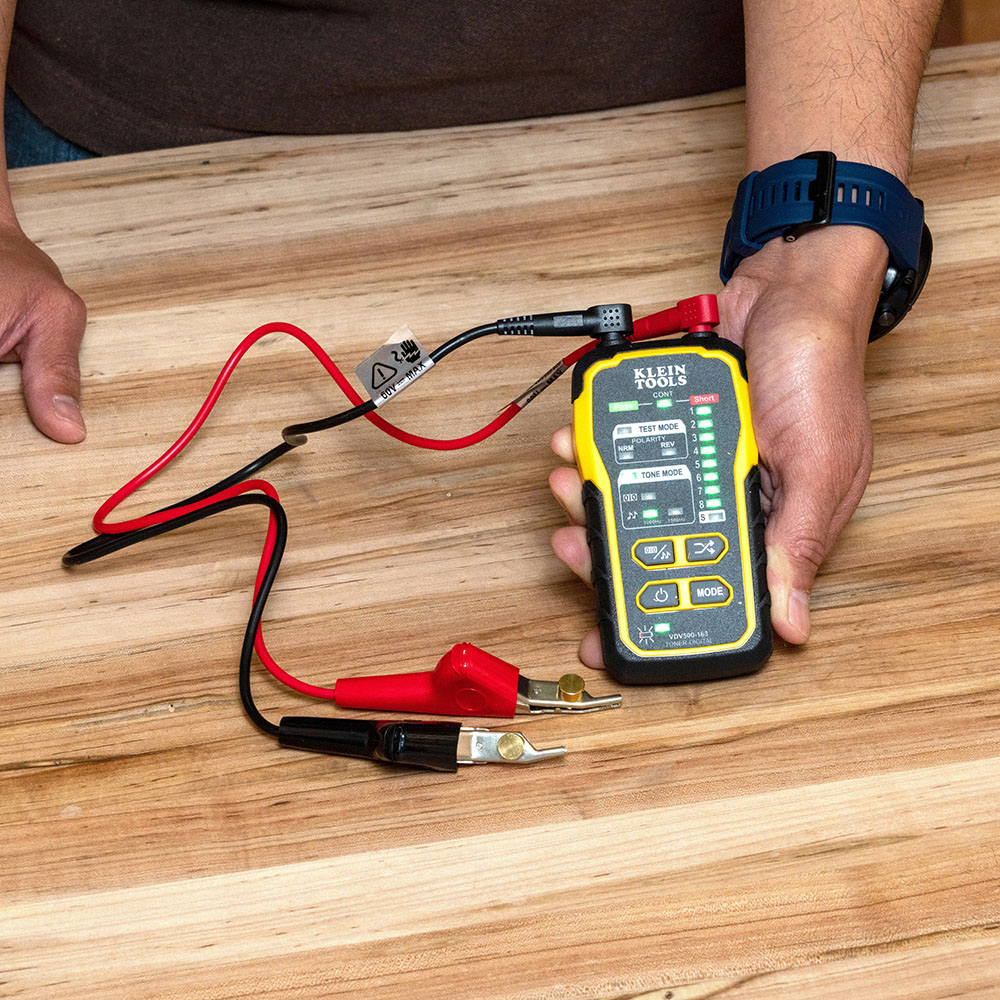

Use Klein Tools Digital Tone Generator for wire identification, wire tracing and wire pair identification. When used with the Digital Tracing Probe (Cat. No. VDV500-223; sold separately), you can trace and locate cables on an active network and wire map to check Pin-to-Pin connections with shield detection and features angled bed-of-nails (ABN) clips to securely attach to wires. Use the RJ45 port to easily test RJ45, RJ11, and RJ12 data cables.

Features

• Three distinct tone cadences
• Performs Analog and Digital Toning
• Tests for continuity and polarity with response displayed on clearly labeled, easy-to-read LEDs
• Wire mapping capabilities to check Pin-to-Pin connections with shield detection (requires Digital Tracing Probe, (Cat. No. VDV500-223; sold separately)
• Auto Power-Off and Low Battery Indicator

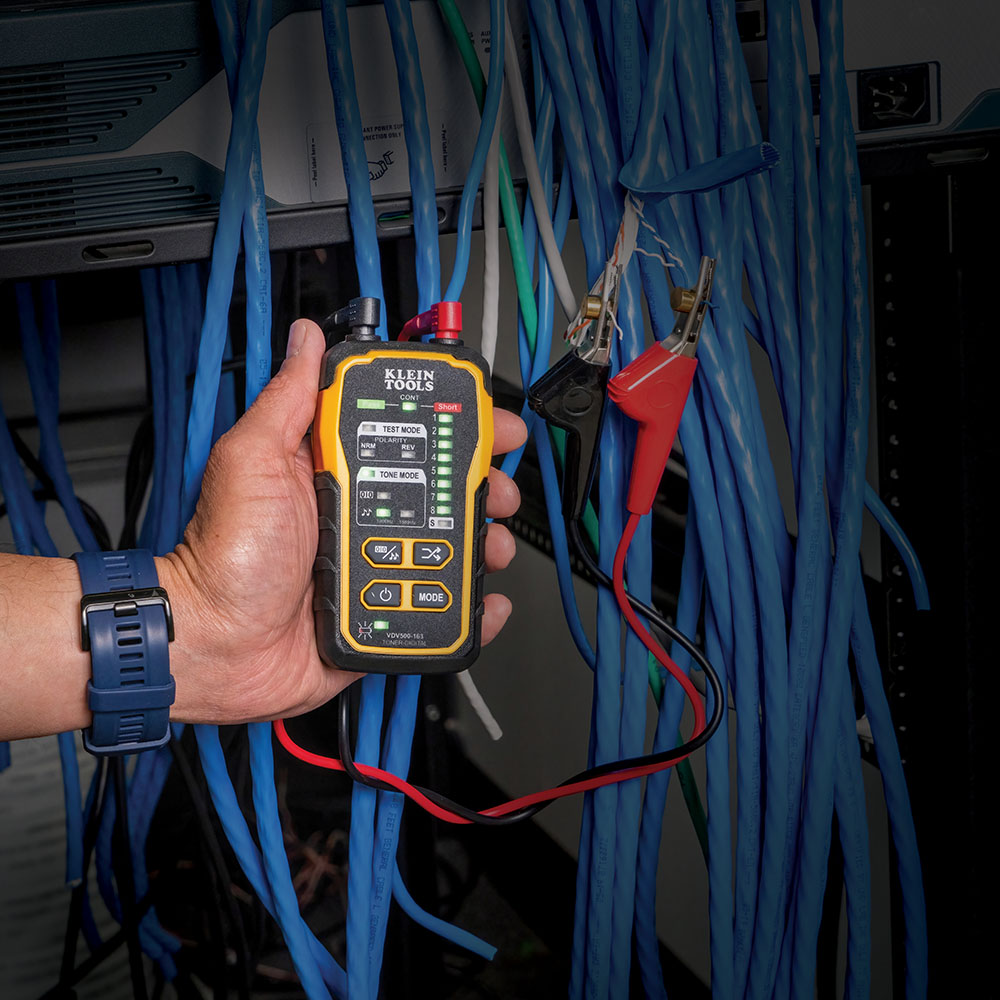

• Digital tone generator traces and locates cables on an active network when used with Digital Tracing Probe (Cat. No. VDV500-223; sold separately)

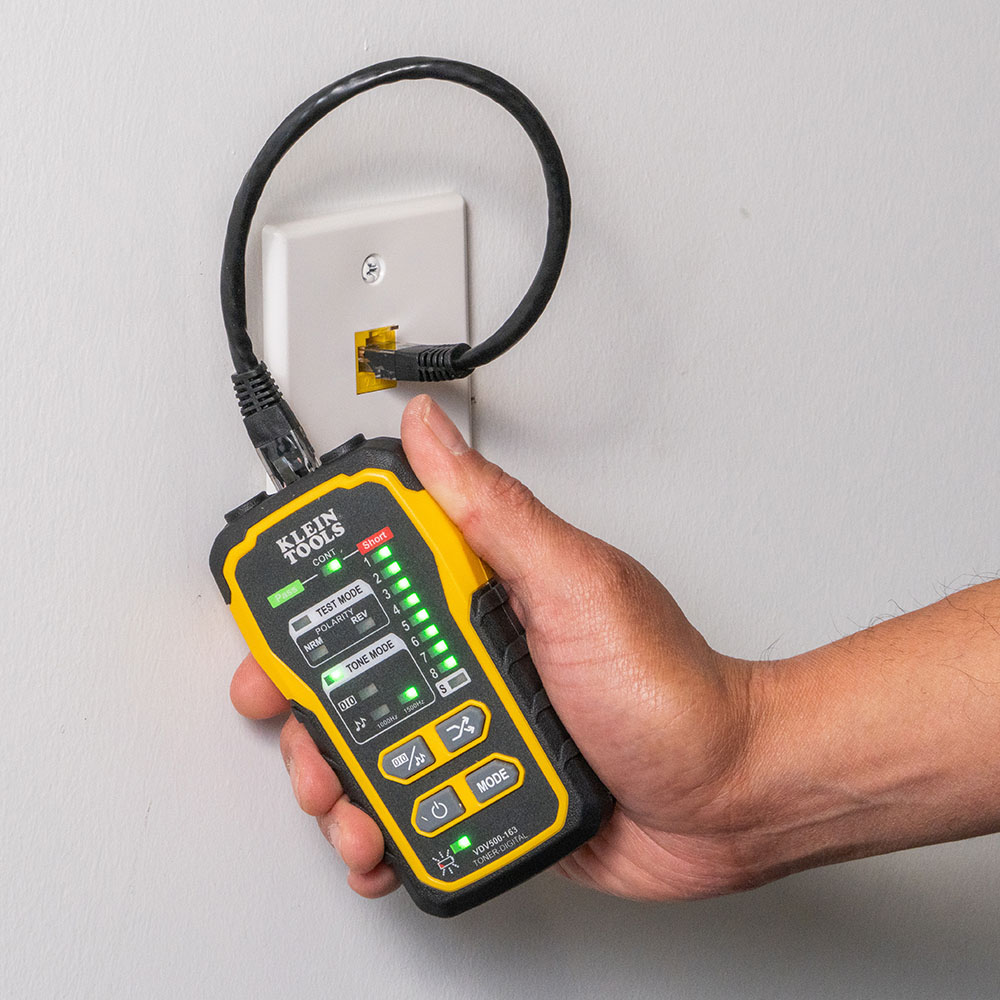

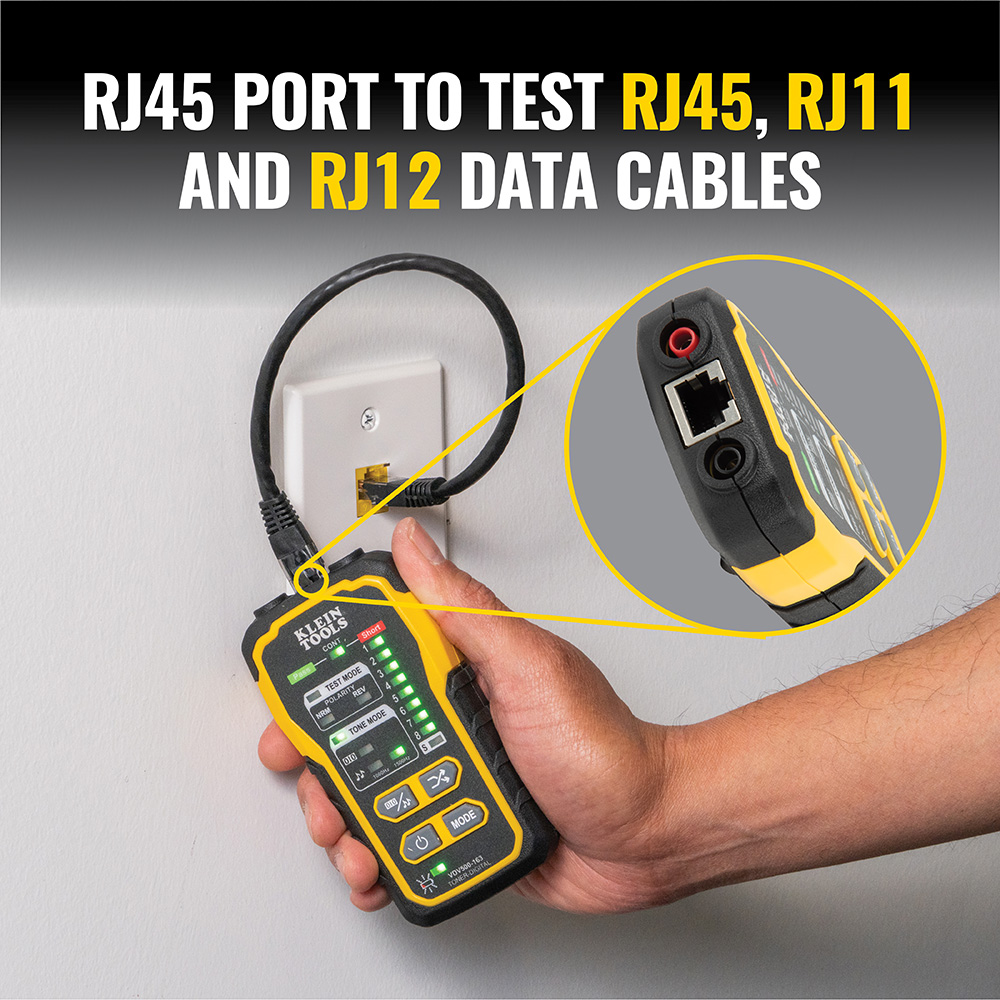

• RJ45 port to test RJ45, RJ11 and RJ12 data cables

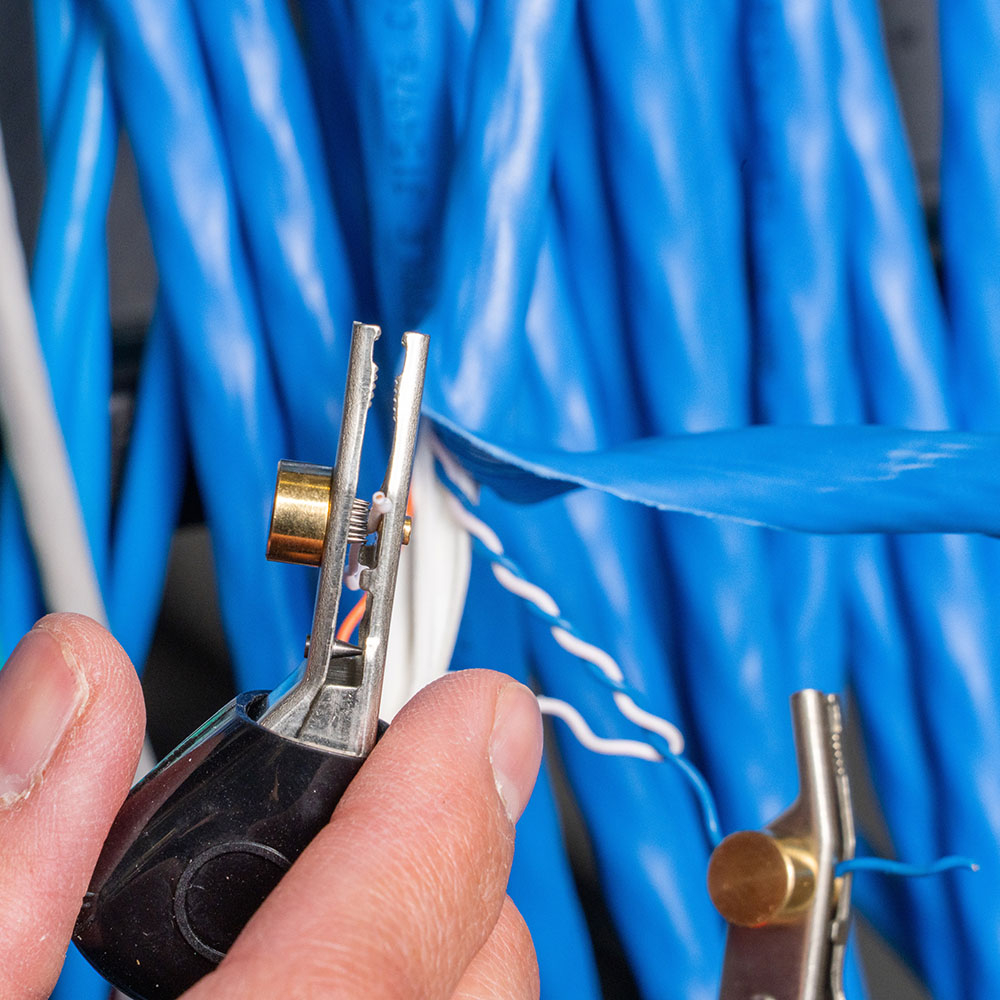

• Rugged Angled Bed of Nails (ABN) clips securely attach to wires

Specifications

• Application: Wire Toning
• Low Battery Indicator: Yes
• Overall Width: 1.1" (2.8 cm)
• Overall Height: 4.7" (11.9 cm)
• Height: 1.1000 in
• Power On LED Indicator: Yes
• Country of Origin: China
• Auto-Power Off: Yes
• Tones: 3
• Adjustable Volume: No
• Width: 2.2300 in
• Material: ABS
• Visual Notification: LED
• Replaceable Tip: No

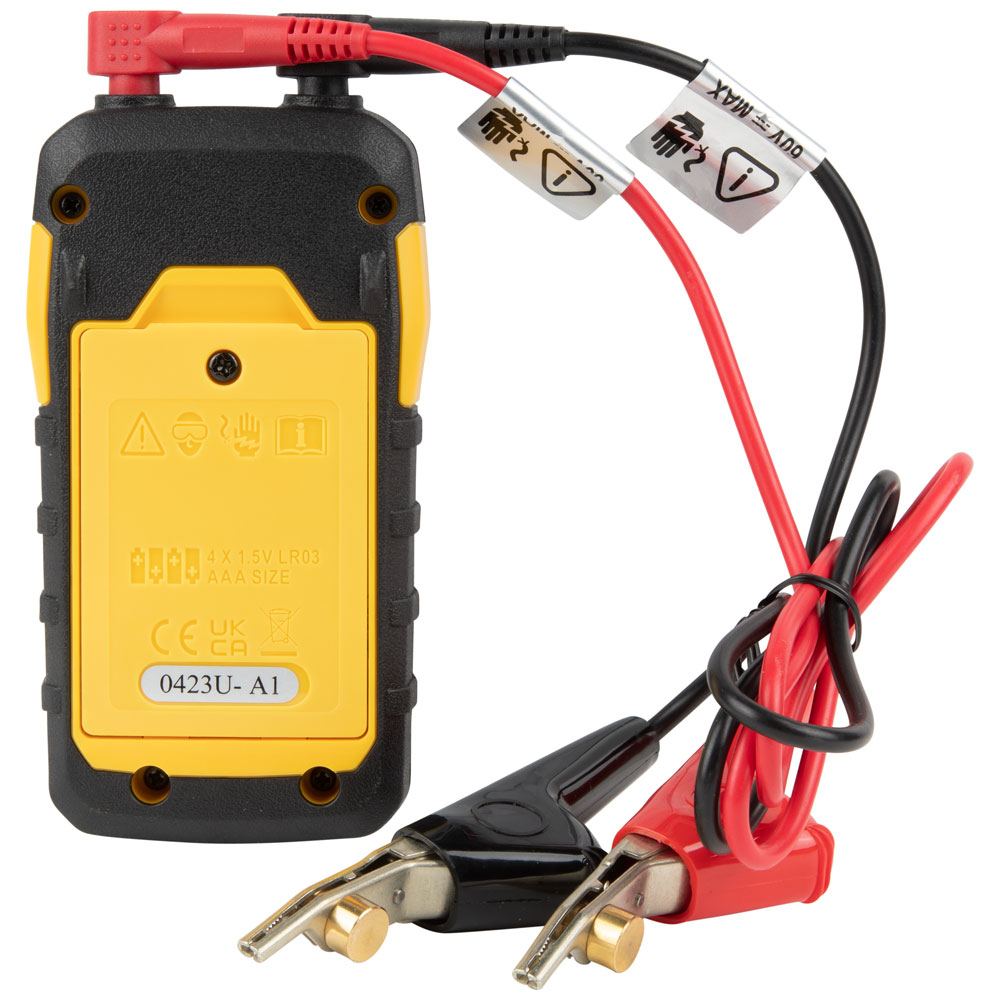

• Batteries: 4 x AAA
• Type: Digital Wire Tracing
• Included: Tone Generator; 4 x AAA Batteries
• Self-Storing Remote: No
• Weight: 0.3300 lbs
• Continuity Testing: Yes
• Overall Length: 2.2" (5.6 cm)
• Battery Life: 20 hr
• Depth: 4.6700 in
• Amplifier Overload Indication: No
