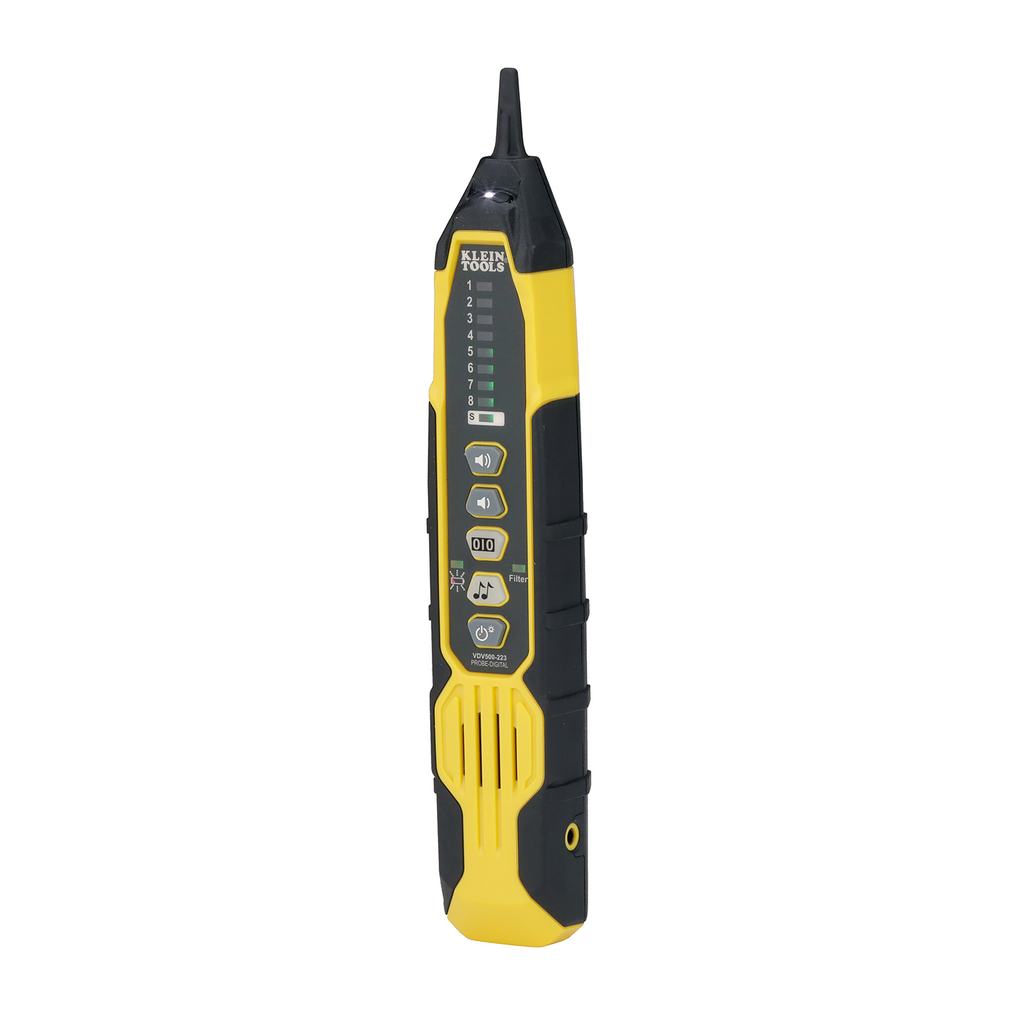

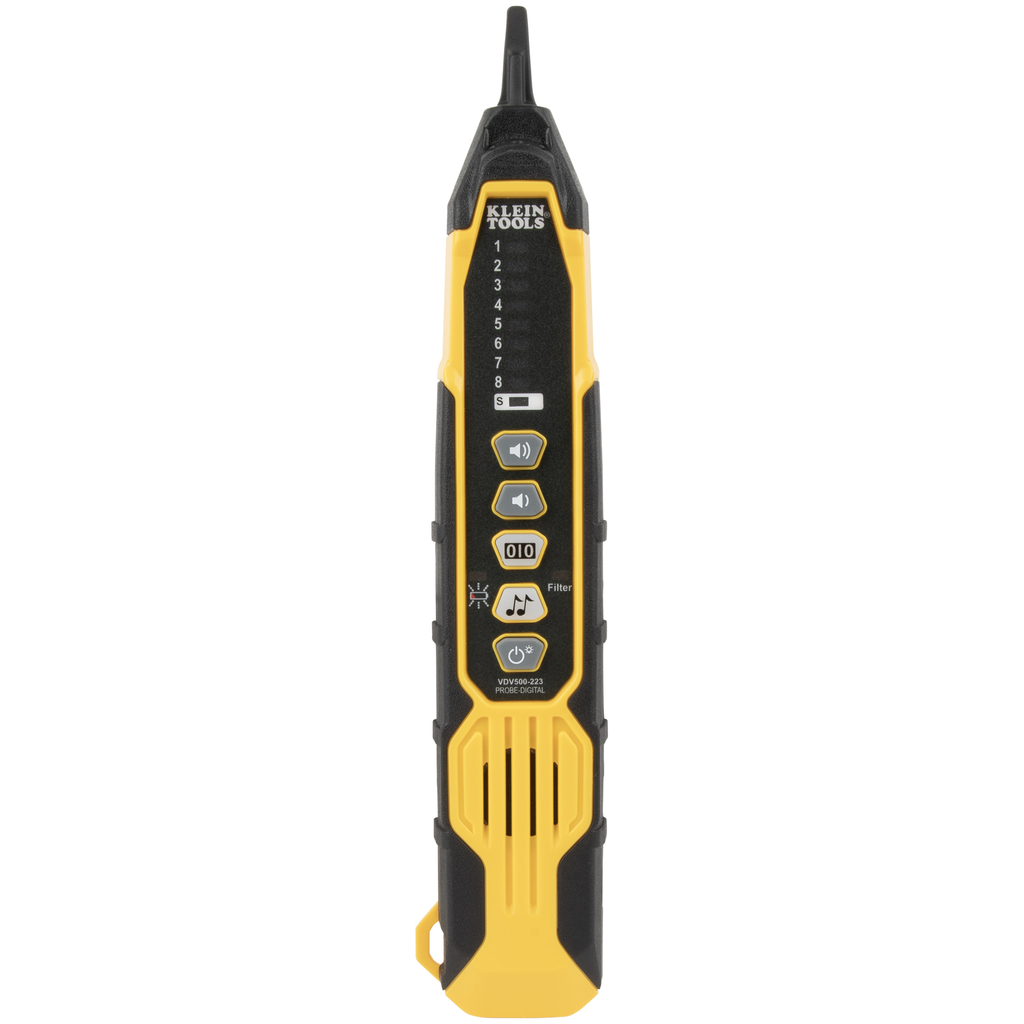

Digital Tracing Probe

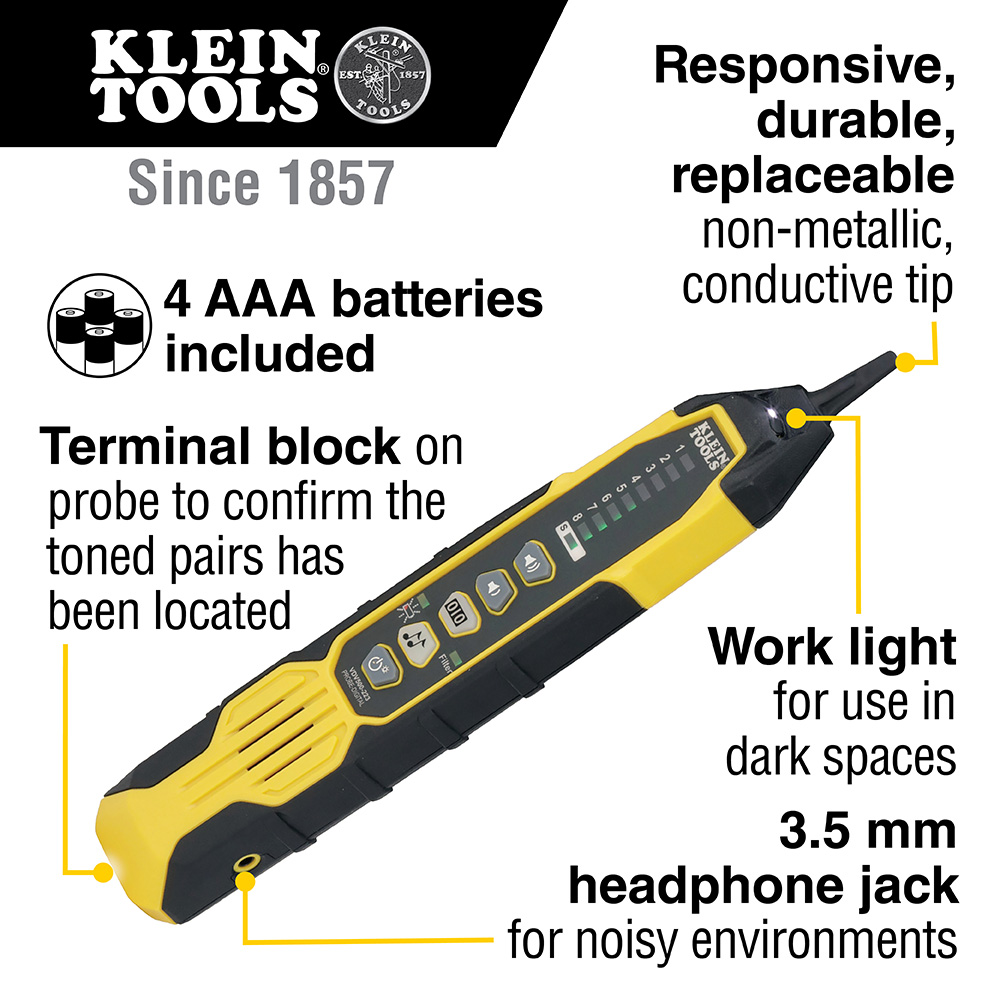

Use the Klein Tools Digital Tracing Probe to trace cables and wires on active and non-active networks when used with the Digital Tone Generator (Cat. No. VDV500-163; sold separately). It features a responsive, durable, replaceable non-metallic, conductive tip and a work light for use in dark spaces. A headphone jack allows for headphone (not included) use in extreme noise environments.

Features

• 60Hz filter for accurate tracing, works with Klein's Scout® Pro and Lan Scout® Jr. testers

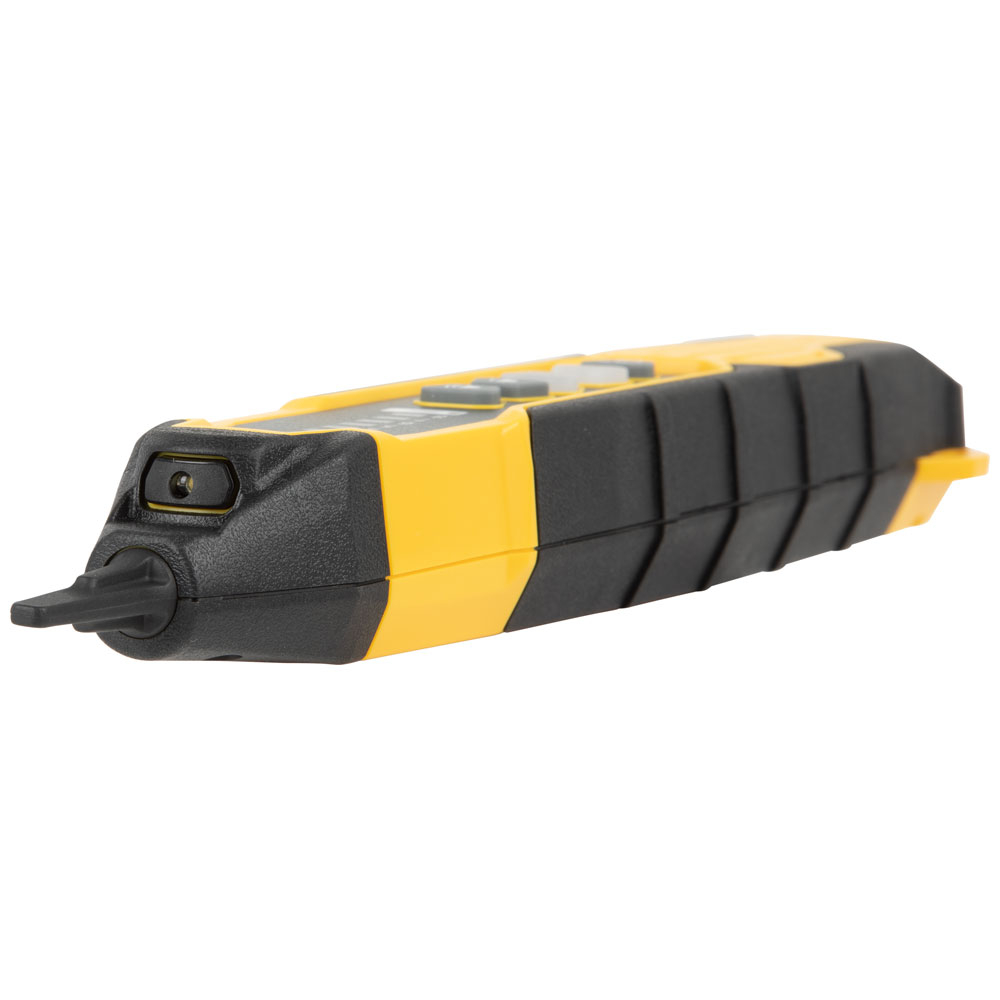

• Work light for use in dark spaces

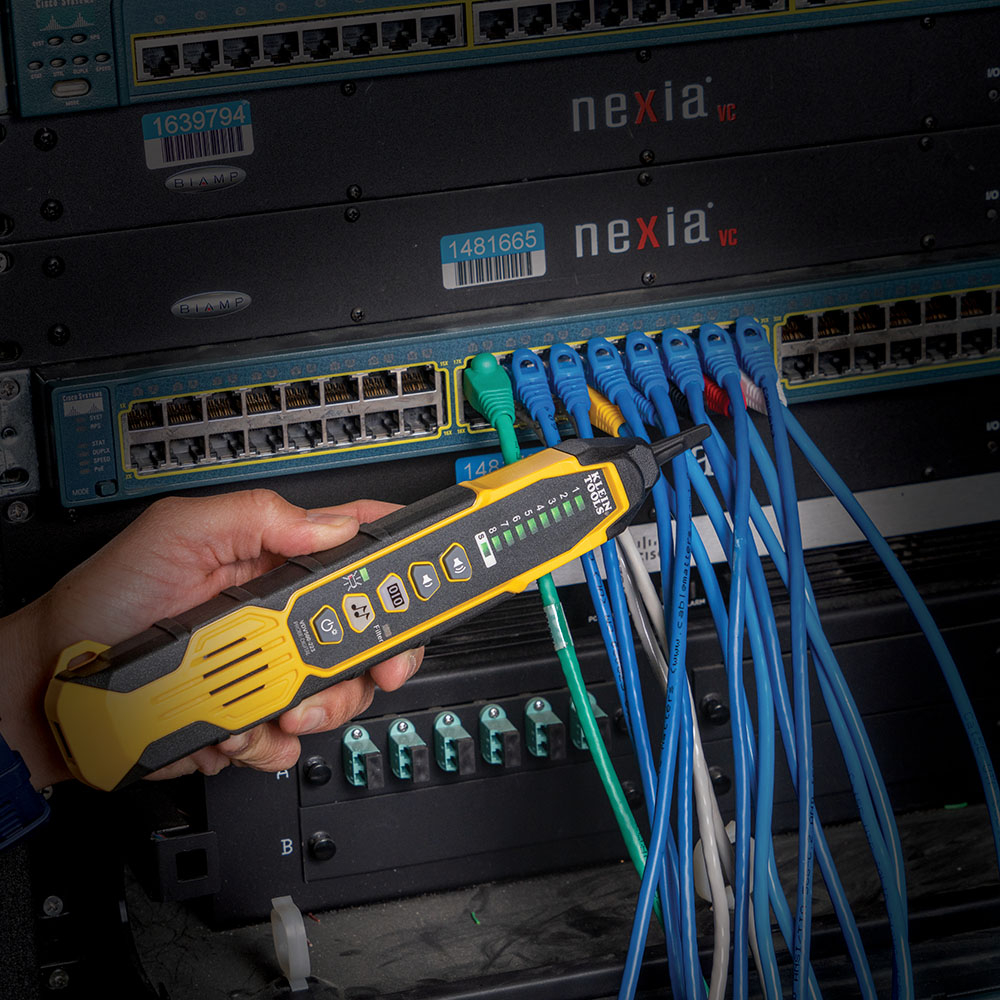

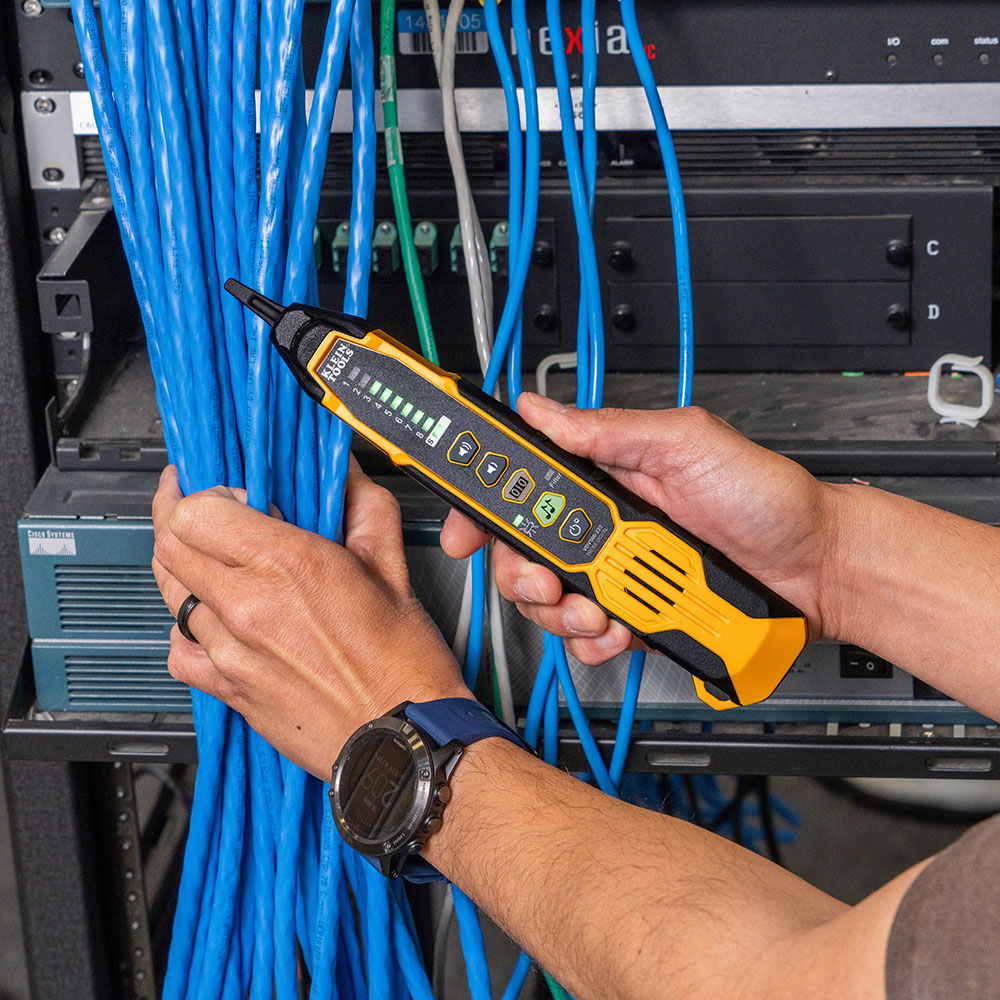

• Trace and locate cables on an active network when used with the Digital Tone Generator (Cat. No. VDV500-163 required; sold separately)

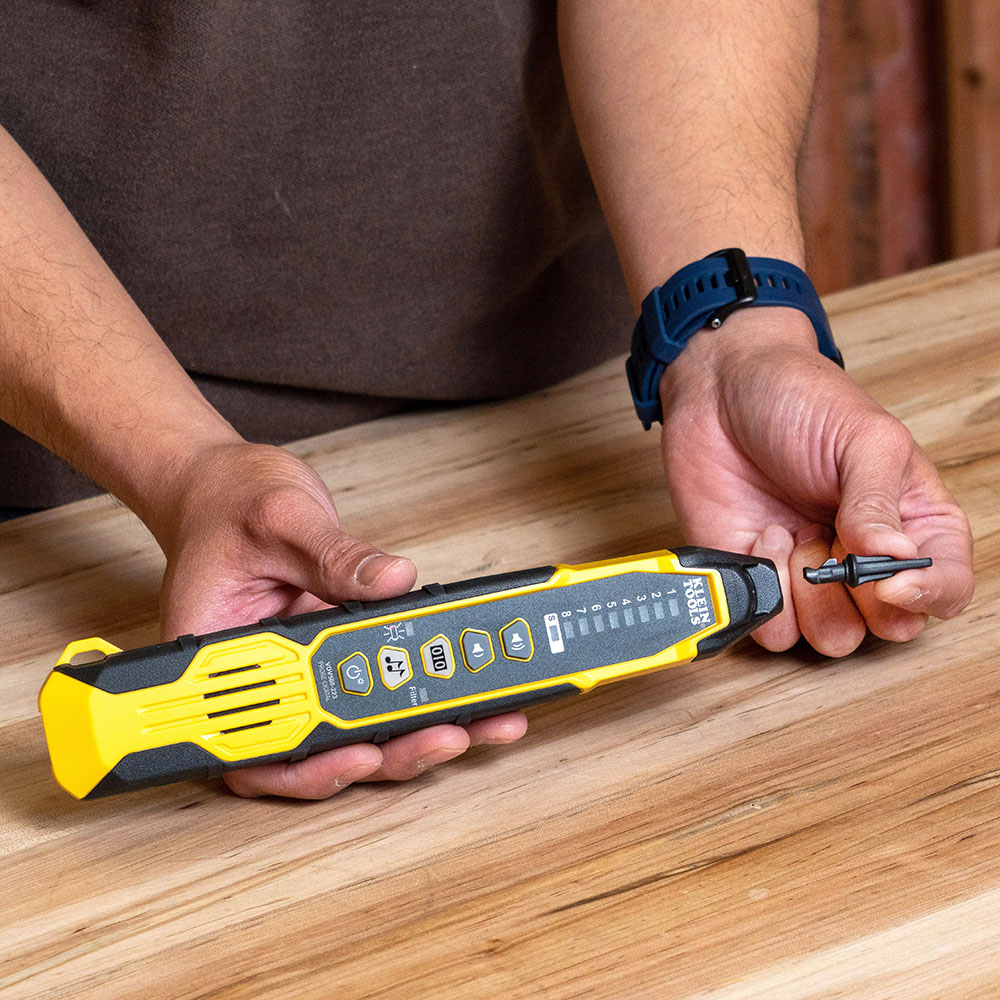

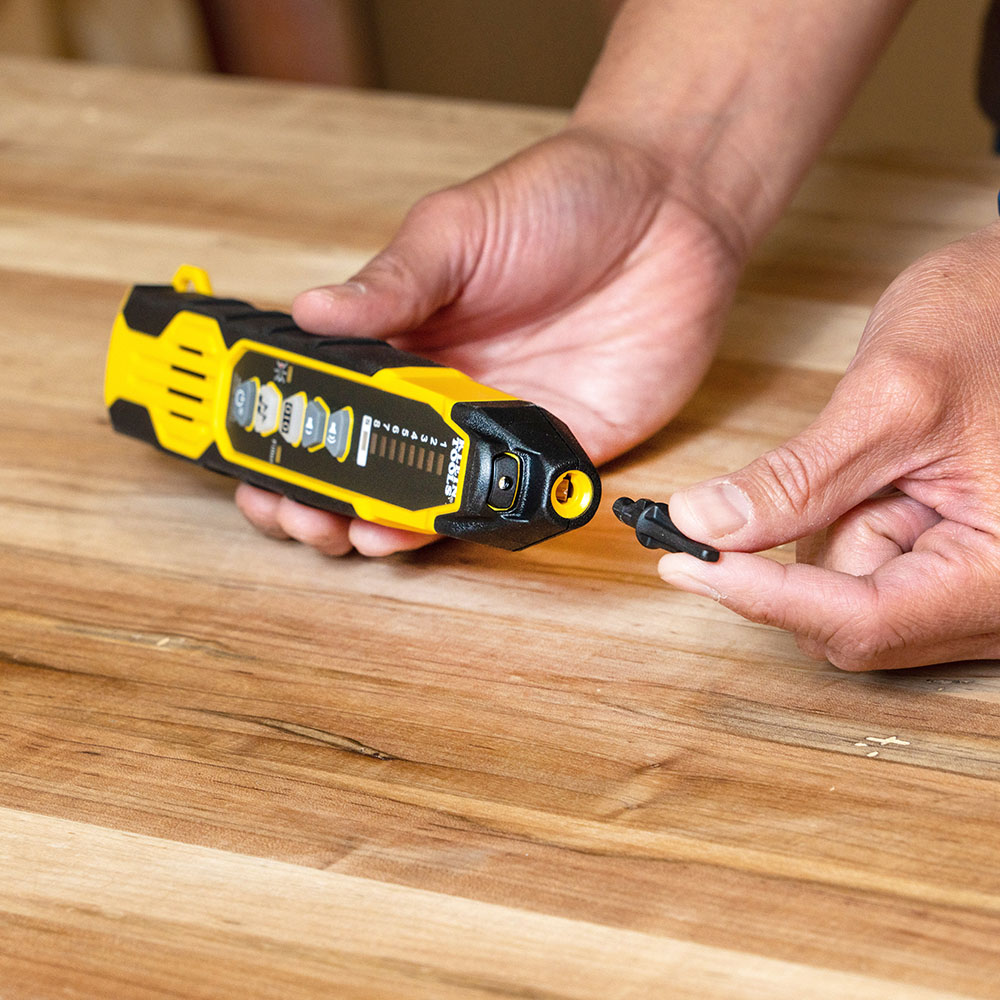

• Tool-less, twist-and-lock replacement tip (Cat. No. VDV999-070) available
• Work Light, Stay On Power Button
• Digital Probe traces non-energized wiring when used with the Digital Tone Generator (Cat. No. VDV500-163 required; sold separately)

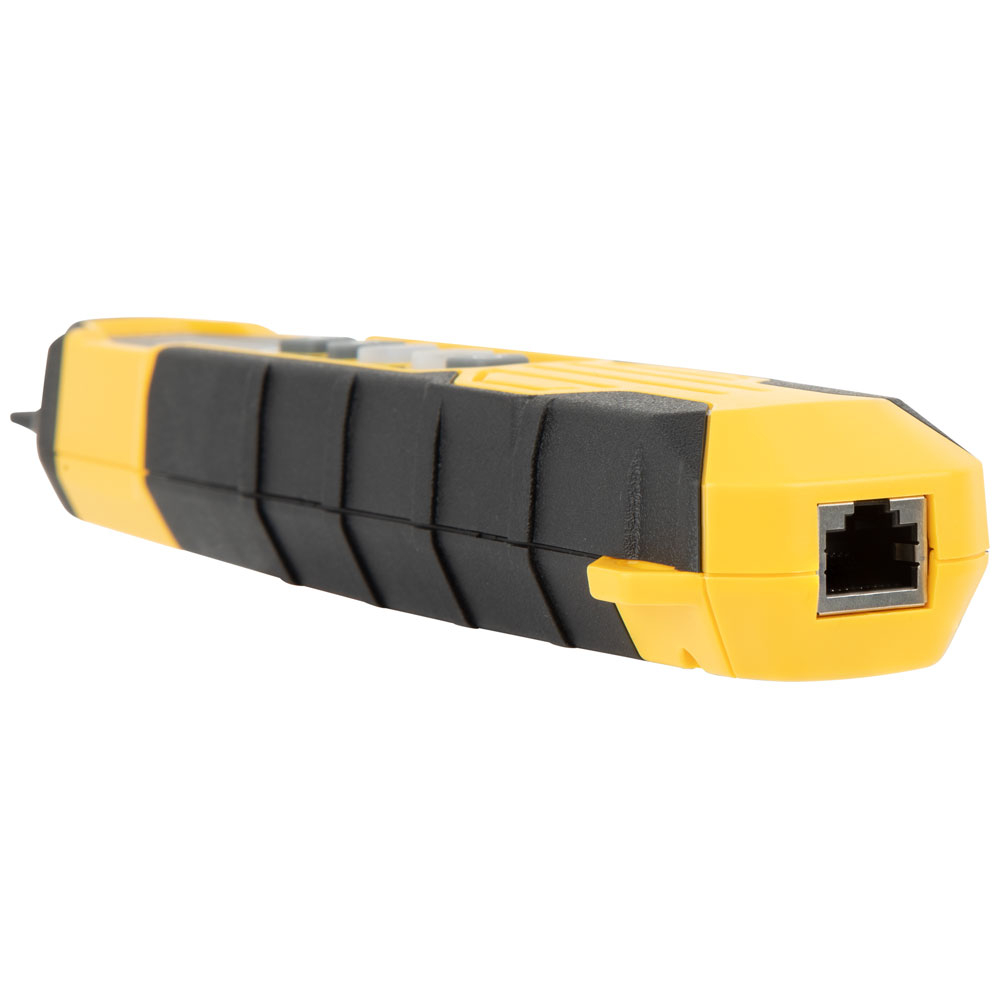

• Wire mapping capabilities to check Pin-to-Pin connections with shield detection when used with the Digital Tone Generator (Cat. No. VDV500-163 required; sold separately)
• 3.5 mm headphone jack for use in noisy environments (headphones not included)

Specifications

• Type: Digital Wire Tracing
• Height: 1.3200 in
• Visual Notification: LED
• Self-Storing Remote: No
• Material: ABS
• Amplifier Overload Indication: No
• Application: Wire Tracing

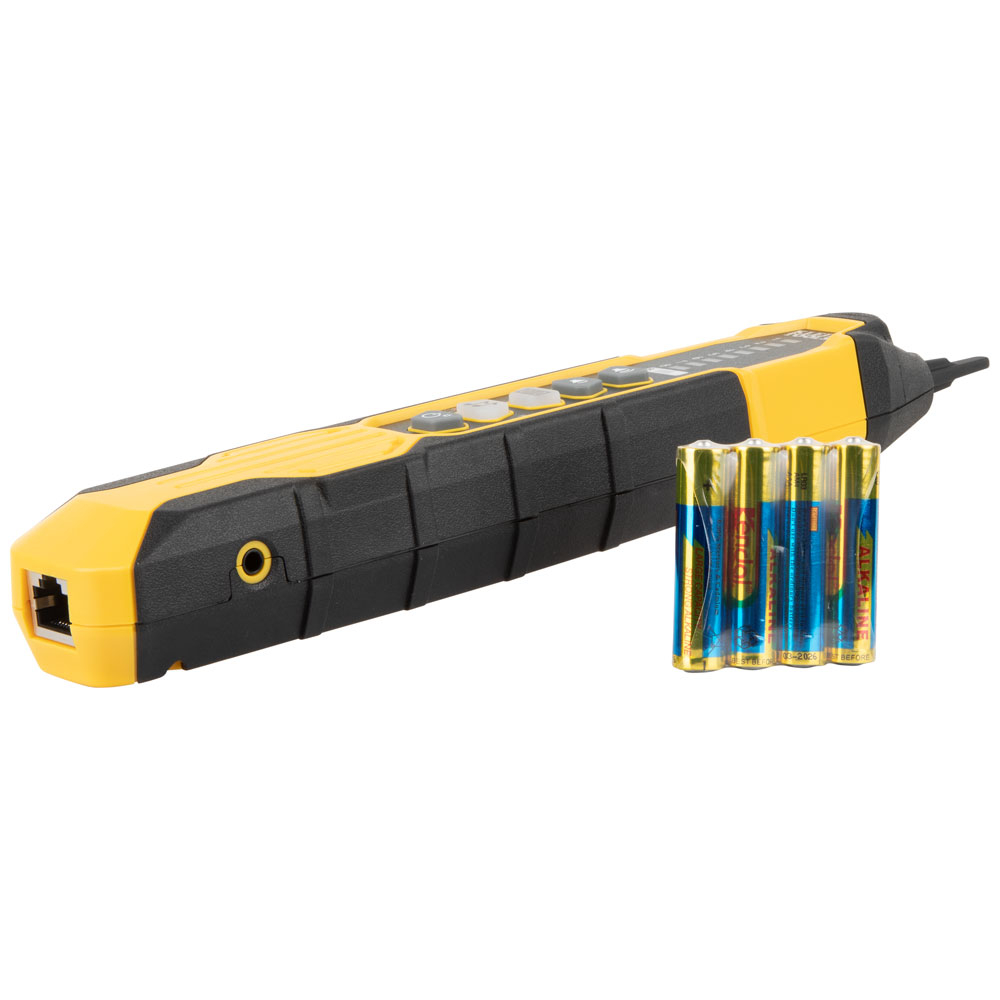

• Included: Tracing Probe; 4 x AAA Batteries
• Weight: 0.3200 lbs
• Low Battery Indicator: Yes
• Continuity Testing: No
• Batteries: 4 x AAA
• Depth: 9.9600 in
• Overall Height: 9.9 Inch (25.1 cm) (9.9 Inch) (25.1 cm)
• Adjustable Volume: Yes
• Width: 1.9200 in
• Battery Life: 20 hr
• Overall Length: 4.8 cm (1.9 Inch) (4.8 cm) (1.9 Inch)
• Overall Width: 3.3 cm (1.3 Inch) (3.3 cm) (1.3 Inch)
• Replaceable Tip: Yes
• Auto-Power Off: Yes
• Power On LED Indicator: Yes
