Tone & Probe Test and Trace Kit

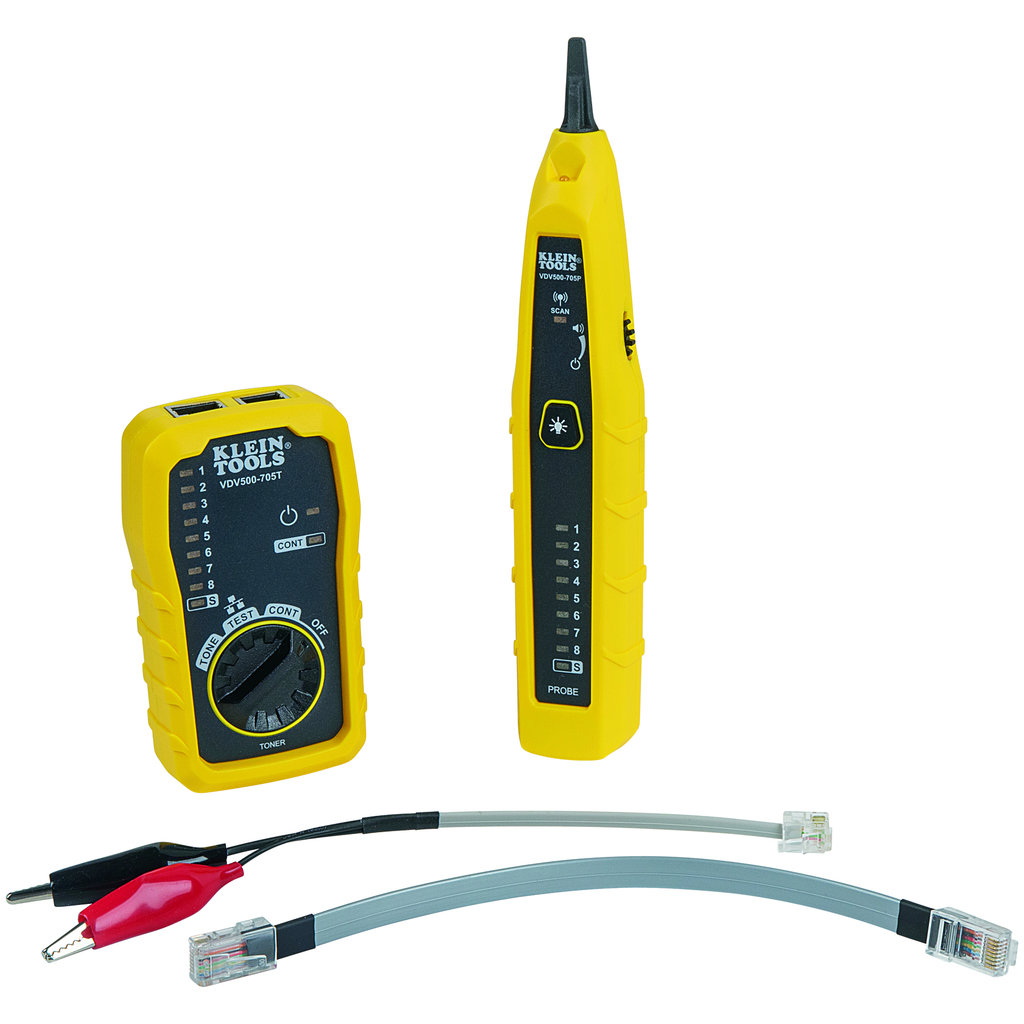

The Tone & Probe Test and Trace Kit provides simple toning and tracing of non-energized wire. The easy-to-use tone generator traces wire when used with the included probe. Alligator clips are provided for unterminated wires and an RJ45 to RJ45 cable to tone or test data cables. The responsive probe is a tone tracer with a durable, non-metallic, conductive tip, a speaker with audible output and headphone jacks for use in noisy environments (headphones not included). The worklight on the probe illuminates dark spaces. The toner and probe together perform pin to pin wire map test.

Warnings

• Do not use instruments if damaged in any way.
• Turn off instrument and disconnect all test leads before attempting to replace batteries.
• Battery door must be in place and secure before you operate.
• Read all safety information before using.
• Do NOT use on energized circuits.
• Do not open the case, other than the battery compartment.
• Do not use instruments if wet, as this could pose a shock hazard.
• Carefully read all instructions.

Features

• Alligator Clips, RJ11 Plug, RJ45 to RJ45 Test Cable
• Headphone jack for noisy environments (headphones not included)
• Responsive probe with durable, non-metallic, conductive tip
• Work light on probe tip for use in dark spaces
• AAA batteries (included)
• Adjustable volume control
• Simple analog tone generator and wire tracing probe for open-ended non-active wire runs
• Toner and probe together perform pin to pin wire map test
• Replaceable test cables available (Cat. No. VDV770-855)
• RJ45 to RJ45 test cable
• Alligator clips for unterminated wires

Specifications

• Application: Wire Toning and Tracing
• Depth: 10.5000 in
• Overall Width (Inch): 6.9
• Overall Length (cm): 26.9
• Overall Length (Inch): 10.6
• Batteries: 4 x AAA
• Weight (lb): 0.63
• Width: 7.2000 in
• Material: ABS
• Standard: REACH, RoHS3, CE-EMC
• Weight: 0.7000 lbs
• Type: Tone Generator Tracing Probe
• Weight (kg): 0.3
• Overall Width (cm): 17.5
• Overall Height (Inch): 1.6
• Overall Height (cm): 4.1
• Height: 1.5000 in
• Included: Tester/Tracer; RJ45 Cable; RJ12 and Alligator Clip Cable; Batteries
