Tone & Probe PRO Electrical Wire Tracing Set, Batteries and Carrying Pouch

This kit includes the tools necessary to tone and trace wires in common wiring systems. This premium tone generator has Angled Bed of Nails (ABN) clips that securely grip the cable. Tone Generator emits five distinct tones. An RJ11 plug easily connects to telephone or RJ45 data jacks for toning. The toner, also checks continuity and polarity that are indicated by clearly labeled LEDs. The probe traces with the tones signal. The adjustable-volume speaker amplifies the tone. The 3.5 mm jack allows for headphones (sold separately) to be attached in noisy environments. The probe has a tool-less non-metallic durable replaceable tip. The probe enables testing in distribution blocks without disturbing other services.

Features

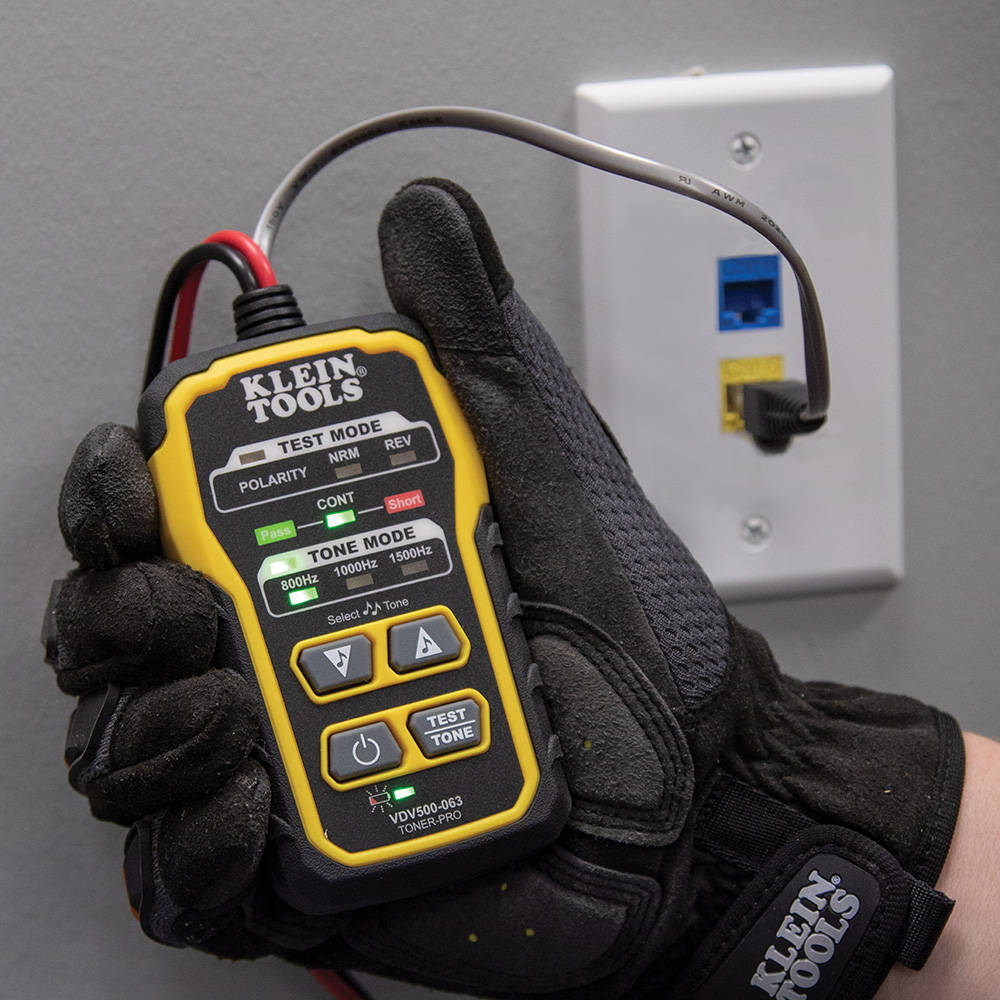

• RJ11 plug easily connects to telephone and RJ45 data jacks to tone wire pair
• Custom, padded, divided, zipper pouch for convenient storage (VDV770-500) included with kit

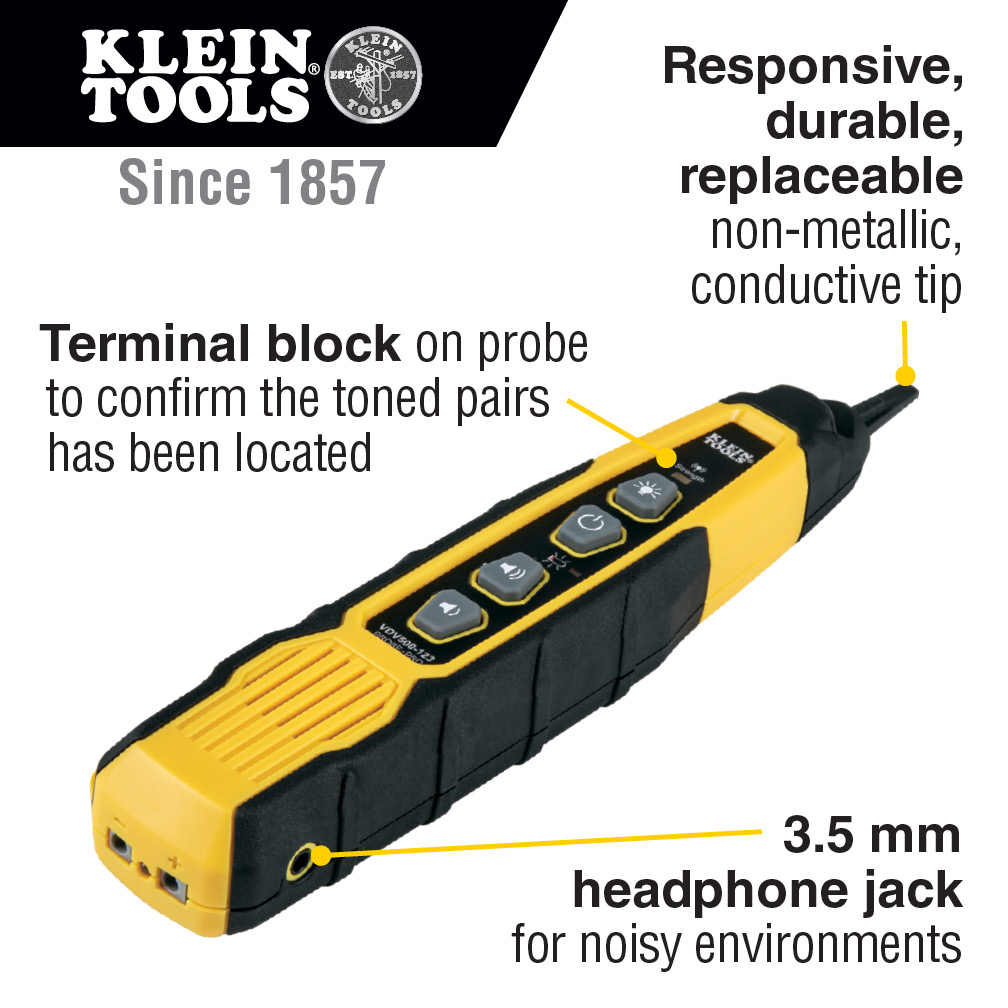

• Terminal block on probe to confirm the toned pair
• Each tool includes 4X AAA batteries
• Angled Bed of Nails with (ABN) Clips, 5 Distinct Cadences, Worklight
• Responsive probe with durable non-metallic, replaceable conductive tip (VDV999-068) - sold separately

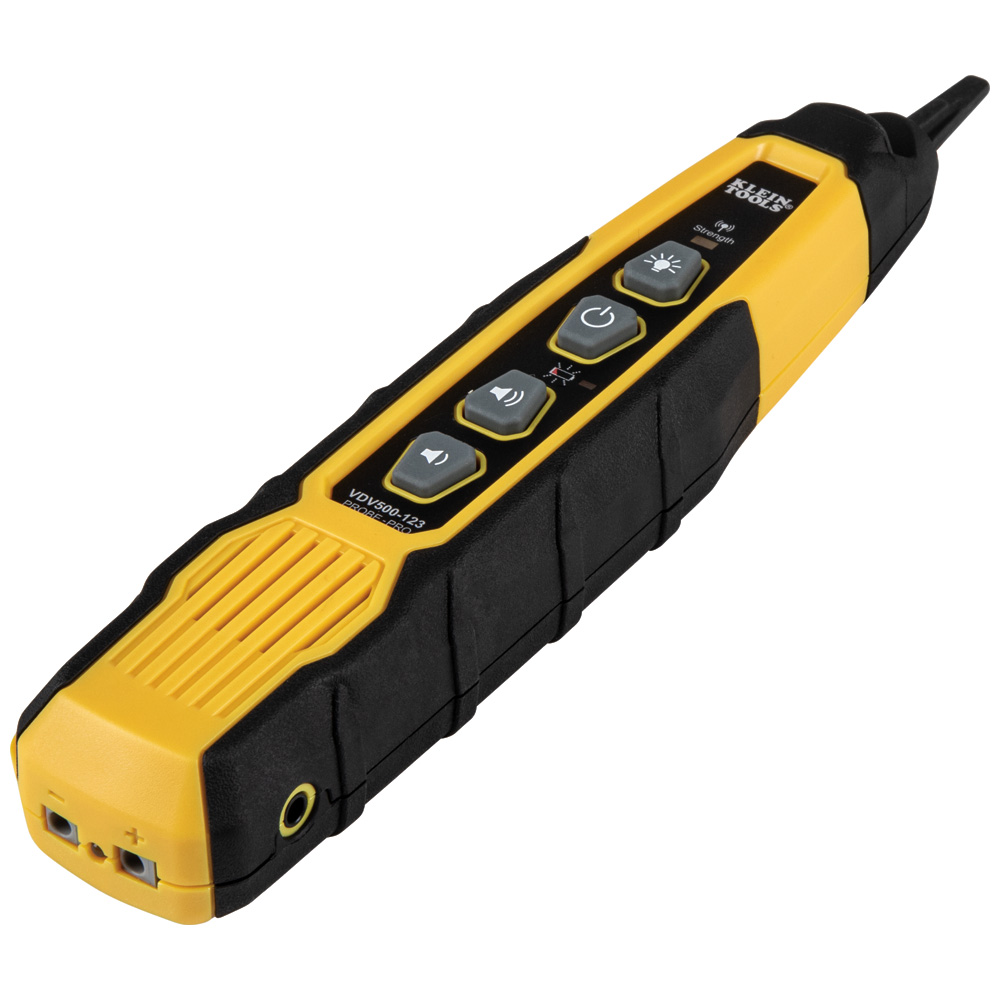

• Probe-Pro features 3.5 mm headphone jack for noisy environments (headphones not included)
• Includes a professional grade analog tone generator and tracing probe for open-ended, non-energized wiring

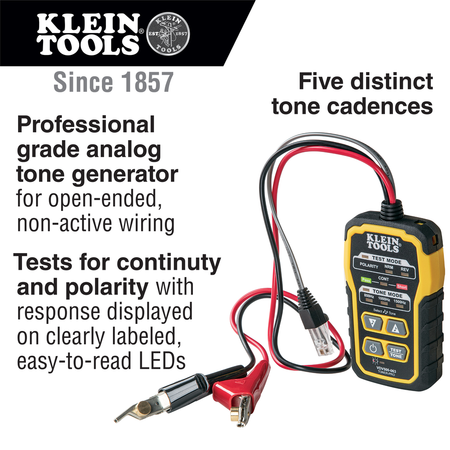

• Toner-Pro features 5 distinct tone cadences, transmits 1,000+ feet
• Rugged Angled Bed of Nails (ABN) clips securely attach to wires
• Work light on probe tip for use in dark spaces

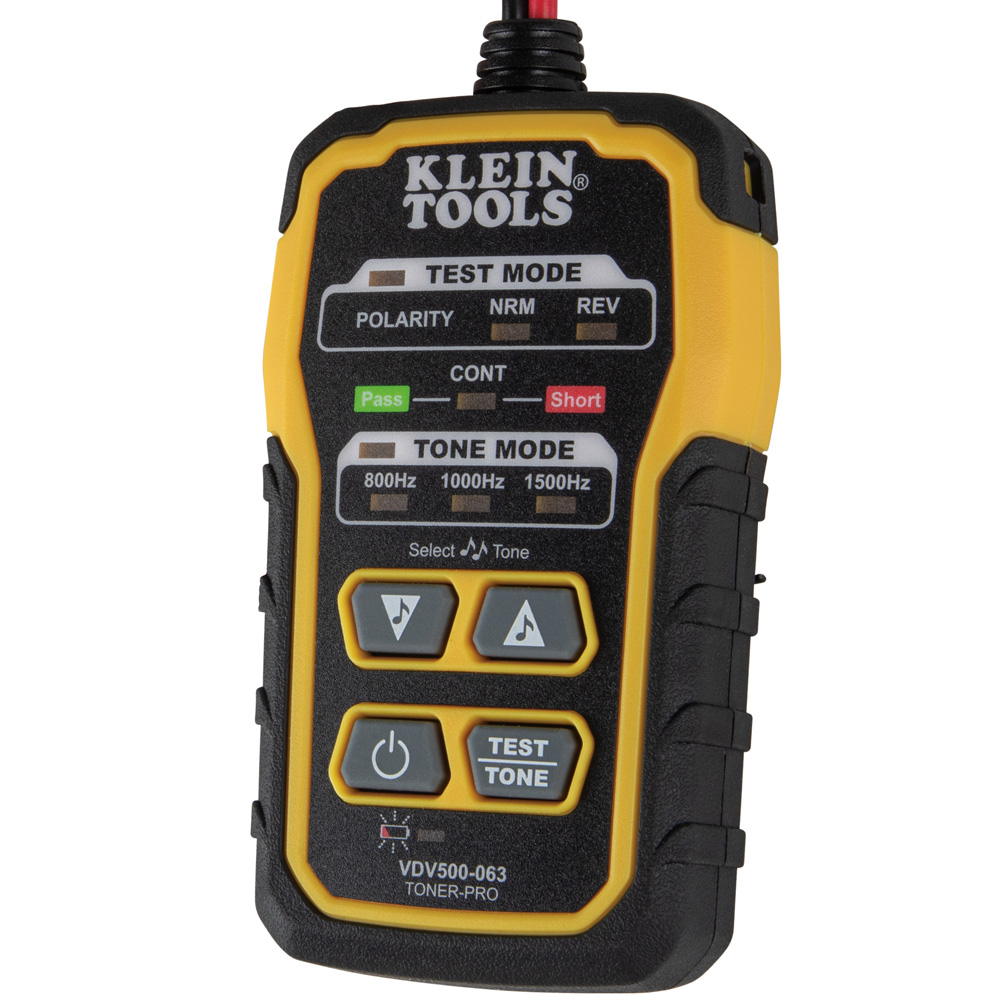

• Toner-Pro tests for continuity and polarity with results indicated by clearly labeled LEDs

Warnings

• Turn off instruments and disconnect all test leads before attempting to replace batteries.
• Do not use instruments if they are wet, as it could pose a shock hazard.
• Do not use instruments if they are damaged in any way.
• Do not open the case, other than the battery compartment.
• Carefully read all instructions.
• The battery door must be in place and secure before you operate.
• Do NOT use on energized circuits.
• Read all safety information before using the products.

Specifications

• Batteries: 8 x AAA
• Application: Wire Toning & Tracing
• Overall Height (cm): 30.5
• Overall Length (cm): 17.8
• Height: 12.0000 in
• Material: Plastics, Metal, PCB Boards and LEDs
• Weight (kg): 0.4
• Overall Width (cm): 7.6
• Weight: 1.2500 lbs
• Width: 7.0000 in

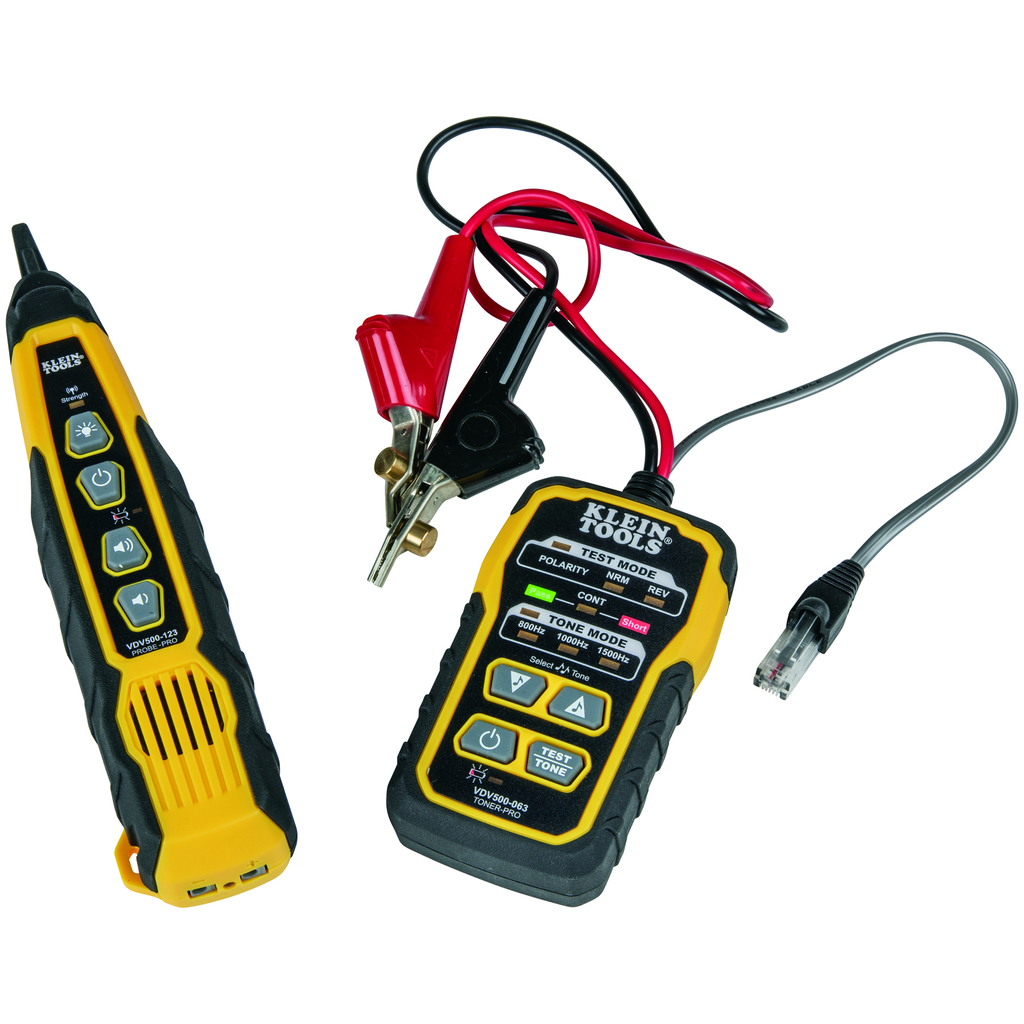

• Included: VDV500-123 Probe-Pro Tracing Probe; VDV500-063 Toner-Pro Tone Generator; VDV770-500 Pouch; 8 x AAA Batteries
• Type: Tone Generator Tracing Probe
• Weight (lb): 0.82
• Overall Length (Inch): 7
• Depth: 3.0000 in
• Overall Width (Inch): 3
• Overall Height (Inch): 12
