Ethernet Cable Tester Kit with Scout® Pro 3 Tester, Remotes and Adapter

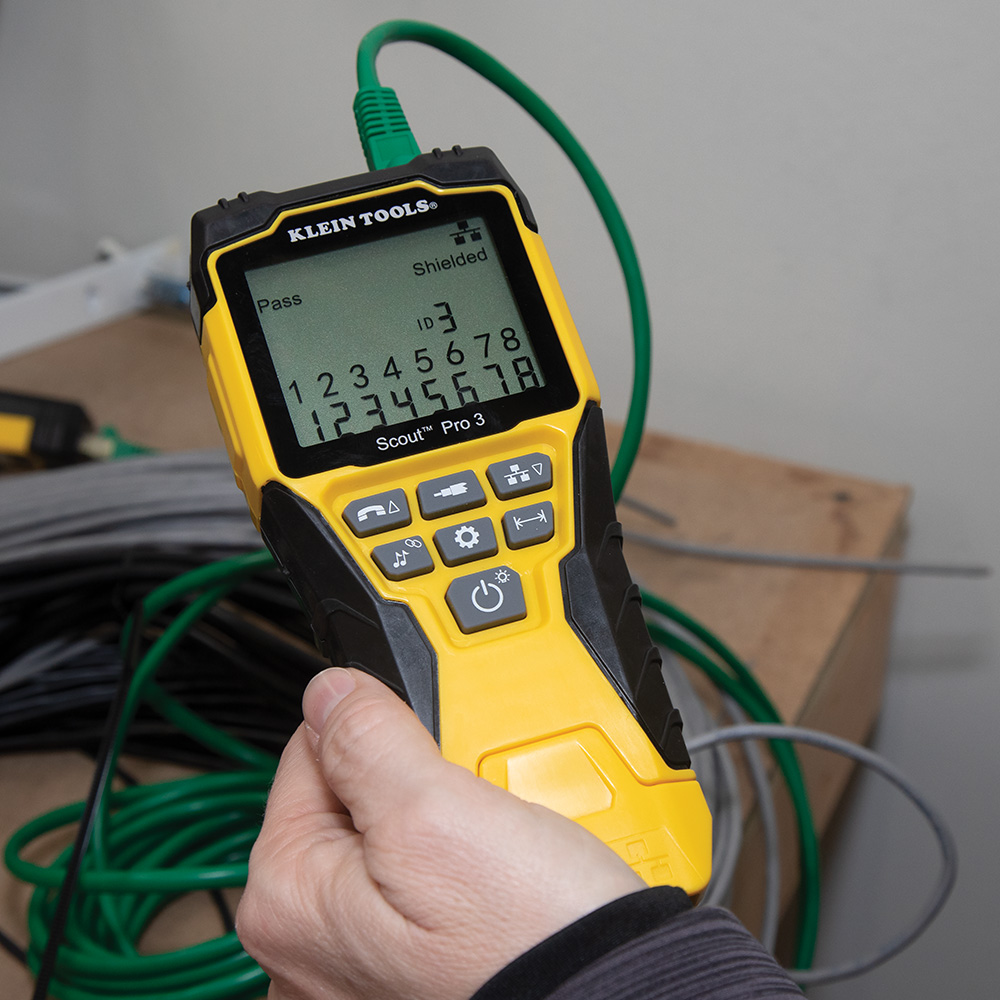

The Scout® Pro 3 Tester Starter Kit is a versatile cable tester that locates and tests voice, data and video cables. Identify multiple cable runs with included location mapping remotes. This kit verifies accurate cable installations each time. Backlit display assists in reading results in lower light.

Features

• Test for Open, Short, Miswire or Split-Pair faults
• Measure cable length up to 2000 feet (610 m)

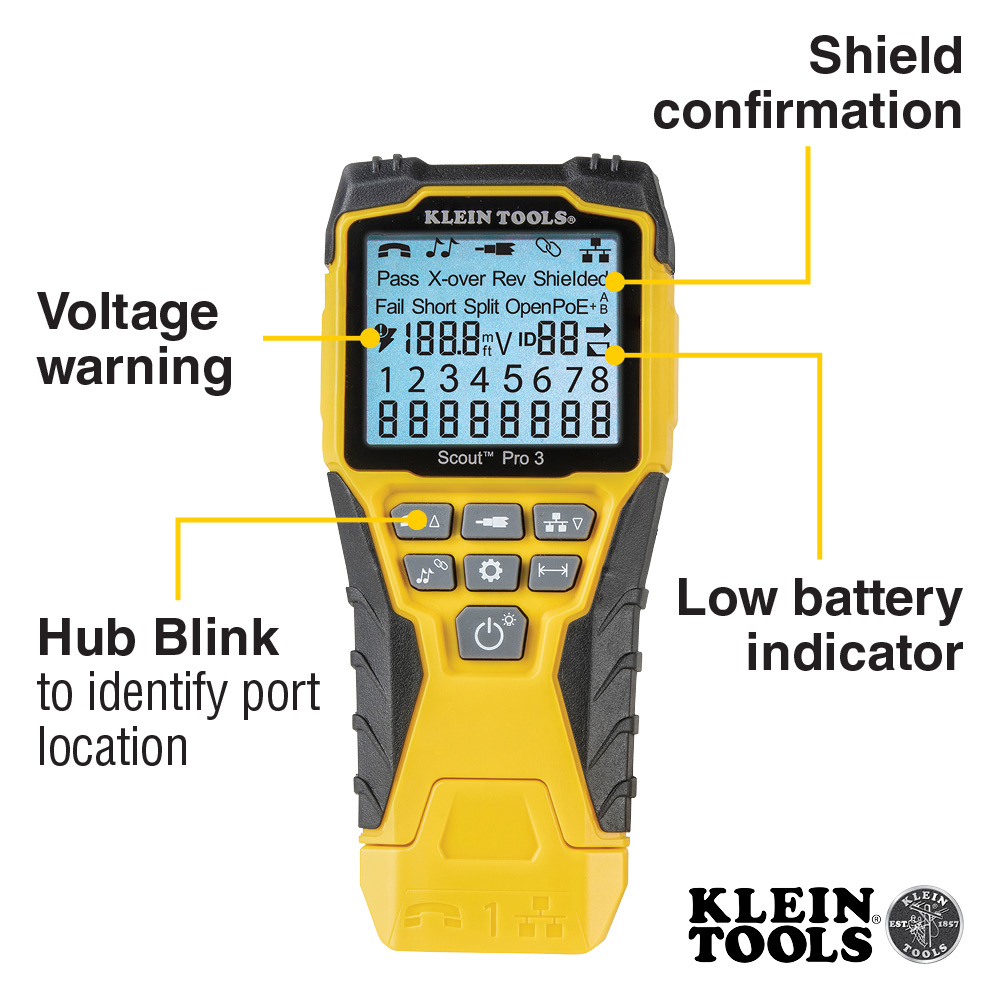

• Includes voltage warning, shield detection, low battery indicator, a self-storing remote, and auto power off feature to conserve battery life (9V included)
• Cable tester tests voice (RJ11/12), data (RJ45) and video (coax F-connector) terminated cables with clearly defined results
• Measures Cable Length; Backlit LCD; Hub Blink

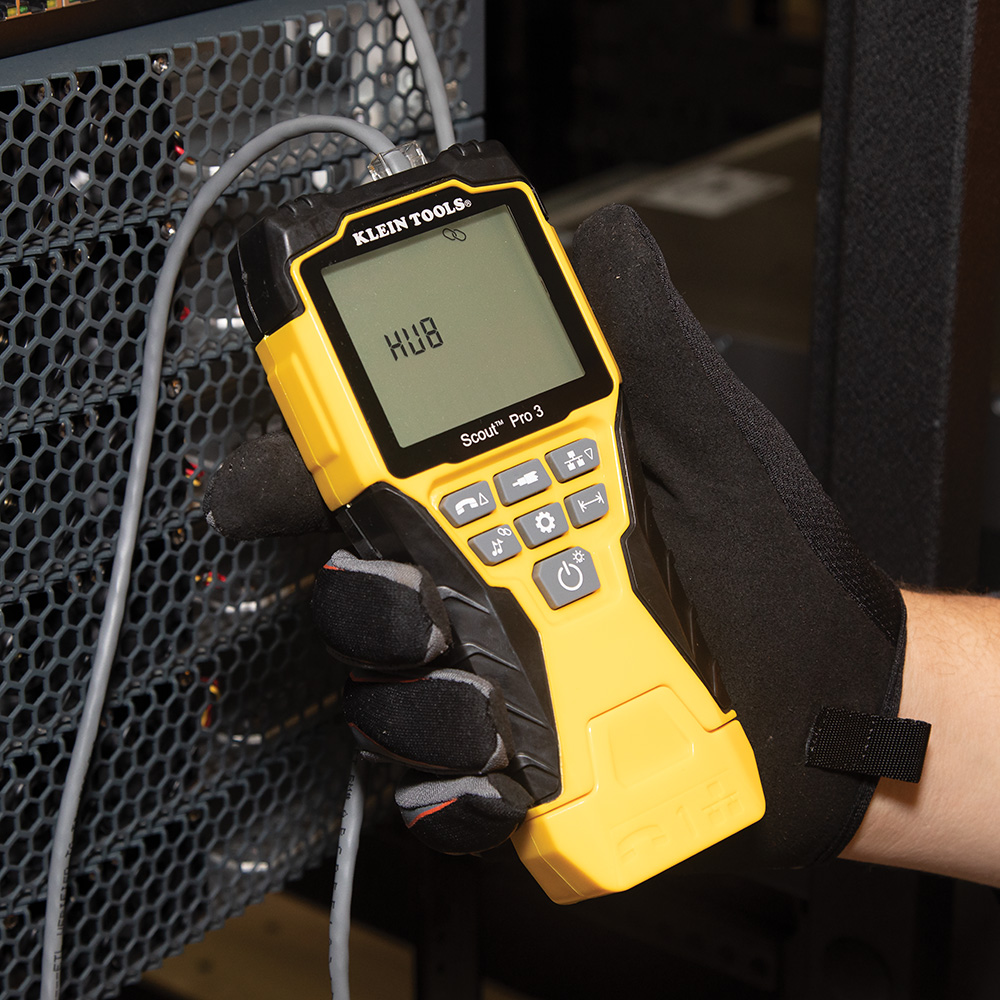

• Hub blink mode to identify port location on a hub or a switch
• Auto Power-off feature to conserve battery life (9V included)
• Trace cables, wire pairs and individual conductor wires with multiple style tone generator (requires analog probe Cat. No. VDV500-123; sold separately)

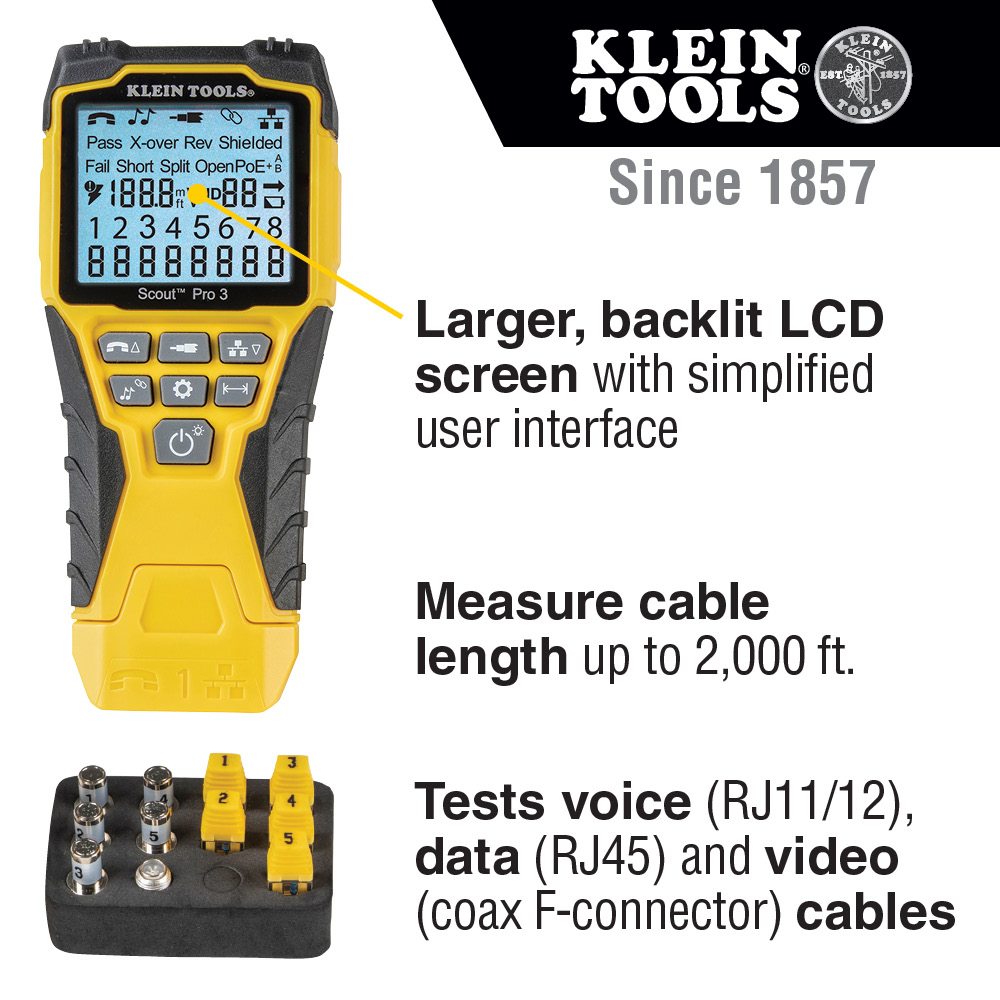

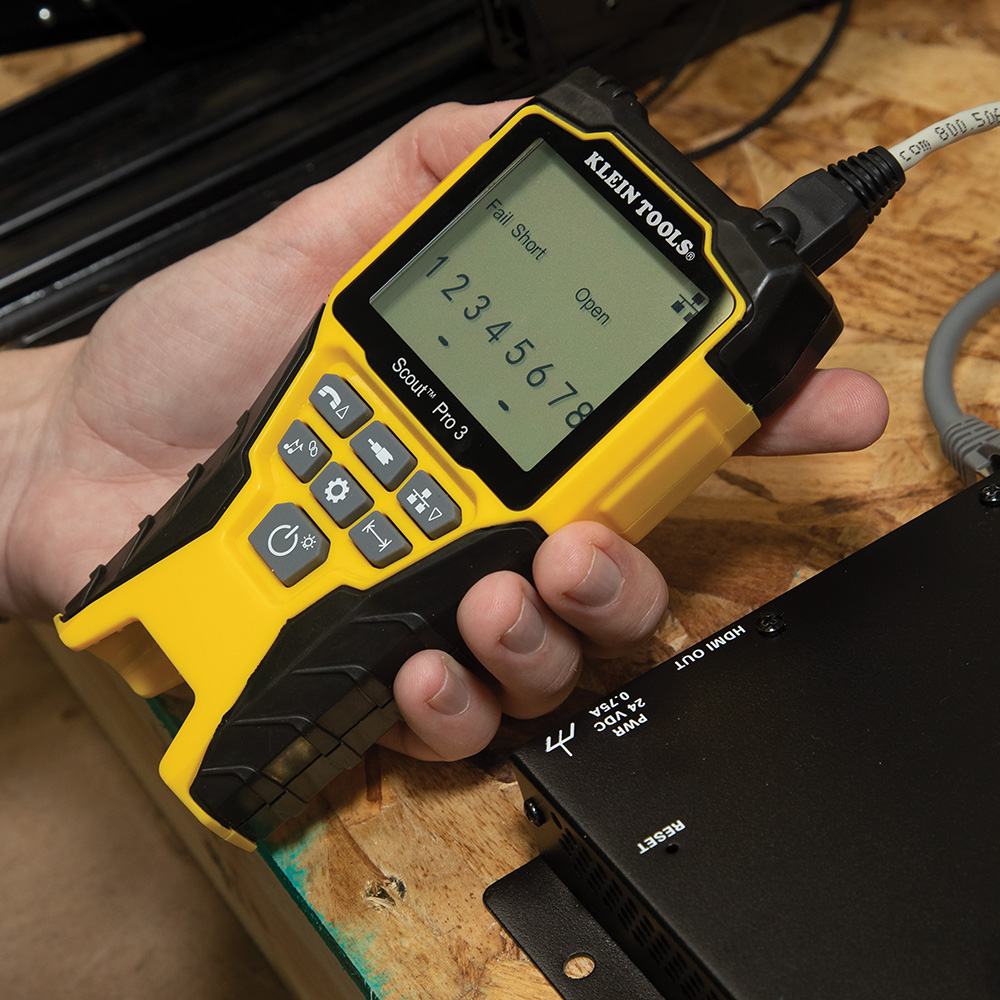

• Backlit LCD screen displays cable length, wiremap, cable ID and test results

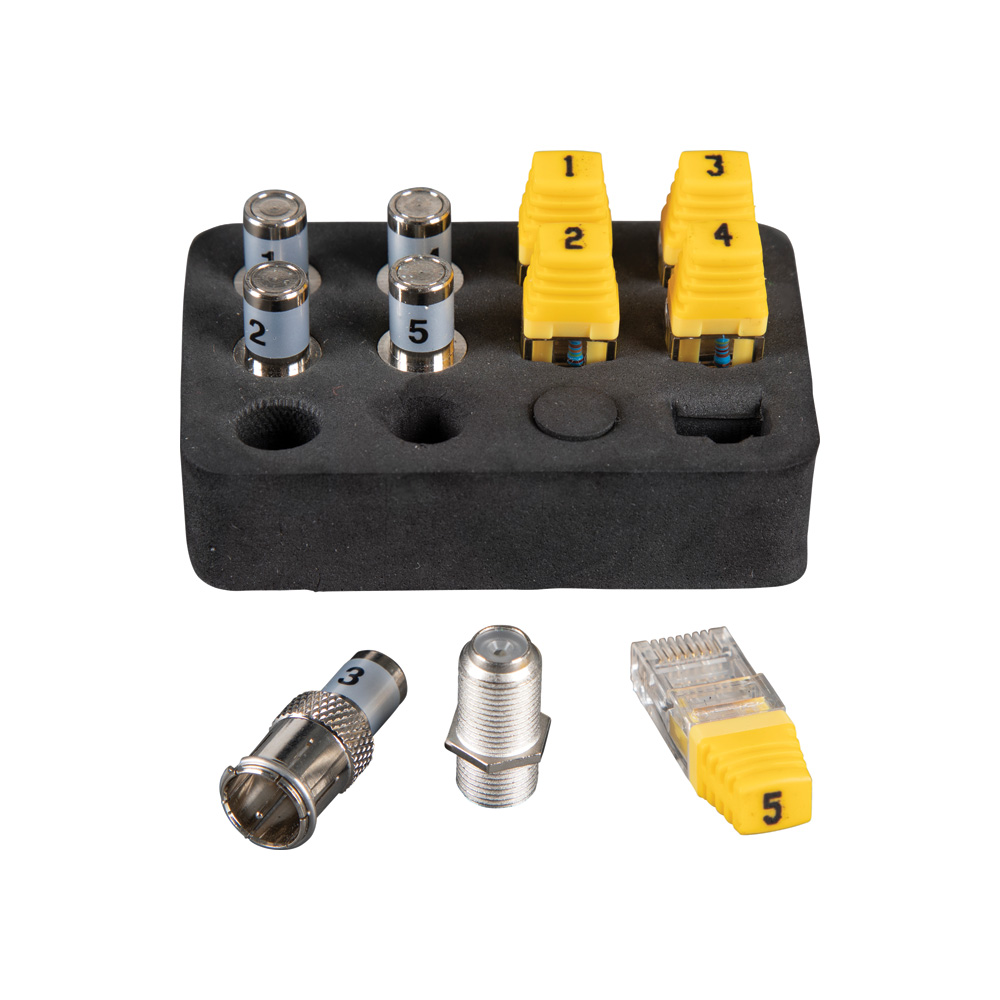

• LanMap™ and CoaxMap™ Location Remotes (5 each) map and ID multiple cable runs in a single step

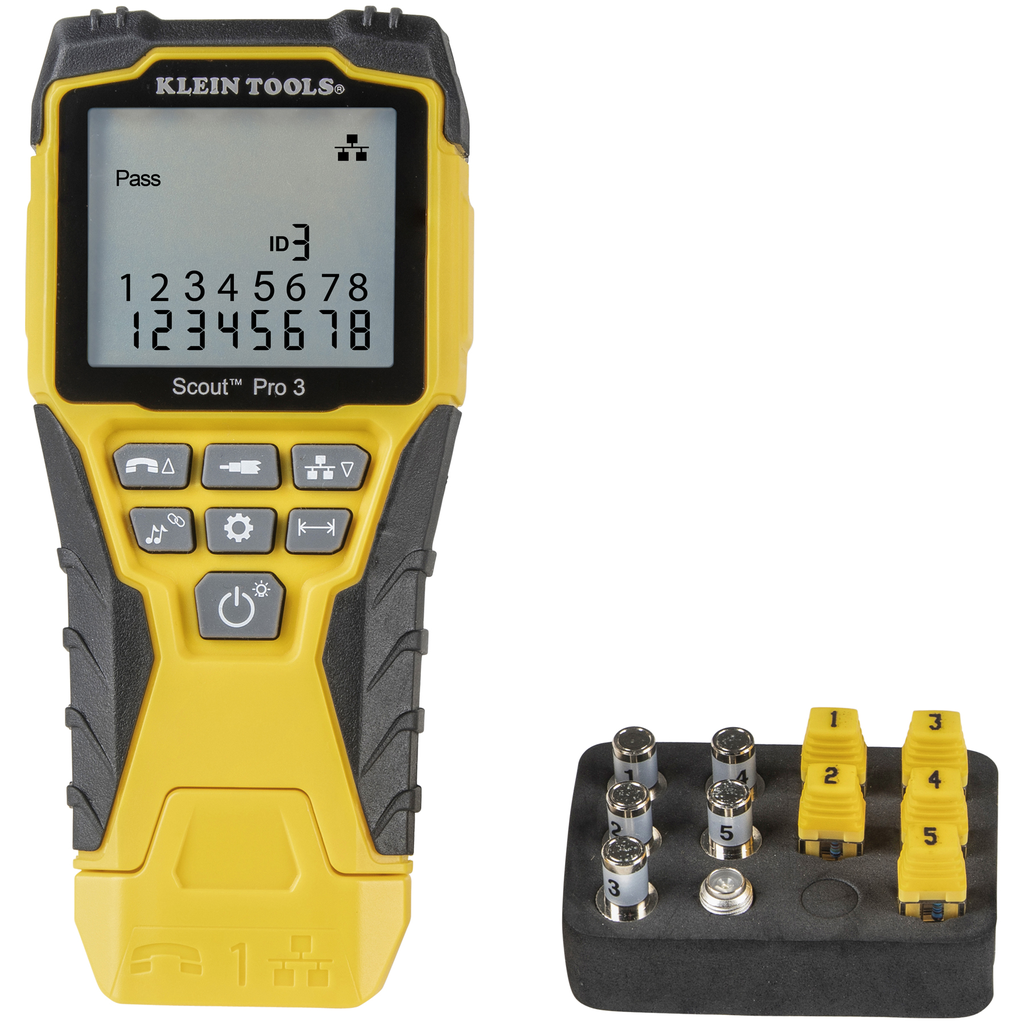

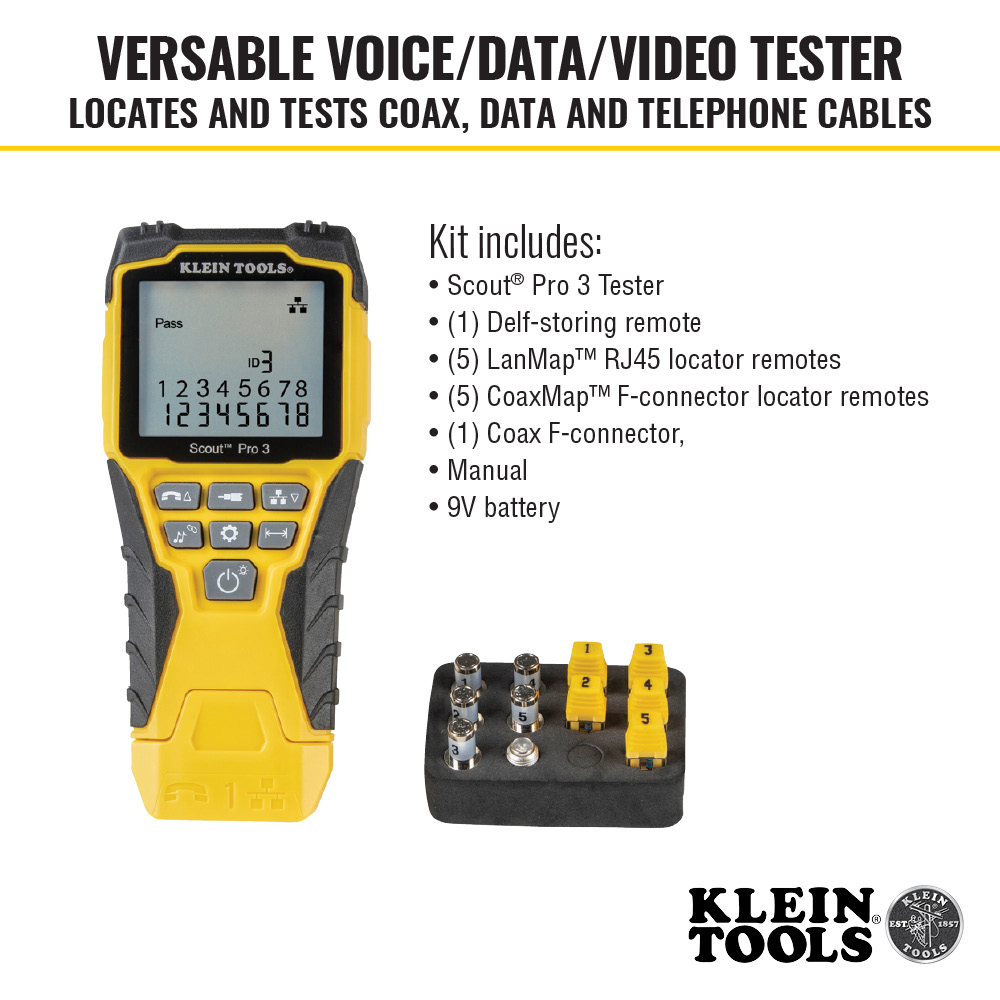

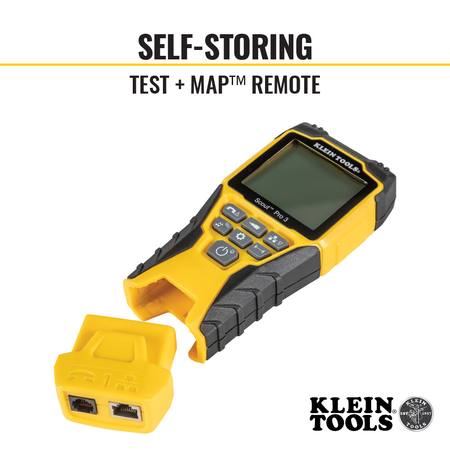

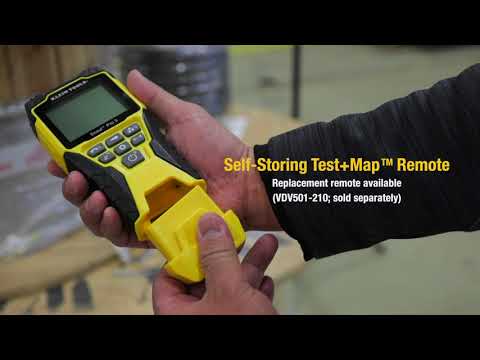

• Kit includes: Scout® Pro 3 Tester, (1) self-storing remote, (5) LanMap™ RJ45 locator remotes, (5) CoaxMap™ F-connector locator remotes, (1) coax F-connector, manual and 9V battery

Warnings

• Do NOT use on energized circuits.
• Always wear approved eye protection.
• Read, understand and follow all instructions, cautions and warnings attached to and/or packed with all test and measurement devices before each use.

Specifications

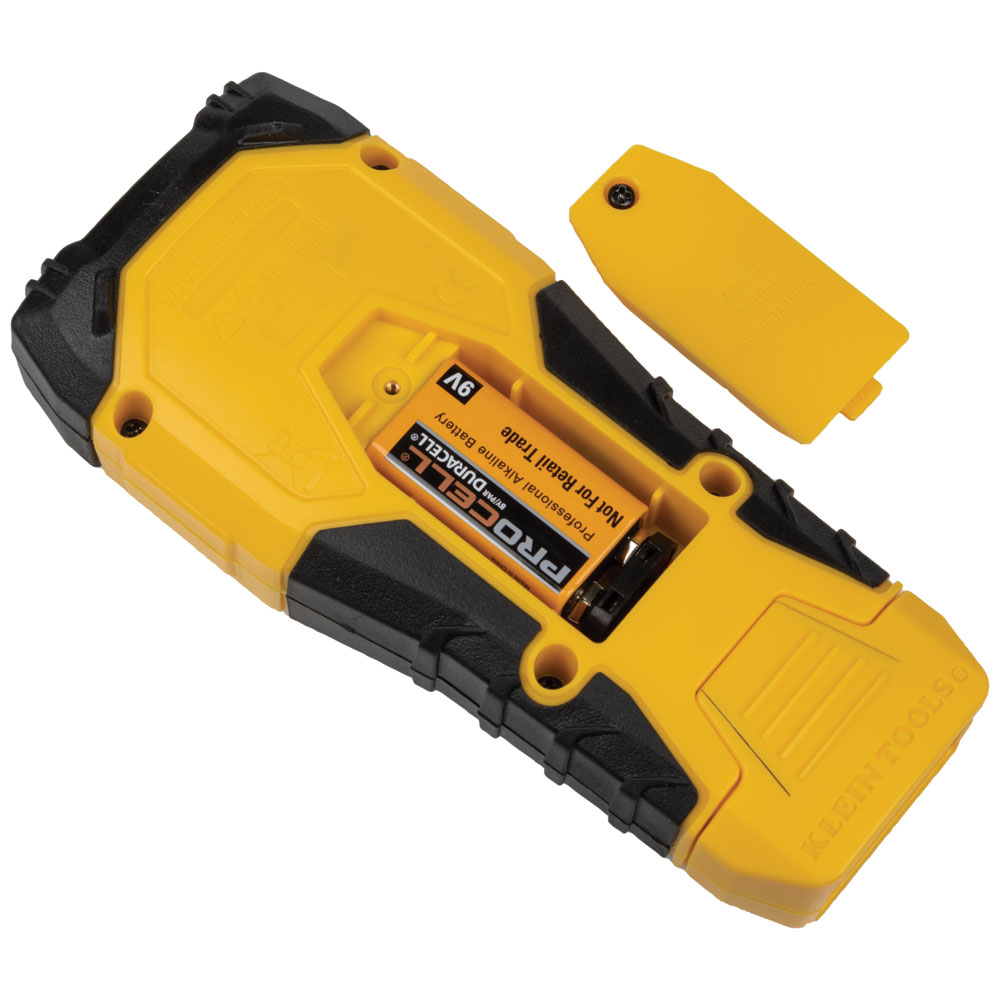

• Batteries: 9V Alkaline
• Drop Protection: 2 m
• Application: Cable Testing
• Overall Width (Inch): 1.25
• Battery Life: Active - 50 hr
• Height: 1.5000 in
• Width: 3.2000 in

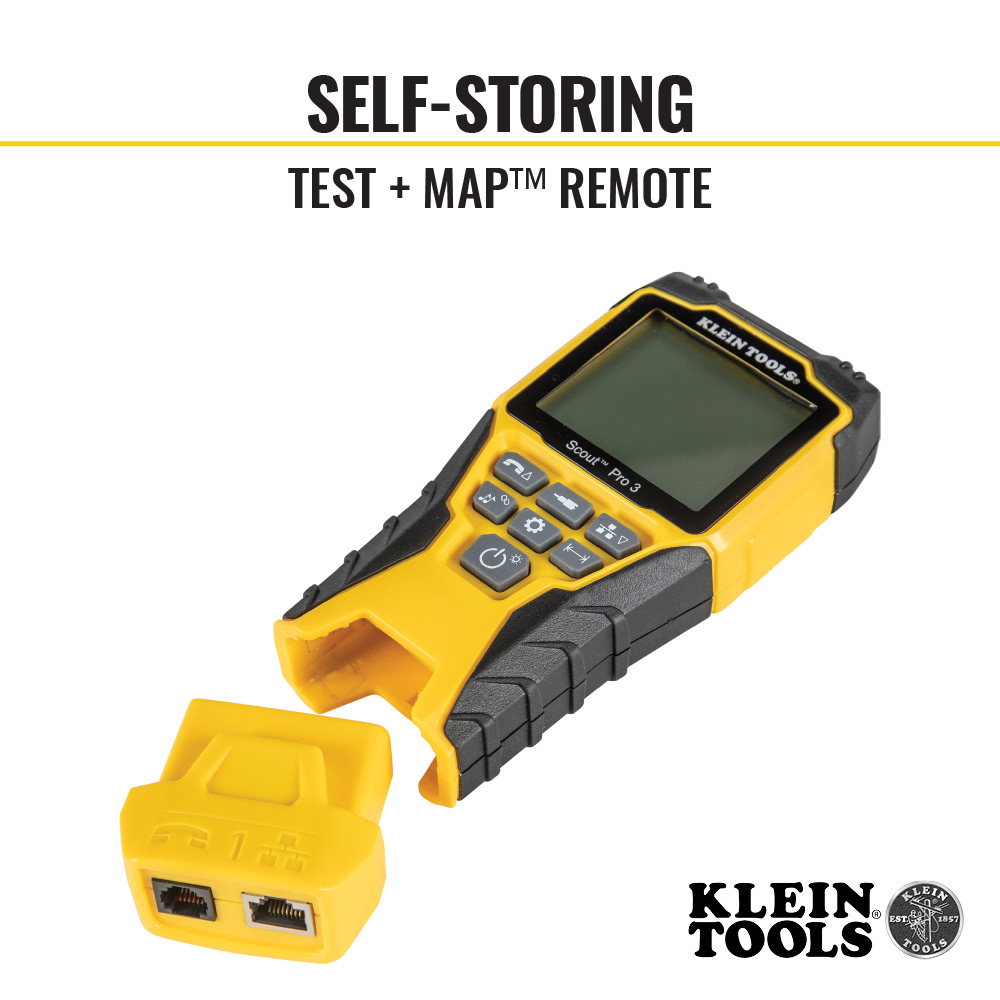

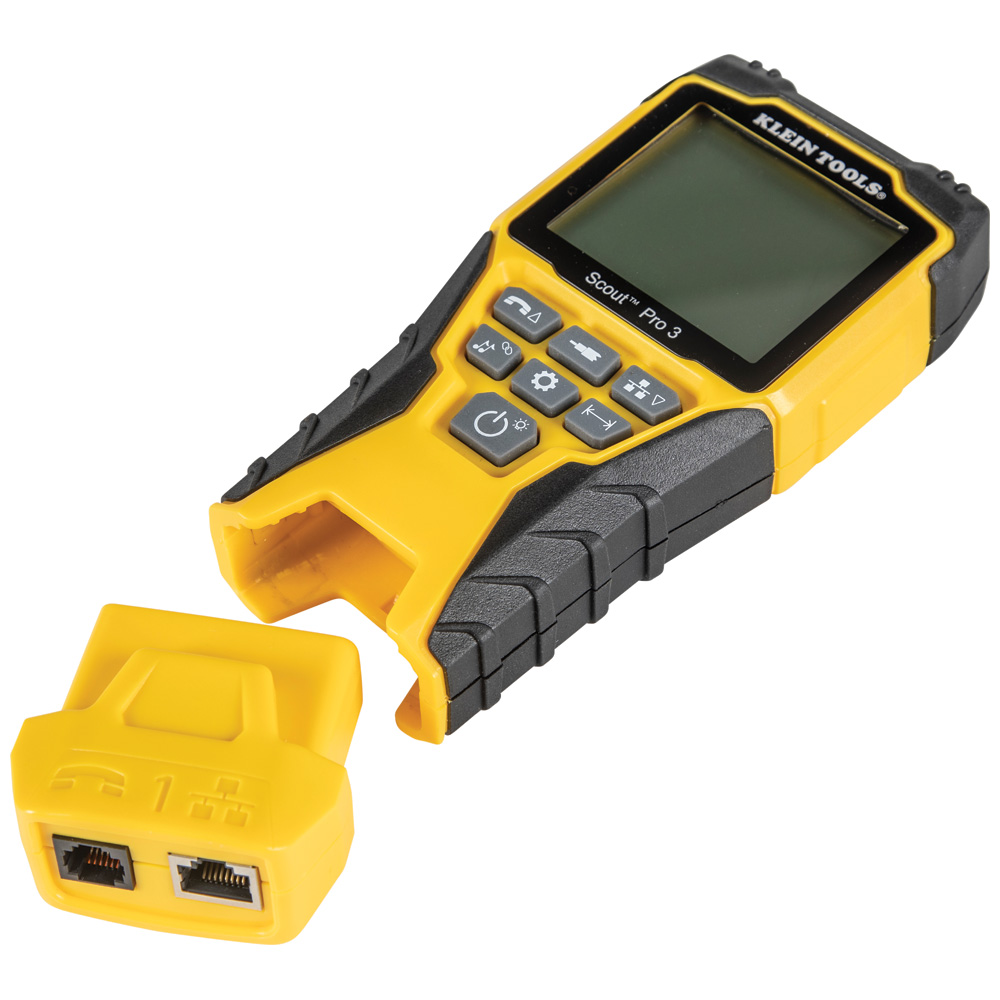

• Test-n-Map ID Remotes: (1) Self-Storing
• Standard: CE
• Overall Height (cm): 7.6
• Weight: 0.8960 lbs
• Supported Remotes: 18
• Overall Width (cm): 3.2
• Material: Plastic and Metal
• Multiple Style Tone Generator: Yes (5); Requires Tracing Probe (Cat. No. VDV500-123); Sold Separately
• Connection & Adapter Types: RJ11, RJ12, RJ45, Coax F
• Overall Height (Inch): 3
• Accuracy: Length Measurement - +/- 5% (ft) or 5% m
• Overall Length (cm): 17.8
• Faults Detected: Open, Short, Miswire
• Included: Tester, Self-Storing Remote, (5) LanMap RJ45 Locator Remotes, (5) CoaxMap F-connector Locator Remotes, (1) Coax F-adapter, Manual, (1) 9V Battery
• Overall Length (Inch): 7
• Test & Measure Types: Ethernet / Data and Coaxial
• Weight (g): 544
• Depth: 6.9000 in
• Type: Twisted Pair, DATA, Voice, LAN, and Coaxial
• Weight (oz): 19.2
• Cable Type: DATA -, Shielded or Unshielded, CAT3, CAT5E, CAT6, CAT6A, CAT7; COAXIAL - RG59, RG6/6Q
• Location ID: (5) RJ45 Data and (5) F-Coax connector Locator Remotes
• Display: Backlit LCD
