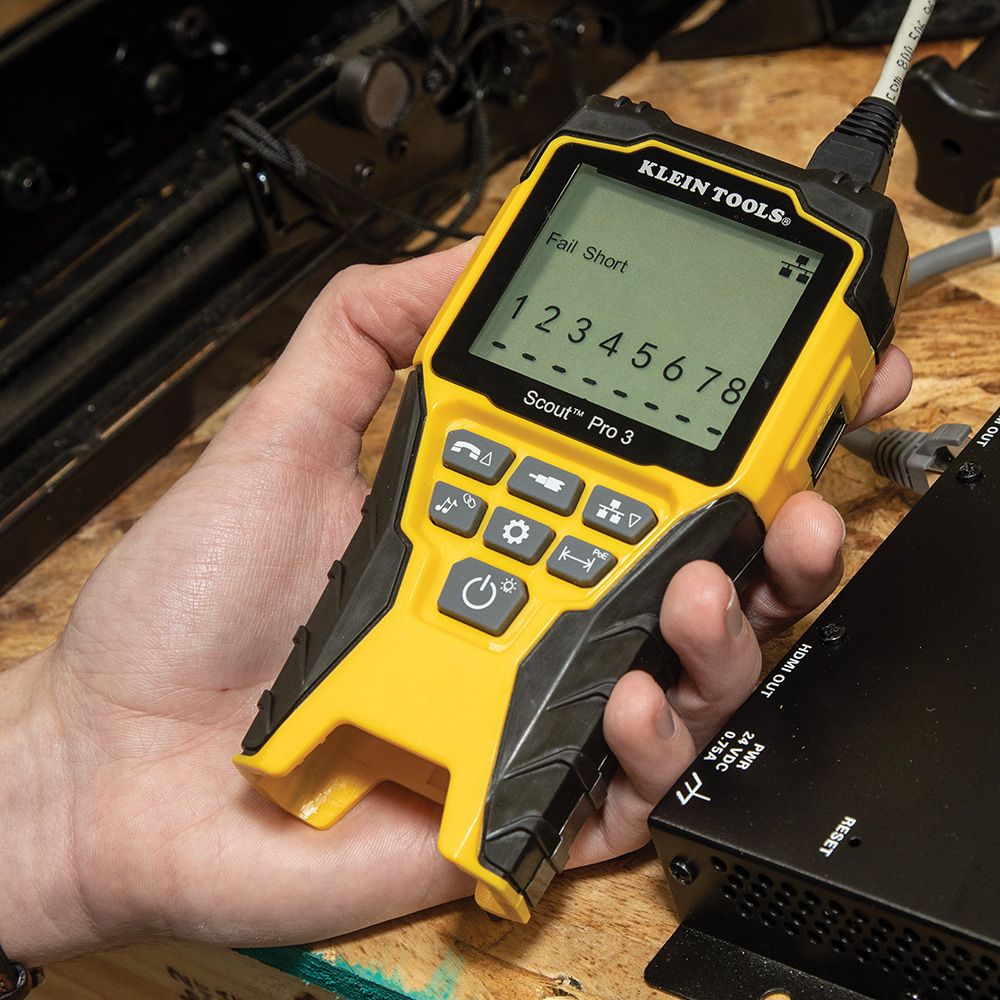

Scout ® Pro 3 Tester with Locator Remote Kit

The Scout® Pro 3 Tester with Locator Remote Kit is a versatile cable tester that locates and tests voice, data and video cables. Identify multiple cable runs with 18 location mapping remotes (included). Test for Power over Ethernet (PoE) and measure cable length. This kit verifies accurate cable installations each time. Backlit display assists in reading results in lower light.

Features

• Includes a 9V battery and convenient carrying case
• Identify multiple cable runs with location-mapping remotes Identify
• Power over Ethernet Tester that displays PoE wire and Voltage

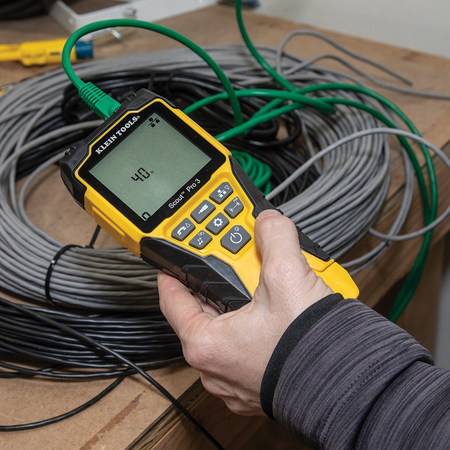

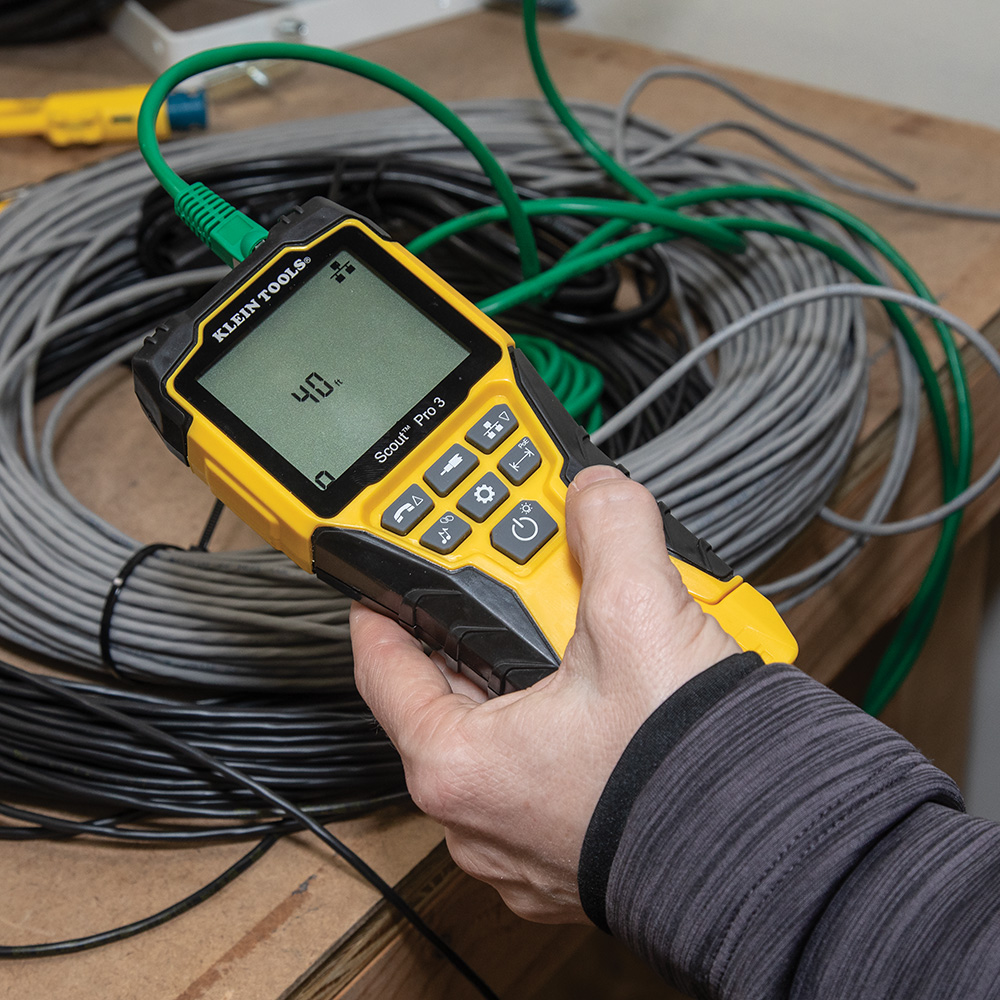

• Measures cable length up to 2,000 feet (610 m)
• Identify 18 RJ45 and 18 F-connector drop locations with large easy-to-read numbers

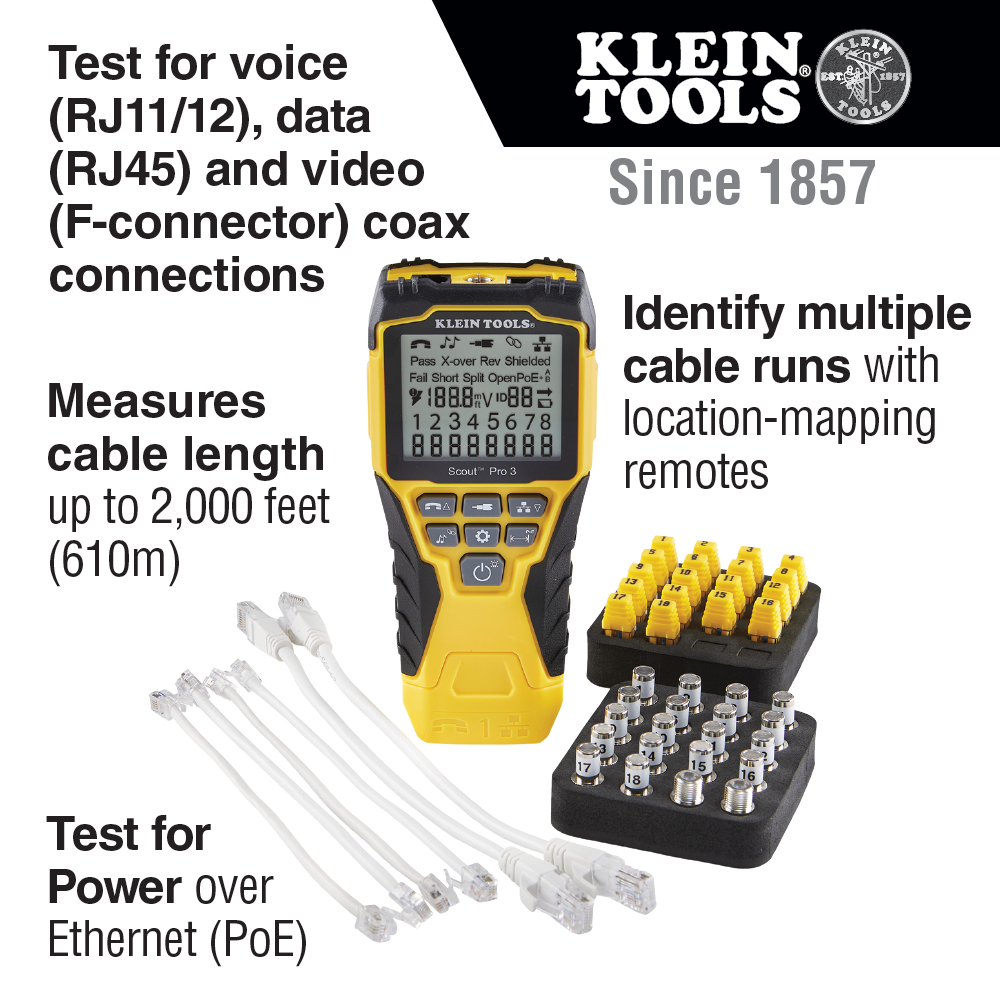

• Cable tester for voice (RJ11/12), data (RJ45) and video (F-connector) coax connections
• Measures Cable Length; Power over Ethernet; Backlit LCD; Hub Blink
• Backlit LCD screen displays cable length, wiremap, cable ID and test results

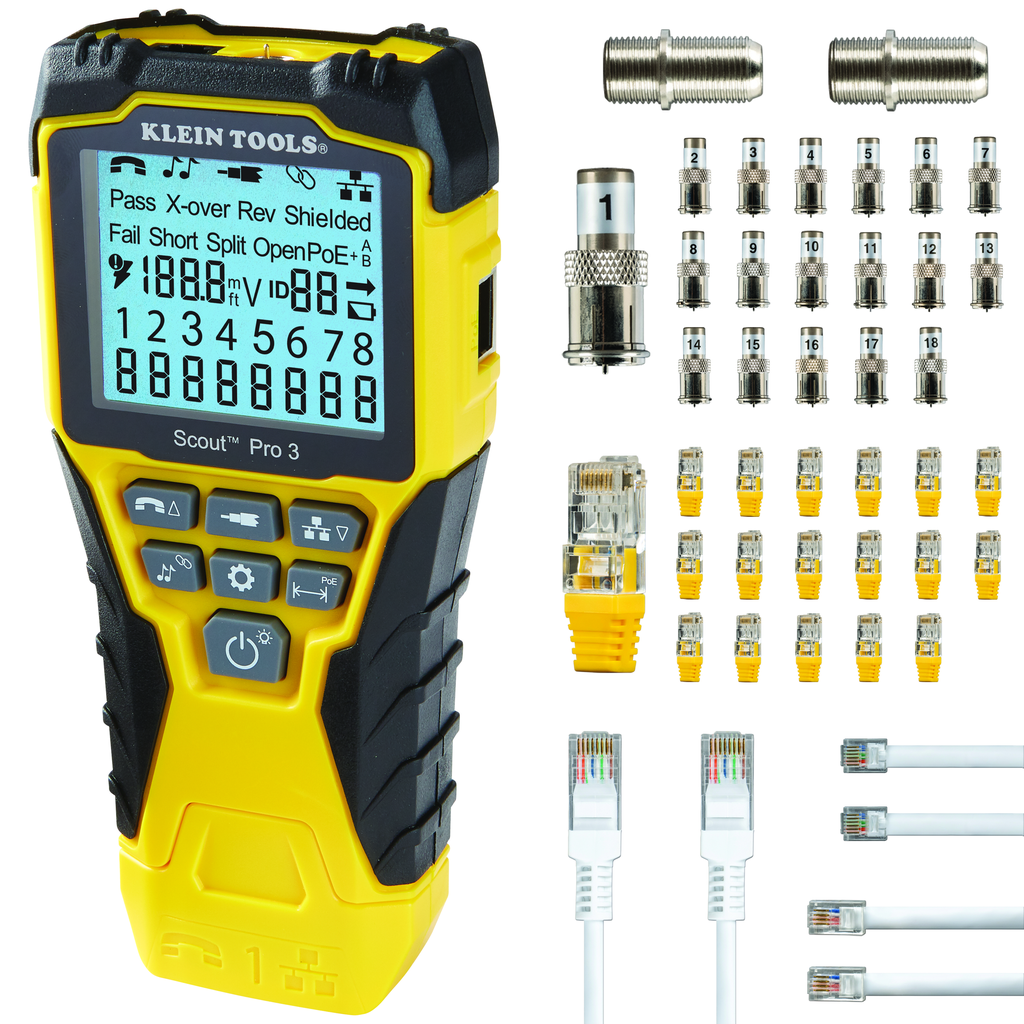

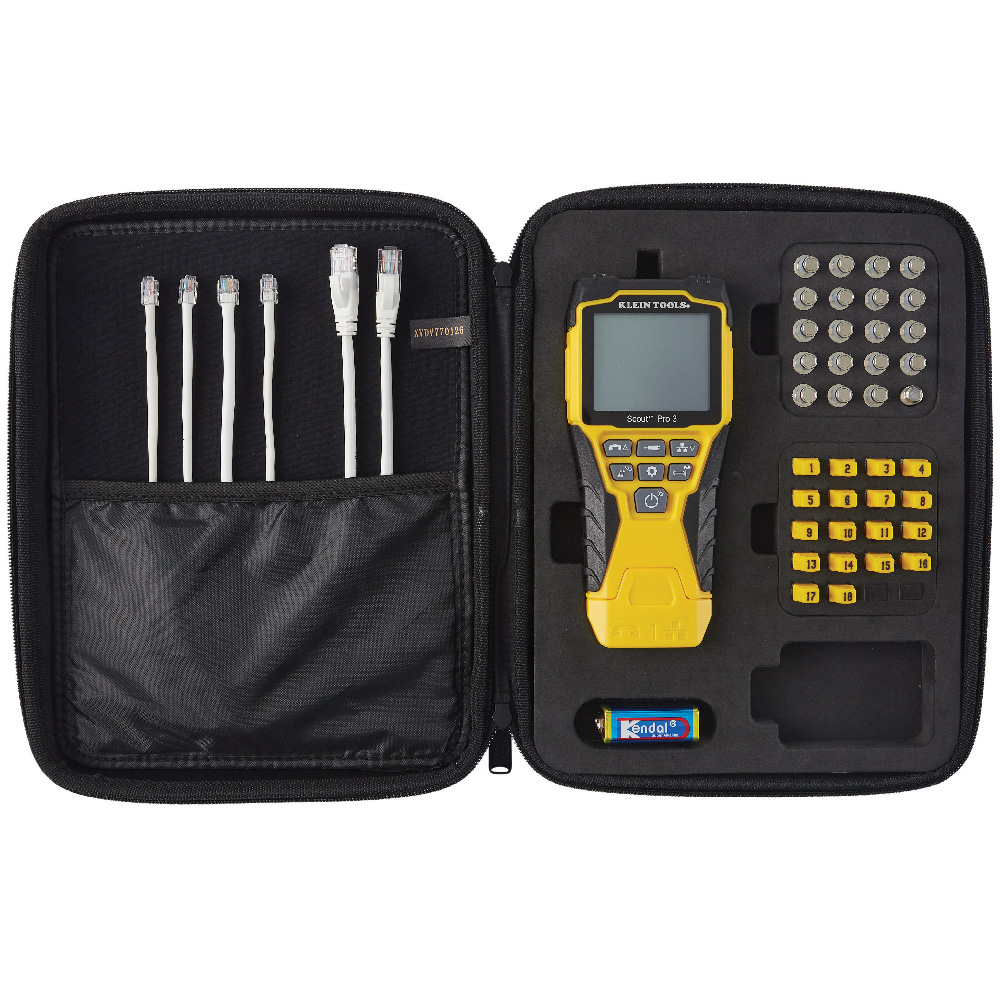

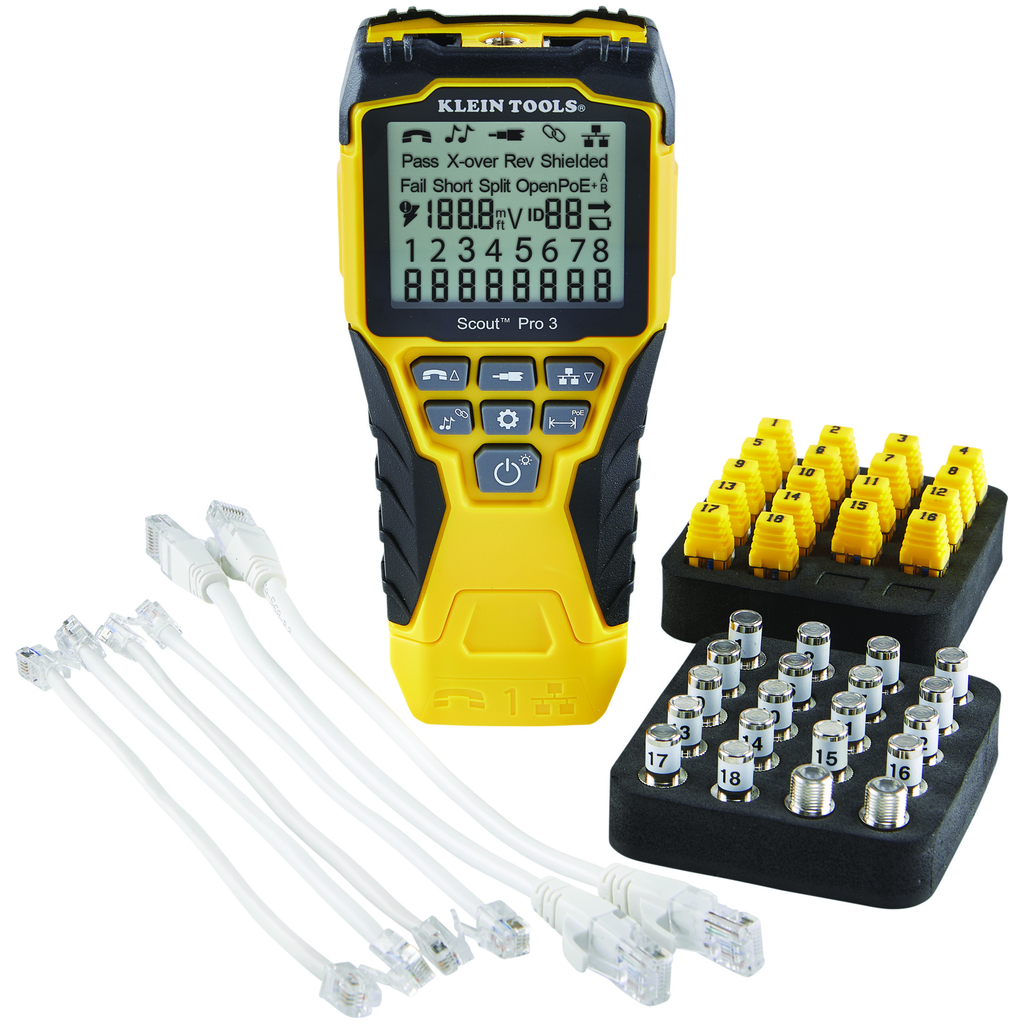

• Kit includes 18 RJ45 LAN locator remotes, 18 F-coax locator remotes, 2 female-to-female coax barrel adaptors, 2 RJ45, RJ11 and RJ12 jumper cables (6-Inch), carrying case and 9V battery

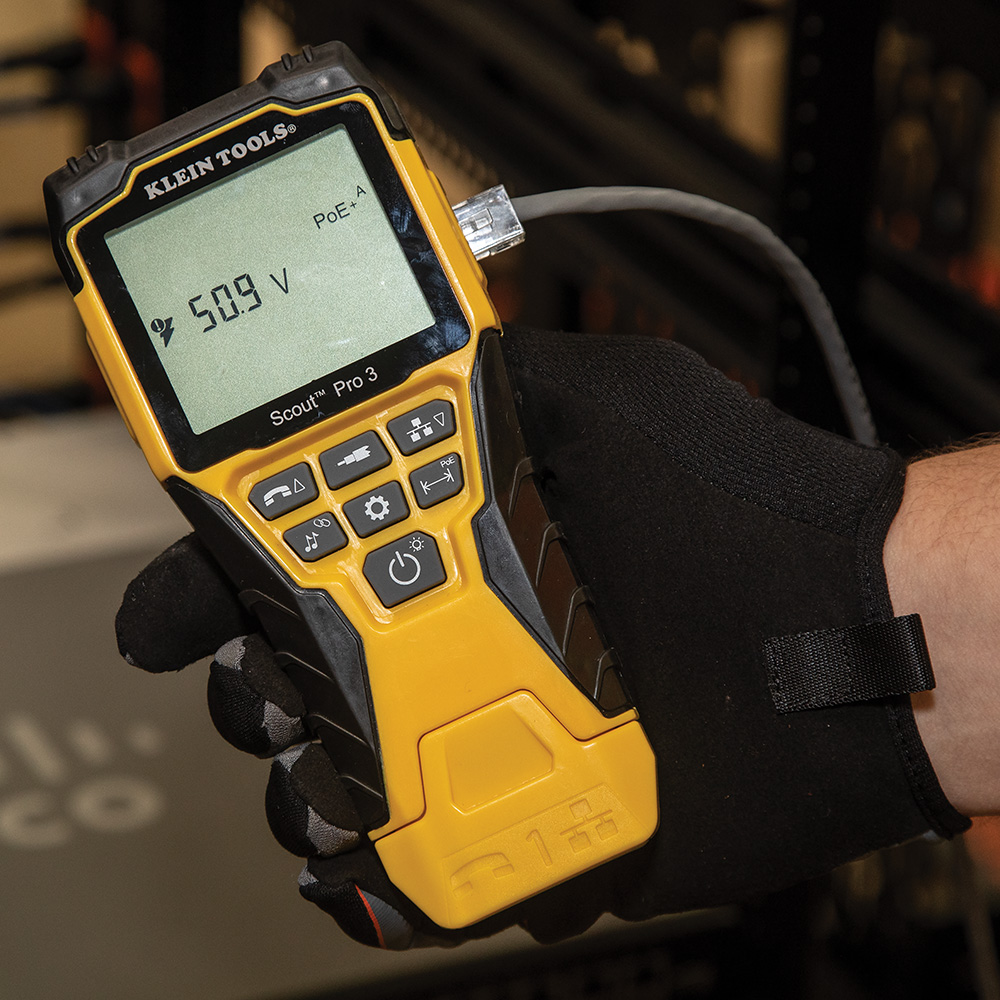

• Detect, identify and test Power over Ethernet (PoE)

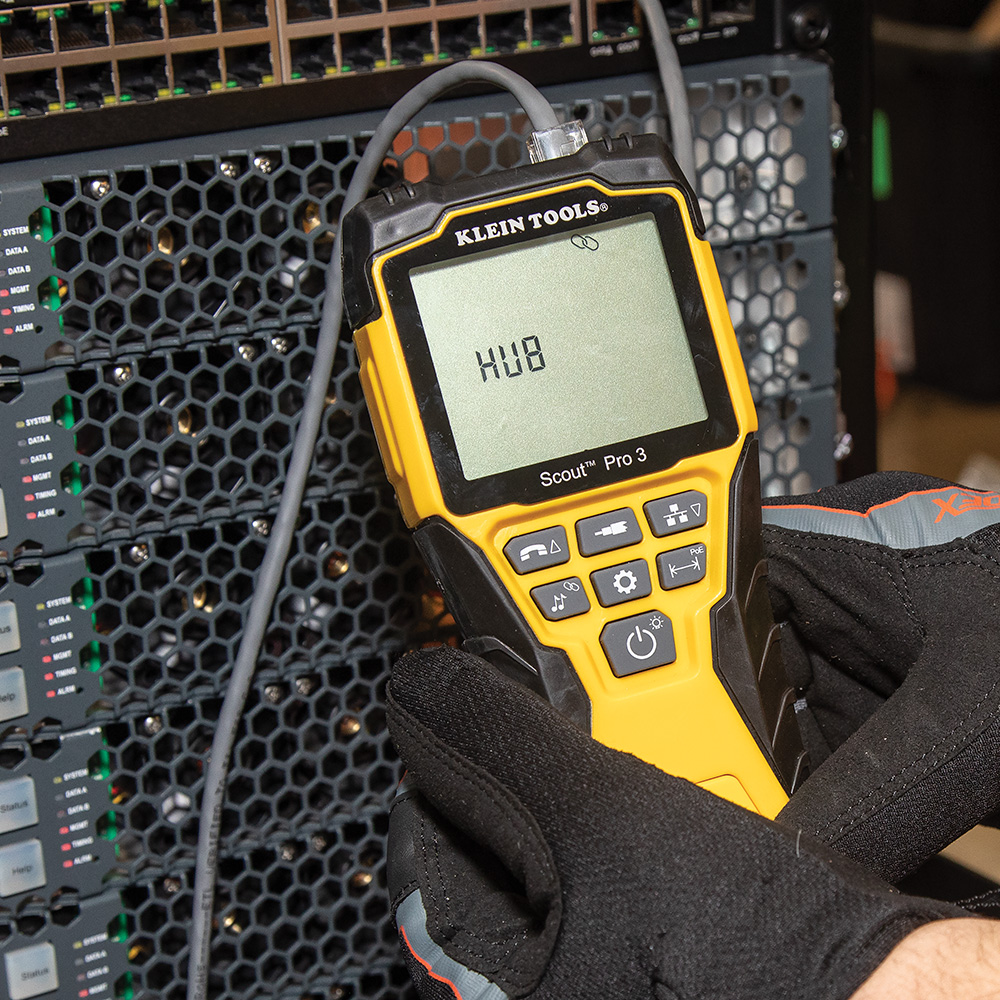

• Hub blink mode to identify port location on a hub or a switch

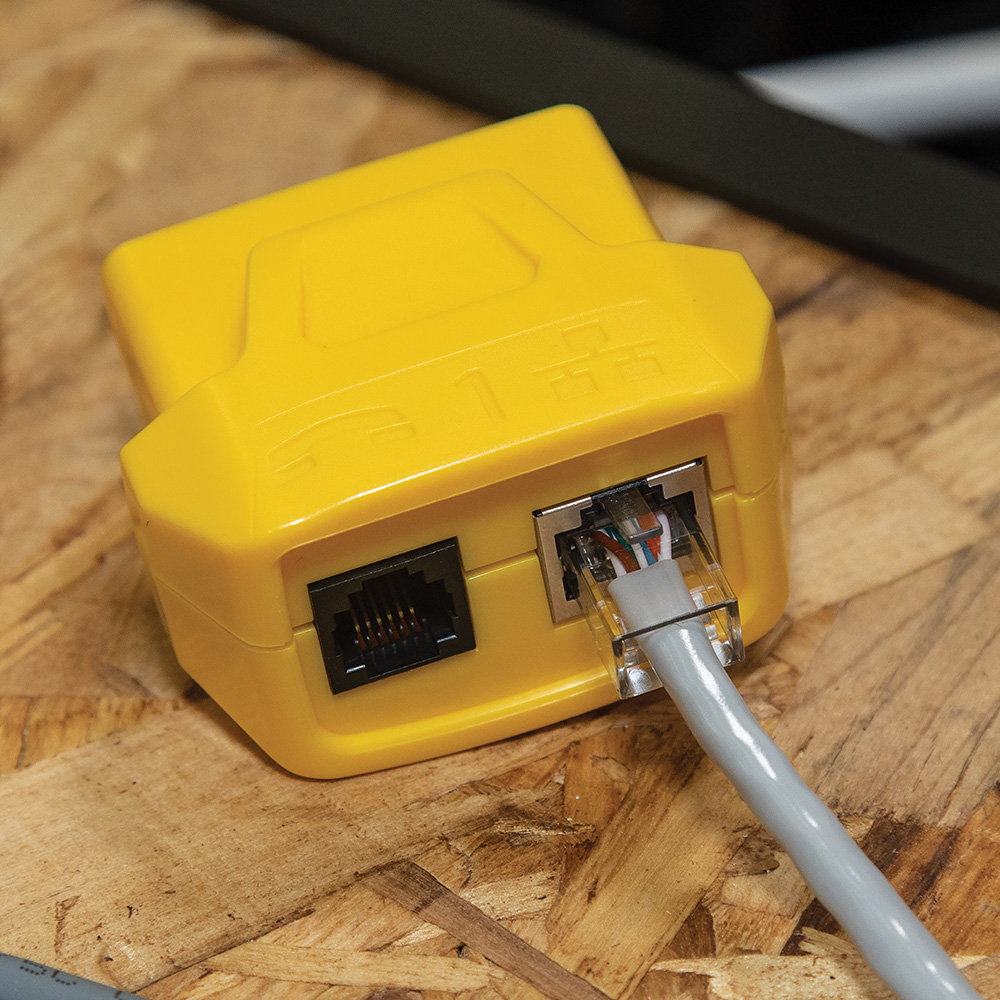

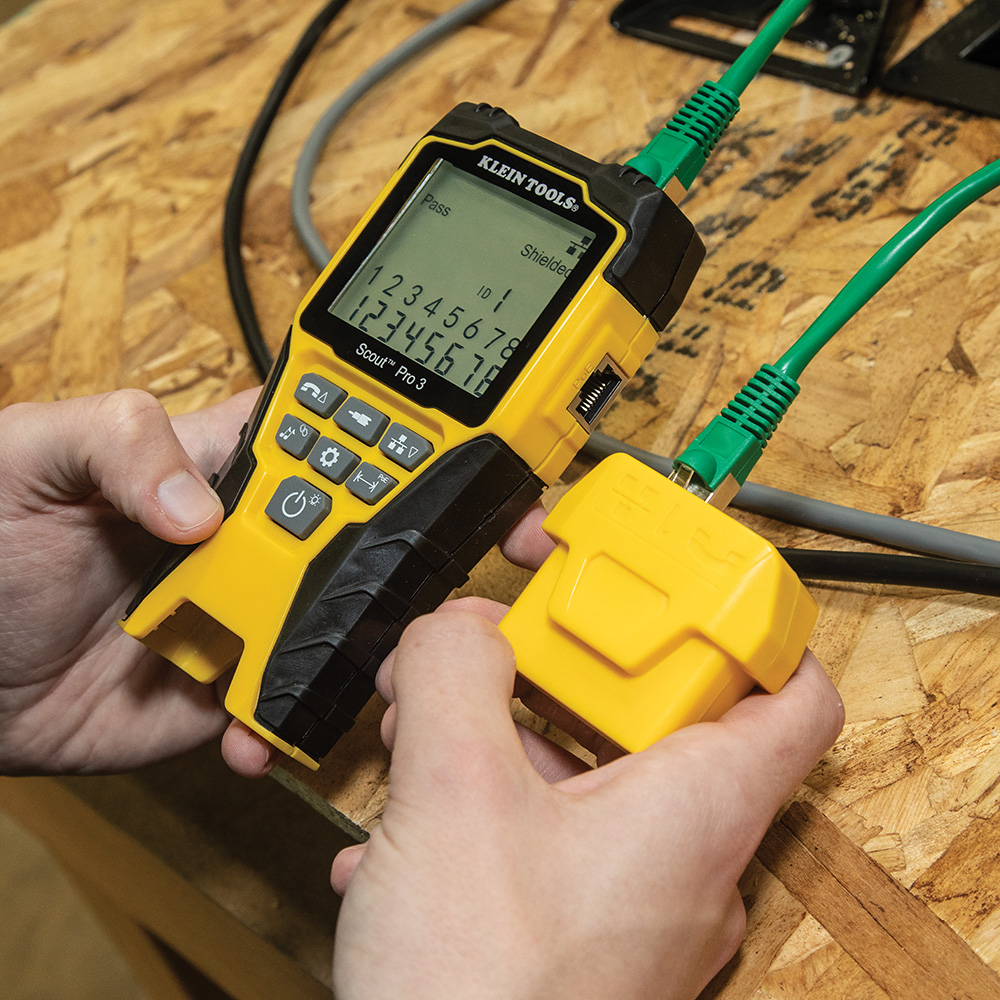

• Self-storing Test + Map™ Remote (#1) tests, maps and IDs a cable run in a single step
• Trace cables, wire pairs and individual conductor wires with a tone generator (requires analog probe Cat. No. VDV500-123; sold separately)

Warnings

• Read, understand and follow all instructions, cautions and warnings attached to and/or packed with all test and measurement devices before each use.
• Do NOT use on energized circuits.
• Always wear approved eye protection.

Specifications

• Overall Length (Inch): 7
• Overall Height (cm): 8.1
• Supported Remotes: 18
• Cable Type: DATA -, Shielded or Unshielded, CAT3, CAT5E, CAT6, CAT6A, CAT7; COAXIAL - RG59, RG6/6Q
• Overall Width (Inch): 1.5
• Connection & Adapter Types: RJ11, RJ12, RJ45, Coax F
• Weight (g): 544
• Weight (oz): 19.2
• Location ID: (18) RJ45 Data and (18) F-Coax Locator Remotes
• Test & Measure Types: Ethernet, Data, Coaxial
• Battery Life: Active - 50 hr
• Test-n-Map ID Remotes: (1) Self-Storing
• Material: Plastic and Metal
• Overall Width (cm): 3.8

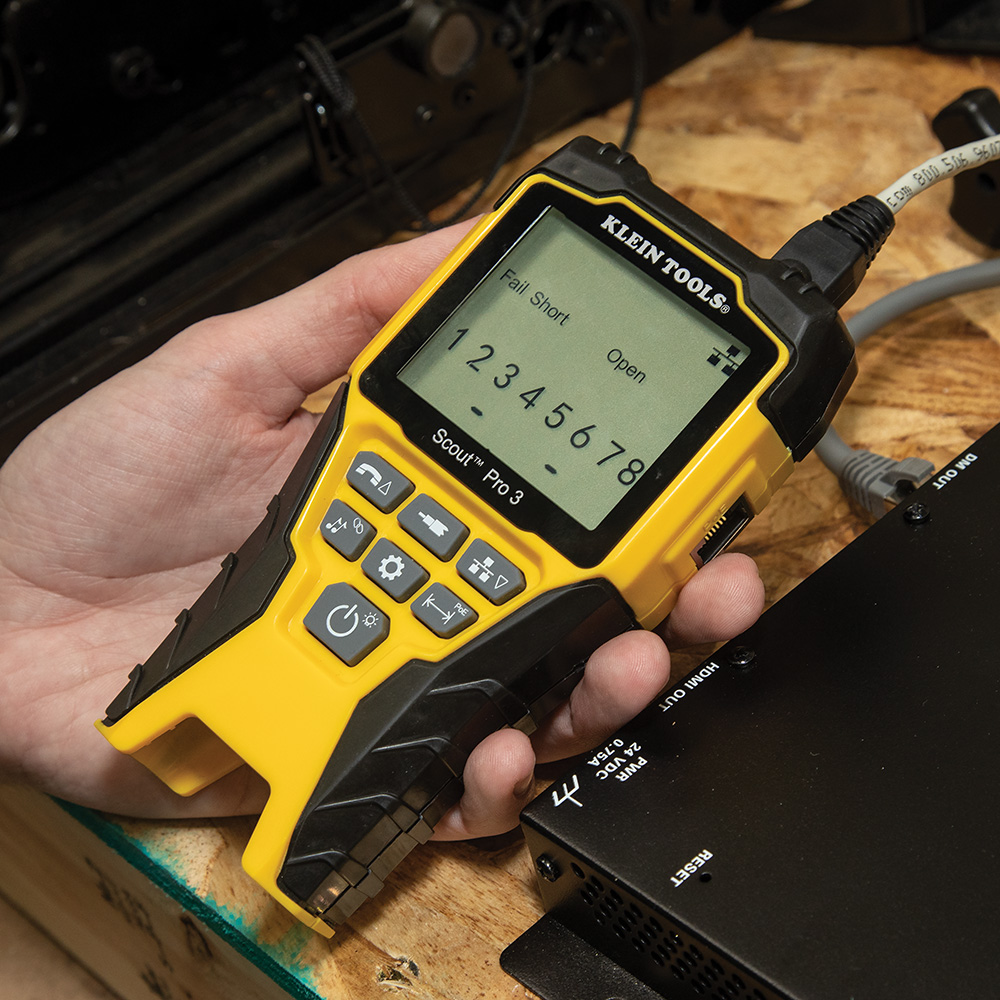

• Faults Detected: Open, Short, Miswire
• Weight: 1.2000 lbs
• Multiple Style Tone Generator: Yes (5); Requires Tracing Probe (Cat. No. VDV500-123); Sold Separately
• Batteries: 9V Alkaline
• Drop Protection: 2 m
• Display: Backlit LCD
• Accuracy: Length Measurement - +/- 5% (ft) or 5% m
• Application: Cable Testing
• Depth: 6.9000 in
• Standard: CE
• Included: Tester, Self-storing Test + Map™ Remote (#1), 18 - RJ45 LAN Locator Remotes, 18 - F Coax Locator Remotes, 2 - Coaxial Barrel Adapters (female-to-female), 2 - RJ45 Jumper Cables (6"), 2 - RJ11 Jumper Cables, 2 - RJ12 Jumper Cables, Carrying Case, 1 x 9V Battery
• Width: 3.2000 in
• Height: 1.5000 in
• Overall Length (cm): 17.8
• Type: Twisted Pair, DATA, Voice, LAN, and Coaxial
• Overall Height (Inch): 3.2
