Scout ® Pro 3 Tester with Test + Map™ Remote Kit

The Scout® Pro 3 Tester with Test + Map™ Remote Kit is a versatile cable tester that locates and tests voice, data and video cables. Use the self-storing remote and Test + Map™ remotes #2 - #6 for fast, accurate identification. Identify POE, POE+, A wiring, B wiring and voltage. This tester also measures cable length. This kit verifies accurate cable installations each time. Backlit display assists in reading results in lower light.

Warnings

• Do NOT use on energized circuits.
• Read, understand and follow all instructions, cautions and warnings attached to and/or packed with all test and measurement devices before each use.
• Always wear approved eye protection.

Features

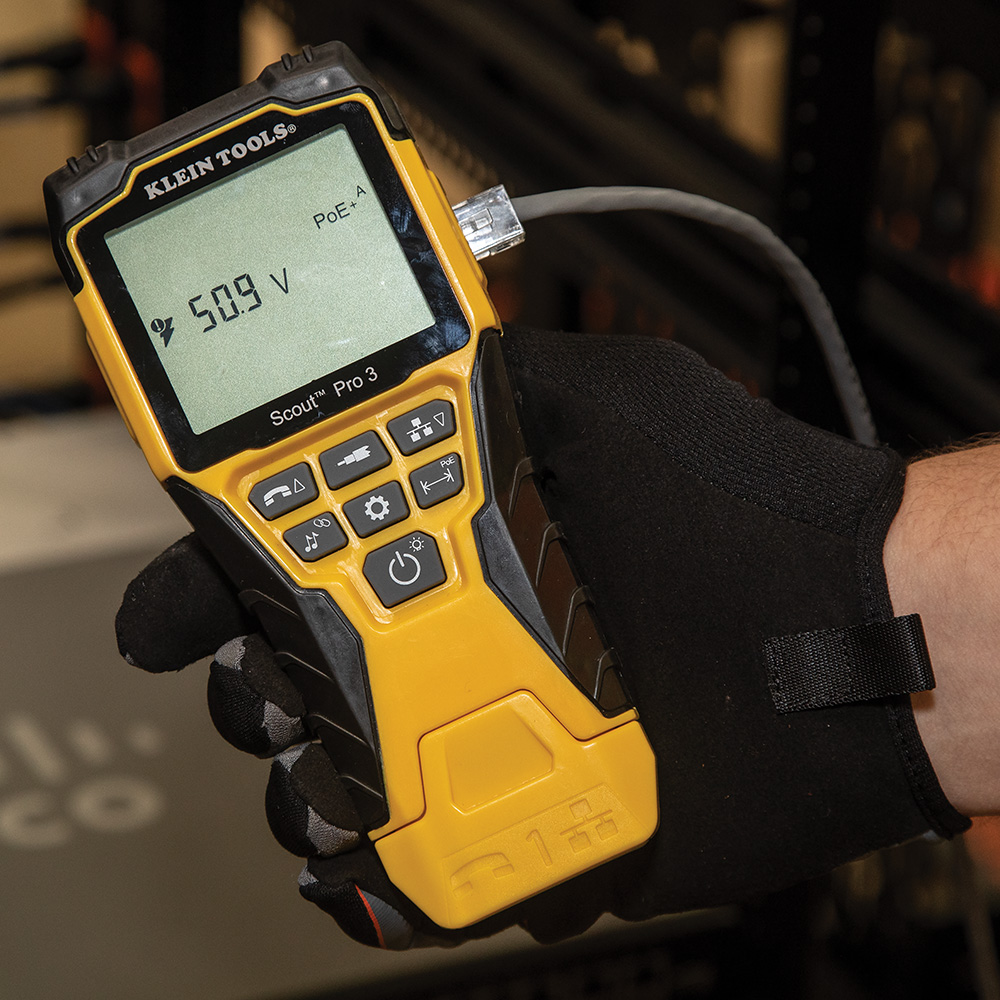

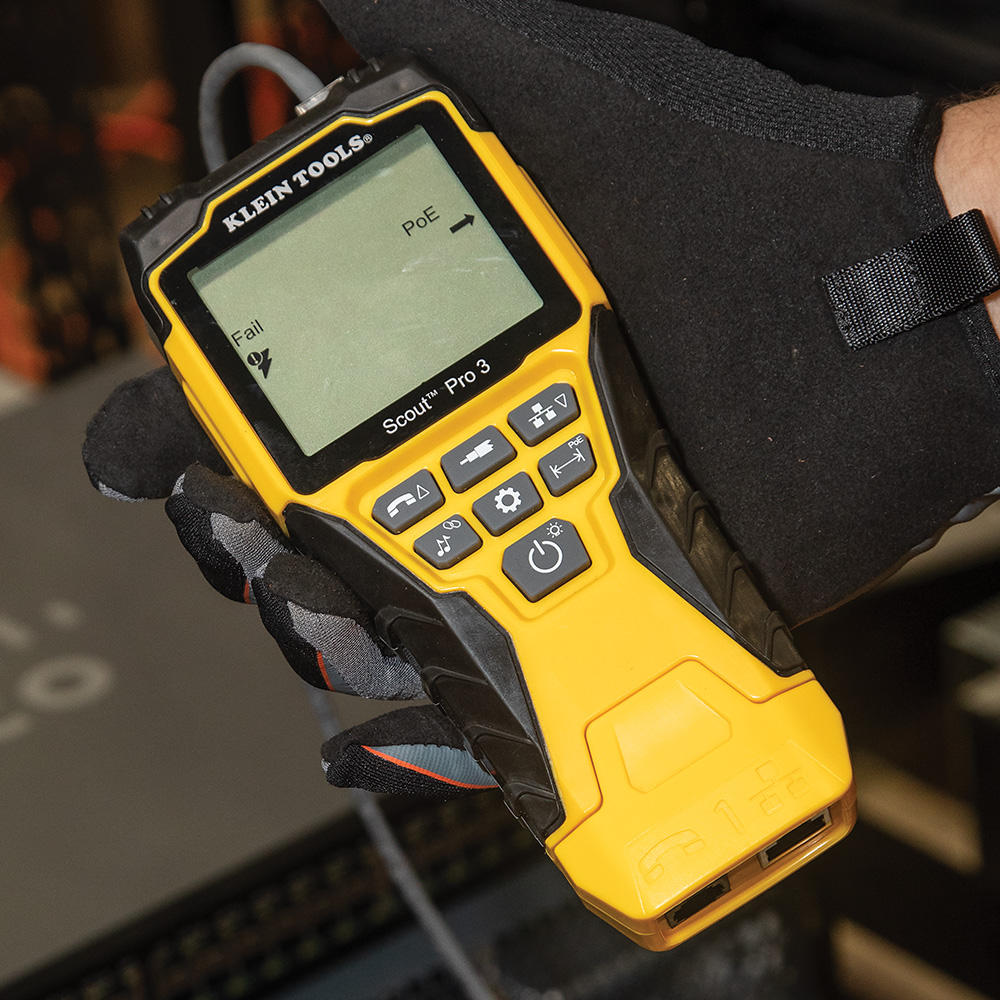

• Detect, identify and test Power over Ethernet (PoE)

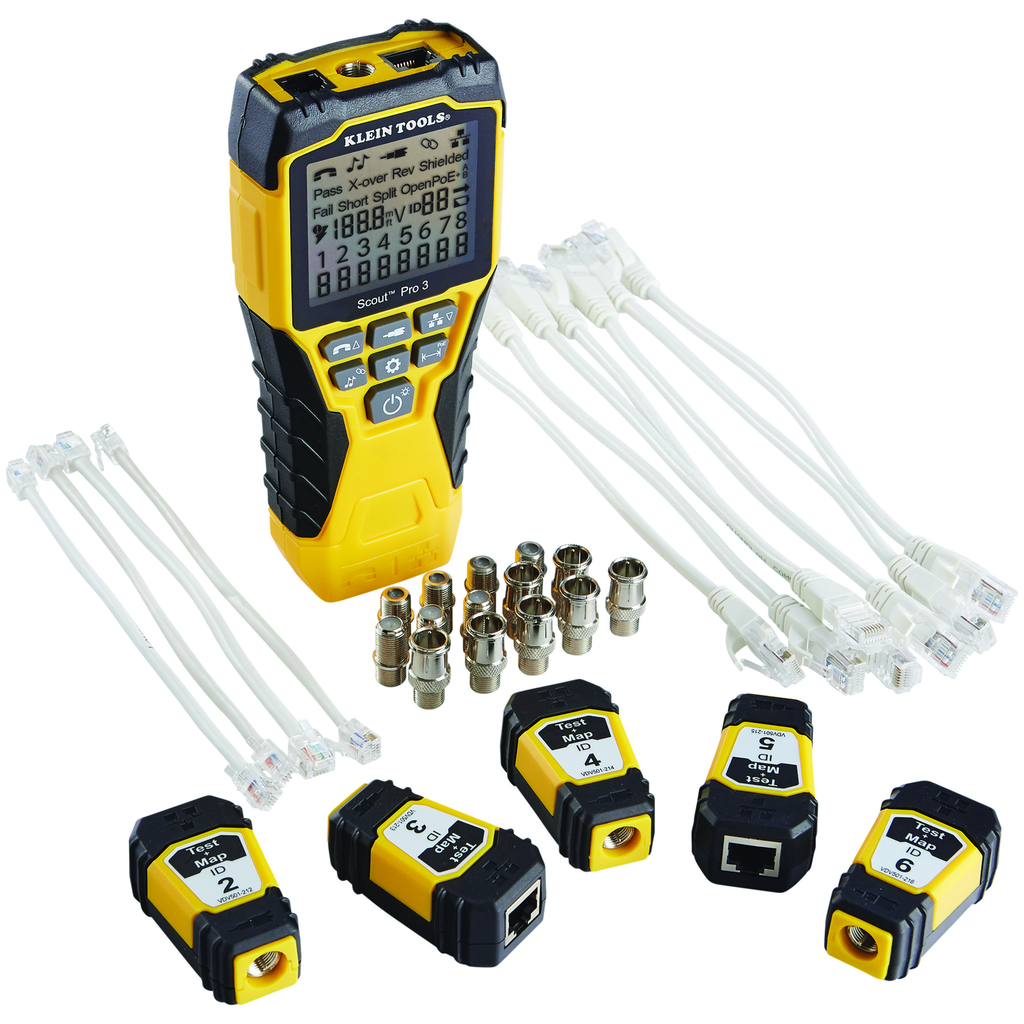

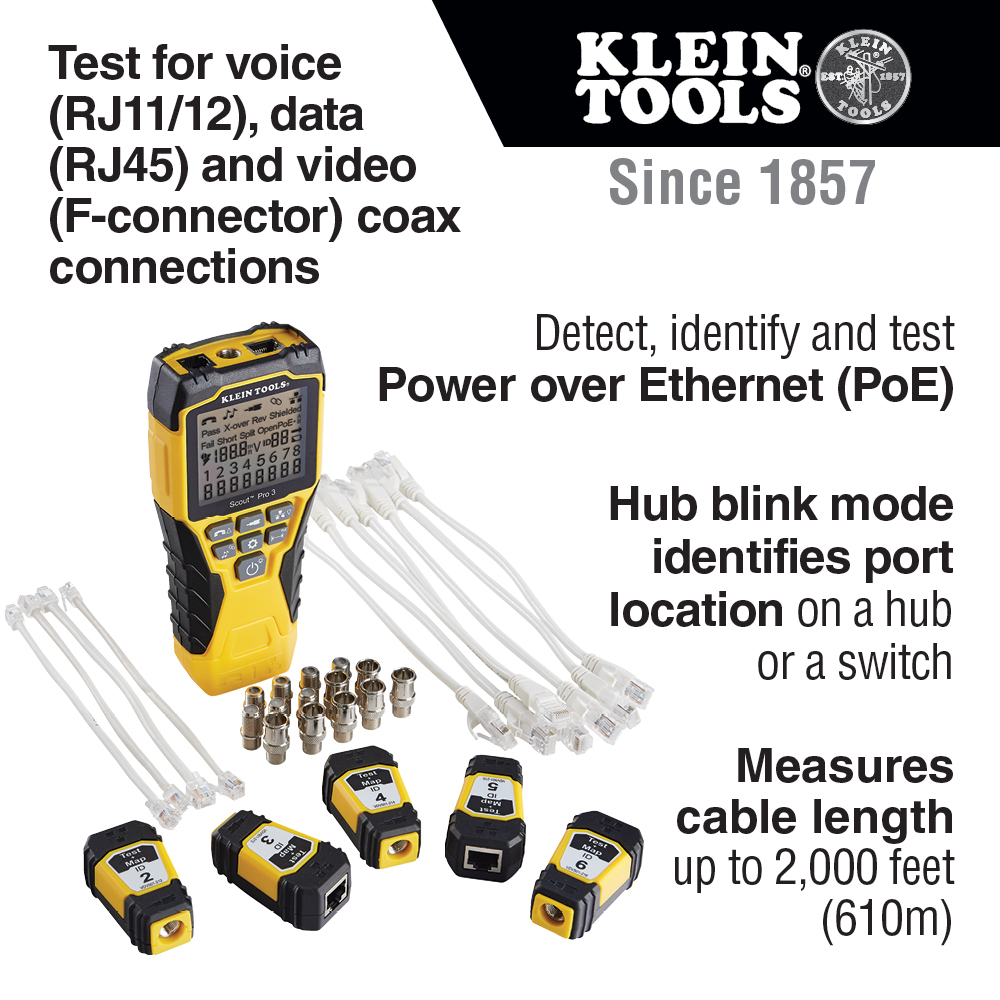

• Includes 1 self-storing Test+Map remote (#1), 5 Test+Map remotes (#2-6), 7 female-to-female, 7 male-to-female coax barrel adapters, 7 RJ45 jumper cables (6-Inch), 2 RJ11, 2 RJ12 jumper cables (6-Inch)
• Includes a 9V battery and convenient carrying case

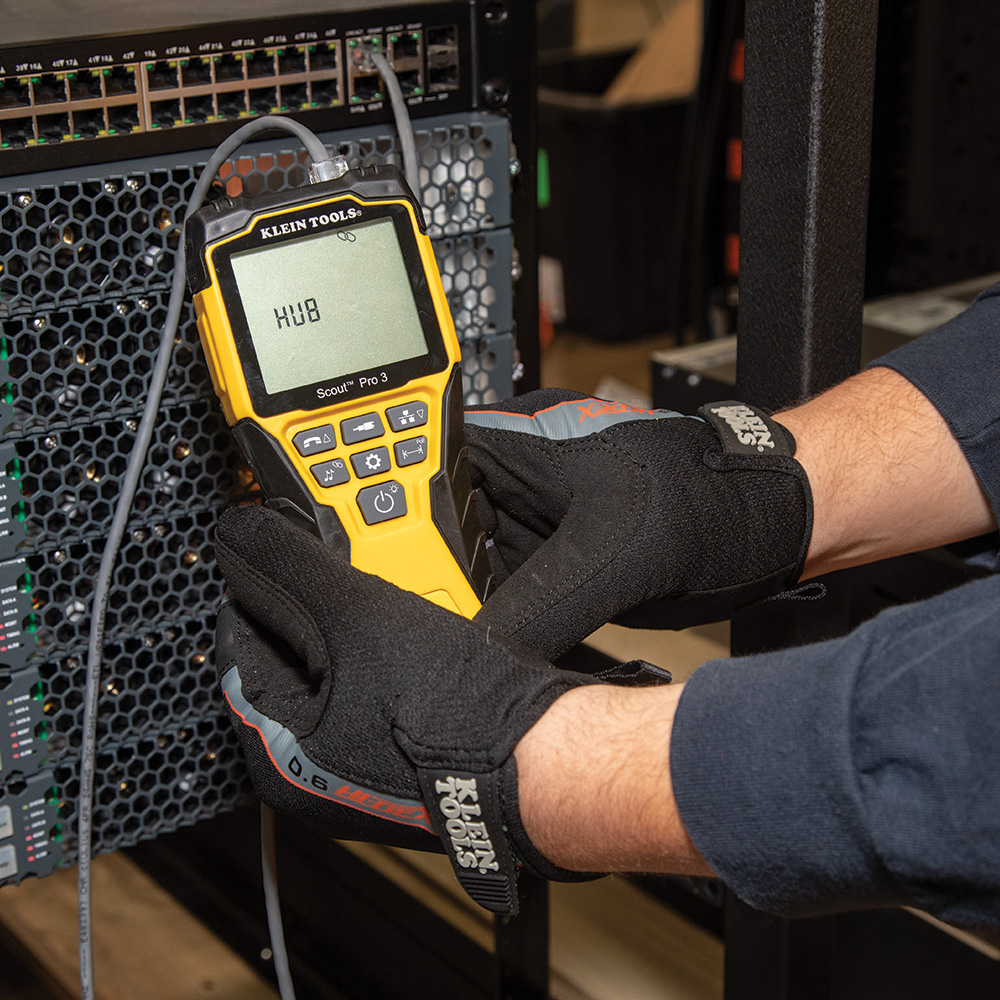

• Hub blink mode to identify port location on a hub or a switch
• Measures Cable Length; Power over Ethernet; Backlit LCD; Hub Blink

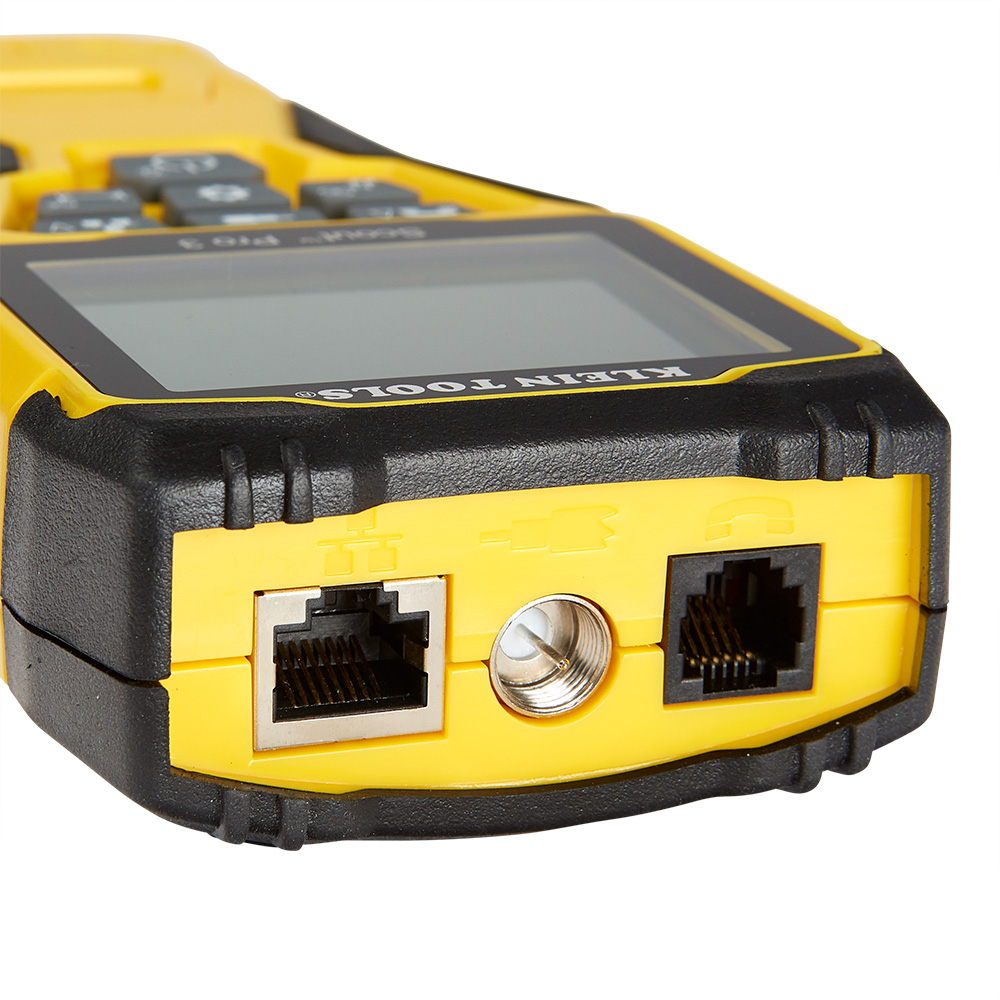

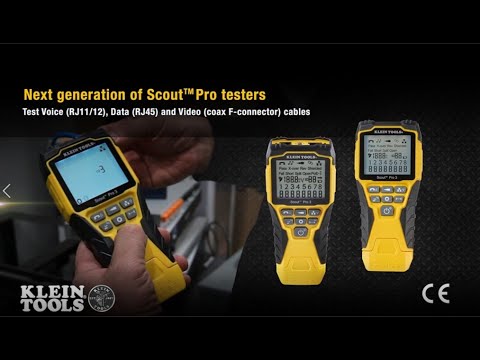

• Tests voice (RJ11/12), data (RJ45) and video (F-connector) coax connections
• Trace cables, wire pairs and individual conductor wires with a multi-style tone generator (requires analog probe Cat. No. VDV500-123; sold separately)

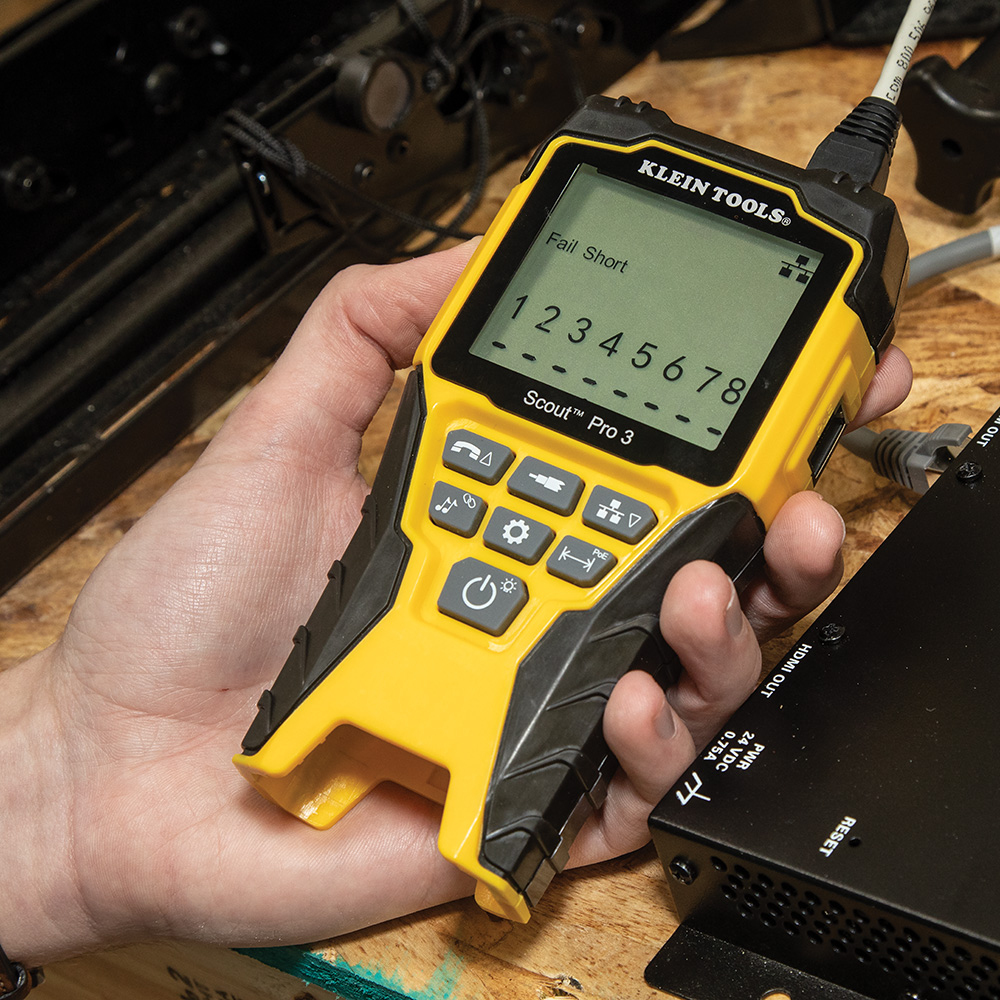

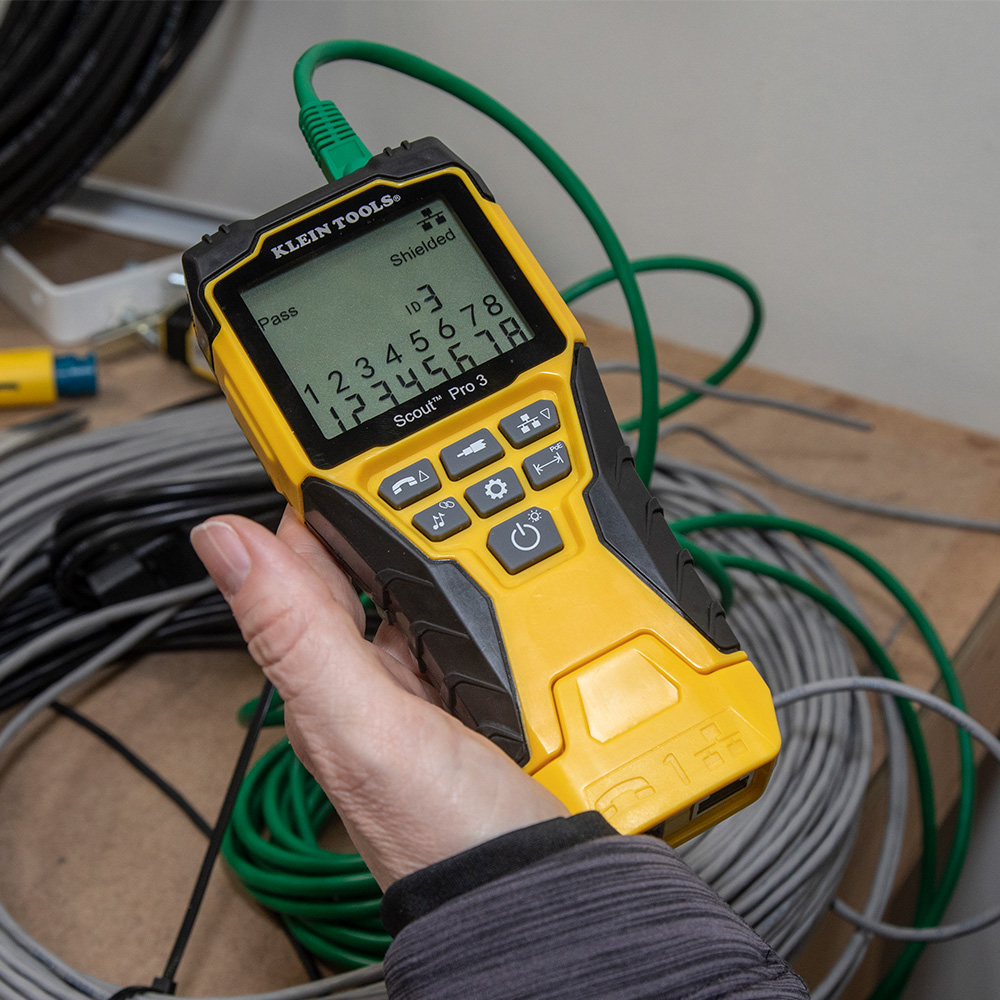

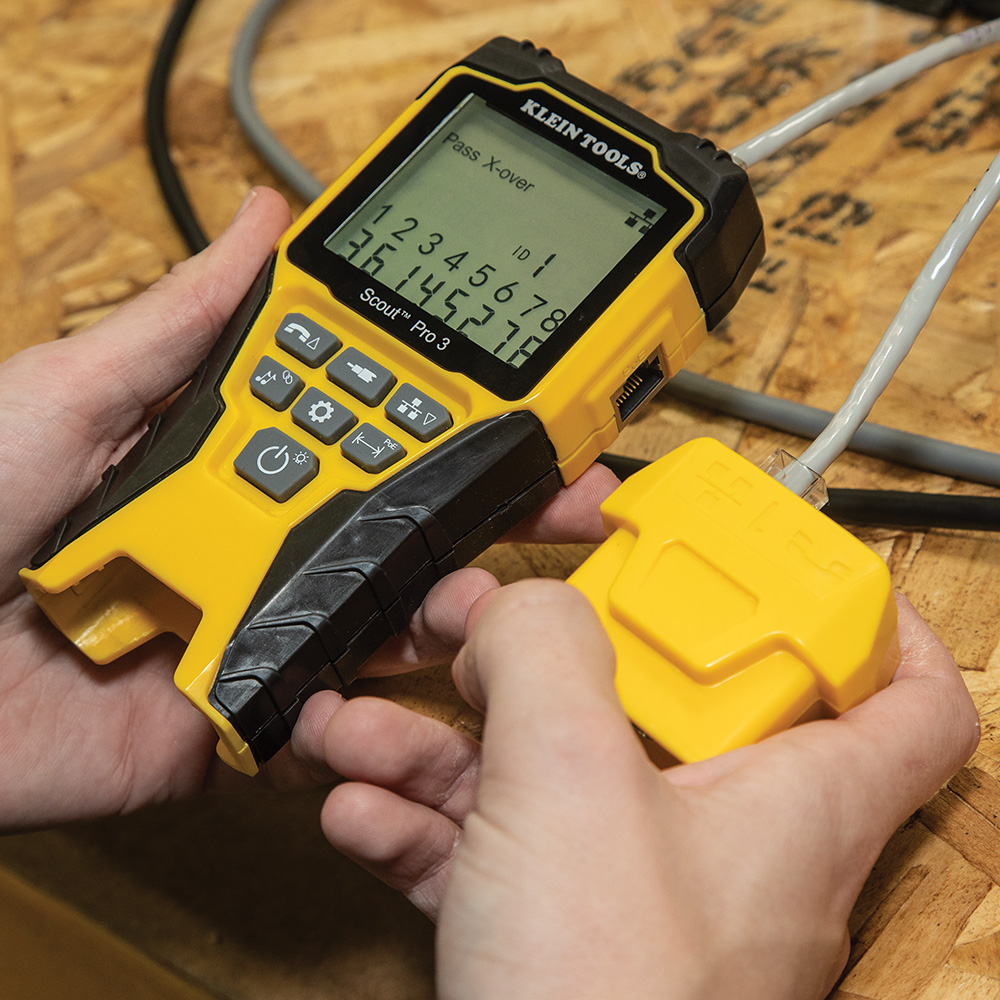

• Wiremap testing, testing for Miswires, Split Pairs, Short Faults, Open Faults, and Shield
• Backlit LCD screen displays cable length, wiremap, cable ID and test results

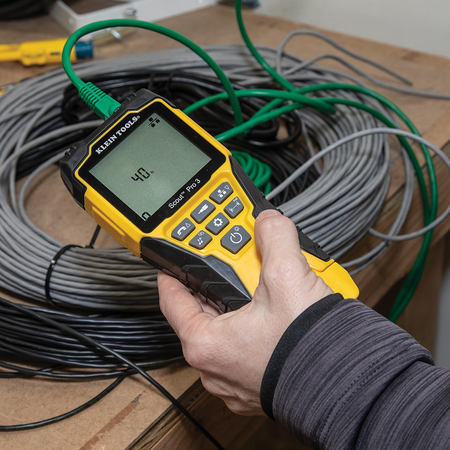

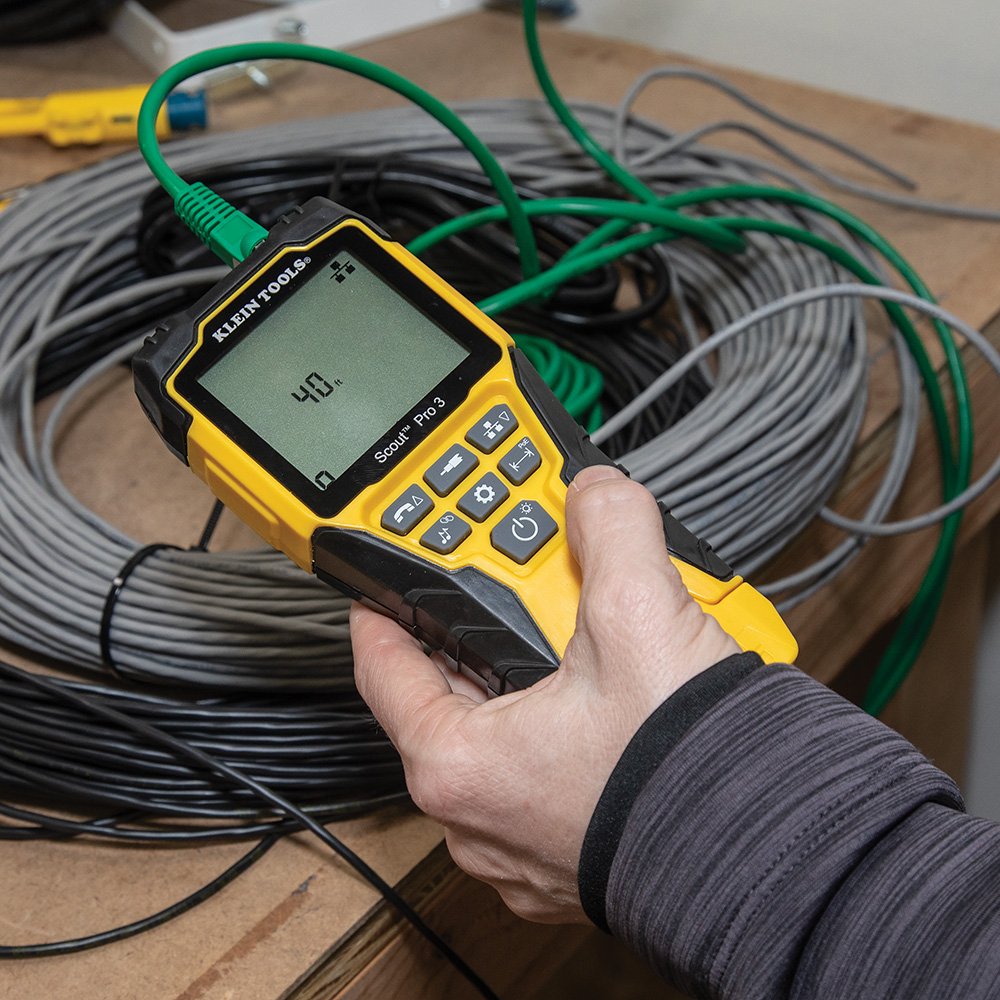

• Measures cable length up to 2000 feet
• 1 dockable smart remote, 5 loose smart remotes plus 7 female-to-female and 7 male-to-female coax adapters

Specifications

• Accuracy: Length Measurement - +/- 5% (ft) or 5% m
• Cable Type: DATA -, Shielded or Unshielded, CAT3, CAT5E, CAT6, CAT6A, CAT7; COAXIAL - RG59, RG6/6Q
• Material: Plastic and Metal
• Drop Protection: 2 m
• Height: 1.5000 in
• Supported Remotes: 18
• Overall Length (Inch): 7
• Faults Detected: Open, Short, Miswire
• Overall Height (cm): 8.1
• Battery Life: Active - 50 hr
• Test & Measure Types: Ethernet, Data, Coaxial
• Batteries: 9V Alkaline
• Width: 3.2000 in
• Depth: 6.9000 in
• Overall Width (Inch): 1.5
• Connection & Adapter Types: RJ11, RJ12, RJ45, Coax F
• Weight (oz): 19.2
• Overall Height (Inch): 3.2
• Standard: CE
• Overall Length (cm): 17.8
• Weight: 1.2000 lbs
• Test-n-Map ID Remotes: (1) Self-Storing, (5) Test + Map™ Remotes (#2 - #6)
• Type: Twisted Pair, DATA, Voice, LAN, and Coaxial
• Display: Backlit LCD

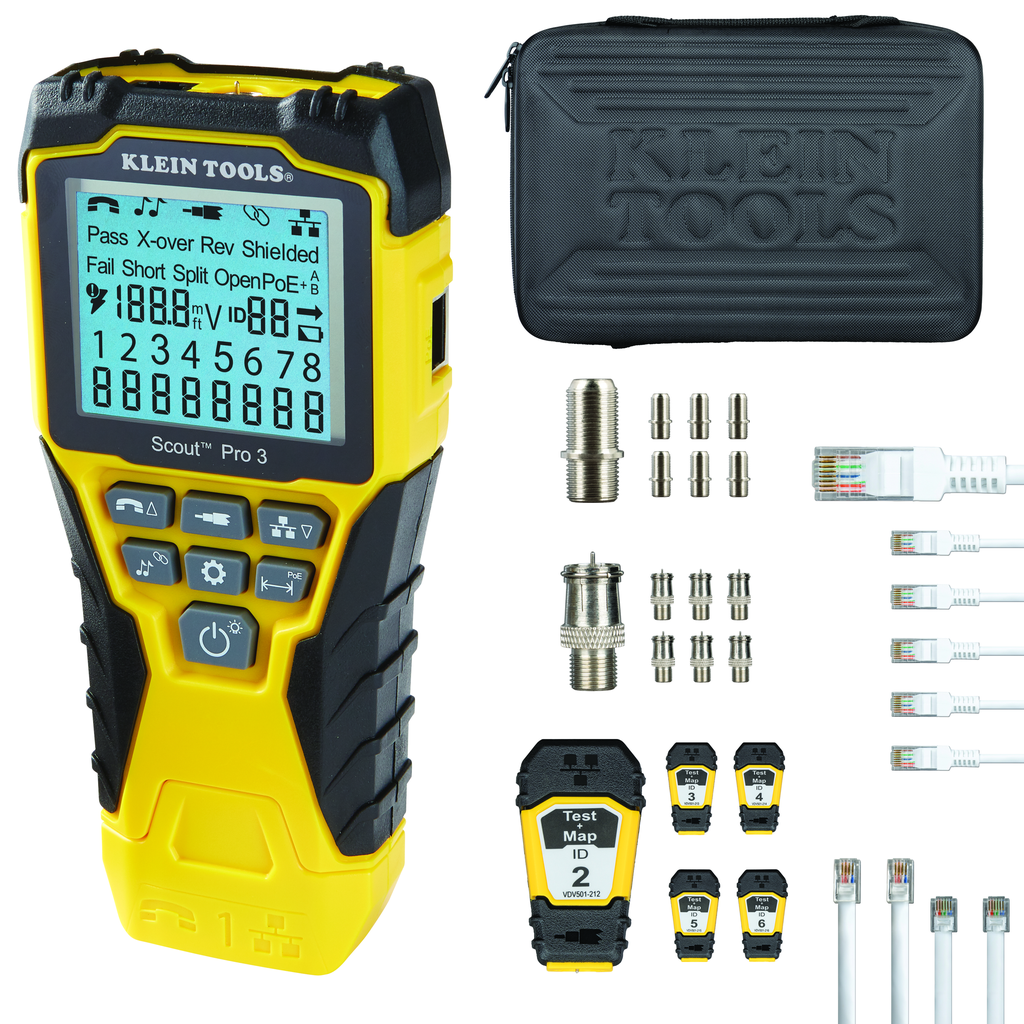

• Included: Tester, Self-storing Test + Map™ Remote (#1), 5 - Test + Map™ Remotes (#2 - #6), 7 - Coaxial Barrel Adapters (female-to-female), 7 - Coaxial Barrel Adapters (male-to-female), 7 - RJ45 Jumper, 2 - RJ11 Jumper, 2 - RJ12 Jumper, Carrying case, 9V alkaline battery
• Overall Width (cm): 3.8
• Application: Cable Testing
• Weight (g): 544
• Multiple Style Tone Generator: Yes (5); Requires Tracing Probe (Cat. No. VDV500-123); Sold Separately
