CoaxMap™ Kit

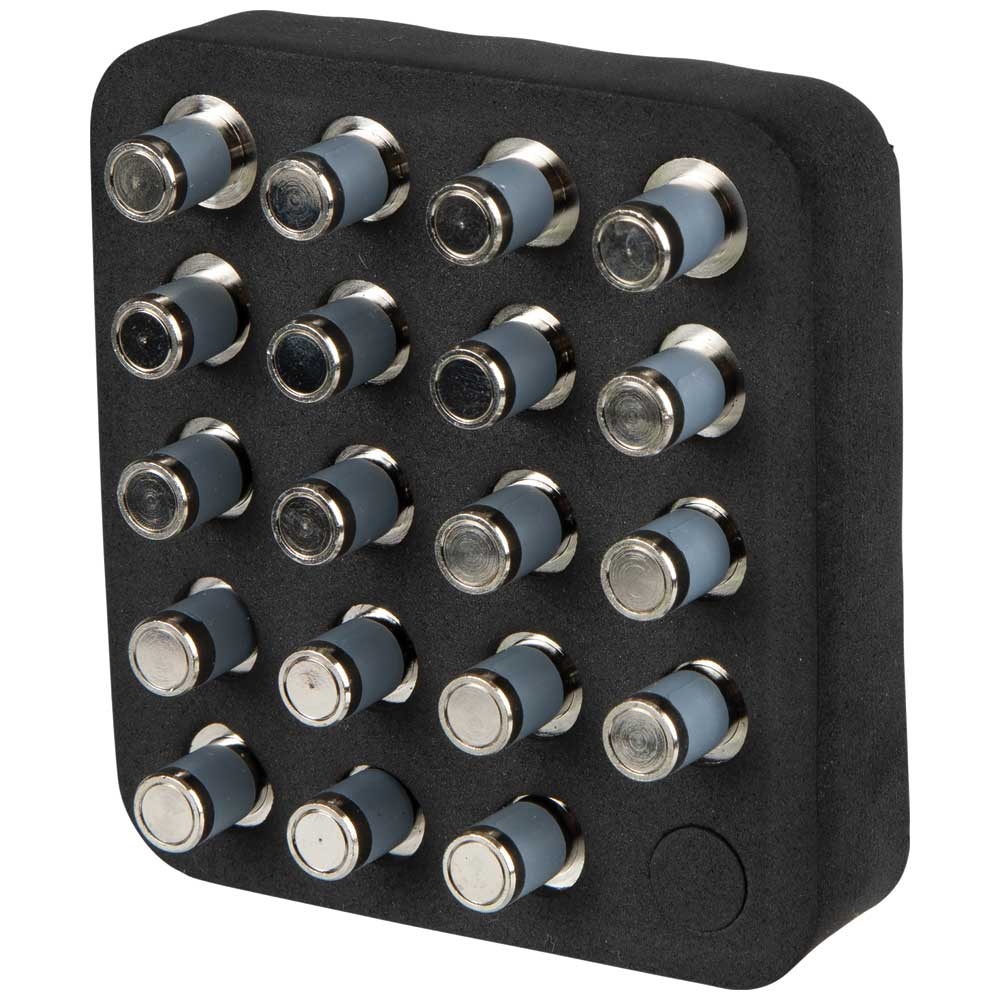

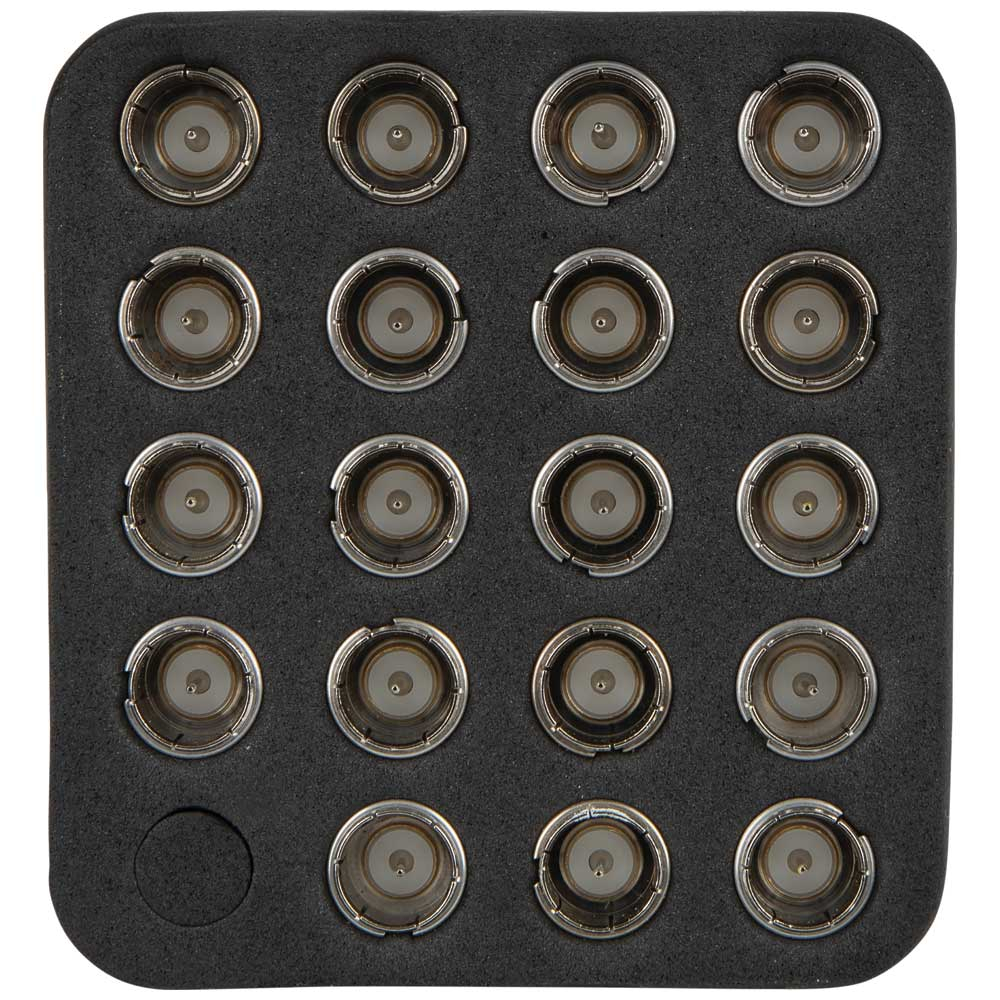

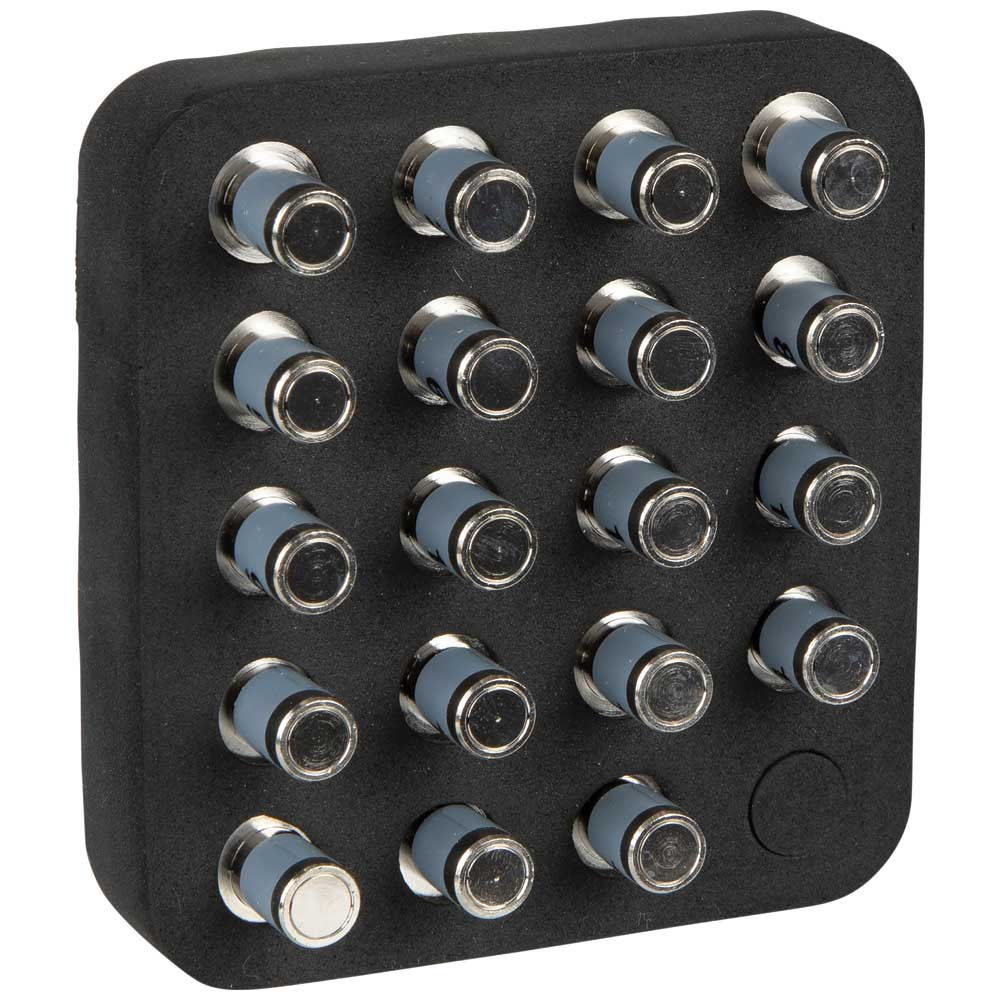

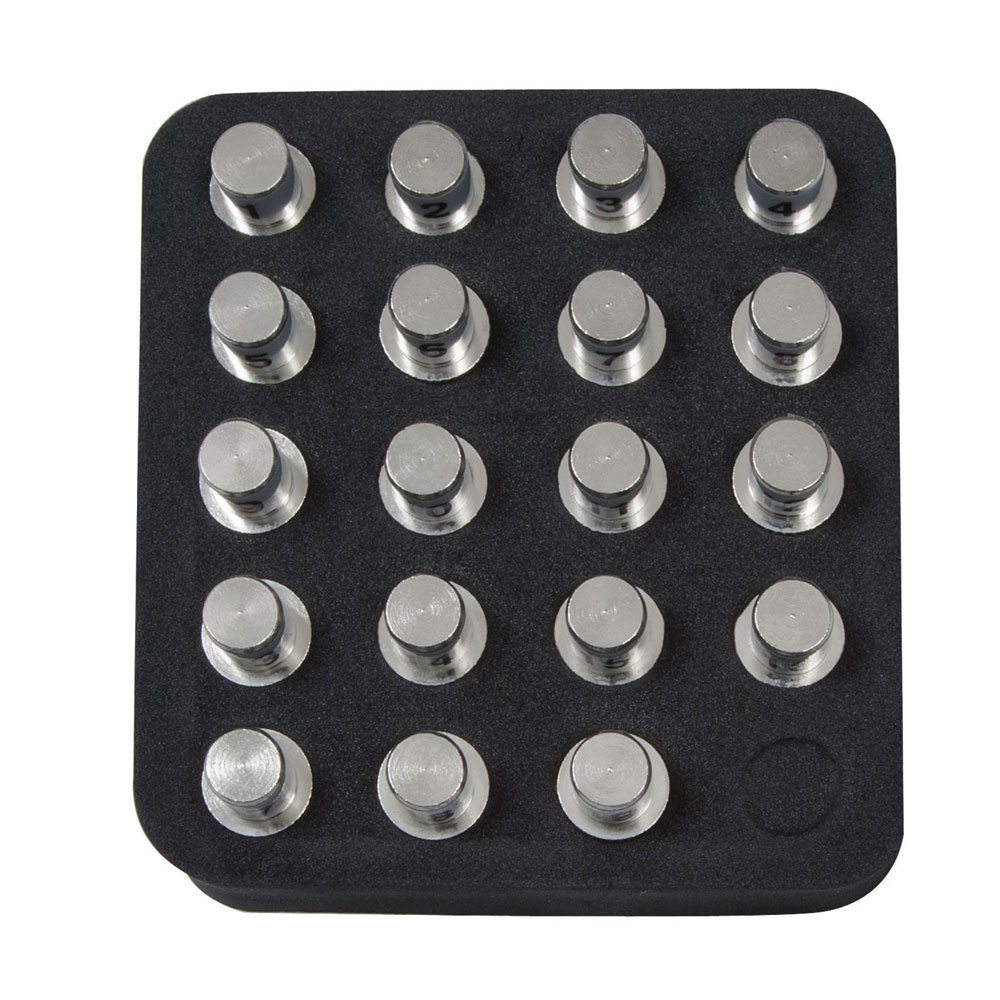

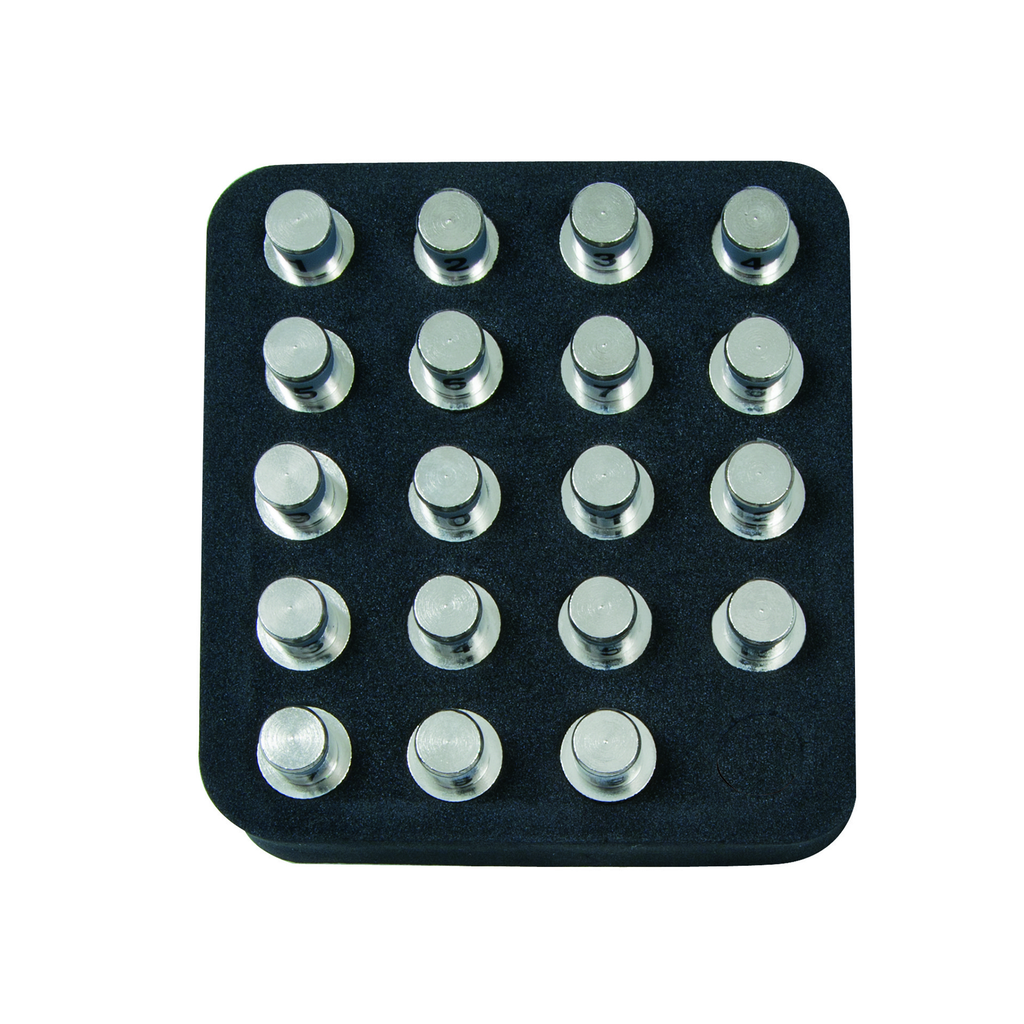

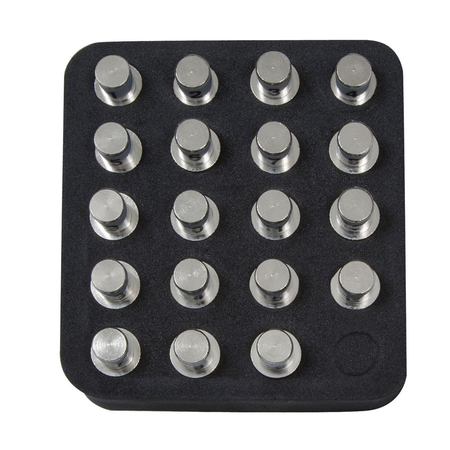

The CoaxMap™ Kit is the fastest, most efficient way to identify multiple locations at one time. The kit works with the Scout® Pro and Commander™ series of testers to identify and map coaxial (F-connector) cable infrastructure (F-connector) up to 19 locations. It is a fast and efficient way to identify multiple locations at once. Remotes are numbers 1 through 19 for fast and accurate identification.

Features

• For use with the Scout® Pro and Commander series of cable testers
• LanMap™ Kit - 19 location RJ45 Remotes (VDV526-055) also available

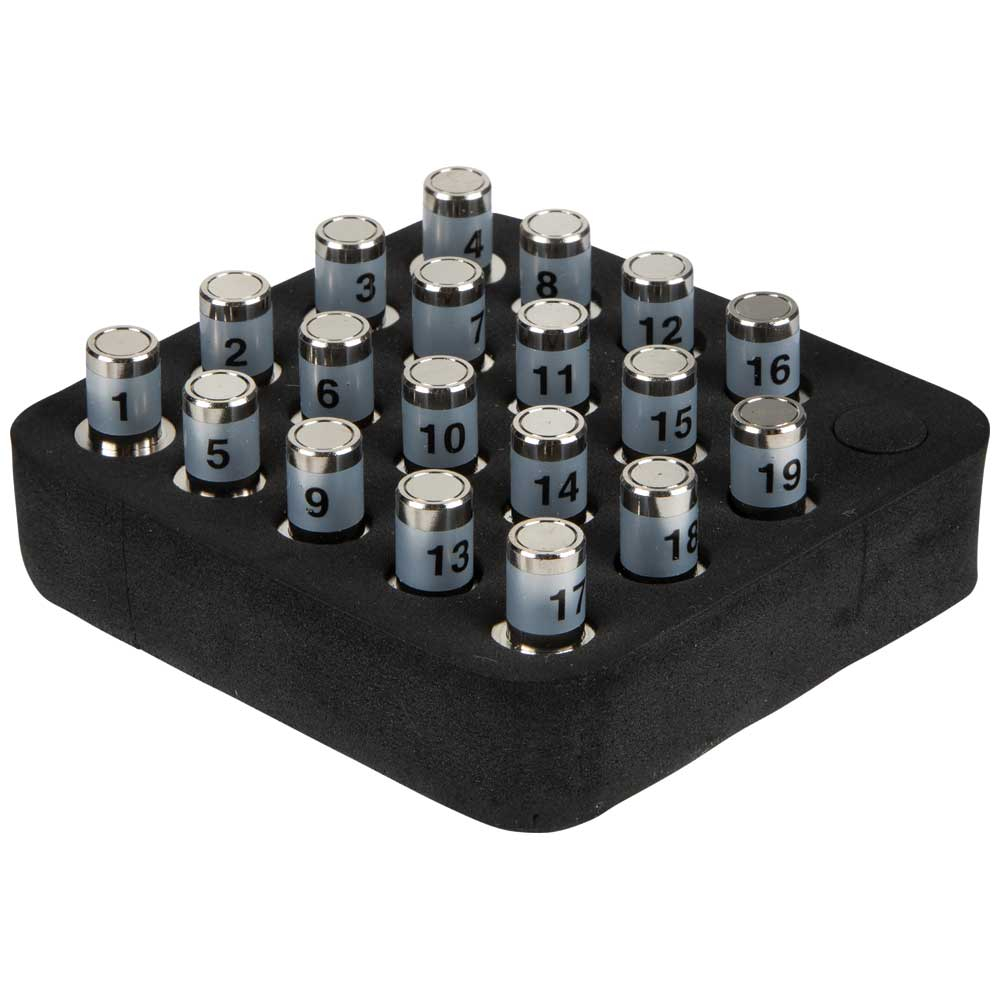

• Remotes numbered 1 through 19 for fast and accurate identification
• Heavy-duty design for long life and repeated connections
• Identify and map coaxial cable infrastructure (F-Connector), up to 19 locations
• Fastest, most efficient way to identify multiple locations at one time

Warnings

• Always wear approved eye protection.
• Do NOT use on energized circuits.

Specifications

• Width: 3.3000 in
• Sub Brand: Scout Pro
• Depth: 3.0000 in
• Overall Length: 1" (2.5 cm)
• Weight: 0.3250 lbs
• Style Name: Coax Remotes, Scout Pro, Commander
• Country of Origin: Taiwan
• For Use With: Scout Pro™ Series (Cat. Nos. VDV501-851, -852, -853, 823, -824, -825, -826, -827); Commander Series (Cat. Nos. VDV501-828 -829)
• Overall Height: 3" (7.6 cm)
• Height: 1.0000 in
• Overall Width: 3.297" (8.4 cm)
