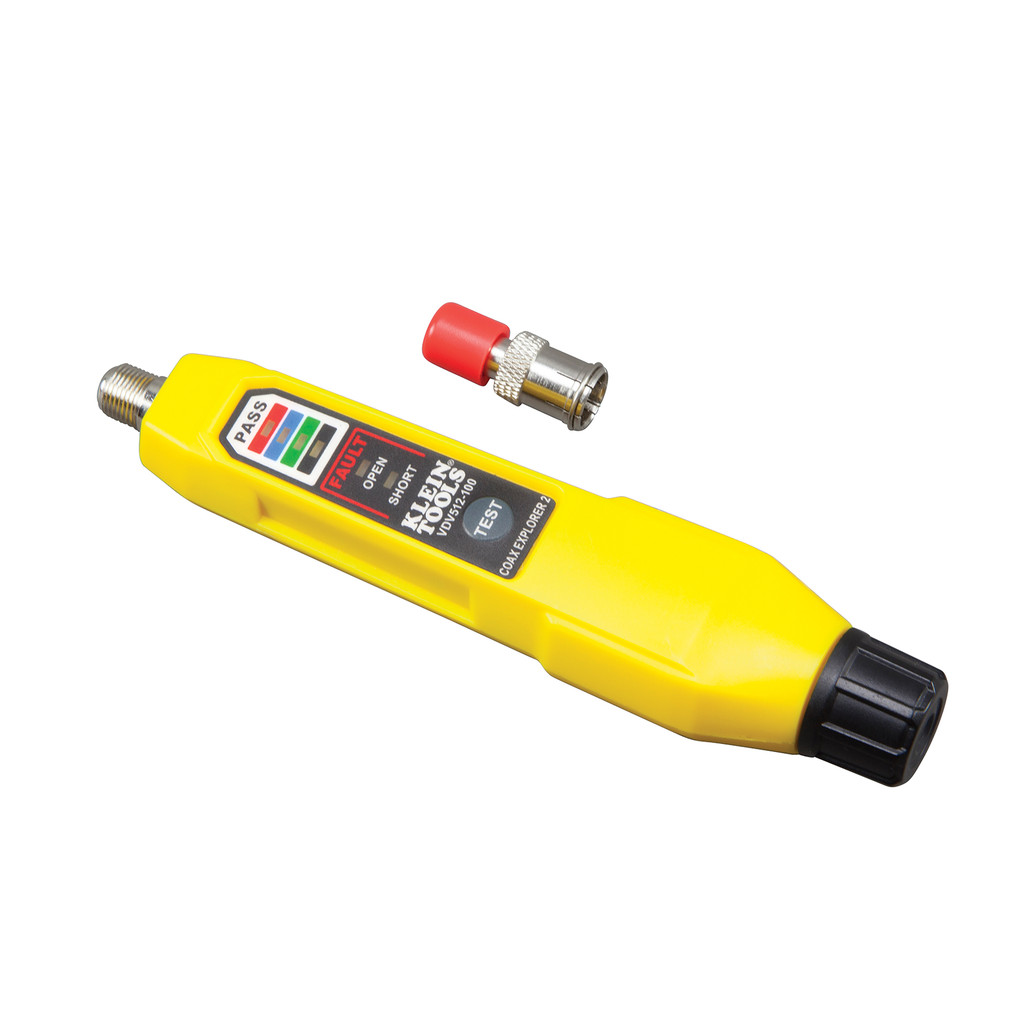

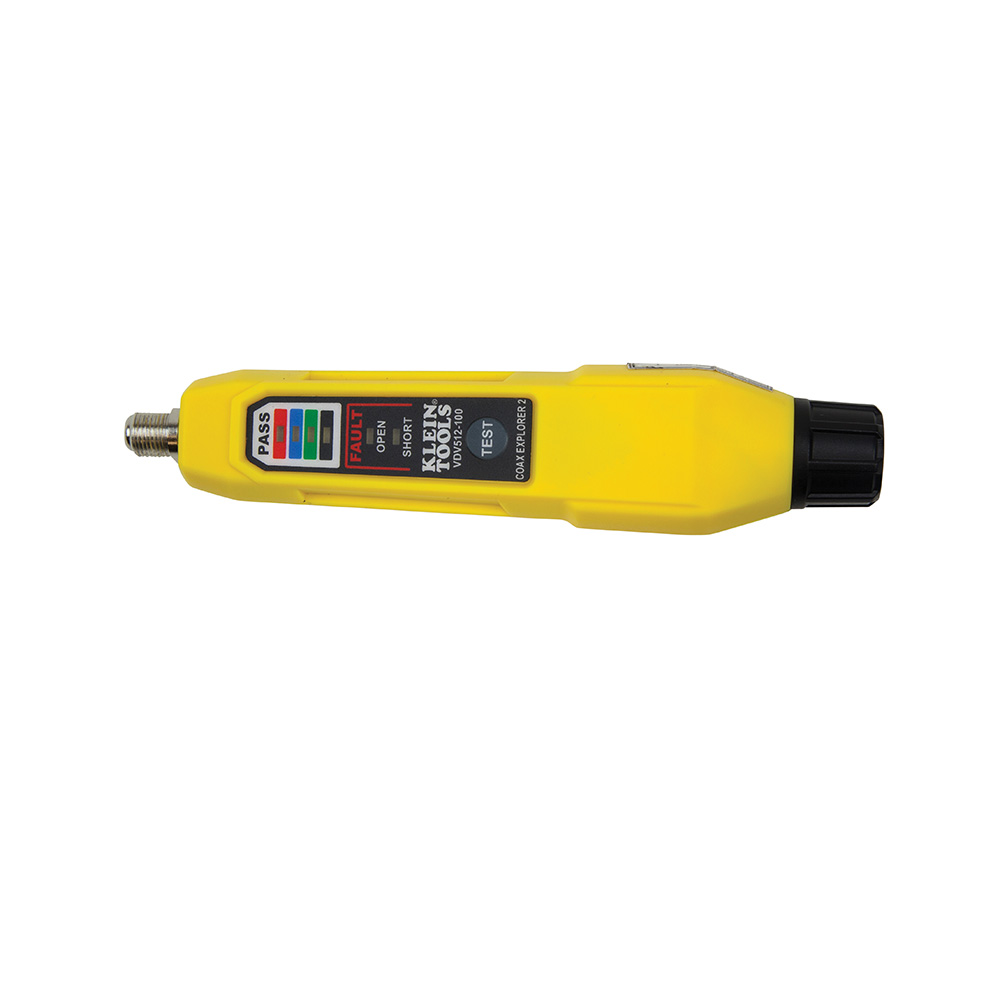

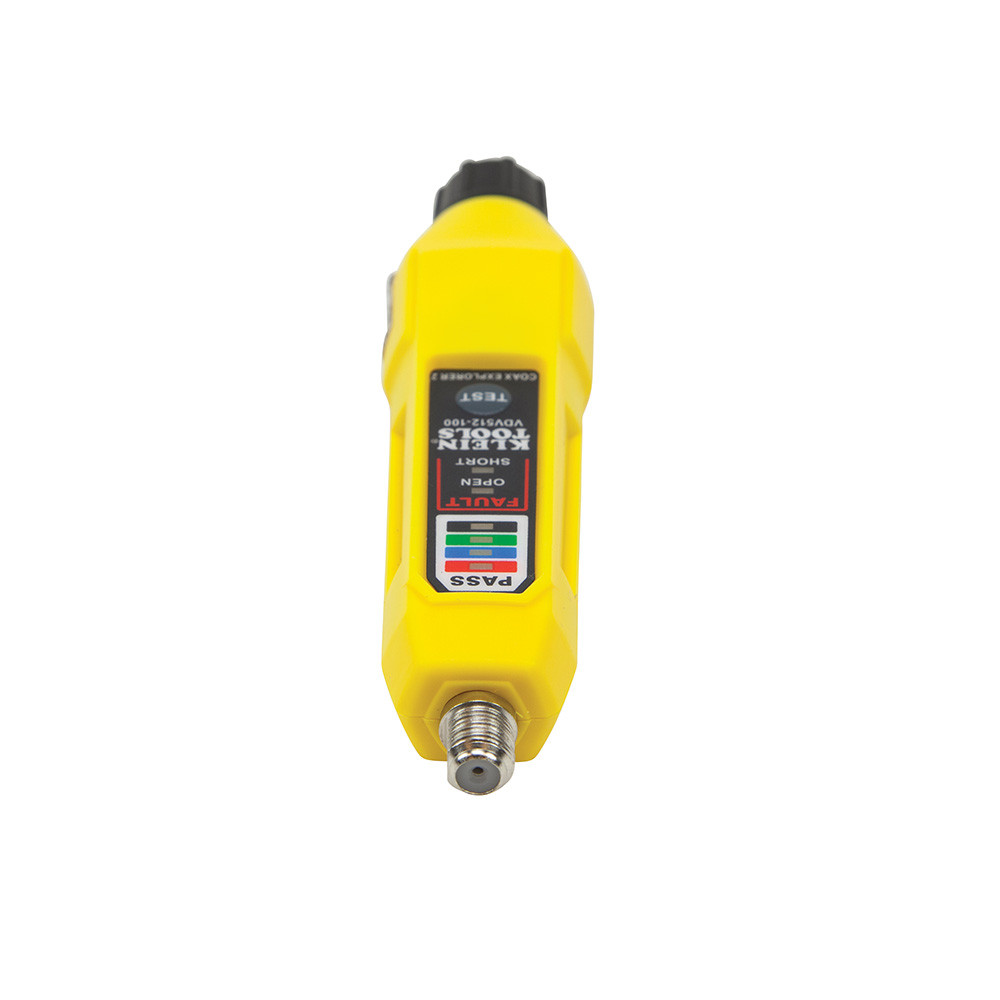

Cable Tester, Coax Explorer® 2 Tester with Batteries and Red Remote

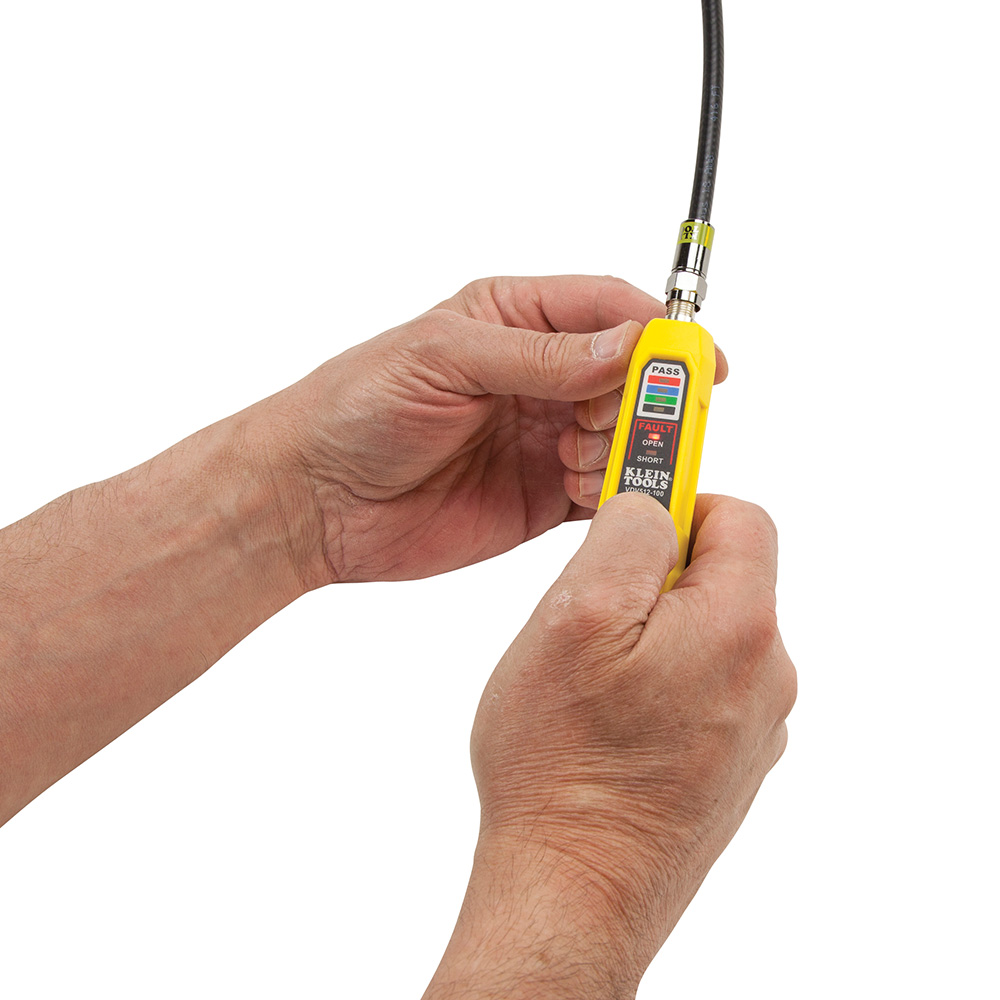

The Klein Tools Coax Explorer® 2 verifies proper continuity of F-connector coaxial cables and maps their location. This tester comes with one (red) remote. The available color-coded remotes (sold separately) allow for up to four cables to be tested and mapped, displaying cable status via LED indicators - PASS, OPEN, or SHORT - that also identify the cable/remote location. This compact tester fits in your pocket.

Warnings

• Not for use on powered circuits or outlets.
• Read, understand and follow all instructions, cautions and warnings attached to and /or packed with all test and measurement devices before each use.

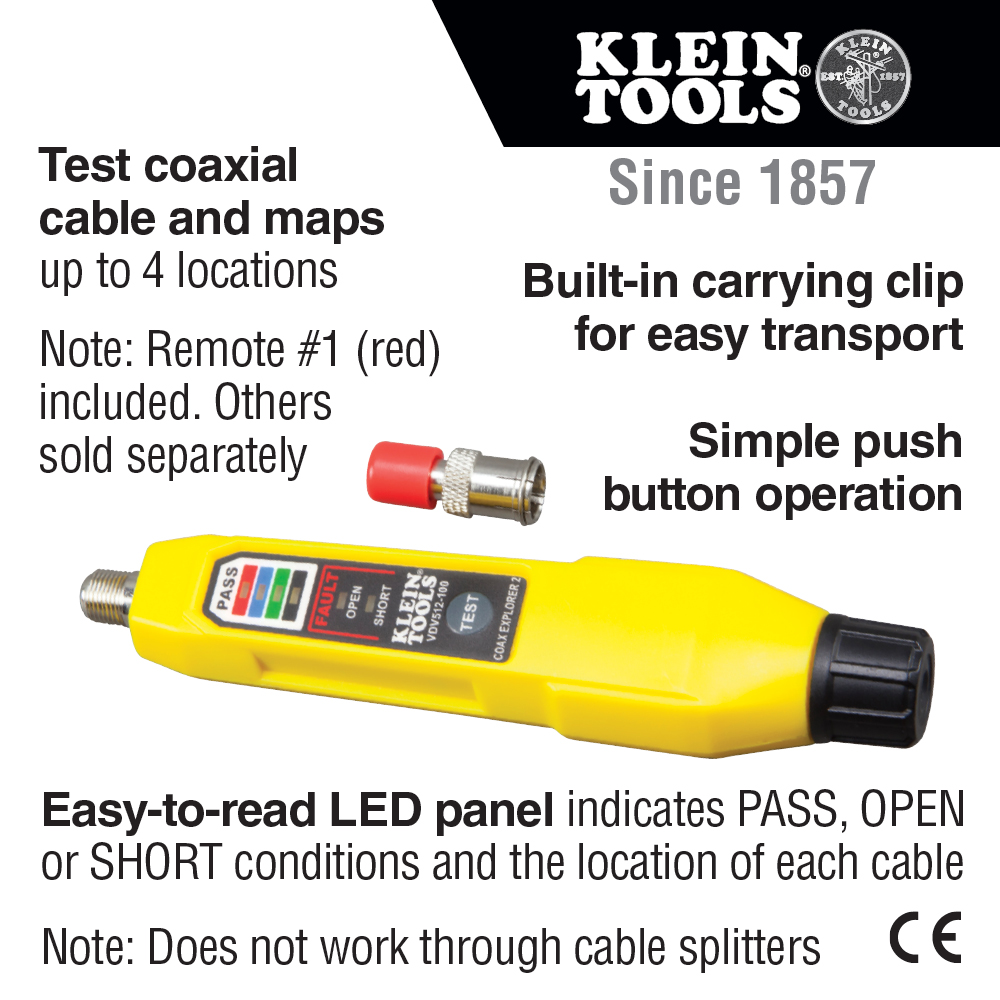

Features

• Color coded push-on remotes allow for up to four cables to be tested and mapped (sold separately)
• Easy to read LED panel indicates PASS, OPEN, or SHORT conditions and simplifies cable identification
• Cable tester tests and maps coaxial cable
• Carrying clip for easy transport
• Simple push-button operation for wire tracing
• Uses 2 replaceable AAA batteries
• Remote #1 (red) is included with this tester
• Upgrade Remote Kit VDV512-110 (sold separately), includes holder with 4 remotes and F adapter

Note

• Does not work through cable splitters

Specifications

• Overall Length (Inch): 5.75
• Overall Width (Inch): 1.25
• Overall Width (cm): 3.2
• Batteries: 2 x AAA
• Depth: 5.7500 in
• Overall Height (cm): 2.5
• Test-n-Map ID Remotes: (1) Red Remote (Included)
• Weight (oz): 3
• Overall Height (Inch): 1
• Application: Wire Tracing of Coaxial Cables
• Included: Tester, Batteries, Red Remote
• Width: 1.2500 in
• Location ID: 1
• Connection & Adapter Types: Coax F Adapters
• Cable Type: RG59, RG6/6Q, RG7, RG11
• Weight (g): 85
• Overall Length (cm): 14.6
• Height: 1.0000 in
• Weight: 0.1900 lbs
• Type: Cable Tester
