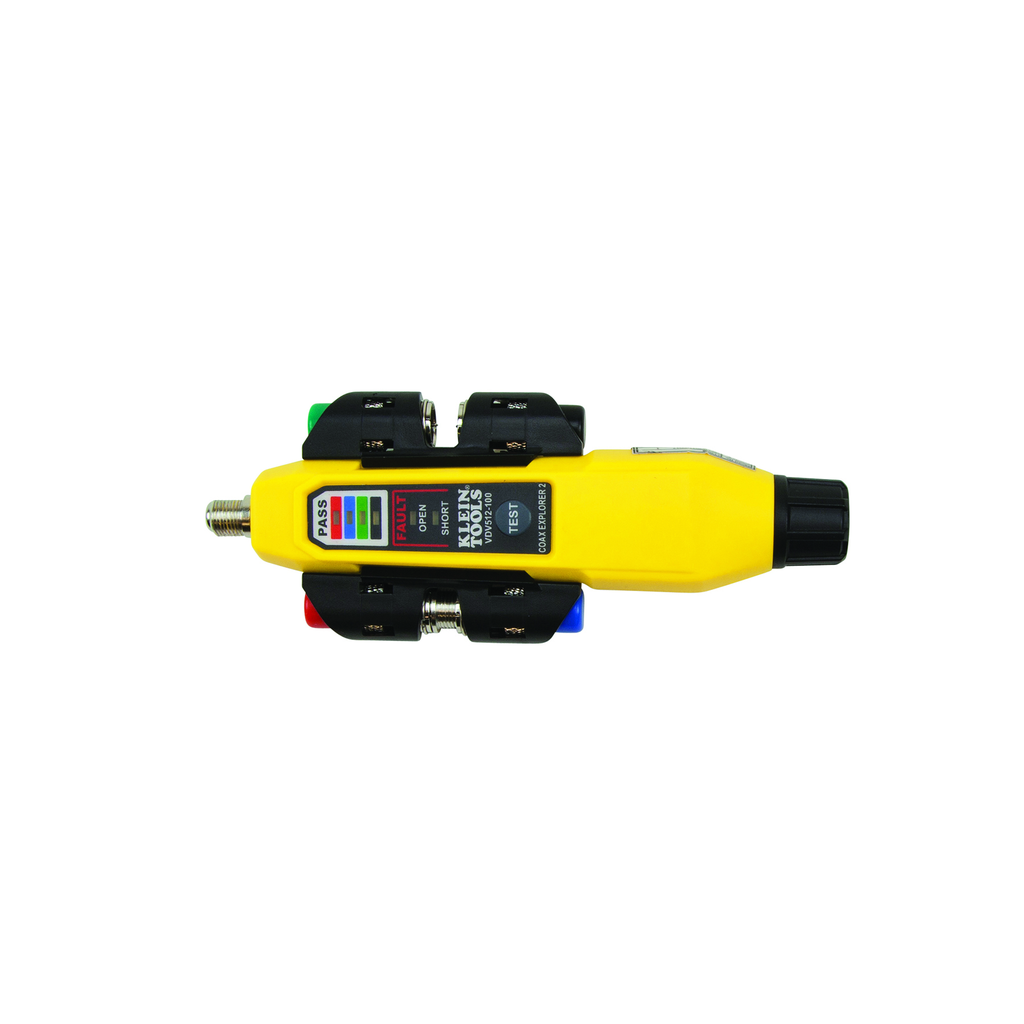

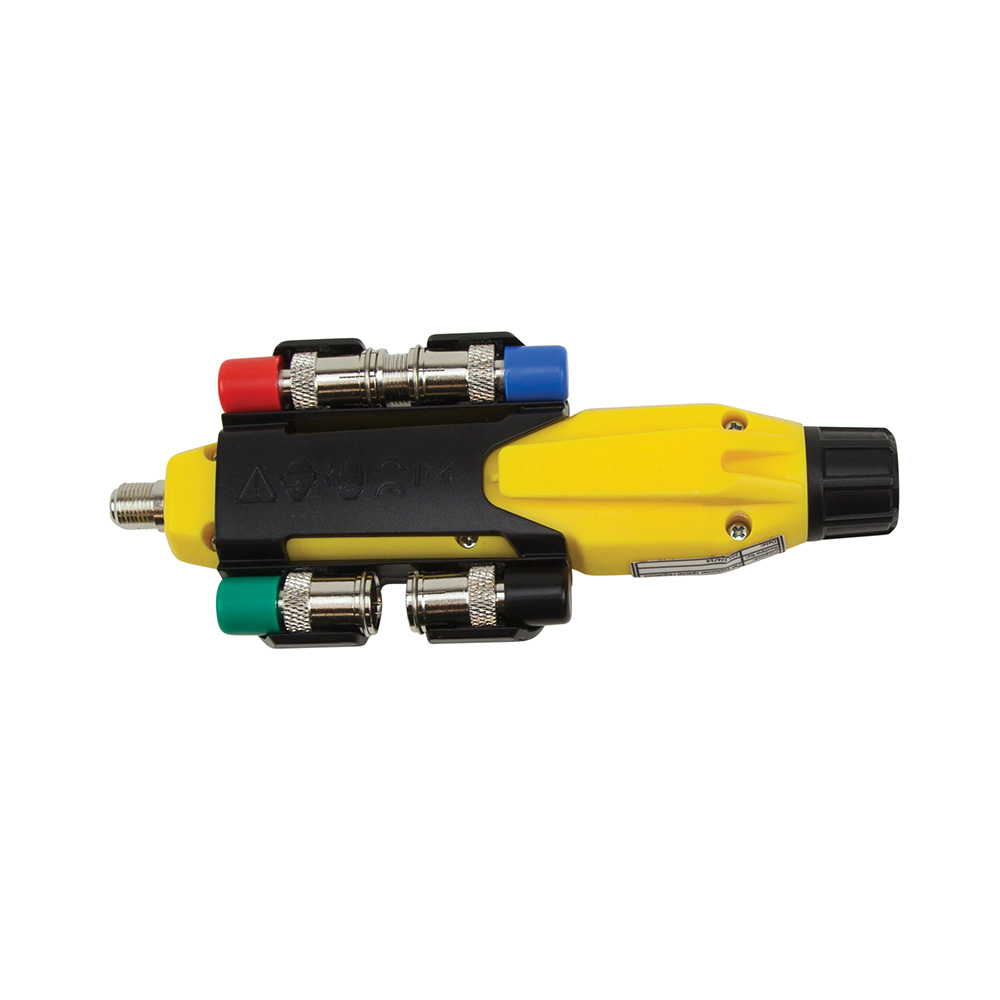

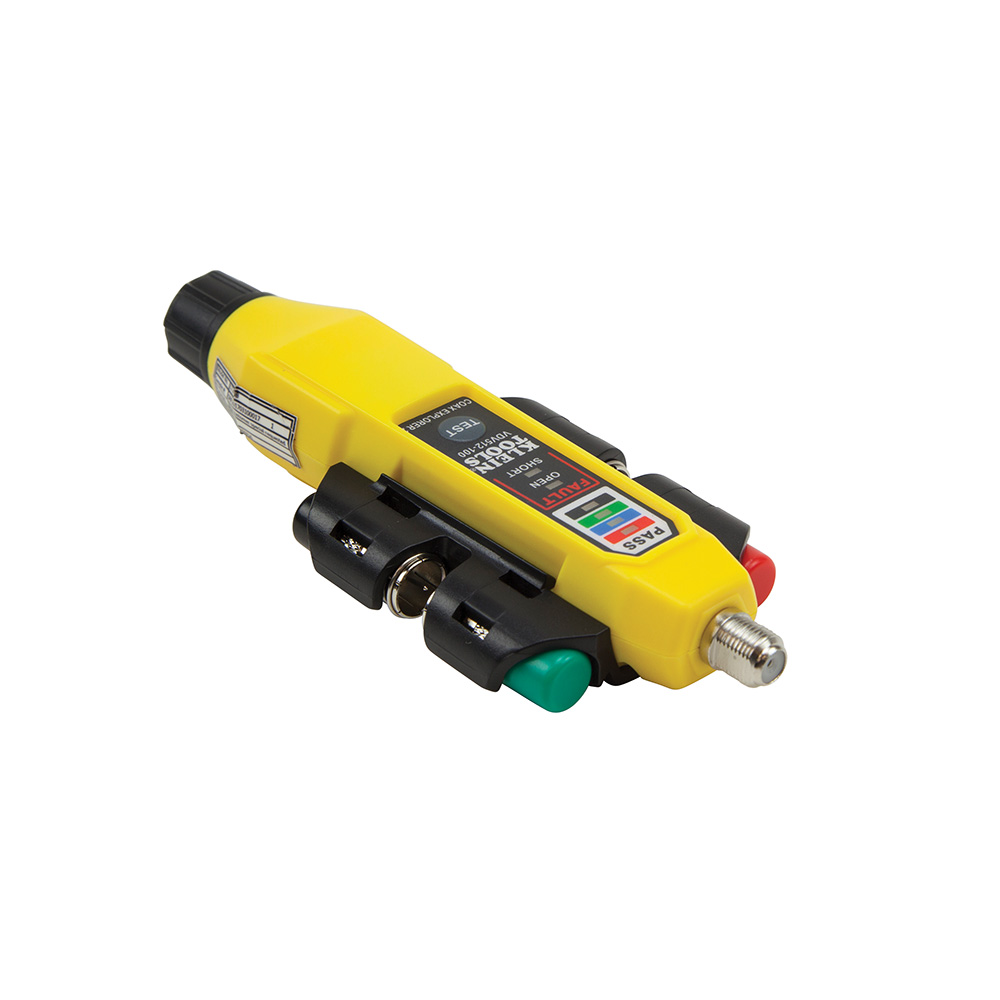

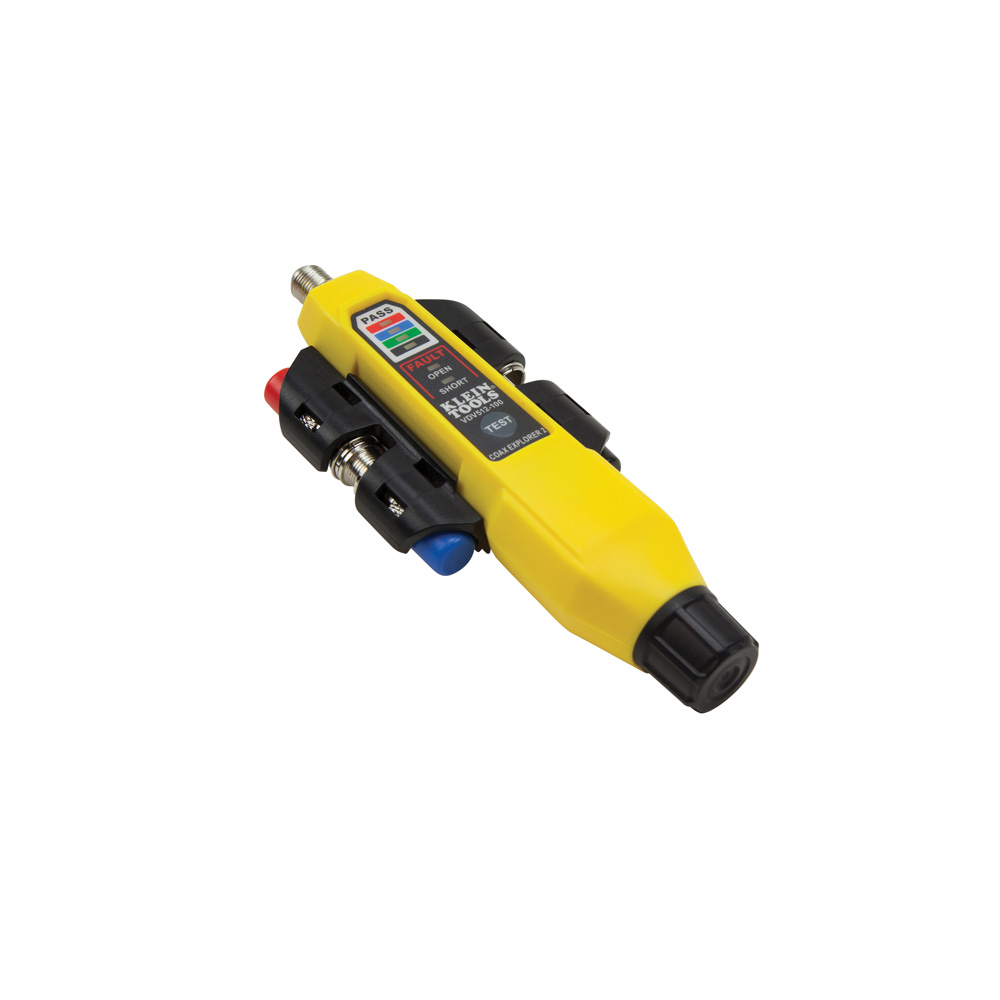

Cable Tester, Coax Explorer® 2 Tester with Remote Kit

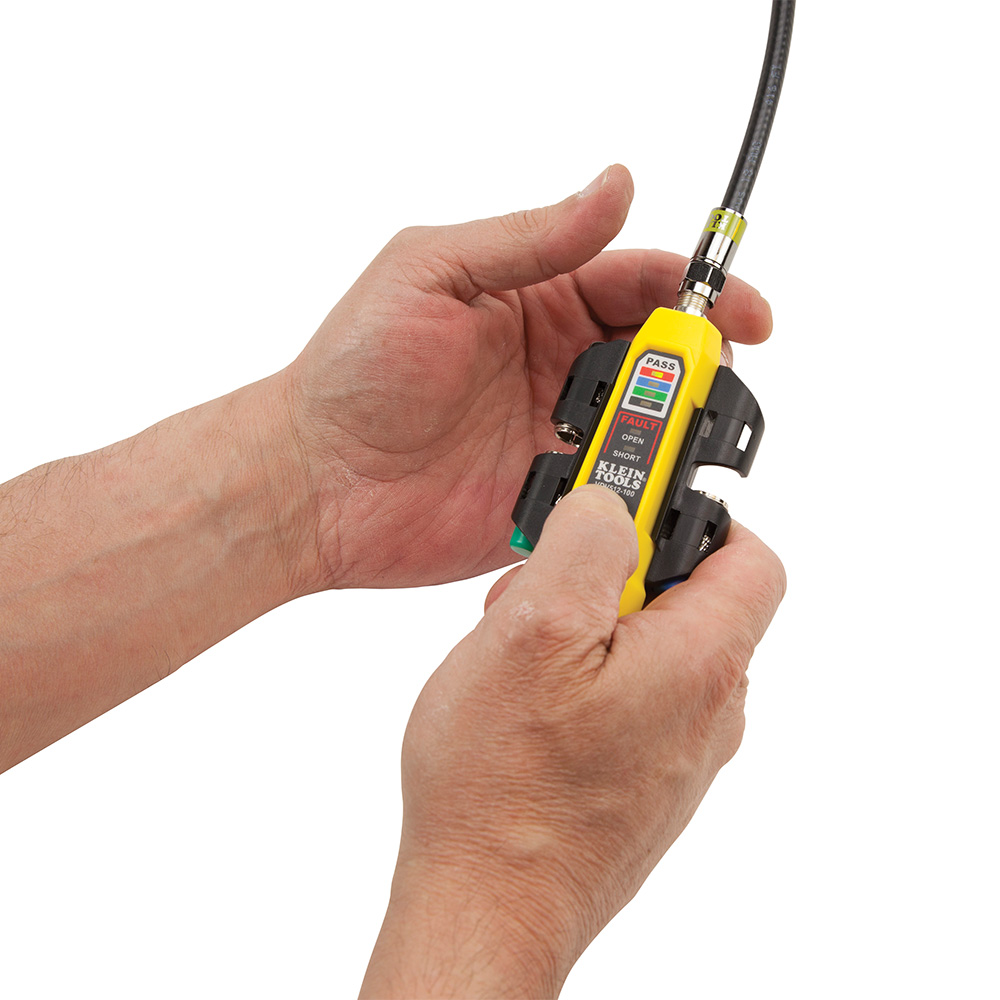

The Klein Tools Coax Explorer® 2 verifies proper continuity of F-connector coaxial cables and maps their location. The color-coded remotes allow for up to four cables to be tested and mapped, displaying cable status via LED indicators - PASS, OPEN, or SHORT - that also identify the cable/remote location. This compact tester fits in your pocket.

Warnings

• Read, understand and follow all instructions, cautions and warnings attached to and /or packed with all test and measurement devices before each use.
• Not for use on powered circuits or outlets.

Features

• Carrying clip for easy transport
• Uses 2 replaceable AAA batteries
• Simple push button operation

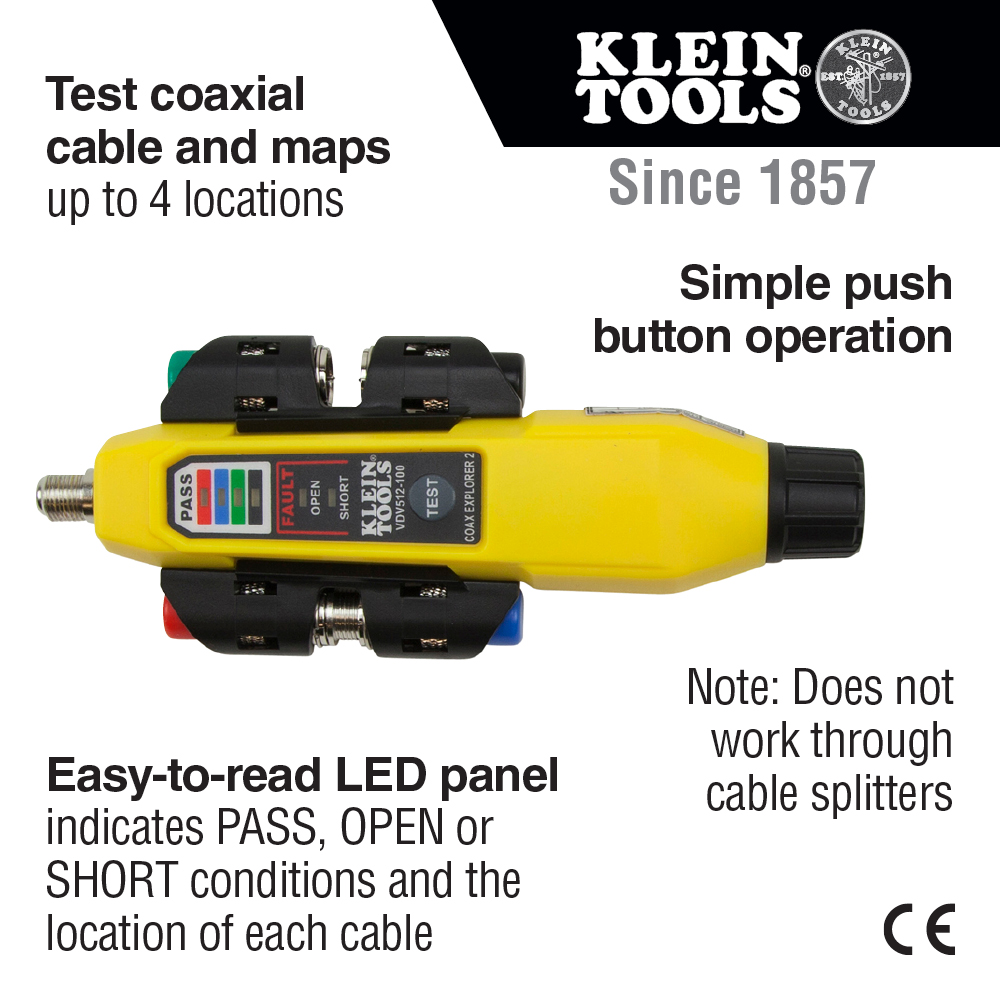

• Easy-to-read LED panel indicates PASS, OPEN or SHORT conditions and the location of each cable
• 4 Color-Coded Push-on Remotes
• Color-coded push-on remotes allow for up to four cables to be tested and mapped
• Cable tester tests coaxial cable and maps up to 4 locations

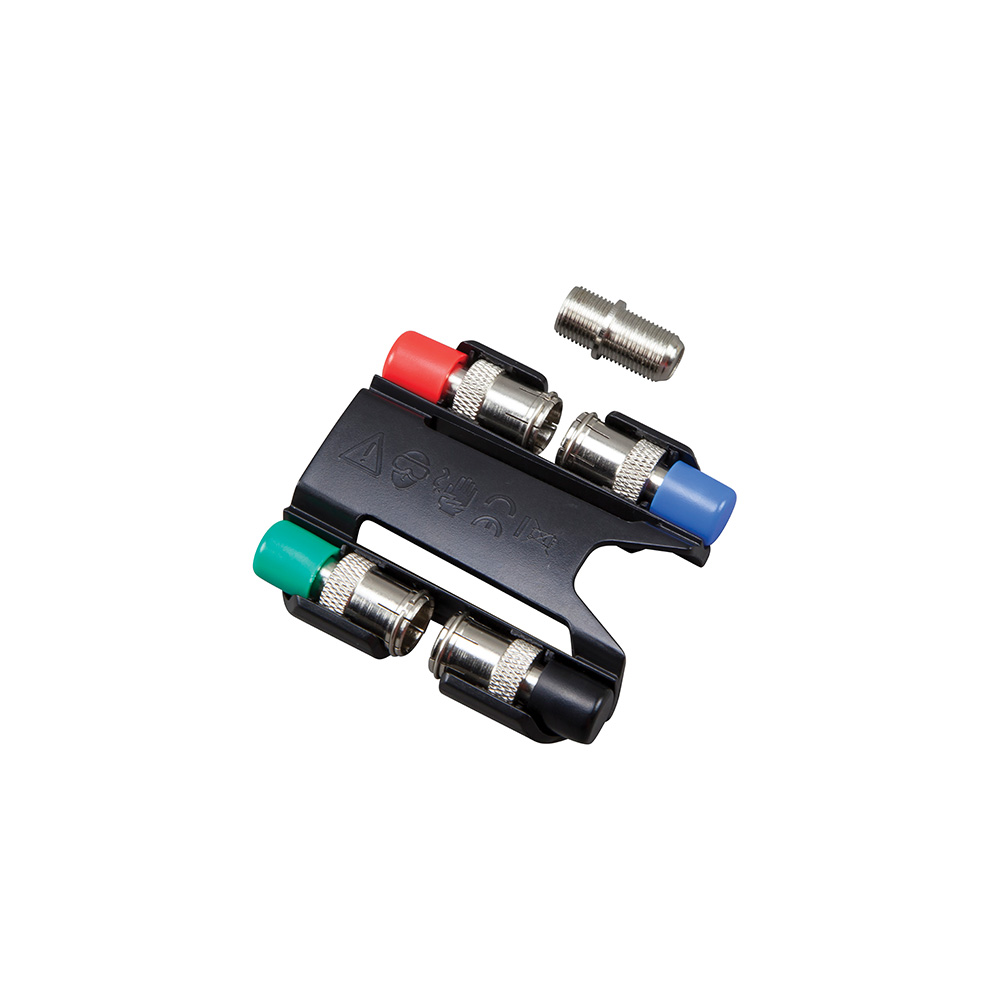

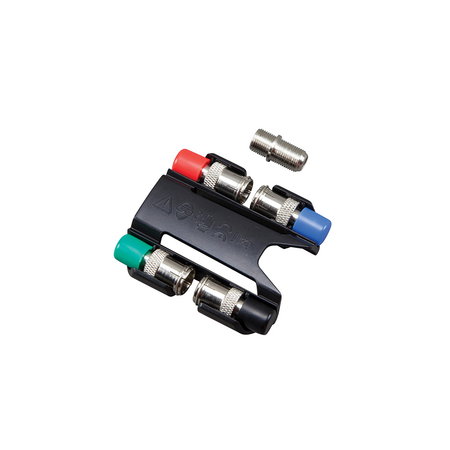

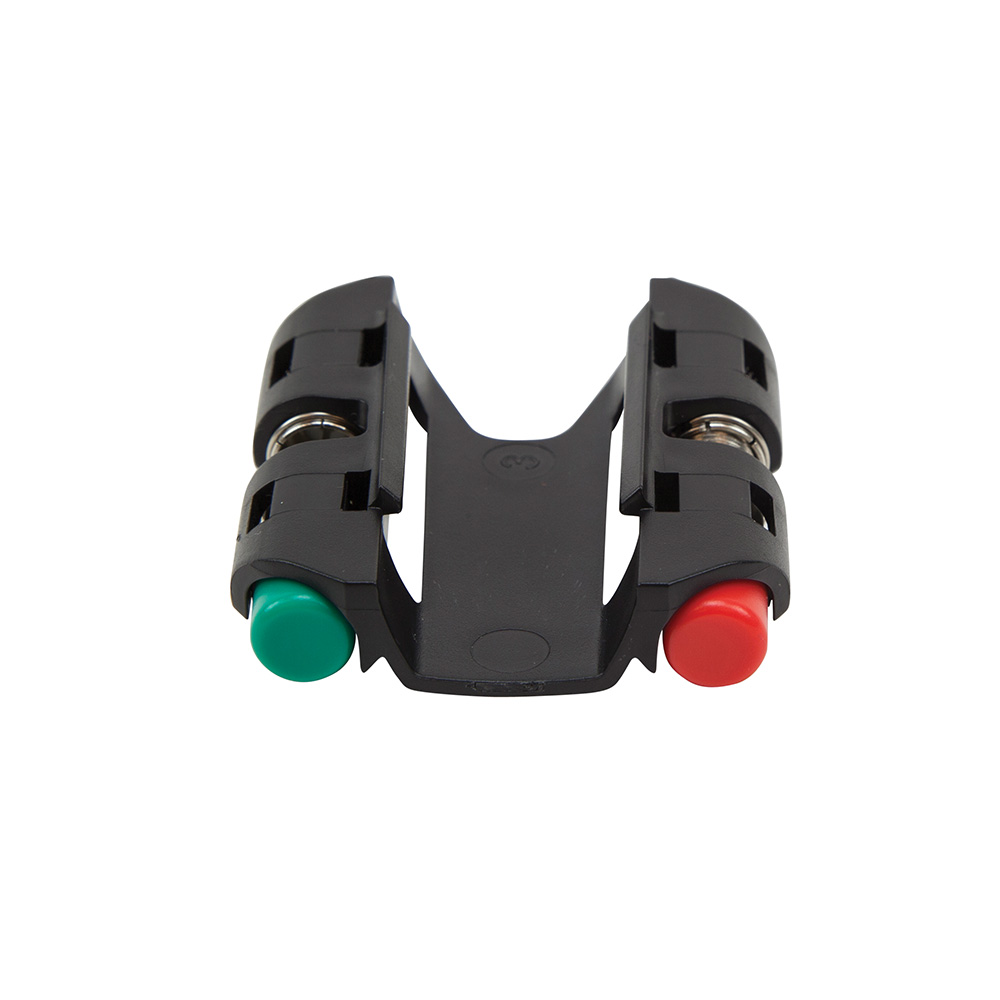

• Includes removable, snap-on remote holder, 4 color-coded push-on remotes, F adapter and batteries

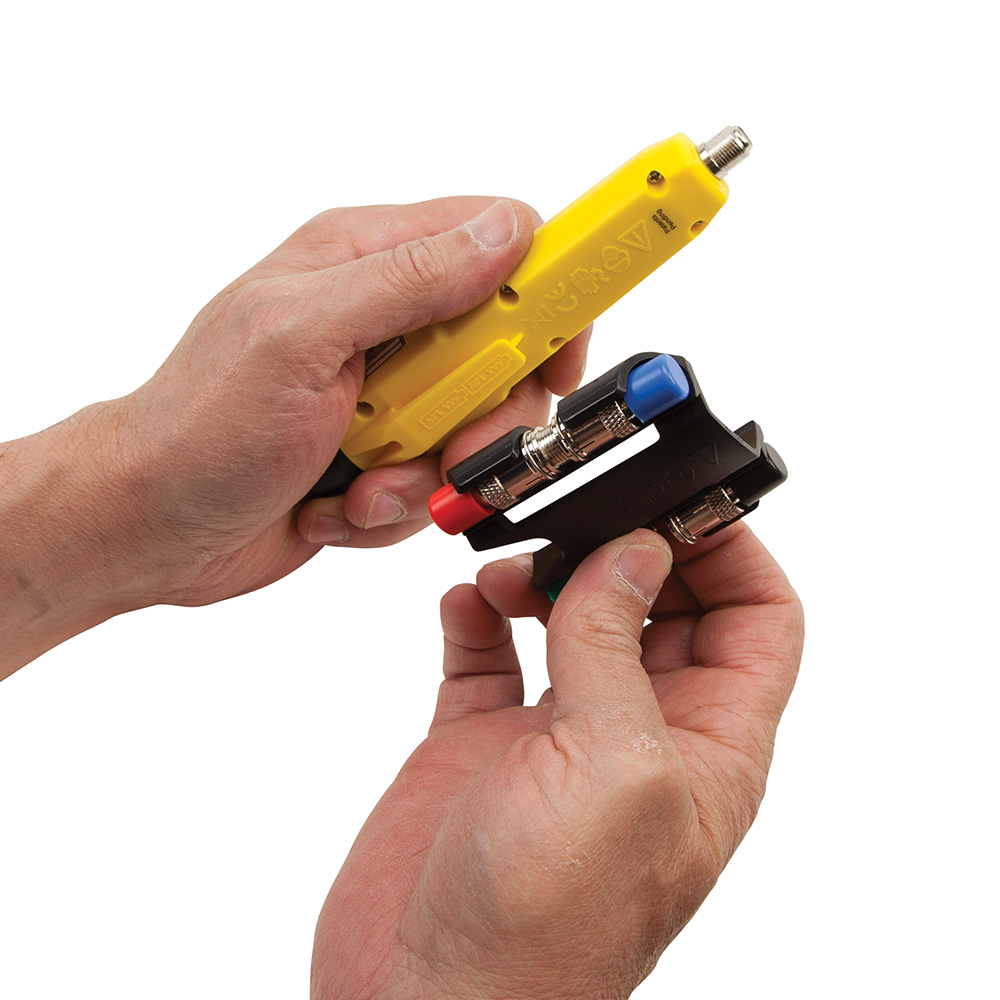

• Test remotes and F-adapter snap into the remote holder and clip onto the tester for easy access and storage

Note

• Does not work through cable splitters

Specifications

• Height: 1.0000 in
• Weight (g): 136
• Type: Cable Tester
• Depth: 5.7500 in
• Batteries: 2 x AAA
• Test-n-Map ID Remotes: 4 (Included)
• Overall Height (Inch): 1
• Included: Tester, Batteries, 4 Colored Push-on Remotes, F-adapter, Snap-on Remote Holder
• Location ID: 4
• Connection & Adapter Types: Coax F Adapters
• Cable Type: RG59, RG6/6Q, RG7, RG11
• Overall Height (cm): 2.5
• Overall Width (Inch): 2.313
• Overall Length (Inch): 5.75
• Overall Length (cm): 14.6
• Width: 2.3800 in
• Application: Wire Tracing of Coaxial Cables
• Weight (oz): 4.8
• Overall Width (cm): 5.9
• Weight: 0.2900 lbs
