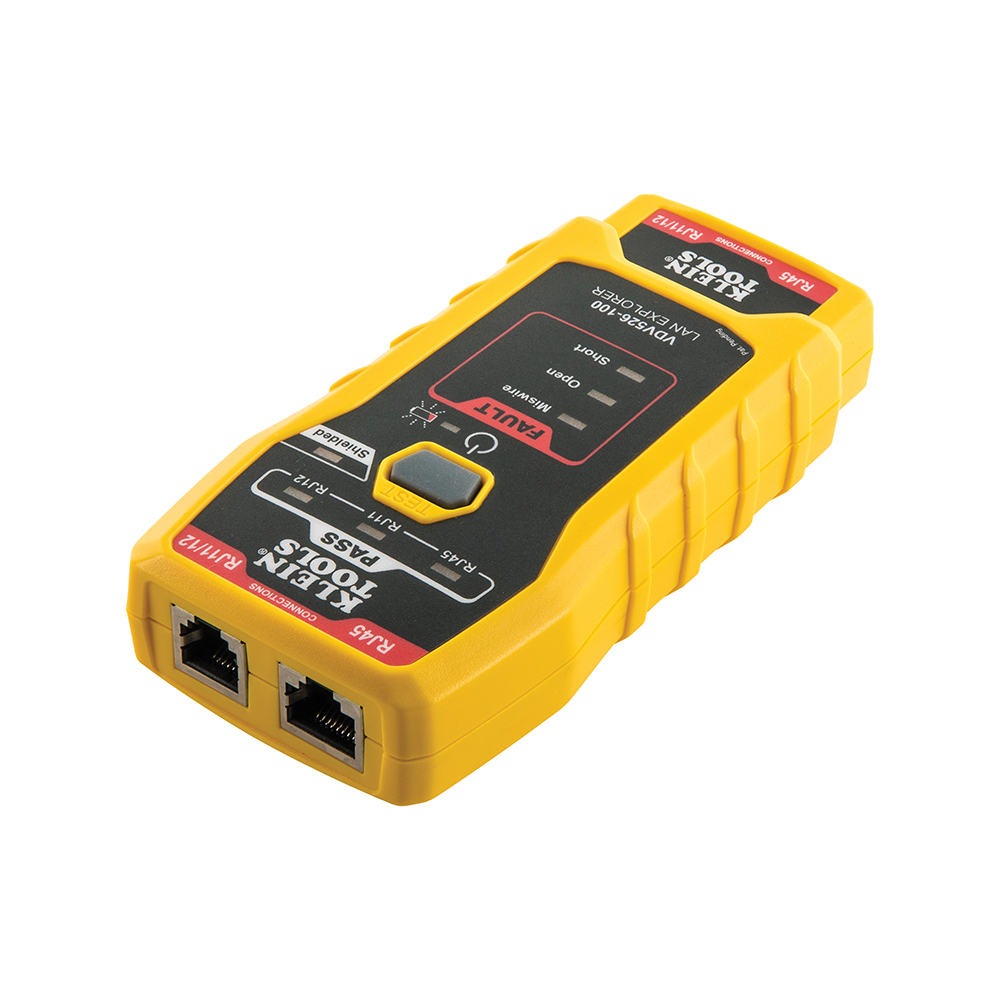

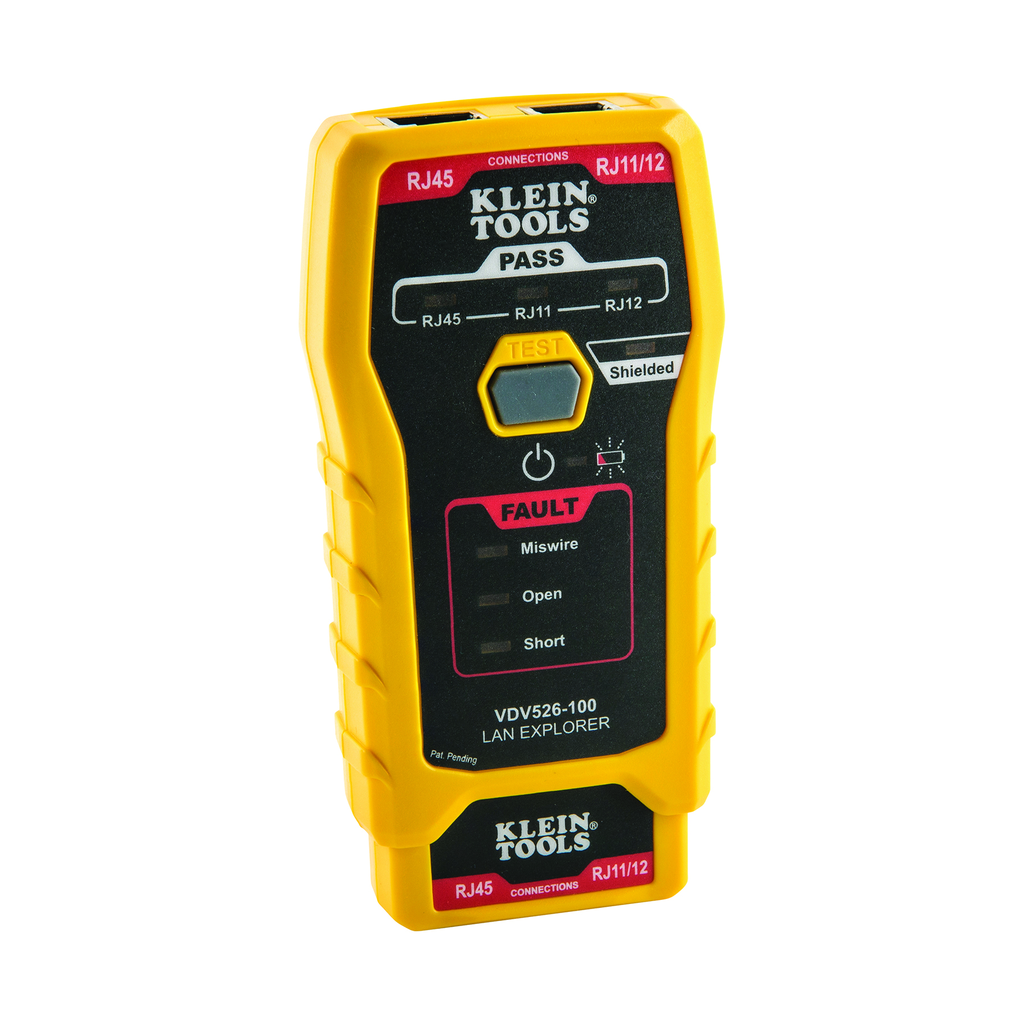

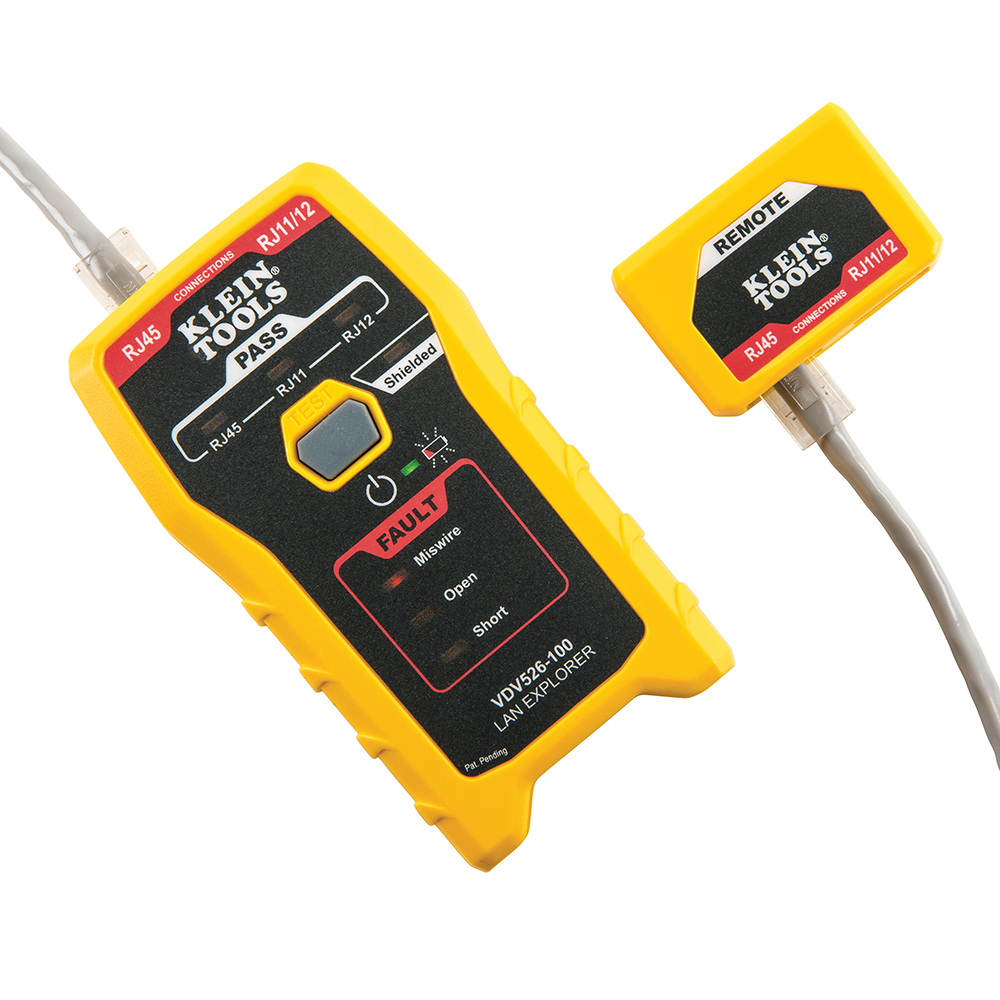

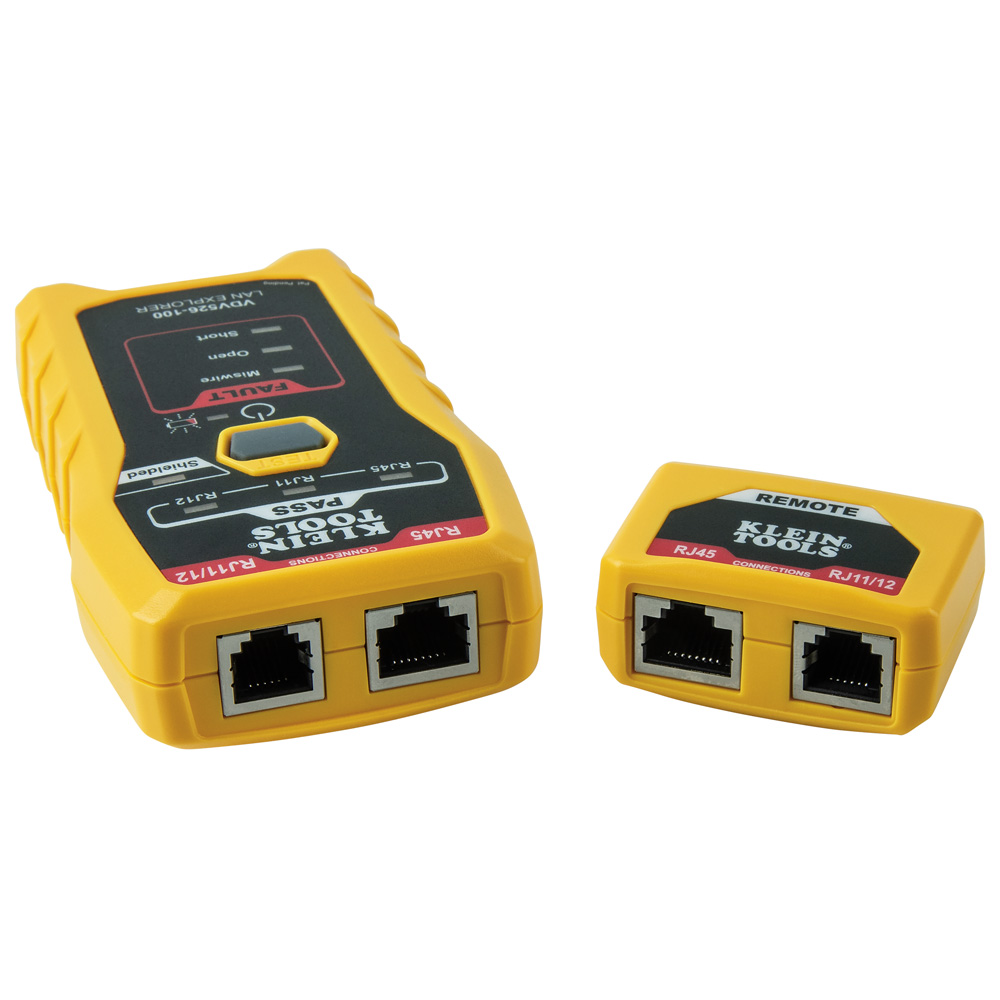

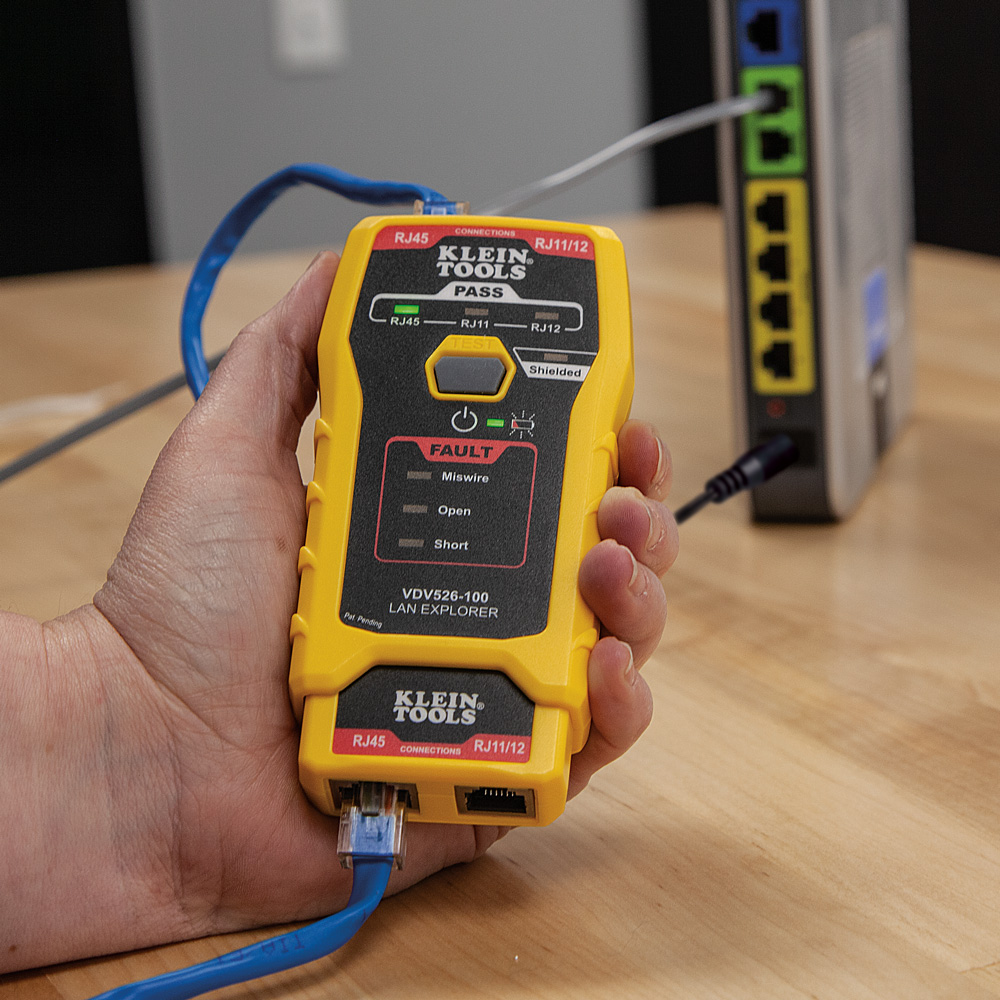

Network Cable Tester, LAN Explorer® Data Cable Tester with Remote

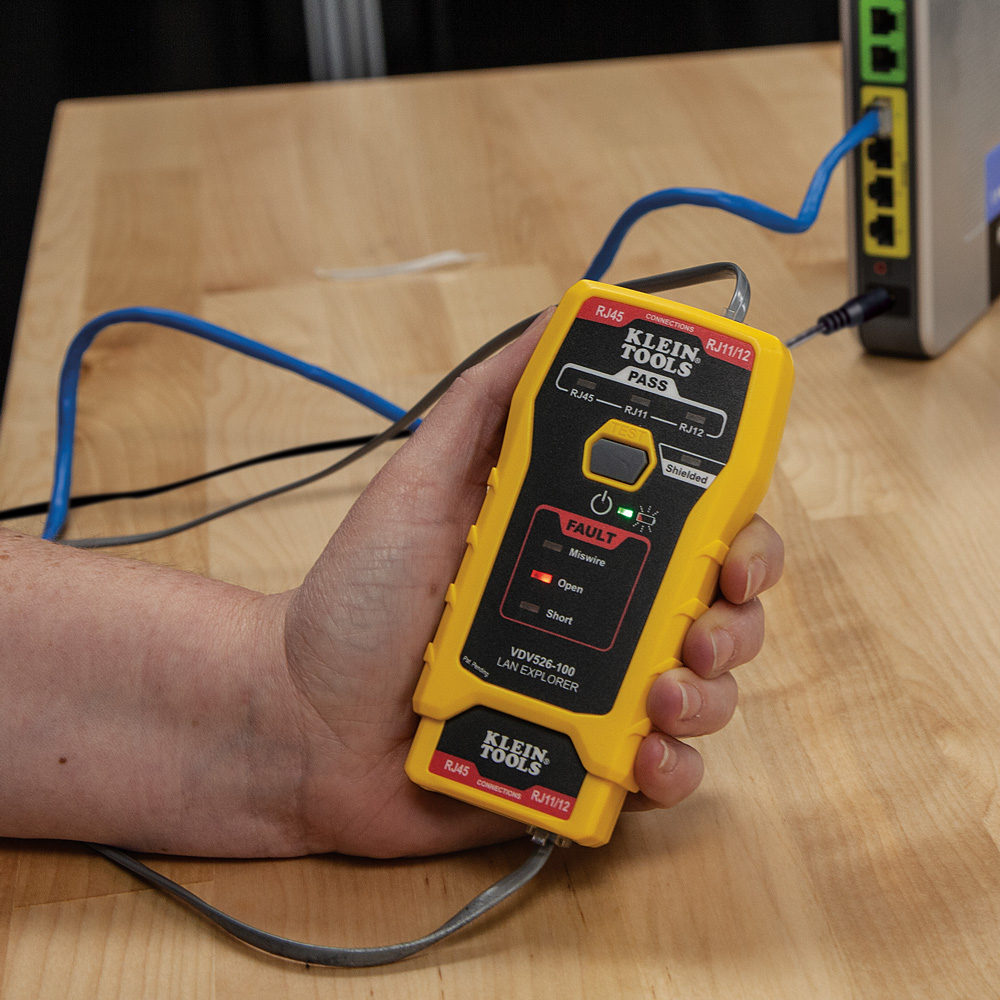

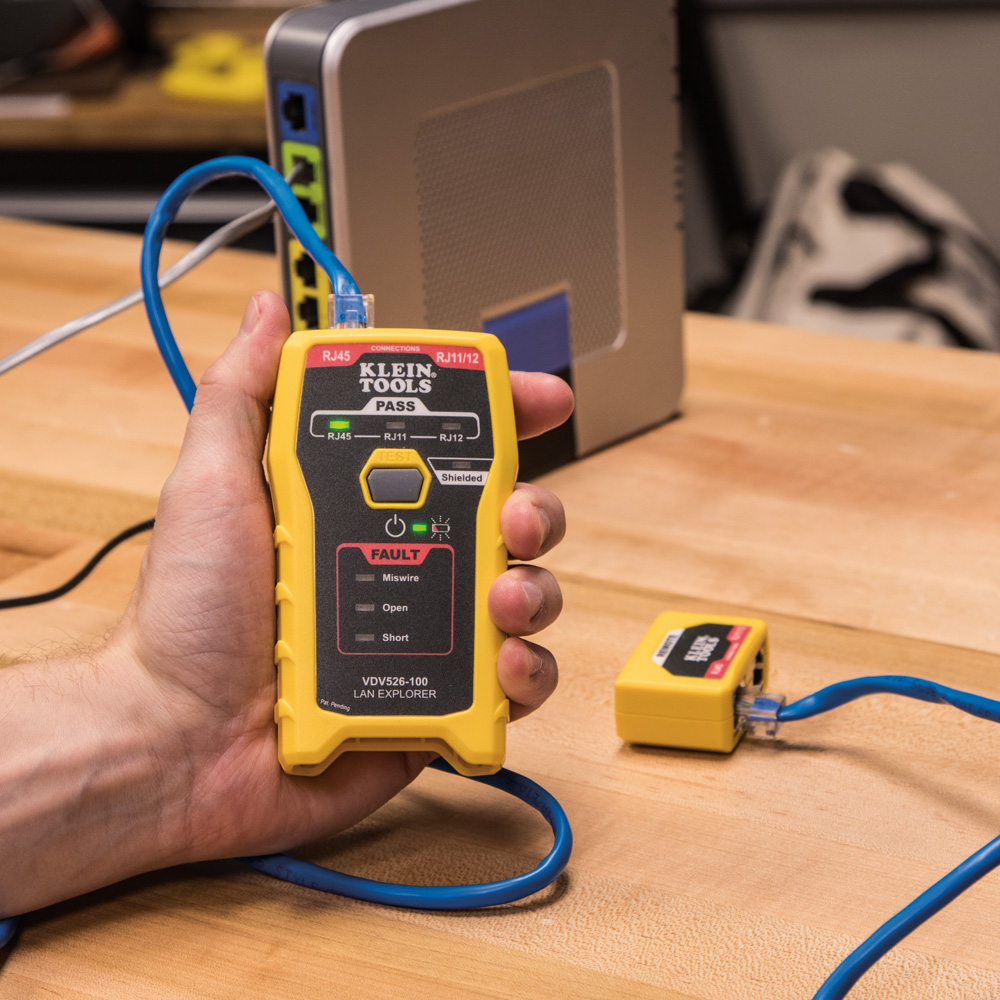

This simple, compact data cable tester for RJ11, RJ12 and RJ45 terminated voice and data cables for Miswires, Open-Faults, Short-Faults and Shield. Instant LED responses indicate cable status. The test remote stores securely in the tester body. The Auto Power-Off feature shuts the tester down automatically to save the 9V battery (included).

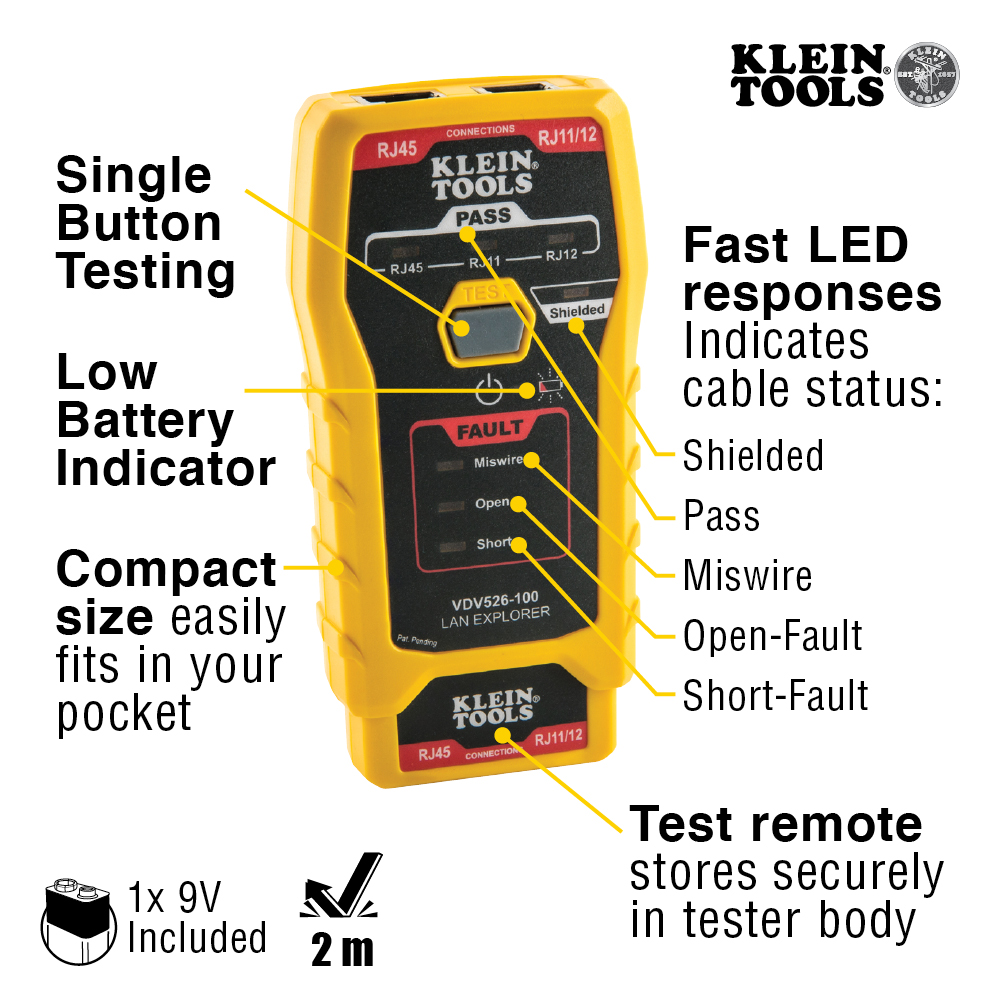

Features

• Auto Power-off feature to conserve battery life (9V included)
• Low battery indicator
• Tests CAT3, CAT5e and CAT6/6A cables
• Replacement remote (VDV999-150) available (sold separately)
• LED response
• Compact tester easily fits in your pocket

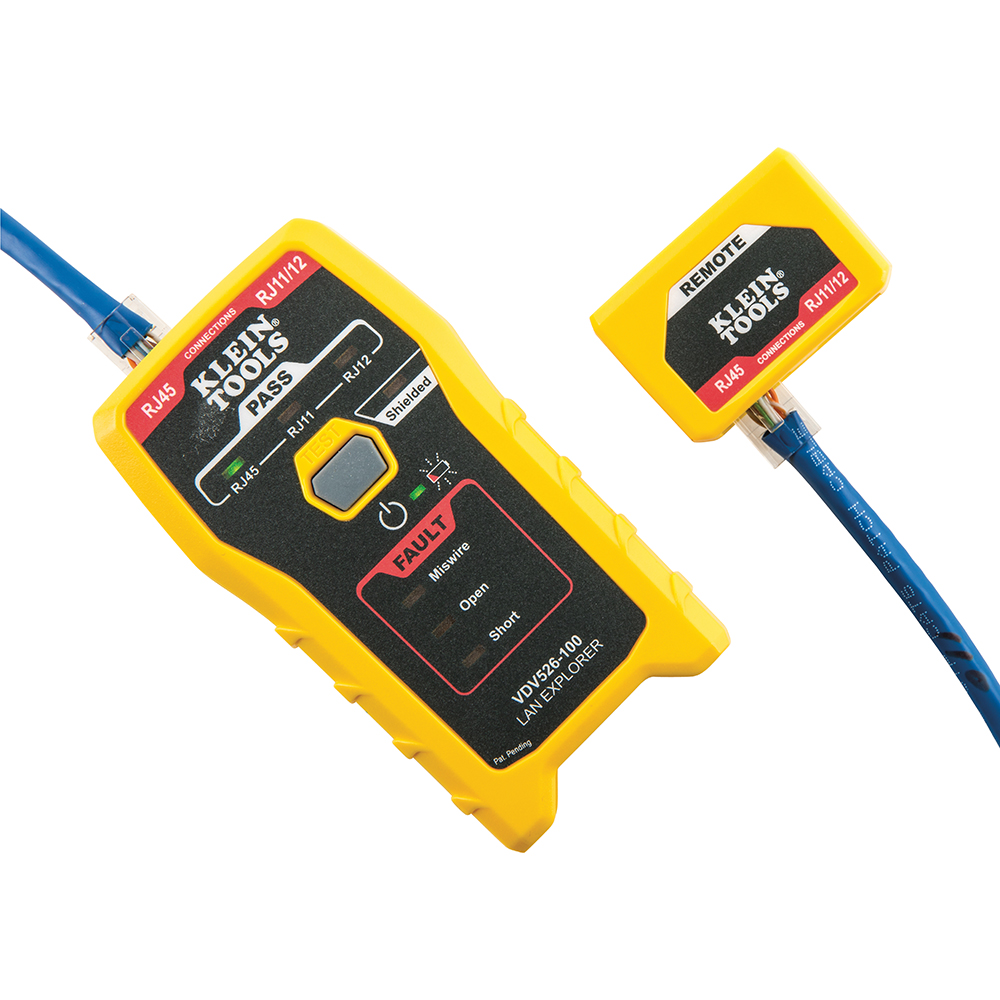

• Test remote stores securely in tester body
• Fast LED responses indicate cable status (Pass, Miswire, Open-Fault, Short-Fault, and Shield)
• Cable tester with single button testing of RJ11, RJ12 and RJ45 terminated voice and data cables

Warnings

• Read all safety Information before using the product.
• Designed for use on unpowered/dark cable systems.
• Do NOT connect to live AC power.
• Carefully read all instructions.
• Always wear approved eye protection.

Specifications

• Material: Plastic and Stamped Metal
• Overall Height: 3.2 cm (1.25 Inch)
• Test-n-Map ID Remotes: 1
• Display: LED
• Cable Type: CAT3, CAT5e, CAT6/6A
• Included: Tester, Remote, 9V Battery
• Faults Detected: Pass, Miswire, Open-Fault, Short-Fault, and Shield
• Batteries: 1 x 9V
• Overall Width: 6.4 cm (2.5 Inch)
• Height: 1.2500 in
• Supported Remotes: VDV999150
• Application: Cable Testing to 1000' (305 m)
• Type: Twisted Pair, DATA, Voice, LAN
• Weight: 0.2130 lbs
• Drop Protection: 2' (0.6 m)
• Battery Life: Active - 80 hr; Standby - 3.5 yr.
• Depth: 5.0000 in
• Width: 2.5000 in

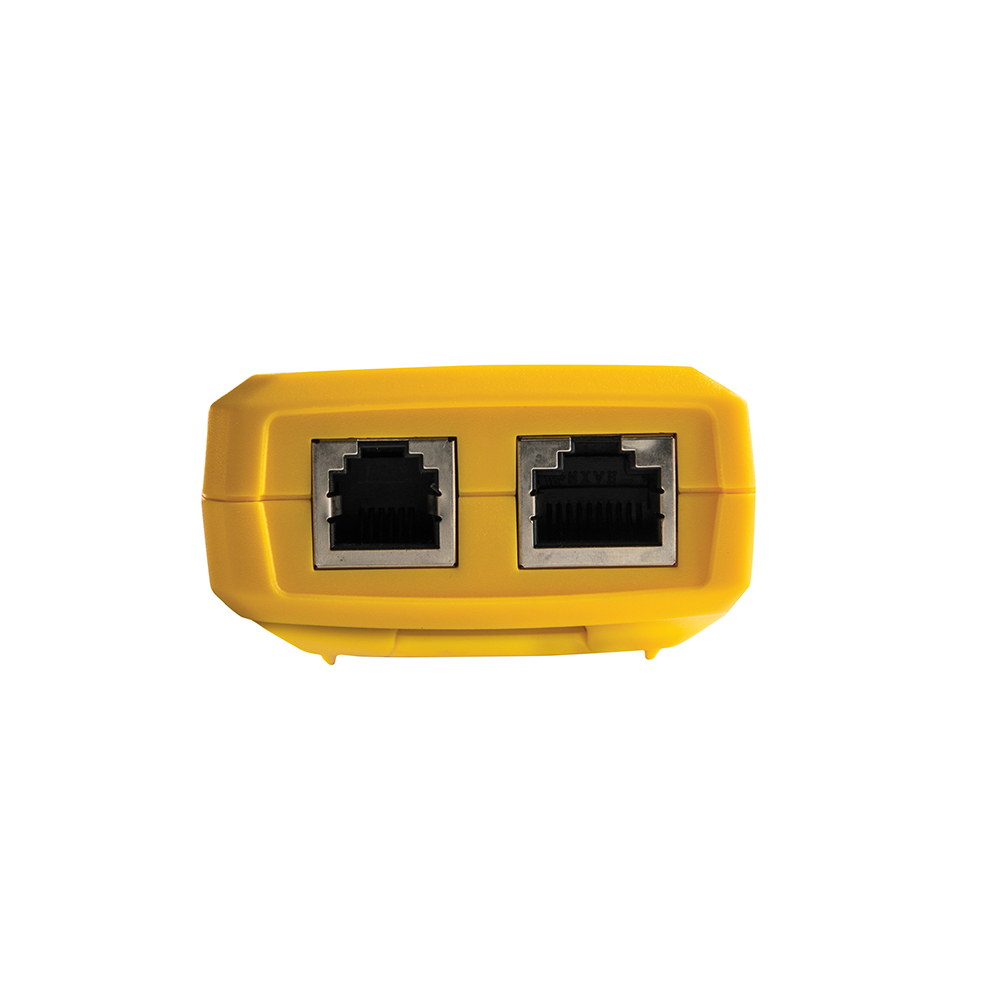

• Connection & Adapter Types: RJ11, RJ12, RJ45
• Overall Length: 12.7 cm (5 Inch)
• Test & Measure Types: Voice, Data, RJ45, RJ11
• Multiple Style Tone Generator: No
