Ethernet Cable Tester Kit, LAN Scout® Jr. Cable Tester, RJ45 Remote

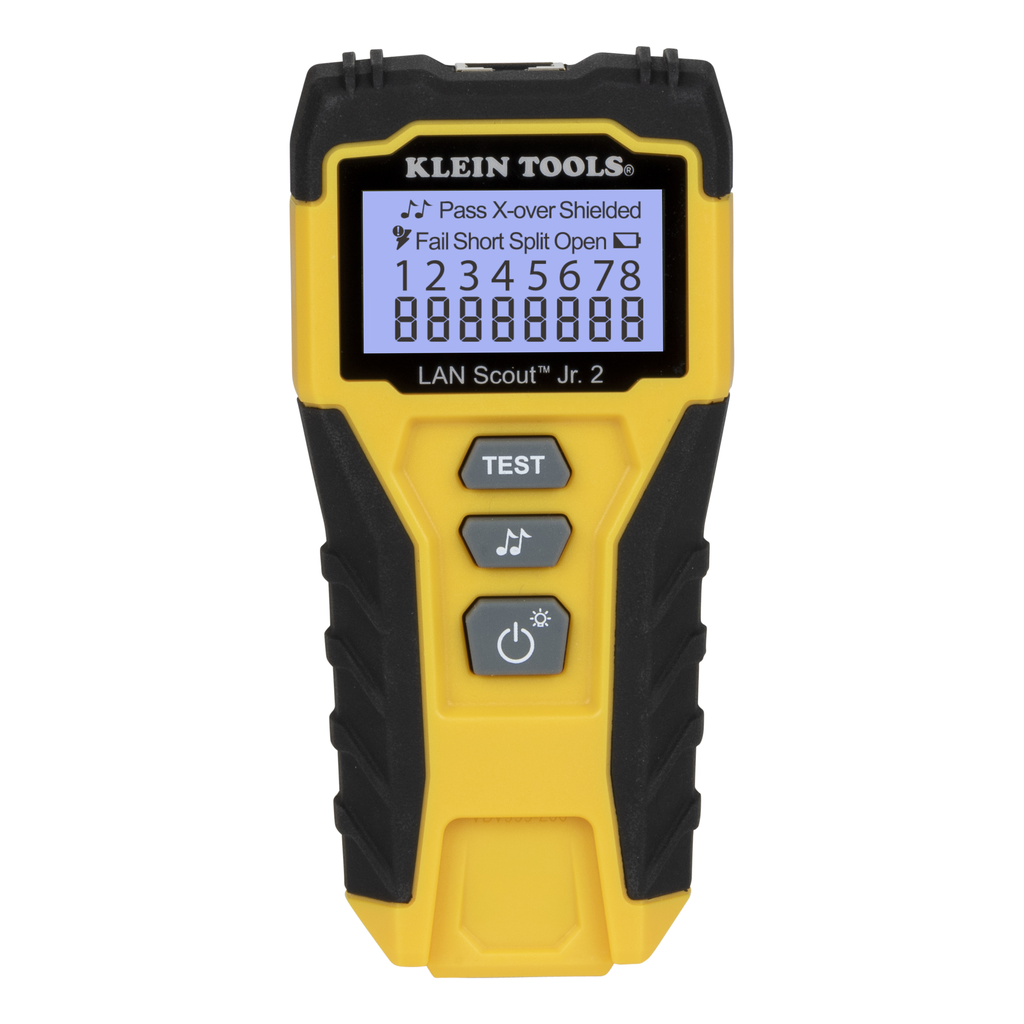

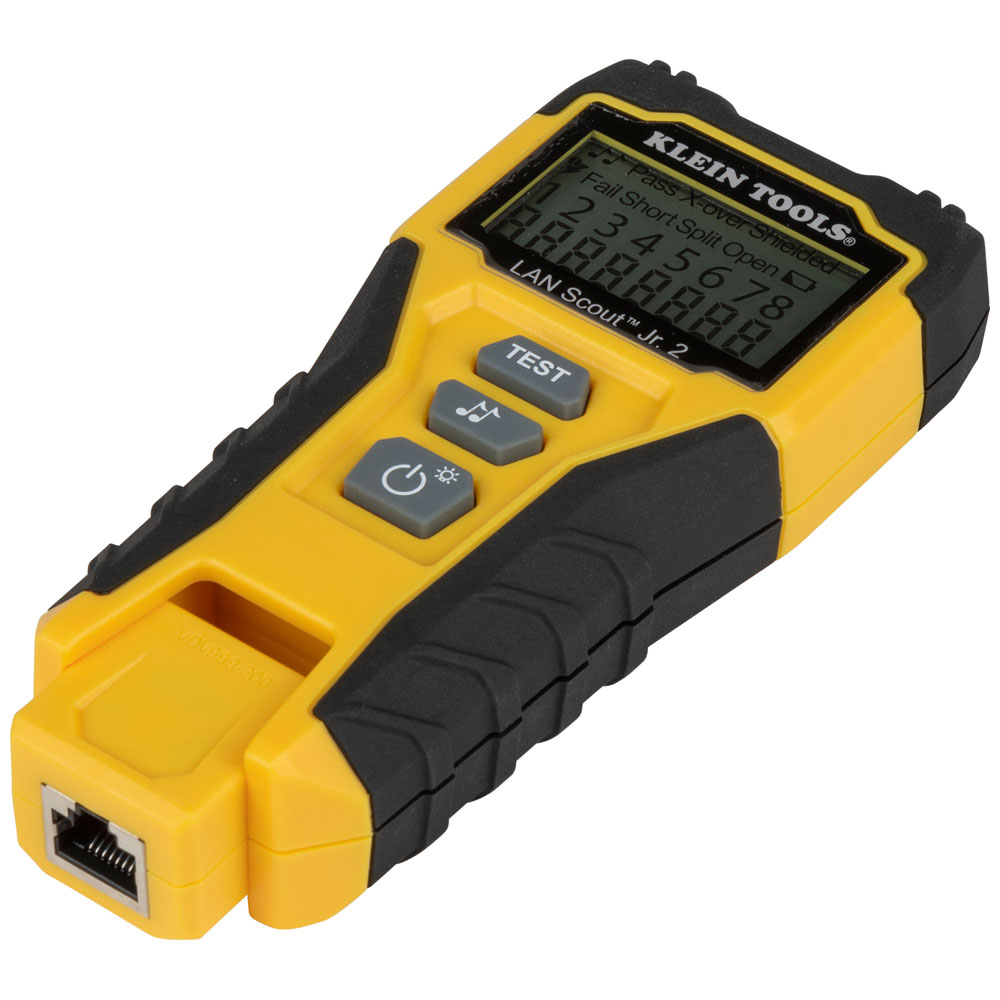

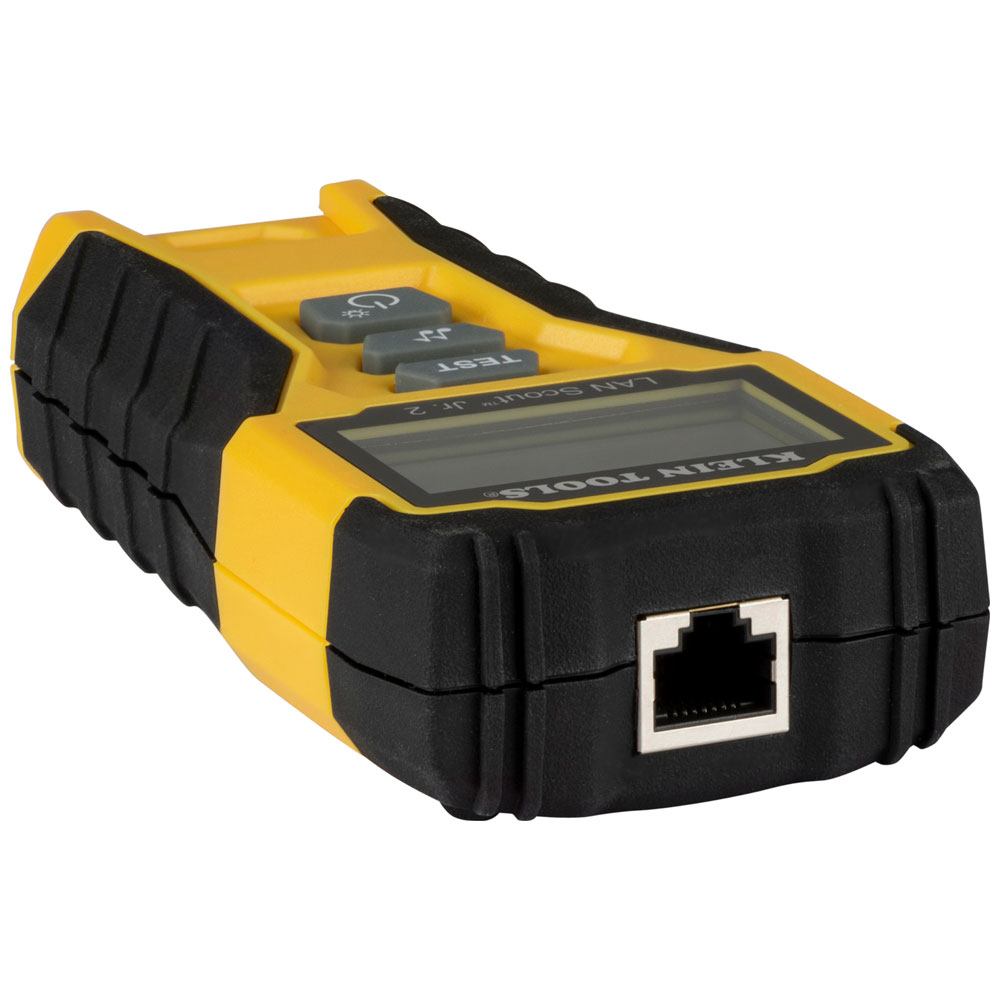

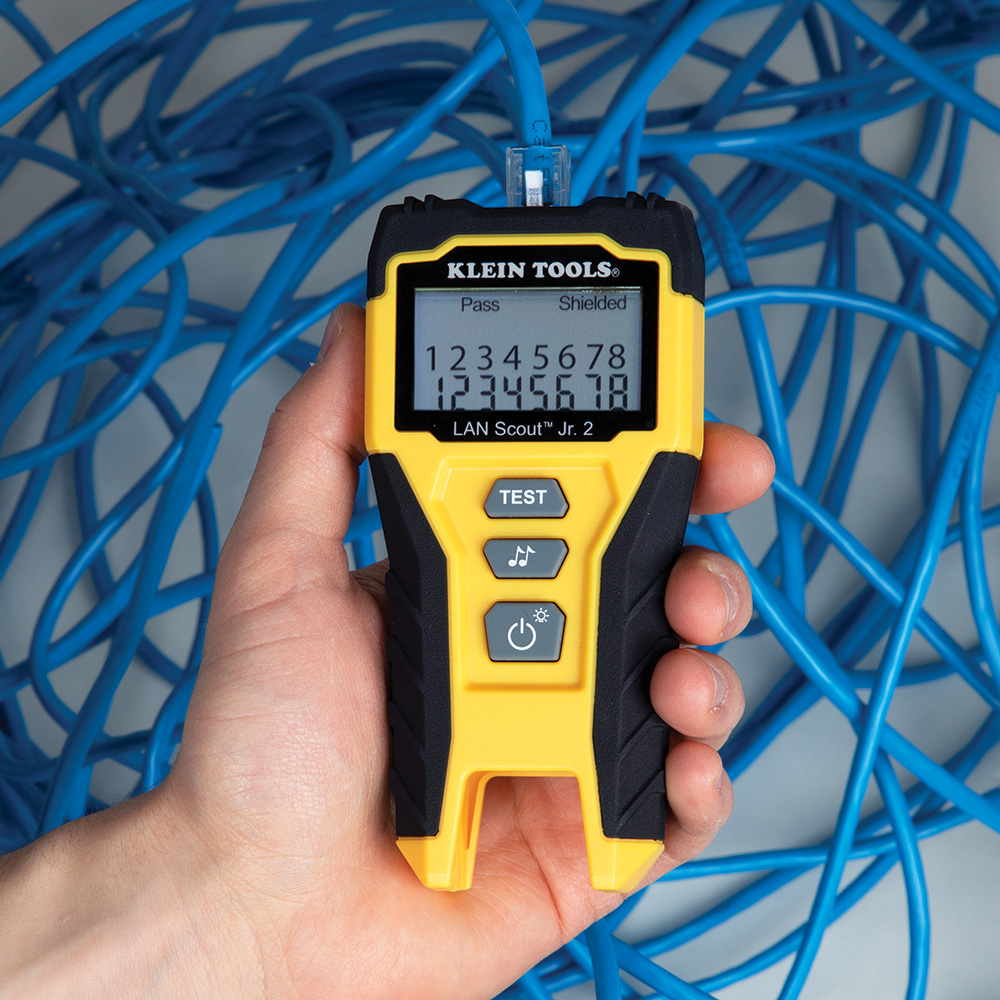

The LAN Scout® Jr. 2 Cable Tester tests installed or loose data (CAT 5e, CAT 6/6A) cables terminated with RJ45 connectors. It also, tones cables with multiple tone frequencies. The larger display is backlit for easier reading in low lit areas. This model uses 2 x AAA batteries (included). Three buttons provide an intuitive user interface.

Warnings

• Read all safety Information before using the product.
• Always wear approved eye protection.
• Designed for use on unpowered/dark cable systems.
• For indoor use only.
• Do NOT connect to live AC power.
• Carefully read all instructions.

Features

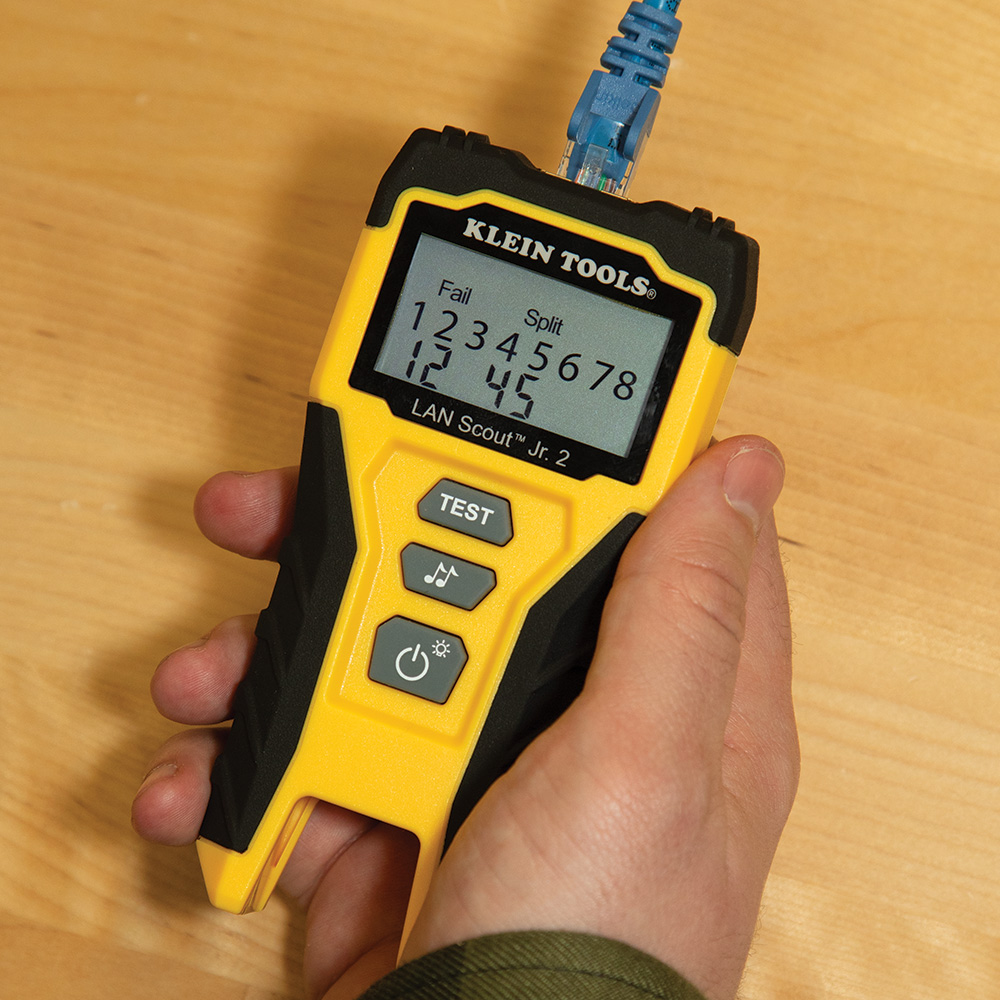

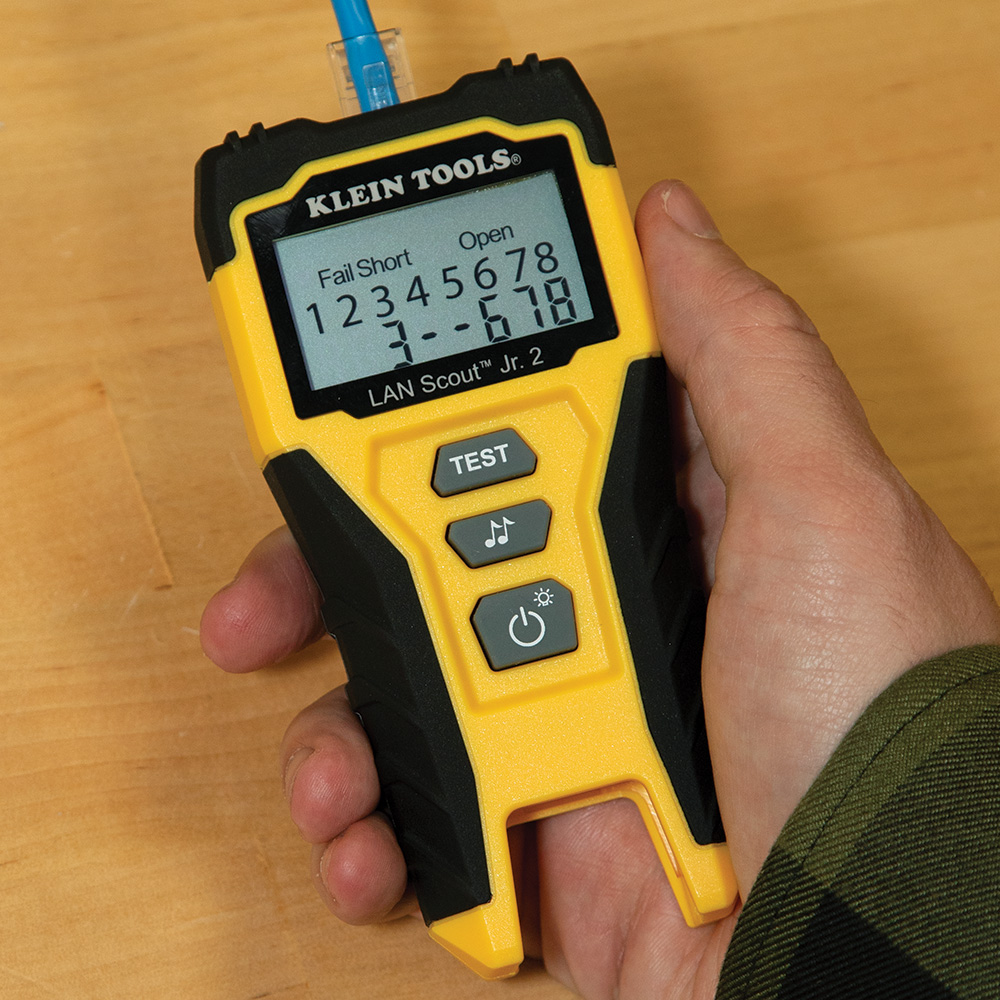

• Test for Open, Short, Miswire or Split-Pair faults, Cross-over and Shield

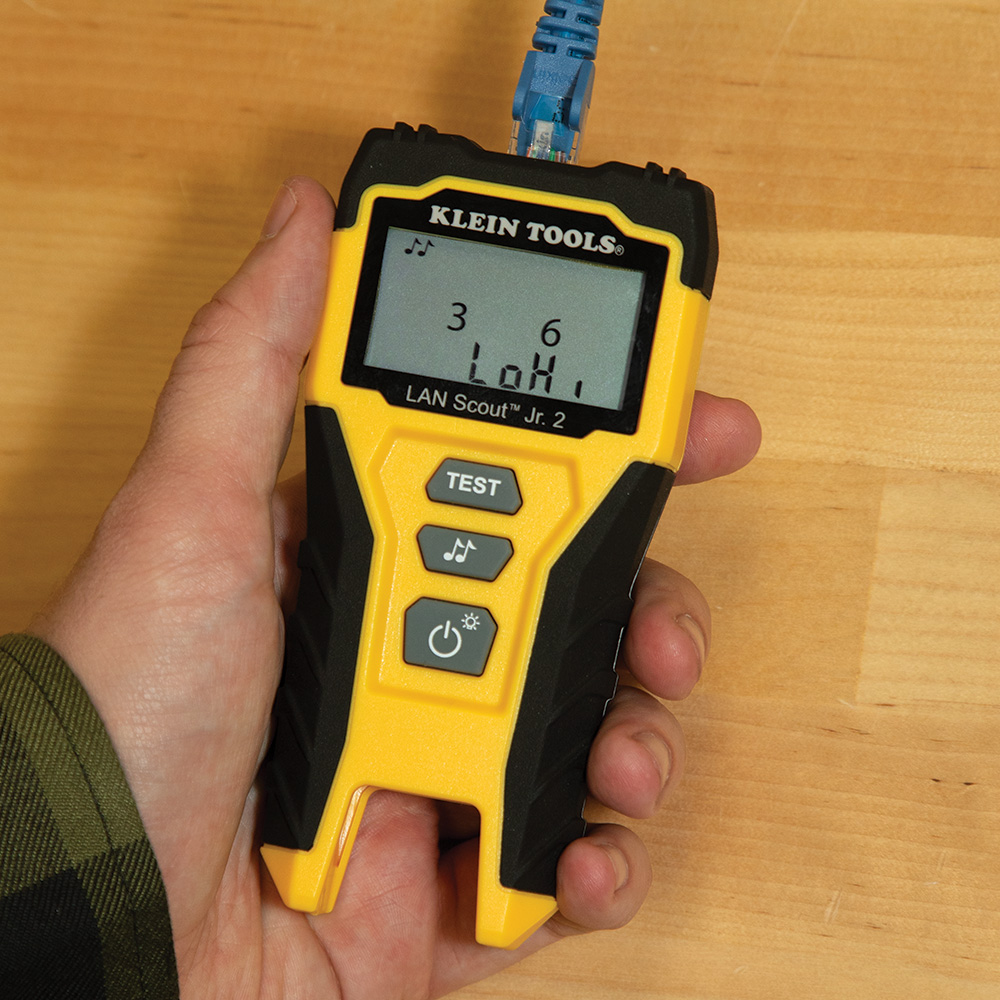

• Multiple style tone generator (solid / warble); requires probe Cat. No. VDV500-123 (sold separately)
• Tone on single wire, wire pair or all 8 conductor wires
• Replacement remote available; sold separately (Cat. No. VDV999-200)

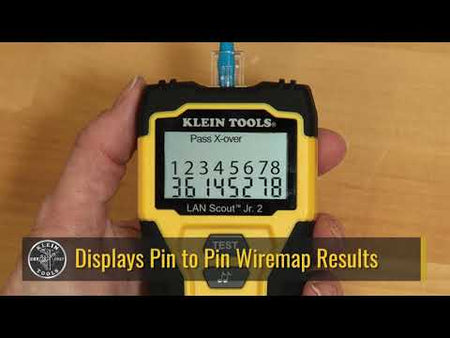

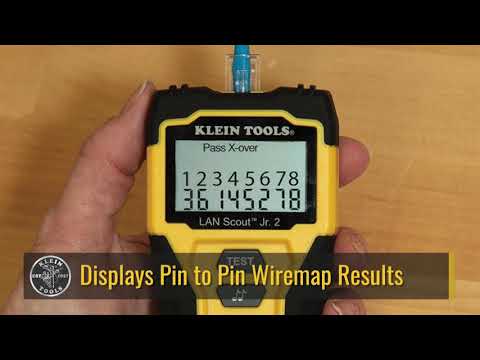

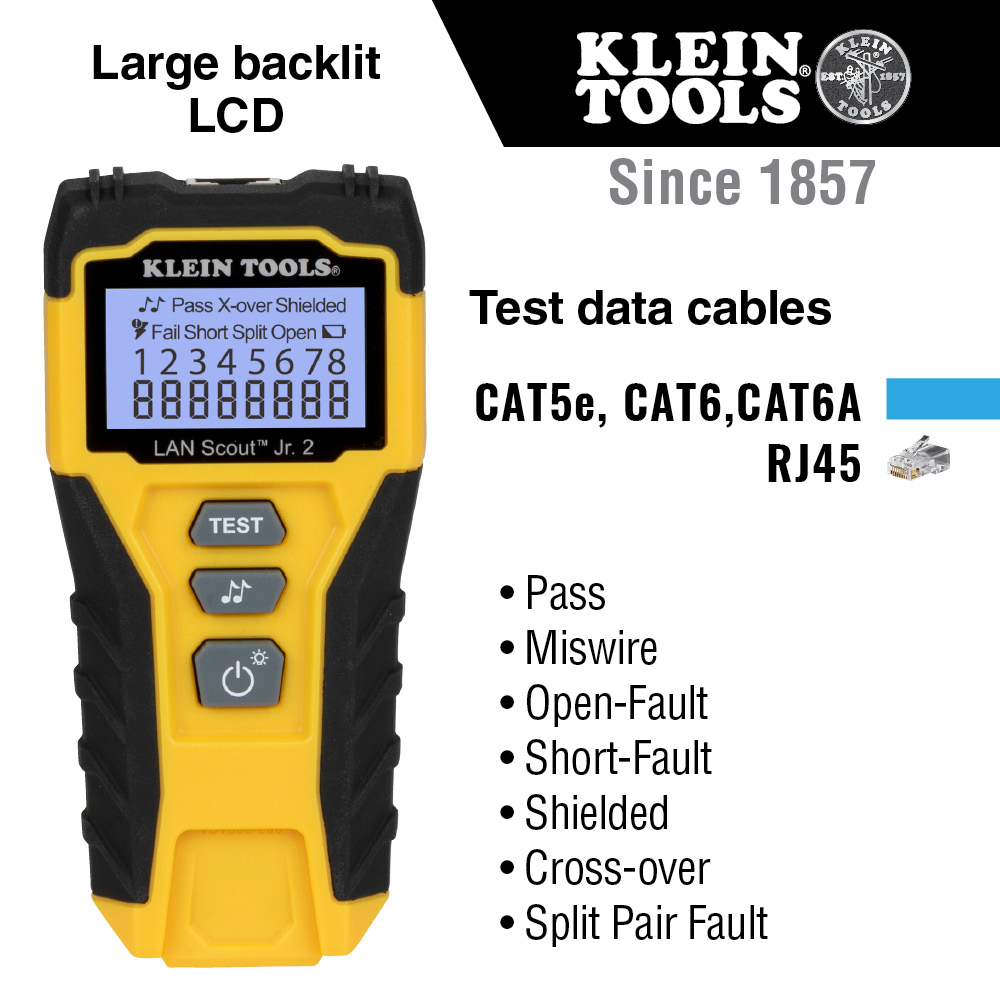

• Large backlit LCD for low lit areas displays pin to pin wiremap results

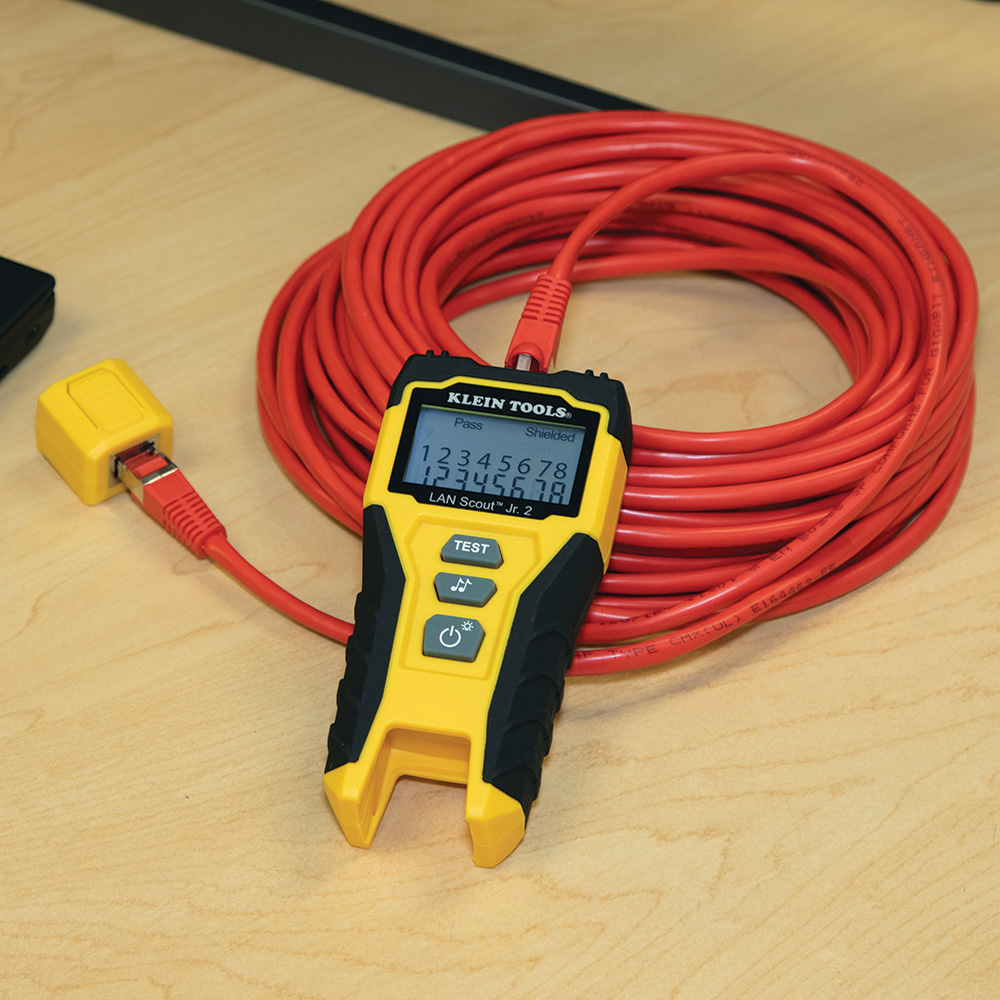

• Replaceable self-storing remote (included)
• Auto Power-Off feature; 10-minutes in test mode, 60-minutes in tone mode
• Soft, slip-resistant, rugged overmold for easy gripping and durability

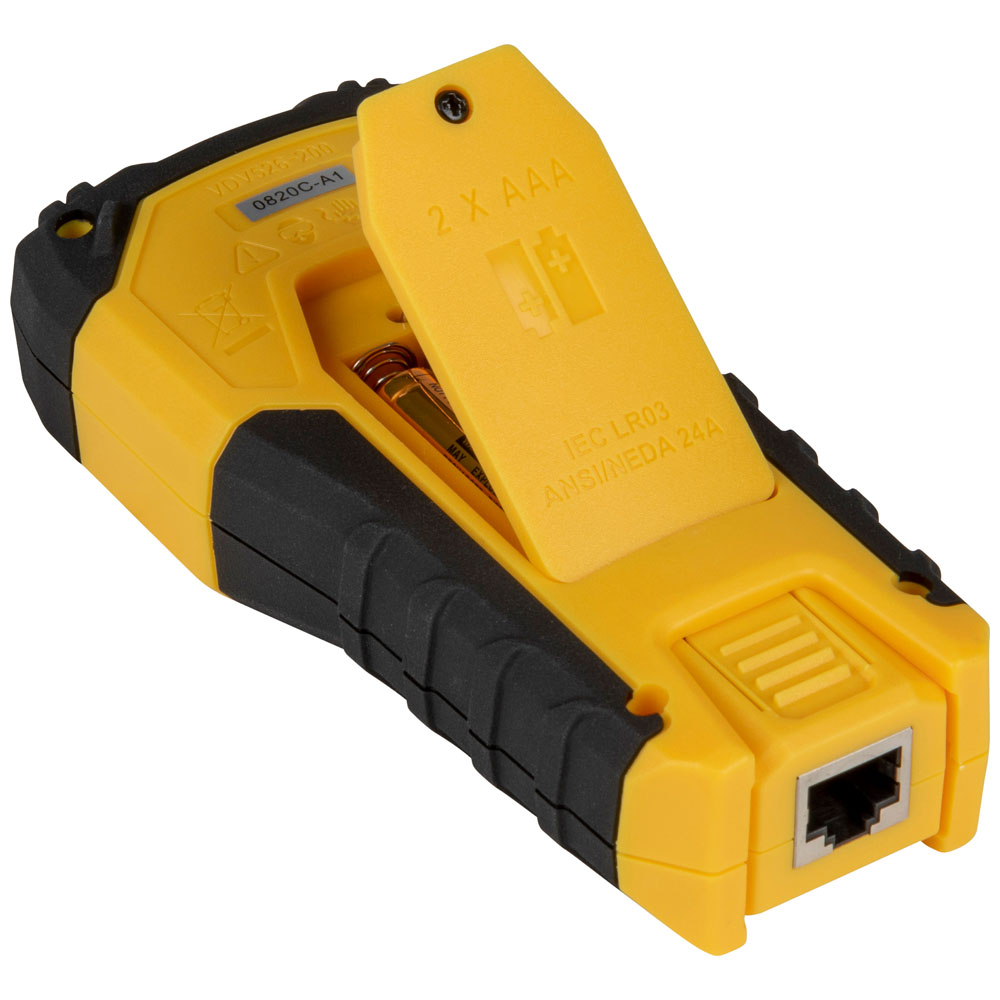

• Replaceable 2 x AAA batteries (included)

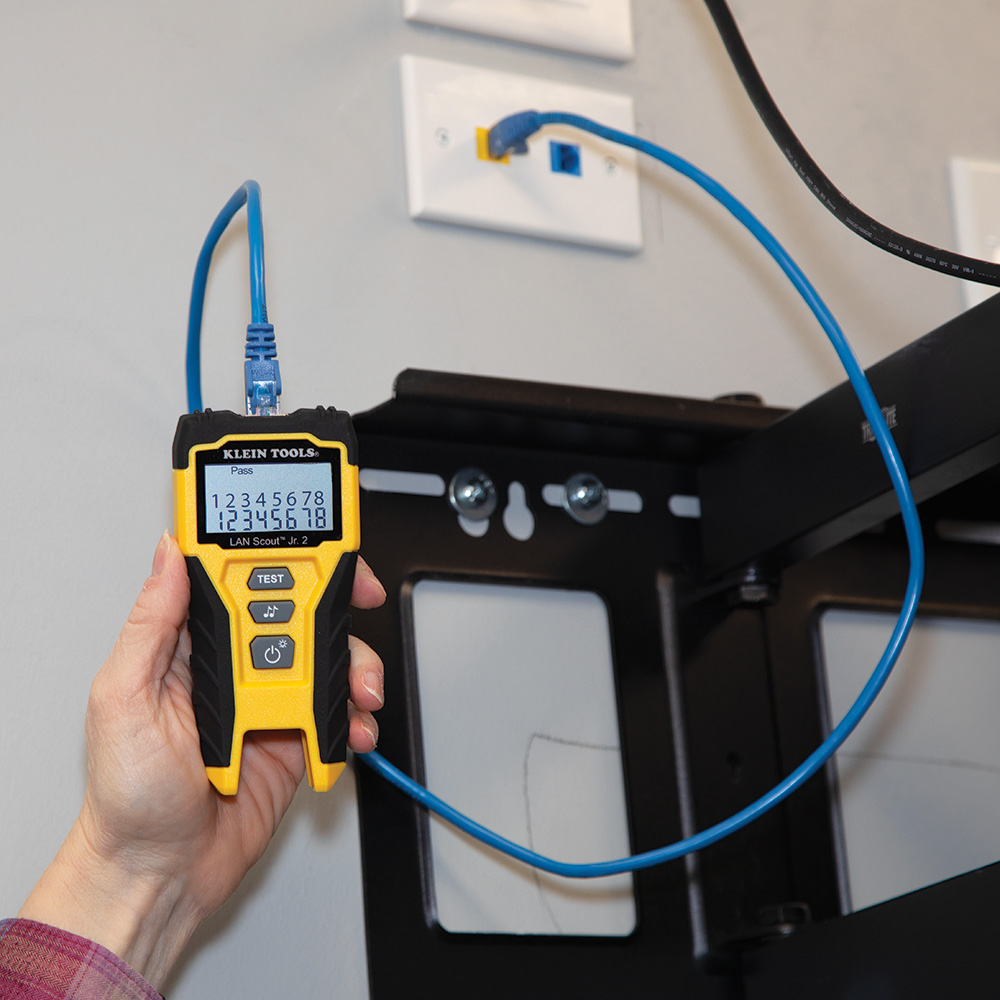

• Cable tester for data (RJ45) terminated cables and patch cords
• Intuitive user interface features three buttons with simple, easy-to-identify test responses
• Backlit LCD

Specifications

• Material: Plastic and Stamped Metal
• Height: 1.0000 in
• Display: LCD
• Weight (oz): 4.3
• Test-n-Map ID Remotes: 1
• Overall Length (cm): 12.7
• Application: Cable Testing
• Battery Life: Active - 80 hr; Standby - 3 yr.
• Overall Length (Inch): 5
• Drop Protection: 2' (0.6 m)
• Overall Height (Inch): 1
• Batteries: 2 × AAA Alkaline
• Weight (g): 122
• Cable Type: Shielded or Unshielded; Cat7, Cat6/6A, Cat5E, Cat3
• Overall Height (cm): 2.5
• Weight: 0.2720 lbs
• Included: Tester, Remote, 2 × AAA Alkaline Batteries
• Supported Remotes: (1) Self-Storing
• Connection & Adapter Types: RJ45
• Multiple Style Tone Generator: Yes
• Location ID: No
• Overall Width (Inch): 2.5
• Test & Measure Types: Data, RJ45
• Type: DATA, Voice, LAN
• Overall Width (cm): 6.4
• Width: 2.5000 in
• Faults Detected: Pass, Miswire, Open-Fault, Short-Fault, Split Pair and Shield
• Depth: 5.2290 in
