Test + Map™ Remotes (#2 - #6) Upgrade Kit for Scout® Pro 3 Tester

Single-step Test + Map™ Remotes (#2 thru #6) cut cable testing and identification time in half! The Test +Map™ Remote Update Kit tests, maps and identifies up to five locations. The remotes ensure fast and accurate cable installations each time. Each is clearly marked for easy identification. This remote kit works with Klein's line of Scout® Pro series of testers (sold separately).

Features

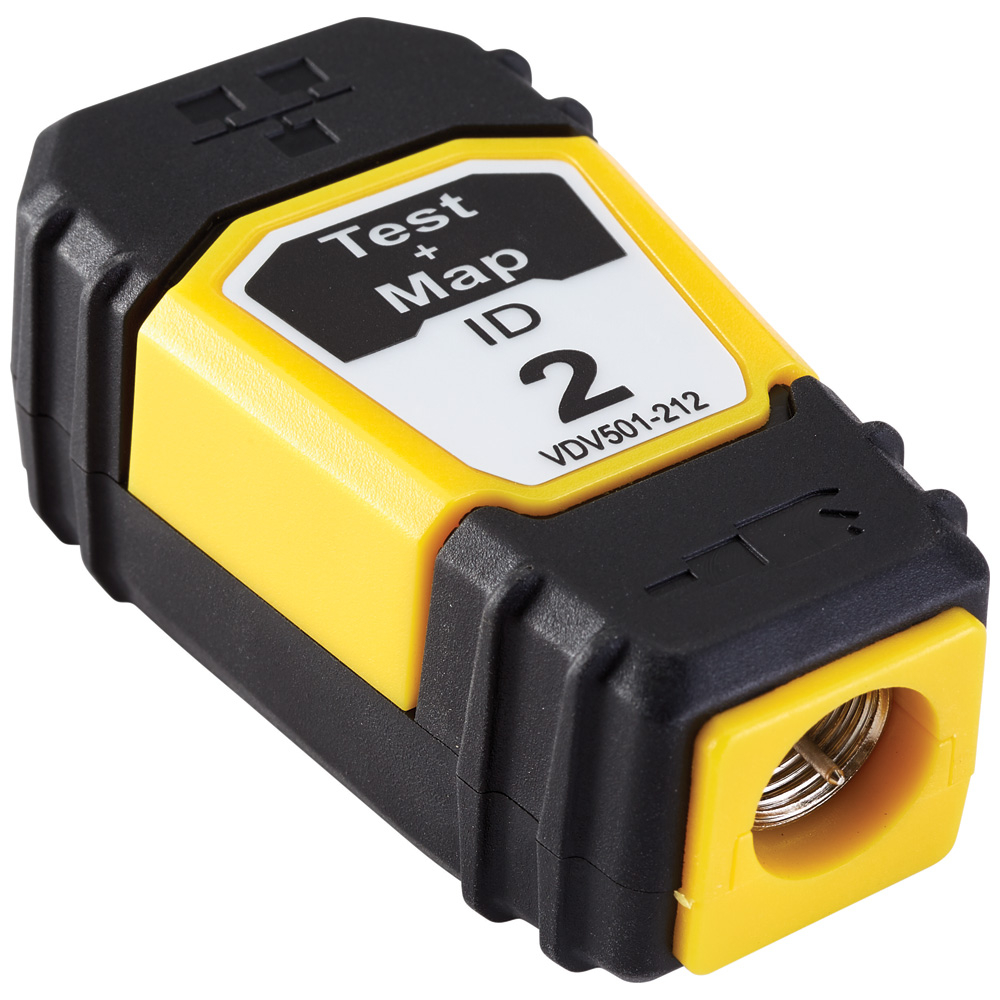

• Each remote features an RJ45 jack to test data cables and a male F connector to test coaxial cables
• Klein Universal RJ11/RJ12 jumper cable included to test phone jacks with no damage to these remotes

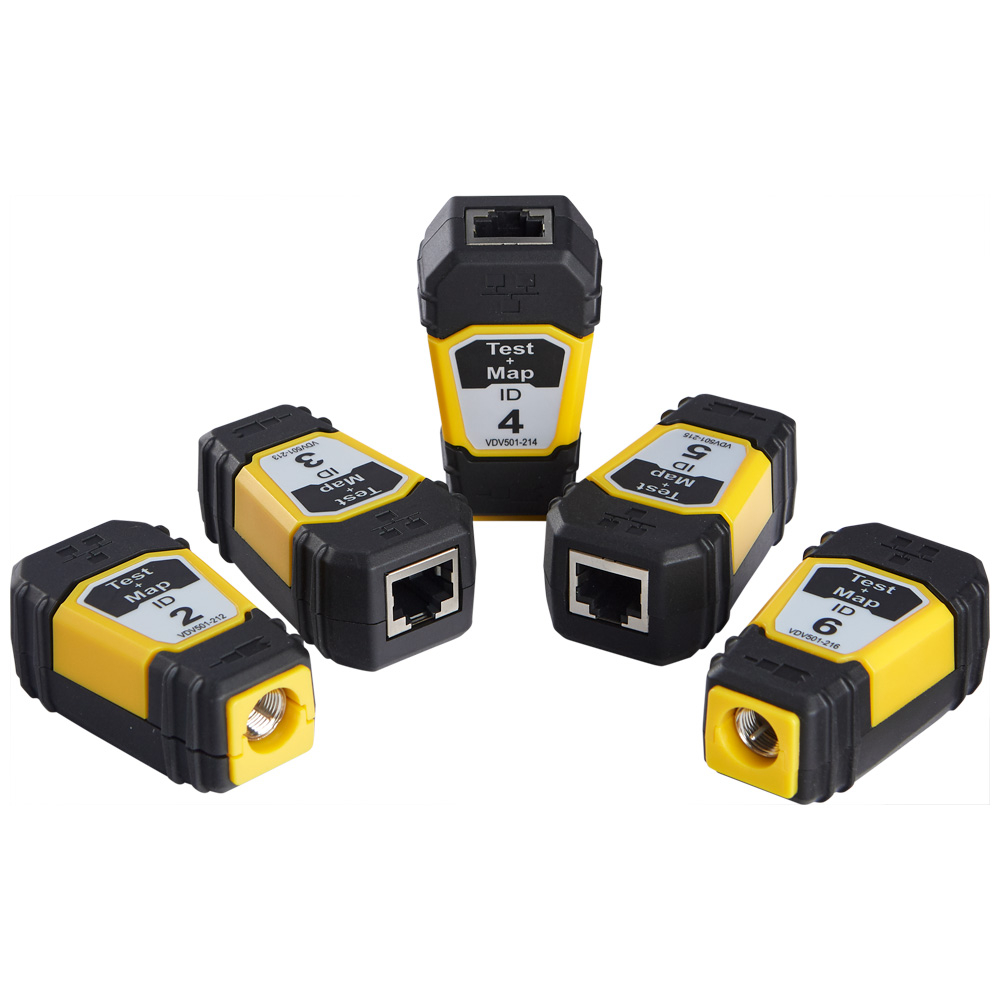

• Remotes numbered #2 - #6 for fast, accurate identification

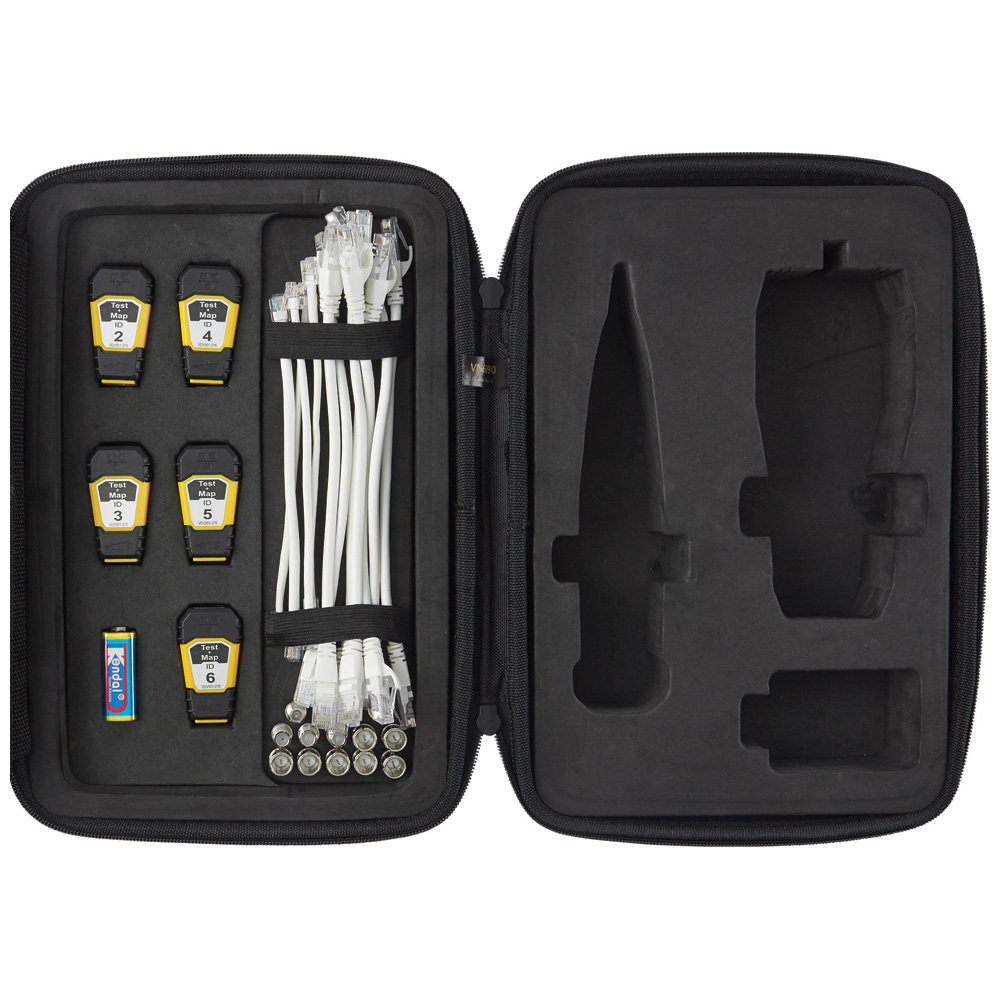

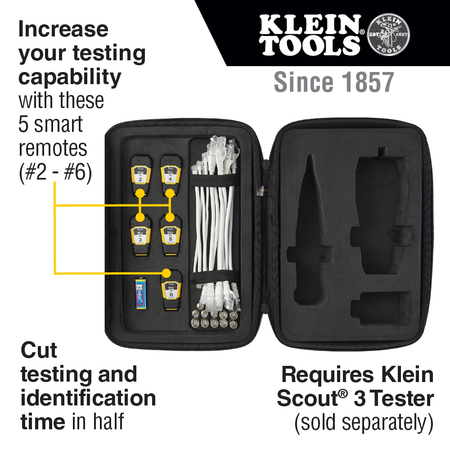

• Includes a sturdy, zippered, padded case with molded foam inserts to safely store tester (sold separately), remotes and accessories

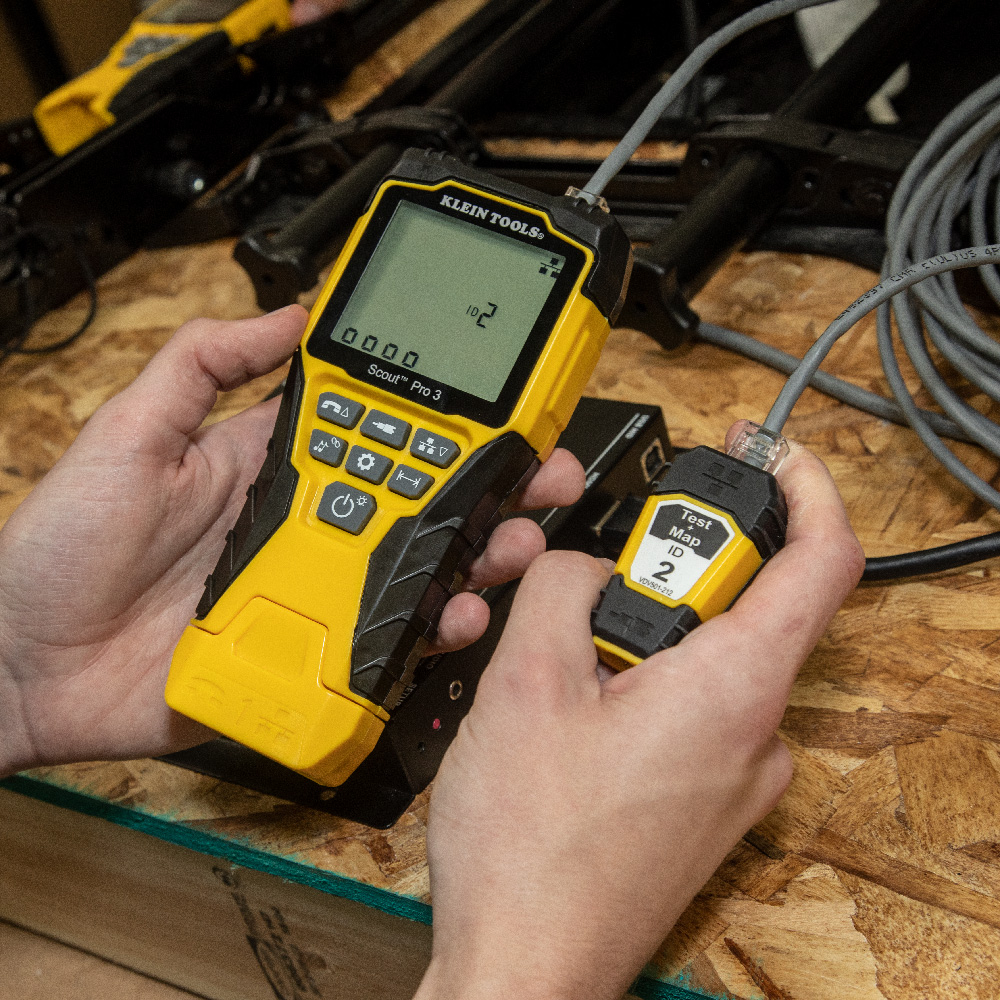

• Jumper cables connect the Test + Map™ remotes to wall outlets
• Test, map and identify in a single step cutting testing time in half
• Carrying case, also, available separately (Cat. No. VDV770-125)
• Soft, slip-resistant overmold on each remote for easy gripping and heavy-duty, recessed-jack design for durability

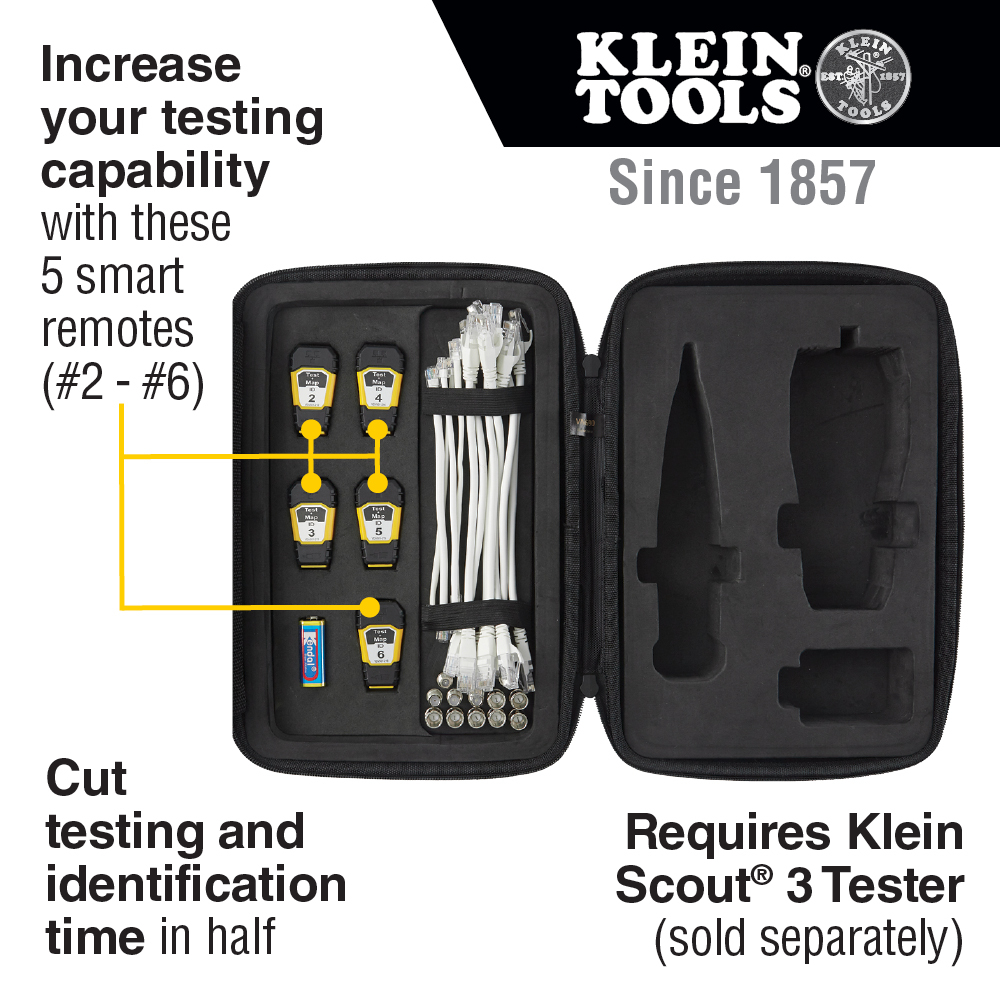

• Increase your testing capability with these 5 smart remotes (#2 - #6)

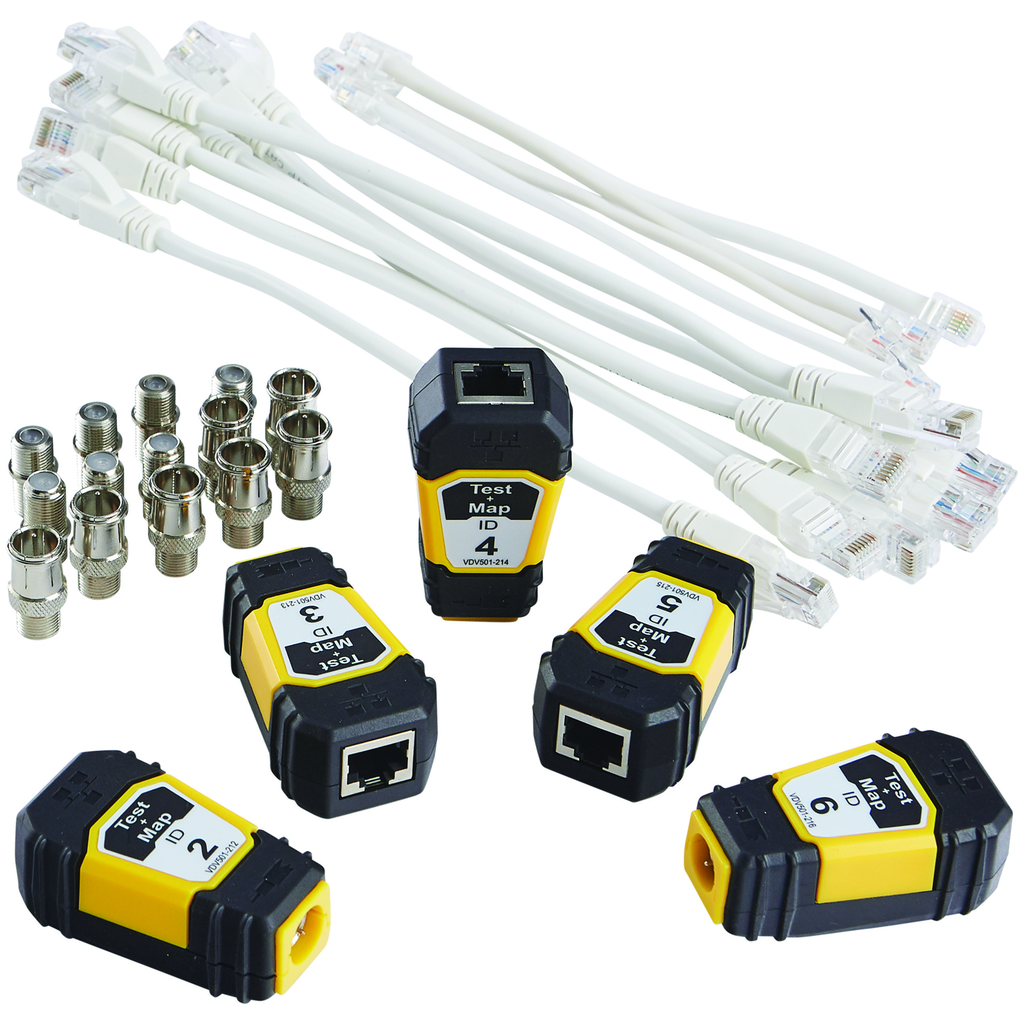

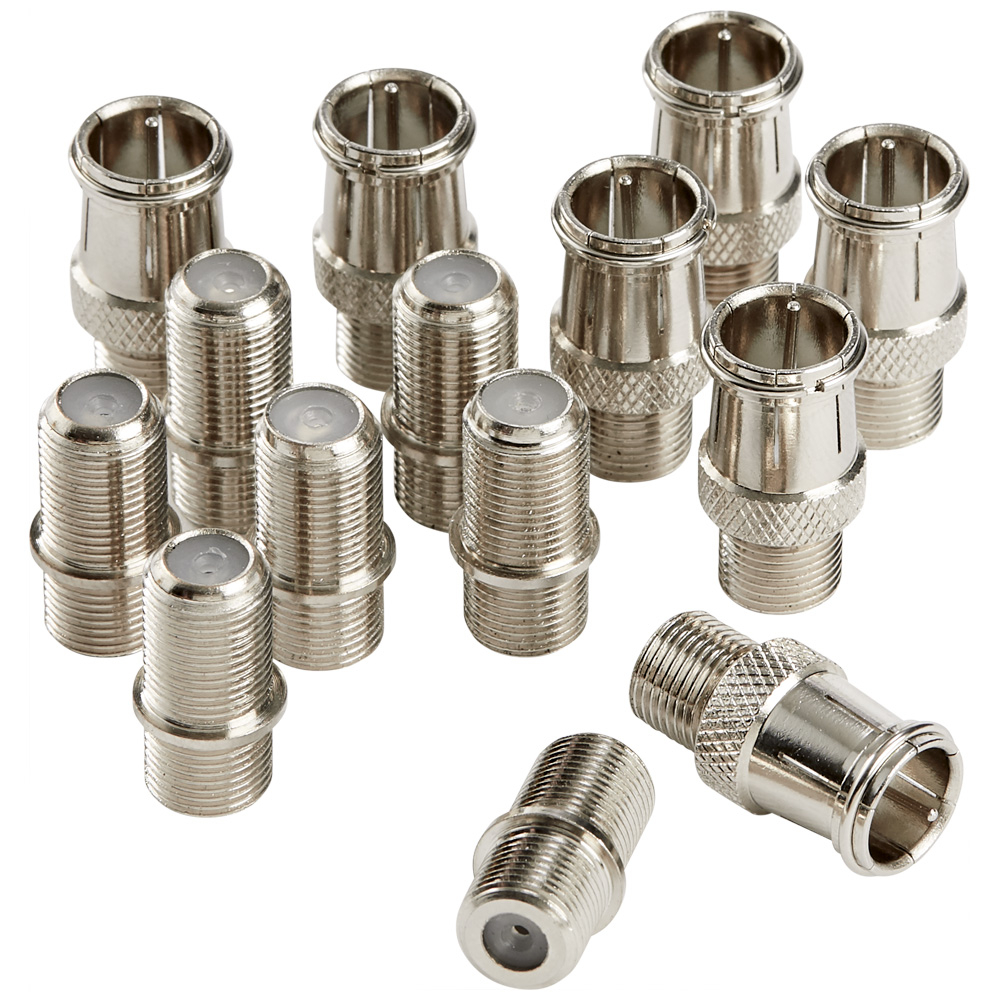

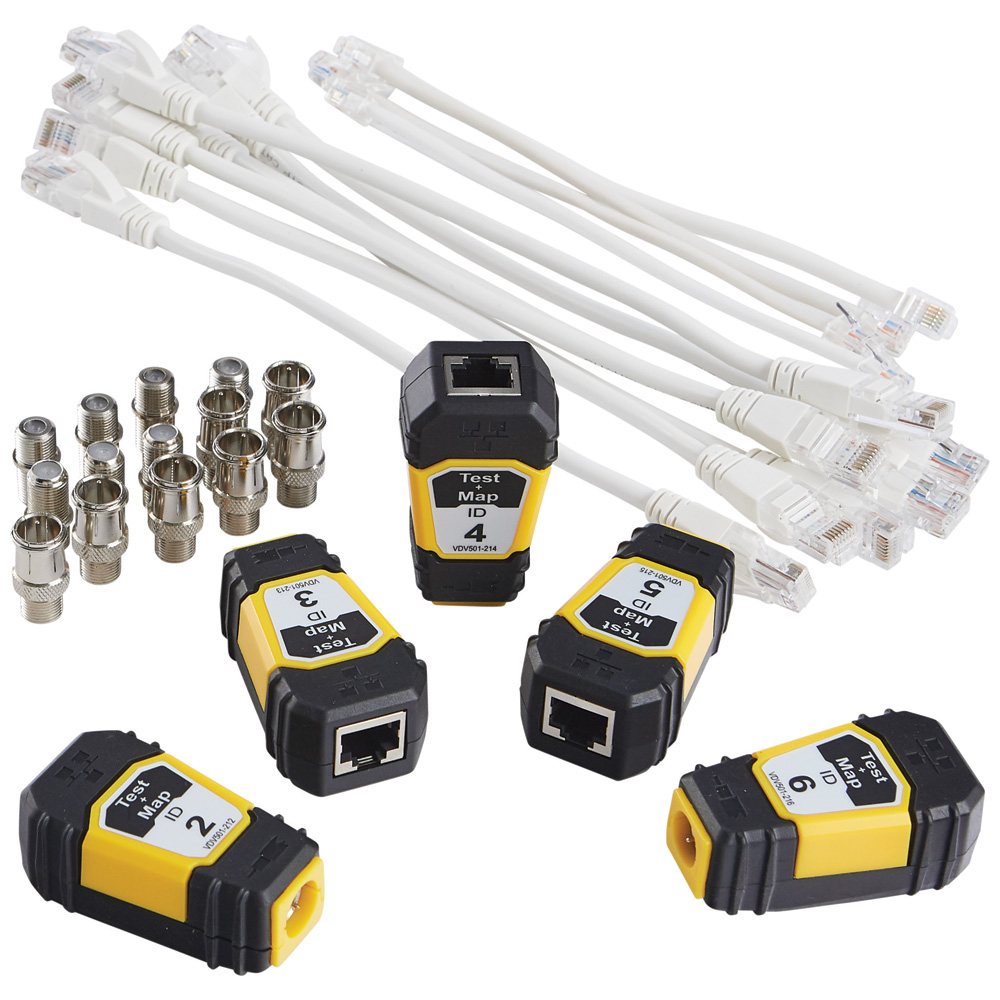

• Includes: 5 Test + Map™ remotes (#2 - #6), 6 coaxial adapters (female-to-female), 2 coaxial adapters (male-to-female), 7 RJ45 jumper cables (6"), 2 RJ11 jumper cables (6"), 2 - RJ12 jumper cables (6")
• Single-Step Test + Map™ Remotes
• Includes: 5 Test + Map™ remotes (#2 - #6), 6 coaxial adapters (female-to-female), 2 coaxial adapters (male-to-female), 7 RJ45 jumper cables, 2 RJ11 jumper cables, and 2 RJ12 jumper cables (6-Inch)
• Test voice (RJ11/12), data (RJ45) and video (F-connector) coax connections when used with the Scout® Pro 3 tester (sold separately)

Warnings

• Always wear approved eye protection.
• Read, understand and follow all instructions, cautions and warnings attached to and/or packed with all test and measurement devices before each use.

Specifications

• Sub Brand: Test +Map™, Scout® Pro 3, VDV Commander™
• Overall Length: 6.9" (17.5 cm)
• Material: Polycarb, Rubber, Steel, PCB Board
• Height: 1.5000 in
• Overall Height: 1.5" (4 cm)
• Country of Origin: China
• Included: (5) Test + Map™ remotes (#2 thru #6), (6) coaxial adapters (female-to-female), (2) coaxial adapters (male-to-female), (7) RJ45 jumper cables 6" (15.2 cm), (2) RJ11 jumper cables 6" (15.2 cm), (2) RJ12 jumper cables 6" (15.2 cm)
• Package Quantity: 3
• Connection & Adapter Types: RJ45, Coax F
• Width: 3.2000 in
• Weight: 1.2000 lbs
• Type: Kit
• Application: Cable Testing
• Depth: 6.9000 in

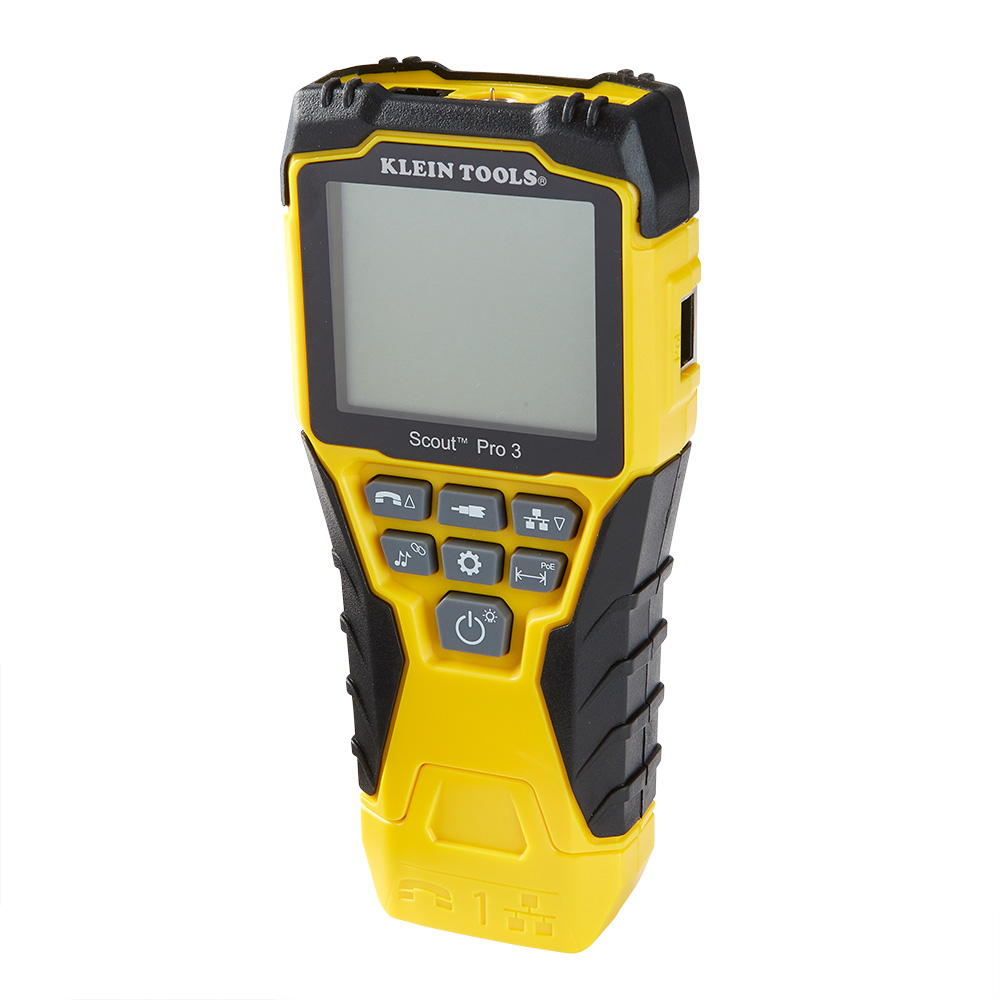

• For Use With: Scout® Pro 3 Tester
• Overall Width: 3.2" (8 cm)
