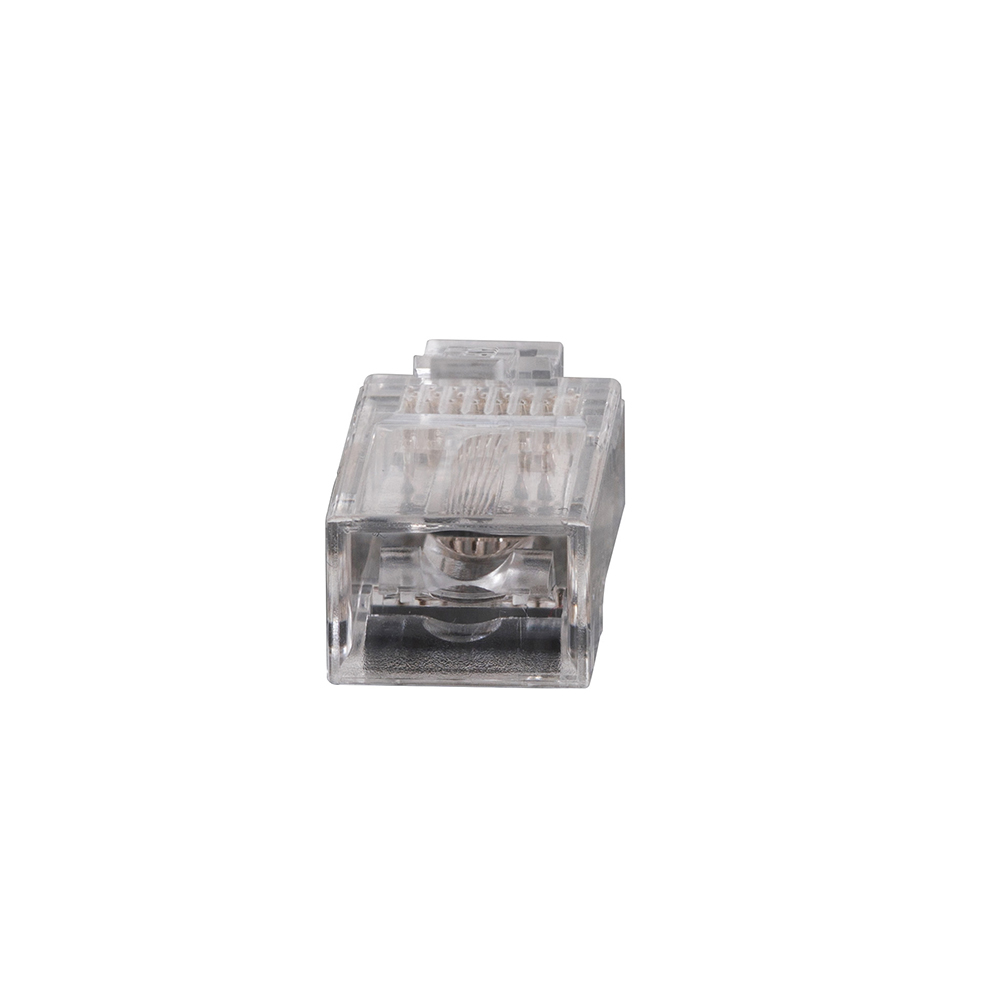

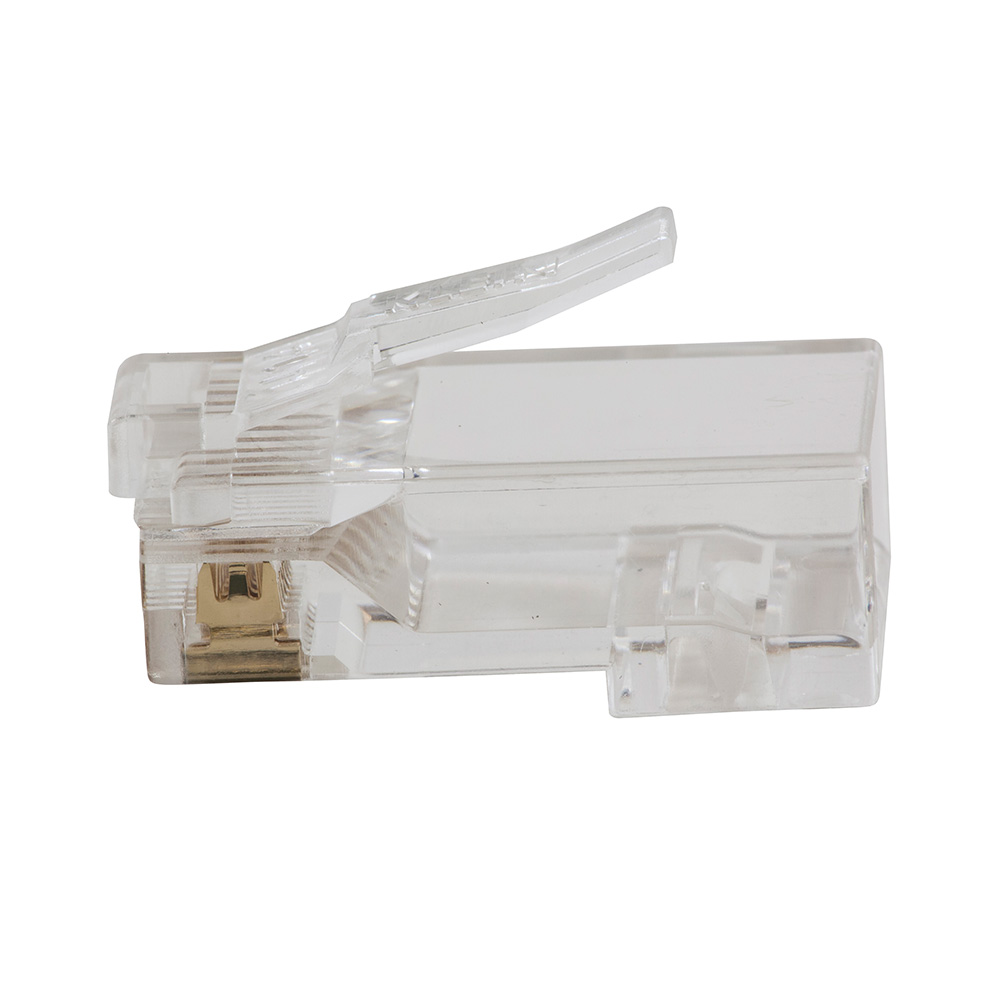

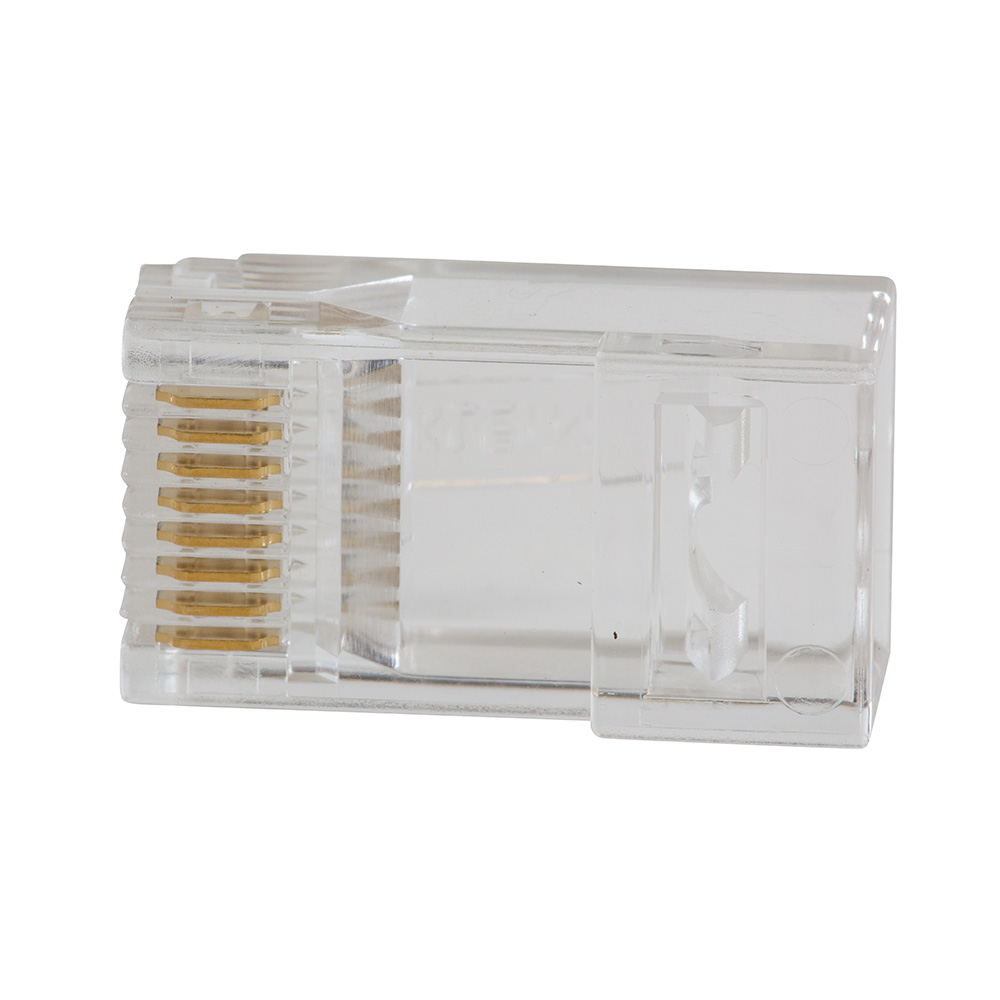

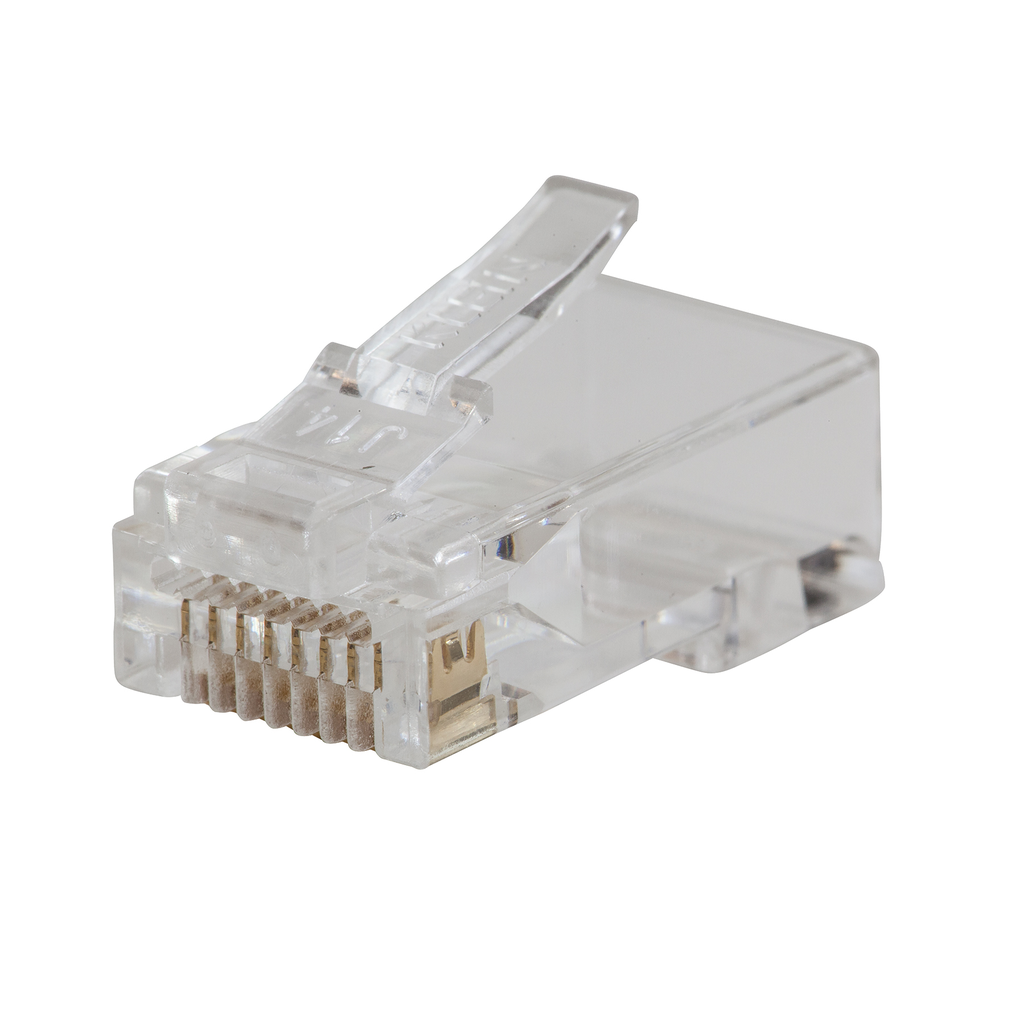

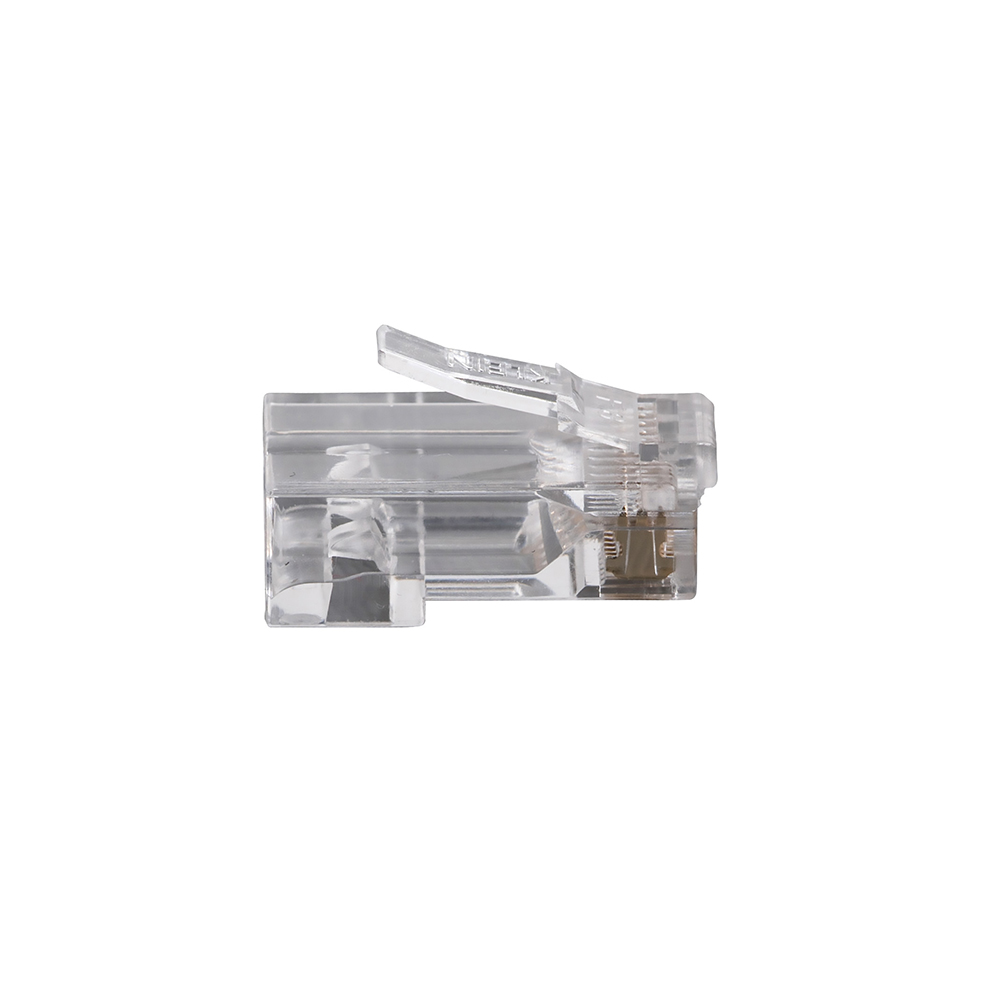

Pass-Thru™ Modular Data Plug, RJ45- CAT5E, 50-Pack

Exclusive Klein-designed CAT5e Pass-Thru™ modular plugs for fast, reliable connector installations for data applications. Cable easily passes through connector for consistent and secure termination. Saves time, trims flush to end face when used with Klein Tools Pass-Thru™ Modular Crimper VDV226-110, and eliminates wasted materials.

Features

• Klein exclusive Pass-Thru™ Connectors provide fast, reliable connector installations for data applications
• 50 µ-inch minimum gold plating on all contact surfaces
• For use with Klein Tools Pass-Thru™ Modular Crimper VDV226-110

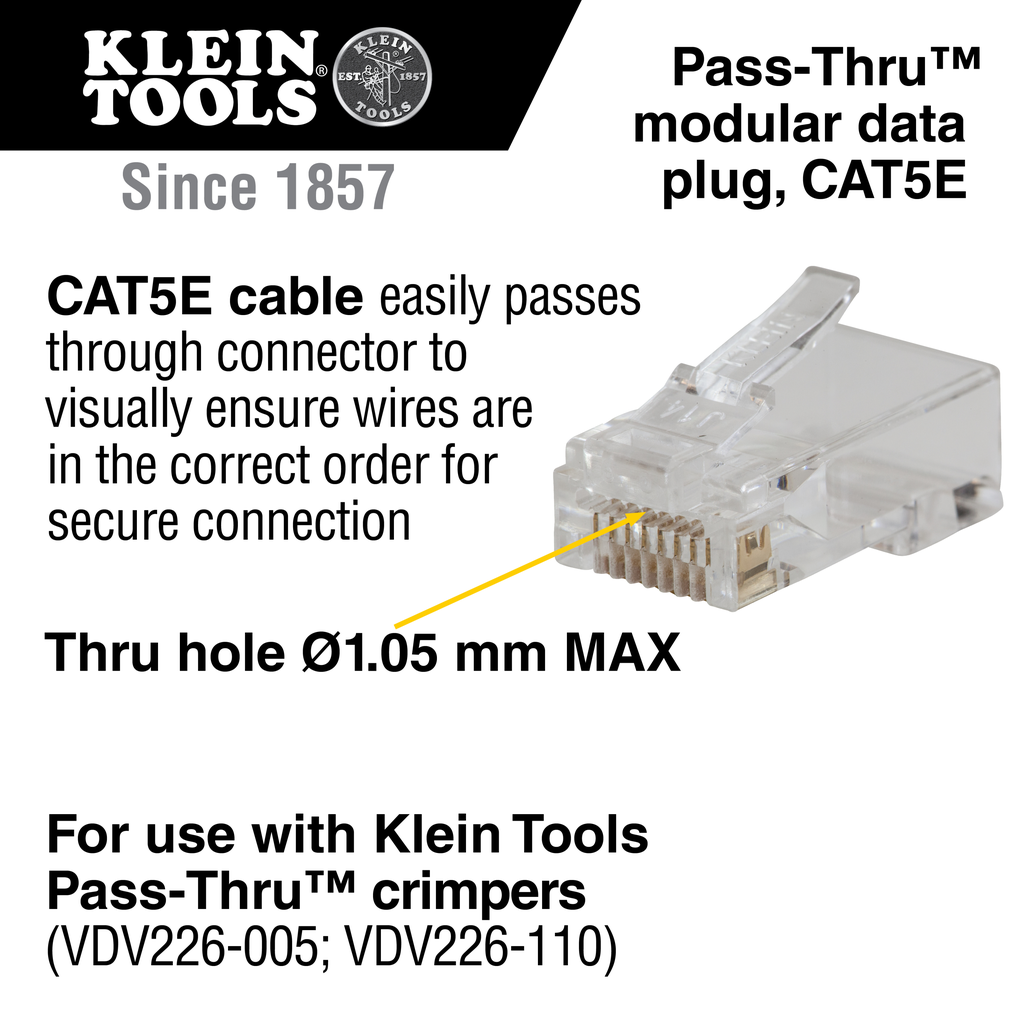

• Max diameter for CAT5E Pass-Thru™ Connectors is 0.04-Inch (1.01 mm)

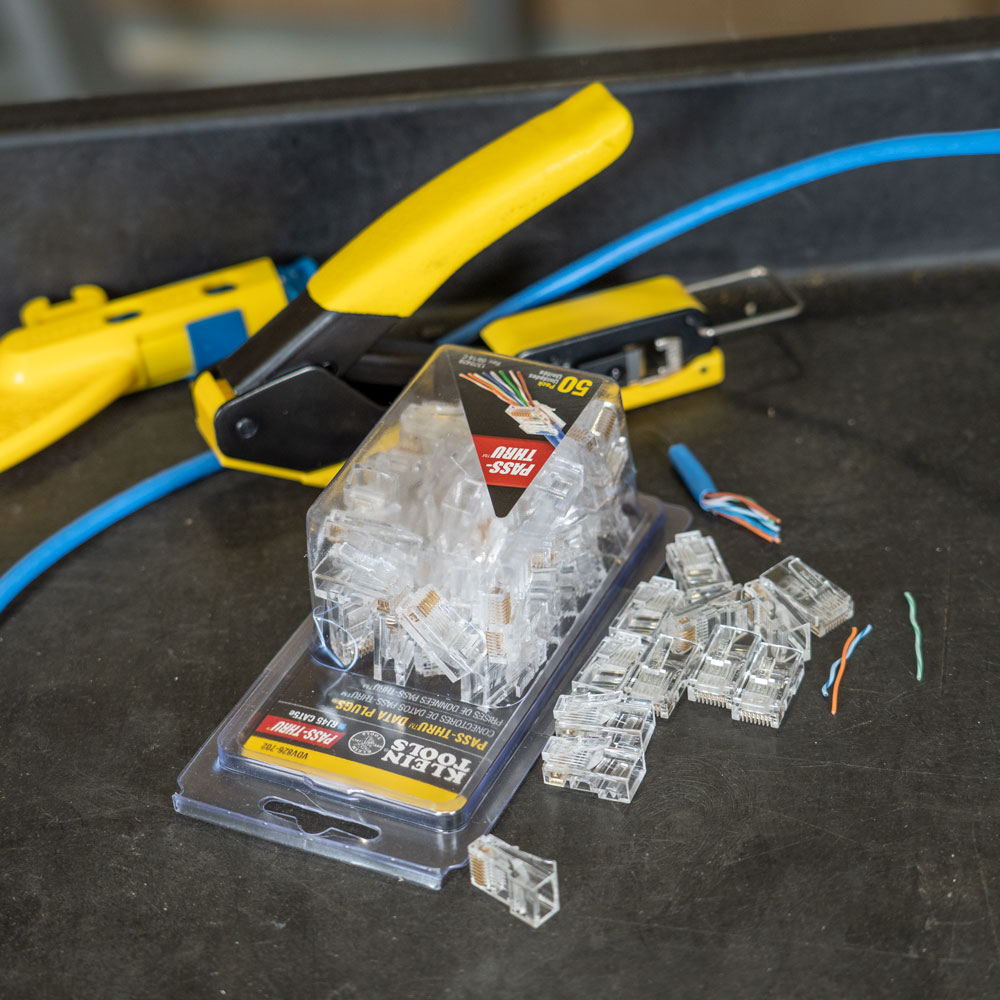

• 50-Pack
• Pass-Thru Technology
• Category 5e performance per EIA/TIA B.2., RoHS compliant
• 8 position, 8 contact Pass Through style data plug for solid or stranded cable

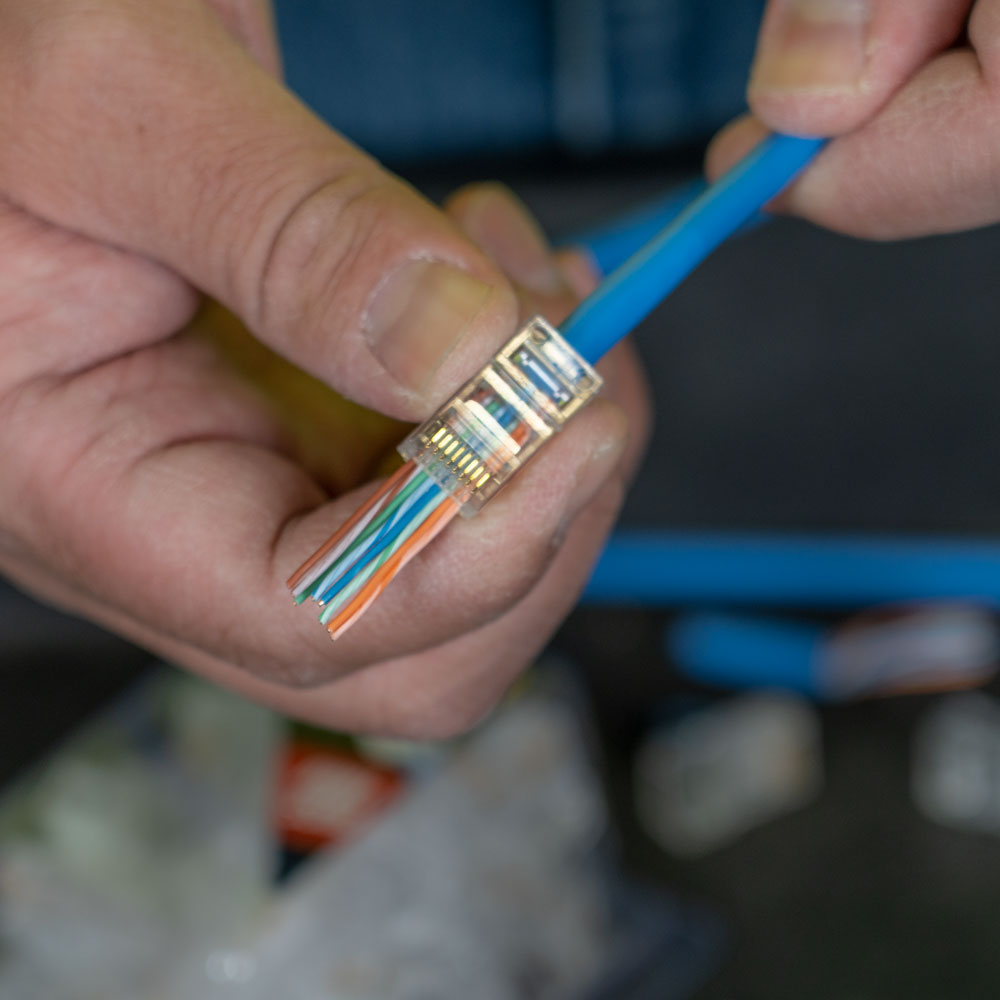

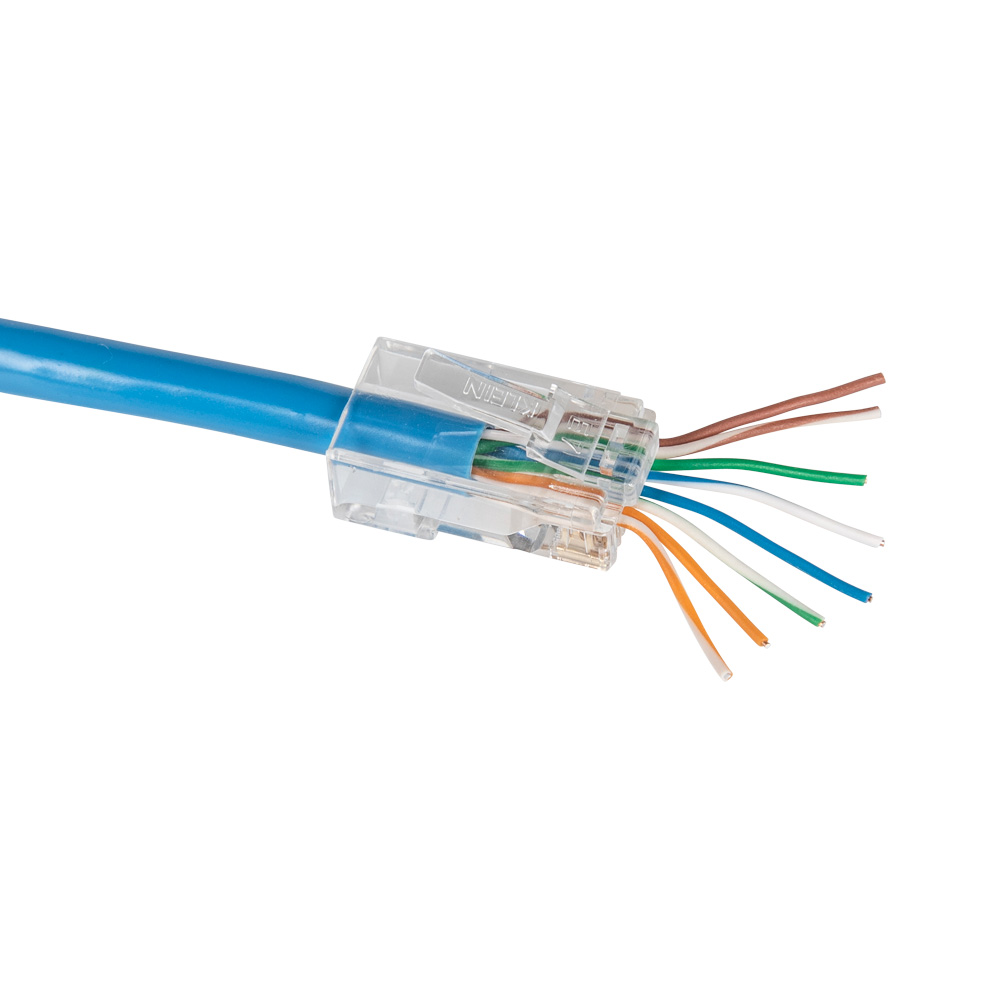

• CAT5e Cable easily passes through connector to visually ensure that wires are in the correct order for consistent and secure terminations

Warnings

• Do NOT use on energized circuits or cabling systems

Specifications

• Overall Height (Inch): 0.453
• Stranded Conductor Wire: Yes
• Overall Width (Inch): 0.094
• Weight (g): 136
• Width: 0.4500 in
• Type: Modular
• Overall Height (cm): 1.2
• Overall Length (cm): 2.2
• Package Quantity: 50
• Solid Conductor Wire: Yes
• Connector Type: RJ45
• Cable Type: CAT5e
• Weight: 0.0060 lbs
• Position & Contacts: 8P 8C
• Height: 0.0920 in
• Depth: 0.8800 in
• Material: PVC Plastic; Gold Plated Contacts
• Weight (oz): 4.8
• Overall Length (Inch): 0.875
• Overall Width (cm): 0.2
• Application: Voice and Data
• Connector Color: Clear
