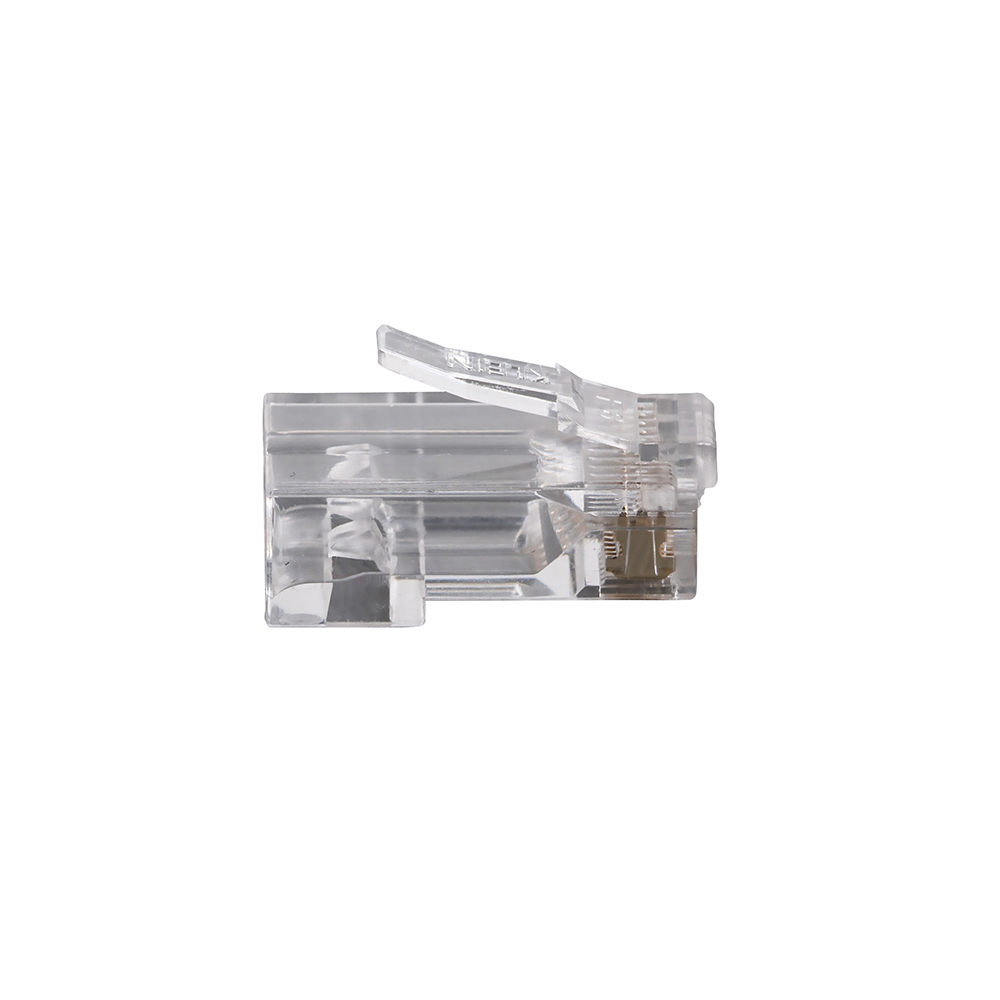

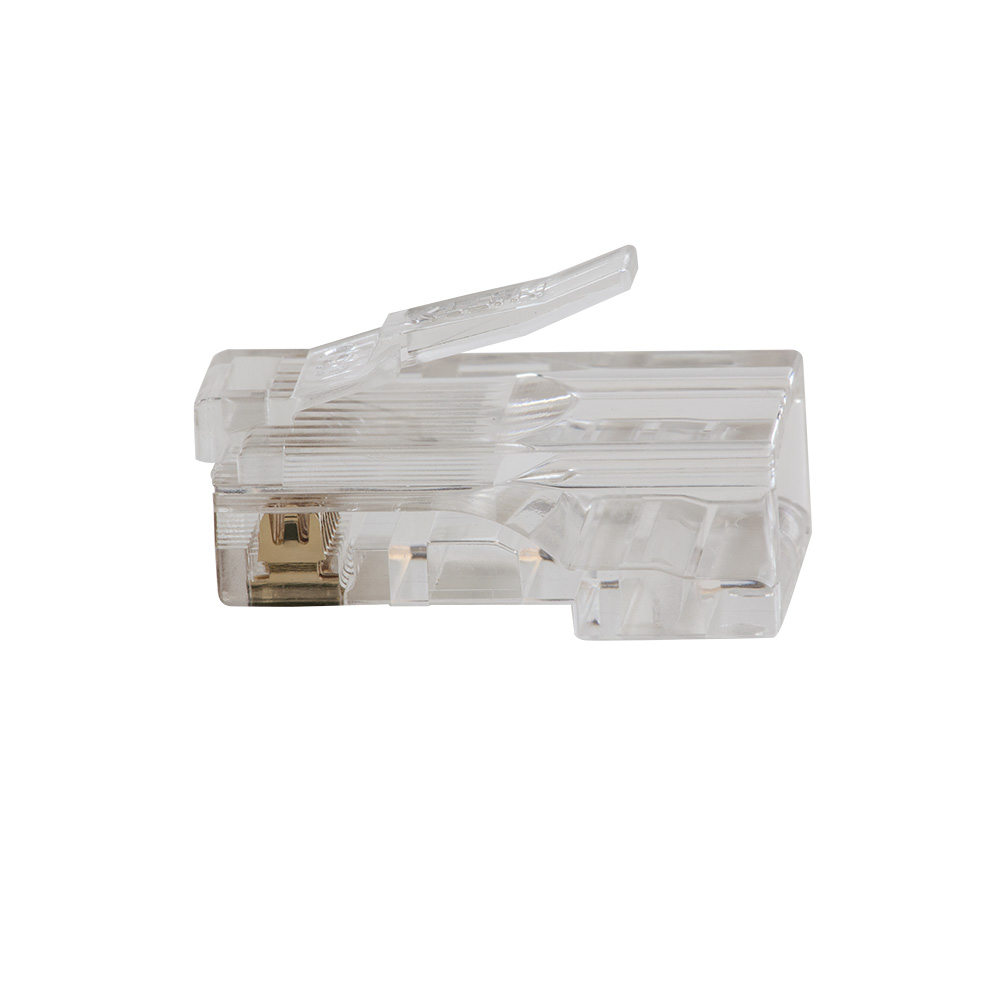

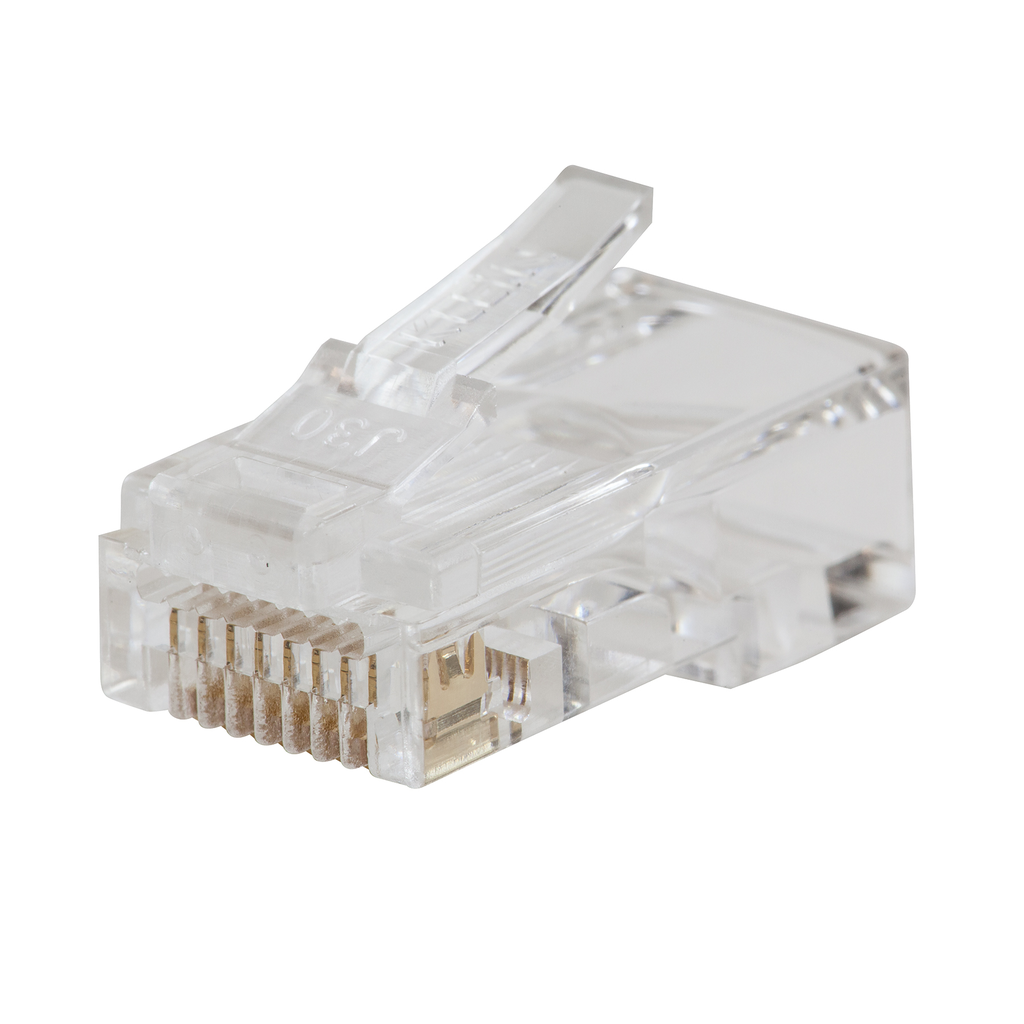

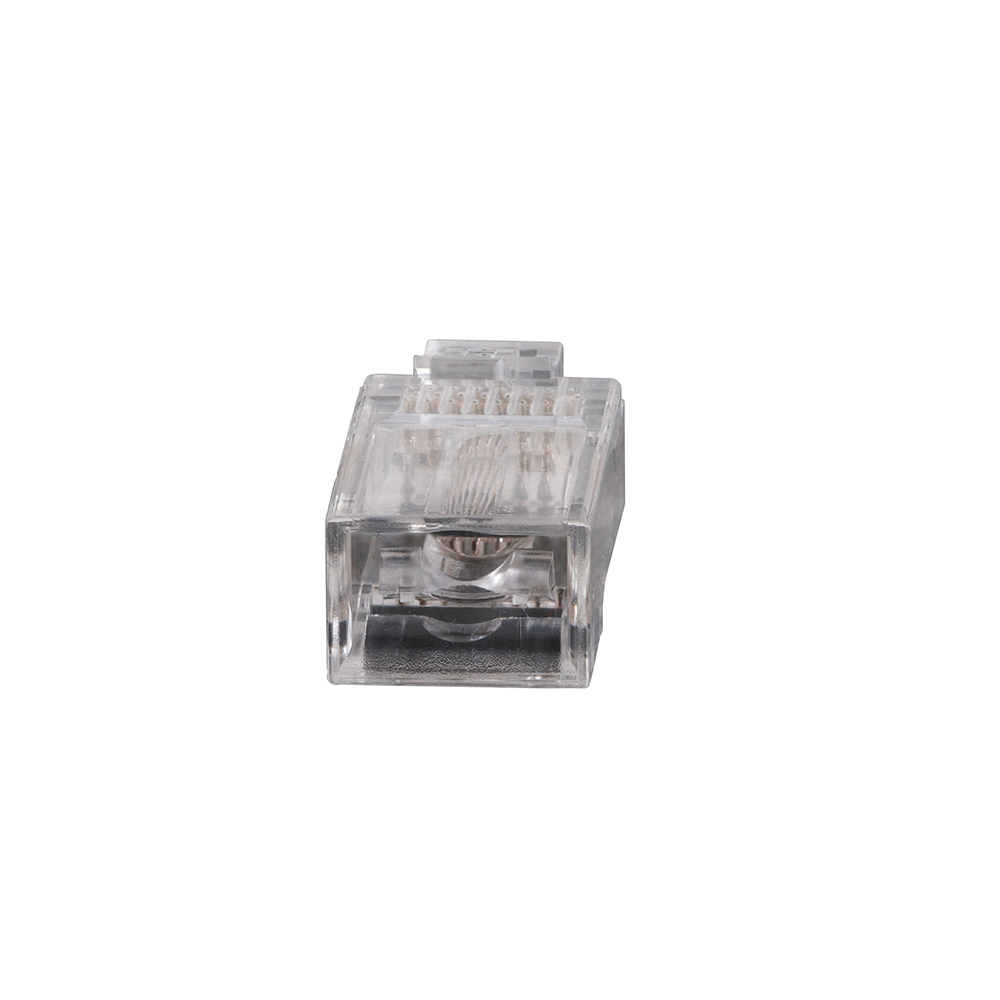

Pass-Thru™ Modular Data Plug, RJ45-CAT6, 50-Pack

Exclusive Klein-designed Pass-Thru™ modular plugs for fast, reliable connector installations for and data applications. Cable easily passes through connector for consistent and secure termination. Saves time, trims flush to end face when used with Klein Tools Pass-Thru™ Modular Crimper VDV226-110, and eliminates wasted materials. These CAT6 connectors meet or exceed all Power over Ethernet (PoE) standards. Use with Klein Tools Pass-Thru™ Modular Crimper, VDV226-110.

Features

• Pass-Thru Technology; Meets All POE Standards

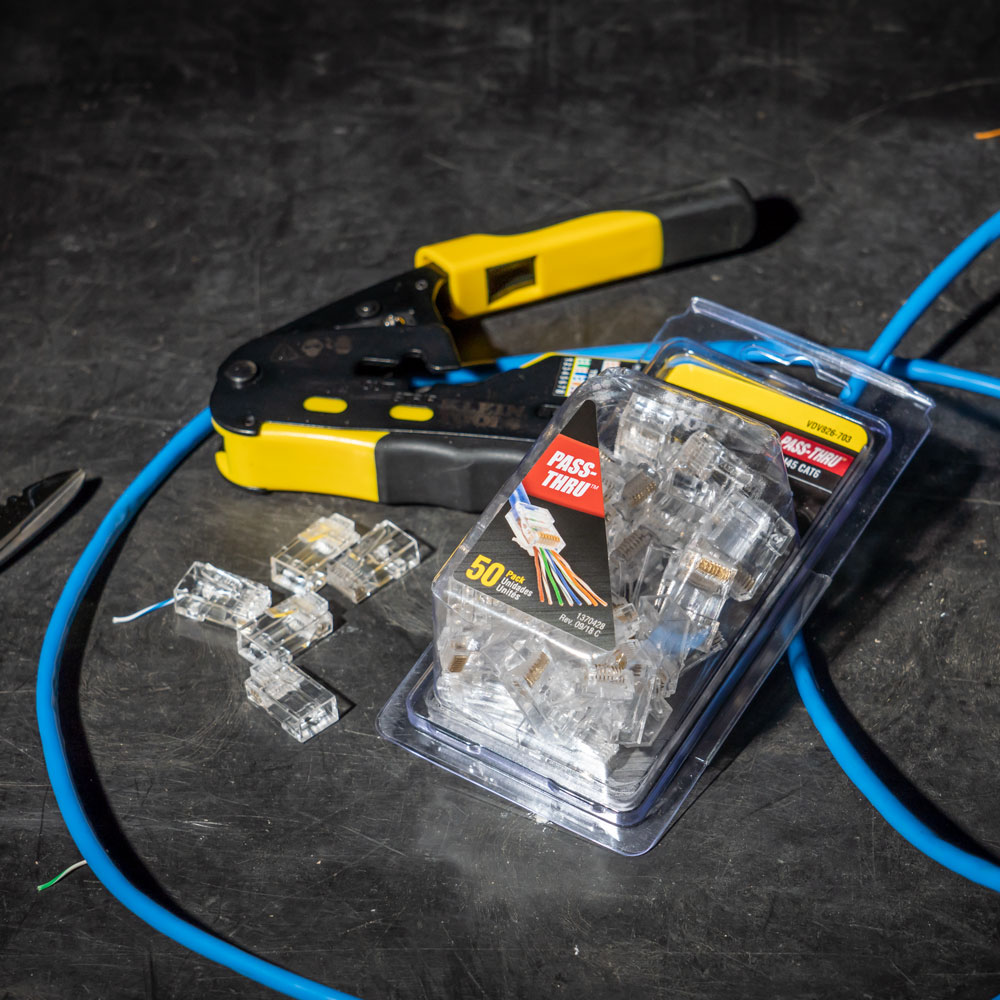

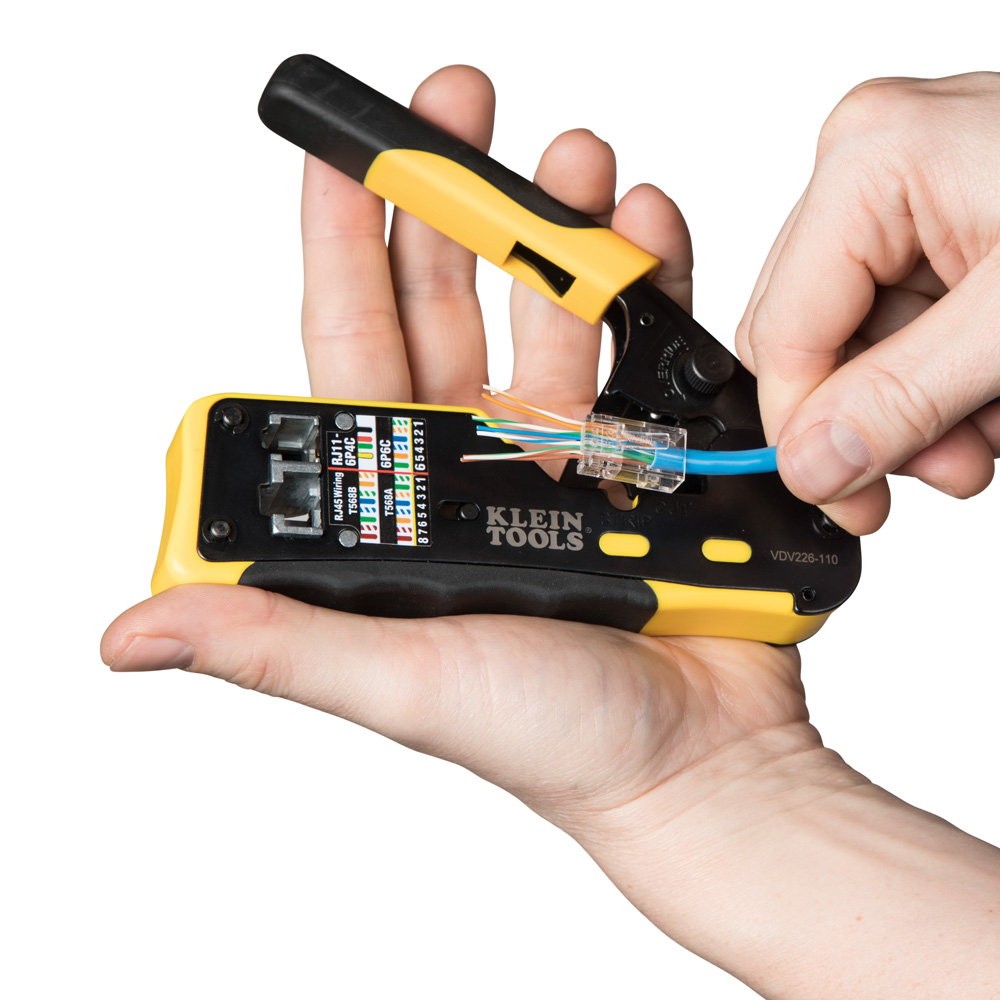

• For use with Klein Tools Pass-Thru™ Modular Crimper VDV226-110
• 50 µ-inch minimum gold plating on all contact surfaces

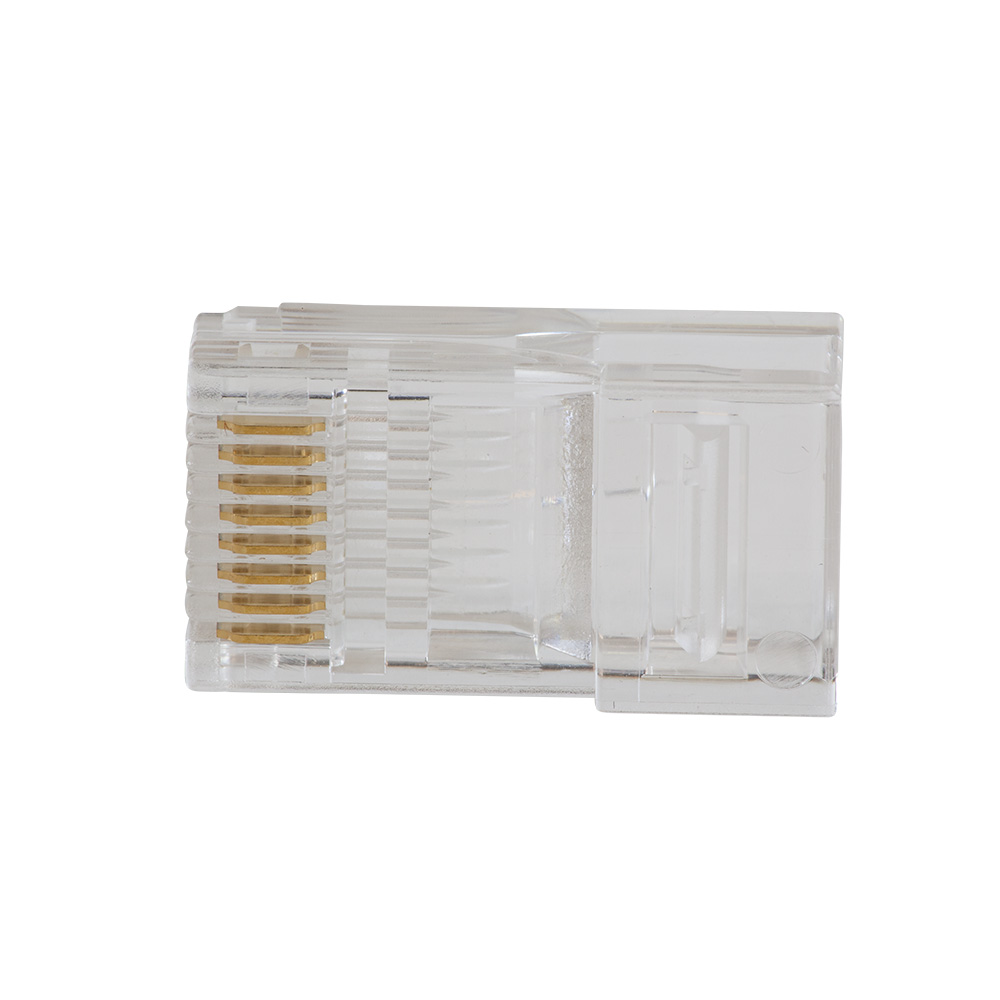

• 8 position, 8 contact Pass Through style data plug for solid or stranded cable
• Klein exclusive Pass-Thru™ Connectors provide fast, reliable connector installations for data applications
• Fully compliant with Power Over Ethernet (PoE and PoE+) standards
• Category 6 performance per EIA/TIA B.2. and RoHS compliant

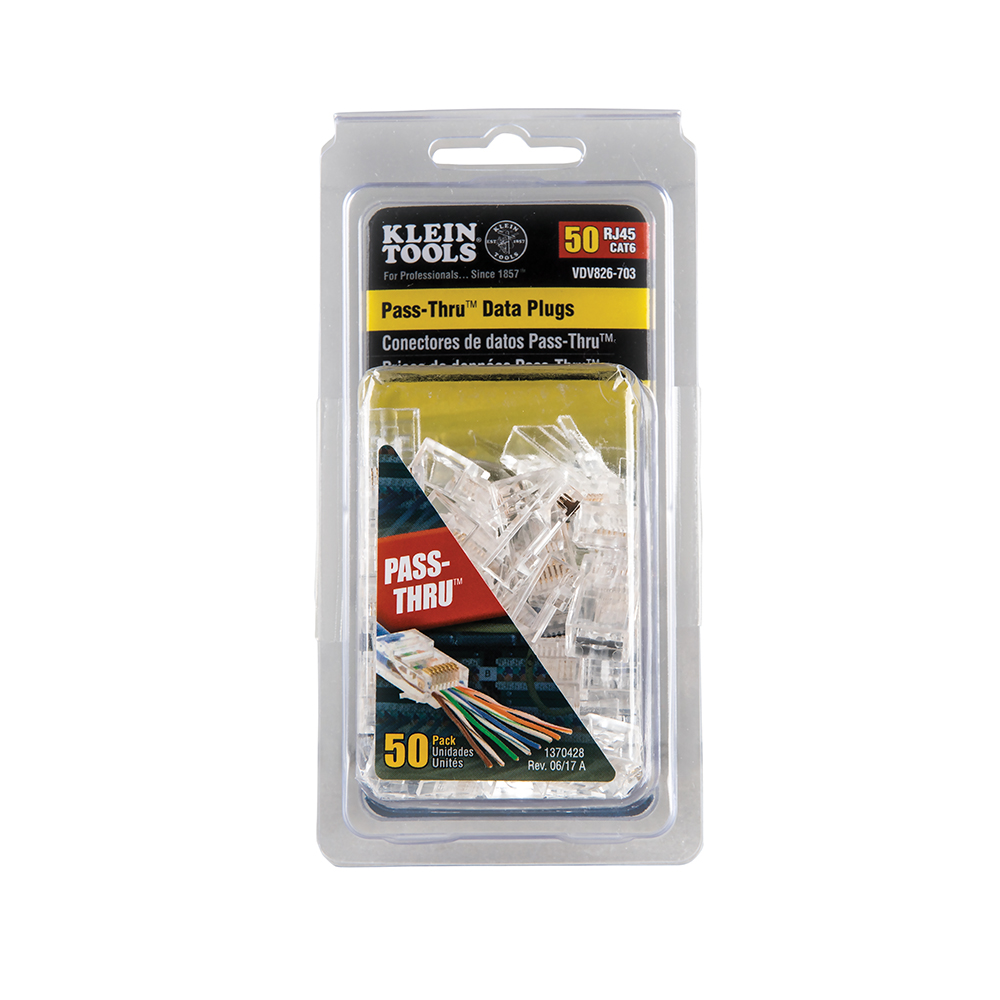

• 50-Pack

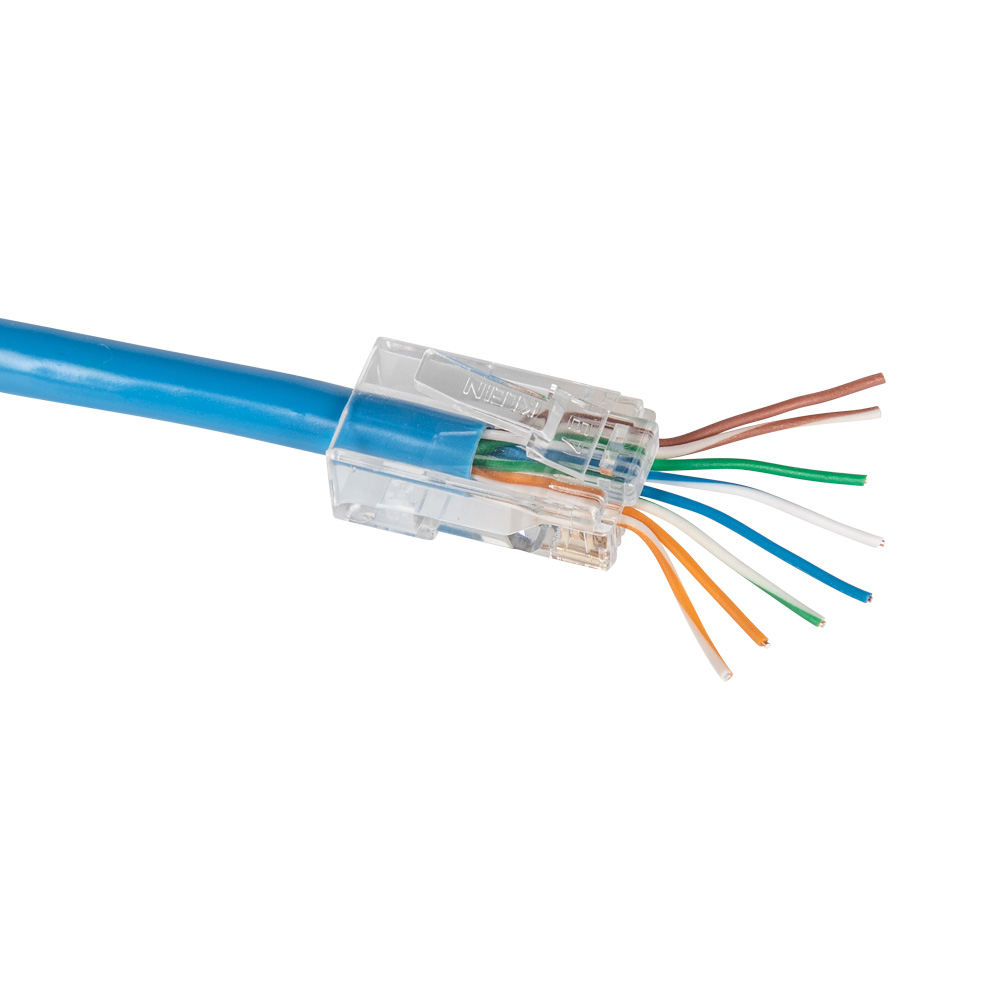

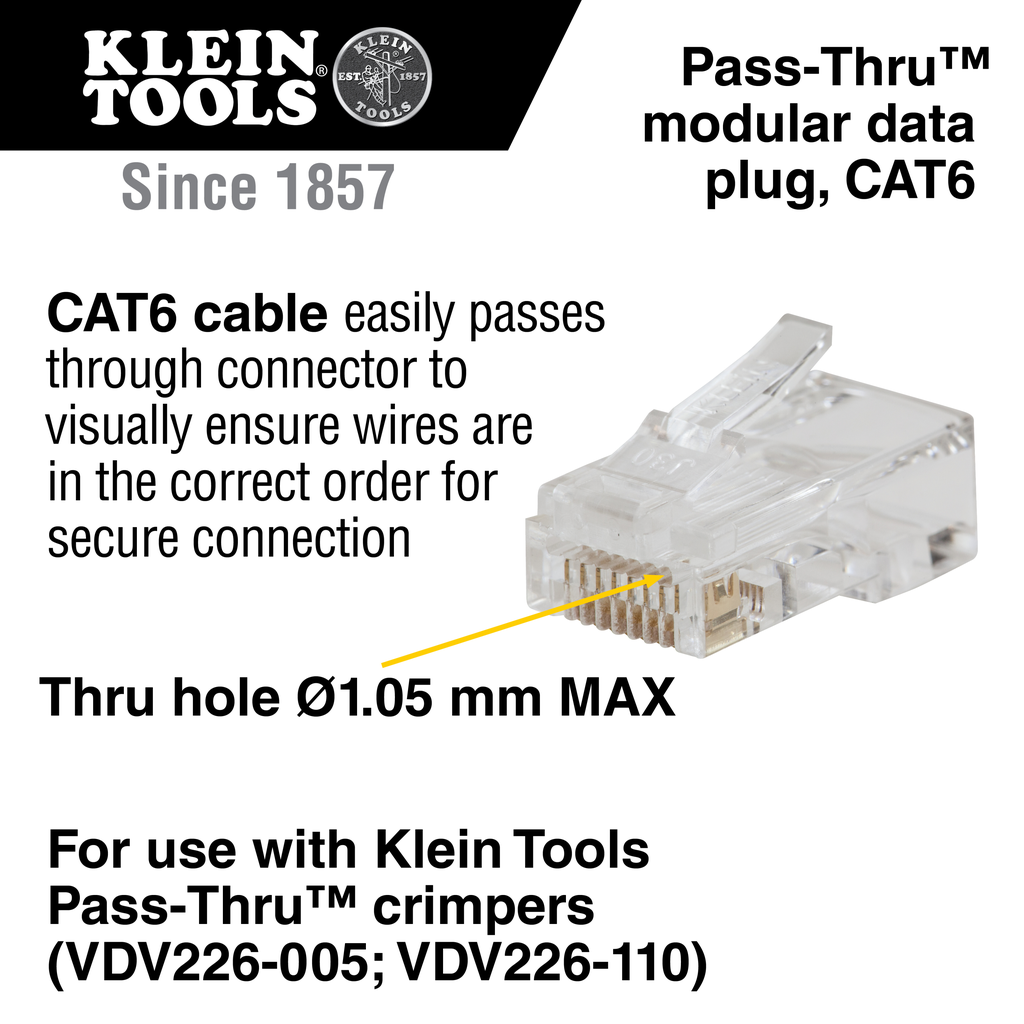

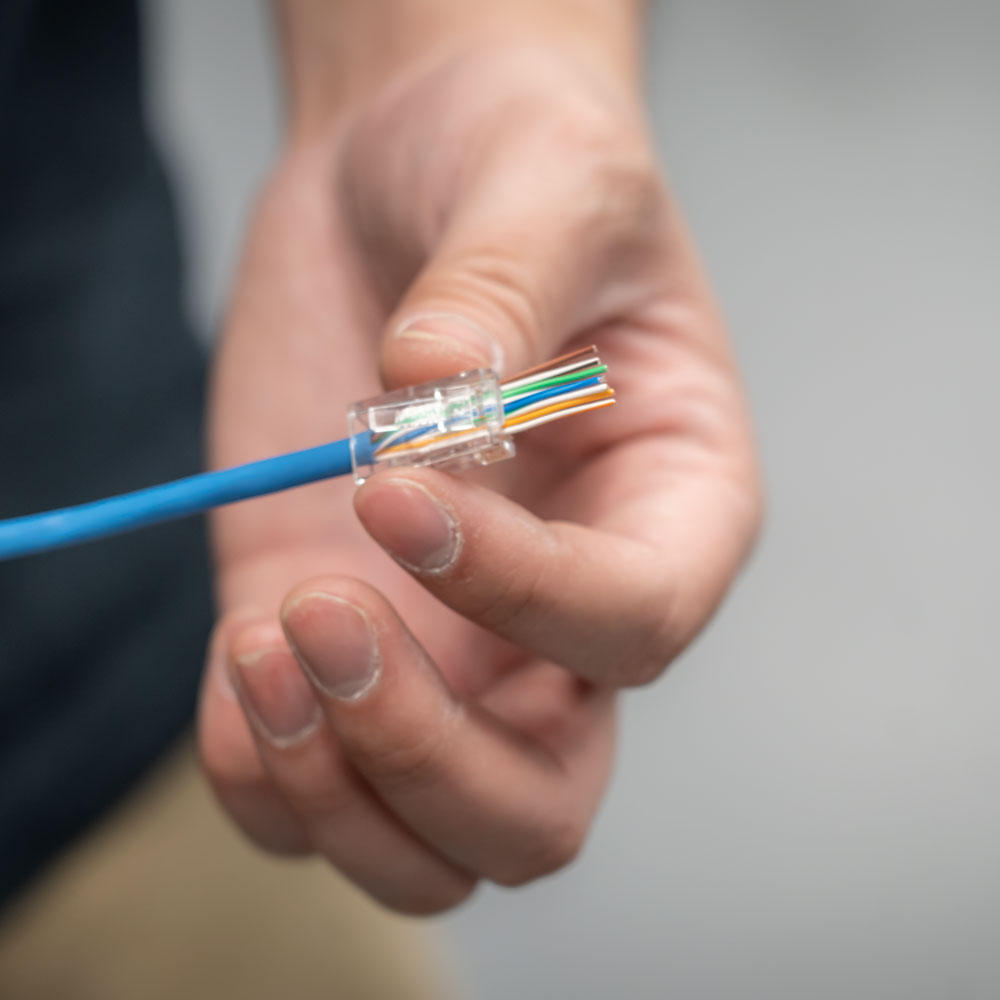

• CAT6 cable easily passes through connector to visually ensure that wires are in the correct order for consistent and secure terminations

Warnings

• Do NOT use on energized circuits or cabling systems

Specifications

• Width: 0.4590 in
• Application: Voice and Data
• Stranded Conductor Wire: Yes
• Height: 0.0920 in
• Package Quantity: 50
• Overall Width (Inch): 0.094
• Connector Type: RJ45
• Overall Length (Inch): 0.875
• Cable Type: CAT6
• Weight (g): 136
• Overall Width (cm): 0.2
• Material: PVC Plastic; Gold Plated Contacts
• Connector Color: Clear
• Weight: 0.0060 lbs
• Solid Conductor Wire: Yes
• Overall Length (cm): 2.2
• Depth: 0.8850 in
• Type: Modular
• Overall Height (Inch): 0.453
• Overall Height (cm): 1.2
• Weight (oz): 4.8
• Position & Contacts: 8P 8C
