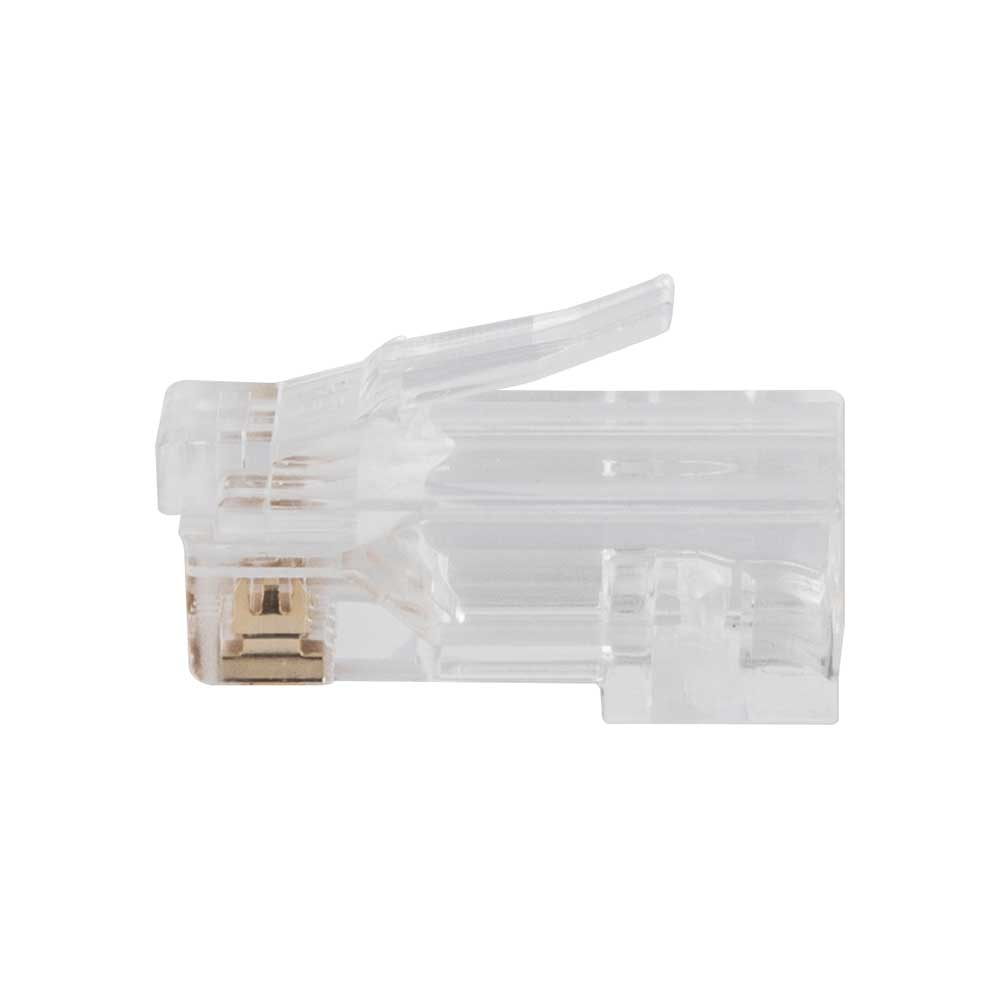

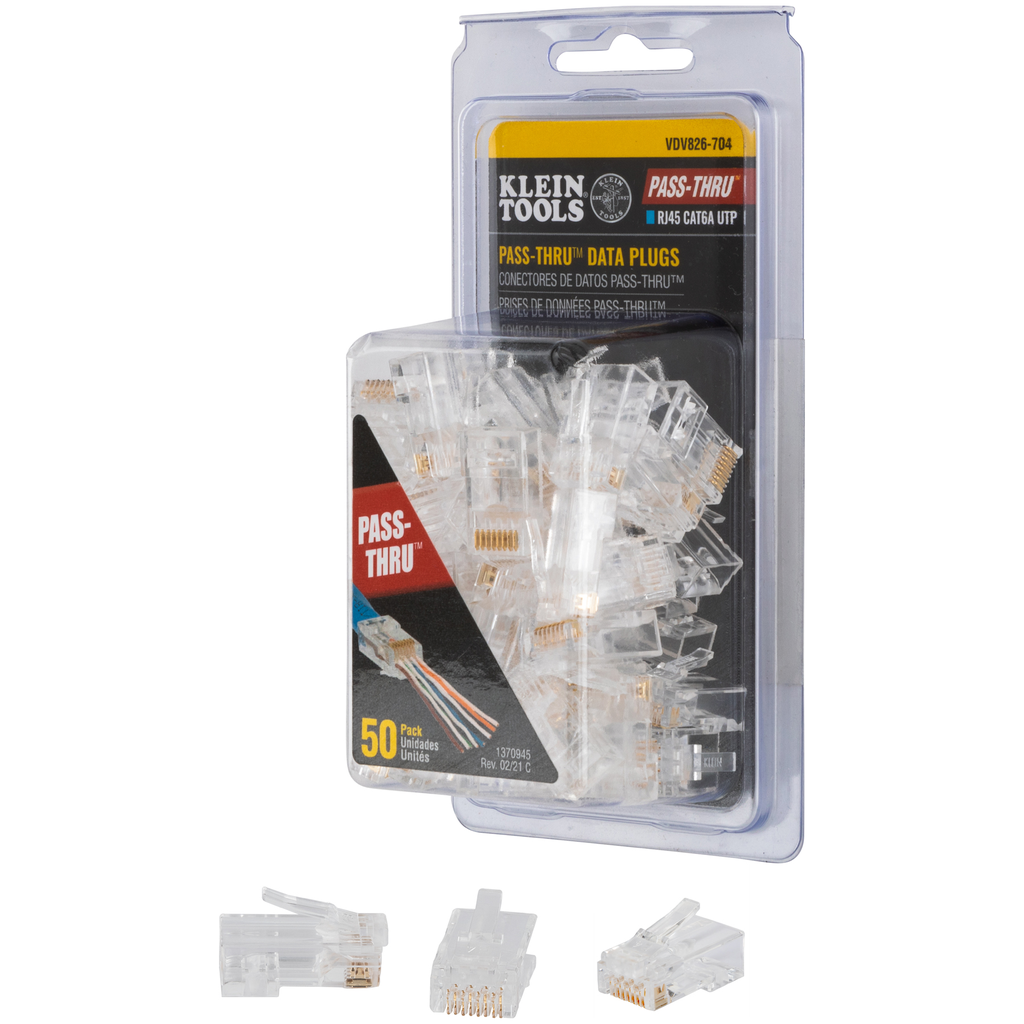

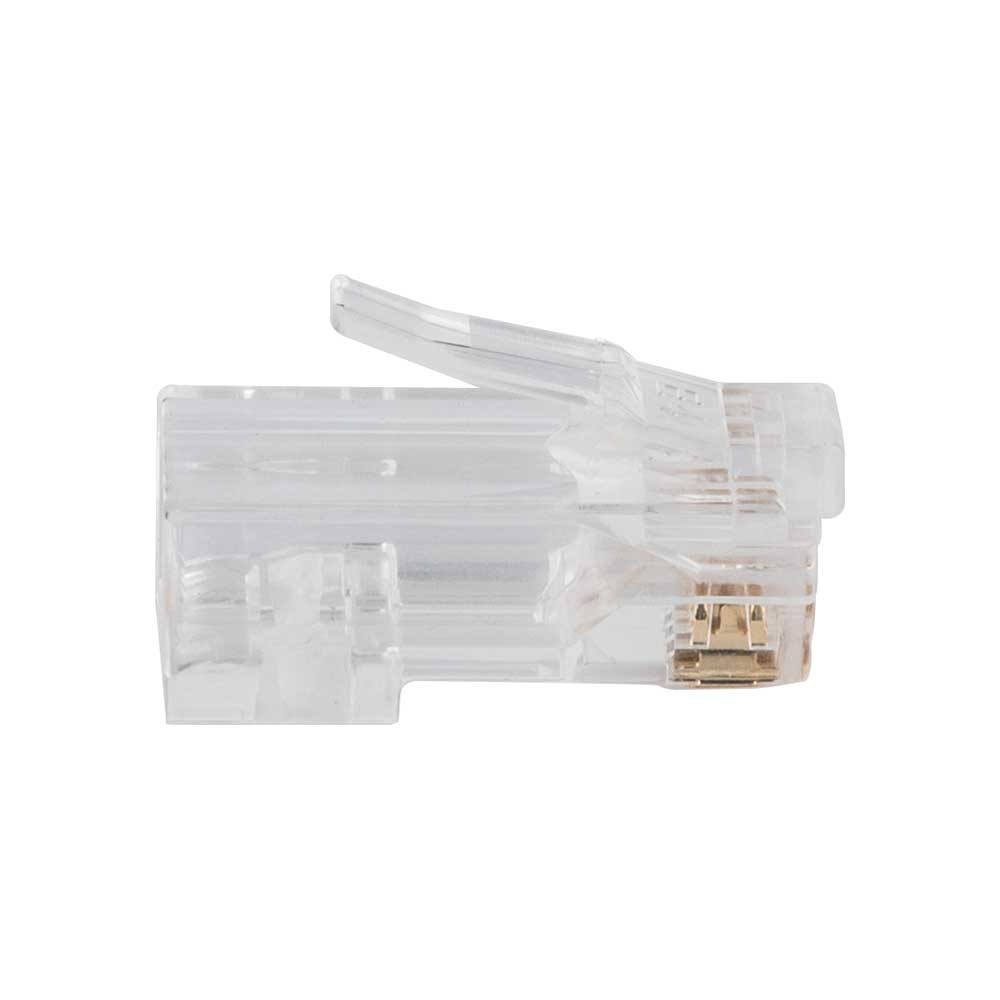

Pass-Thru™ Modular Data Plugs, RJ-45-CAT6A, UTP, 50-Pack

Exclusive Klein-designed CAT6A Pass-Thru™ modular plugs for fast, reliable connector installations for data applications. Cable easily passes through connector for consistent and secure termination. Saves time, trims flush to end face when used with Klein Tools Pass-Thru™ Modular Crimper Cat. No. VDV226-110, and eliminates wasted materials.

Features

• Pass-Thru Technology; Meets All PoE+ Standards
• Fully compliant with Power Over Ethernet (PoE and PoE+) standards

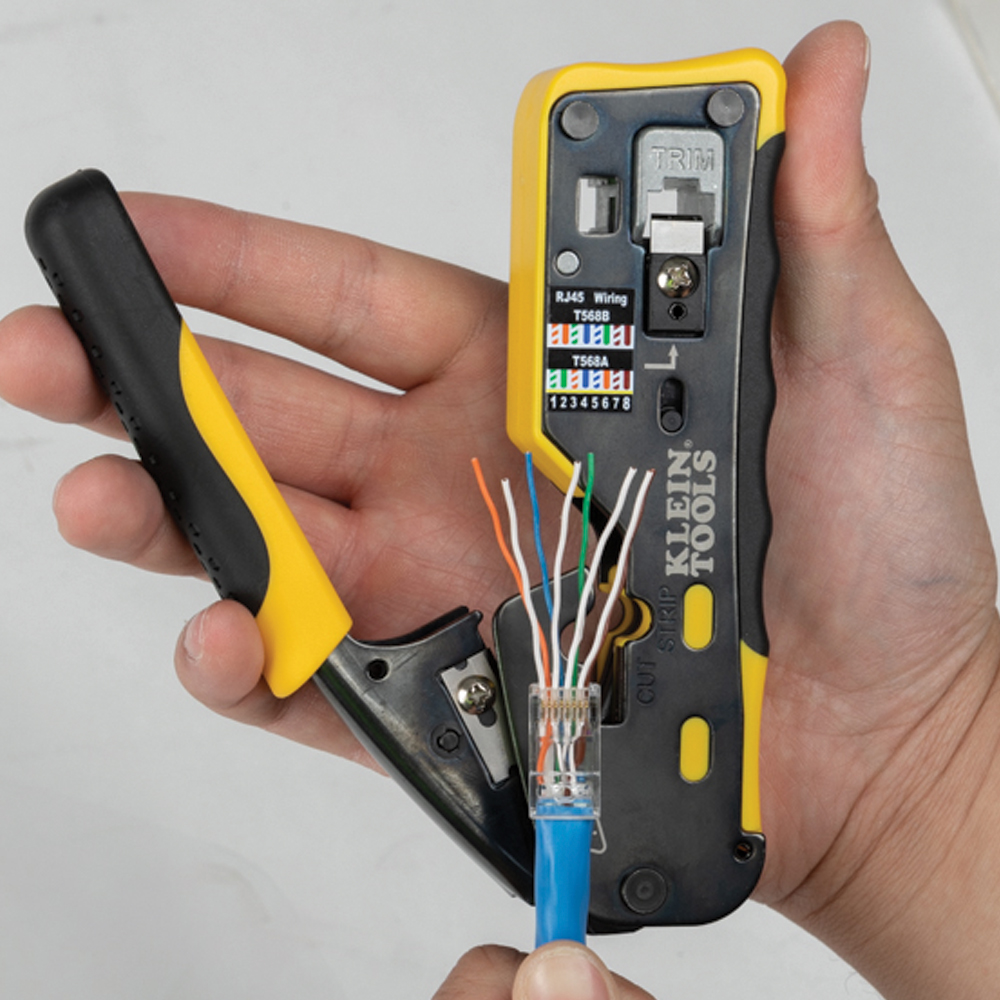

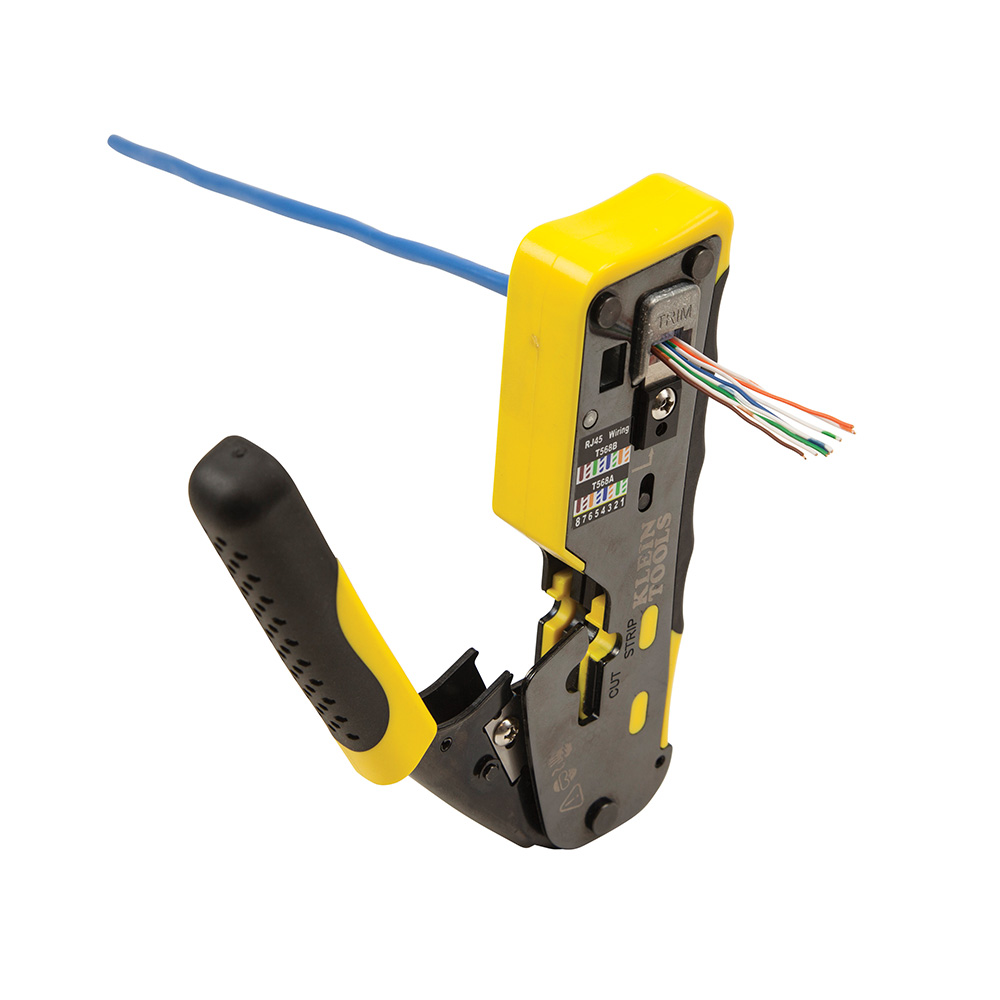

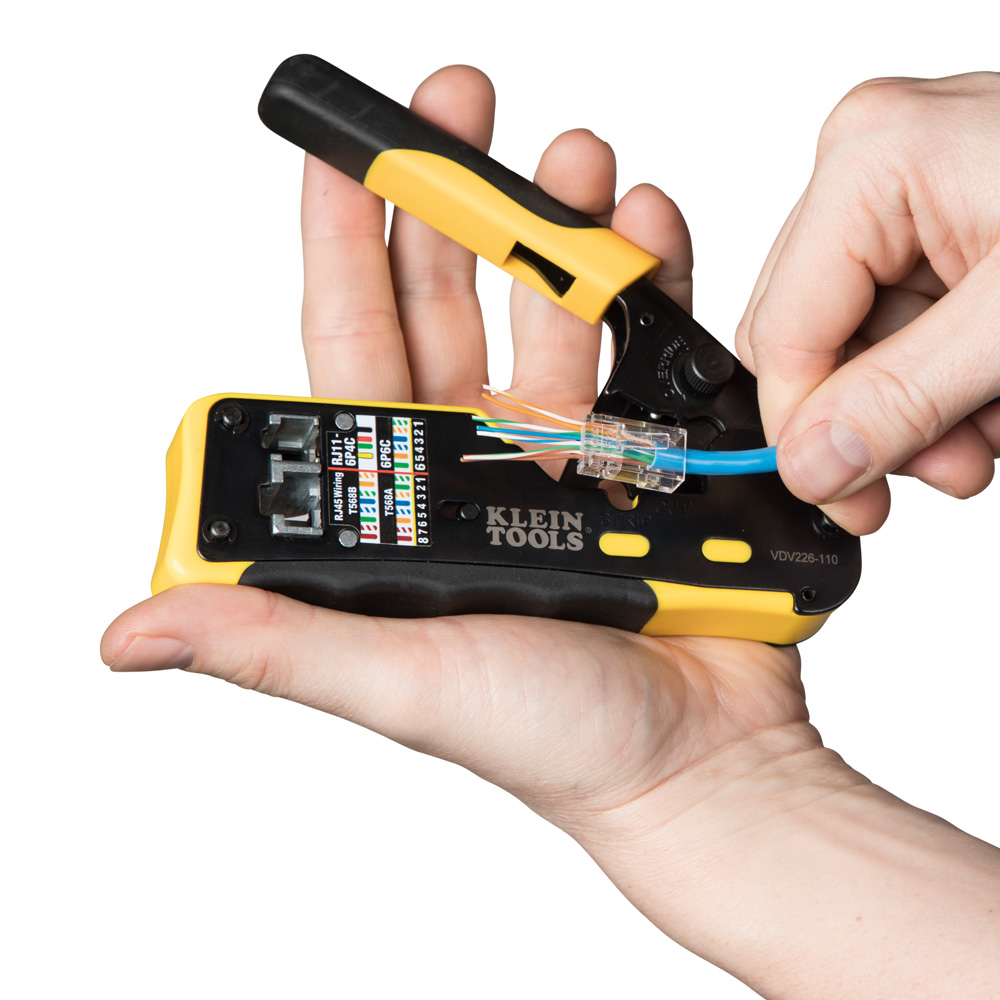

• Requires pass through type crimping tool (Cat. No. VDV226-110 recommended)
• Klein exclusive Pass-Thru™ Connectors provide fast, reliable connector installations for data applications
• For CAT6A cable as well as larger diameter/thicker jacket CAT6 cable
• Category 6A performance per TIA/EIA-568-B.2
• 50 µ-inch gold plating on all contact surfaces
• 50-Pack

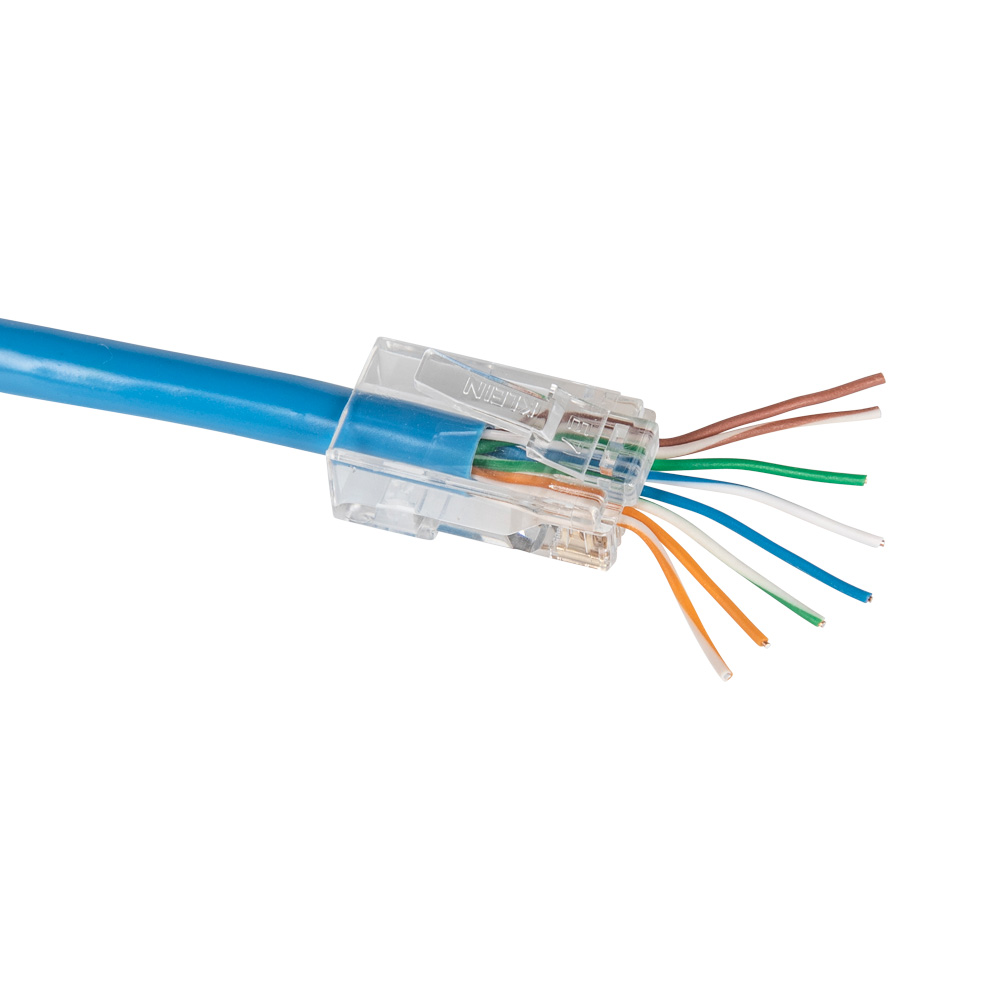

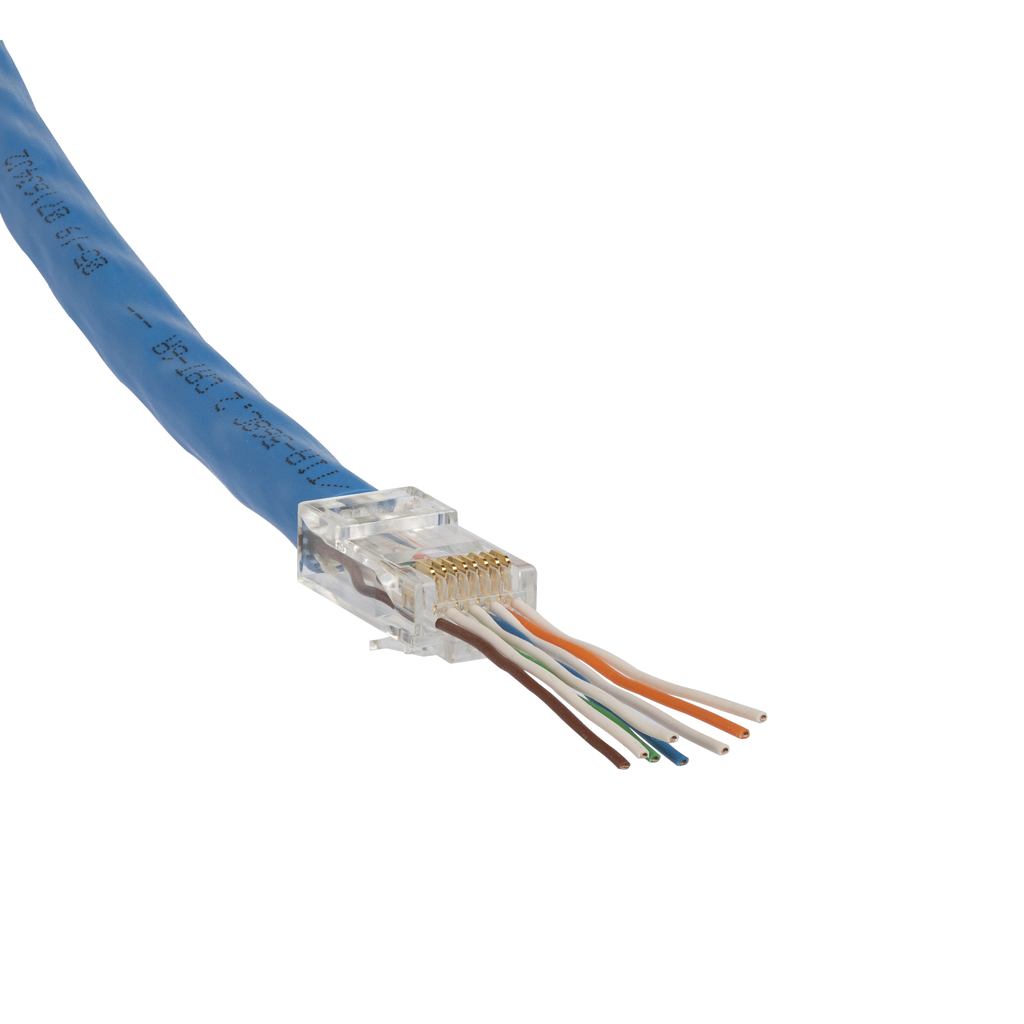

• CAT6A cable easily passes through connector to visually ensure that wires are in the correct order for consistent and secure terminations

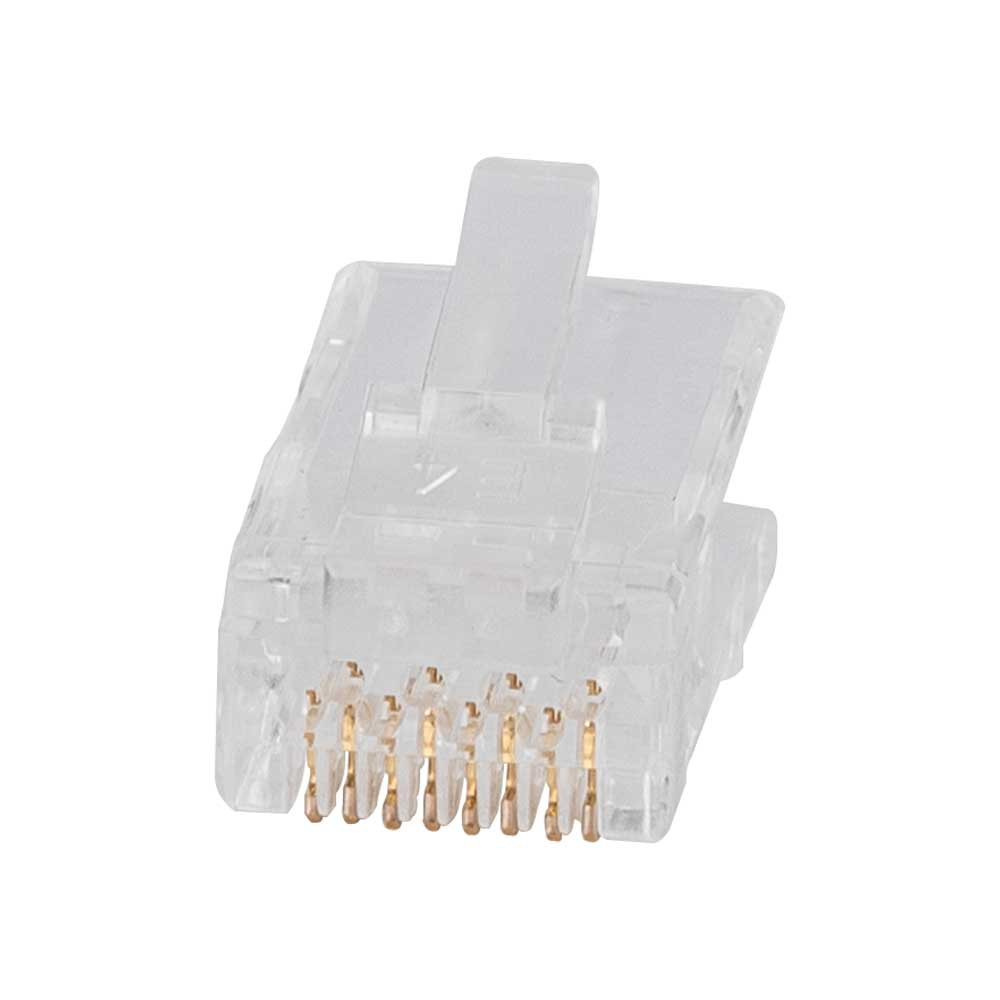

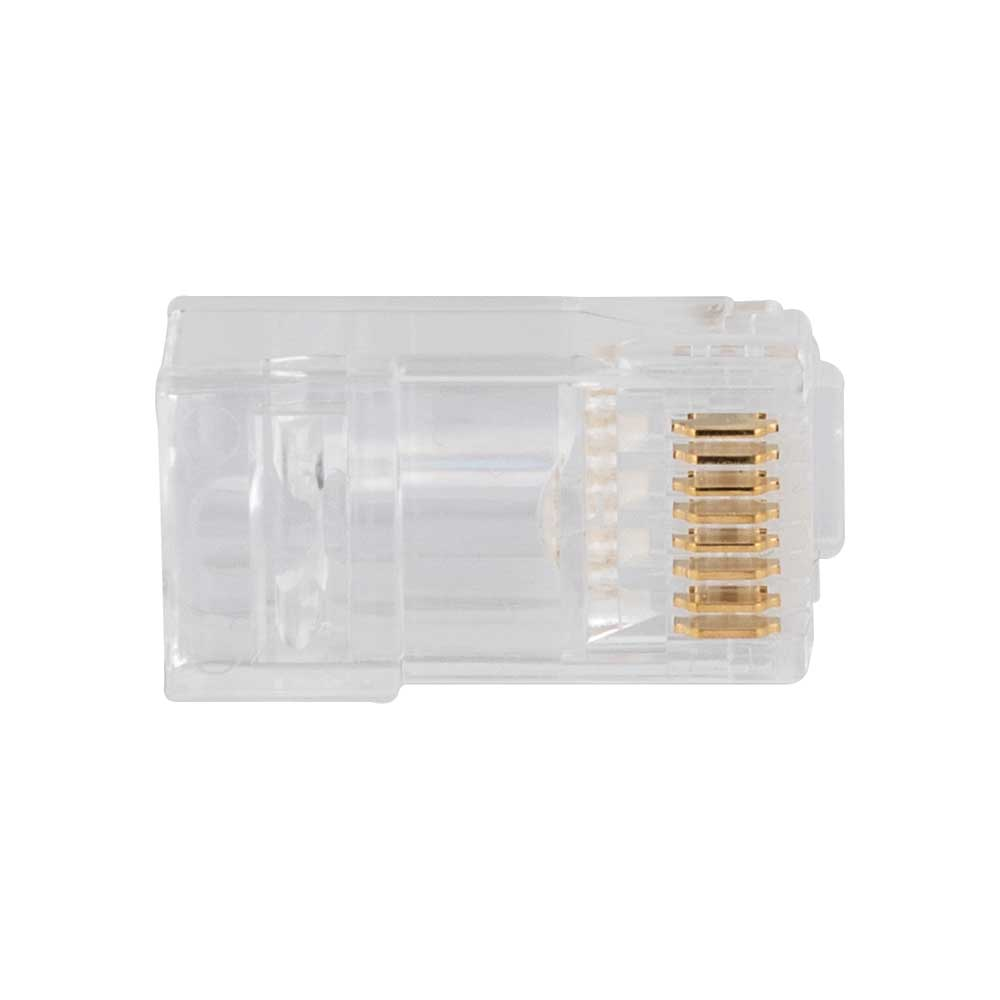

• 8 position, 8 contact pass through type data plugs for solid or stranded wire
• Max diameter for CAT6A Pass-Thru™ Connectors is 0.043-Inch (1.01 mm)

Warnings

• Do NOT use on energized circuits or cabling systems.

Specifications

• Position & Contacts: 8P 8C
• Solid Conductor Wire: Yes
• Application: Data
• Overall Height (cm): 1.2
• Cable Type: CAT6A UTP and Larger Diameter CAT6
• Material: PVC Plastic; Gold Plated Contacts
• Overall Length (cm): 2.2
• Overall Length (Inch): 0.875
• Type: Modular
• Weight: 0.0010 lbs
• Package Quantity: 50
• Width: 0.4000 in
• Height: 0.6000 in
• Overall Height (Inch): 0.453
• Weight (g): 136
• Overall Width (Inch): 0.094
• Stranded Conductor Wire: Yes
• Overall Width (cm): 0.2
• Weight (oz): 4.8
• Depth: 0.8000 in
• Connector Color: Clear
• Connector Type: RJ45
