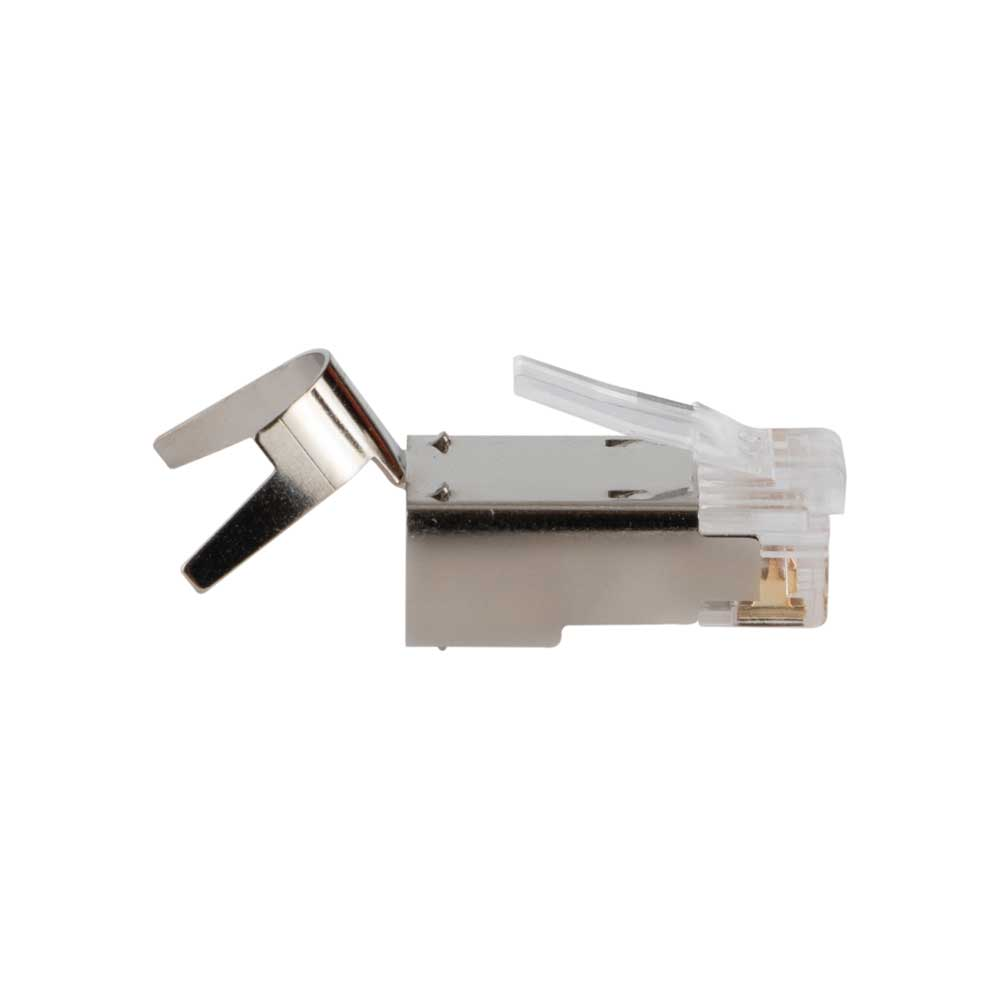

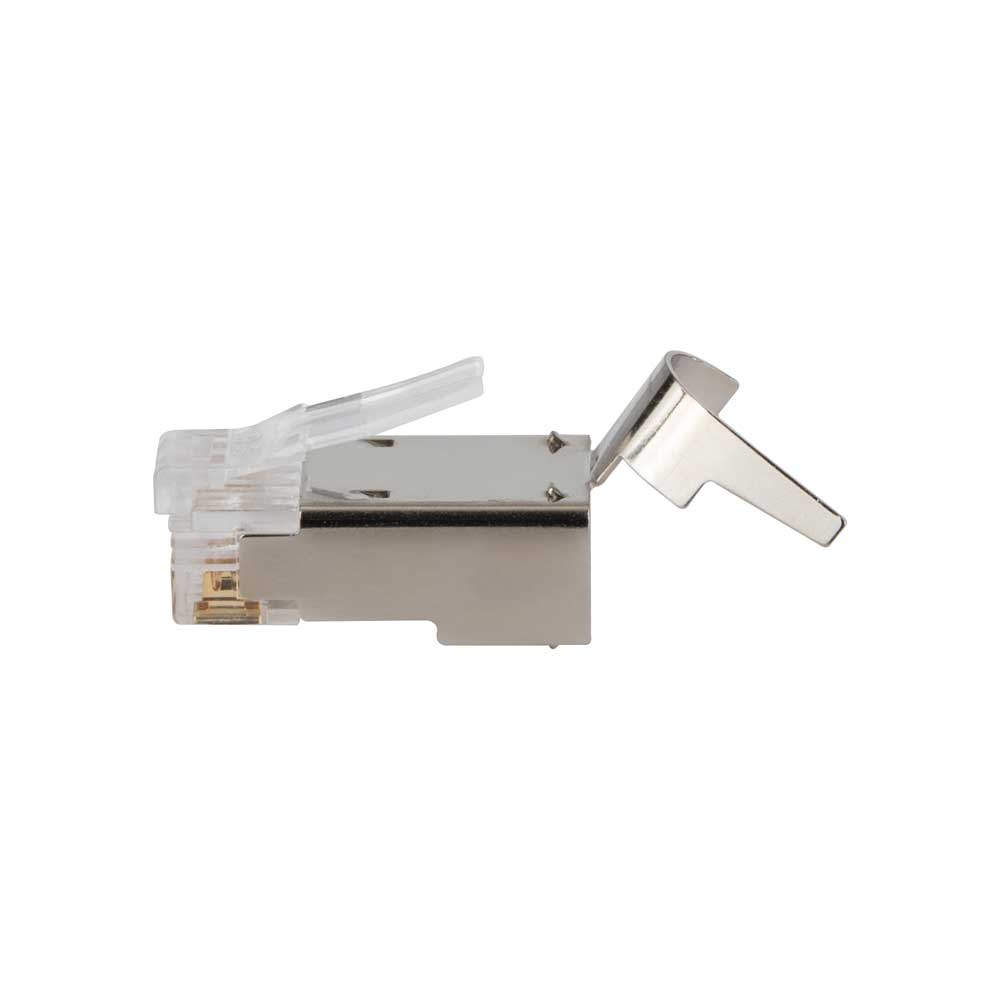

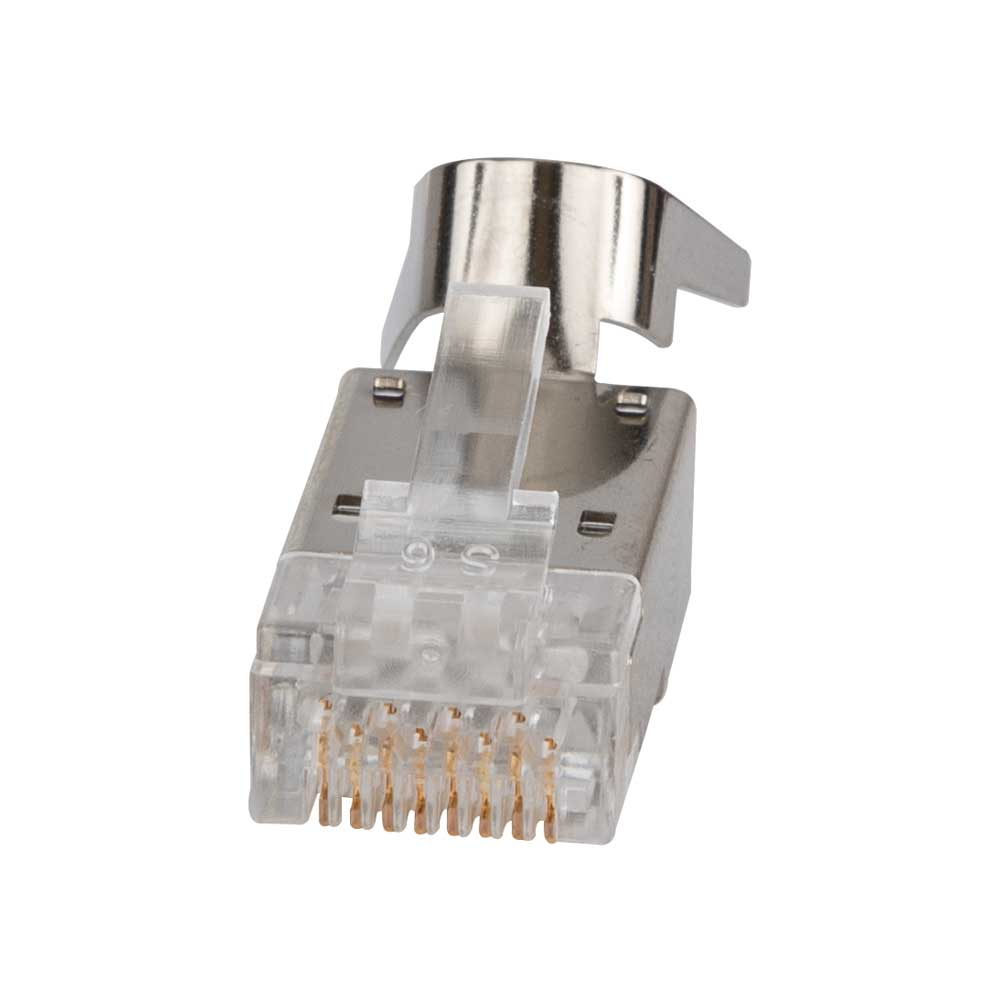

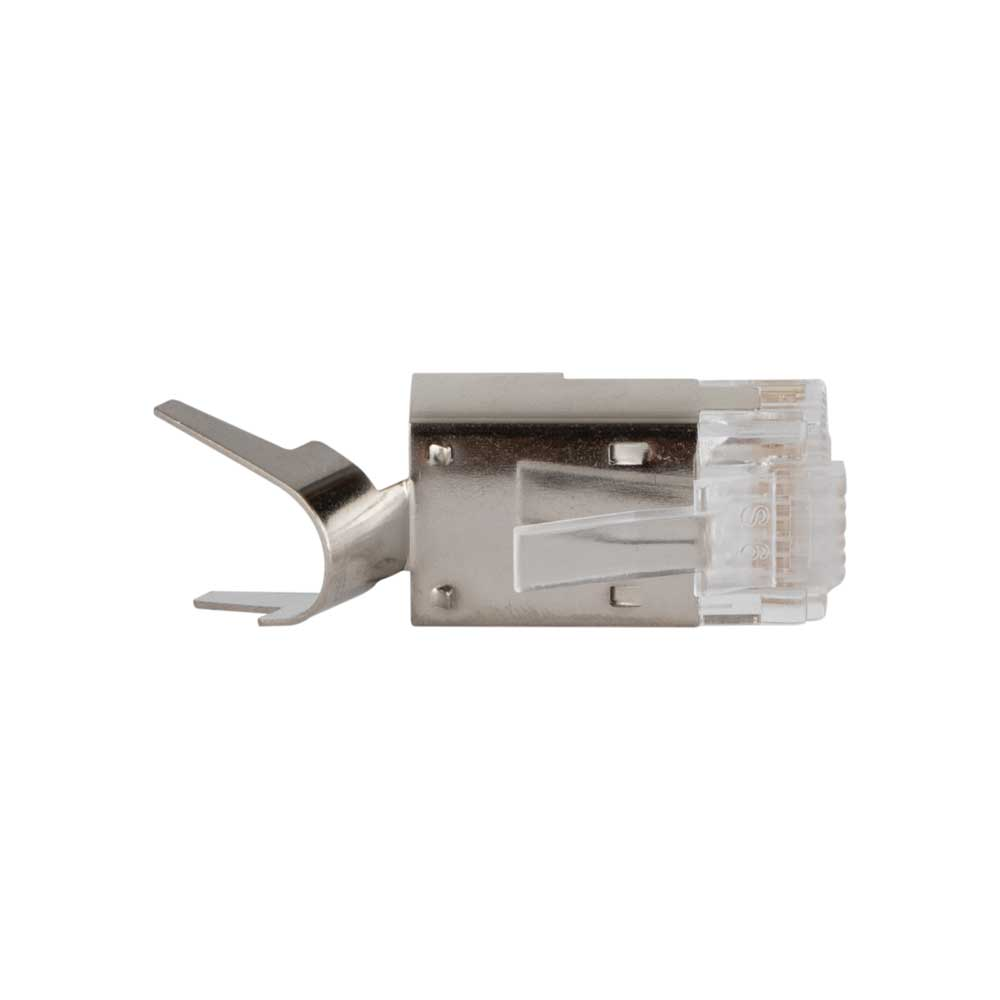

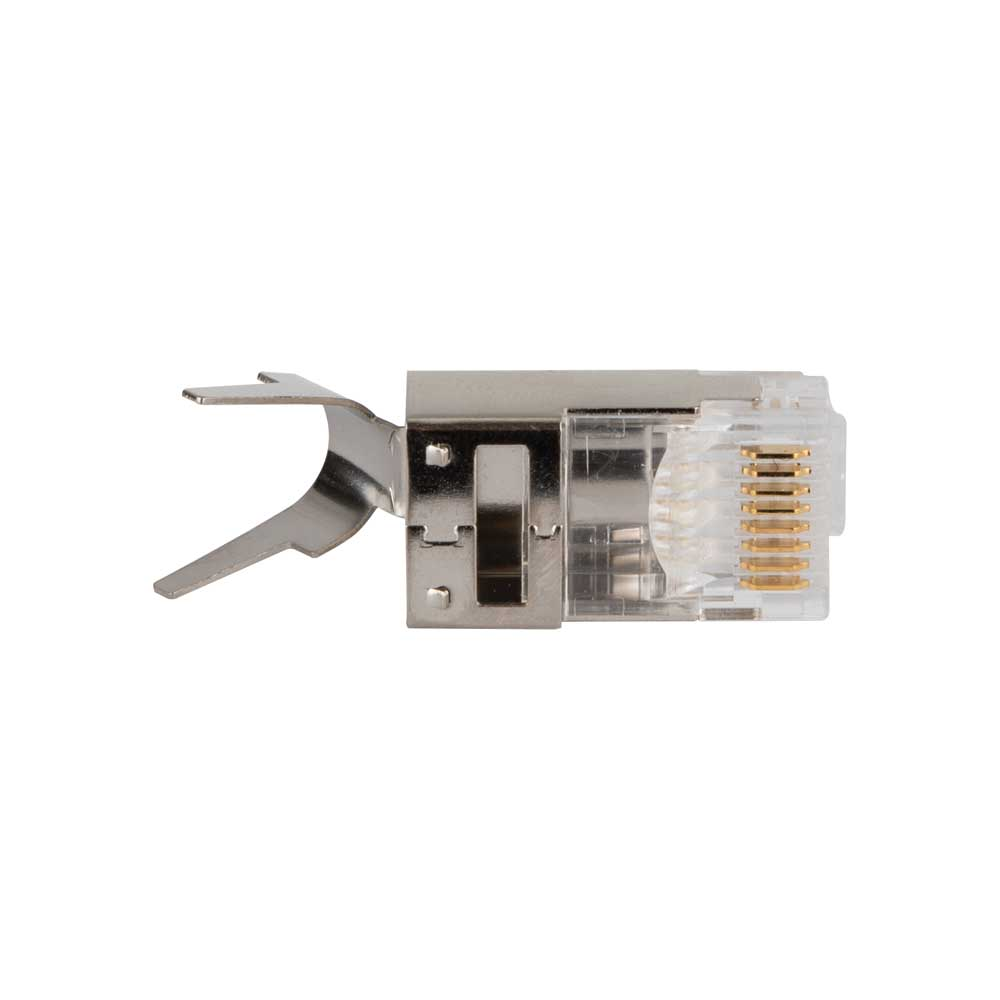

Pass-Thru™ Modular Data Plugs, RJ45-CAT6A, Shielded (STP), 50-Pack

Exclusive Klein-designed CAT6A Pass-Thru™ modular plugs for fast, reliable connector installations for data applications. CAT6A shielded cable easily passes through connector for consistent and secure termination. Saves time, trims flush to end face when used with Klein Tools Pass-Thru™ Modular Crimper Cat. No. VDV226-110, and eliminates wasted materials.

Features

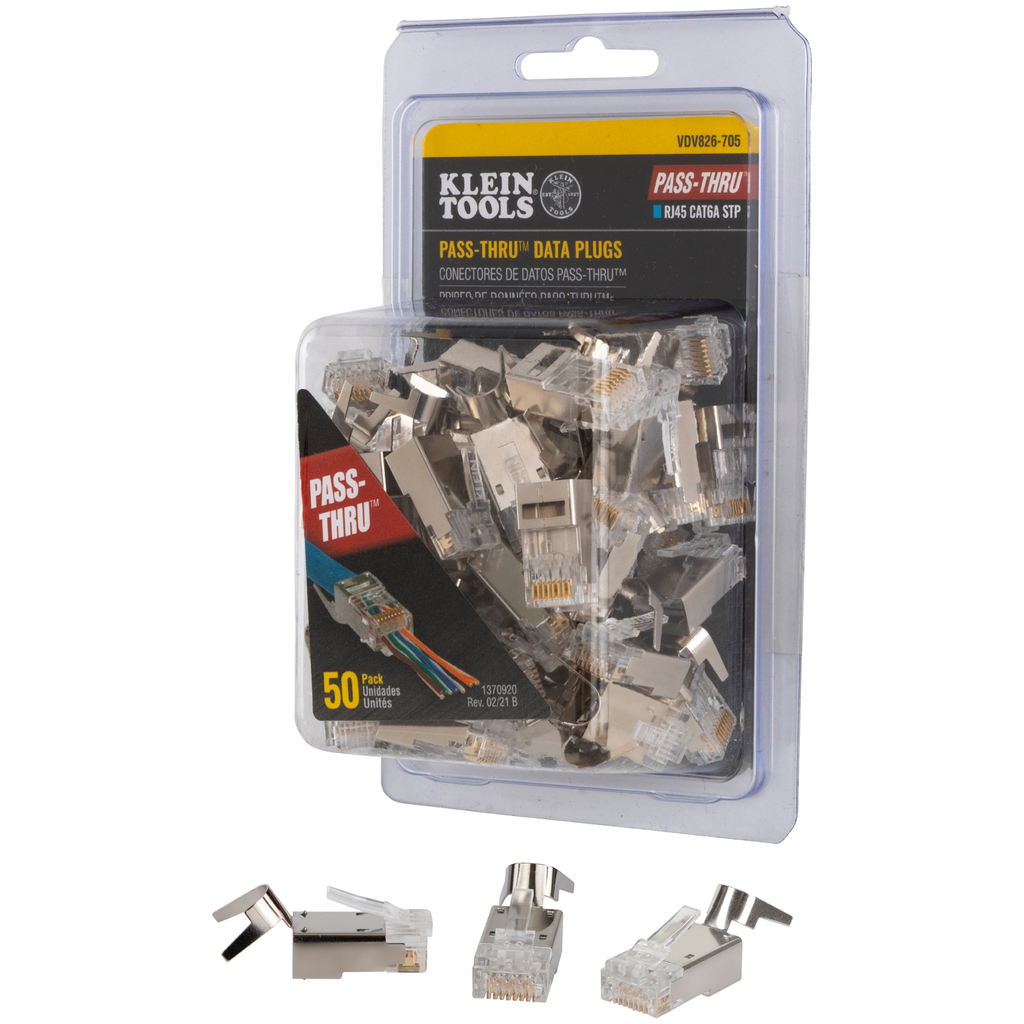

• 50-Pack
• Pass-Thru Technology; Meets All PoE+ Standards
• 50 µ-inch gold plating on all contact surfaces

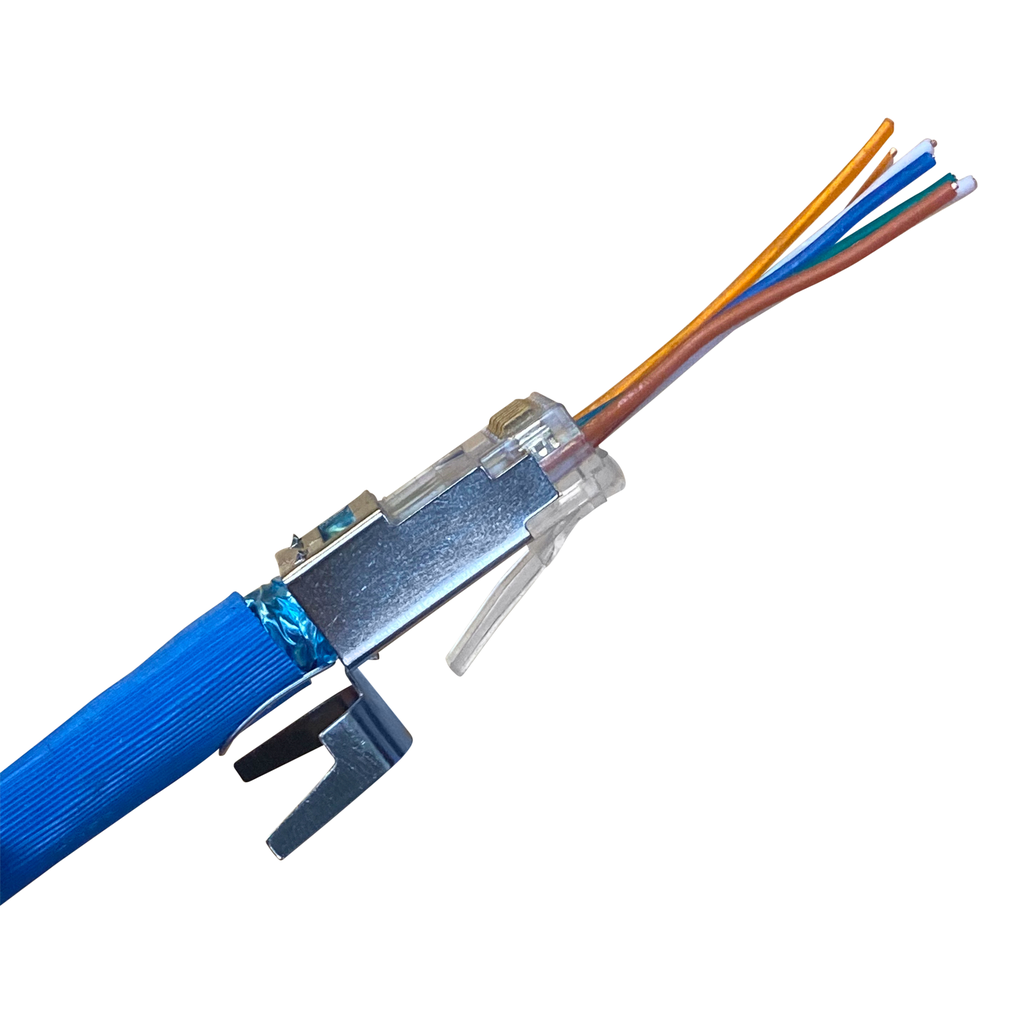

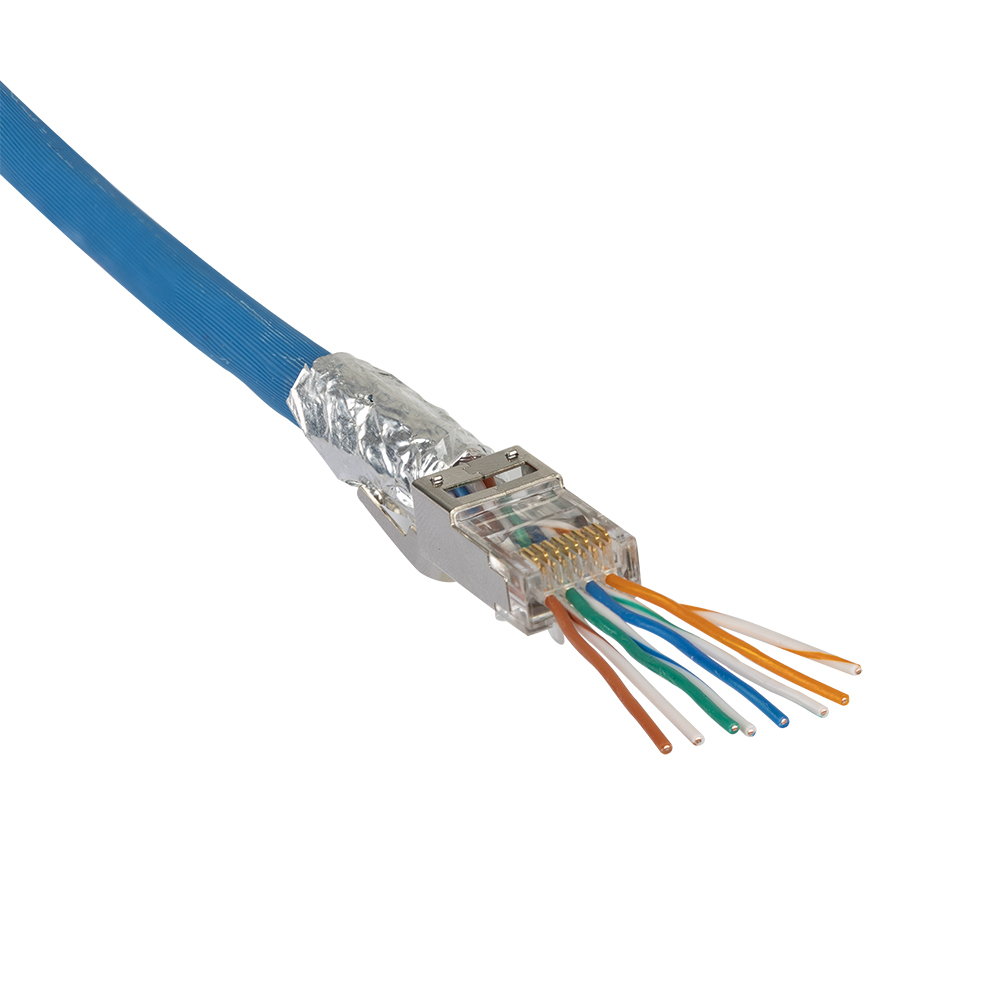

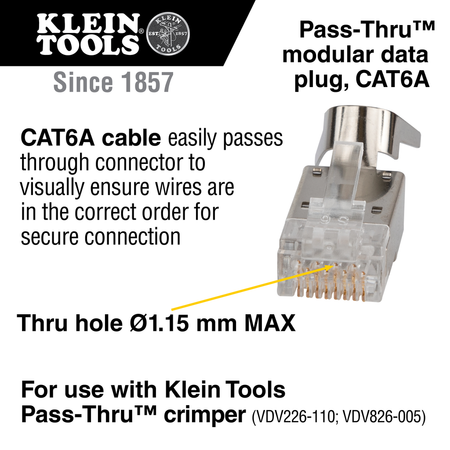

• CAT6A cable easily passes through connector to visually ensure that wires are in the correct order for consistent and secure terminations
• Fully compliant with Power Over Ethernet (PoE and PoE+) standards
• Category 6A performance per TIA/EIA-568-B.2
• 8 position, 8 contact pass through type data plugs for solid or stranded wire

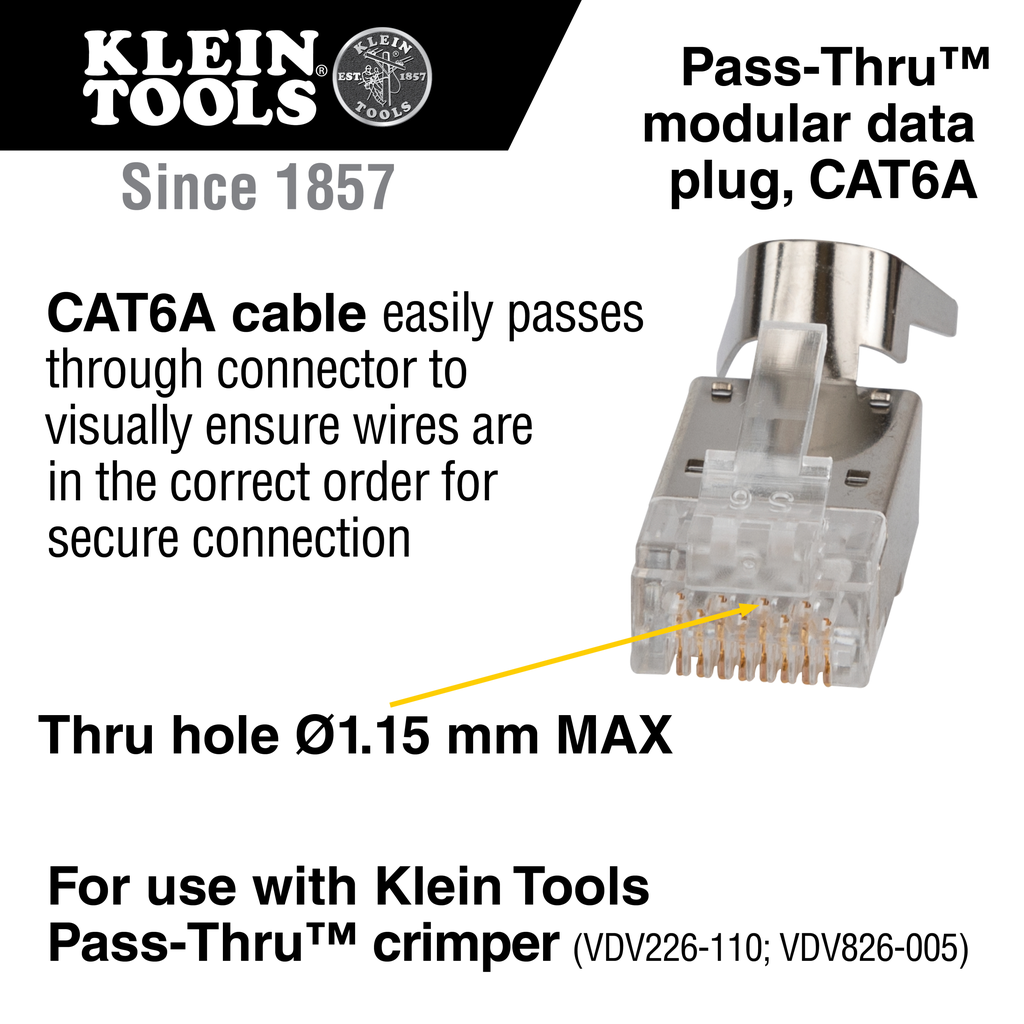

• Max diameter for CAT6A Pass-Thru™ Connectors is 0.043-Inch (1.1 mm)
• Klein exclusive Pass-Thru™ Connectors provide fast, reliable connector installations for data applications
• For CAT6A shielded cable and larger diameter/thicker jacket CAT6 cable

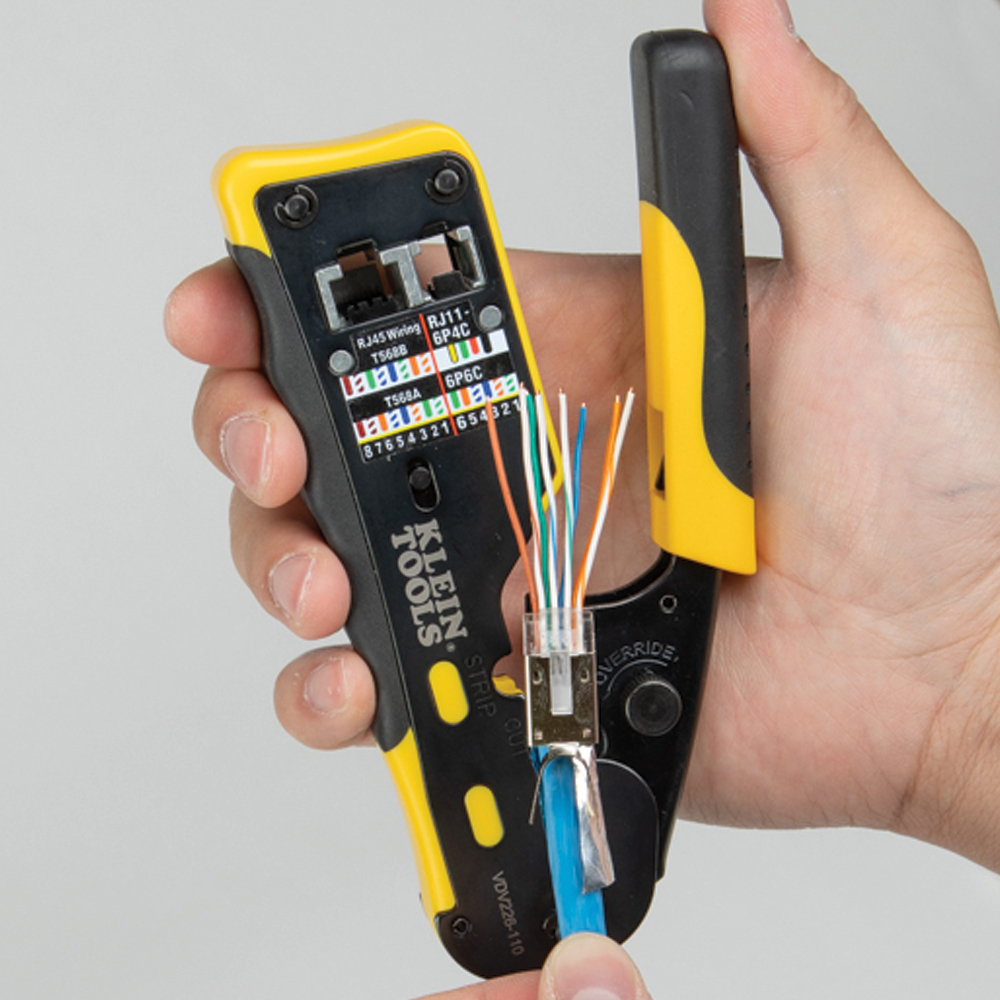

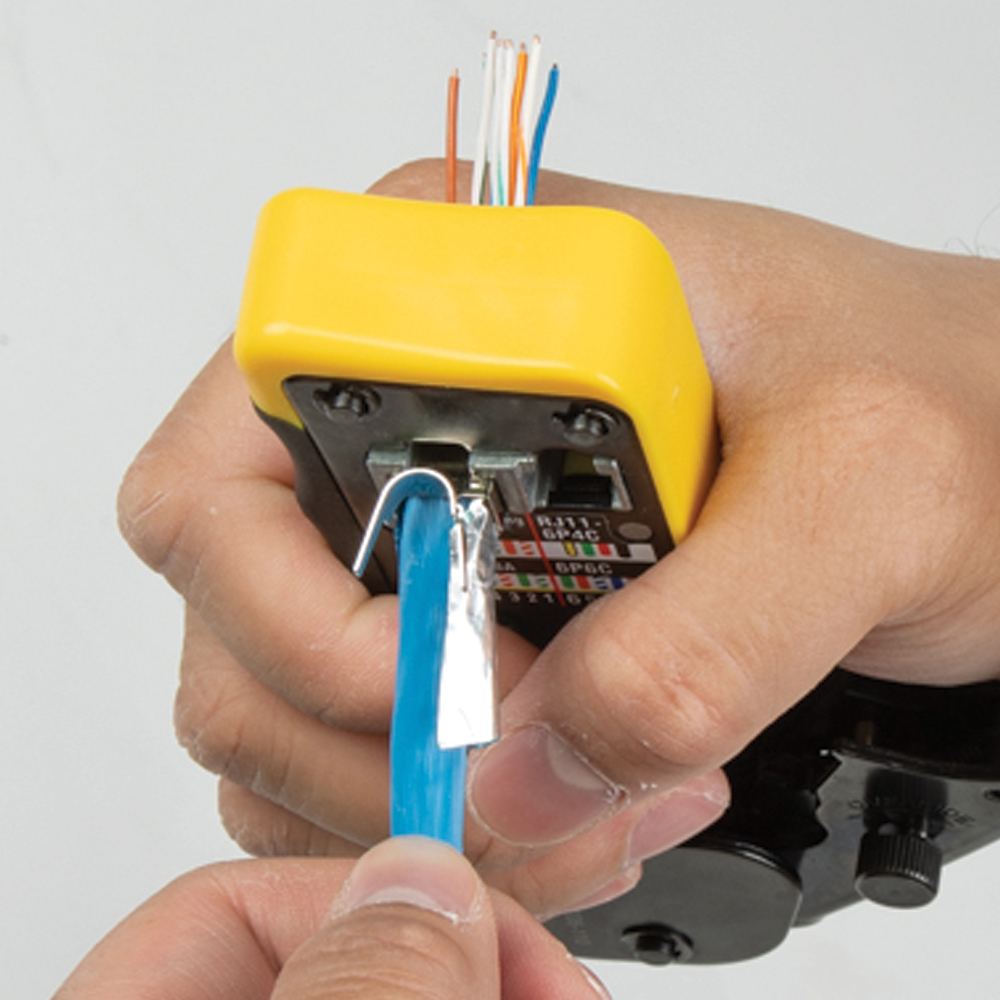

• Requires pass through type crimping tool (Cat. No. VDV226-110 recommended)

Warnings

• Do NOT use on energized circuits or cabling systems.

Specifications

• Cable Type: CAT6A STP and Larger Diameter CAT6
• Overall Height (Inch): 0.6
• Depth: 0.8000 in
• Overall Length (cm): 2
• Weight (oz): 6.05
• Solid Conductor Wire: Yes
• Application: Voice and Data
• Connector Color: Clear
• Height: 0.6000 in
• Overall Width (cm): 1
• Connector Type: RJ45
• Overall Length (Inch): 0.8
• Weight (g): 172
• Overall Height (cm): 1.5
• Overall Width (Inch): 0.4
• Position & Contacts: 8P 8C
• Weight: 0.0010 lbs
• Width: 0.4000 in
• Material: PVC Plastic; Gold Plated Contacts
• Package Quantity: 50
• Type: Modular
• Stranded Conductor Wire: Yes
