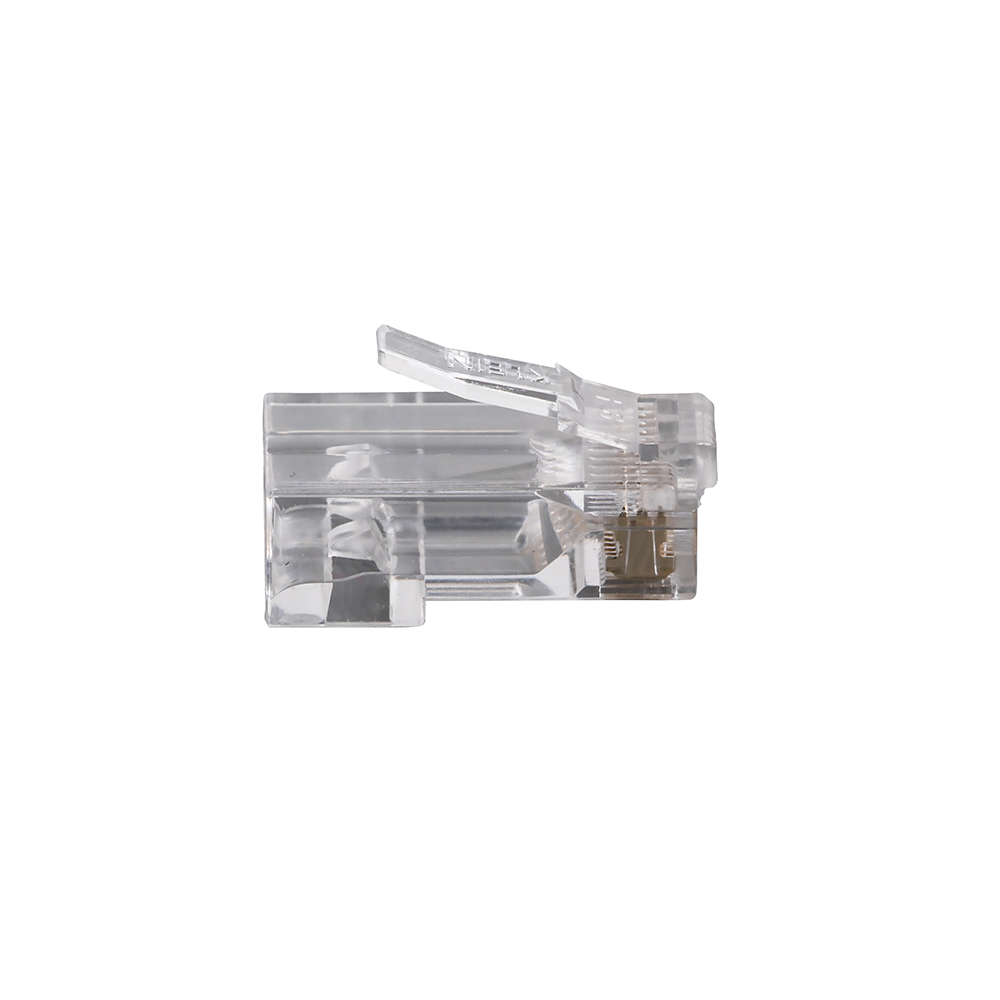

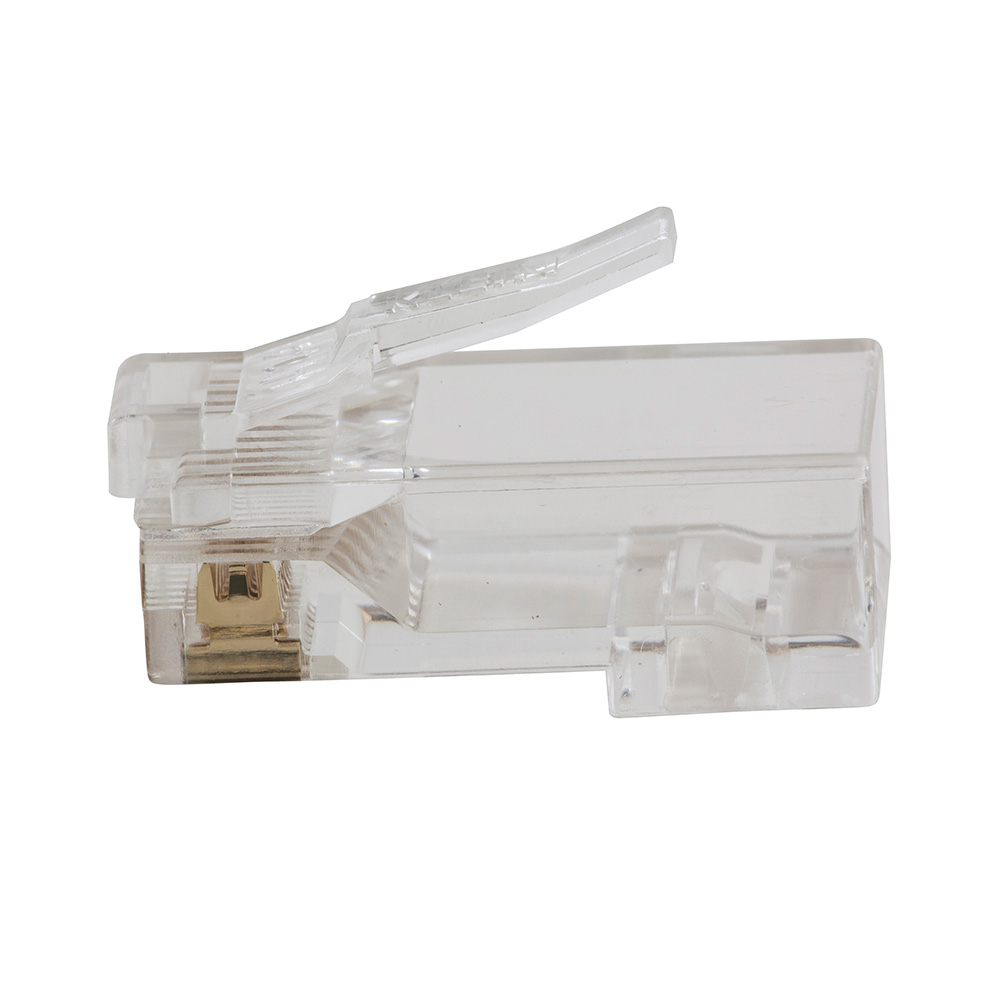

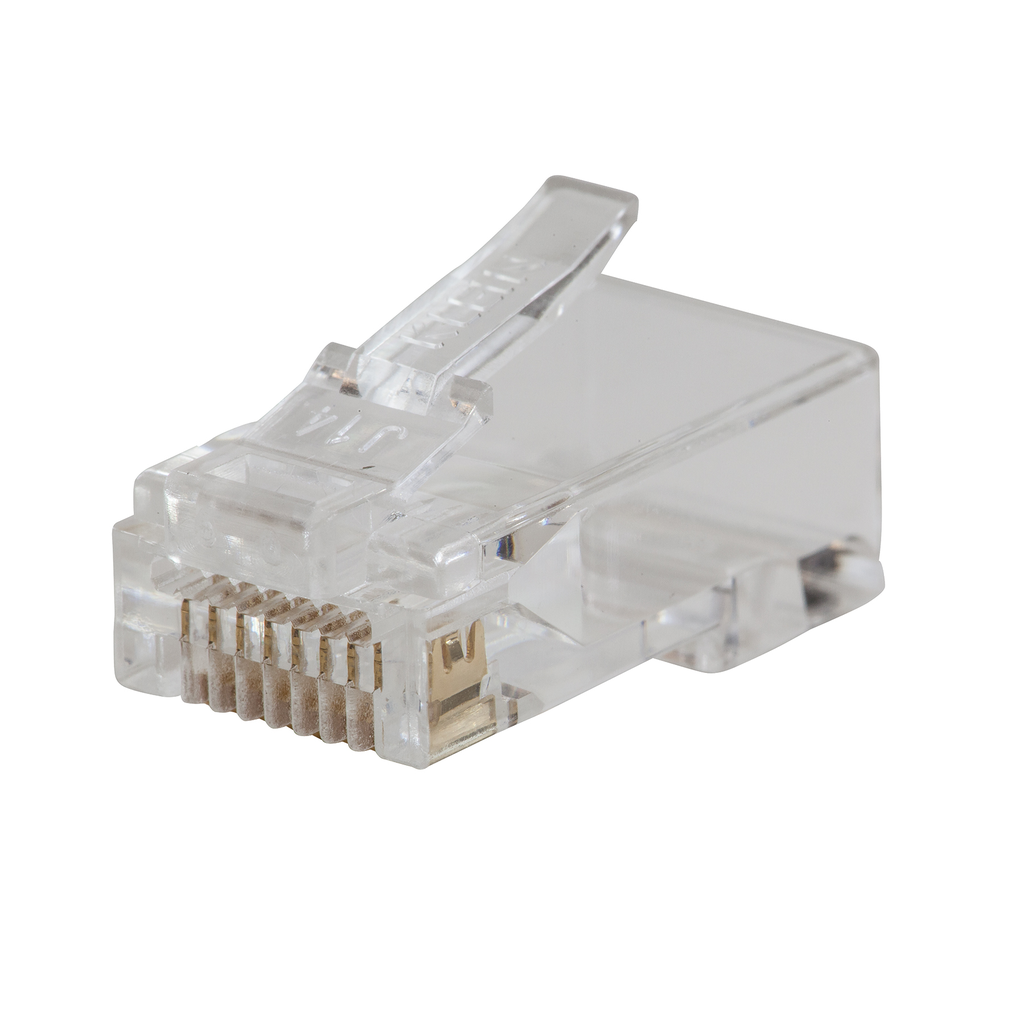

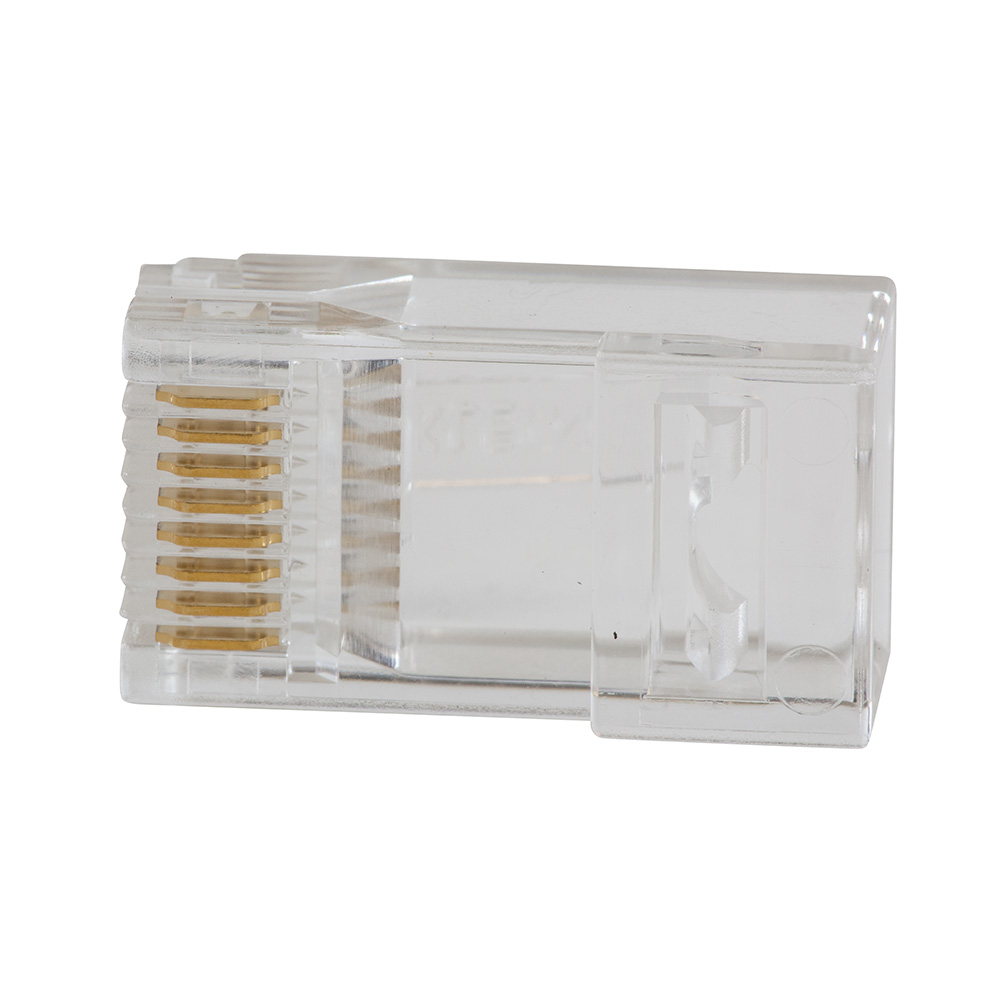

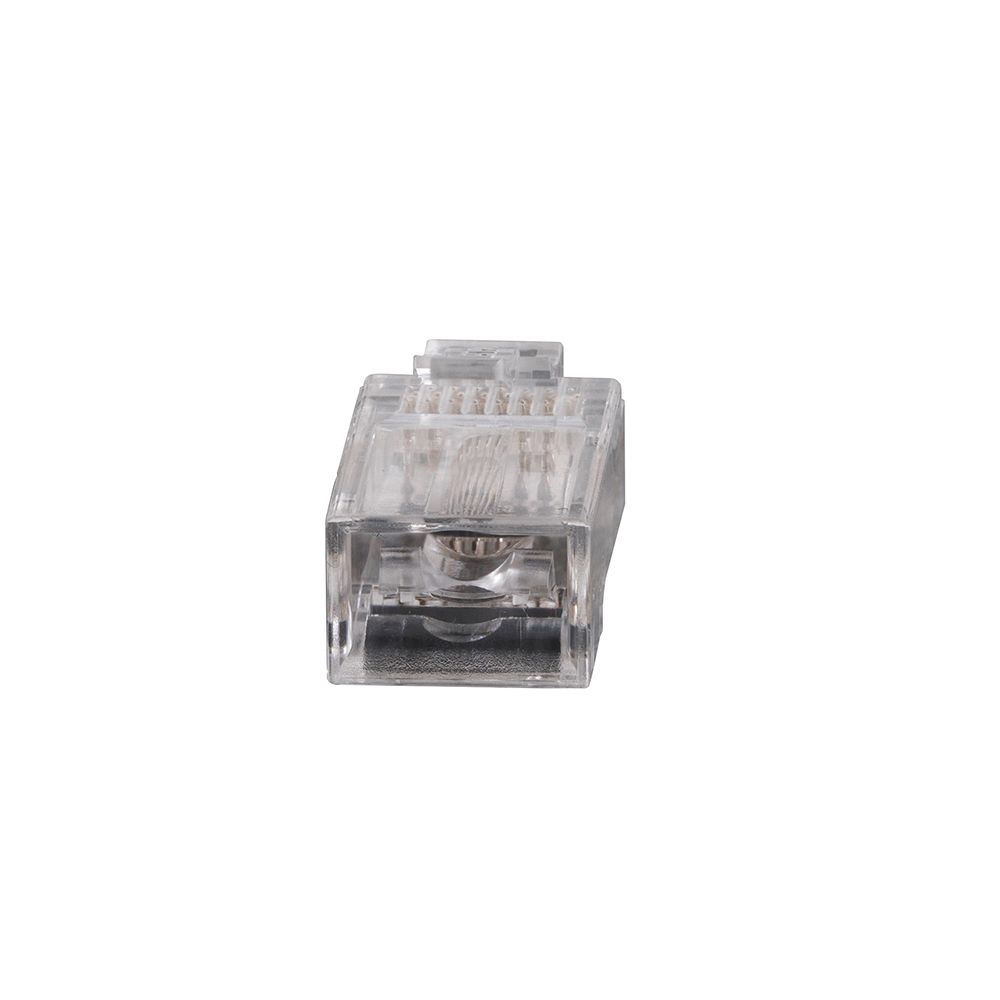

Pass-Thru™ Modular Data Plugs, RJ45-CAT5E, 10-Pack

Exclusive Klein-designed Pass-Thru™ modular plugs for fast, reliable connector installations for data applications. Saves time, trims flush to end face when used with Klein Tools Pass-Thru™ Modular Crimper VDV226-110, and eliminates wasted materials. 10-Pack of these 8 position, 8 contact Pass Through data plugs for solid or stranded cable.

Features

• For use with Klein Tools Pass-Thru™ Modular Crimper VDV226-110
• Max diameter for CAT5E Pass-Thru™ Connectors is 0.04-Inch (1.01 mm)
• Klein exclusive Pass-Thru™ Connectors provide fast, reliable connector installations for data applications
• Pass-Thru Technology
• 50 µ-inch minimum gold plating on all contact surfaces

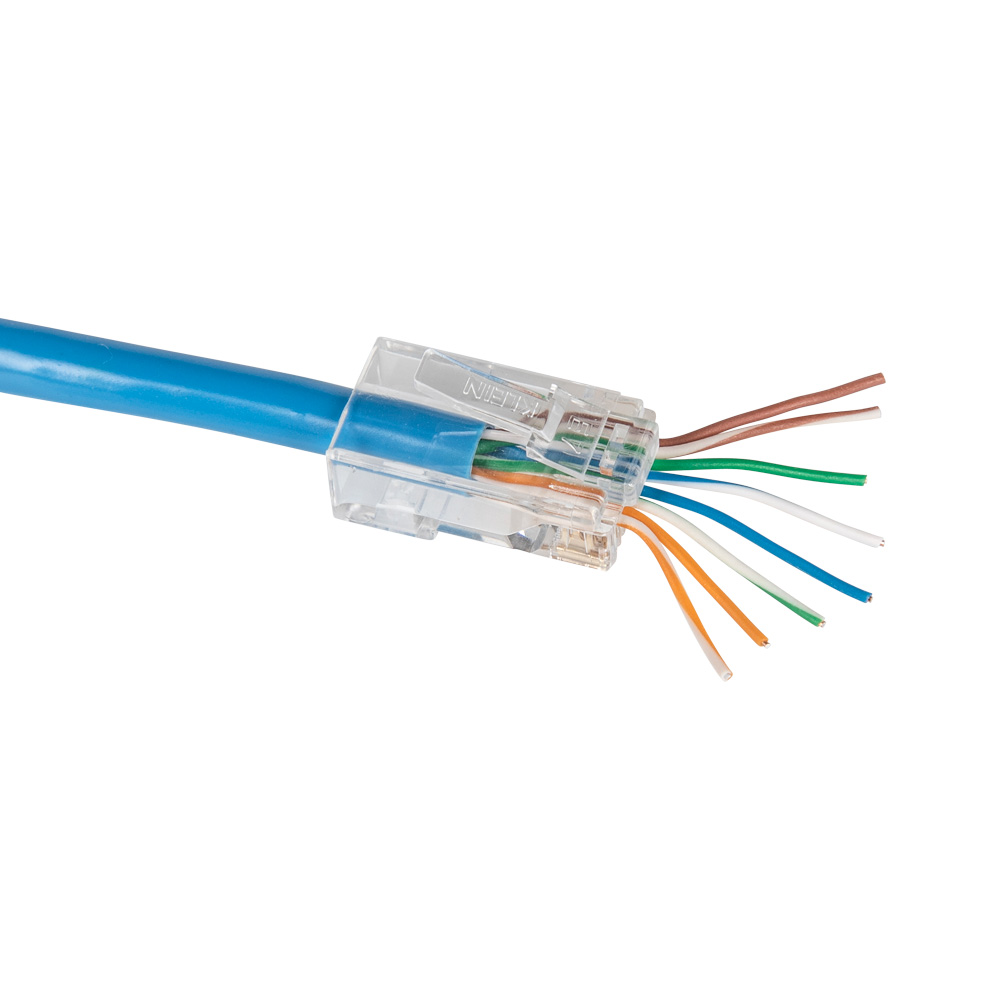

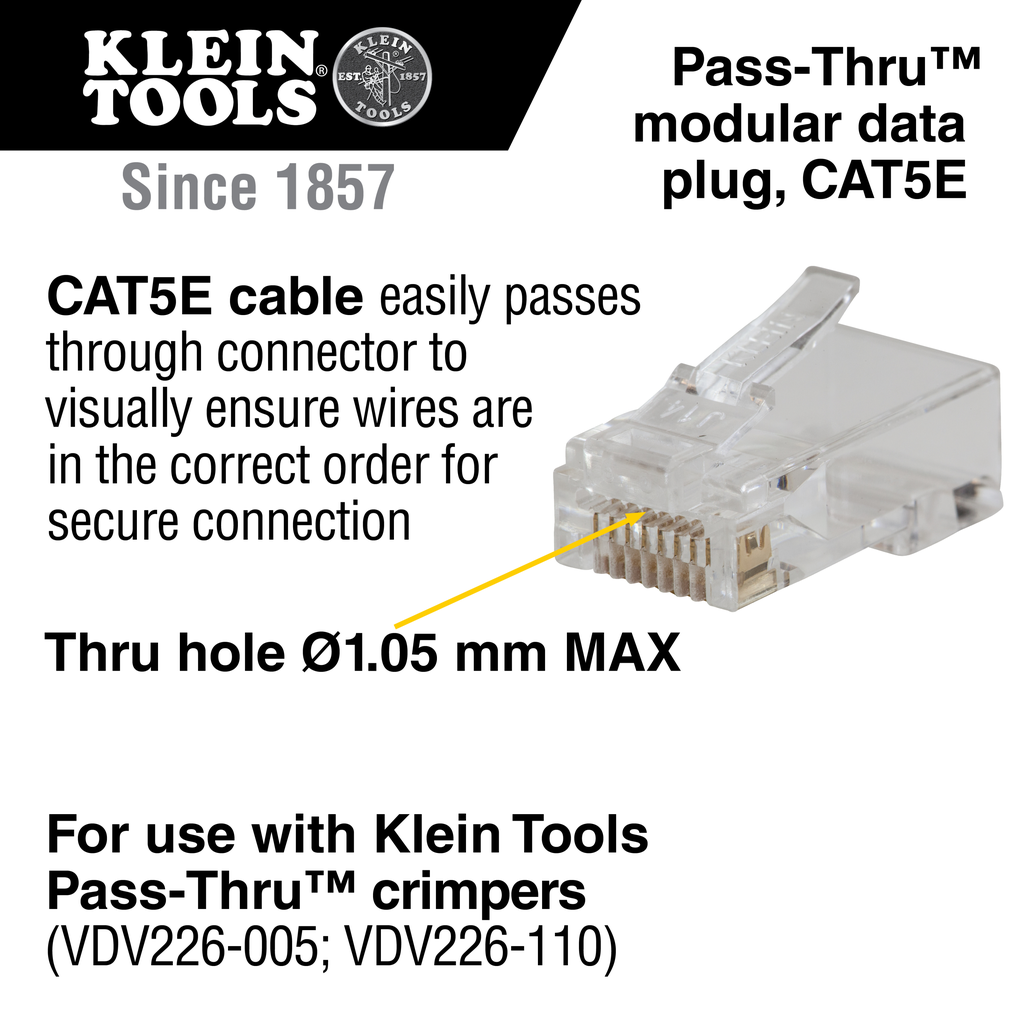

• CAT5e Cable easily passes through connector to visually ensure that wires are in the correct order for consistent and secure terminations
• 10-Pack
• Category 5e performance per EIA/TIA B.2. and RoHS compliant
• 8 position, 8 contact Pass Through style data plug for solid or stranded cable

Warnings

• Do NOT use on energized circuits or cabling systems

Specifications

• Depth: 0.8850 in
• Width: 0.4590 in
• Position & Contacts: 8P 8C
• Solid Conductor Wire: Yes
• Weight: 0.0060 lbs
• Connector Type: RJ45
• Height: 0.0920 in
• Weight (g): 28
• Overall Length (Inch): 0.875
• Type: Modular
• Overall Length (cm): 2.2
• Overall Height (cm): 1.2
• Application: Voice and Data
• Connector Color: Clear
• Material: PVC Plastic; Gold Plated Contacts
• Overall Height (Inch): 0.453
• Overall Width (Inch): 0.094
• Weight (oz): 1
• Stranded Conductor Wire: Yes
• Overall Width (cm): 0.2
• Package Quantity: 10
• Cable Type: CAT5e
