Pass-Thru™ Modular Data Plugs RJ45-CAT6, 10-Pack

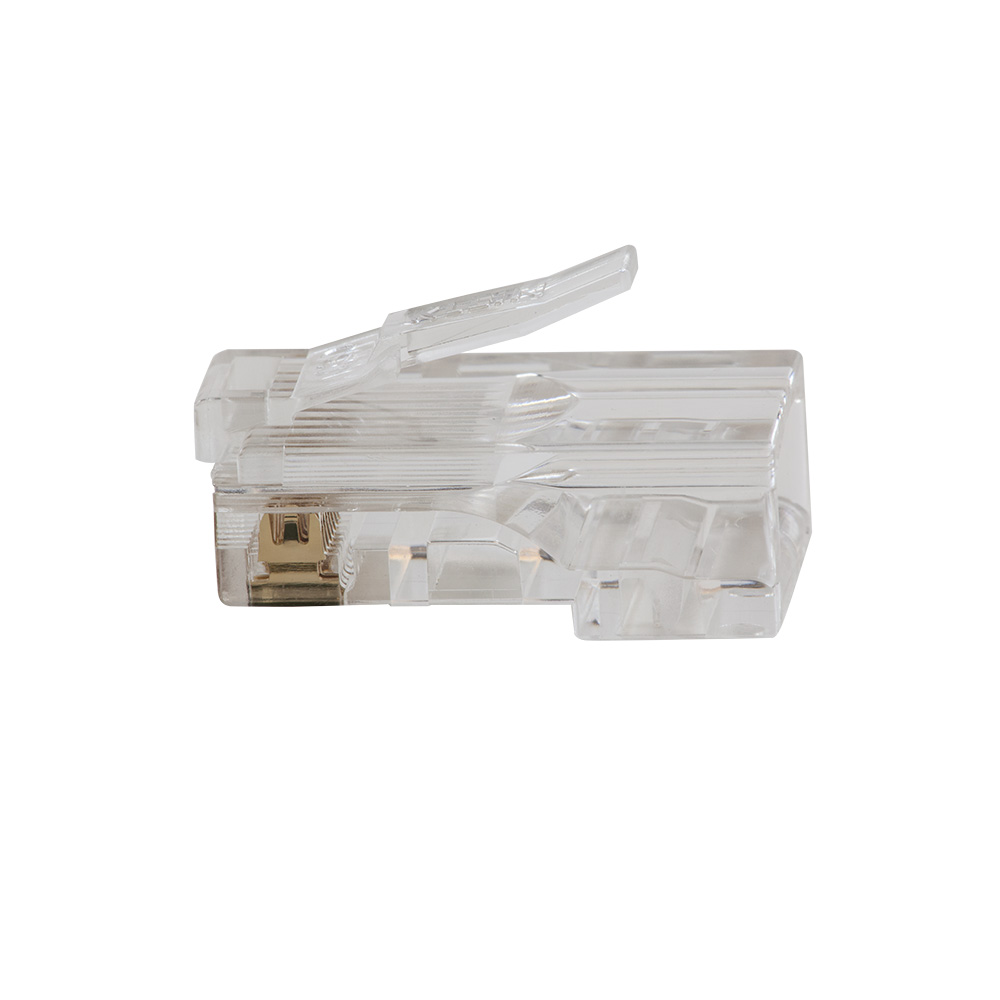

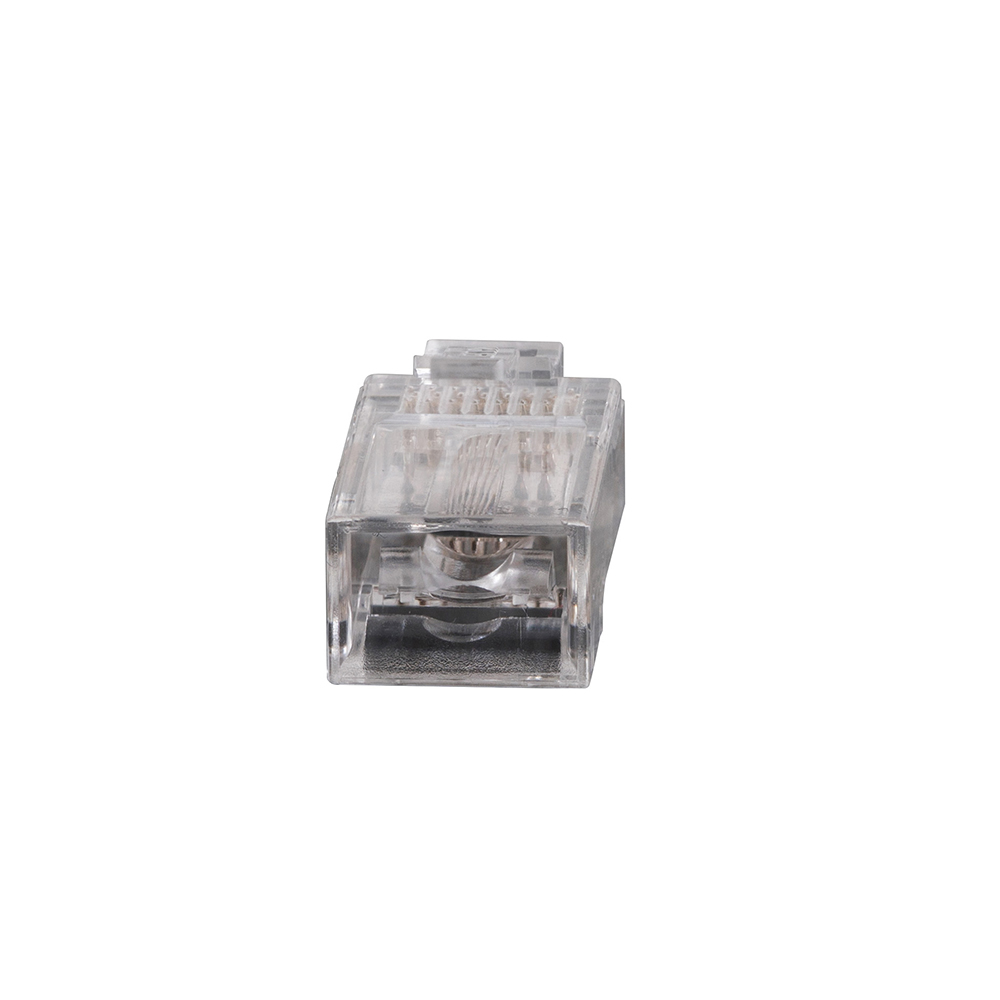

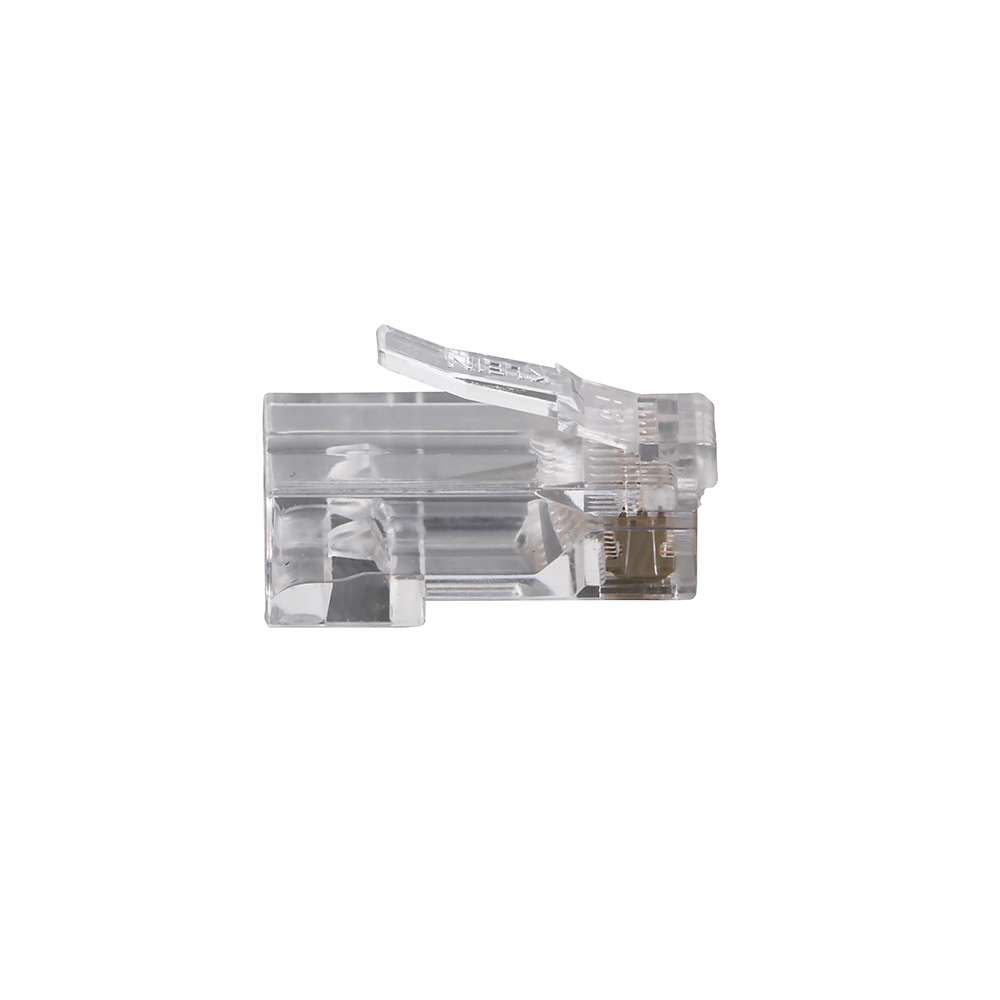

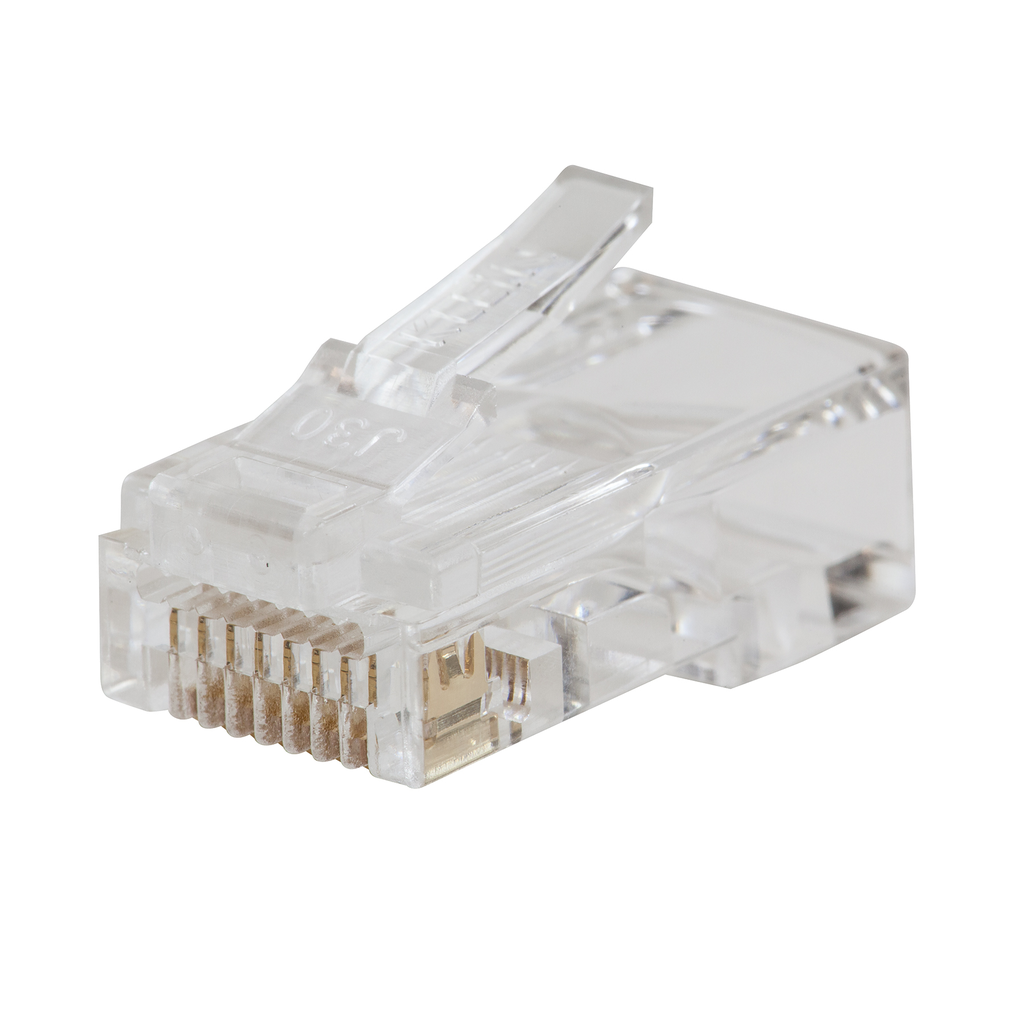

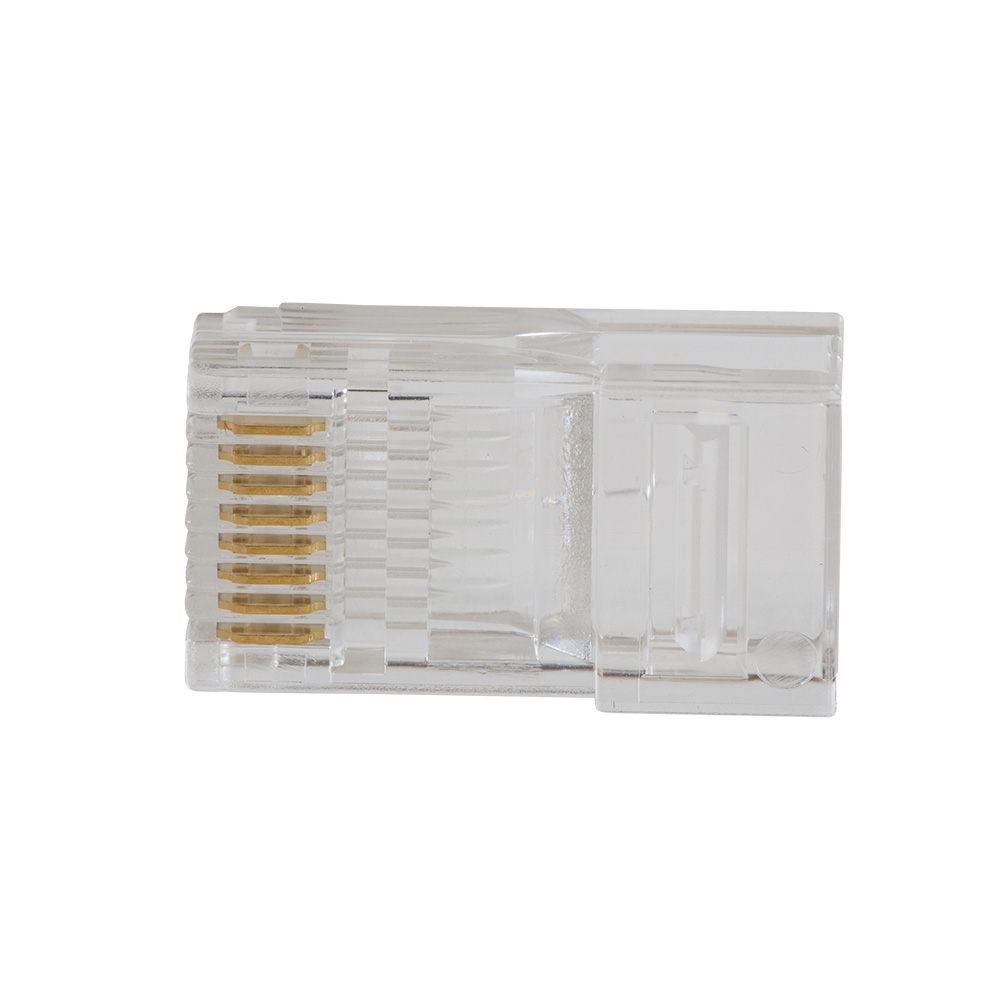

Exclusive Klein-designed Pass-Thru™ modular plugs for fast, reliable connector installations for data applications. Cable easily passes through connector for consistent and secure termination. Saves time, trims flush to end face when used with Klein Tools Pass-Thru™ Modular Crimper VDV226-110, and eliminates wasted materials. These CAT6 connectors are fully compliant with all PoE standards. Use with Klein Tools Pass-Thru™ Modular Crimper, VDV226-110.

Features

• Klein exclusive Pass-Thru™ Connectors provide fast, reliable connector installations for data applications
• 8 position, 8 contact Pass Through style data plug for solid or stranded cable
• Category 6 performance per EIA/TIA B.2.and RoHS compliant
• 10-Pack

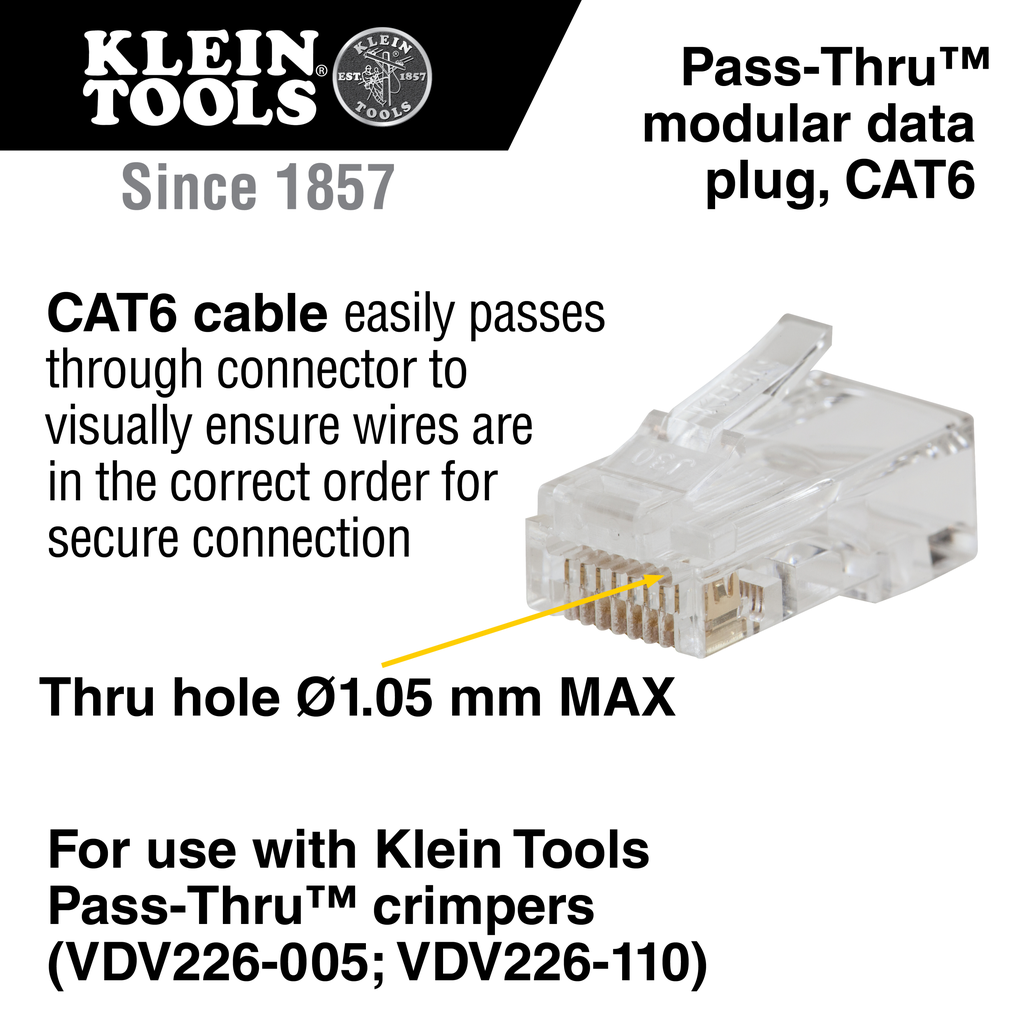

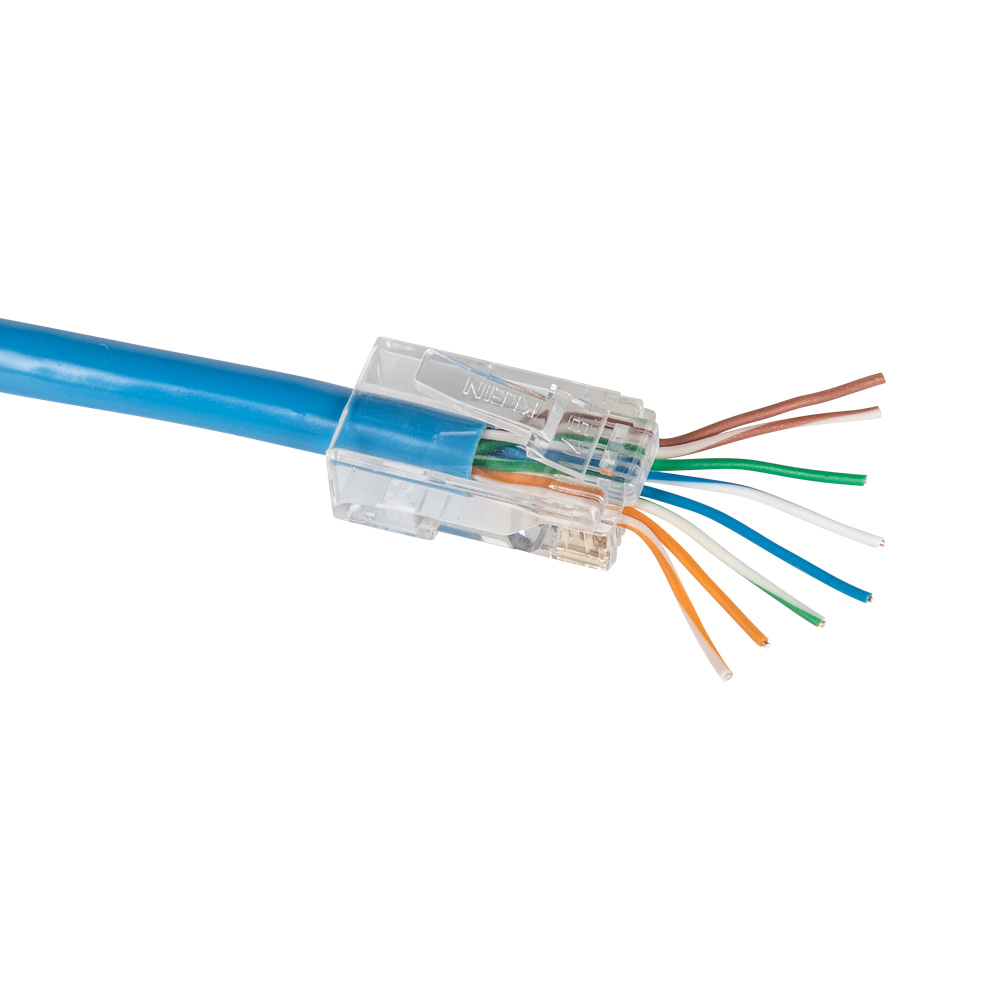

• CAT6 Cable easily passes through connector to visually ensure that wires are in the correct order for consistent and secure terminations
• 50 µ-inch minimum gold plating on all contact surfaces
• Fully compliant with Power Over Ethernet (PoE and PoE+) standards
• For use with Klein Tools Pass-Thru™ Modular Crimper VDV226-110
• Pass-Thru Technology; Meets All PoE Standards

Warnings

• Do NOT use on energized circuits or cabling systems

Specifications

• Width: 0.4590 in
• Connector Color: Clear
• Type: Modular
• Overall Height (Inch): 0.453
• Material: PVC Plastic; Gold Plated Contacts
• Connector Type: RJ45
• Weight (g): 28
• Overall Width (cm): 0.2
• Overall Length (cm): 2.2
• Weight (oz): 1
• Depth: 0.8850 in
• Application: Voice and Data
• Stranded Conductor Wire: Yes
• Overall Length (Inch): 0.875
• Solid Conductor Wire: Yes
• Overall Width (Inch): 0.094
• Cable Type: CAT6
• Position & Contacts: 8P 8C
• Height: 0.0920 in
• Overall Height (cm): 1.2
• Weight: 0.0060 lbs
• Package Quantity: 10
