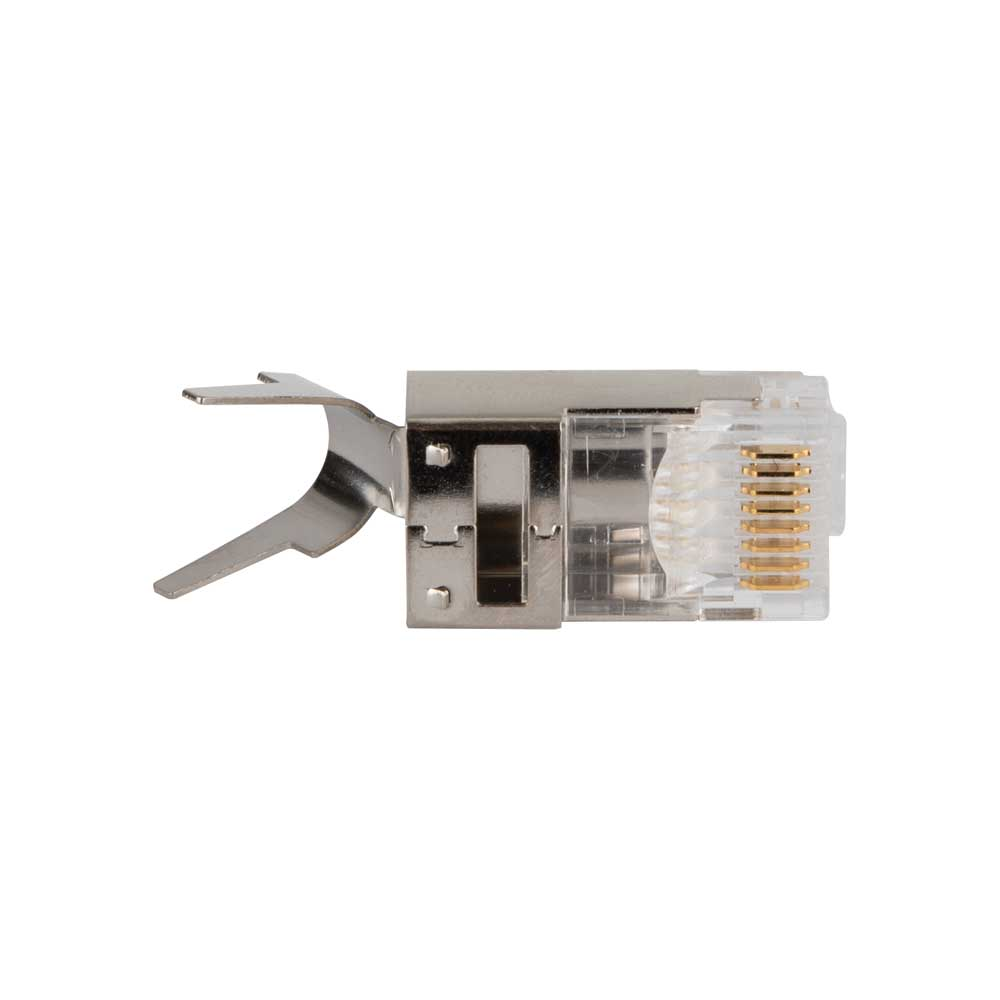

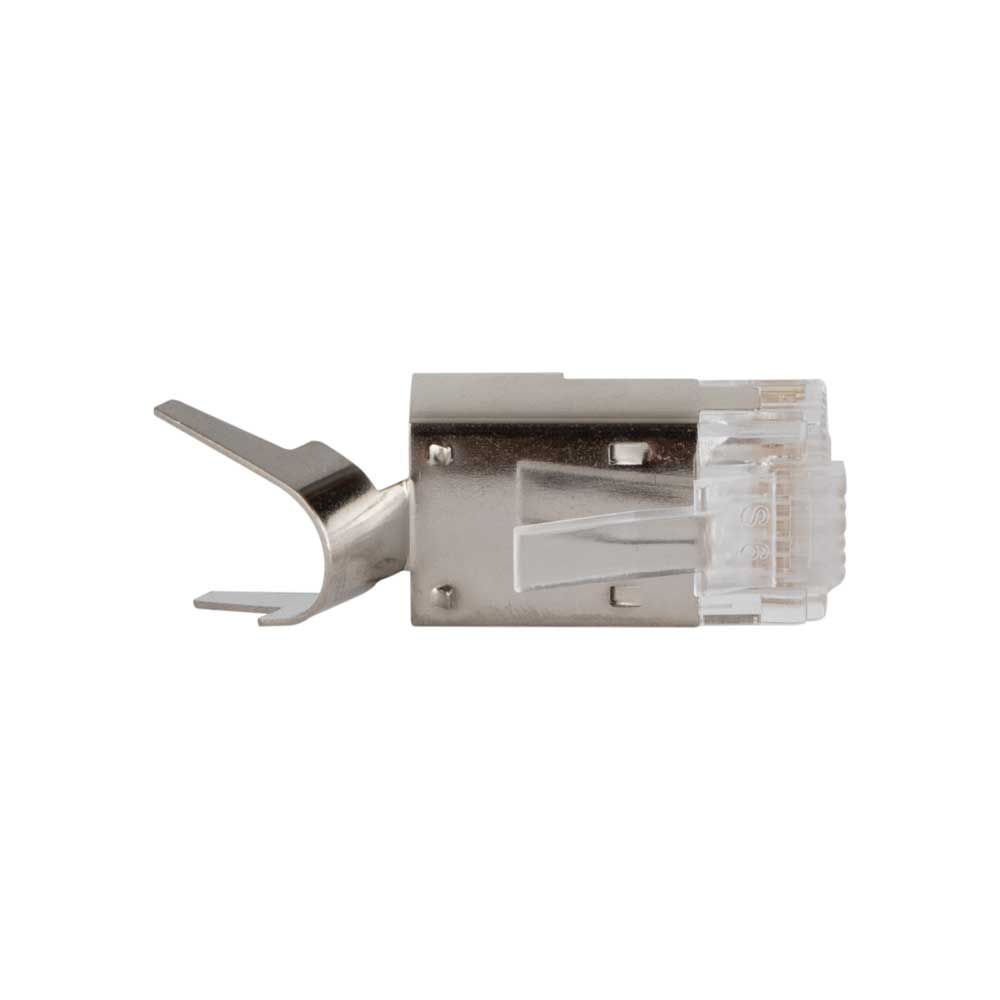

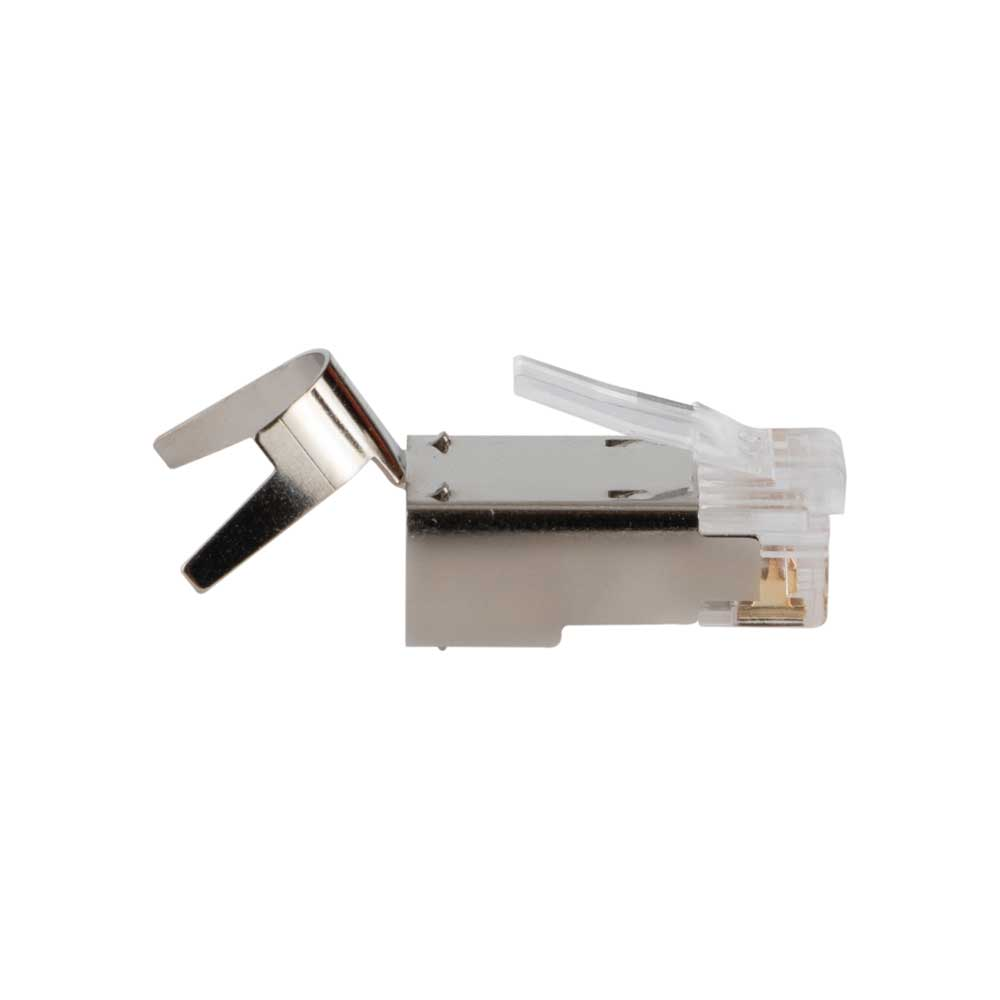

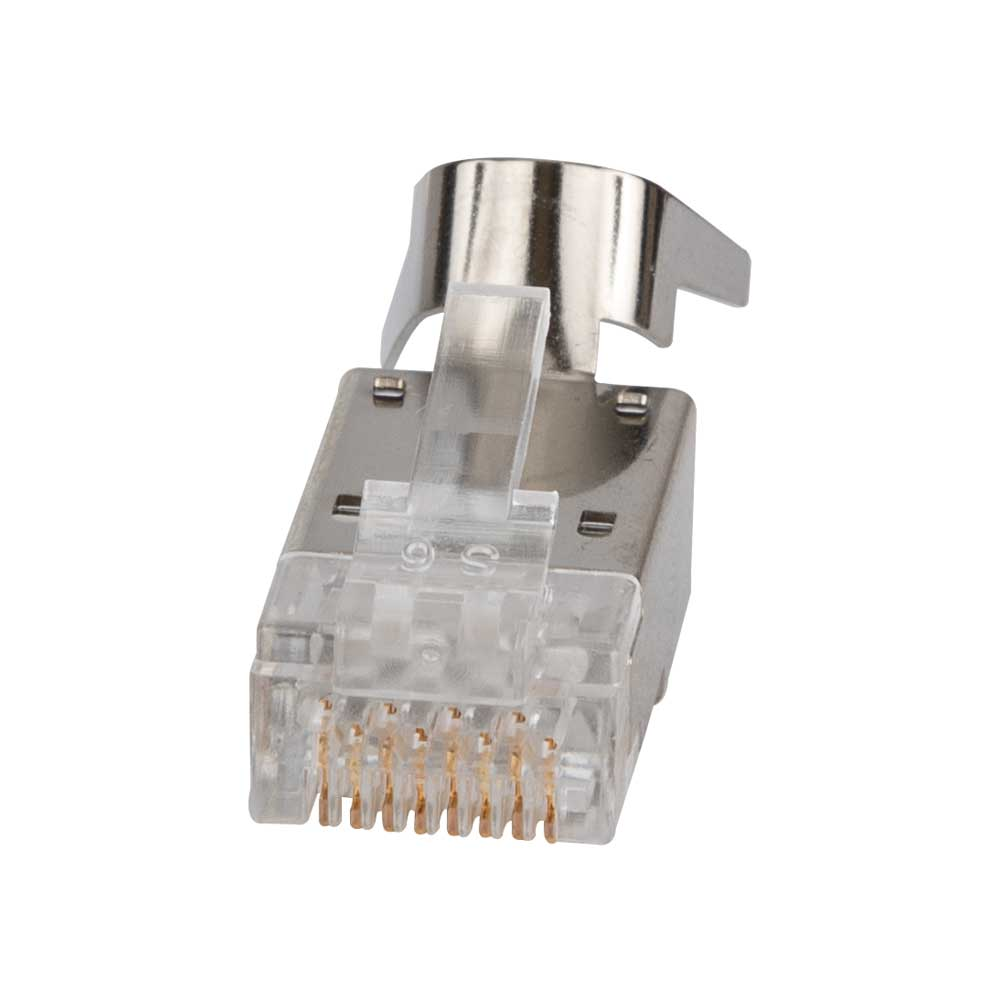

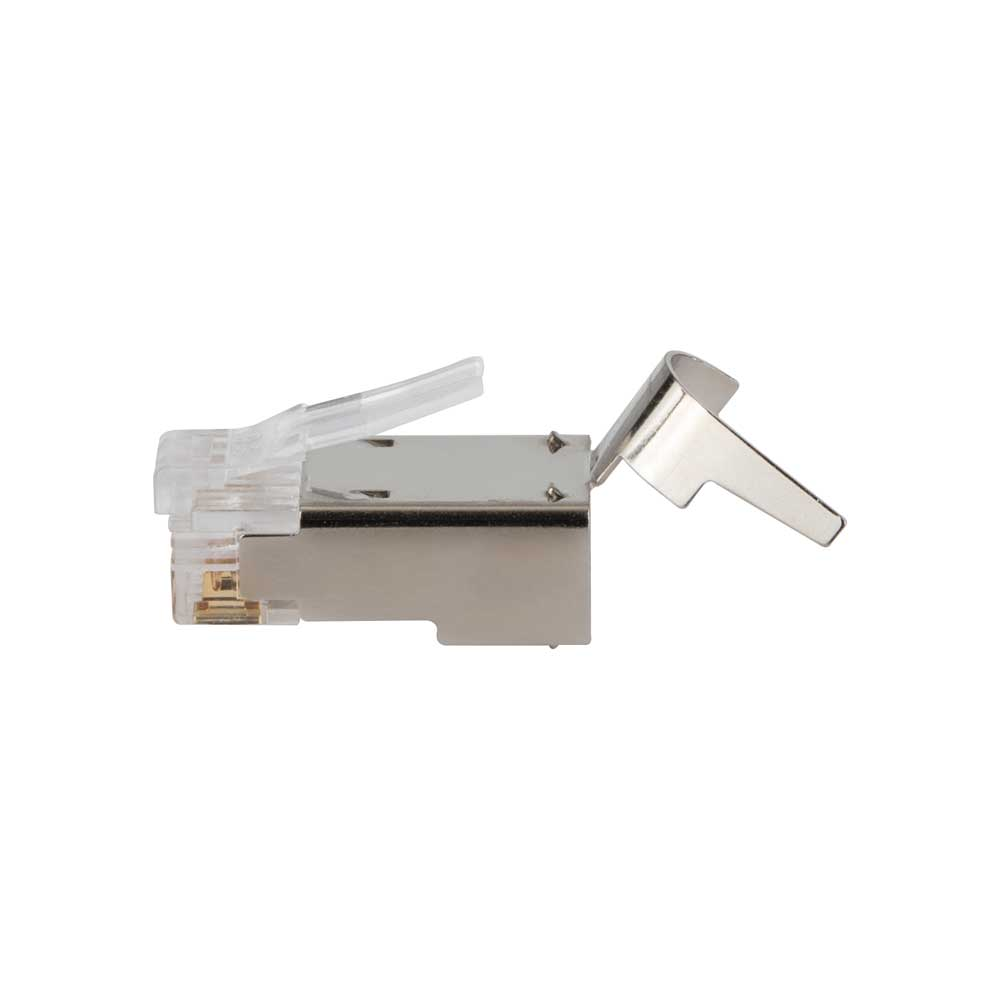

Pass-Thru™ Modular Data Plug, RJ45-CAT6A, Shielded (STP), 100-Pack

Exclusive Klein-designed CAT6A Pass-Thru™ modular plugs for fast, reliable connector installations for data applications. CAT6A shielded cable easily passes through connector for consistent and secure termination. Saves time, trims flush to end face when used with Klein Tools Pass-Thru™ Modular Crimper Cat. No. VDV226-110, and eliminates wasted materials.

Features

• 8 position, 8 contact pass through type data plugs for solid or stranded wire

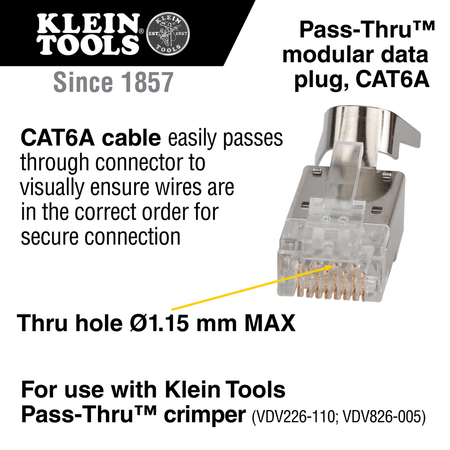

• Max diameter for CAT6A Pass-Thru™ Connectors is 0.043-Inch (1.1 mm)
• Klein exclusive Pass-Thru™ Connectors provide fast, reliable connector installations for data applications
• 50 µ-inch gold plating on all contact surfaces
• Category 6A performance per TIA/EIA-568-B.2

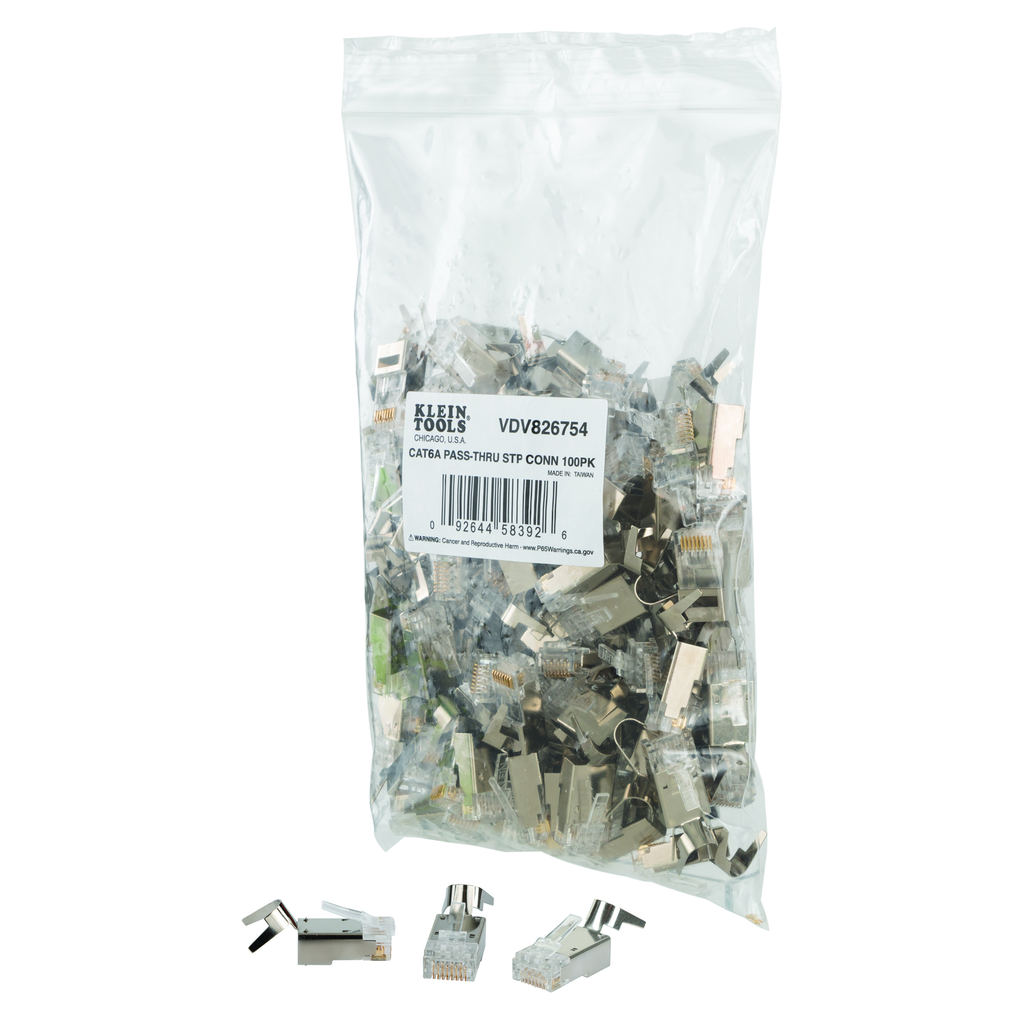

• 100-Pack
• Pass-Thru™ Technology; Meets All PoE+ Standards
• Fully compliant with Power Over Ethernet (PoE and PoE+) standards
• For CAT6A shielded cable and larger diameter/thicker jacket CAT6 cable

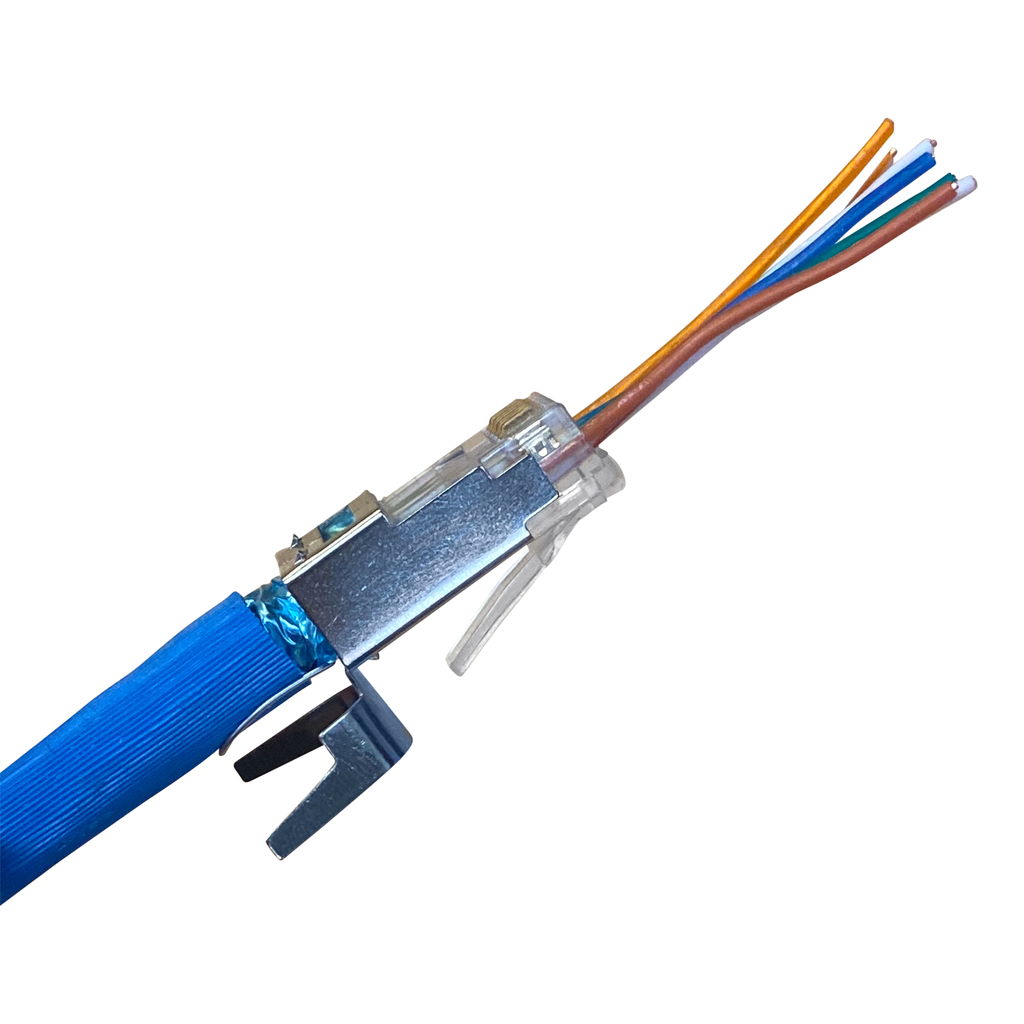

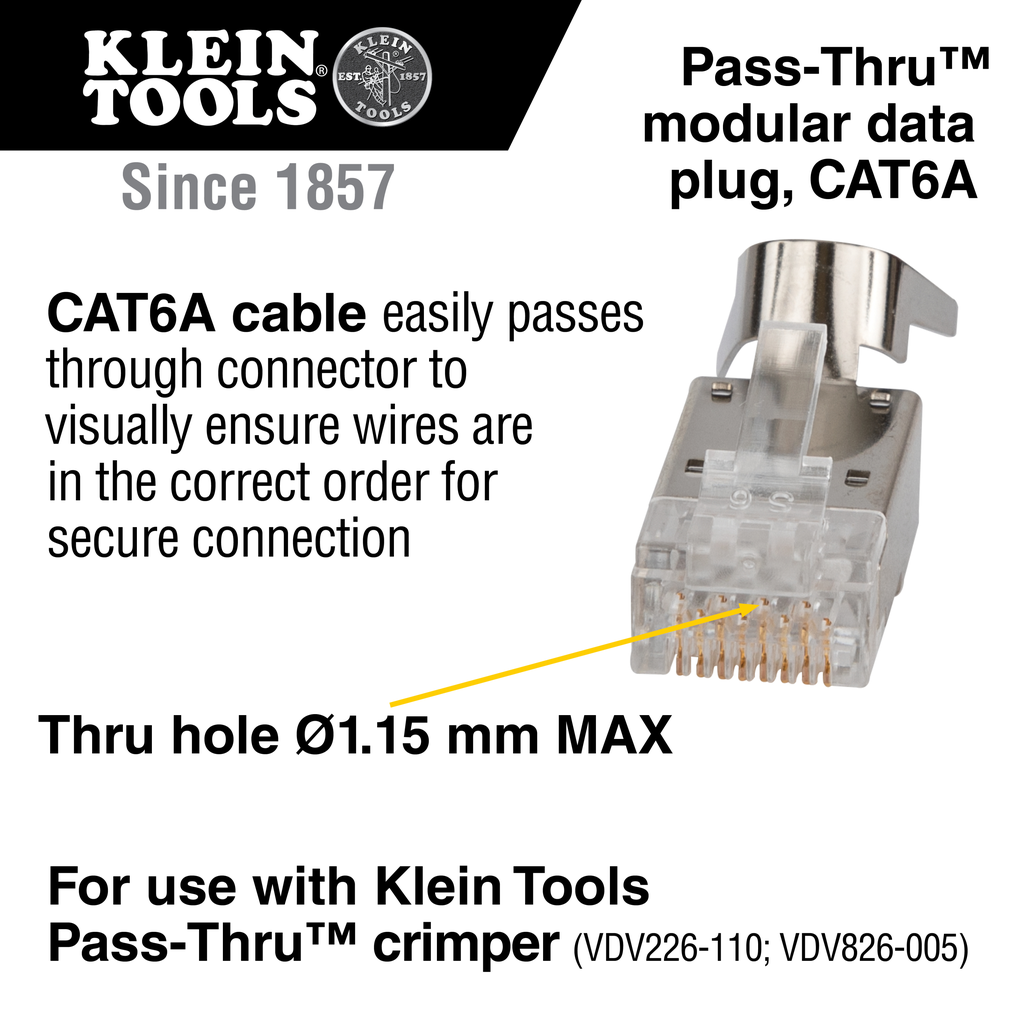

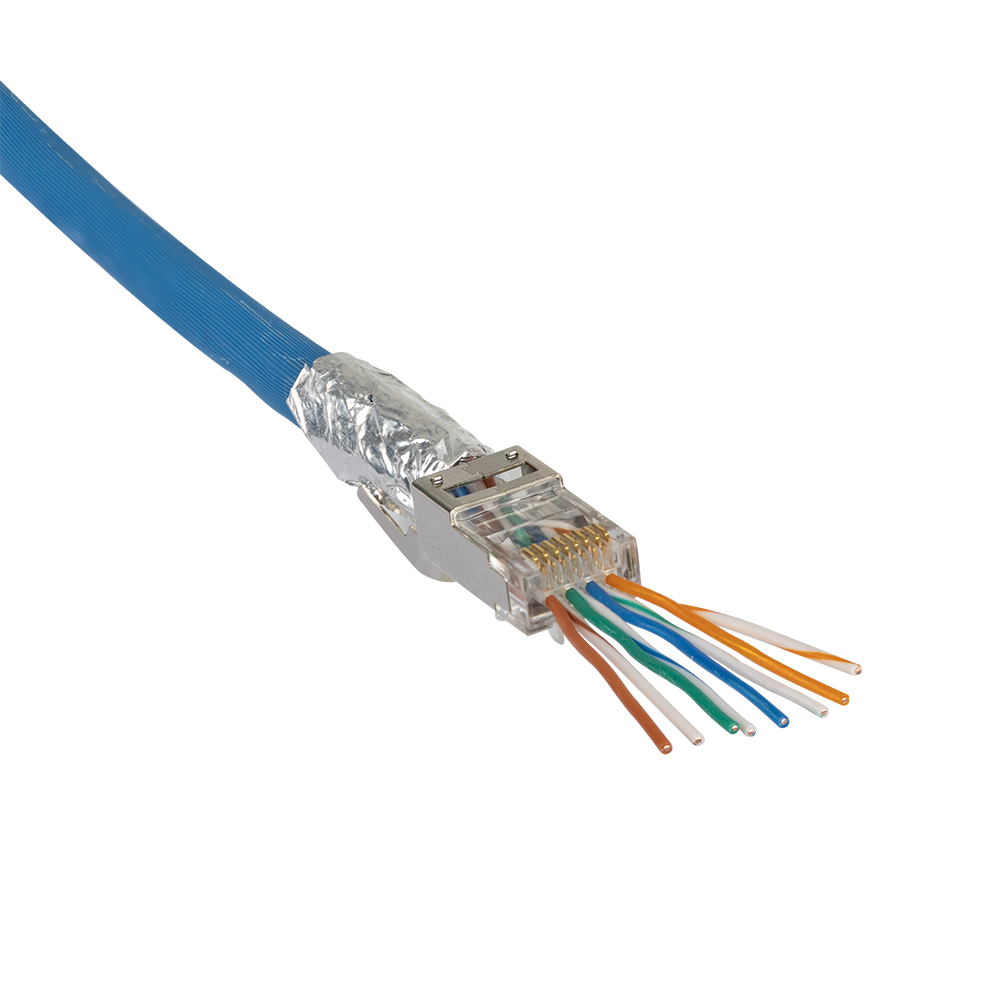

• CAT6A cable easily passes through connector to visually ensure that wires are in the correct order for consistent and secure terminations

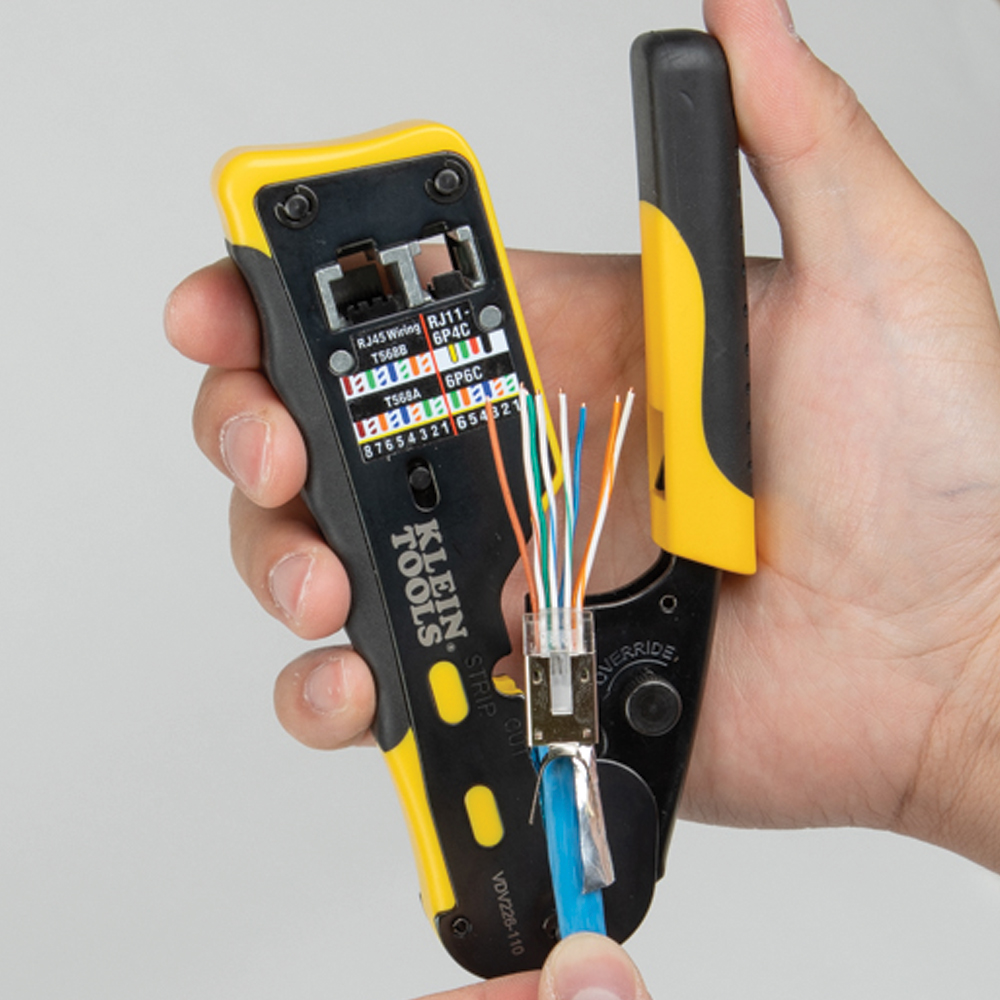

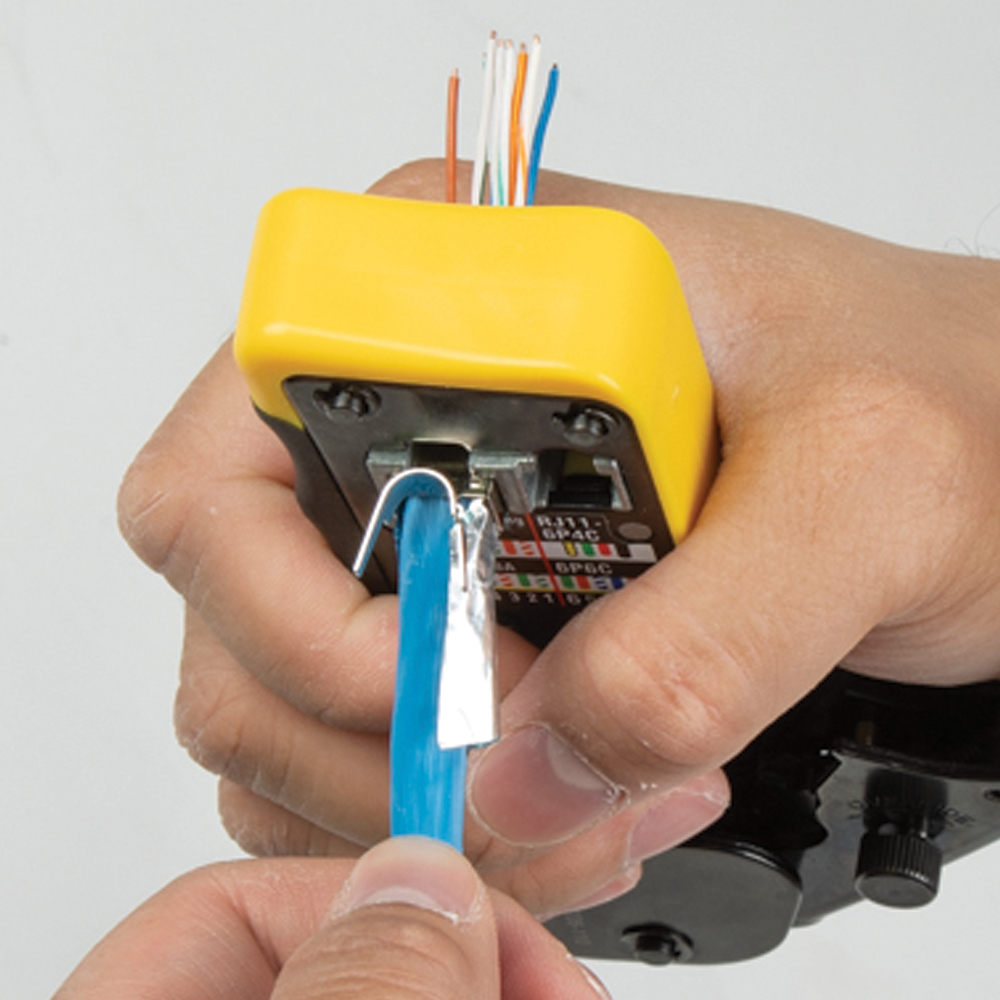

• Requires pass through type crimping tool (Cat. No. VDV226-110 recommended)

Warnings

• Do NOT use on energized circuits or cabling systems.

Specifications

• Weight: 0.0010 lbs
• Overall Width (cm): 1
• Overall Height (cm): 1.5
• Overall Length (Inch): 0.8
• Overall Height (Inch): 0.6
• Stranded Conductor Wire: Yes
• Solid Conductor Wire: Yes
• Application: Data
• Connector Type: RJ45
• Cable Type: CAT6A STP and Larger Diameter CAT6
• Package Quantity: 100
• Weight (oz): 10.21
• Material: PVC Plastic; Gold Plated Contacts
• Type: Modular
• Overall Width (Inch): 0.4
• Connector Color: Clear
• Width: 0.4000 in
• Height: 0.6000 in
• Weight (g): 289
• Overall Length (cm): 2
• Position & Contacts: 8P 8C
• Depth: 0.8000 in
