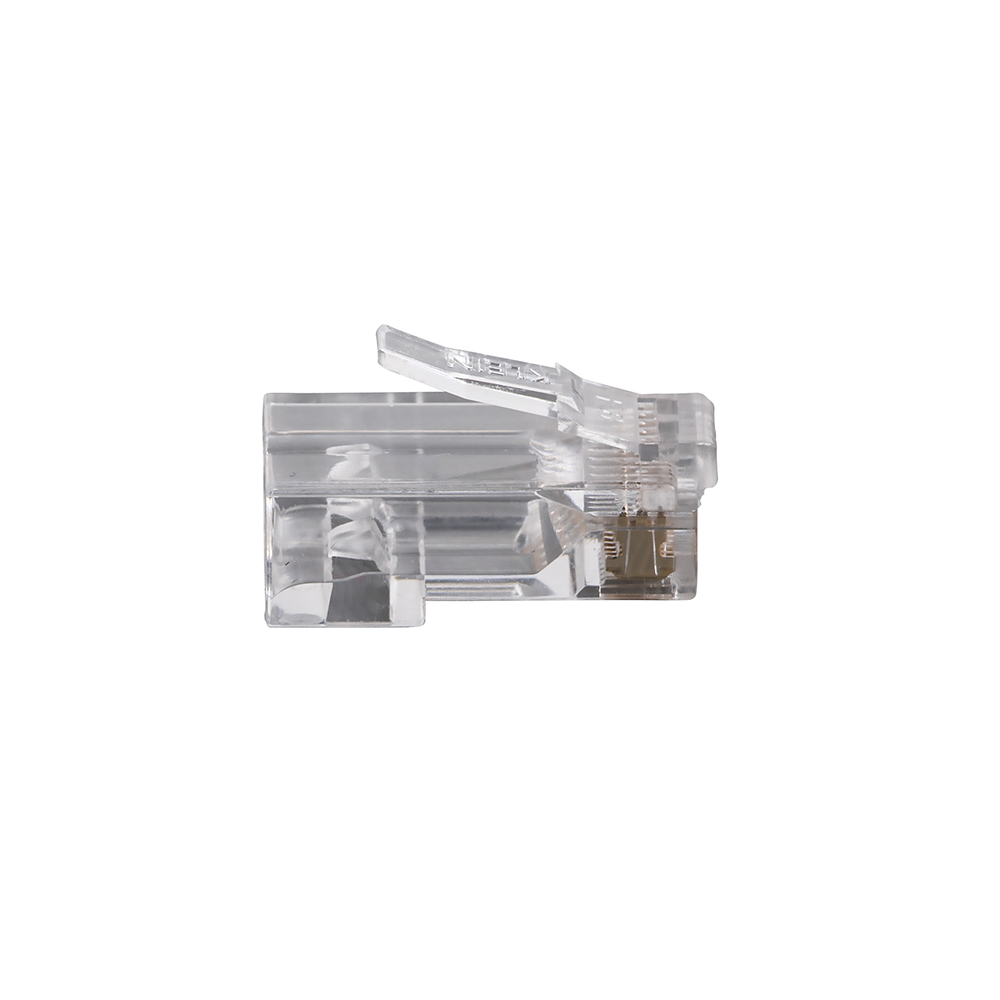

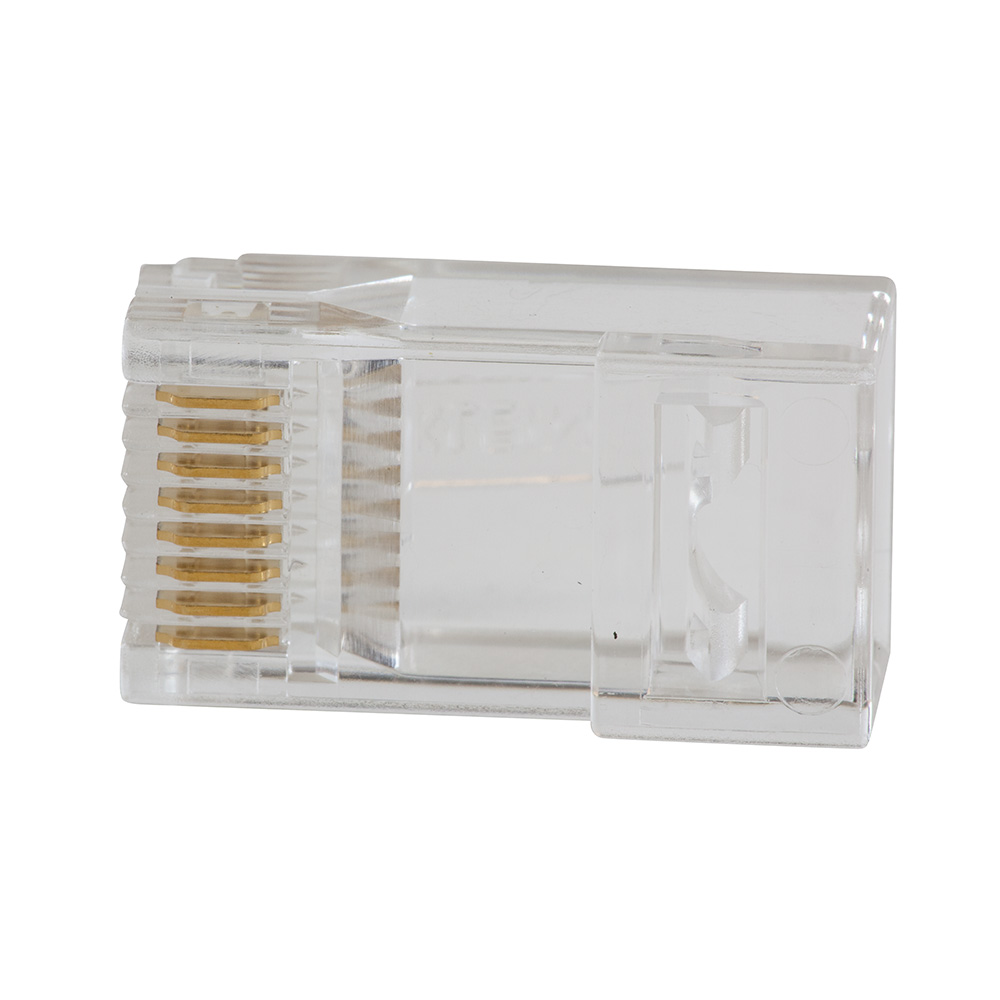

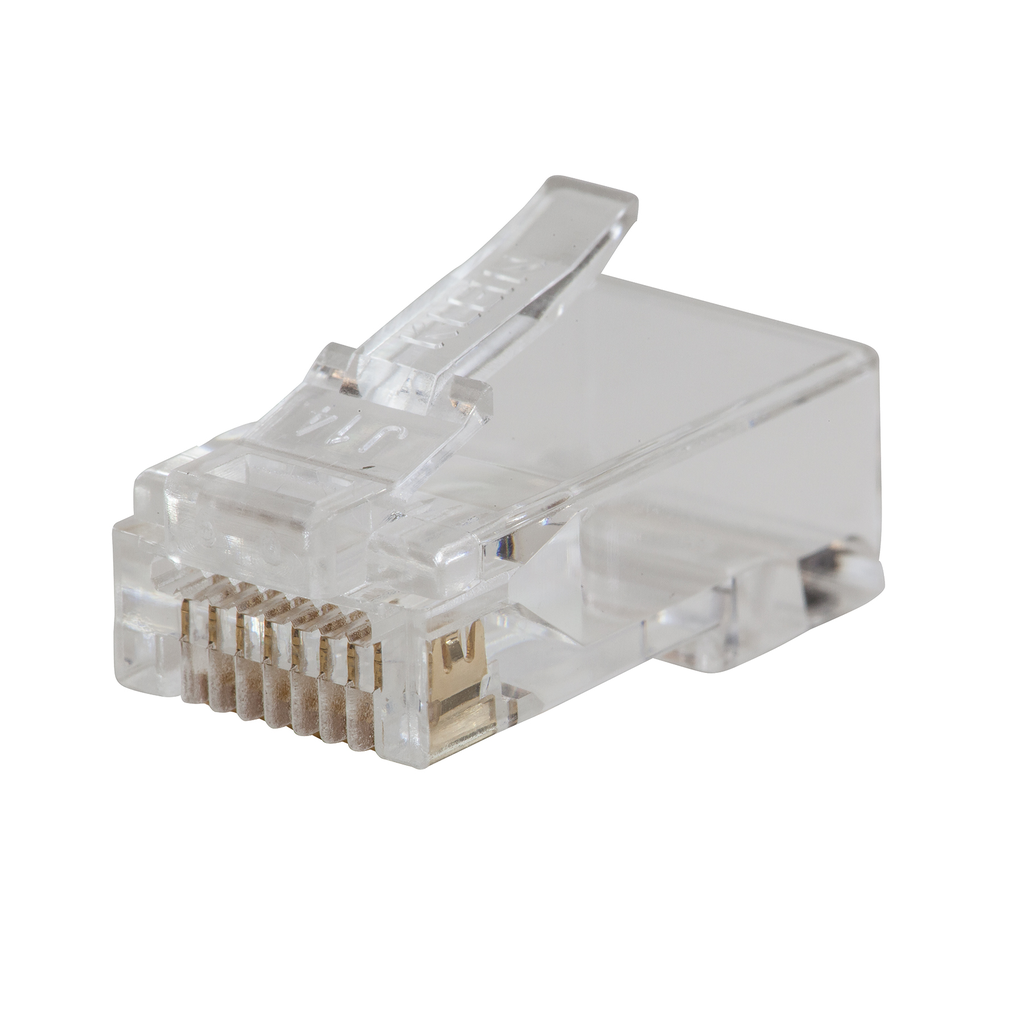

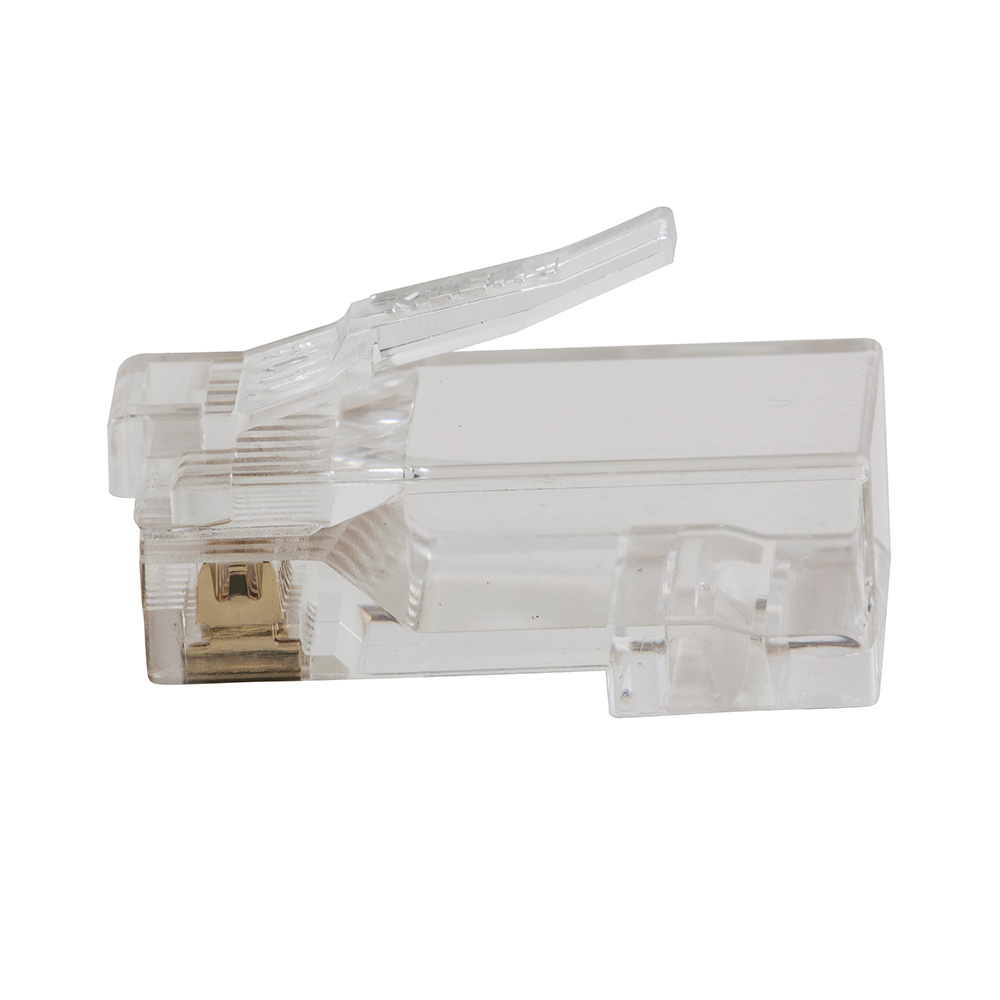

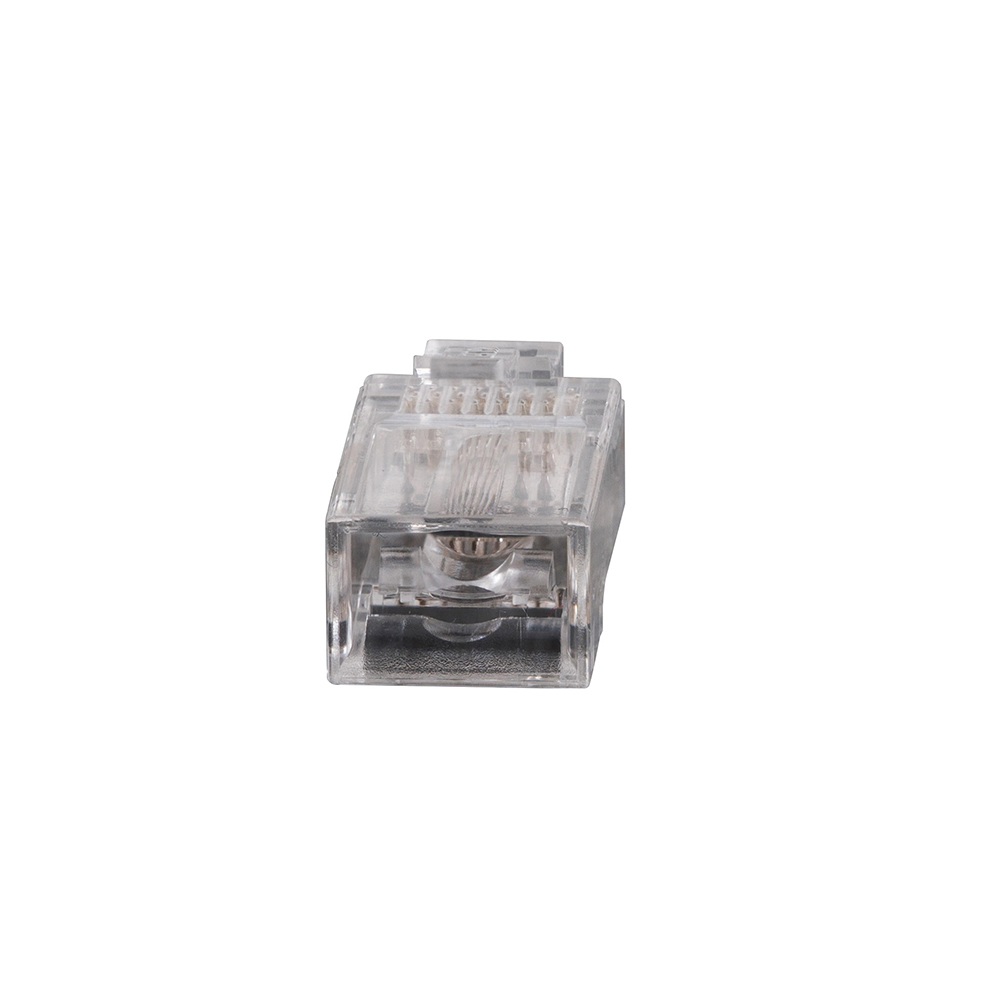

Pass-Thru™ Modular Data Plugs, RJ45-CAT5e, 200-Pack

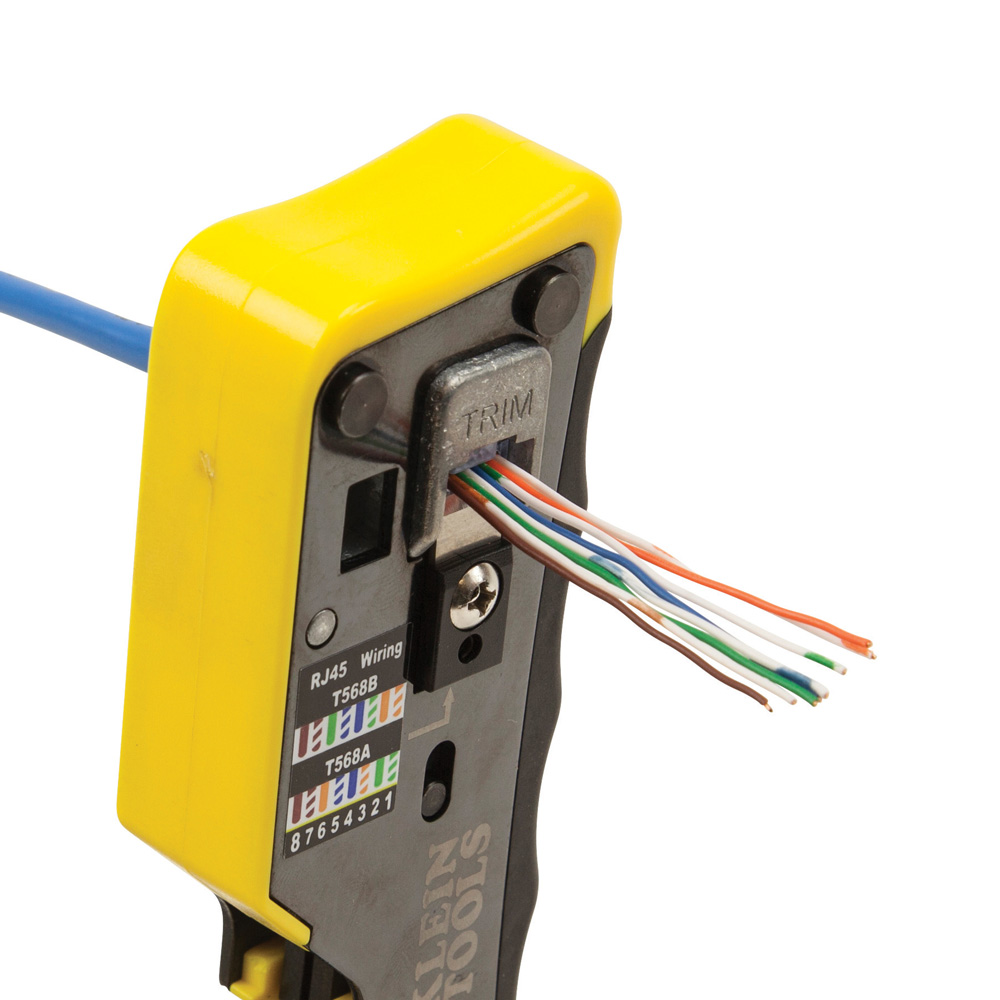

Exclusive Klein-designed Pass-Thru™ CAT5e modular plugs for fast, reliable connector installations for data applications. Cable easily passes through connector for consistent and secure termination. Saves time, trims flush to end face when used with Klein Tools Pass-Thru™ Modular Crimper VDV226-110, and eliminates wasted materials.

Features

• 200-Pack
• Pass-Thru Technology
• Klein exclusive Pass-Thru™ Connectors provide fast, reliable connector installations for data applications
• 50 µ-inch minimum gold plating on all contact surfaces
• Max diameter for CAT5E Pass-Thru™ Connectors is 0.04-Inch (1.01 mm)
• 8 position, 8 contact Pass Through style data plug for solid or stranded cable
• Category 5e performance per EIA/TIA B.2. and RoHS compliant

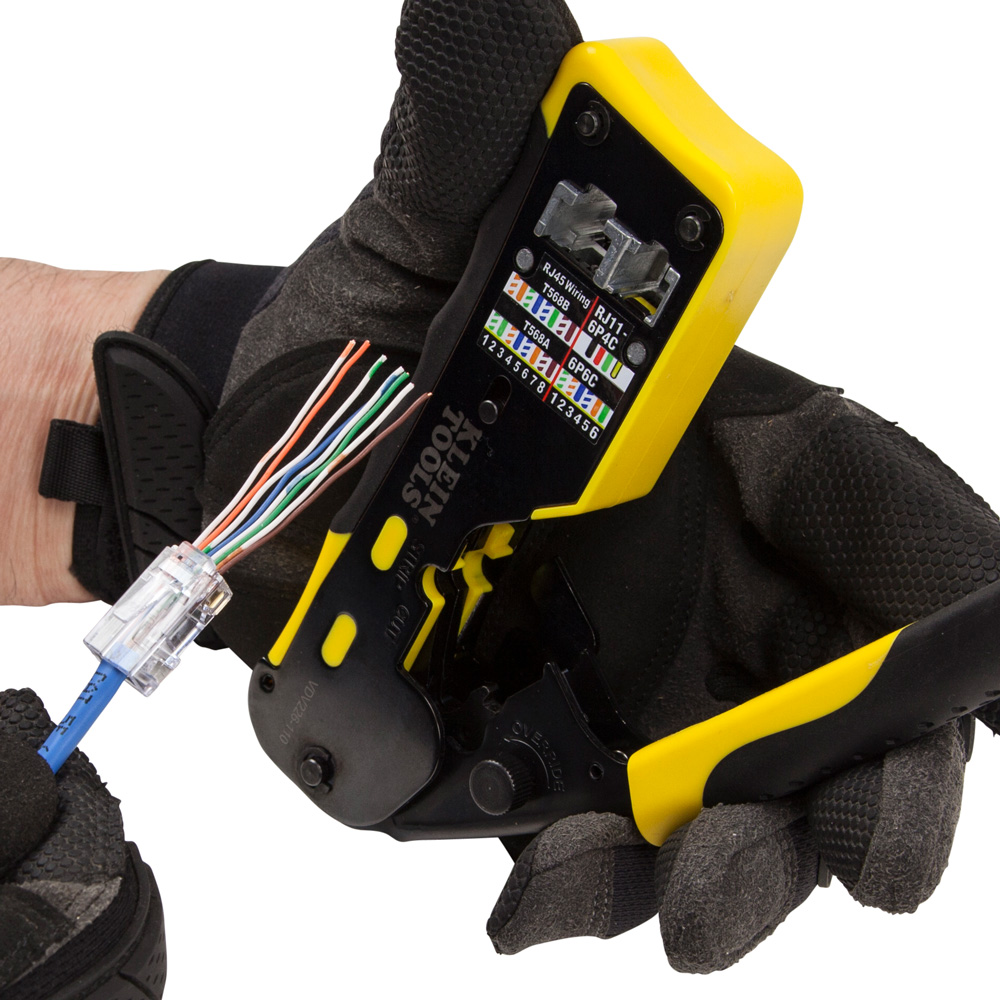

• For use with Klein Tools Pass-Thru™ Modular Crimper VDV226-110

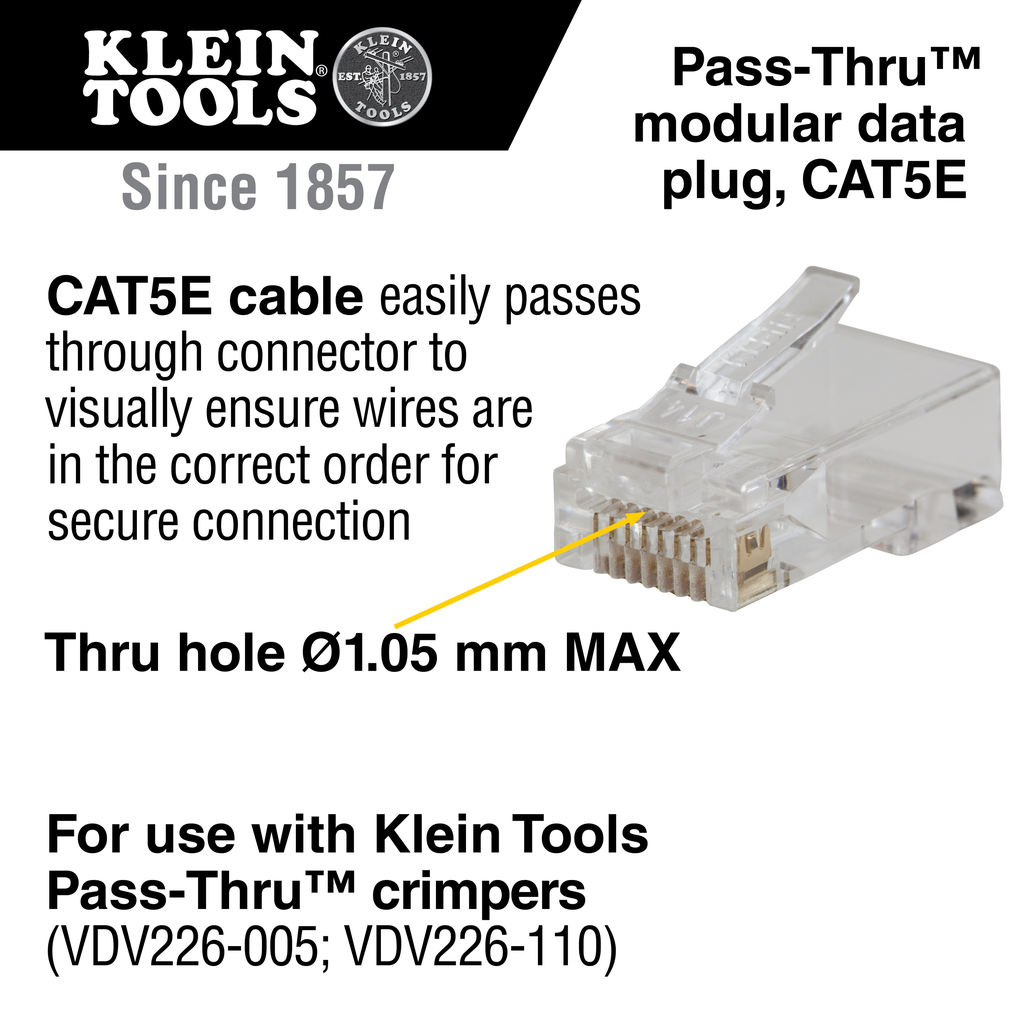

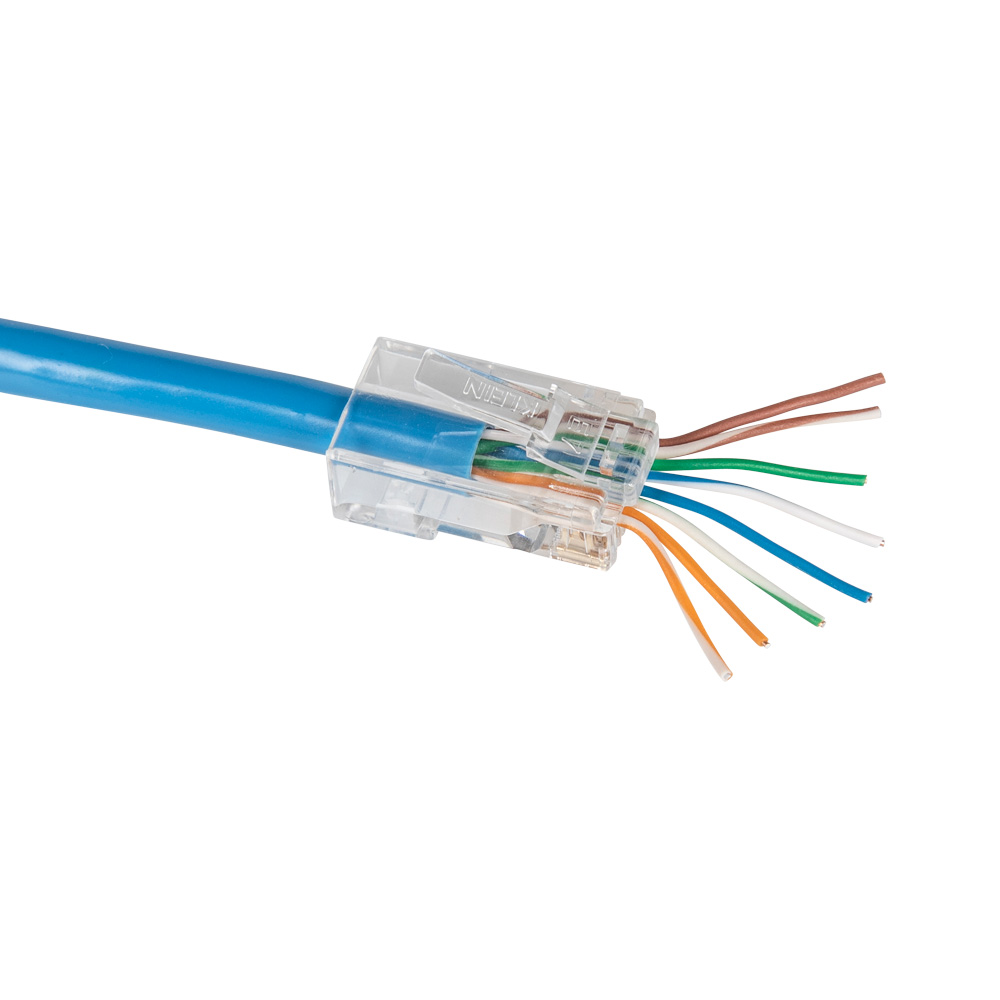

• CAT5e Cable easily passes through connector to visually ensure that wires are in the correct order for consistent and secure terminations

Warnings

• Do NOT use on energized circuits or cabling systems

Specifications

• Stranded Conductor Wire: Yes
• Overall Length (cm): 2.2
• Overall Height (cm): 1.2
• Weight (g): 278
• Weight: 0.6200 lbs
• Overall Height (Inch): 0.453
• Overall Width (Inch): 0.094
• Weight (oz): 9.8

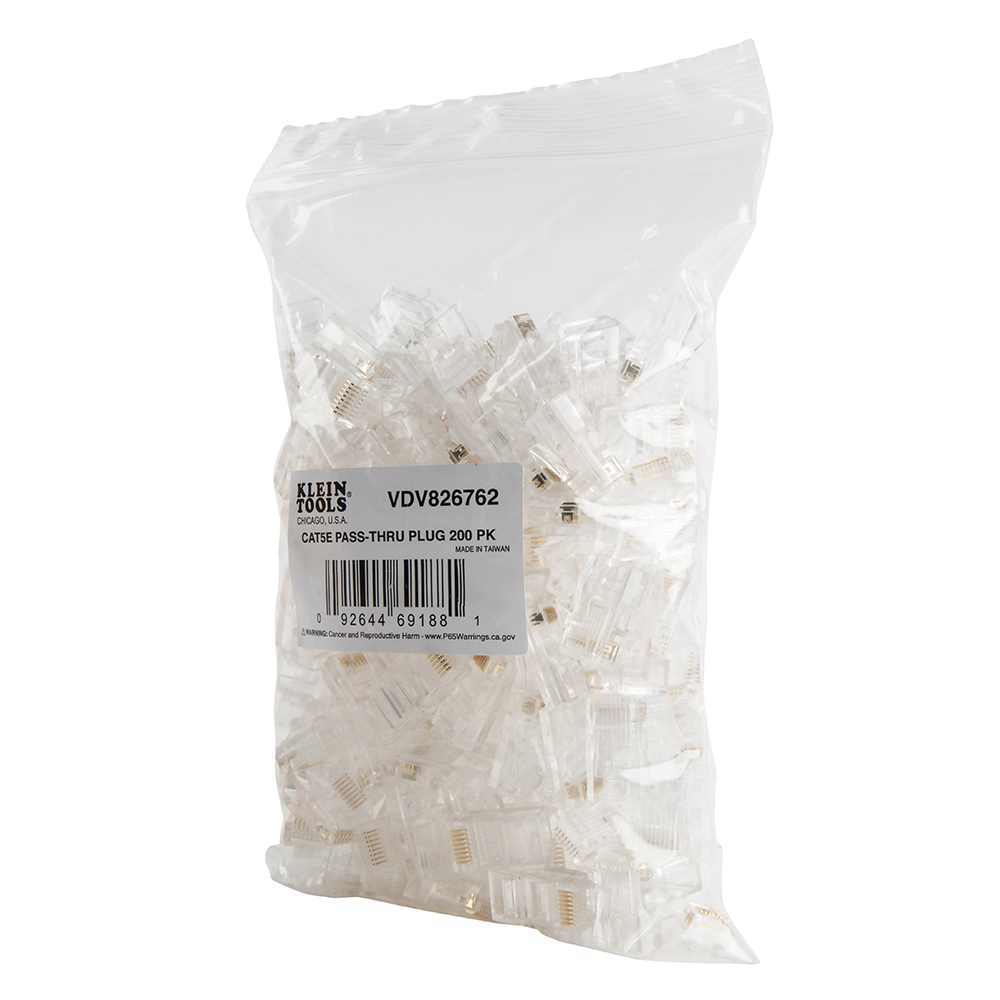

• Package Quantity: 200
• Overall Width (cm): 0.2
• Height: 0.0920 in
• Overall Length (Inch): 0.875
• Position & Contacts: 8P 8C
• Type: Modular
• Application: Voice and Data
• Connector Type: RJ45
• Connector Color: Clear
• Material: PVC Plastic; Gold Plated Contacts
• Width: 0.4500 in
• Solid Conductor Wire: Yes
• Cable Type: CAT5e
• Depth: 0.8800 in
