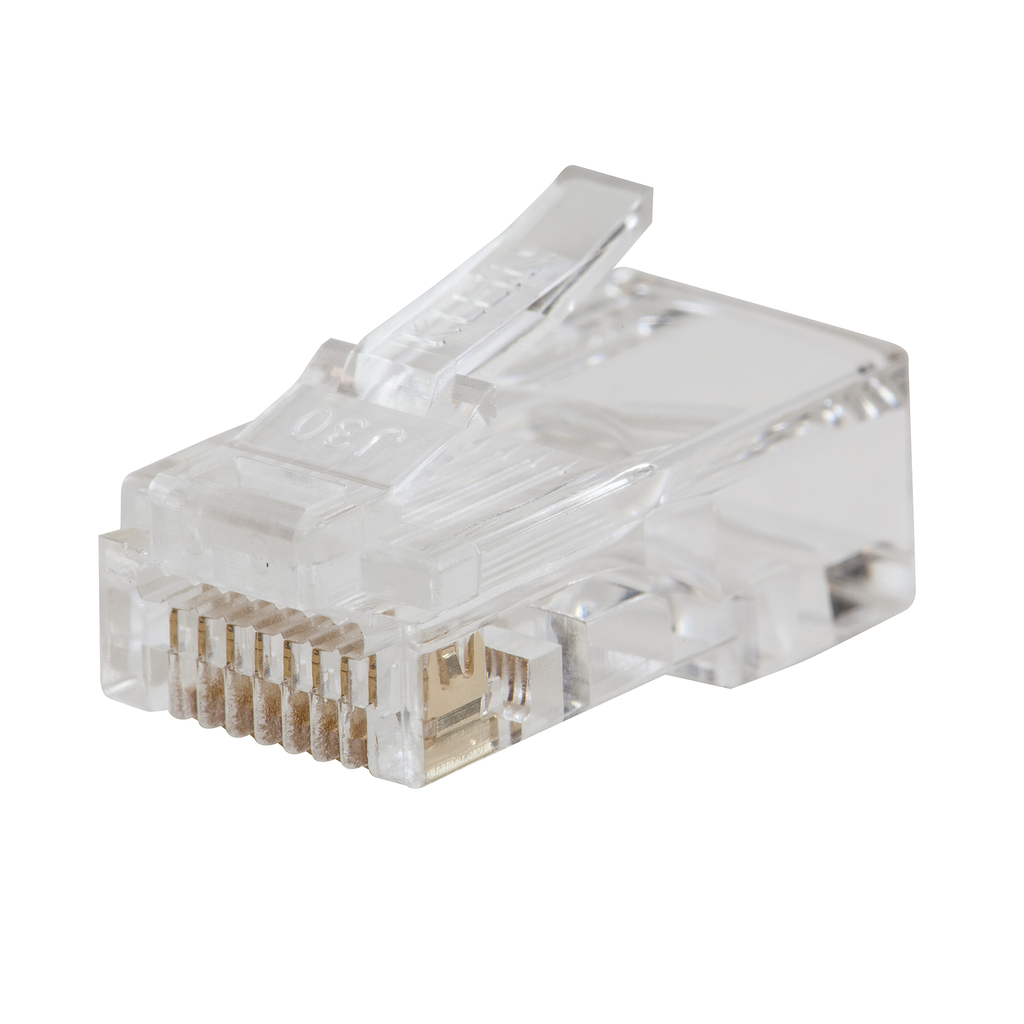

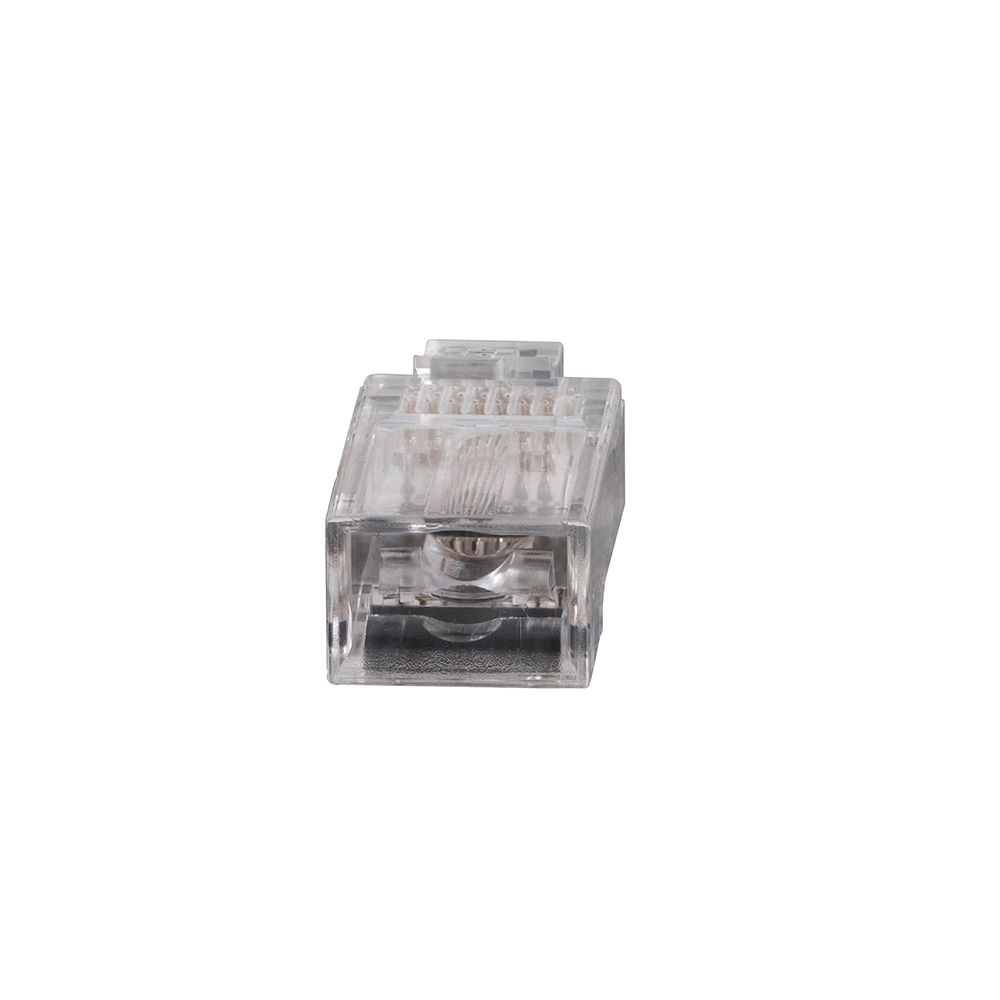

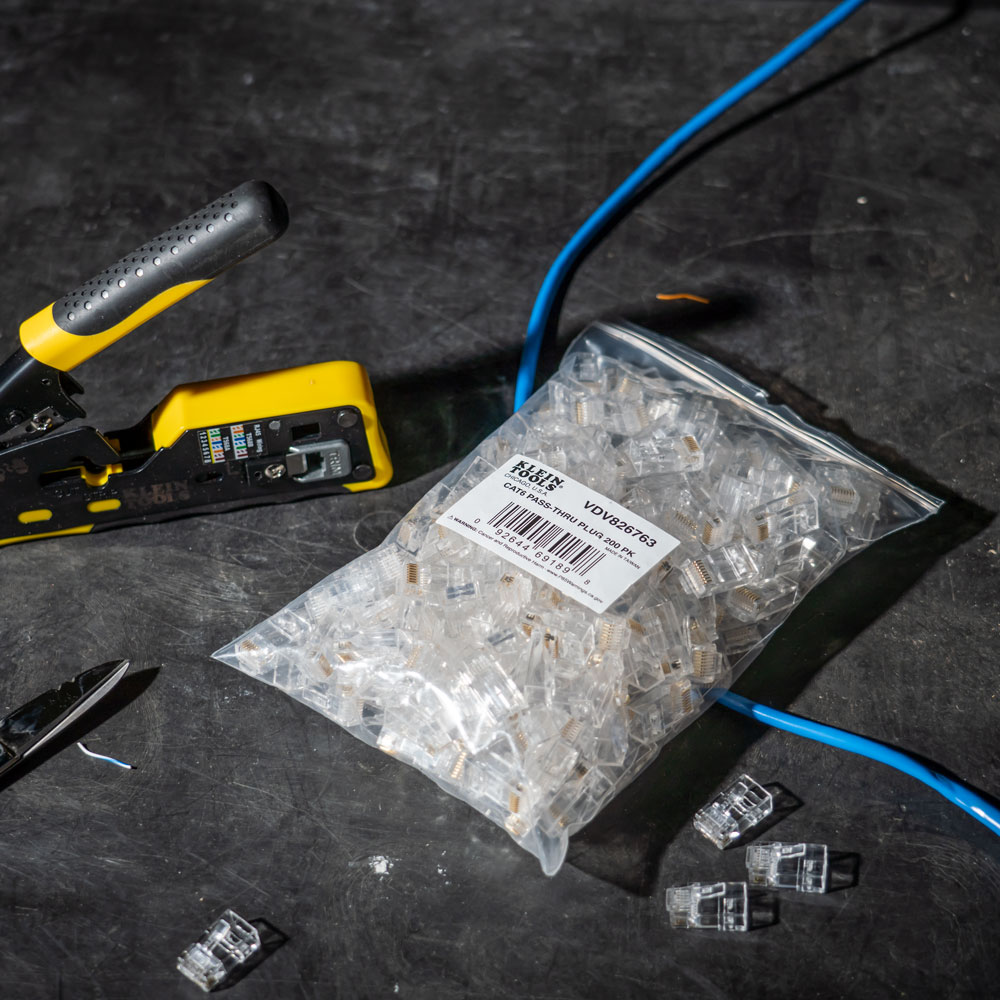

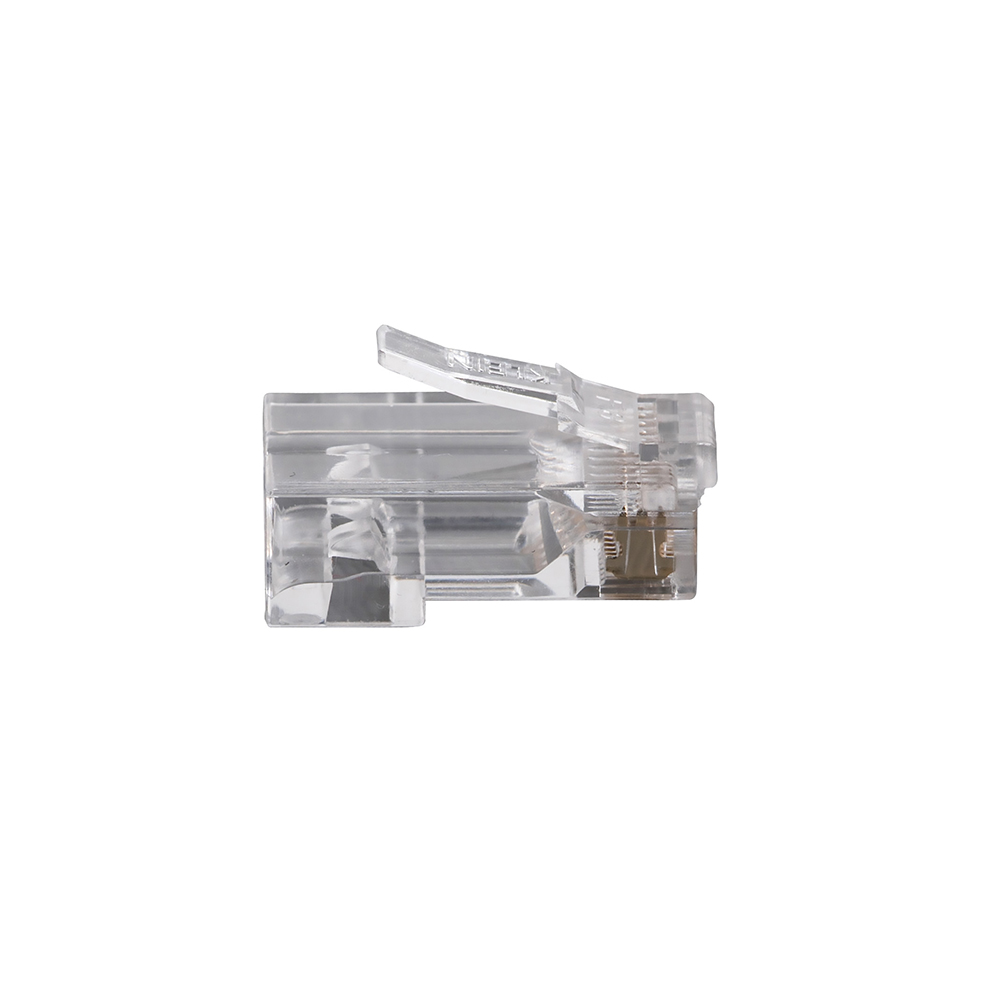

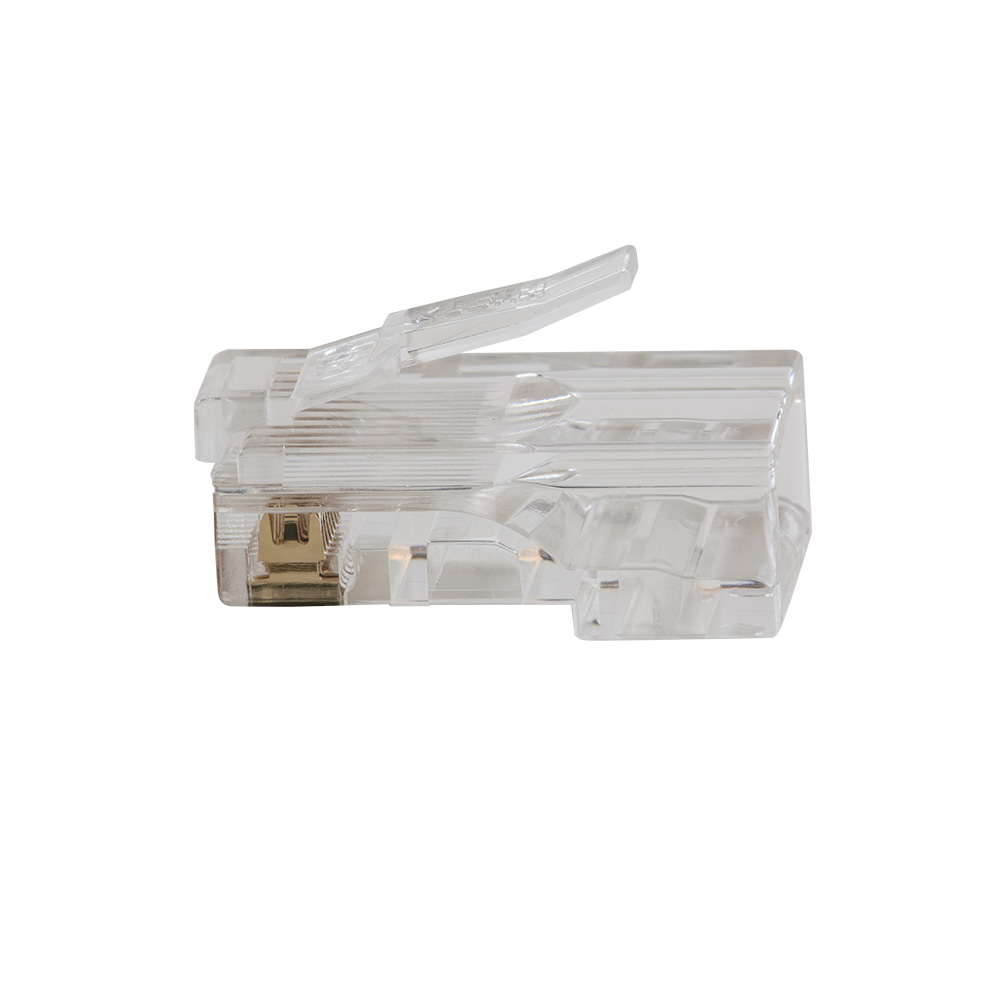

Pass-Thru™ Modular Data Plugs, RJ45-CAT6, 200-Pack

Exclusive Klein-designed Pass-Thru™ modular plugs for fast, reliable connector installations. Cable easily passes through connector for consistent and secure termination. Saves time, trims flush to end face when used with Klein Tools Pass-Thru™ Modular Crimper VDV226-110, and eliminates wasted materials. These CAT6 connectors are fully compliant with all PoE standards.

Features

• Klein exclusive Pass-Thru™ Connectors provide fast, reliable connector installations for data applications

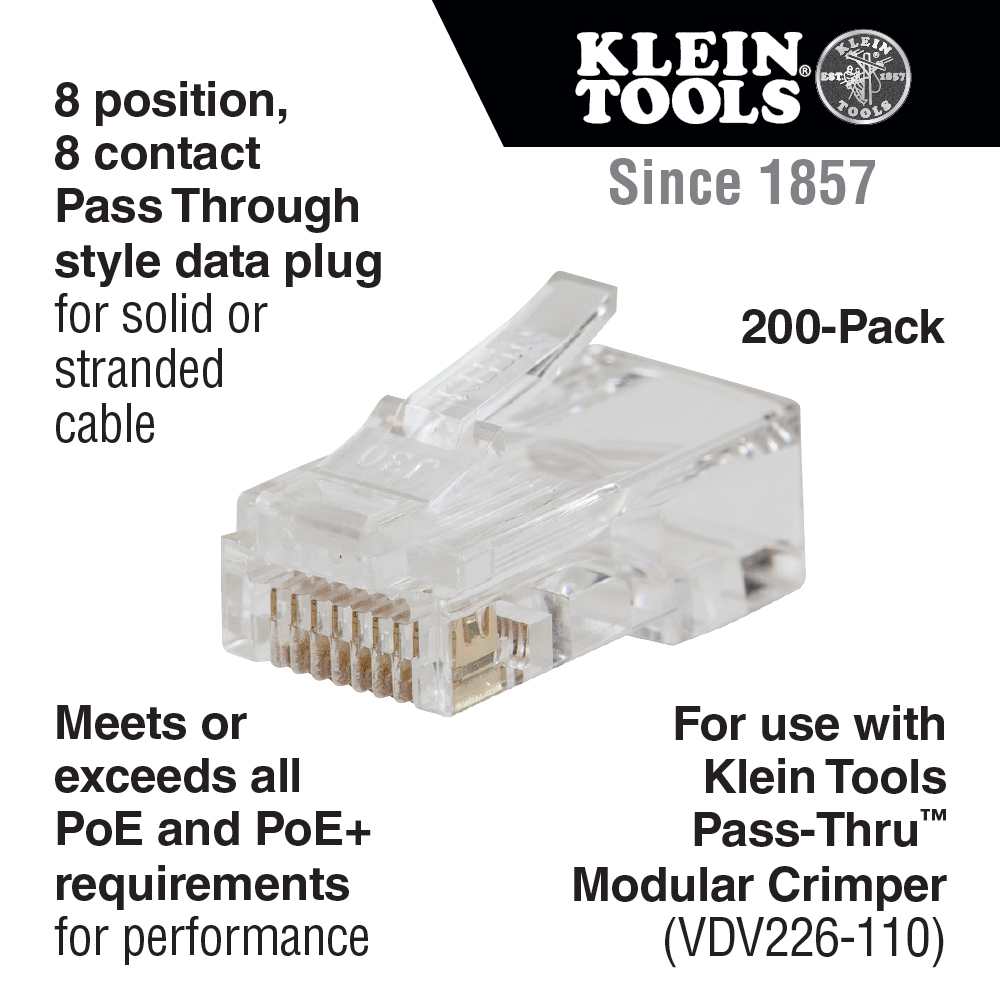

• 8 position, 8 contact Pass Through style data plug for solid or stranded cable

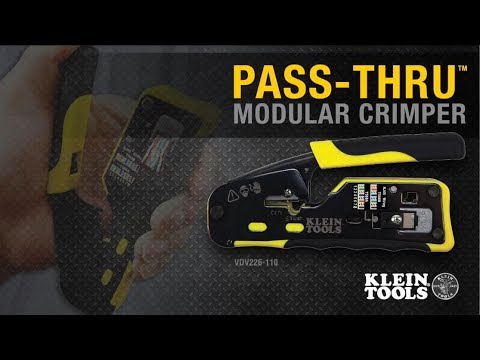

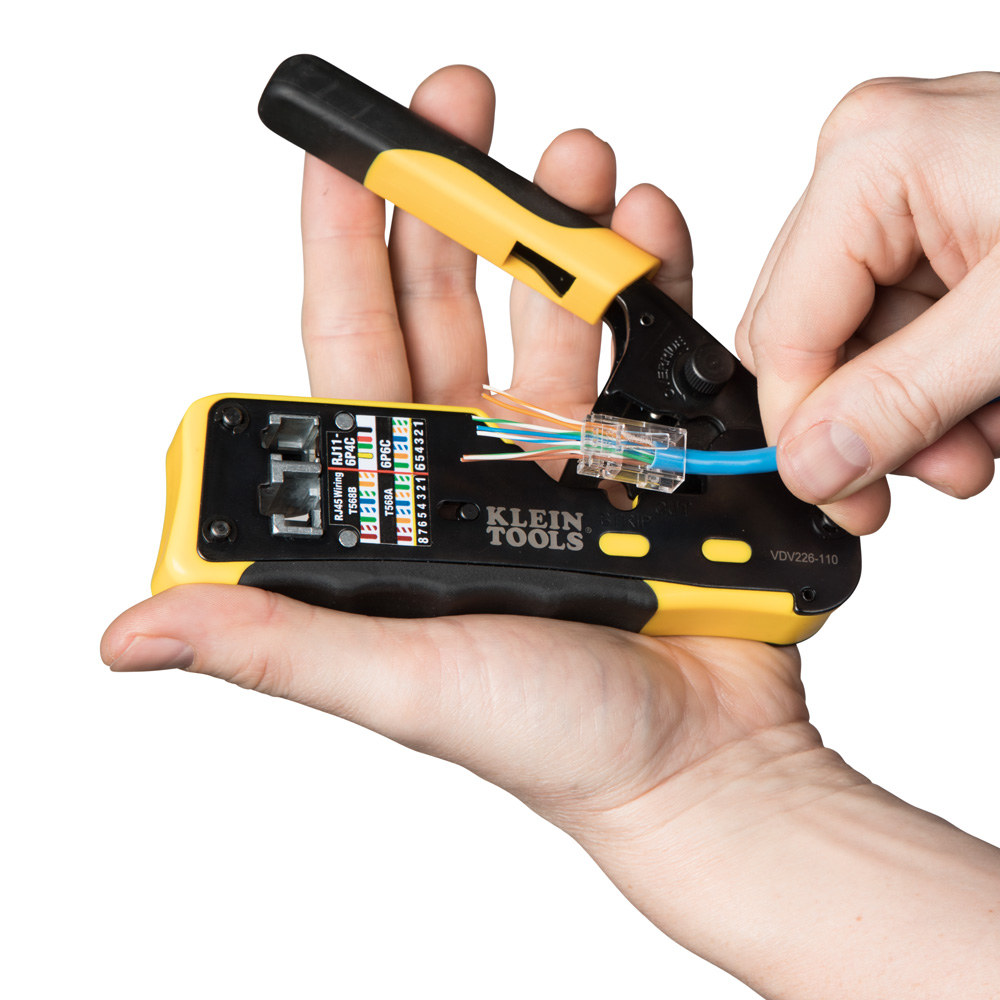

• For use with Klein Tools Pass-Thru™ Modular Crimper VDV226-110

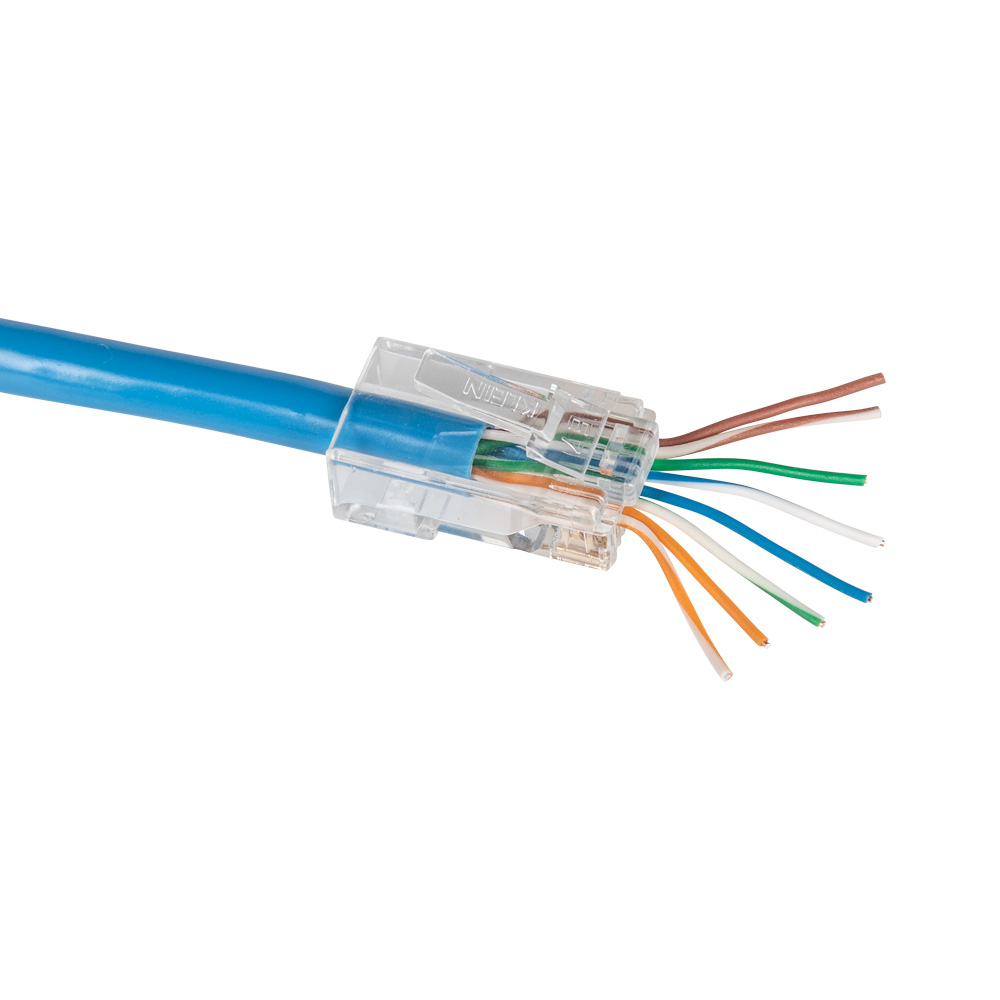

• CAT6 Cable easily passes through connector to visually ensure that wires are in the correct order for consistent and secure terminations
• Pass-Thru Technology; Meets All PoE Standards
• Fully compliant with Power Over Ethernet (PoE and PoE+) standards

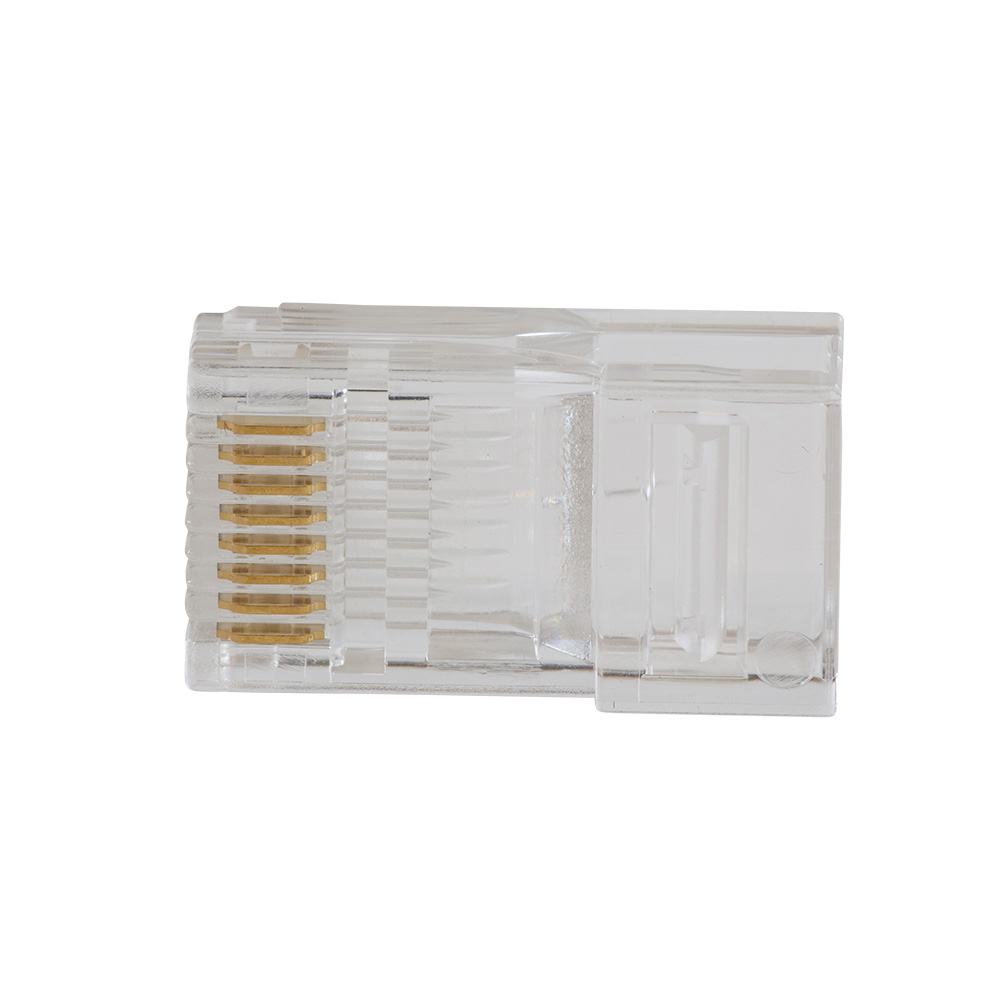

• 50 µ-inch minimum gold plating on all contact surfaces
• 200-Pack
• Category 6 performance per EIA/TIA B.2. and RoHS compliant

Warnings

• Do NOT use on energized circuits or cabling systems

Specifications

• Cable Type: CAT6
• Depth: 0.8800 in
• Overall Width (cm): 0.2
• Stranded Conductor Wire: Yes
• Connector Type: RJ45
• Height: 0.0920 in
• Overall Height (Inch): 0.453
• Type: Modular
• Solid Conductor Wire: Yes
• Weight (g): 278
• Application: Voice and Data
• Overall Length (cm): 2.2
• Material: PVC Plastic; Gold Plated Contacts
• Connector Color: Clear
• Position & Contacts: 8P 8C
• Package Quantity: 200
• Overall Height (cm): 1.2
• Overall Width (Inch): 0.094
• Width: 0.4500 in
• Weight (oz): 9.8
• Weight: 0.0060 lbs
• Overall Length (Inch): 0.875
