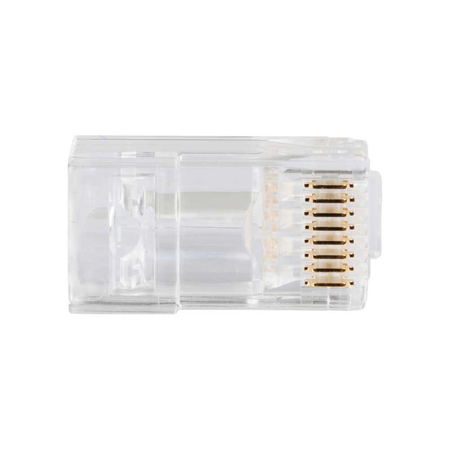

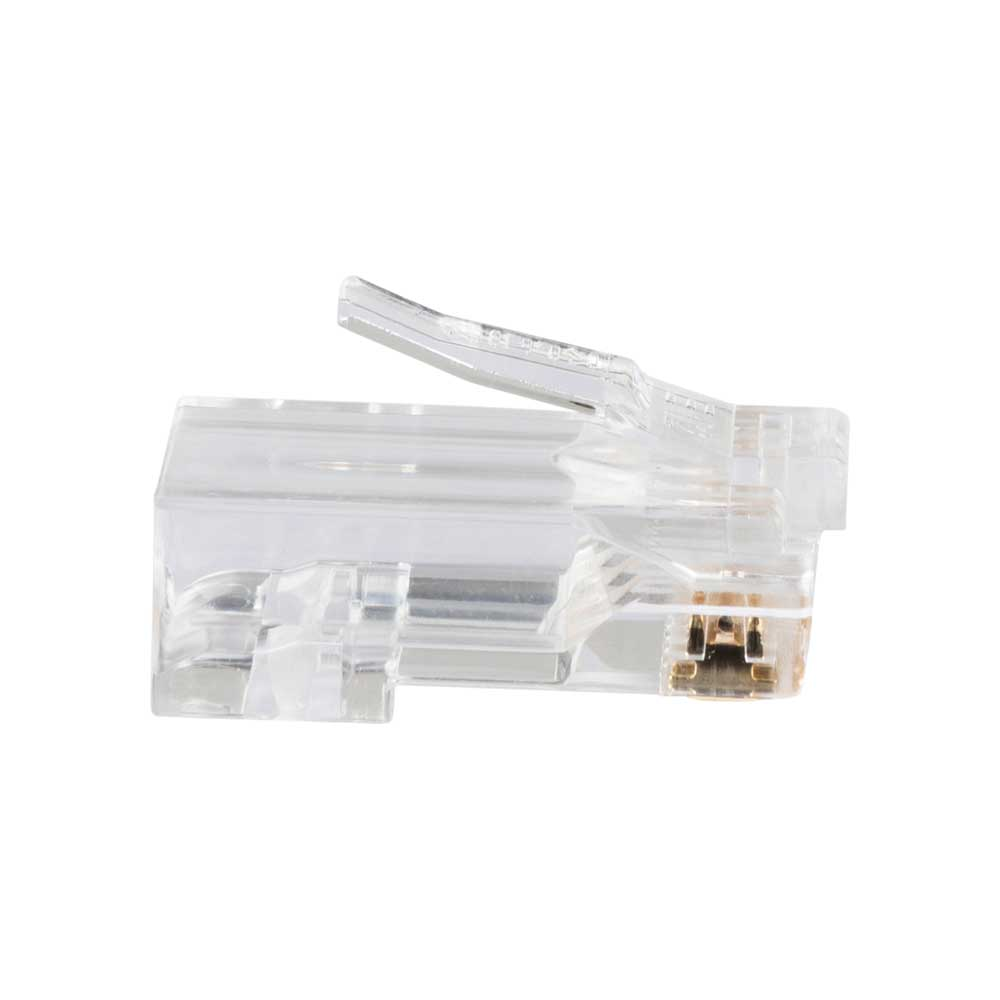

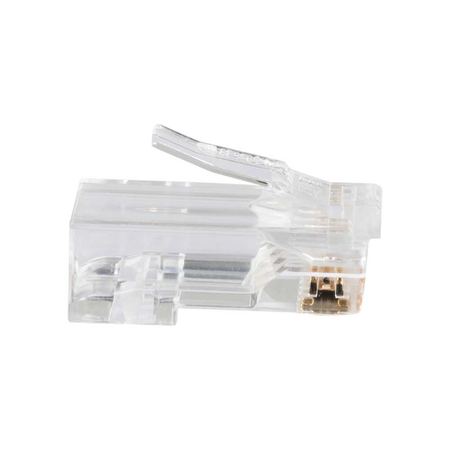

Pass-Thru™ Modular Data Plugs, RJ45-CAT6A, UTP 200-Pack

Exclusive Klein-designed CAT6A Pass-Thru™ modular plugs for fast, reliable connector installations for data applications. Cable easily passes through connector for consistent and secure termination. Saves time, trims flush to end face when used with Klein Tools Pass-Thru™ Modular Crimper Cat. No. VDV226-110, and eliminates wasted materials.

Features

• Max diameter for CAT6A Pass-Thru™ Connectors is 0.043-Inch (1.1 mm)

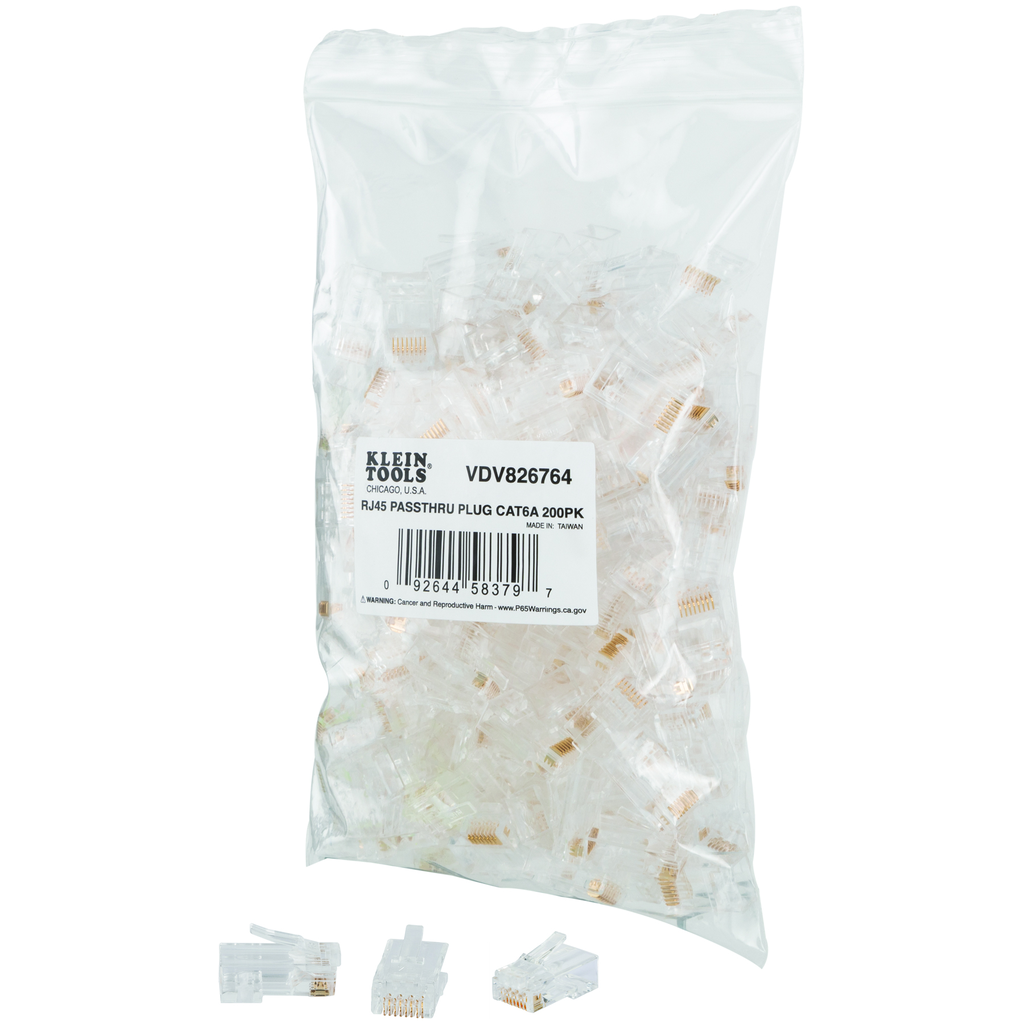

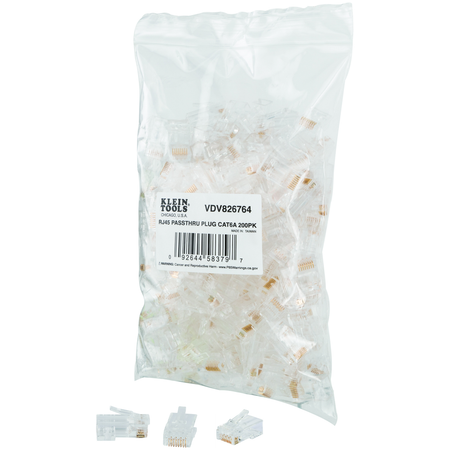

• 200-Pack
• 50 µ-inch gold plating on all contact surfaces
• For CAT6A cable and larger diameter/thicker jacket CAT6 cable
• Pass-Thru™ Technology; Meets All PoE+ Standards
• Fully compliant with Power Over Ethernet (PoE and PoE+) standards

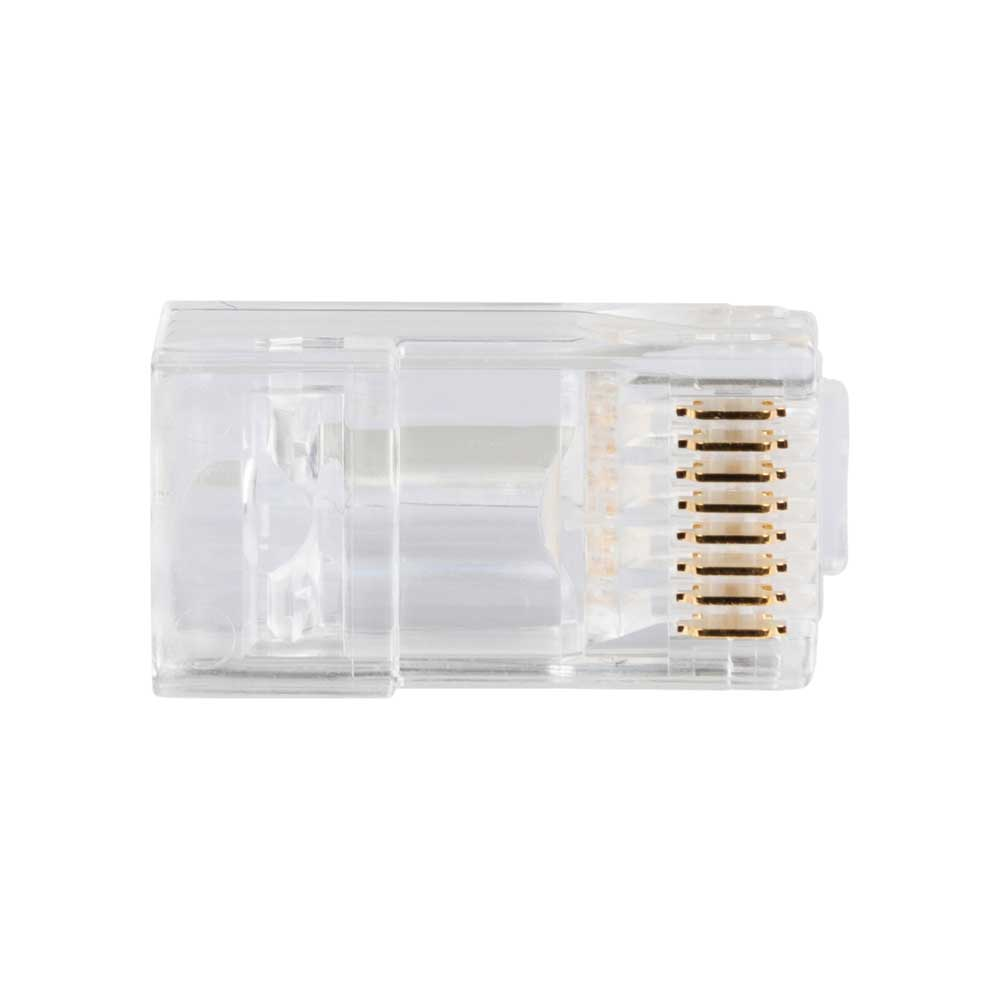

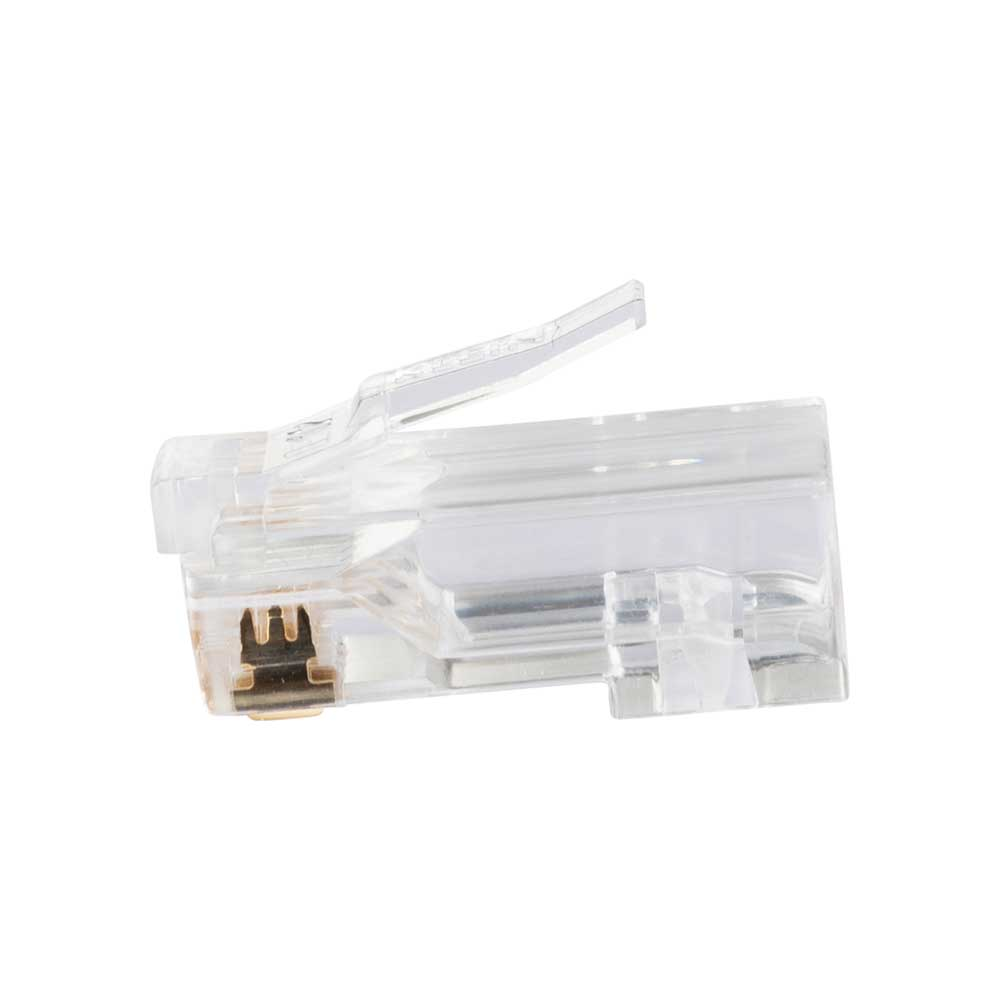

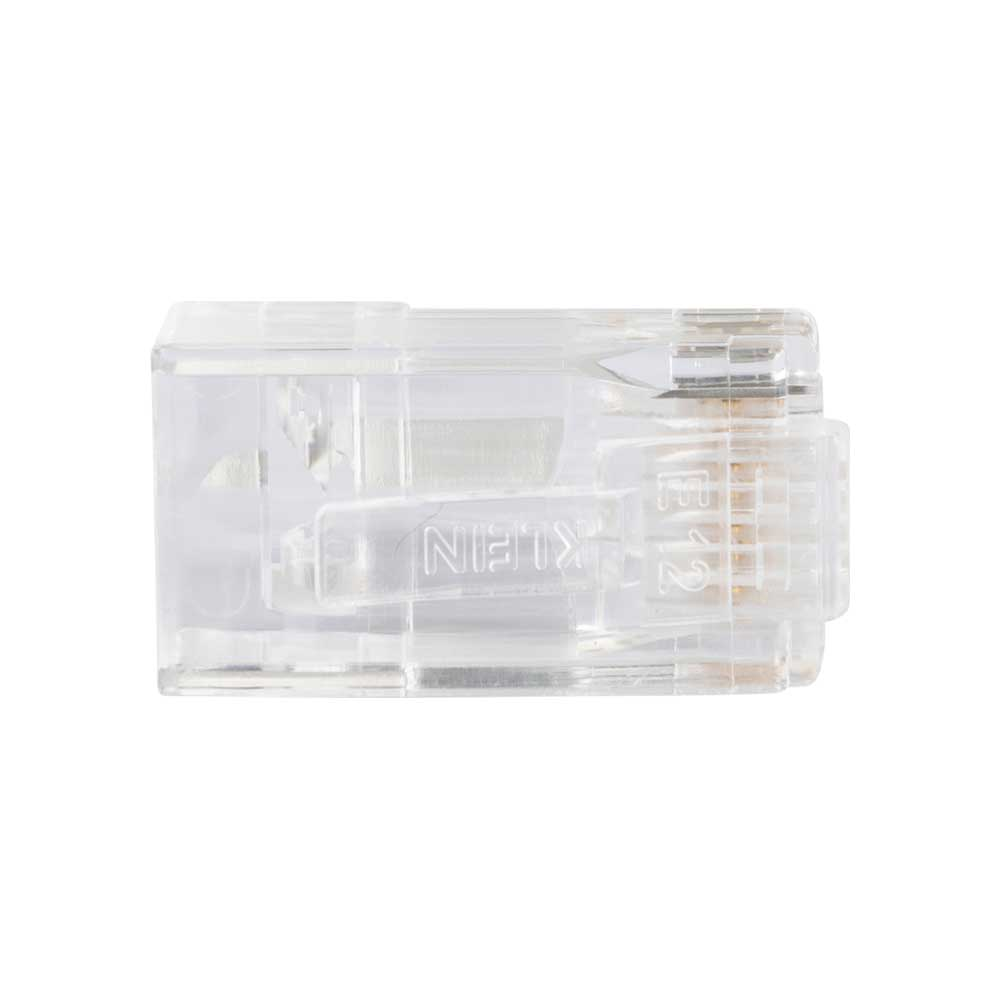

• 8 position, 8 contact pass through type data plugs for solid or stranded wire
• Klein exclusive Pass-Thru™ Connectors provide fast, reliable connector installations for data applications

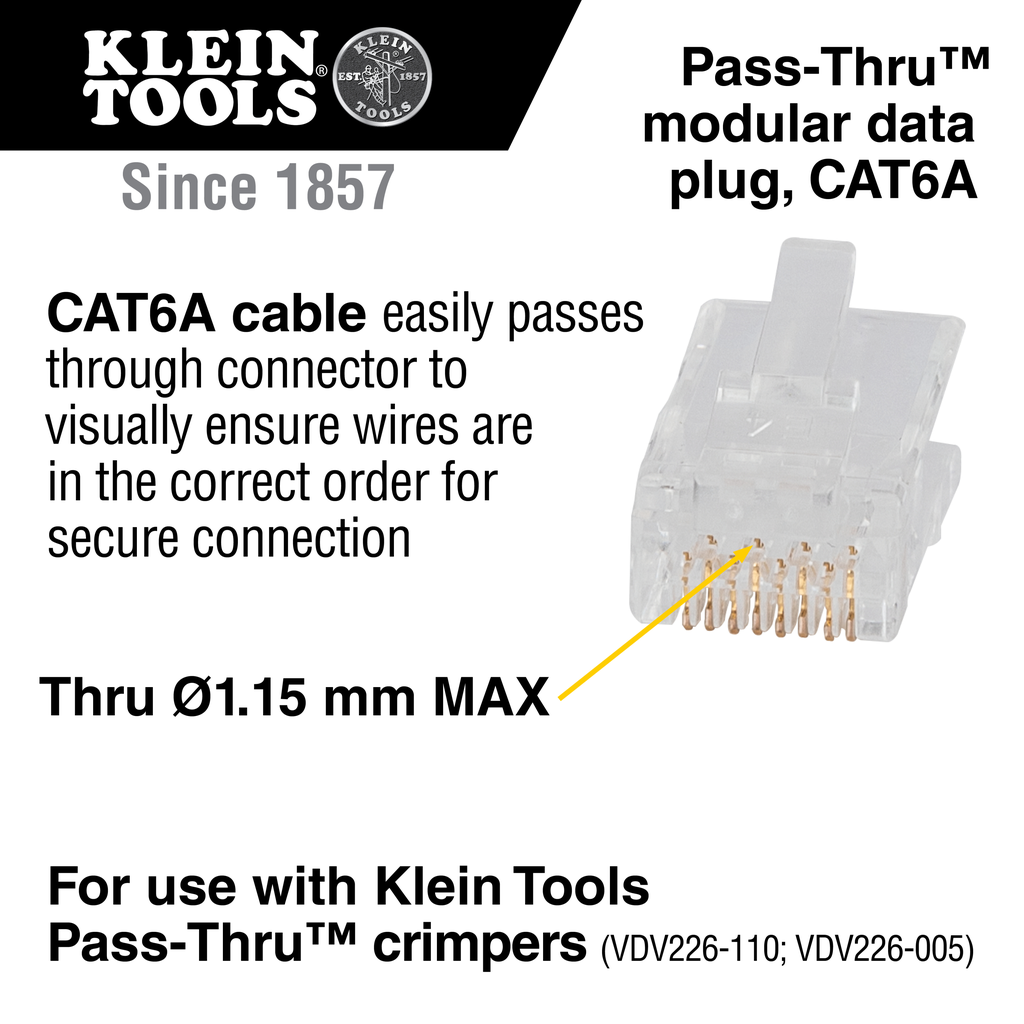

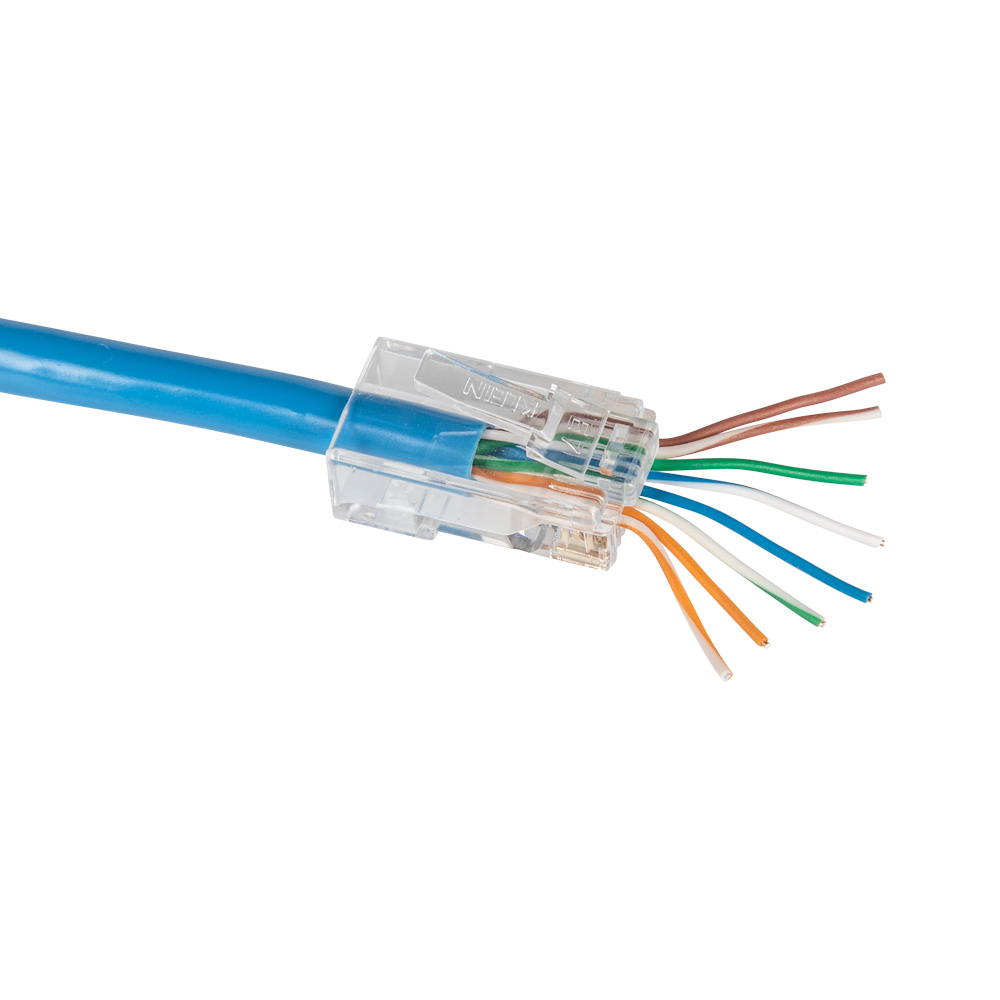

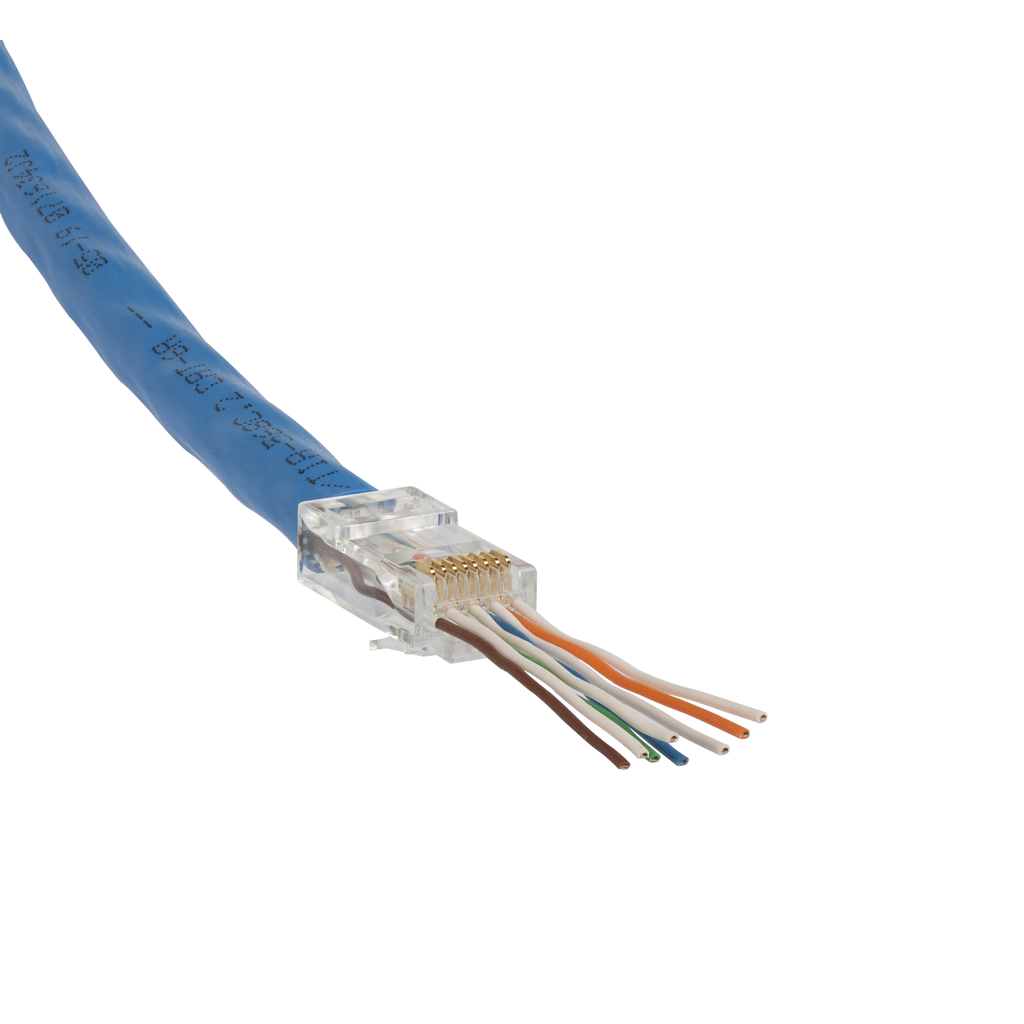

• CAT6A cable easily passes through connector to visually ensure that wires are in the correct order for consistent and secure terminations

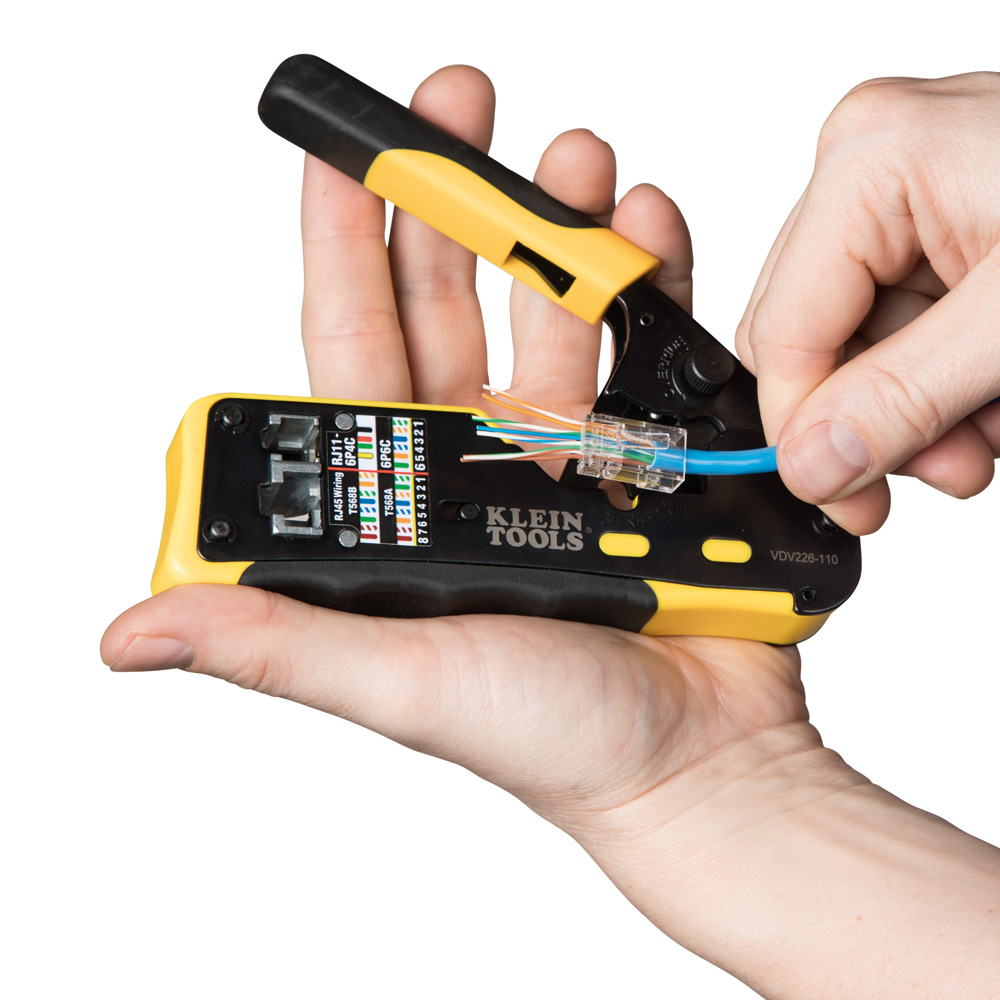

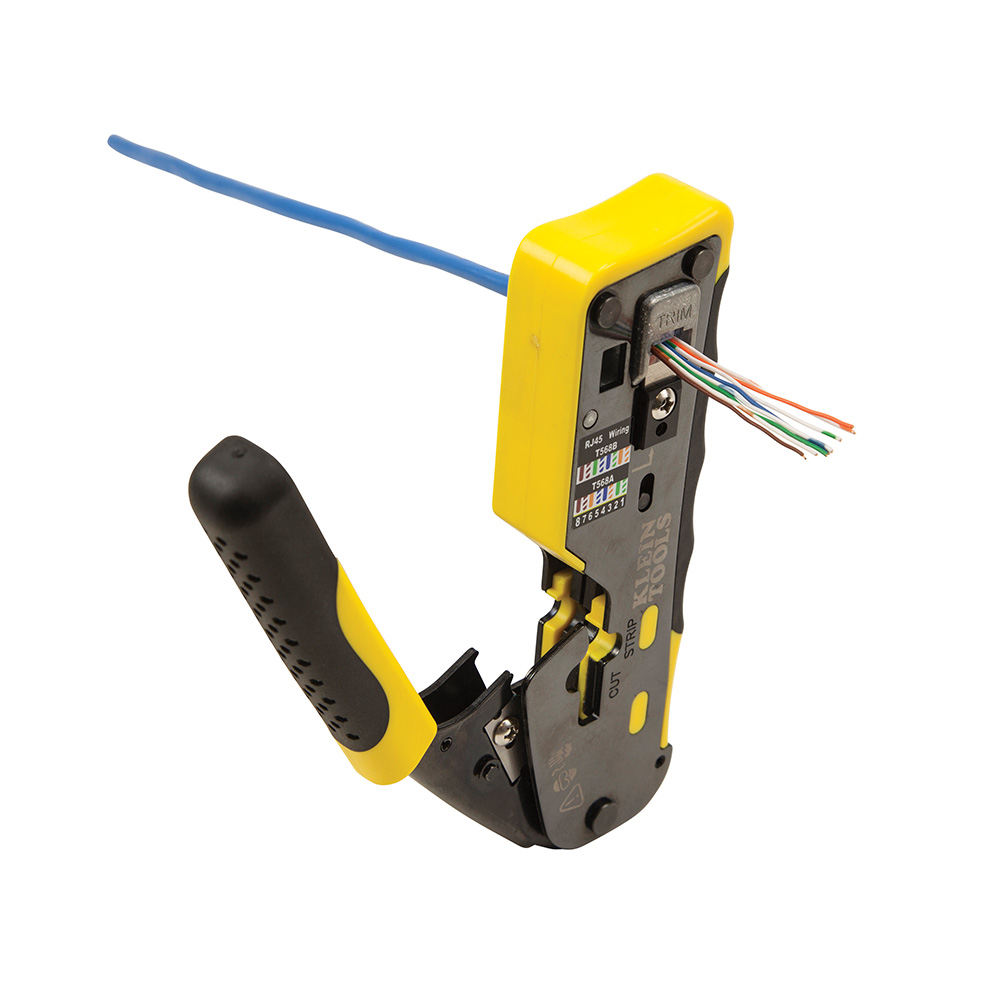

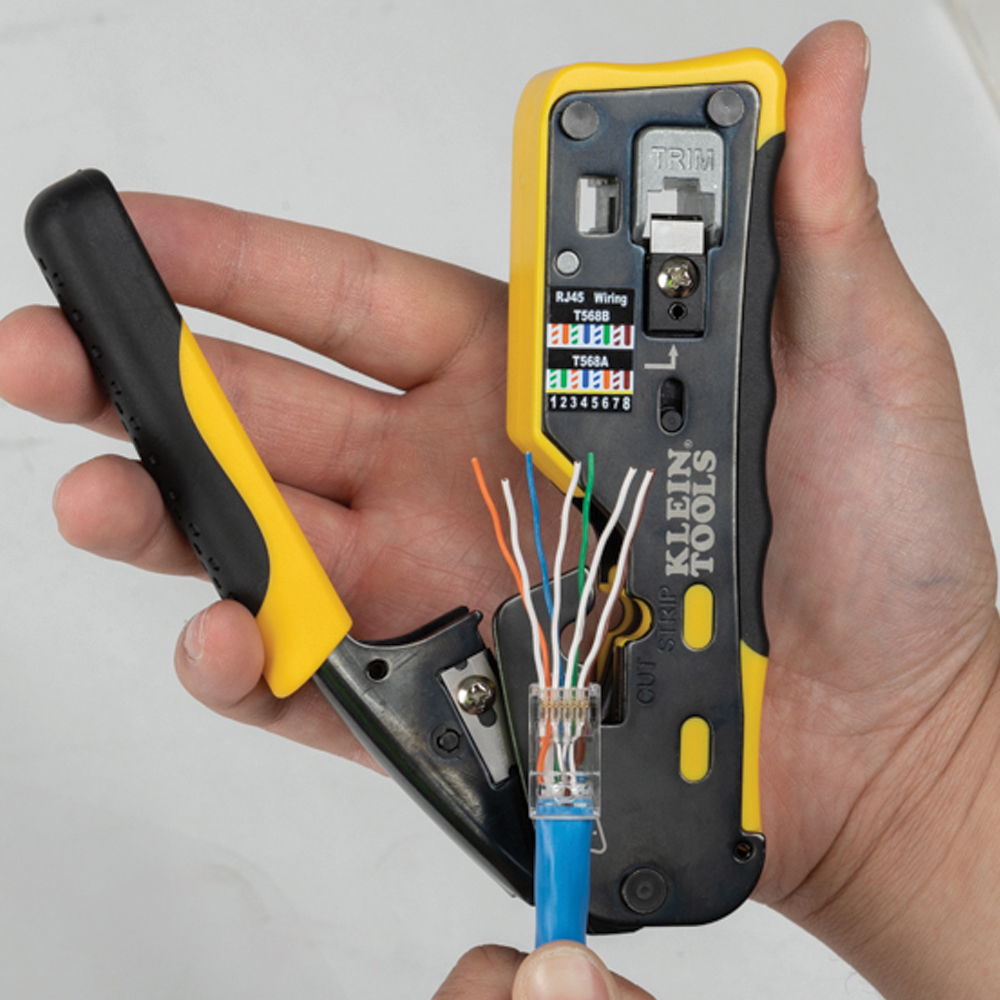

• Requires pass through type crimping tool (Cat. No. VDV226-110 recommended)
• Category 6A performance per TIA/EIA-568-B.2

Warnings

• Do NOT use on energized circuits or cabling systems.

Specifications

• Type: Modular
• Weight: 0.0010 lbs
• Position & Contacts: 8P 8C
• Cable Type: CAT6A UTP and Larger Diameter CAT6
• Depth: 0.8000 in
• Package Quantity: 200
• Weight (g): 265
• Weight (oz): 9.34
• Connector Color: Clear
• Stranded Conductor Wire: Yes
• Overall Length (cm): 2.2
• Height: 0.6000 in
• Overall Length (Inch): 0.875
• Connector Type: RJ45
• Application: Voice and Data
• Solid Conductor Wire: Yes
• Material: PVC Plastic; Gold Plated Contacts
• Overall Height (cm): 1.2
• Overall Width (Inch): 0.094
• Overall Width (cm): 0.2
• Width: 0.4000 in
• Overall Height (Inch): 0.453
