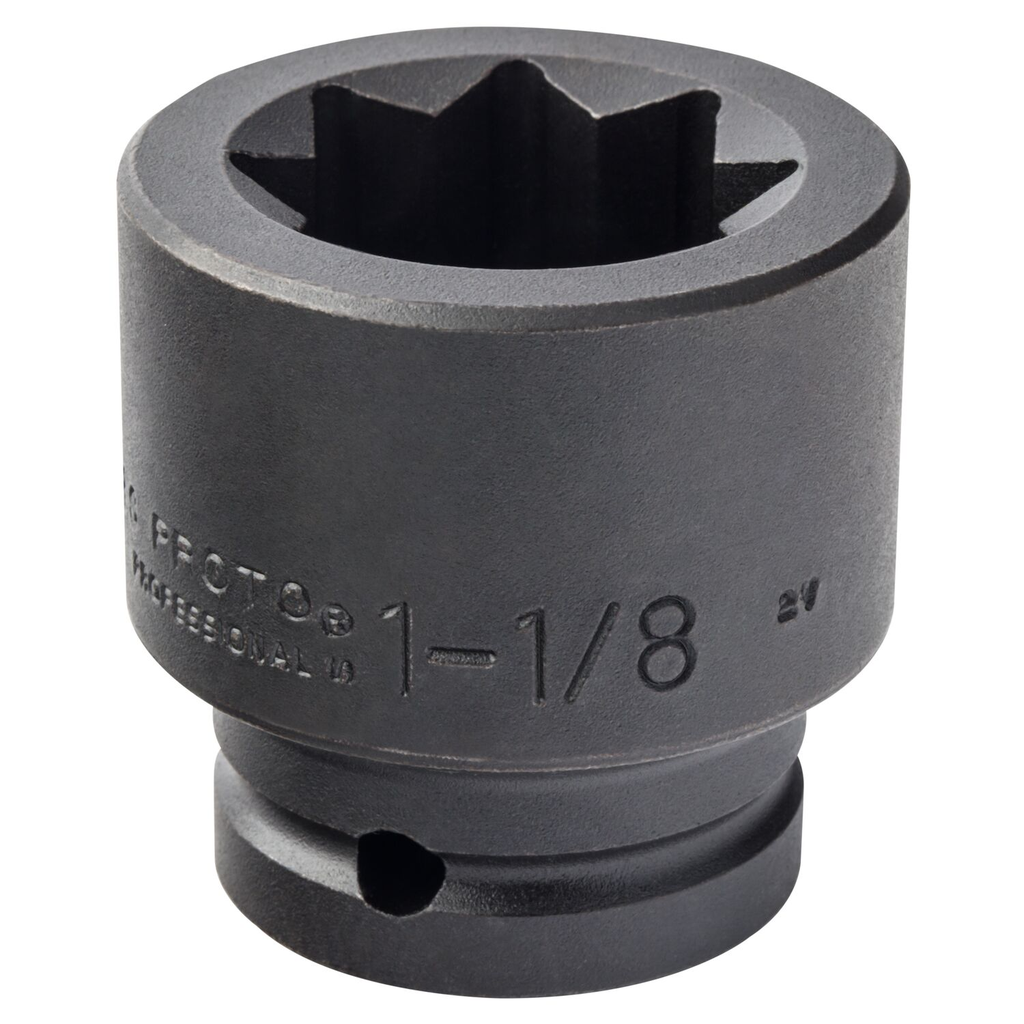

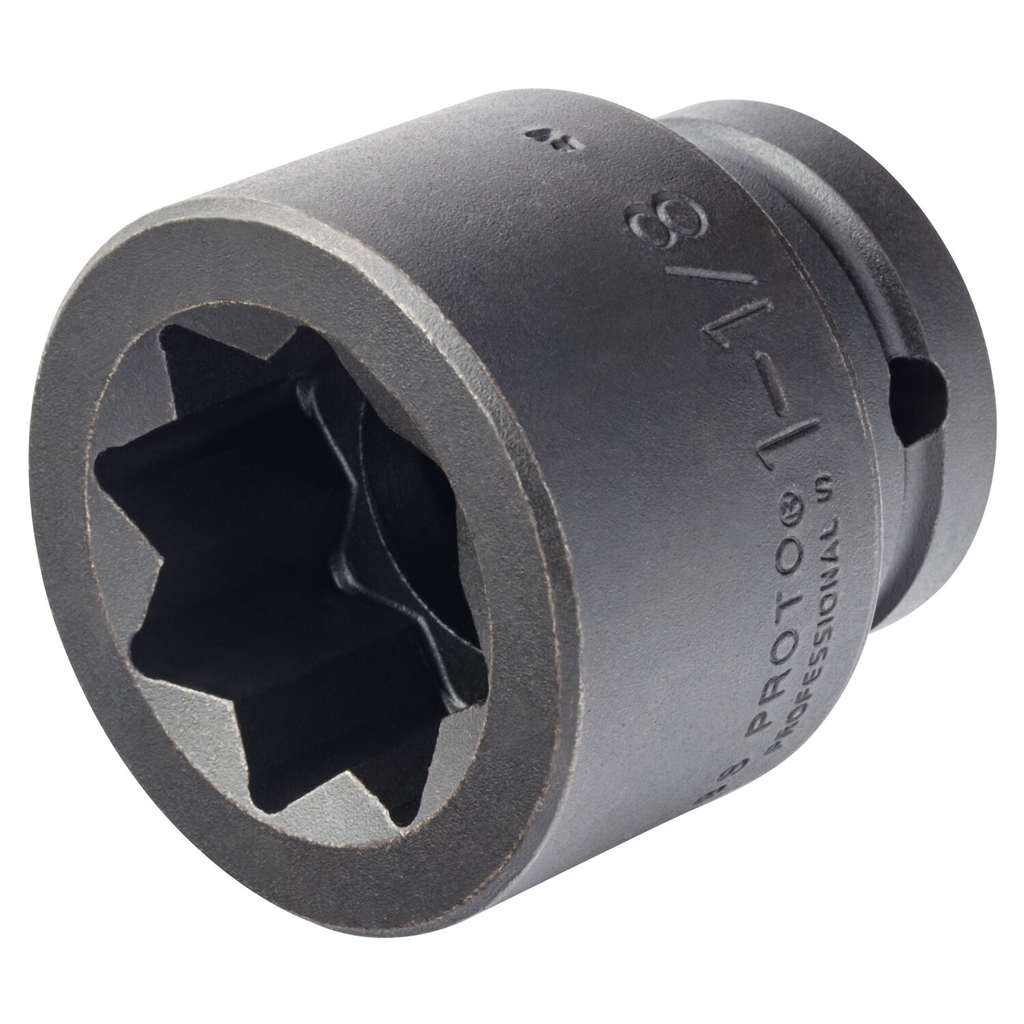

Proto, J07518S, Impact Socket, 3/4 in Drive; 1-1/8 in Size; 8 Point

Engineered for high-performance applications, this impact socket from Proto is crafted to handle the demanding torque and forces encountered with impact tools. With a robust 3/4-inch drive and a size of 1-1/8 inches, it is particularly effective for engaging stubborn or damaged fasteners, as well as those made from softer materials. Its innovative TorquePlus configuration features a unique radius-corner design that redistributes stress away from fastener corners, enhancing durability and minimizing slippage, which is especially useful for worn or rusted fasteners. The thoughtful design includes a chamfered drive end and large clearance holes for quick, positive engagement with the drive tool, making it an essential addition to any toolset looking to tackle tough jobs with ease.

Features

• Impact sockets are designed to withstand higher torque and force associated with impact tools in repetitive application
• Proto 8 Point Impact Sockets are ideal for use on stubborn or damaged fasteners, and also on fasteners made from soft materials
• Drive end chamfer and four detents help provide quick positive engagement with drive tool on any of the socket drive walls
• The TorquePlus configuration employs a radius-corner design, shifting contact area and stress away from the fastener corners and distributing contact stresses over a large area of the socket, minimizing slippage
• Tight tolerances for snug fit on fastener
• Large clearance holes, concentric opening and nut end chamfer make it easy to position socket on fasteners
• The TorquePlus design is a high performance drive configuration which allows for quick and easy socket engagement to the fastener flats, not the corners
• The TorquePlus internal design minimizes fastener rounding, helps to extend fastener life, and allows the user to more easily turn worn, rounded, or rusted fasteners
• Made from high-strength steel to help minimize wall thickness and provide access to fasteners in recesses and where nuts and bolts protrude
• Features two through holes and a groove to accept a Proto Retaining Ring or pin and o-ring to help secure the socket to the drive tool anvil

• Drive Size: 3/4 in
• Socket Size: 1 1/8 in
• Points: 8 Point
• Length: 2.200 in
• Width: 2.200 in
• Height: 2.200 in
• Weight: 1.420 lbs
• Impact Type: Impact
• Material: High-strength steel
• Color Coded: No
• Country of Origin: United States
• Unit Of Measure: SAE
• Etched Or Stamped: Yes
