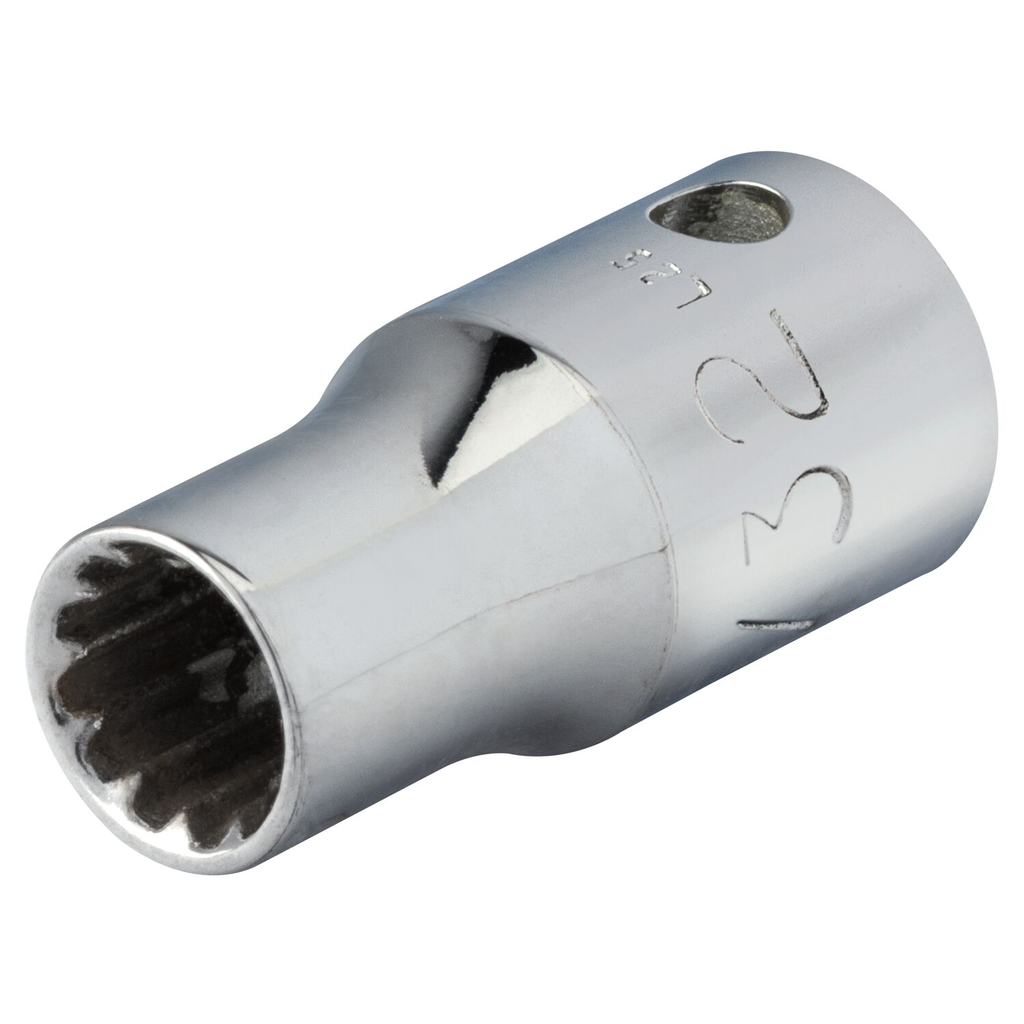

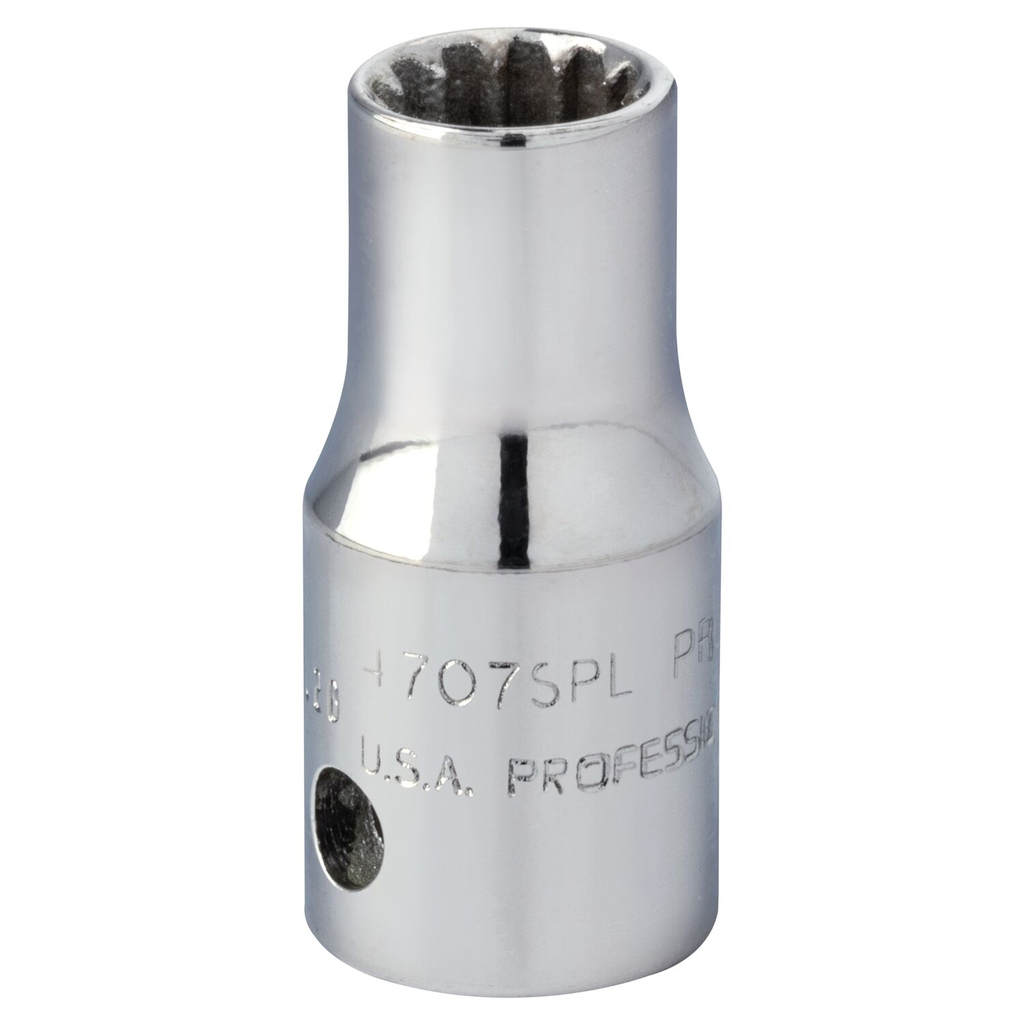

Proto, J4707SPL, Spline Socket, 7/32 in, 1/4 in Drive, Metal, Full Polish Chrome

Designed for robust performance under demanding conditions, this spline socket from Proto is engineered to accommodate the high tensile strength fasteners commonly found in military, commercial aircraft, and heavy machinery applications. With its precise fit, this 7/32-inch socket not only reduces the risk of foreign object debris but also helps enhance efficiency by delivering up to twice the torque compared to traditional 12-point wrenches, facilitating high performance in automotive and industrial tasks. The full polish chrome finish provides durability and corrosion resistance, making it a reliable choice for tightening high-strength bolts without rounding, even in cases where fasteners have damaged corners. This socket is an essential addition to any toolkit aimed at achieving performance and longevity in demanding environments.

Features

• Proto Spline tools are designed to service high tensile strength fasteners used widely on military and commercial aircraft and in heavy machinery applications where vibration is prevalent. They are also used in automotive and industrial areas where high performance torque needs to be achieved.
• Spline helps reduce foreign object debris (FOD) by having a precise fit between the fastening tool and its fastener.
• Spline sockets on spline fasteners help deliver twice the torque of 12 point wrenches on double box fasteners, and more torque than hex wrenches on hex fasteners.
• Spline sockets help tighten high strength bolts to high torque loads. They help lower the force required to turn standard fasteners by allowing the torque load to be moved away from the corners to help prevent fastener rounding. They also turn fasteners with damaged corners.

Prop 65

• No

• Size: 7/32 in
• Drive Size: 1/4 in
• Length: 0.9 in
• Width: 0.4 in
• Height: 0.4 in
• Weight: 0.02 lbs
• Material: Metal
• Finish: Full Polish Chrome
• Product Type: Spline Socket
• Impact Or Standard: Standard
• Etched Or Stamped: Yes
• Country of Origin: United States
• Unit Of Measure: SAE
• Points: Not Applicable
• Color Coded: No
• Deep Sockets Included: No
